Page 1577 of 3383

INFINITI QX56 2006 Factory Service Manual EC-366Revision: November 2009
DTC P0442 EVAP CONTROL SYSTEM
2006 QX56
CAUTION:
Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used,
the MIL may come on

Page 1578 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0442 EVAP CONTROL SYSTEMEC-367
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56

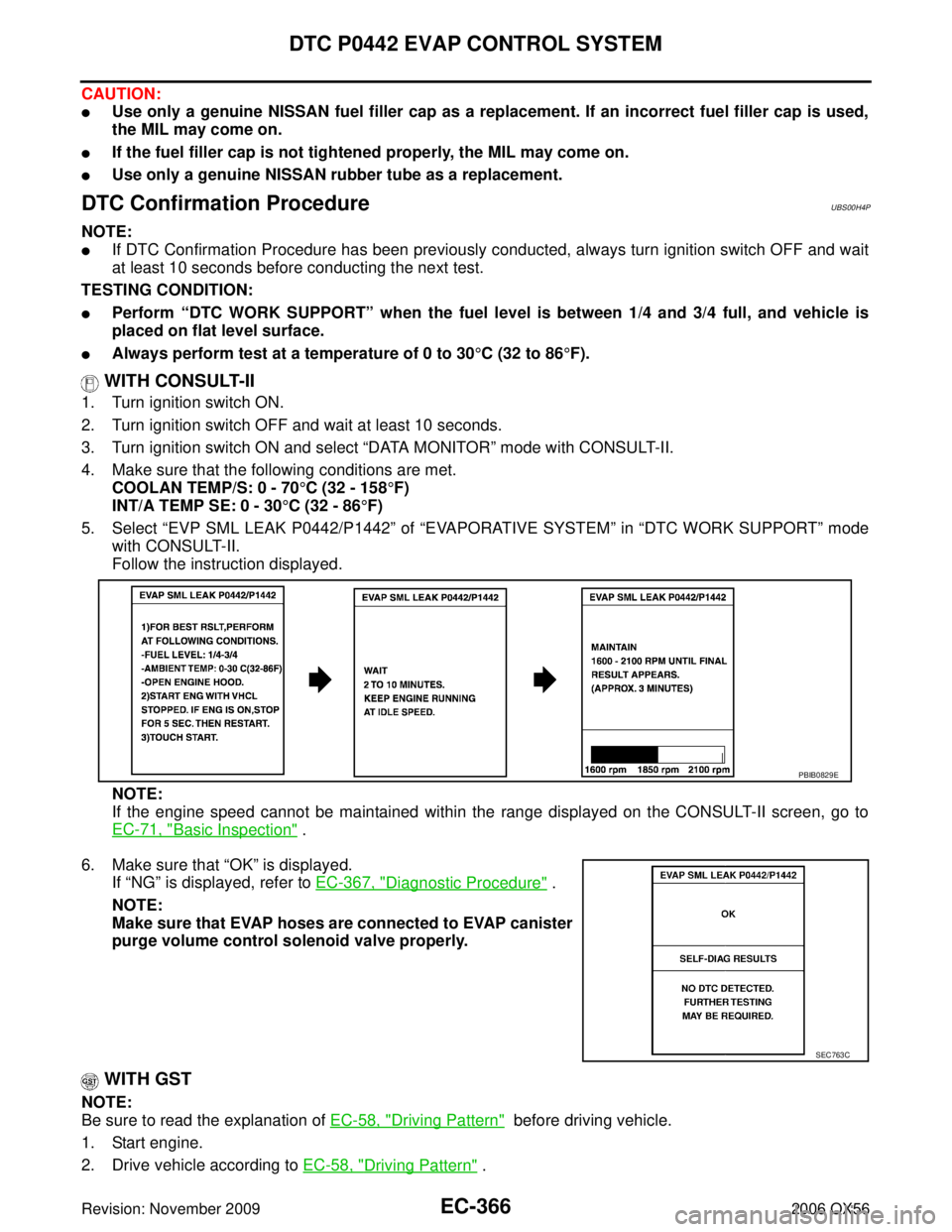

3. Stop vehicle.
4. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
5. Select Servi

Page 1579 of 3383

INFINITI QX56 2006 Factory Service Manual EC-368Revision: November 2009
DTC P0442 EVAP CONTROL SYSTEM
2006 QX56

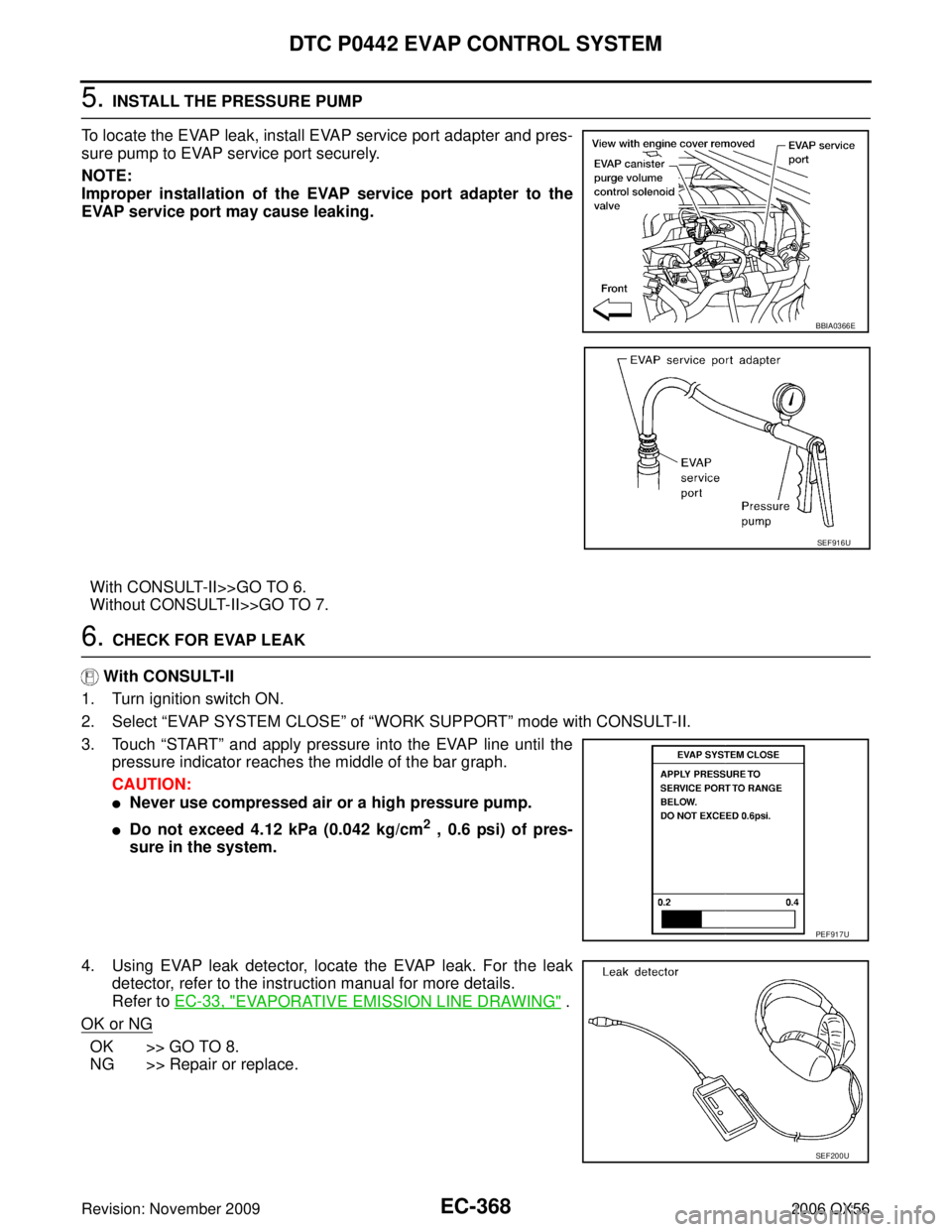

5. INSTALL THE PRESSURE PUMP
To locate the EVAP leak, install EVAP service port adapter and pres-
sure pump to EVAP service port s

Page 1580 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0442 EVAP CONTROL SYSTEMEC-369
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56

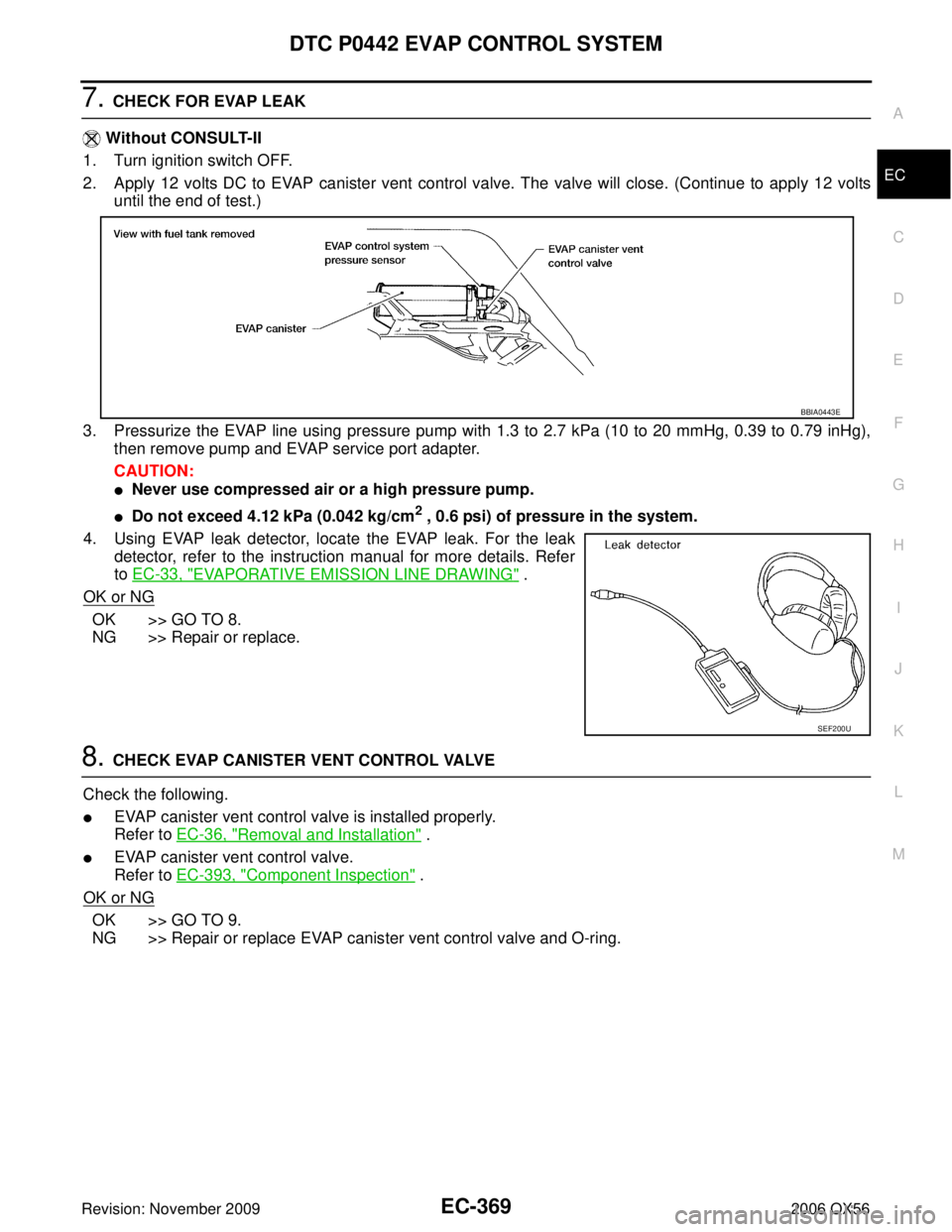

7. CHECK FOR EVAP LEAK
Without CONSULT-II
1. Turn ignition switch OFF.
2. Apply 12 volts DC to EVAP ca

Page 1581 of 3383

INFINITI QX56 2006 Factory Service Manual EC-370Revision: November 2009
DTC P0442 EVAP CONTROL SYSTEM
2006 QX56

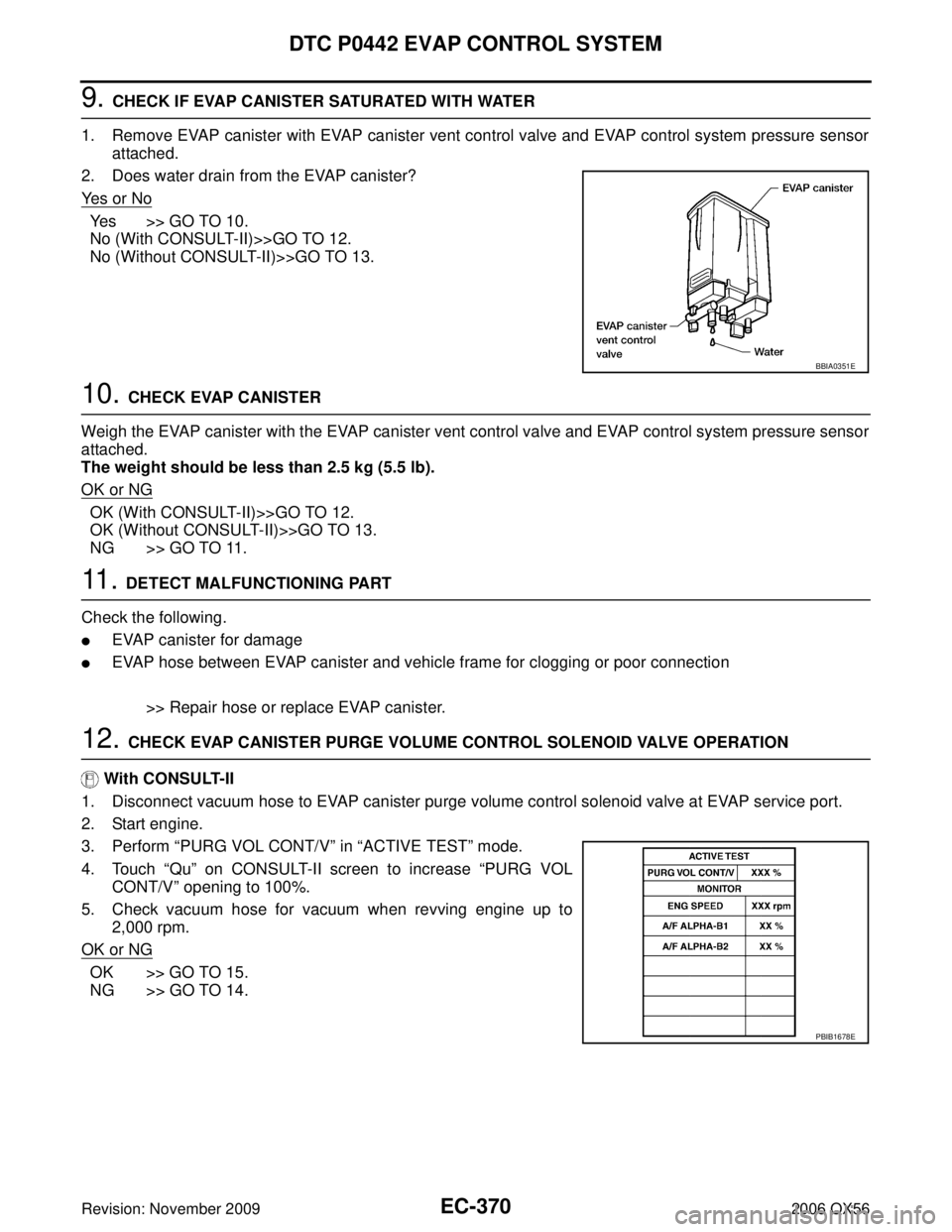

9. CHECK IF EVAP CANISTER SATURATED WITH WATER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control syst

Page 1582 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0442 EVAP CONTROL SYSTEMEC-371
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
13. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
Without CONSULT-II
1. Start engi

Page 1583 of 3383

INFINITI QX56 2006 Factory Service Manual EC-372Revision: November 2009
DTC P0442 EVAP CONTROL SYSTEM
2006 QX56
20. CHECK EVAP/ORVR LINE
Check EVAP/ORVR line between EVAP canister and fuel tank for clogging, kink, looseness and improper con-

Page 1584 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVEEC-373
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
PFP:14920
Desc

DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVEEC-373
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
PFP:14920
DescriptionUBS00HAT
SYSTEM DESCRIPTION
*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM through CAN communication line.
This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass pas-
sage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP
canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the
ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is
determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor
from the EVAP canister is regulated as the air flow changes.
COMPONENT DESCRIPTION
The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.
CONSULT-II Reference Value in Data Monitor ModeUBS00HAU
Specification data are reference values.
SensorInput signal to ECMECM functionActuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
1
EVAP canister
purge flow controlEVAP canister purge vol-
ume control solenoid valve
Mass air flow sensor
Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Battery Battery voltage*
1
Throttle position sensorThrottle position
Accelerator pedal position sensor Accelerator pedal position
Air fuel ratio (A/F) sensor 1 Density of oxygen in exhaust gas
(Mixture ratio feedback signal)
Fuel tank temperature sensor Fuel temperature in fuel tank
Wheel sensor Vehicle speed*
2
PBIB2057E
MONITOR ITEM CONDITION SPECIFICATION
PURG VOL C/V
Engine: After warming up
Air conditioner switch: OFF
Selector lever: P or N
No load Idle
(Accelerator pedal: Not depressed
even slightly, after starting engine)
0%
2,000 rpm —
