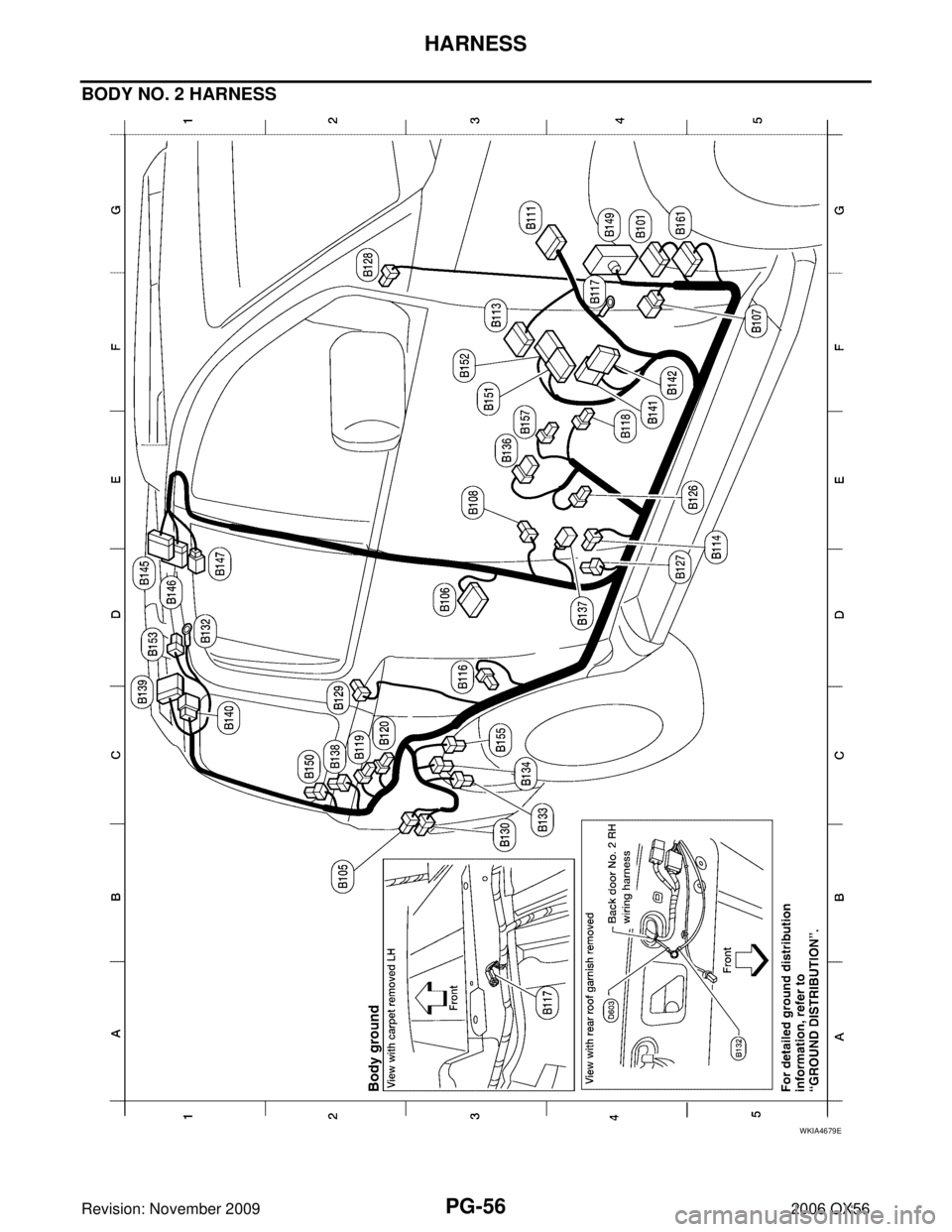

INFINITI QX56 2006 Factory Service Manual PG-56 HARNESS Revision: November 20092006 QX56 BODY NO. 2 HARNESS WKIA4679E

Page 2698 of 3383

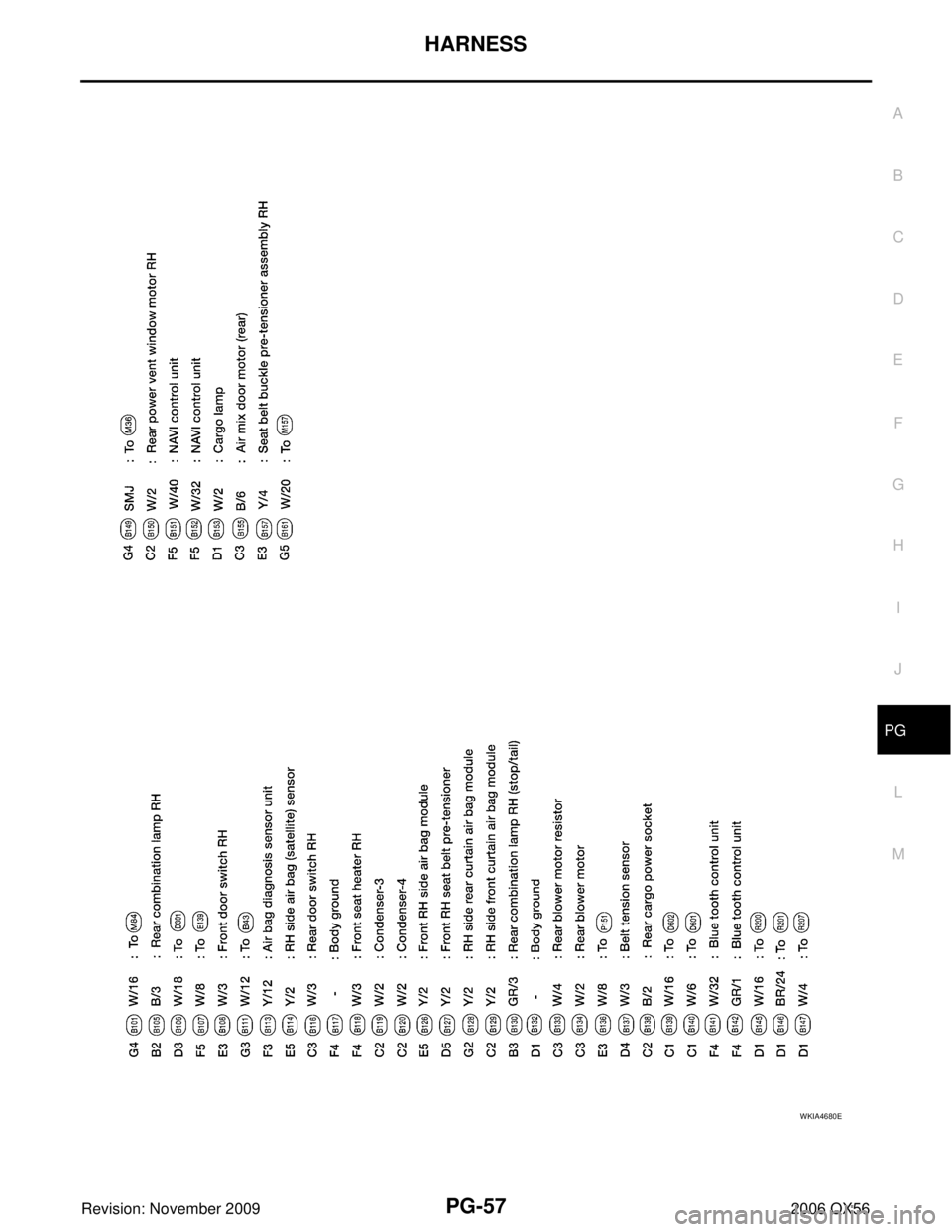

INFINITI QX56 2006 Factory Service Manual HARNESSPG-57 C DE F G H I J L M A B PG Revision: November 2009 2006 QX56 WKIA4680E

Page 2699 of 3383

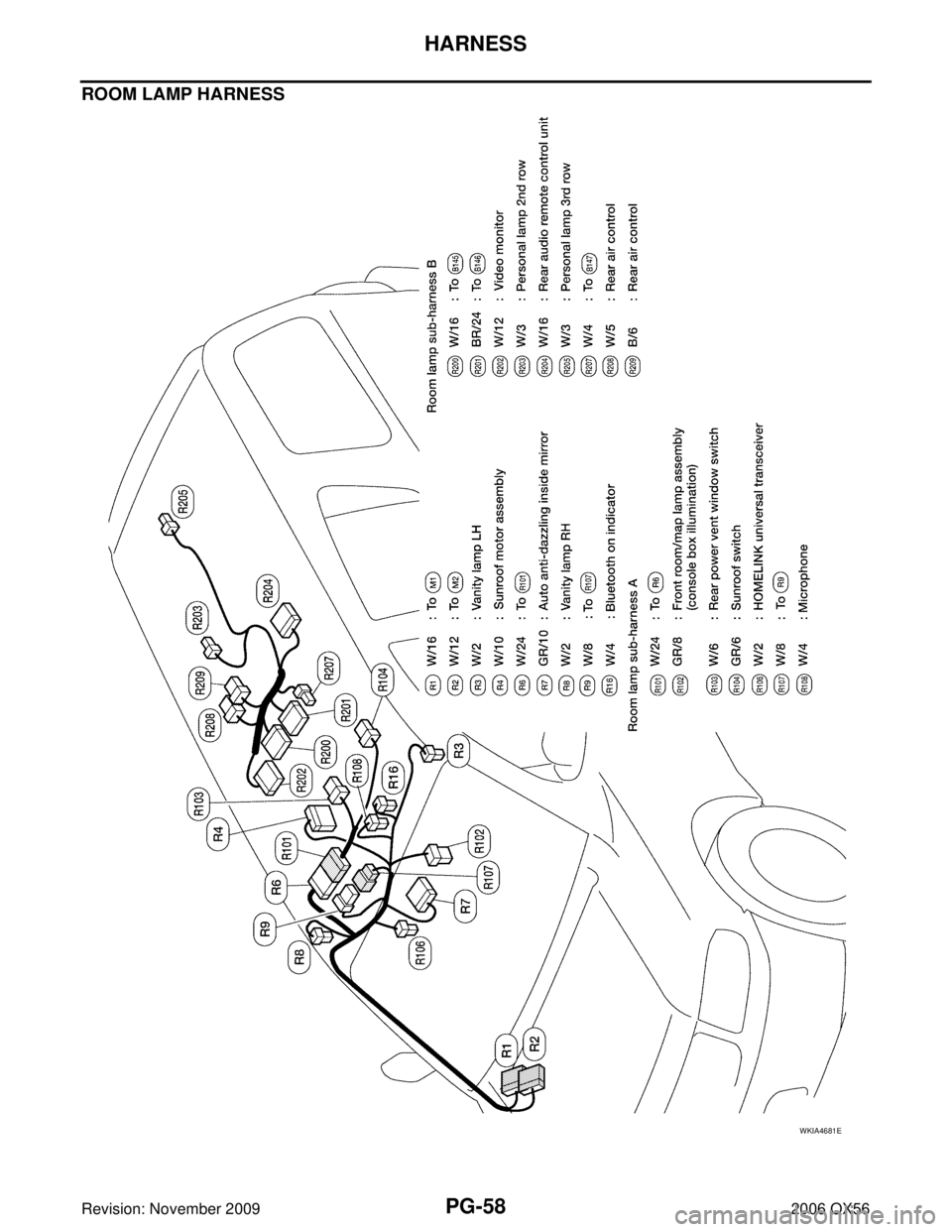

INFINITI QX56 2006 Factory Service Manual PG-58 HARNESS Revision: November 20092006 QX56 ROOM LAMP HARNESS WKIA4681E

Page 2700 of 3383

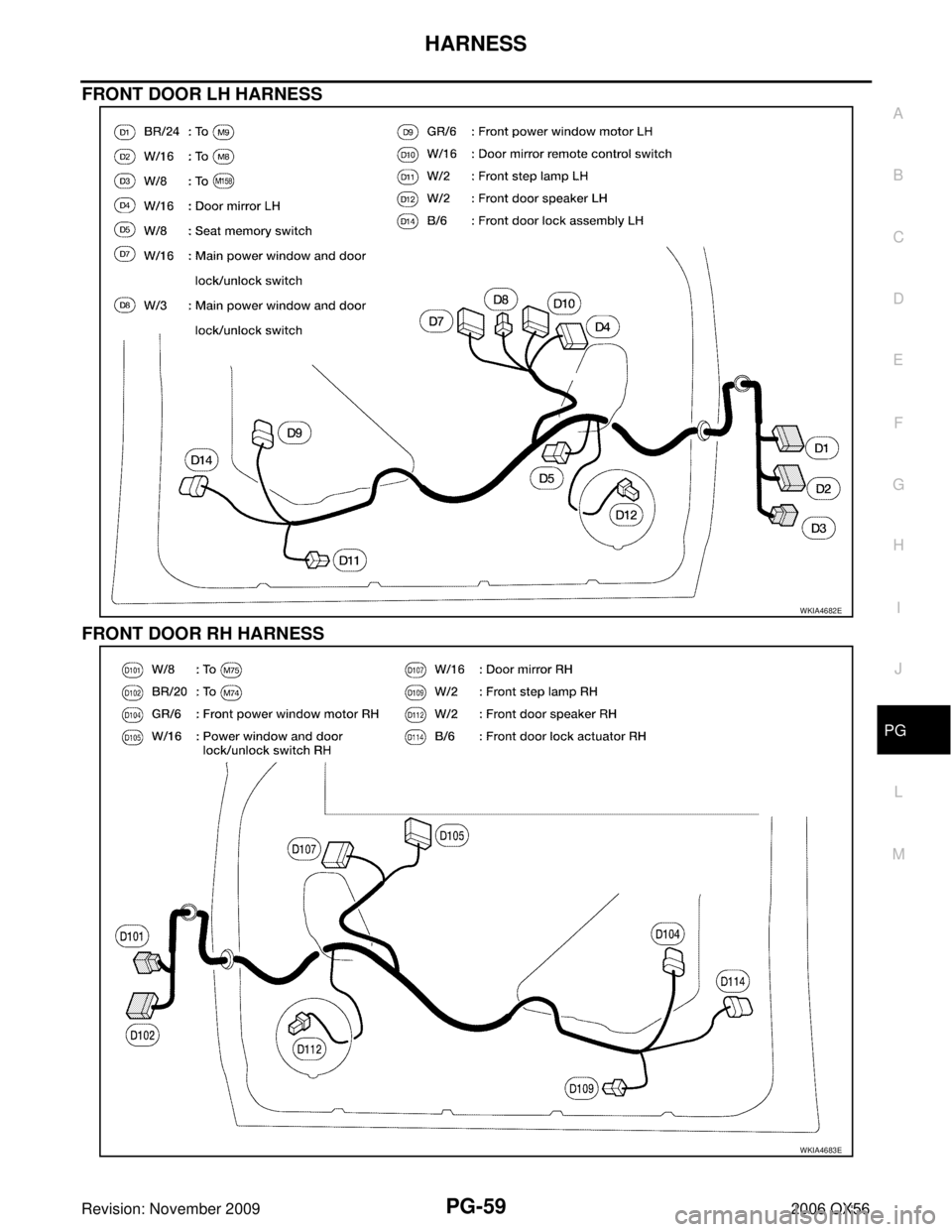

INFINITI QX56 2006 Factory Service Manual HARNESSPG-59 C DE F G H I J L M A B PG Revision: November 2009 2006 QX56 FRONT DOOR LH HARNESS FRONT DOOR RH HARNESS WKIA4682E WKIA4683E

Page 2701 of 3383

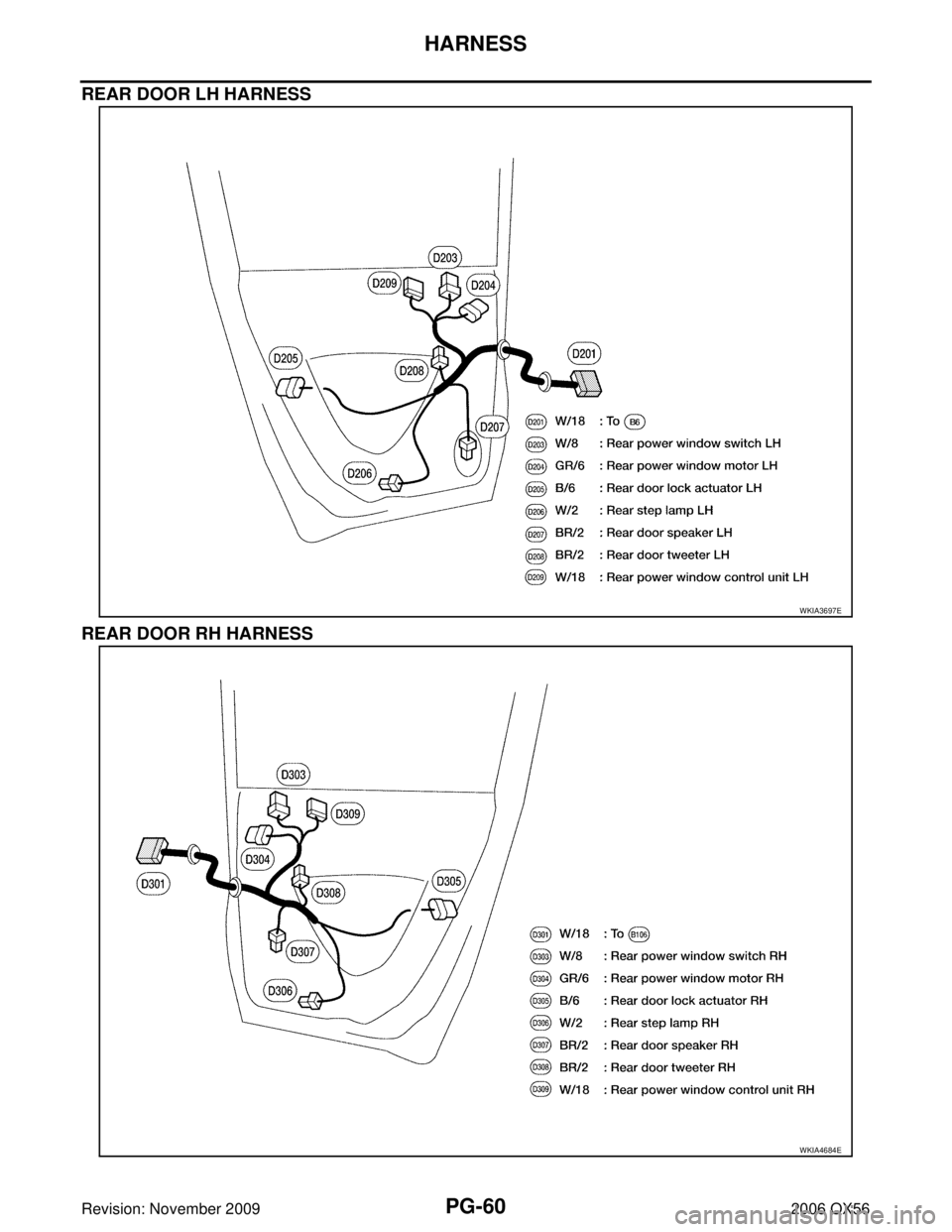

INFINITI QX56 2006 Factory Service Manual PG-60 HARNESS Revision: November 20092006 QX56 REAR DOOR LH HARNESS REAR DOOR RH HARNESS WKIA3697E WKIA4684E

Page 2702 of 3383

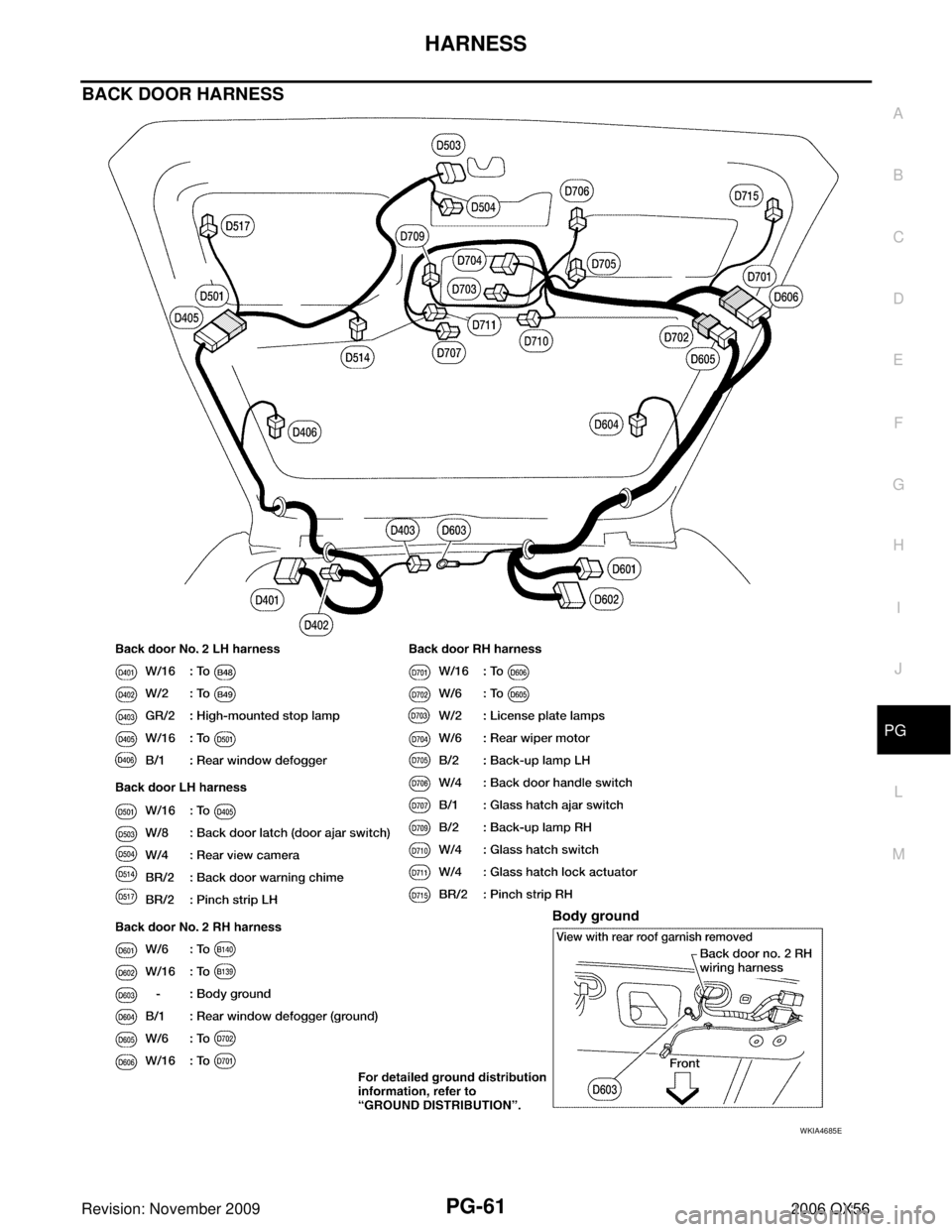

INFINITI QX56 2006 Factory Service Manual HARNESSPG-61 C DE F G H I J L M A B PG Revision: November 2009 2006 QX56 BACK DOOR HARNESS WKIA4685E

Page 2703 of 3383

INFINITI QX56 2006 Factory Service Manual PG-62 HARNESS Revision: November 20092006 QX56 Wiring Diagram Codes (Cell Codes)EKS00BNE Use the chart below to find out what each wiring diagram code stands for. Refer to the wiring diagram code in t

Page 2704 of 3383

INFINITI QX56 2006 Factory Service Manual HARNESSPG-63 C DE F G H I J L M A B PG Revision: November 2009 2006 QX56 HORNWW Horn HSEAT SE Heated Seat ICC ACS Intelligent Cruise Control ICCBOF EC ICC Brake Switch ICC/BS EC ICC Steering Swit
