HEADLAMP (FOR USA)
Revision: November 20092006 QX56
ACTIVE TEST
Operation Procedure
1. Touch "HEAD LAMP" on "SELECT TEST ITEM" screen.
2. Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching "BACK" deactivates the operation.
Display Item List
SELF-DIAGNOSTIC RESULTS
Operation Procedure
1. Touch "BCM" on "SELECT TEST ITEM" screen.
2. Touch "SELF-DIAG RESULTS" on "SELECT DIAG MODE" screen.
3. Self-diagnostic results are displayed.
Display Item List
AUTO LIGHT SW "ON/OFF"Displays status of the lighting switch as judged from the lighting switch signal. (AUTO position:
ON/Other than AUTO position: OFF)
PASSING SW "ON/OFF"Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from
lighting switch signal.
FR FOG SW "ON/OFF"Displays status (front fog lamp switch: ON/Others: OFF) of front fog lamp switch judged from
lighting switch signal.
DOOR SW-DR "ON/OFF" Displays status of the front door LH as judged from the front door LH switch signal. (Door is
open: ON/Door is closed: OFF)
DOOR SW-AS "ON/OFF" Displays status of the front door RH as judged from the front door RH switch signal. (Door is
open: ON/Door is closed: OFF)
DOOR SW-RR "ON/OFF" Displays status of the rear door as judged from the rear door switch (RH) signal. (Door is open:
ON/Door is closed: OFF)
DOOR SW-RL "ON/OFF" Displays status of the rear door as judged from the rear door switch (LH) signal. (Door is open:
ON/Door is closed: OFF)
BACK DOOR SW "ON/OFF" Displays status of the back door as judged from the back door switch signal. (Door is open:
ON/Door is closed: OFF)
TURN SIGNAL R "ON/OFF" Displays status (Turn right: ON/Others: OFF) as judged from lighting switch signal.
TURN SIGNAL L "ON/OFF" Displays status (Turn left: ON/Others: OFF) as judged from lighting switch signal.
CARGO LAMP SW "ON/OFF" Displays status of cargo lamp switch.
OPTICAL SENSOR [0 - 5V] Displays "ambient light (close to 5V when dark/close to 0V when light)" judged from optical
sensor signal.
Monitor item
Contents
Test itemDescription
TAIL LAMP Allows tail lamp relay to operate by switching ON-OFF.
HEAD LAMP Allows headlamp relay (HI, LO) to operate by switching ON-OFF.
FR FOG LAMP Allows fog lamp relay to operate by switching ON-OFF.
CARGO LAMP Allows cargo lamp to operate by switching ON-OFF.
CORNERING LAMP Not used.
Monitored item CONSULT-ll display Description
CAN communication CAN communication [U1000] Malfunction is detected in CAN communication.
CAN communication system CAN communication system 1 to 6 [U1000] Malfunction is detected in CAN system.
Page 2426 of 3383

HEADLAMP (FOR USA)LT-19
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
CONSULT-II Function (IPDM E/R)EKS00B82
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

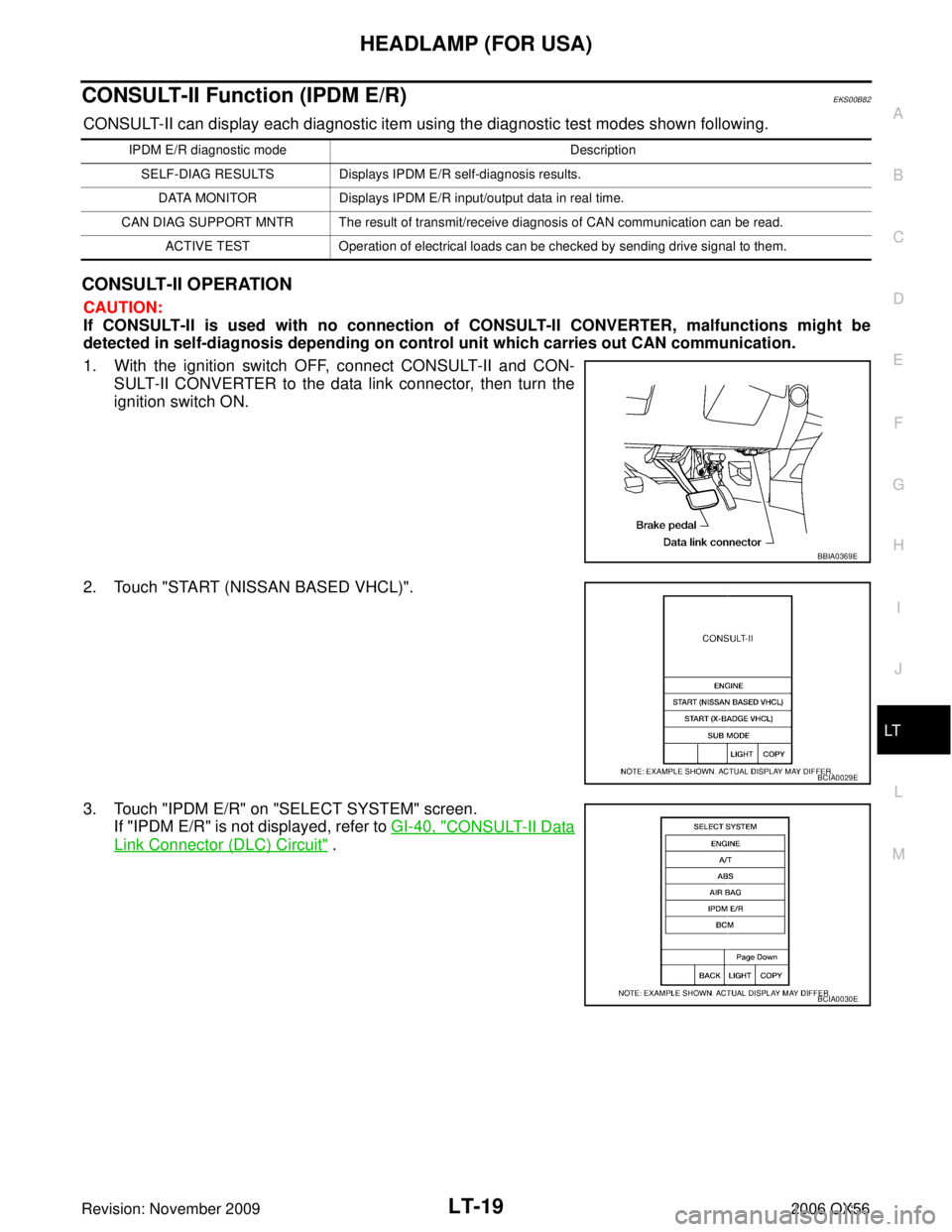

1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn the
ignition switch ON.
2. Touch "START (NISSAN BASED VHCL)".
3. Touch "IPDM E/R" on "SELECT SYSTEM" screen. If "IPDM E/R" is not displayed, refer to GI-40, "
CONSULT-II Data
Link Connector (DLC) Circuit" .
IPDM E/R diagnostic mode Description
SELF-DIAG RESULTS Displays IPDM E/R self-diagnosis results. DATA MONITOR Displays IPDM E/R input/output data in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read. ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
BBIA0369E
BCIA0029E
BCIA0030E
Page 2427 of 3383

LT-20
HEADLAMP (FOR USA)
Revision: November 20092006 QX56
4. Select the desired part to be diagnosed on the "SELECT DIAG
MODE" screen.
DATA MONITOR
Operation Procedure
1. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
2. Touch "ALL SIGNALS", "MAIN SIGNALS" or "SELECTION FROM MENU" on the "SELECT MONITOR
ITEM" screen.
3. Touch "START".
4. Touch the required monitoring item on "SELECTION FROM MENU". In "ALL SIGNALS", all items are monitored. In "MAIN SIGNALS", predetermined items are monitored.
5. Touch "RECORD" while monitoring to record the status of the item being monitored. To stop recording, touch "STOP".
All Items, Main Items, Select Item Menu
NOTE:
Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is at ACC, the dis-
play may not be correct.
ACTIVE TEST
Operation Procedure
1. Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.
2. Touch "EXTERNAL LAMPS" on "SELECT TEST ITEM" screen.
3. Touch item to be tested, and check operation.
4. Touch "START".
5. Touch "STOP" while testing to stop the operation.
BCIA0031E
ALL SIGNALS All items will be monitored.
MAIN SIGNALS Monitor the predetermined item.
SELECTION FROM MENU Select any item for monitoring.
Item name CONSULT-II
screen display Display or
unit Monitor item selection
Description
ALL
SIGNALS MAIN
SIGNALS SELECTION
FROM MENU
Parking, license plate
and tail lamps request TAIL&CLR REQ ON/OFF
×× ×Signal status input from BCM
Headlamp low beam
request HL LO REQ ON/OFF
×× × Signal status input from BCM
Headlamp high beam
request HL HI REQ ON/OFF
×× × Signal status input from BCM
Daytime lights request DTRL REQ ON/OFF ×– ×Signal status input from BCM
Front fog lamps request FR FOG REQ ON/OFF ×× ×Signal status input from BCM
Page 2428 of 3383

HEADLAMP (FOR USA)LT-21
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Headlamp HI Does Not Illuminate (Both Sides)EKS00B83

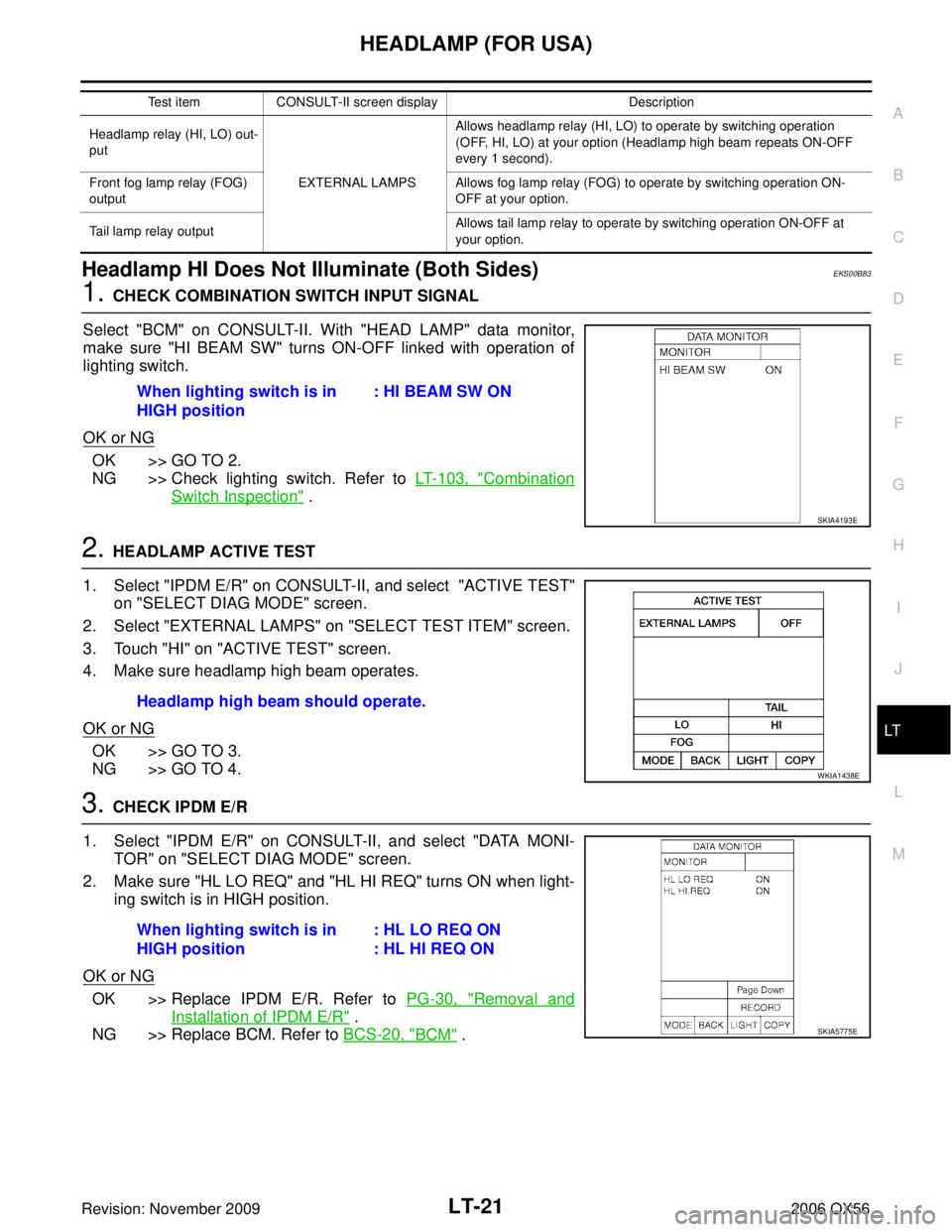

1. CHECK COMBINATION SWITCH INPUT SIGNAL
Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor,
make sure "HI BEAM SW" turns ON-OFF linked with operation of
lighting switch.
OK or NG
OK >> GO TO 2.
NG >> Check lighting switch. Refer to LT- 1 0 3 , "
Combination
Switch Inspection" .
2. HEADLAMP ACTIVE TEST
1. Select "IPDM E/R" on CONSULT-II, and select "ACTIVE TEST" on "SELECT DIAG MODE" screen.
2. Select "EXTERNAL LAMPS" on "SELECT TEST ITEM" screen.
3. Touch "HI" on "ACTIVE TEST" screen.
4. Make sure headlamp high beam operates.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
3. CHECK IPDM E/R
1. Select "IPDM E/R" on CONSULT-II, and select "DATA MONI- TOR" on "SELECT DIAG MODE" screen.
2. Make sure "HL LO REQ" and "HL HI REQ" turns ON when light- ing switch is in HIGH position.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and
Installation of IPDM E/R" .
NG >> Replace BCM. Refer to BCS-20, "
BCM" .
Test itemCONSULT-II screen display Description
Headlamp relay (HI, LO) out-
put EXTERNAL LAMPSAllows headlamp relay (HI, LO) to operate by switching operation
(OFF, HI, LO) at your option (Headlamp high beam repeats ON-OFF
every 1 second).
Front fog lamp relay (FOG)
output Allows fog lamp relay (FOG) to operate by switching operation ON-
OFF at your option.
Tail lamp relay output Allows tail lamp relay to operate by switching operation ON-OFF at
your option.
When lighting switch is in
HIGH position: HI BEAM SW ON
SKIA4193E
Headlamp high beam should operate.
WKIA1438E
When lighting switch is in
HIGH position: HL LO REQ ON
: HL HI REQ ON
SKIA5775E
Page 2429 of 3383

LT-22
HEADLAMP (FOR USA)
Revision: November 20092006 QX56

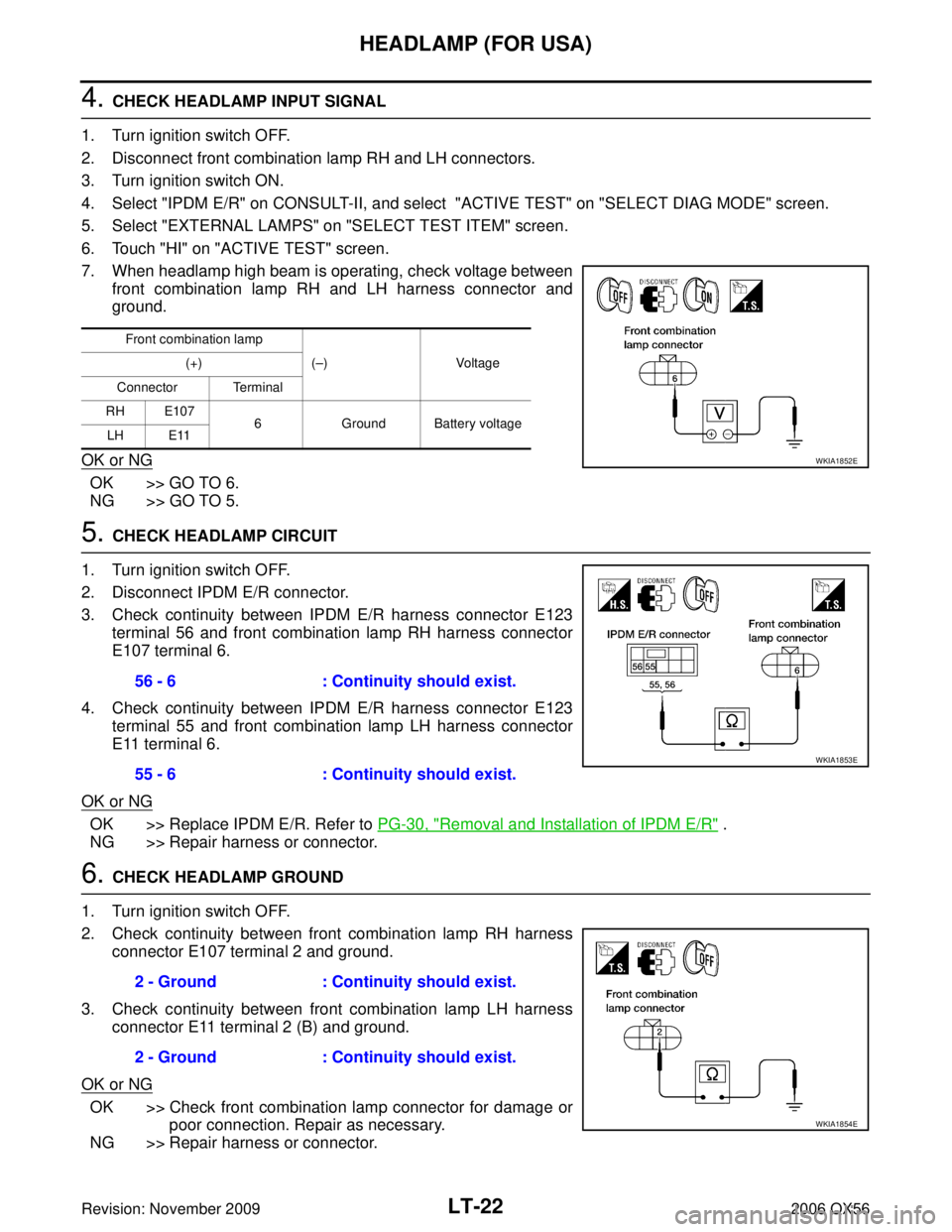

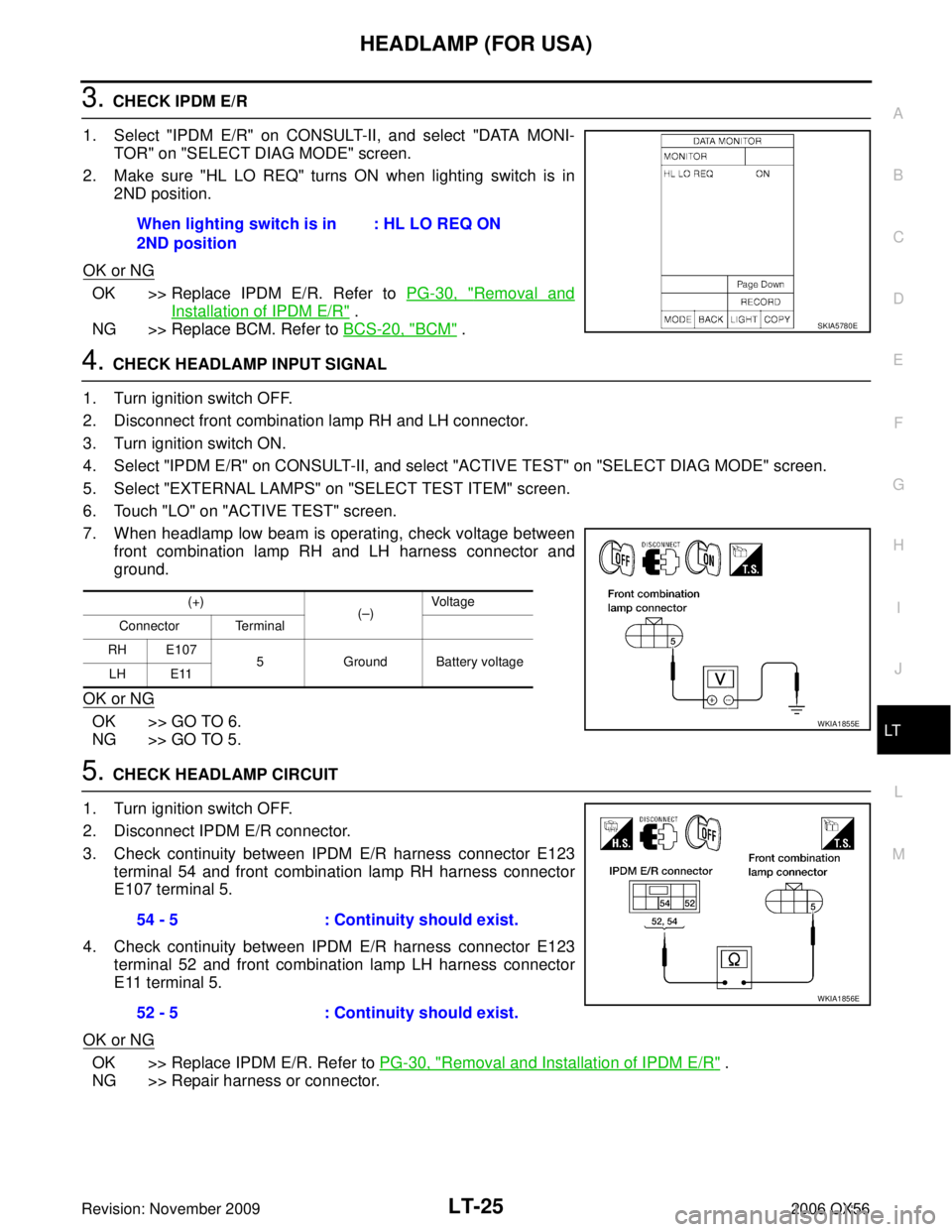

4. CHECK HEADLAMP INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH and LH connectors.
3. Turn ignition switch ON.
4. Select "IPDM E/R" on CONSULT-II, and select "ACTIVE TEST" on "SELECT DIAG MODE" screen.
5. Select "EXTERNAL LAMPS" on "SELECT TEST ITEM" screen.
6. Touch "HI" on "ACTIVE TEST" screen.
7. When headlamp high beam is operating, check voltage between front combination lamp RH and LH harness connector and
ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. CHECK HEADLAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector E123 terminal 56 and front combination lamp RH harness connector
E107 terminal 6.
4. Check continuity between IPDM E/R harness connector E123 terminal 55 and front combination lamp LH harness connector
E11 terminal 6.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and Installation of IPDM E/R" .
NG >> Repair harness or connector.
6. CHECK HEADLAMP GROUND
1. Turn ignition switch OFF.
2. Check continuity between front combination lamp RH harness connector E107 terminal 2 and ground.
3. Check continuity between front combination lamp LH harness connector E11 terminal 2 (B) and ground.
OK or NG
OK >> Check front combination lamp connector for damage or poor connection. Repair as necessary.
NG >> Repair harness or connector.
Front combination lamp
(– ) Voltage
(+)
Connector Terminal
RH E107 6Ground Battery voltage
LH E11
WKIA1852E
56 - 6 : Continuity should exist.
55 - 6 : Continuity should exist.
WKIA1853E
2 - Ground: Continuity should exist.
2 - Ground : Continuity should exist.
WKIA1854E
Page 2430 of 3383

HEADLAMP (FOR USA)LT-23
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Headlamp HI Does Not Illuminate (One Side)EKS00B84
1. BULB INSPECTION
Inspect inoperative headlamp bulb.
OK or NG
OK >> GO TO 2.
NG >> Replace headlamp bulb. Refer to LT- 3 1 , "
HEADLAMP (INNER SIDE), FOR HIGH BEAM" .

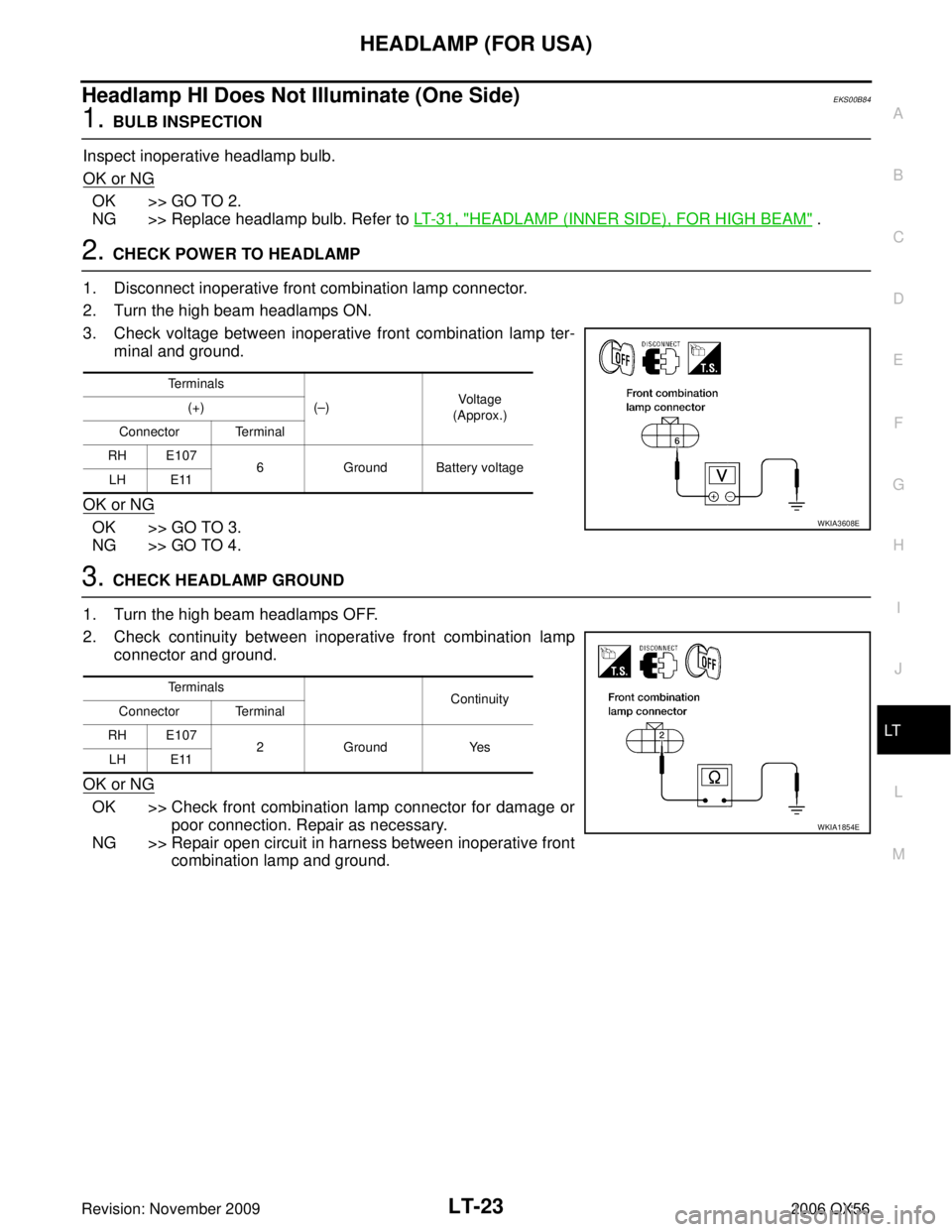

2. CHECK POWER TO HEADLAMP
1. Disconnect inoperative front combination lamp connector.
2. Turn the high beam headlamps ON.
3. Check voltage between inoperative front combination lamp ter- minal and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
3. CHECK HEADLAMP GROUND
1. Turn the high beam headlamps OFF.
2. Check continuity between inoperative front combination lamp connector and ground.
OK or NG
OK >> Check front combination lamp connector for damage or poor connection. Repair as necessary.
NG >> Repair open circuit in harness between inoperative front combination lamp and ground.
Terminals
(– ) Voltage
(Approx.)
(+)
Connector Terminal
RH E107 6Ground Battery voltage
LH E11
WKIA3608E
Terminals Continuity
Connector Terminal
RH E107 2Ground Yes
LH E11
WKIA1854E
Page 2431 of 3383

LT-24
HEADLAMP (FOR USA)
Revision: November 20092006 QX56

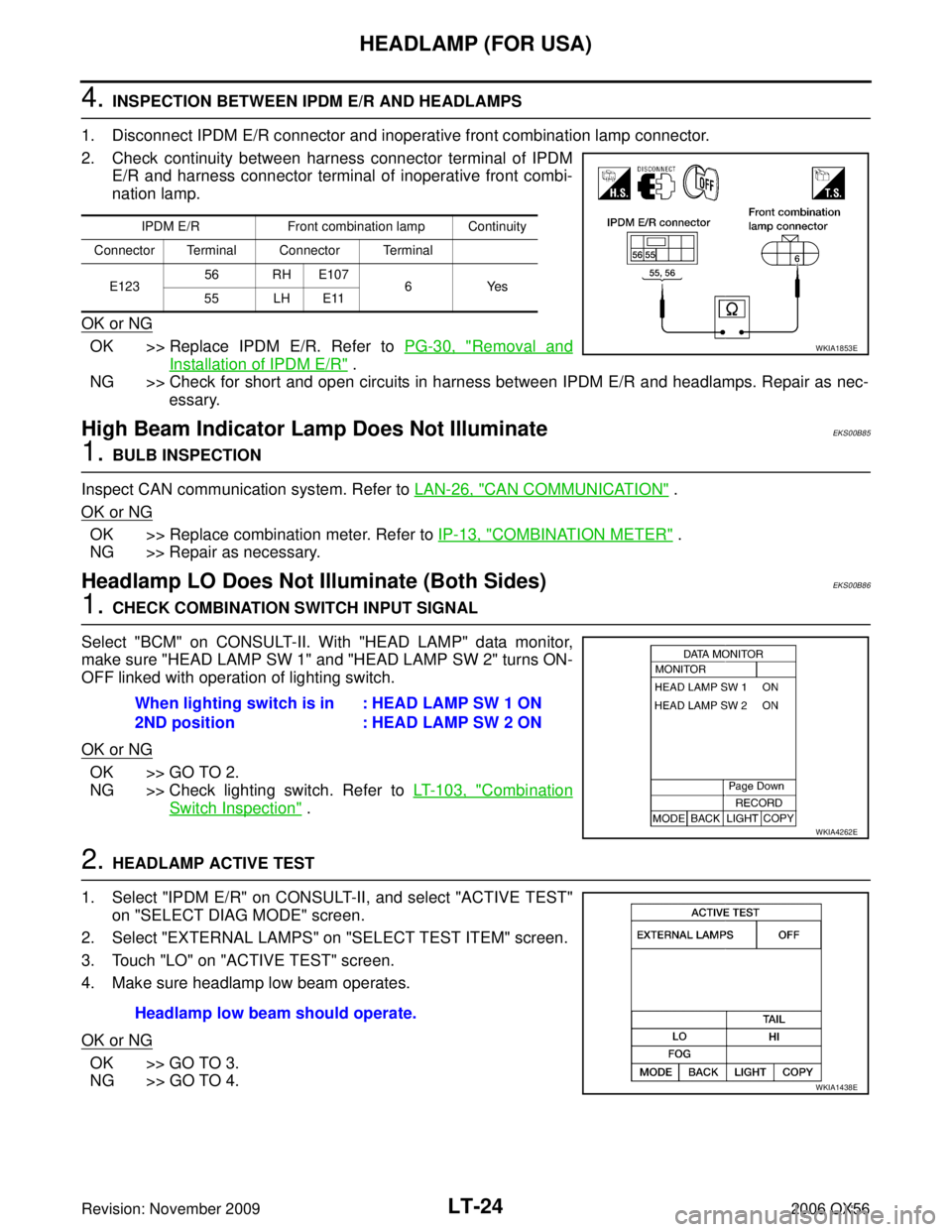

4. INSPECTION BETWEEN IPDM E/R AND HEADLAMPS
1. Disconnect IPDM E/R connector and inoperative front combination lamp connector.
2. Check continuity between harness connector terminal of IPDM E/R and harness connector terminal of inoperative front combi-
nation lamp.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and
Installation of IPDM E/R" .
NG >> Check for short and open circuits in harness between IPDM E/R and headlamps. Repair as nec- essary.
High Beam Indicator Lamp Does Not IlluminateEKS00B85
1. BULB INSPECTION
Inspect CAN communication system. Refer to LAN-26, "
CAN COMMUNICATION" .
OK or NG
OK >> Replace combination meter. Refer to IP-13, "COMBINATION METER" .
NG >> Repair as necessary.
Headlamp LO Does Not Illuminate (Both Sides)EKS00B86
1. CHECK COMBINATION SWITCH INPUT SIGNAL
Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor,
make sure "HEAD LAMP SW 1" and "HEAD LAMP SW 2" turns ON-
OFF linked with operation of lighting switch.
OK or NG
OK >> GO TO 2.
NG >> Check lighting switch. Refer to LT- 1 0 3 , "
Combination
Switch Inspection" .
2. HEADLAMP ACTIVE TEST
1. Select "IPDM E/R" on CONSULT-II, and select "ACTIVE TEST" on "SELECT DIAG MODE" screen.
2. Select "EXTERNAL LAMPS" on "SELECT TEST ITEM" screen.
3. Touch "LO" on "ACTIVE TEST" screen.
4. Make sure headlamp low beam operates.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
IPDM E/R Front combination lamp Continuity
Connector Terminal Connector Terminal
E123 56 RH E107
6Yes
55 LH E11
WKIA1853E
When lighting switch is in
2ND position : HEAD LAMP SW 1 ON
: HEAD LAMP SW 2 ON
WKIA4262E
Headlamp low beam should operate.
WKIA1438E
Page 2432 of 3383

HEADLAMP (FOR USA)LT-25
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
3. CHECK IPDM E/R
1. Select "IPDM E/R" on CONSULT-II, and select "DATA MONI- TOR" on "SELECT DIAG MODE" screen.
2. Make sure "HL LO REQ" turns ON when lighting switch is in 2ND position.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and
Installation of IPDM E/R" .
NG >> Replace BCM. Refer to BCS-20, "
BCM" .
4. CHECK HEADLAMP INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH and LH connector.
3. Turn ignition switch ON.
4. Select "IPDM E/R" on CONSULT-II, and select "ACTIVE TEST" on "SELECT DIAG MODE" screen.
5. Select "EXTERNAL LAMPS" on "SELECT TEST ITEM" screen.
6. Touch "LO" on "ACTIVE TEST" screen.
7. When headlamp low beam is operating, check voltage between front combination lamp RH and LH harness connector and
ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. CHECK HEADLAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector E123 terminal 54 and front combination lamp RH harness connector
E107 terminal 5.
4. Check continuity between IPDM E/R harness connector E123 terminal 52 and front combination lamp LH harness connector
E11 terminal 5.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and Installation of IPDM E/R" .
NG >> Repair harness or connector. When lighting switch is in
2ND position
: HL LO REQ ON
SKIA5780E
(+)
(– ) Voltage
Connector Terminal
RH E107 5Ground Battery voltage
LH E11
WKIA1855E
54 - 5 : Continuity should exist.
52 - 5 : Continuity should exist.
WKIA1856E
