6. CHECK HEADLAMP GROUND
1. Turn ignition switch OFF.
2. Check continuity between front combination lamp RH harness connector E107 terminal 1 and ground.
3. Check continuity between front combination lamp LH harness connector E11 terminal 1 and ground.
OK or NG
OK >> Check front combination lamp connector for damage or poor connection, ballasts (HID control unit) and xenon
bulbs. Repair as necessary.
NG >> Repair harness or connector.
Headlamp LO Does Not Illuminate (One Side)EKS00B87
1. BULB INSPECTION
Inspect ballasts (HID control unit) and xenon bulb of inoperative headlamp bulb.
OK or NG
OK >> GO TO 2.
NG >>
(step1) Replace xenon bulb with other side bulb or new one. (If lamp illuminates correctly,
replace the xenon bulb).
(step2) Replace ballast (HID control unit) with other side ballast or new one. (If lamp illuminates
correctly, replace the ballast).
2. CHECK POWER TO HEADLAMP
1. Disconnect inoperative front combination lamp connector.
2. Turn the low beam headlamps ON.
3. Check voltage between inoperative front combination lamp con- nector terminal and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4. 1 - Ground
: Continuity should exist.
1 - Ground : Continuity should exist.
WKIA1857E
(+)
(– ) Voltage
(Approx.)
Connector Terminal
RH E107 5Ground Battery voltage
LH E11
WKIA3609E
Page 2434 of 3383

HEADLAMP (FOR USA)LT-27
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
3. CHECK HEADLAMP GROUND
1. Turn the low beam headlamps OFF.
2. Check continuity between inoperative front combination lamp connector terminal and ground.
OK or NG
OK >> Check front combination lamp and IPDM E/R connector. Repair as necessary.
NG >> Repair open circuit in harness between inoperative front combination lamp and ground.

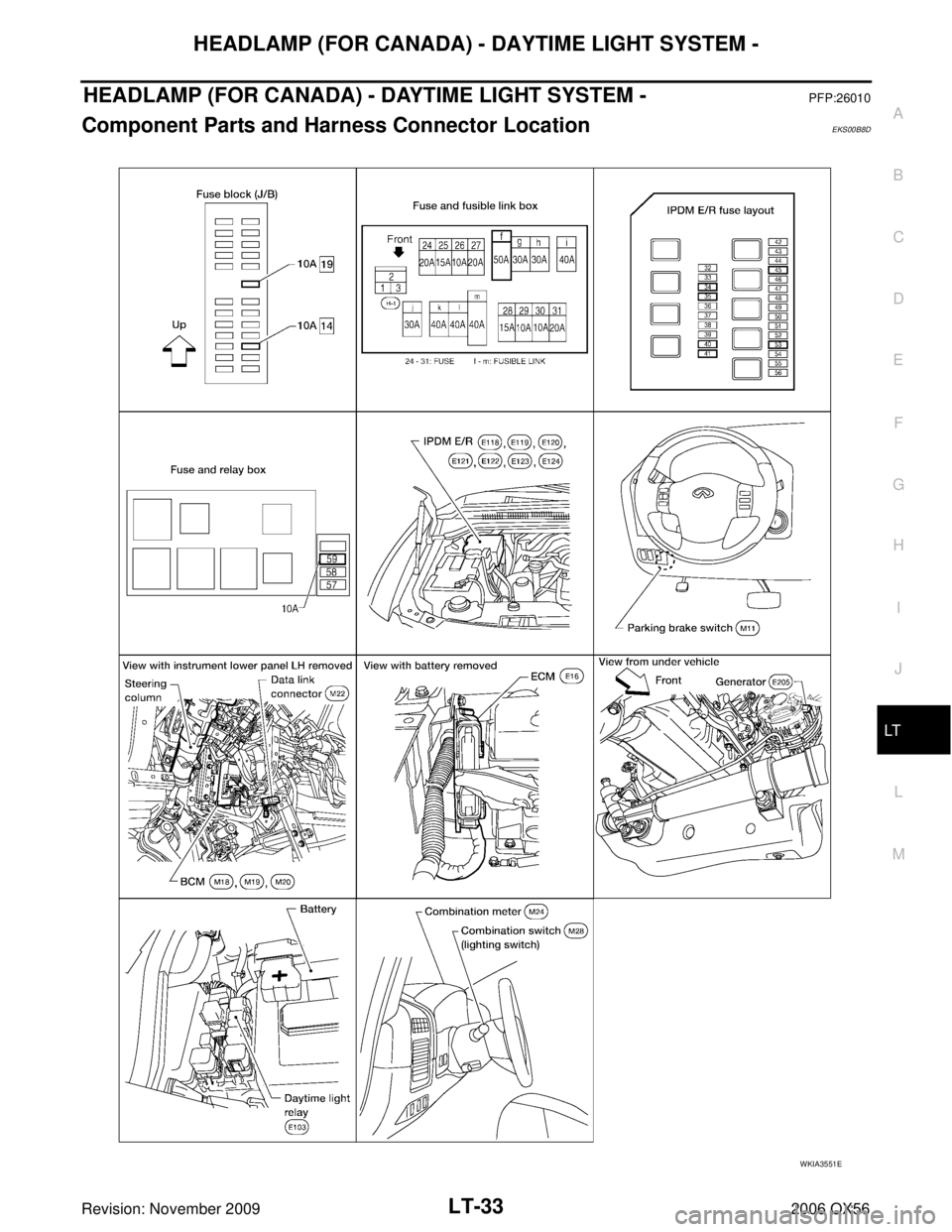

4. INSPECTION BETWEEN IPDM E/R AND HEADLAMPS
1. Disconnect IPDM E/R connector.
2. Check continuity between harness connector terminals of IPDM E/R and harness connector terminals of inoperative front combi-
nation lamp.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and
Installation of IPDM E/R" .
NG >> Check for short circuits and open circuits in harness between IPDM E/R and front combination lamps. Repair as necessary.
Headlamps Do Not Turn OFFEKS00B88
1. CHECK COMBINATION SWITCH INPUT SIGNAL
Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor,
make sure "HEAD LAMP SW 1" and "HEAD LAMP SW 2" turns ON-
OFF linked with operation of lighting switch.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and
Installation of IPDM E/R" .
NG >> GO TO 2.
2. CHECK LIGHTING SWITCH
Check lighting switch. Refer to LT- 1 0 3 , "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Replace lighting switch. Refer to LT- 1 0 5 , "
Removal and Installation" .
Connector Terminal Continuity
RH E107 1Ground Yes
LH E11
WKIA1857E
IPDM E/R Front combination lamp
Continuity
Connector Terminal Connector Terminal
(Wire color)
E123 54 RH E107
5Yes
52 LH E11
WKIA1856E
When lighting switch is in
OFF position : HEAD LAMP SW 1 OFF
: HEAD LAMP SW 2 OFF
SKIA5200E
Page 2435 of 3383
LT-28
HEADLAMP (FOR USA)
Revision: November 20092006 QX56
3. CHECKING CAN COMMUNICATIONS BETWEEN BCM AND IPDM E/R
Select "BCM" on CONSULT-II and perform self-diagnosis for BCM.
Display of self-diagnosis results
NO DTC>> Replace IPDM E/R. Refer to PG-30, "Removal and
Installation of IPDM E/R" .
CAN COMM CIRCUIT>> Refer to BCS-13, "
CAN Communication
Inspection Using CONSULT-II (Self-Diagnosis)" .
SKIA1039E
Page 2436 of 3383
HEADLAMP (FOR USA)LT-29
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Aiming AdjustmentEKS00B89
For details, refer to the regulations in your area.
NOTE:
If vehicle front body has been repaired and /or the headlamp assembly has been replaced, check headlamp
aiming.
HEADLAMP AIMING
NOTE:
Before performing aiming adjustment, check the following:
–Confirm headlamp aiming switch is set to "0" (zero) position.
–Ensure all tires are inflated to correct pressure.
–Place vehicle and screen on level surface.
–Ensure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant and engine oil filled to correct level, and fuel tank full.
–Confirm spare tire, jack and tools are properly stowed.
–Aim each headlamp individually and ensure other headlamp beam pattern is blocked from screen.
–Use adjusting screw to perform aiming adjustment
WKIA1859E
Page 2437 of 3383

LT-30
HEADLAMP (FOR USA)
Revision: November 20092006 QX56
Basic illuminating area for adjustment should be within the range shown on the aiming chart.
Adjust headlamps accordingly.
Bulb Replacement EKS00B8A
CAUTION:
Disconnect battery negative terminal before touching xenon bulb or headlamp wiring harness
assembly.
Turn headlamp switch OFF before disconnecting headlamp harness connector.
Do not touch bulb by hand right after being turned off. Burning may result.
Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from
it.
Do not turn xenon bulb ON when xenon bulb is removed from front combination lamp assembly.
After installing the bulb, be sure to install the bulb socket securely to ensure watertightness.
Do not leave bulb out of front combination lamp assembly for a long time because dust, moisture,
smoke, etc. may affect the performance of the lamp. When replacing bulb, be sure to replace it
with a new one.
HEADLAMP (OUTER SIDE), FOR LOW BEAM
Removal
1. Position fender protector aside.
2. Turn headlamp switch OFF.
3. Disconnect battery negative terminal.
4. Remove ballast.
5. Disconnect headlamp electrical connector.
6. Release bulb retaining spring and pull bulb straight out.
Installation
Installation is in the reverse order of removal.
WKIA3613E
Page 2438 of 3383

HEADLAMP (FOR USA)LT-31
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
HEADLAMP (INNER SIDE), FOR HIGH BEAM
Removal
1. Turn headlamp switch OFF.
2. Disconnect headlamp electrical connector.
3. Turn the bulb counterclockwise to remove it.
Installation
Installation is in the reverse order of removal.
FRONT PARKING LAMP (INNER OR OUTER)
Removal
1. Turn the bulb socket counterclockwise to unlock it.
2. Pull the bulb to remove it from the socket.
Installation
Installation is in the reverse order of removal.
SIDE MARKER LAMP (FRONT)
Removal
1. Position fender protector aside.
2. Turn the side marker lamp (front) bulb socket counterclockwise and remove side marker lamp (front) bulb
socket.
3. Pull to remove side marker lamp (front) from the side marker lamp (front) bulb socket.
Installation
Installation is in the reverse order of removal.
Removal and InstallationEKS00B8B
FRONT COMBINATION LAMP ASSEMBLY
CAUTION:
Disconnect battery negative terminal before touching xenon bulb or headlamp wiring harness
assembly.
Turn headlamp switch OFF before disconnecting headlamp harness connector.
Do not touch bulb by hand right after being turned off. Burning may result.
Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from
it.
Do not turn xenon bulb ON when xenon bulb is removed from front combination lamp assembly.
After installing the bulb, be sure to install the bulb socket securely to ensure watertightness.
Do not leave bulb out of front combination lamp assembly for a long time because dust, moisture,
smoke, etc. may affect the performance of the lamp. When replacing bulb, be sure to replace it
with a new one.
Removal
1. Disconnect battery negative terminal.
2. Disconnect front combination lamp assembly.
3. Remove front fascia. Refer to EI-13, "
FRONT BUMPER" .
4. Remove front combination lamp assembly bolts.
5. Remove front combination lamp assembly.
WKIA1860E
Page 2439 of 3383
LT-32
HEADLAMP (FOR USA)
Revision: November 20092006 QX56
INSTALLATION
Installation is in the reverse order of removal.
Disassembly and AssemblyEKS00B8C
FRONT COMBINATION LAMP ASSEMBLY
DISASSEMBLY
1. Remove ballast.
2. Release xenon bulb retaining spring and remove xenon bulb.
3. Turn high beam bulb counterclockwise to unlock and remove high beam bulb.
4. Turn parking lamp bulb (inner) socket counterclockwise to unlock and remove parking lamp bulb.
5. Turn parking lamp bulb (outer) socket counterclockwise to unlock and remove parking lamp bulb.
6. Turn side marker lamp (front) bulb socket counterclockwise to unlock and remove side marker lamp (front)
bulb.
ASSEMBLY
Assembly is in the reverse order of disassembly.
WKIA1861E
1. Parking lamp bulb (outer) 2. Parking lamp bulb (inner), if equipped 3. Headlamp bulb (high beam)
4. Headlamp assembly 5. Xenon bulb (low beam) 6. Side marker lamp (front) bulb
7. Ballast 8. Wiring harness assembly
