BRC-54
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: November 20092006 QX56
3. INDICATOR LAMP CHECK
Check that VDC OFF indicator lamp is off.
OK or NG
OK >> GO TO 4.
NG >> Perform basic inspection. Refer to BRC-23, "
Basic Inspection" .
4. CHECK SELF-DIAGNOSTIC RESULTS
Perform ABS actuator and electric unit (control unit) self-diagnosis.
NOTE:
When self-diagnostic results show items other than those above, perform repair or replacement for the item
indicated and repeat self-diagnosis.
Is the above displayed on self-diagnosis display?
YES >> Erase error memory.
NO >> Inspection End.
CAN Communication System InspectionEFS004Y4
INSPECTION PROCEDURE
1. CHECK CONNECTOR
1. Turn ignition switch OFF, disconnect the ABS actuator and electric unit (control unit) connector, and check the terminals for deformation, disconnection, looseness, and so on. If there is a malfunction, repair or
replace the terminal.
2. Reconnect connector to perform self-diagnosis.
Is "CAN COMM CIRCUIT" displayed in self-diagnosis display items?
YES >> Print out the self-diagnostic results, and refer to LAN-26, "CAN COMMUNICATION" .
NO >> Connector terminal is loose, damaged, open, or shorted.
ICC System InspectionEFS0068C
INSPECTION PROCEDURE
1. SELF-DIAGNOSIS RESULT CHECK
Perform self-diagnosis of ICC control unit. Refer to ACS-31, "
Self-Diagnostic Function" .
Are self-diagnosis result items displayed?
YES >> After checking and repairing the applicable item, perform ICC control unit self-diagnosis again.
NO >> GO TO 2.
2. CONNECTOR INSPECTION
Disconnect the ABS actuator and electric unit (control unit) connector and the ICC control unit connector and
check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace as necessary.
Self-diagnosis results
ST ANGL SEN SAFE
Page 1082 of 3383
![INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSBRC-55
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
3. ICC CONTROL UNIT CIRCUIT INSPECTION
1. Measure the continuity between AB INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSBRC-55
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
3. ICC CONTROL UNIT CIRCUIT INSPECTION
1. Measure the continuity between AB](/manual-img/42/57028/w960_57028-1081.png)
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSBRC-55
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
3. ICC CONTROL UNIT CIRCUIT INSPECTION

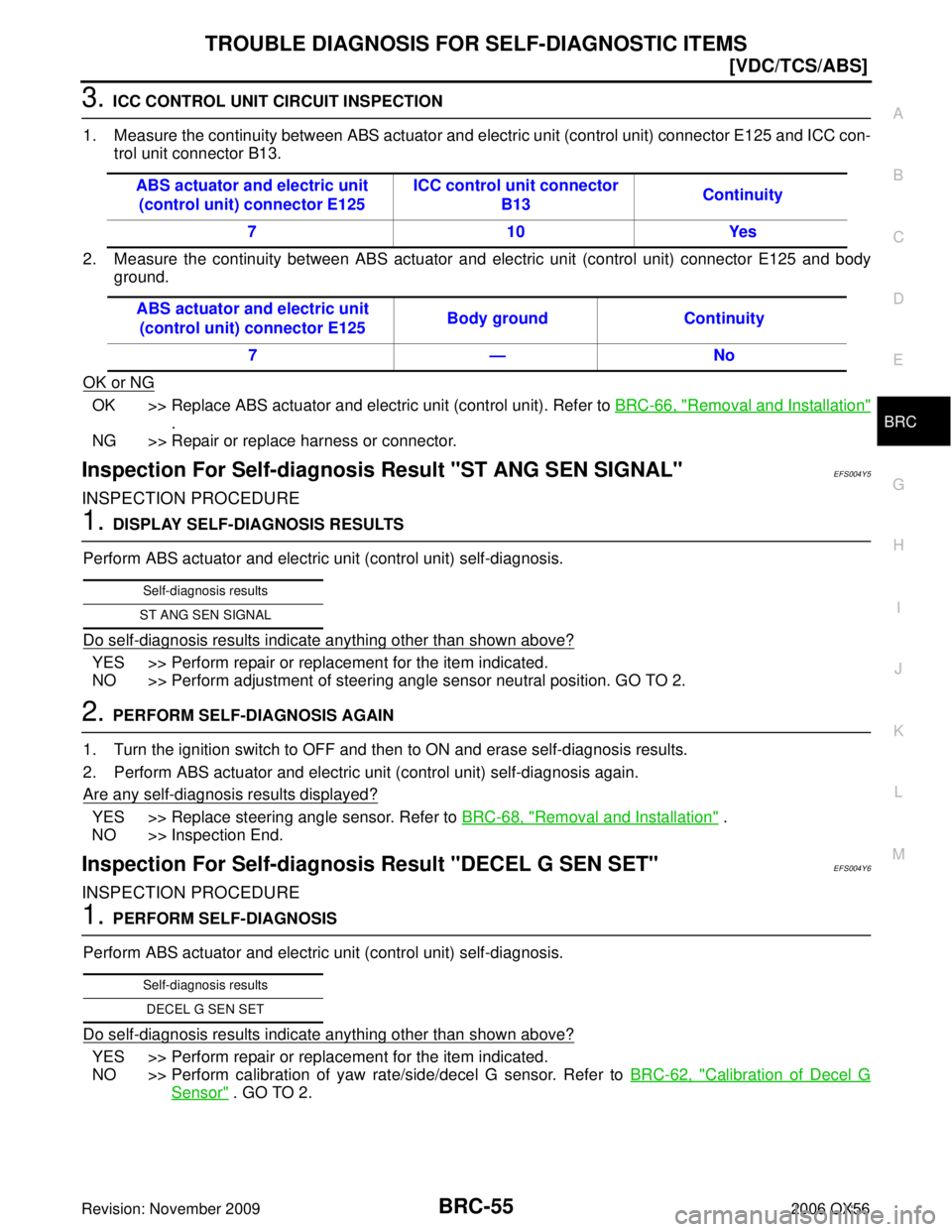

1. Measure the continuity between ABS actuator and electric unit (control unit) connector E125 and ICC con- trol unit connector B13.
2. Measure the continuity between ABS actuator and electric unit (control unit) connector E125 and body ground.
OK or NG
OK >> Replace ABS actuator and electric unit (control unit). Refer to BRC-66, "Removal and Installation"
.
NG >> Repair or replace harness or connector.
Inspection For Self-diagnosis Result "ST ANG SEN SIGNAL"EFS004Y5
INSPECTION PROCEDURE
1. DISPLAY SELF-DIAGNOSIS RESULTS
Perform ABS actuator and electric unit (control unit) self-diagnosis.
Do self-diagnosis results indicate anything other than shown above?
YES >> Perform repair or replacement for the item indicated.
NO >> Perform adjustment of steering angle sensor neutral position. GO TO 2.
2. PERFORM SELF-DIAGNOSIS AGAIN
1. Turn the ignition switch to OFF and then to ON and erase self-diagnosis results.
2. Perform ABS actuator and electric unit (control unit) self-diagnosis again.
Are any self-diagnosis results displayed?
YES >> Replace steering angle sensor. Refer to BRC-68, "Removal and Installation" .
NO >> Inspection End.
Inspection For Self-diagnosis Result "DECEL G SEN SET"EFS004Y6
INSPECTION PROCEDURE
1. PERFORM SELF-DIAGNOSIS
Perform ABS actuator and electric unit (control unit) self-diagnosis.
Do self-diagnosis results indicate anything other than shown above?
YES >> Perform repair or replacement for the item indicated.
NO >> Perform calibration of yaw rate/side/decel G sensor. Refer to BRC-62, "
Calibration of Decel G
Sensor" . GO TO 2.
ABS actuator and electric unit
(control unit) connector E125 ICC control unit connector
B13 Continuity
71 0Yes
ABS actuator and electric unit (control unit) connector E125 Body ground
Continuity
7—N o
Self-diagnosis results
ST ANG SEN SIGNAL
Self-diagnosis results DECEL G SEN SET
Page 1083 of 3383
![INFINITI QX56 2006 Factory Service Manual BRC-56
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: November 20092006 QX56
2. PERFORM SELF-DIAGNOSIS AGAIN
1. Turn the ignition switch to OFF and then to ON and erase self-diagn INFINITI QX56 2006 Factory Service Manual BRC-56
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: November 20092006 QX56
2. PERFORM SELF-DIAGNOSIS AGAIN
1. Turn the ignition switch to OFF and then to ON and erase self-diagn](/manual-img/42/57028/w960_57028-1082.png)
BRC-56
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: November 20092006 QX56
2. PERFORM SELF-DIAGNOSIS AGAIN
1. Turn the ignition switch to OFF and then to ON and erase self-diagnosis results.
2. Perform ABS actuator and electric unit (control unit) self-diagnosis again.
Are any self-diagnosis results displayed?
YES >> Replace yaw rate/side/decel G sensor. Refer to BRC-69, "Removal and Installation" .
NO >> Inspection End.
VDC OFF Indicator lamp Does Not IlluminateEFS004Y7
INSPECTION PROCEDURE
1. CHECK VDC OFF INDICATOR LAMP
Disconnect ABS actuator and electric unit (control unit) connector E125.
Do the ABS warning lamp and VDC OFF indicator lamp illuminate?
YES >> Replace ABS actuator and electric unit (control unit). Refer to BRC-66, "Removal and Installation"
.
NO >> Replace combination meter. Refer to IP-13, "
COMBINATION METER" .
Component InspectionEFS004Y8
VDC OFF SWITCH
Check the continuity between terminals 1 and 2.
1 - 2 : Continuity should exist when pushing the switch.
Continuity should not exist when releasing
the switch.
PFIA0307E
Page 1084 of 3383
![INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSES FOR SYMPTOMSBRC-57
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
TROUBLE DIAGNOSES FOR SYMPTOMSPFP:99999
ABS Works FrequentlyEFS004Y9
1. CHECK WARNING LA INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSES FOR SYMPTOMSBRC-57
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
TROUBLE DIAGNOSES FOR SYMPTOMSPFP:99999
ABS Works FrequentlyEFS004Y9
1. CHECK WARNING LA](/manual-img/42/57028/w960_57028-1083.png)
TROUBLE DIAGNOSES FOR SYMPTOMSBRC-57
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
TROUBLE DIAGNOSES FOR SYMPTOMSPFP:99999
ABS Works FrequentlyEFS004Y9
1. CHECK WARNING LAMP ACTIVATION
Make sure warning lamp remains off while driving.
OK or NG
OK >> GO TO 2.
NG >> Carry out self-diagnosis. Refer to BRC-29, "
SELF-DIAGNOSIS" .
2. CHECK WHEEL SENSORS
Check the following.
Wheel sensor mounting for looseness
Wheel sensors for physical damage
Wheel sensor connectors for terminal damage or loose connections
OK or NG
OK >> GO TO 3.
NG >> Repair or replace as necessary.
3. CHECK FRONT AND REAR AXLES
Check front and rear axles for excessive looseness. Refer to FAX-5, "
WHEEL BEARING INSPECTION" or
RAX-5, "
WHEEL BEARING INSPECTION" .
OK or NG
OK >> GO TO 4.
NG >> Repair as necessary.
4. CHECK BRAKE FLUID PRESSURE
Check brake fluid pressure distribution.
Refer to BRC-23, "
Basic Inspection" .
Is brake fluid pressure distribution normal?
YES >> Inspection End.
NO >> Perform Basic Inspection. Refer to BRC-23, "
Basic Inspection" .
Page 1085 of 3383
![INFINITI QX56 2006 Factory Service Manual BRC-58
[VDC/TCS/ABS]
TROUBLE DIAGNOSES FOR SYMPTOMS
Revision: November 20092006 QX56
Unexpected Pedal ActionEFS004YA
1. CHECK WARNING LAMP ACTIVATION
Make sure warning lamp remains off while driving.
INFINITI QX56 2006 Factory Service Manual BRC-58
[VDC/TCS/ABS]
TROUBLE DIAGNOSES FOR SYMPTOMS
Revision: November 20092006 QX56
Unexpected Pedal ActionEFS004YA
1. CHECK WARNING LAMP ACTIVATION
Make sure warning lamp remains off while driving.](/manual-img/42/57028/w960_57028-1084.png)
BRC-58
[VDC/TCS/ABS]
TROUBLE DIAGNOSES FOR SYMPTOMS
Revision: November 20092006 QX56
Unexpected Pedal ActionEFS004YA
1. CHECK WARNING LAMP ACTIVATION
Make sure warning lamp remains off while driving.
OK or NG
OK >> GO TO 2.
NG >> Carry out self-diagnosis. Refer to BRC-29, "
SELF-DIAGNOSIS" .
2. CHECK BRAKE PEDAL STROKE
Check brake pedal stroke.
Is pedal stroke excessive?
YES >> Perform Basic Inspection. Refer to BRC-23, "Basic
Inspection" .
NO >> GO TO 3.
3. CHECK CONNECTOR AND BRAKING PERFORMANCE
1. Disable ABS by disconnecting ABS actuator and electric unit (control unit) connector.
2. Drive vehicle and check brake operation. NOTE:
Stopping distance may be longer than vehicles without ABS when road condition is slippery.
Driving the vehicle with the ABS actuator and electric unit (control unit) disconnected may induce DTCs
in electrical control units using CAN communication. After the inspection, clear all DTCs. Refer to BRC-
10, "CAN COMMUNICATION" .
OK or NG
OK >> GO TO 4.
NG >> Perform Basic Inspection. Refer to BRC-23, "
Basic Inspection" .
4. CHECK WHEEL SENSORS
Check the following.
Wheel sensor mounting for looseness
Wheel sensors for physical damage
Wheel sensor connectors for terminal damage or loose connections
OK or NG
OK >> Check ABS actuator and electric unit (control unit) connector terminals for deformation, discon- nection, looseness or damage. Reconnect ABS actuator and electric unit (control unit) harness
connector. Then retest.
NG >> Repair or replace as necessary.
SBR540A
Page 1086 of 3383
![INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSES FOR SYMPTOMSBRC-59
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
Long Stopping DistanceEFS004YB
1. CHECK BASE BRAKING SYSTEM PERFORMANCE
1. Disable ABS b INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSES FOR SYMPTOMSBRC-59
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
Long Stopping DistanceEFS004YB
1. CHECK BASE BRAKING SYSTEM PERFORMANCE
1. Disable ABS b](/manual-img/42/57028/w960_57028-1085.png)
TROUBLE DIAGNOSES FOR SYMPTOMSBRC-59
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
Long Stopping DistanceEFS004YB
1. CHECK BASE BRAKING SYSTEM PERFORMANCE
1. Disable ABS by disconnecting ABS actuator and electric unit (control unit) connector.
2. Drive vehicle and check brake operation. NOTE:
Stopping distance may be longer than vehicles without ABS when road condition is slippery.
Driving the vehicle with the ABS actuator and electric unit (control unit) disconnected may induce DTCs
in electrical control units using CAN communication. After the inspection, clear all DTCs. Refer to BRC-
10, "CAN COMMUNICATION" .
OK or NG
OK >> Go to BRC-57, "ABS Works Frequently" .
NG >> Perform Basic Inspection. Refer to BRC-23, "
Basic Inspection" .
ABS Does Not WorkEFS004YC
CAUTION:
The ABS does not operate when the vehicle speed is 10 km/h (6 MPH) or less.
1. CHECK WARNING LAMP ACTIVATION
Turn ignition switch ON and check for warning lamp activation.
Warning lamp should activate for approximately 2 seconds after turning the ignition switch ON.
OK or NG
OK >> Carry out self-diagnosis. Refer to BRC-29, "SELF-DIAGNOSIS" .
NG >> Go to BRC-60, "
ABS Warning Lamp Does Not Come On When Ignition Switch Is Turned On" .
Pedal Vibration or ABS Operation NoiseEFS004YD
NOTE:
During ABS activation, pedal vibration may be felt and a noise may be heard. This is normal and does not indi-
cate a malfunction.
1. CHECK SYMPTOM
1. Apply brake.
2. Start engine.
Does the symptom occur only when engine is started?
YES >> Carry out self-diagnosis. Refer to BRC-29, "SELF-DIAGNOSIS" .
NO >> GO TO 2.
2. RECHECK SYMPTOM
Does the symptom occur only when electrical equipment switches (such as headlamps) are turned on?
YES >> Check for radio, antenna or related wiring that is routed too close to the ABS actuator and electric unit (control unit) and reroute as necessary.
NO >> Go to BRC-57, "
ABS Works Frequently" .
Page 1087 of 3383
![INFINITI QX56 2006 Factory Service Manual BRC-60
[VDC/TCS/ABS]
TROUBLE DIAGNOSES FOR SYMPTOMS
Revision: November 20092006 QX56
ABS Warning Lamp Does Not Come On When Ignition Switch Is Turned OnEFS004YE
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT INFINITI QX56 2006 Factory Service Manual BRC-60
[VDC/TCS/ABS]
TROUBLE DIAGNOSES FOR SYMPTOMS
Revision: November 20092006 QX56
ABS Warning Lamp Does Not Come On When Ignition Switch Is Turned OnEFS004YE
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT](/manual-img/42/57028/w960_57028-1086.png)
BRC-60
[VDC/TCS/ABS]
TROUBLE DIAGNOSES FOR SYMPTOMS
Revision: November 20092006 QX56
ABS Warning Lamp Does Not Come On When Ignition Switch Is Turned OnEFS004YE
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) FUSES
Check 30A fusible link h and 40A fusible link i for ABS actuator and electric unit (control unit). For fusible link
layout, refer to PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 2.
NG >> If fusible link is blown, be sure to eliminate cause of problem before replacing.
2. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUITS
1. Disconnect ABS actuator and electric unit (control unit) connec- tor.
2. Check voltage between ABS actuator and electric unit (control unit) connector terminal 1 and ground and terminal 32 and
ground.
Does battery voltage exist?
YES >> GO TO 3.
NO >> Repair harness or connectors between fusible link and ABS actuator and electric unit (control unit).
3. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) GROUND CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) connector terminal 16 and ground and terminal 47 and ground.
Does continuity exist?
YES >> Replace ABS actuator and electric unit (control unit). Refer to BRC-66, "
Removal and Installation" .
NO >> Repair harness or connectors between ABS actuator and electric unit (control unit) and ground.
ABS Warning Lamp Stays On When Ignition Switch Is Turned OnEFS004YF
1. CARRY OUT SELF-DIAGNOSIS
Carry out self-diagnosis. Refer to BRC-29, "
SELF-DIAGNOSIS" .
Are malfunctions detected in self-diagnosis?
YES >> Refer to BRC-30, "Display Item List" .
NO >> Refer to DI-31, "
WARNING LAMPS" .
WFIA0199E
WFIA0196E
Page 1088 of 3383
![INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSES FOR SYMPTOMSBRC-61
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
Vehicle Jerks During TCS/VDC ActivationEFS004YG
1. ABS ACTUATOR AND ELECTRIC UNIT (CONTR INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSES FOR SYMPTOMSBRC-61
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
Vehicle Jerks During TCS/VDC ActivationEFS004YG
1. ABS ACTUATOR AND ELECTRIC UNIT (CONTR](/manual-img/42/57028/w960_57028-1087.png)
TROUBLE DIAGNOSES FOR SYMPTOMSBRC-61
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
Vehicle Jerks During TCS/VDC ActivationEFS004YG
1. ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS
Perform ABS actuator and electric unit (control unit) self-diagnosis.
Are self-diagnosis result items displayed?
YES >> After checking and repairing the applicable item, perform the ABS actuator and electric unit (con- trol unit) self-diagnosis again.
NO >> GO TO 2.
2. ENGINE SPEED SIGNAL INSPECTION
Perform data monitor with CONSULT-II for the ABS actuator and electric unit (control unit).
Is the engine speed at idle 400 rpm or higher?
YES >> GO TO 4.
NO >> GO TO 3.
3. ECM SELF-DIAGNOSIS
Perform ECM self-diagnosis.
Are self-diagnosis result items displayed?
YES >> After checking and repairing the applicable item, perform the ECM self-diagnosis again.
NO >> GO TO 4.
4. TCM SELF-DIAGNOSIS
Perform TCM self-diagnosis.
Are self-diagnosis result items displayed?
YES >> After checking and repairing the applicable item, perform the TCM self-diagnosis again.
NO >> GO TO 5.
5. CONNECTOR INSPECTION
Disconnect the ABS actuator and electric unit (control unit) connector and the ECM connectors and check the
terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace as necessary.
6. CAN COMMUNICATION INSPECTION
Check the CAN communication system. Refer to BRC-54, "
CAN Communication System Inspection" .
OK or NG
OK >> Inspection End.
NG >> Refer to LAN-26, "
CAN COMMUNICATION" .
