STOP LAMP
Revision: November 20092006 QX56
STOP LAMPPFP:26550
System DescriptionEKS00BAD
Power is supplied at all times
through 10A fuse [No. 20, located in fuse block (J/B)]
to stop lamp switch terminal 3, and
to stop lamp relay terminal 1.
When the brake pedal is pressed, the stop lamp switch is closed and power is supplied
through stop lamp switch terminal 4
to stop lamp relay terminal 3
through stop lamp relay terminal 4
to rear combination lamp LH and RH terminal 2, and
to high-mounted stop lamp terminal 1.
Ground is supplied
to rear combination lamp LH terminal 1, and
to high-mounted stop lamp terminal 2
through grounds B7 and B19, and
to rear combination lamp RH terminal 1
through grounds B117 and B132.
With power and ground supplied, the stop lamps illuminate.
Page 2514 of 3383
STOP LAMPLT-107
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56

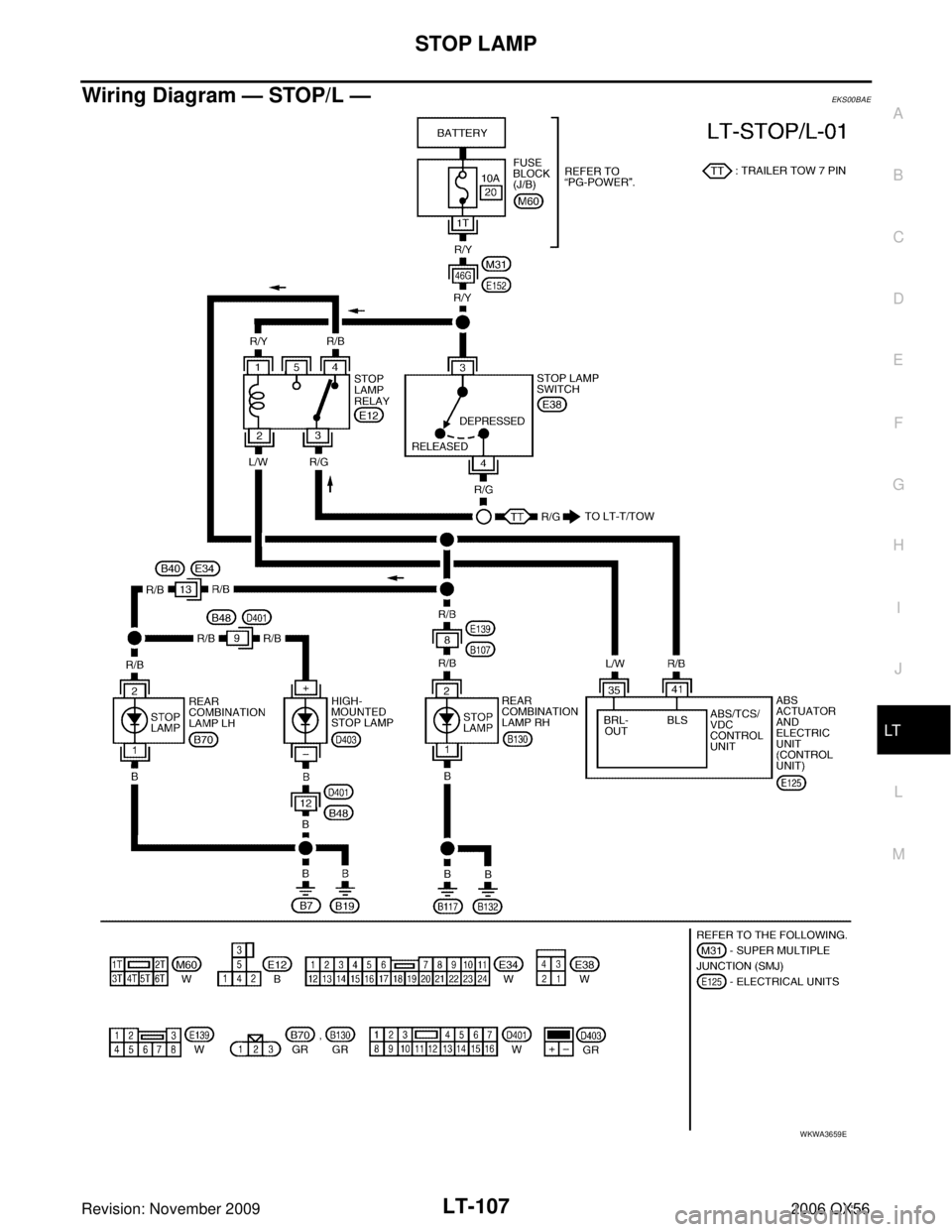

Wiring Diagram — STOP/L —EKS00BAE
WKWA3659E
Page 2515 of 3383
LT-108
STOP LAMP
Revision: November 20092006 QX56
Bulb ReplacementEKS00BAF
HIGH-MOUNTED STOP LAMP
The high-mounted stop lamp bulbs are not serviceable.
STOP LAMP
The stop lamp bulbs are not serviceable separately. Replace rear combination lamp. Refer to LT- 1 2 5 ,
"Removal and Installation" .
Removal and InstallationEKS00GDP
HIGH_MOUNTED STOP LAMP
Removal
1. Remove back door upper finisher.
2. Remove 2 nuts and remove high-mounted stop lamp.
Installation
Installation is in the reverse order of removal.
STOP LAMP
Refer to LT- 1 2 5 , "Removal and Installation" .
WKIA1397E
Page 2516 of 3383
BACK-UP LAMPLT-109
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
BACK-UP LAMPPFP:26550

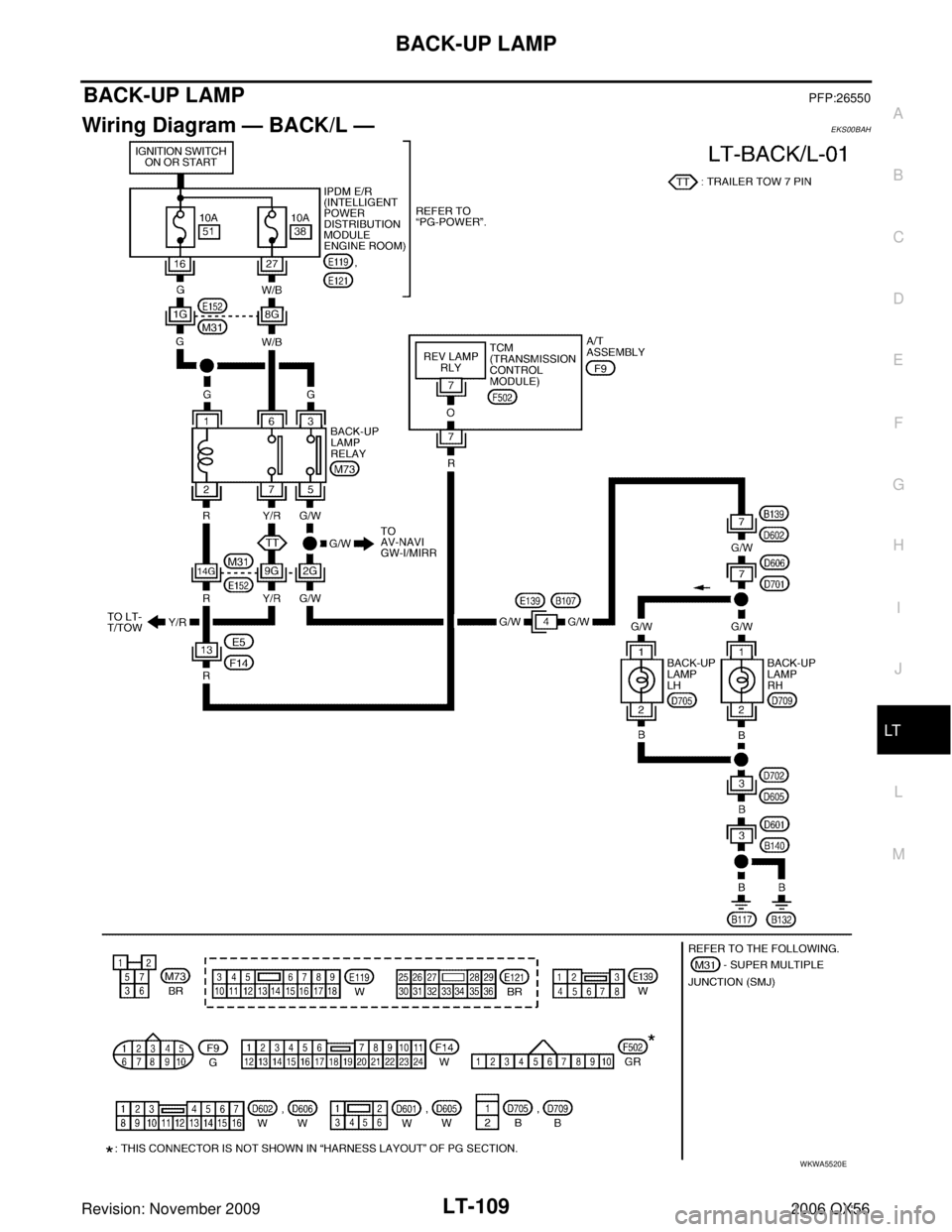

Wiring Diagram — BACK/L —EKS00BAH
WKWA5520E
Page 2517 of 3383
LT-110
BACK-UP LAMP
Revision: November 20092006 QX56
Bulb ReplacementEKS00BAI
BACK-UP LAMP
Removal
1. Remove back door lower finisher. Refer to EI-42, "Removal and Installation" .
2. Turn bulb socket counterclockwise and remove it from the lamp housing.
3. Pull bulb from socket.
INSTALLATION
Installation is in the reverse order of removal.
Removal and InstallationEKS00BAJ
BACK-UP LAMP
Removal
1. Remove license lamp finisher. Refer to EI-24, "Removal and Installation" .
2. Carefully release tabs to remove back up lamp housing from license plate finisher.
Installation
Installation is in the reverse order of removal.
WKIA1898E
Page 2518 of 3383

PARKING, LICENSE PLATE AND TAIL LAMPSLT-111
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
PARKING, LICENSE PLATE AND TAIL LAMPSPFP:26550

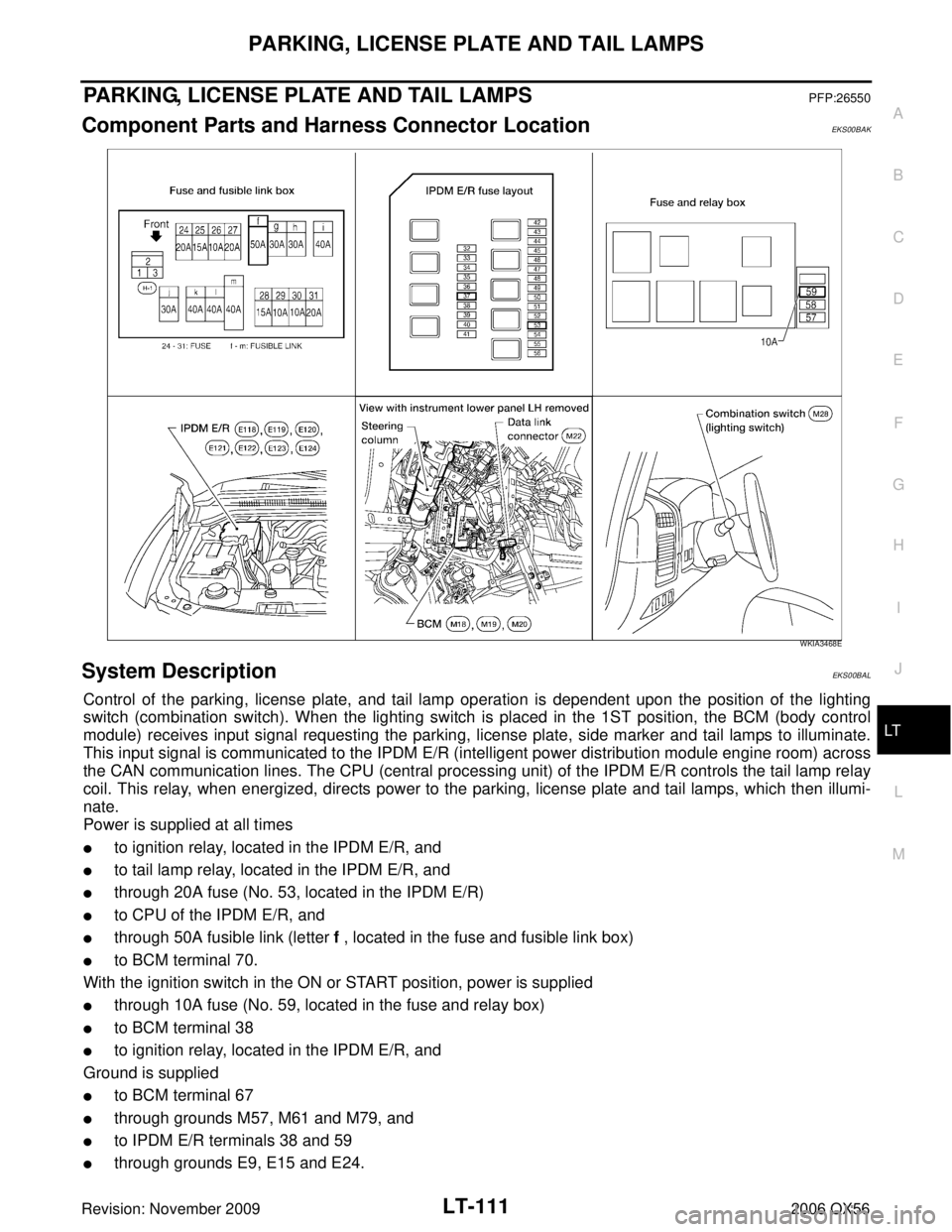

Component Parts and Harness Connector LocationEKS00BAK
System DescriptionEKS00BAL
Control of the parking, license plate, and tail lamp operation is dependent upon the position of the lighting
switch (combination switch). When the lighting switch is placed in the 1ST position, the BCM (body control
module) receives input signal requesting the parking, license plate, side marker and tail lamps to illuminate.
This input signal is communicated to the IPDM E/R (intelligent power distribution module engine room) across
the CAN communication lines. The CPU (central processing unit) of the IPDM E/R controls the tail lamp relay
coil. This relay, when energized, directs power to the parking, license plate and tail lamps, which then illumi-
nate.
Power is supplied at all times
to ignition relay, located in the IPDM E/R, and
to tail lamp relay, located in the IPDM E/R, and
through 20A fuse (No. 53, located in the IPDM E/R)
to CPU of the IPDM E/R, and
through 50A fusible link (letter f , located in the fuse and fusible link box)
to BCM terminal 70.
With the ignition switch in the ON or START position, power is supplied
through 10A fuse (No. 59, located in the fuse and relay box)
to BCM terminal 38
to ignition relay, located in the IPDM E/R, and
Ground is supplied
to BCM terminal 67
through grounds M57, M61 and M79, and
to IPDM E/R terminals 38 and 59
through grounds E9, E15 and E24.
WKIA3468E
Page 2519 of 3383

LT-112
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: November 20092006 QX56
OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the parking, license plate, side marker and tail lamps to illuminate. This input signal is
communicated to the IPDM E/R across the CAN communication lines. The CPU of the IPDM E/R controls the
tail lamp relay coil, which when energized, directs power
through 10 A fuse (No. 37, located in the IPDM E/R)
through IPDM E/R terminal 57
to front combination lamp LH and RH terminal 3
to license plate lamps terminal 1 and
to rear combination lamp LH and RH terminal 3.
Ground is supplied
to front combination lamp LH and RH terminal 4
through grounds E9, E15 and E24, and
to rear combination lamp LH terminal 1
through grounds B7 and B19, and
to rear combination lamp RH terminal 1 and
to license plate lamps terminal 2
through grounds B117 and B132.
With power and ground supplied, the parking, license plate and tail lamps illuminate.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 1ST (or 2ND) position, and the ignition switch is turned
from ON or ACC to OFF, the battery saver control feature is activated.
Under this condition, the parking, license and tail lamps remain illuminated for 5 minutes, then the parking,
license plate and tail lamps are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionEKS00BAM
Refer to LAN-26, "CAN COMMUNICATION" .
Page 2520 of 3383
PARKING, LICENSE PLATE AND TAIL LAMPSLT-113
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56

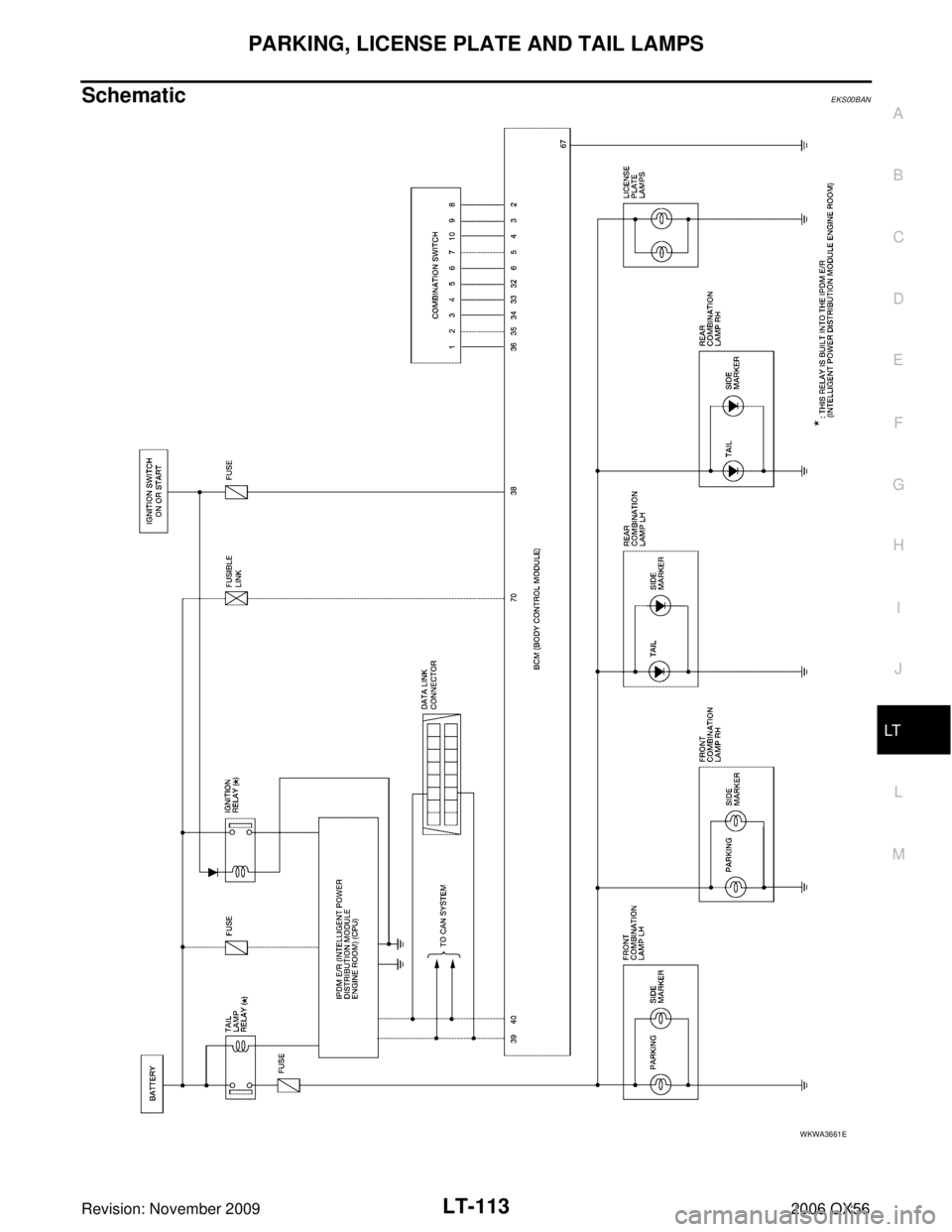

SchematicEKS00BAN
