Page 2321 of 3383

INFINITI QX56 2006 Factory Service Manual LAN-52 [CAN] CAN SYSTEM (TYPE 1) Revision: November 20092006 QX56 Case 11 Check steering angle sensor circuit. Refer to LAN-133, "Steering Angle Sensor Circuit Inspection" . PKIC3284E PKIC2791E

Page 2322 of 3383

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 1)LAN-53 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 12 Check front air control circuit. Refer to LAN-133, "Front Air Control Circuit Inspection" . PKIC328

Page 2323 of 3383

INFINITI QX56 2006 Factory Service Manual LAN-54 [CAN] CAN SYSTEM (TYPE 1) Revision: November 20092006 QX56 Case 13 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-134, "ABS Actuator and Electric Unit (Control Unit)

Page 2324 of 3383

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 1)LAN-55 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 14 Check IPDM E/R circuit. Refer to LAN-135, "IPDM E/R Circuit Inspection" . Case 15 Check CAN communi

Page 2325 of 3383

INFINITI QX56 2006 Factory Service Manual LAN-56 [CAN] CAN SYSTEM (TYPE 1) Revision: November 20092006 QX56 Case 16 Check IPDM E/R ignition relay circuit continuously sticks “OFF ”. Refer to LAN-137, "IPDM E/R Ignition Relay Circuit Insp

Page 2326 of 3383

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 2)LAN-57 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 CAN SYSTEM (TYPE 2)PFP:23710 Component Parts and Harness Connector LocationUKS004SZ Refer to LAN-26, "Compo

Page 2327 of 3383

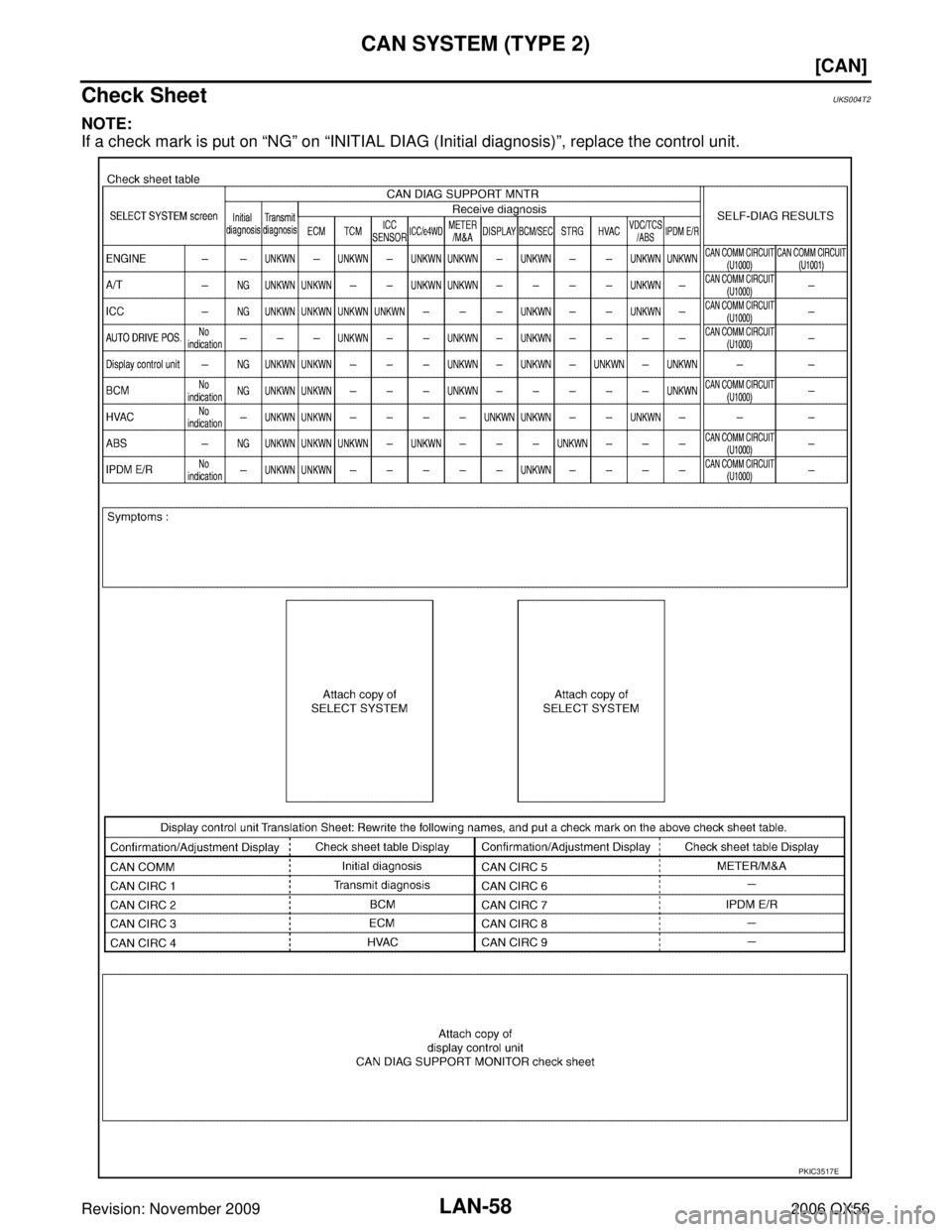

INFINITI QX56 2006 Factory Service Manual LAN-58 [CAN] CAN SYSTEM (TYPE 2) Revision: November 20092006 QX56 Check SheetUKS004T2 NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis) ”, replace the control unit. PK

Page 2328 of 3383

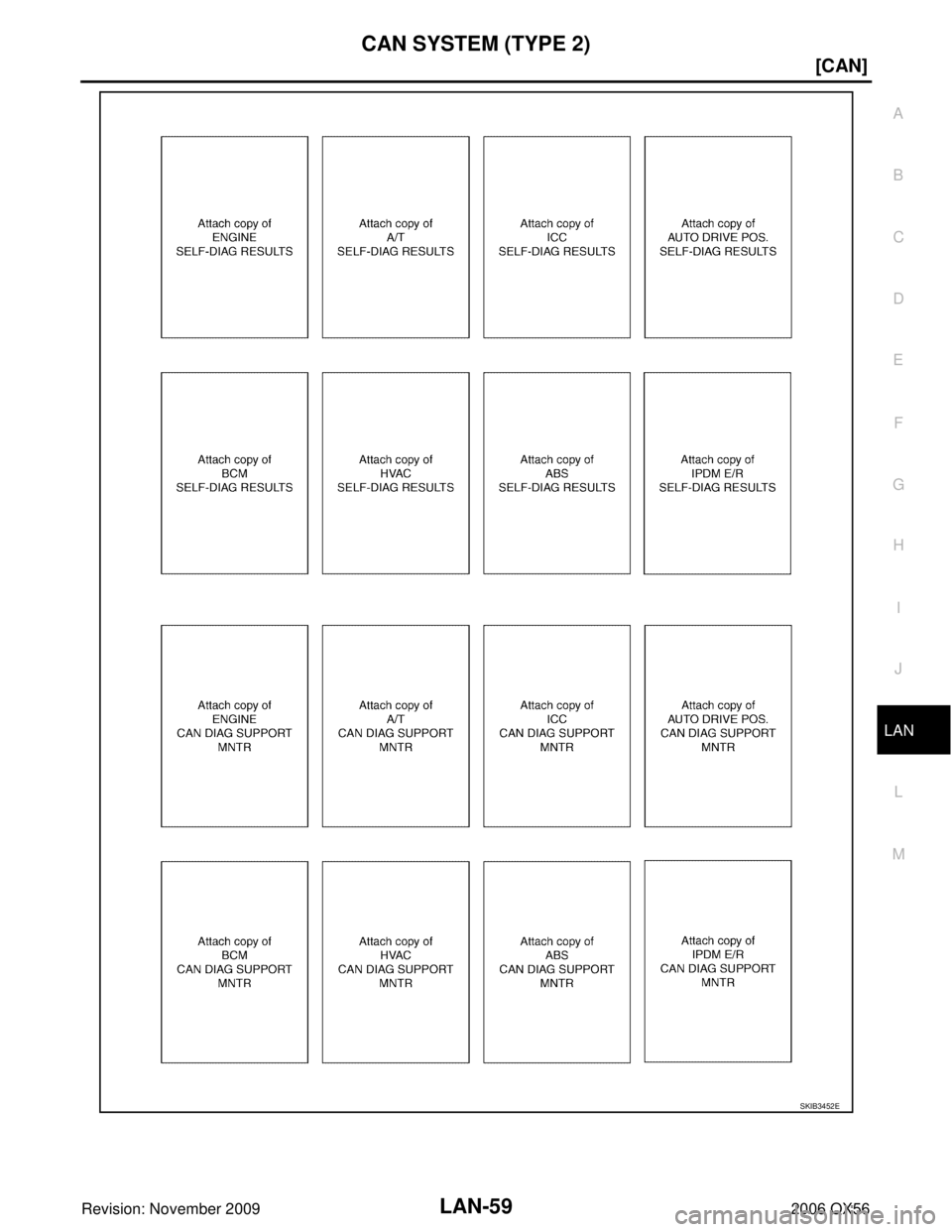

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 2)LAN-59 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 SKIB3452E
