INFINITI QX56 2006 Factory Service Manual LT-154
INTERIOR ROOM LAMP
Revision: November 20092006 QX56
All Step/Foot/Puddle Lamps Do Not OperateEKS00BBF
1. CHECK EACH DOOR SWITCH
Select "BCM" on CONSULT-II. With "INT LAMP" data monitor, make
su

Page 2562 of 3383

INFINITI QX56 2006 Factory Service Manual INTERIOR ROOM LAMPLT-155
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
All Interior Room Lamps Do Not OperateEKS00BBG
1. CHECK POWER SUPPLY CIRCUIT
1. All interior room lamp switches are

Page 2563 of 3383

INFINITI QX56 2006 Factory Service Manual LT-156
INTERIOR ROOM LAMP
Revision: November 20092006 QX56
4. CHECK IGNITION KEYHOLE ILLUMINATION BULB
1. Turn ignition switch OFF.
2. Disconnect ignition keyhole illumination connector.
3. Check cont

Page 2564 of 3383

INFINITI QX56 2006 Factory Service Manual ILLUMINATIONLT-157
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
ILLUMINATIONPFP:27545
Component Parts and Harness Connector LocationEKS00BBI
System DescriptionEKS00BBJ
Control of the il

Page 2565 of 3383

INFINITI QX56 2006 Factory Service Manual LT-158
ILLUMINATION
Revision: November 20092006 QX56
to combination meter terminal 8
With the ignition switch in the ON or START position, power is supplied
to ignition relay, located in the IPDM E/

LT-158
ILLUMINATION
Revision: November 20092006 QX56
to combination meter terminal 8
With the ignition switch in the ON or START position, power is supplied
to ignition relay, located in the IPDM E/R, and
through 10A fuse (No. 59, located in the fuse and relay box)
to BCM terminal 38, and
through 10A fuse [No. 14, located in the fuse block (J/B)]
to combination meter terminal 24.
Ground is supplied
to BCM terminal 67 and
to combination meter terminal 17
through grounds M57, M61 and M79, and
to IPDM E/R terminals 38 and 59
through grounds E9, E15 and E24.
ILLUMINATION OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the illumination lamps to illuminate. This input signal is communicated to the IPDM E/R
across the CAN communication lines. The CPU of the IPDM E/R controls the tail lamp relay coil, which, when
energized, directs power
through 10A fuse (No. 36, located in the IPDM E/R)
through IPDM E/R terminal 49
to illumination control switch terminal 1
to power liftgate switch terminal 3
to front room/map lamp assembly (console box illumination) terminal 7
to hazard switch terminal 3
to rear sonar system OFF switch terminal 3
to glove box lamp terminal 1
to display control unit terminal 14
to 4WD shift switch terminal 7 (with 4-wheel drive)
to front air control terminal 23
to rear power vent window switch terminal 5
to DVD player terminal 12 (with DVD entertainment system)
to NAVI control unit terminal 61
to pedal adjusting switch terminal 5
to electric brake (pre-wiring) terminal 4 (with trailer tow)
to front and rear heated seat switch LH and RH terminal 5
to A/T device terminal 11
to VDC OFF switch terminal 3
to tow mode switch terminal 3
to headlamp aiming switch terminal 3
to clock terminal 3, and
through 10A fuse (No. 37, located in the IPDM E/R)
through IPDM E/R terminal 57
to AV switch terminal 3
to audio unit terminal 8
to rear air control terminal 1 and
to rear audio remote control unit terminal 6.
Illumination is controlled
through illumination control switch terminal 2
to power liftgate switch terminal 4

Page 2566 of 3383

INFINITI QX56 2006 Factory Service Manual ILLUMINATIONLT-159
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
to front room/map lamp assembly (console box illumination) terminal 8
to AV switch terminal 4
to hazard switch termina

ILLUMINATIONLT-159
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
to front room/map lamp assembly (console box illumination) terminal 8
to AV switch terminal 4
to hazard switch terminal 4
to audio unit terminal 7
to rear sonar system OFF switch terminal 4
to 4WD switch terminal 8 (with 4-wheel drive)
to front air control terminal 24
to rear power vent window switch terminal 6
to DVD player terminal 10 (with DVD entertainment system)
to pedal adjusting switch terminal 6
to A/T device terminal 12
to front heated seat switch LH and RH terminal 6
to VDC OFF switch terminal 4
to tow mode switch terminal 4
to headlamp aiming switch terminal 4
to clock terminal 4 and
to combination meter terminal 18.
Ground is supplied
to illumination control switch terminal 3
to glove box lamp terminal 2
to display control unit terminal 3
to rear heated seat switches terminal 6
to electric brake (pre-wiring) terminal 1 (with trailer tow) and
to compass and thermometer terminal 7
through grounds M57, M61 and M79, and
to NAVI control unit terminal 1
to rear air control terminal 3 and
to rear audio remote control unit terminal 15
through grounds B117 and B132.
With power and ground supplied, illumination lamps illuminate.
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 1ST or 2ND position (or if auto light system is acti-
vated), and the ignition switch is turned from ON or ACC to OFF, the battery saver control function is activated.
Under this condition, the illumination lamps remain illuminated for 5 minutes, then the illumination lamps are
turned off.
When the lighting switch is turned from OFF to 1ST or 2ND position (or if auto light system is activated) after
illumination lamps are turned off by the battery saver control, the illumination lamps illuminate again.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionEKS00BBK
Refer to LAN-26, "CAN COMMUNICATION" .

Page 2567 of 3383

INFINITI QX56 2006 Factory Service Manual LT-160
ILLUMINATION
Revision: November 20092006 QX56

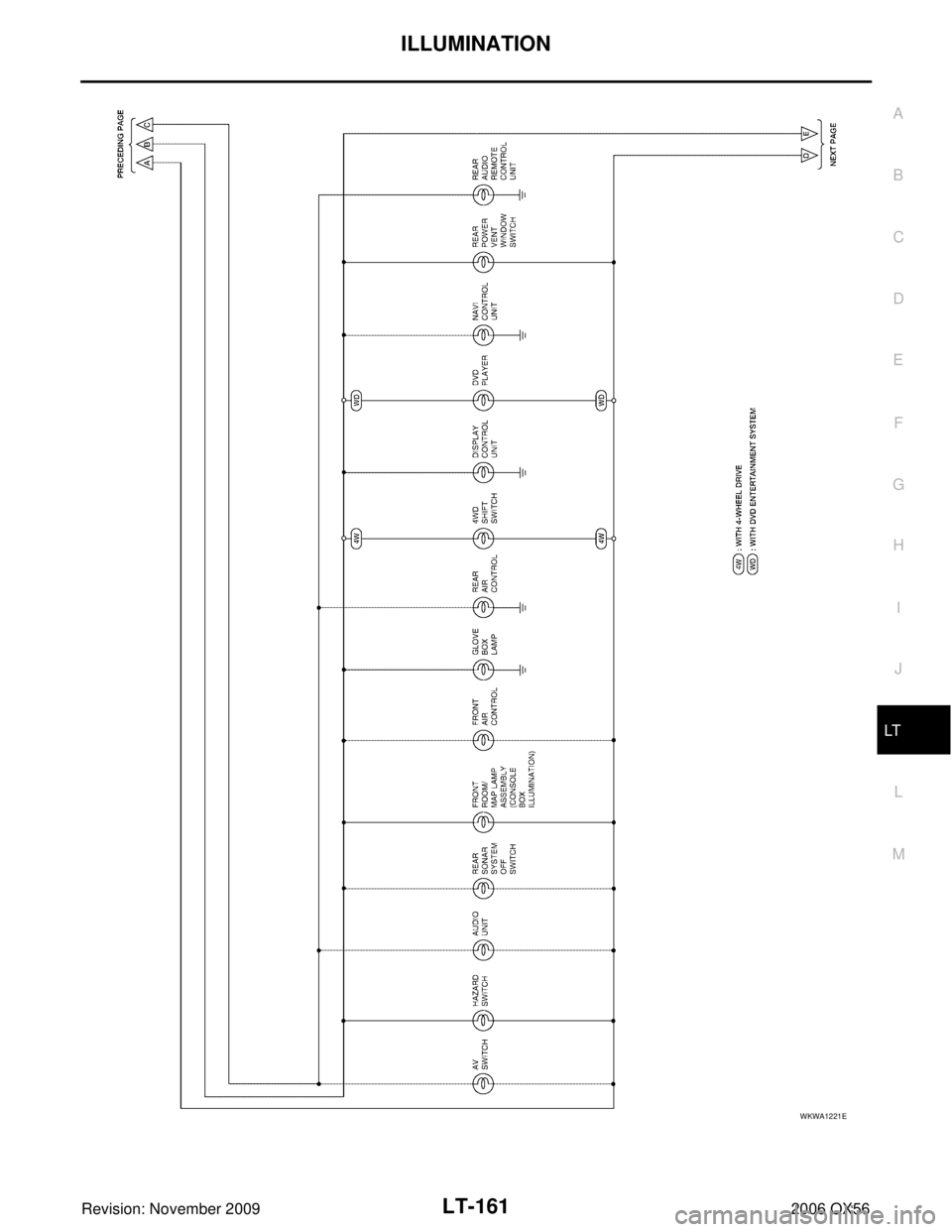

SchematicEKS00BBL
