Page 2913 of 3383

INFINITI QX56 2006 Factory Service Manual SC-8 BATTERY Revision: November 20092006 QX56 8. Press “ENTER”, then test output code is displayed. Record the test output code on the repair order. 9. Toggle back to the “DIAGNOSTIC SCREEN ”

Page 2914 of 3383

INFINITI QX56 2006 Factory Service Manual BATTERYSC-9 C DE F G H I J L M A B SC Revision: November 2009 2006 QX56 Removal and Installation EKS00B7A REMOVAL 1. Disconnect the negative battery terminal and positive battery terminal. CAUTION: Re

Page 2915 of 3383

INFINITI QX56 2006 Factory Service Manual SC-10 STARTING SYSTEM Revision: November 20092006 QX56 STARTING SYSTEMPFP:23300 System DescriptionEKS00B7B Power is supplied at all times: through 40A fusible link (letter m , located in the fuse and

Page 2916 of 3383

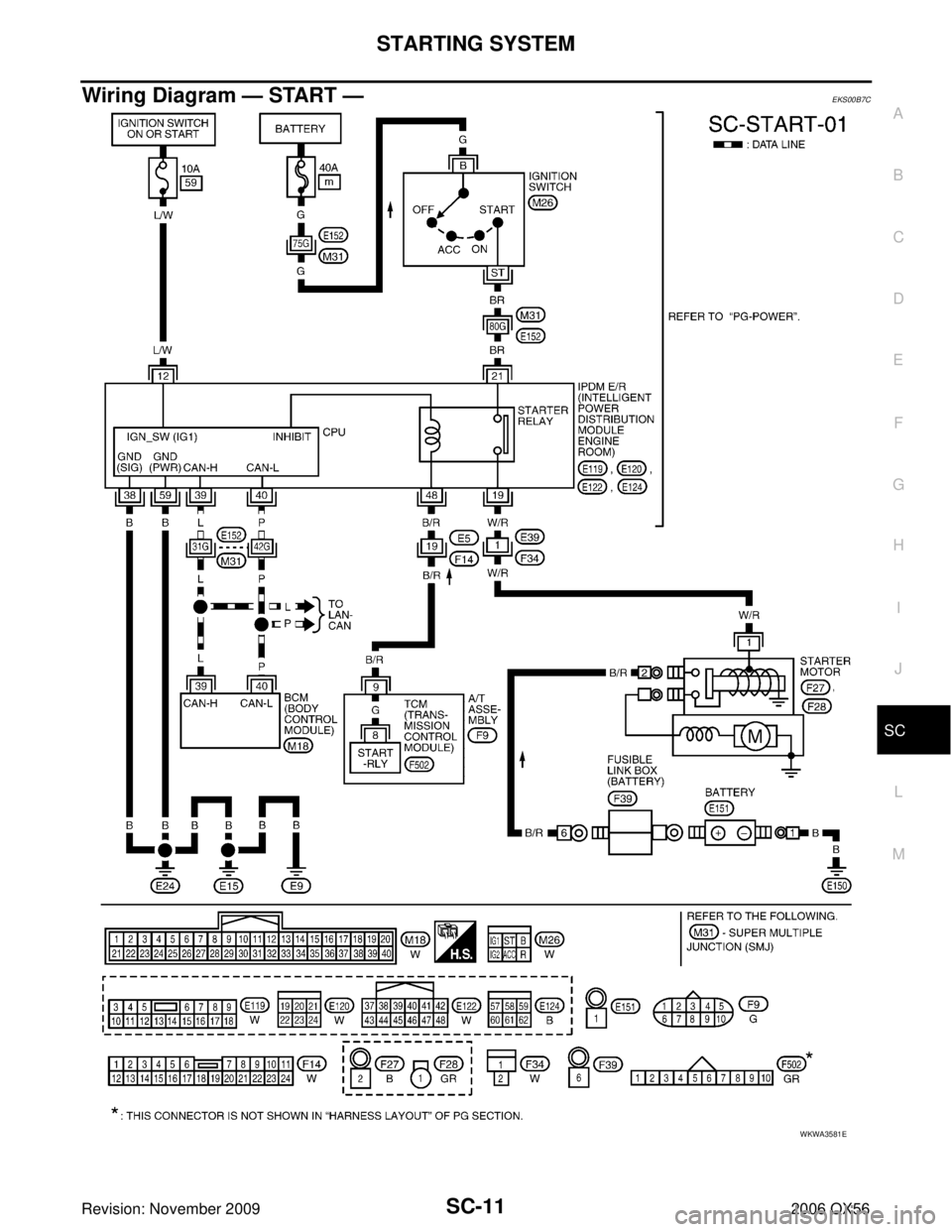

INFINITI QX56 2006 Factory Service Manual STARTING SYSTEMSC-11 C DE F G H I J L M A B SC Revision: November 2009 2006 QX56 Wiring Diagram — START —EKS00B7C WKWA3581E

Page 2917 of 3383

INFINITI QX56 2006 Factory Service Manual SC-12 STARTING SYSTEM Revision: November 20092006 QX56 Trouble Diagnoses with Battery/Starting/Charging System TesterEKS00B7D NOTE: To ensure a complete and thorough diagnosis, the battery, starter an

Page 2918 of 3383

INFINITI QX56 2006 Factory Service Manual STARTING SYSTEMSC-13 C DE F G H I J L M A B SC Revision: November 2009 2006 QX56 WORK FLOW *1SC-12*2SC-14*3 SC-15 *4SC-15 WKIA4532E

Page 2919 of 3383

INFINITI QX56 2006 Factory Service Manual SC-14 STARTING SYSTEM Revision: November 20092006 QX56 DIAGNOSTIC PROCEDURE 1 Check Starter Motor Circuit 1. CHECK POWER SUPPLY TO STARTER MOTOR 1. Remove the fuel pump fuse. 2. Crank or start the eng

Page 2920 of 3383

INFINITI QX56 2006 Factory Service Manual STARTING SYSTEMSC-15 C DE F G H I J L M A B SC Revision: November 2009 2006 QX56 DIAGNOSTIC PROCEDURE 2 Check Magnetic Switch Circuit 1. CHECK POWER SUPPLY FOR MAGNETIC SWITCH 1. Remove the fuel pump
