QUICK REFERENCE INDEX

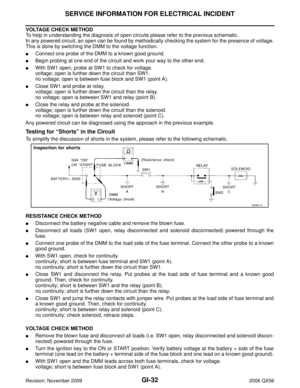

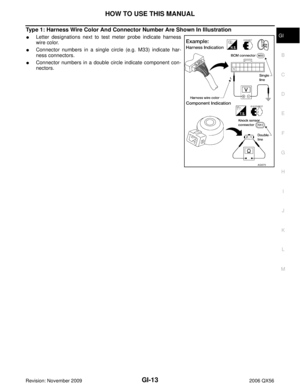

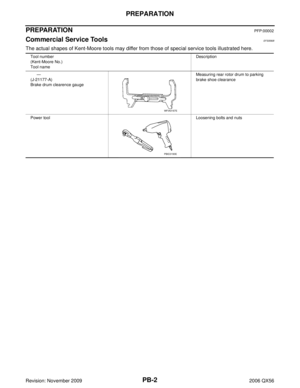

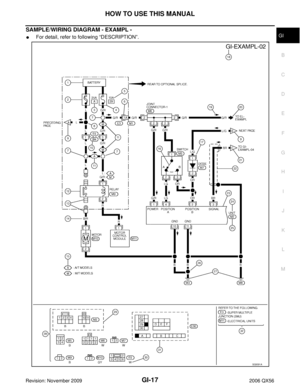

AGENERAL INFORMATIONGIGeneral Information

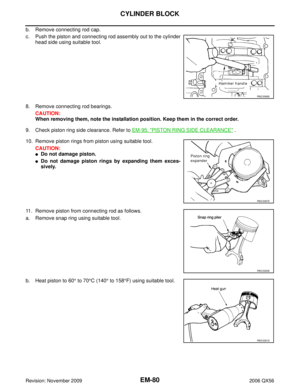

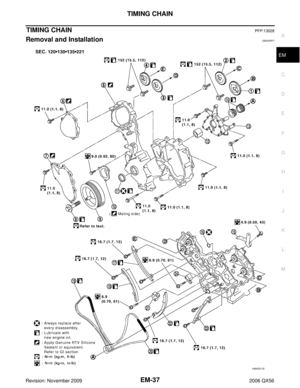

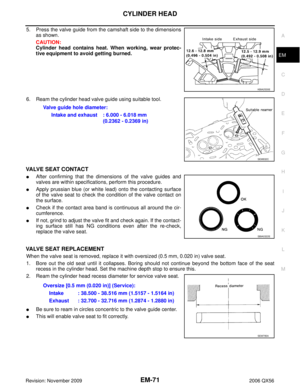

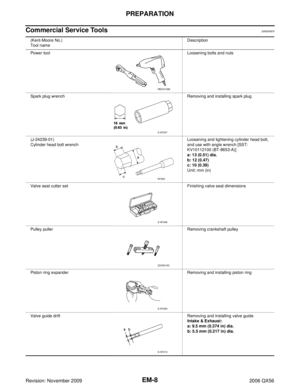

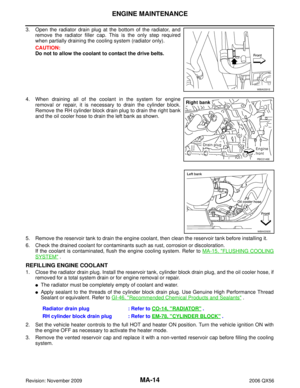

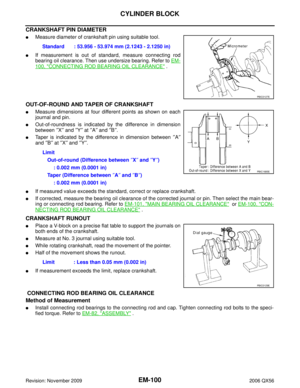

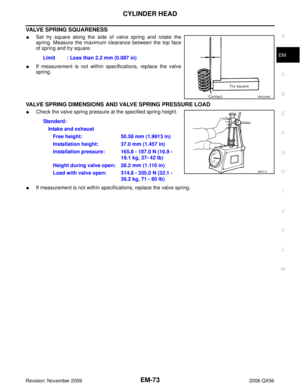

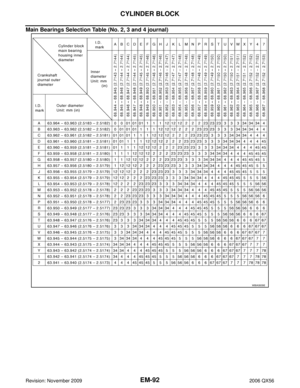

BENGINEEMEngine Mechanical

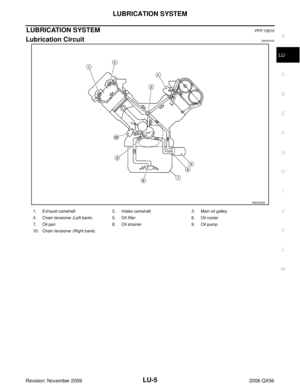

LUEngine Lubrication System

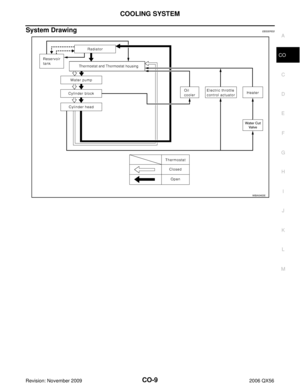

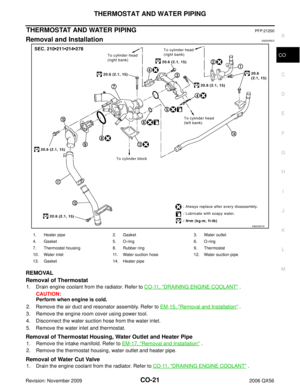

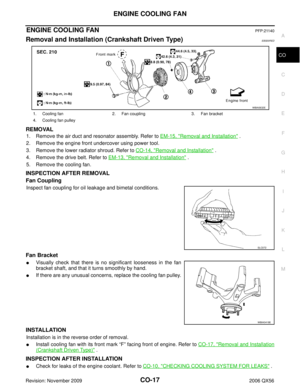

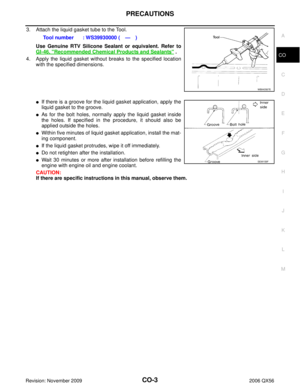

COEngine Cooling System

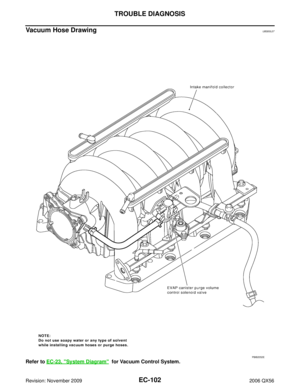

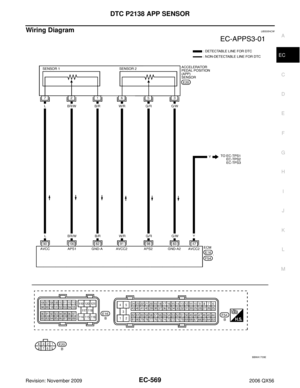

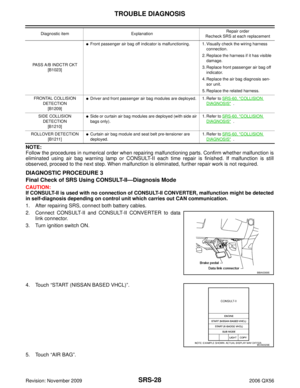

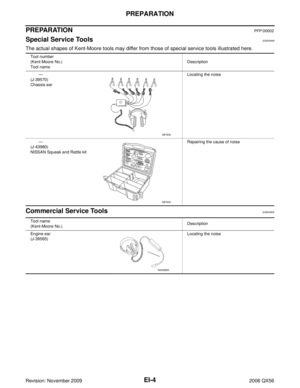

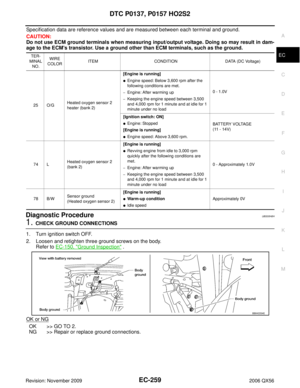

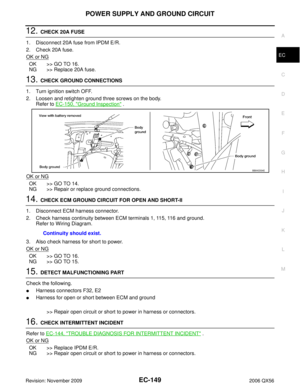

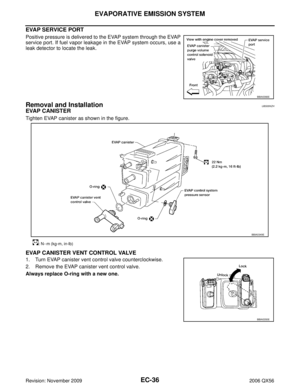

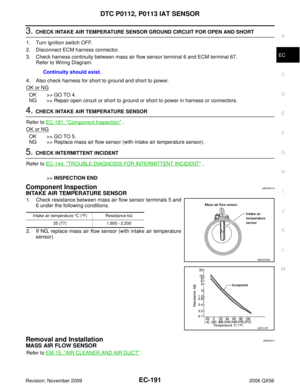

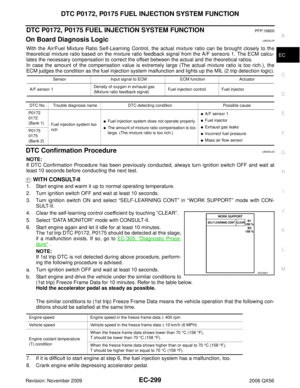

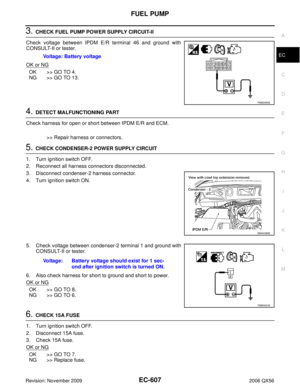

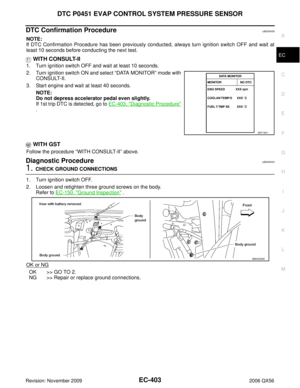

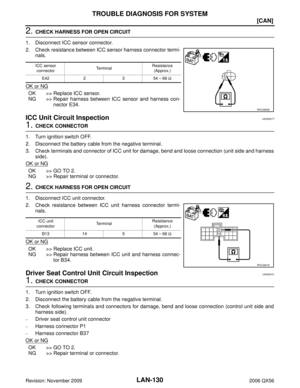

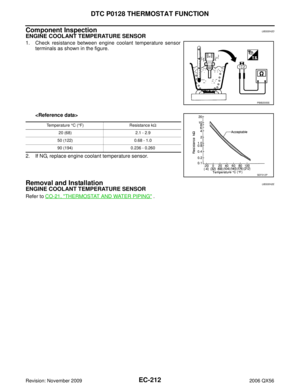

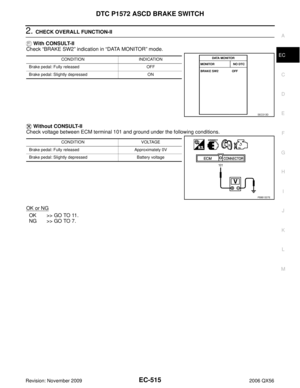

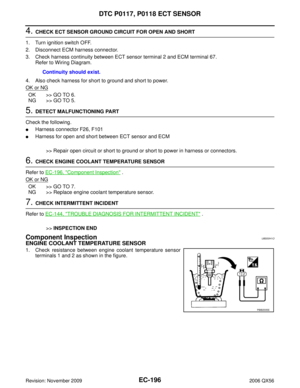

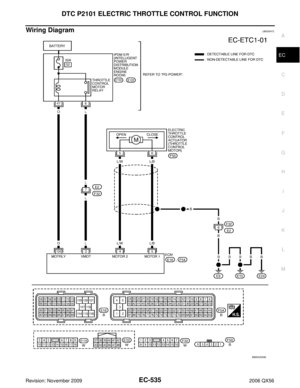

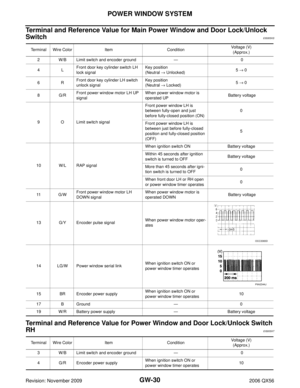

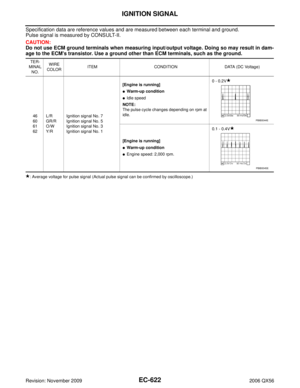

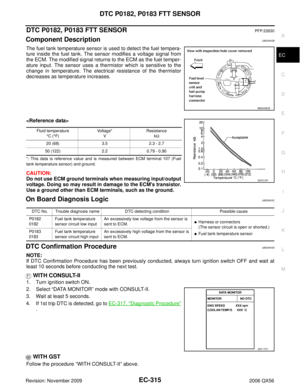

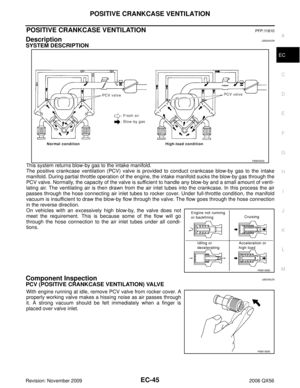

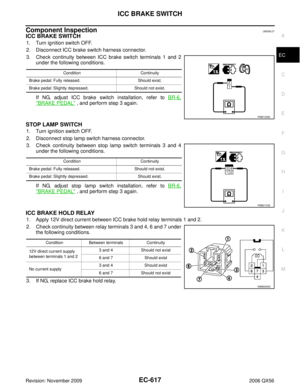

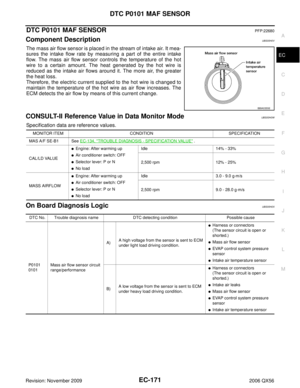

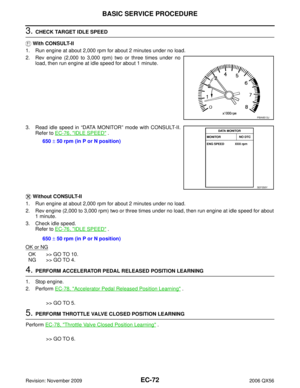

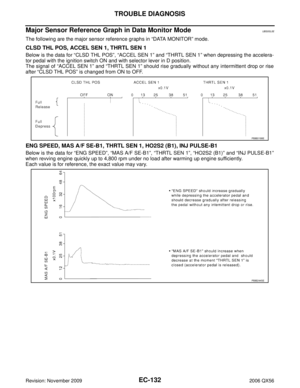

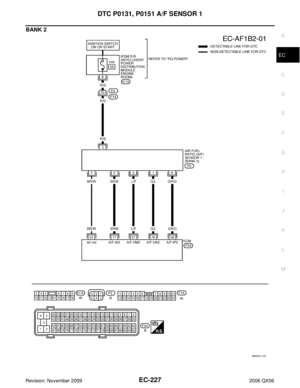

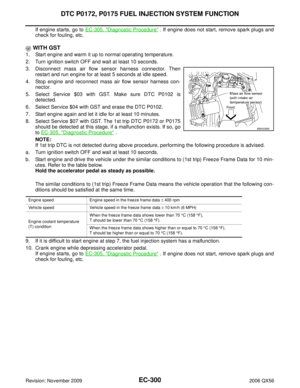

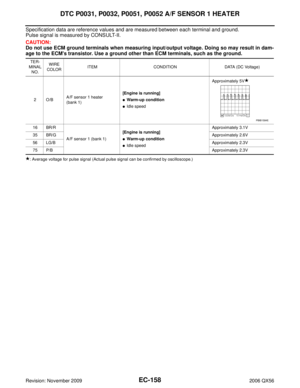

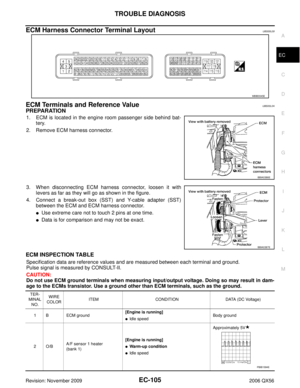

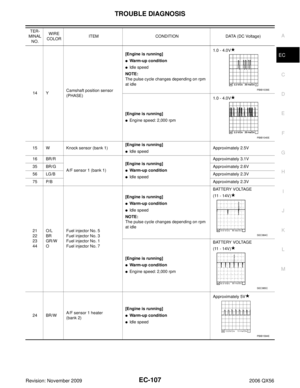

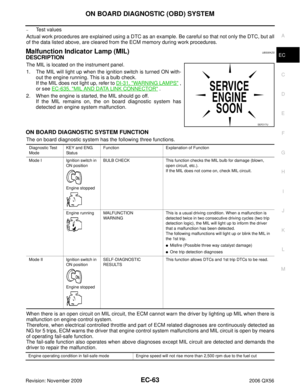

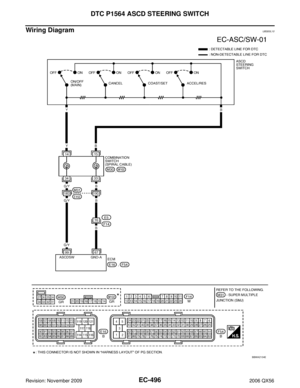

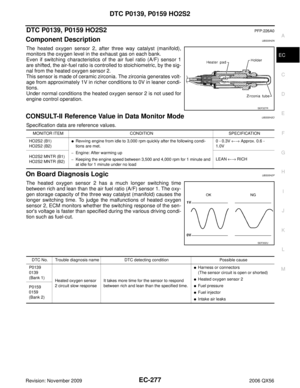

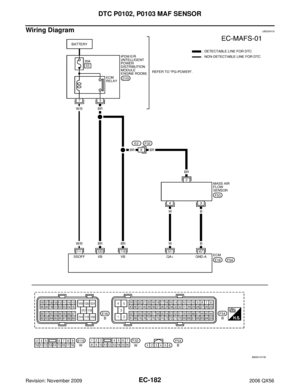

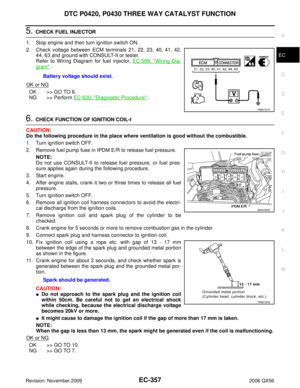

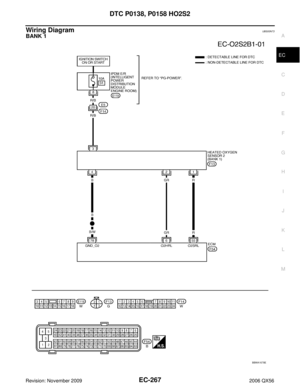

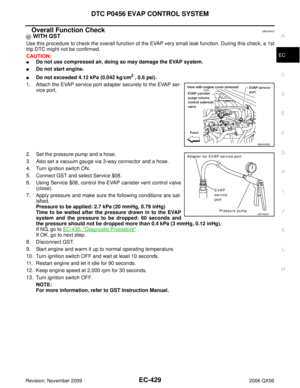

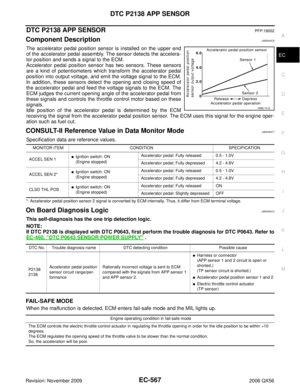

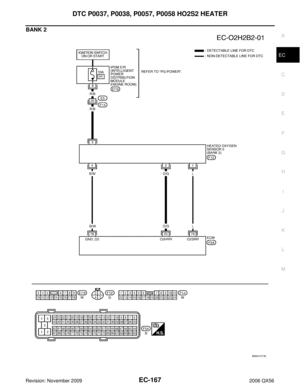

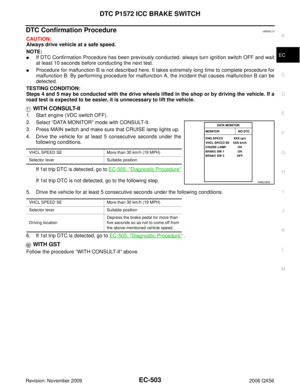

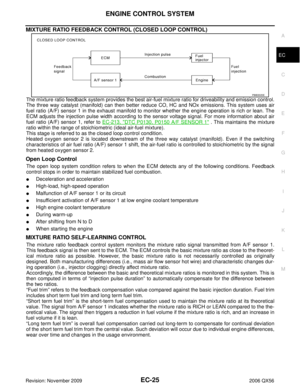

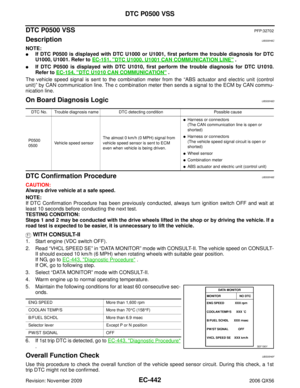

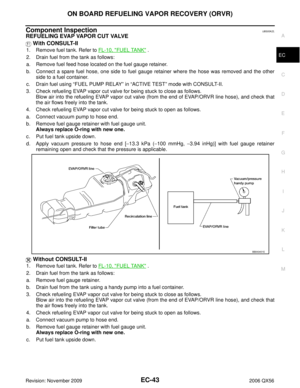

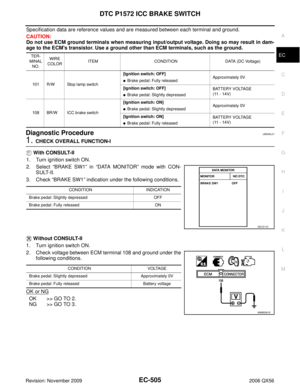

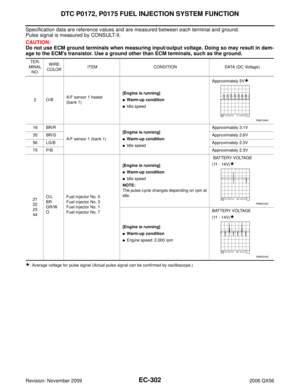

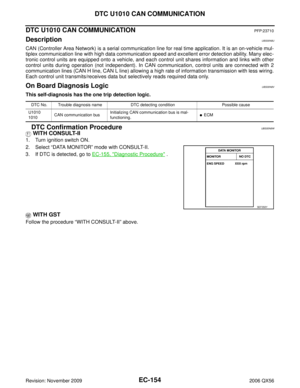

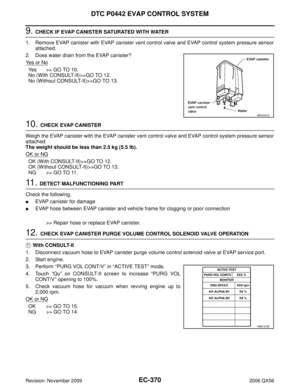

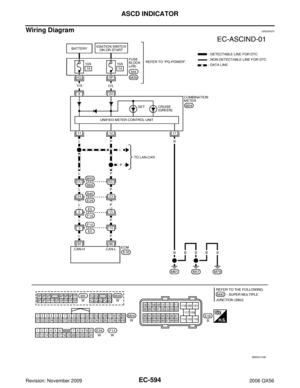

ECEngine Control System

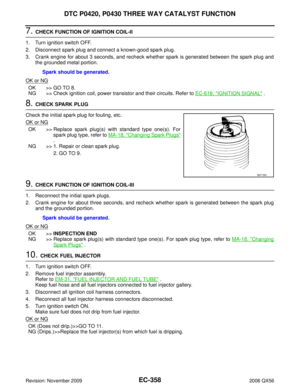

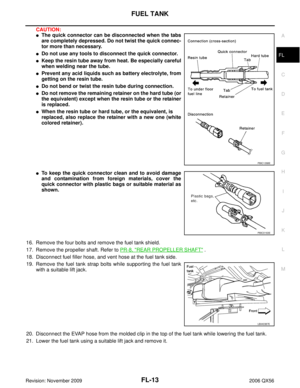

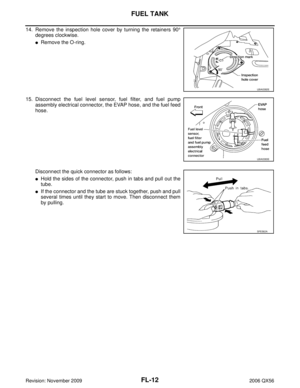

FLFuel System
EXExhaust System
ACCAccelerator Control System
CTRANSMISSION/
TRANSAXLEATAutomatic Transmission

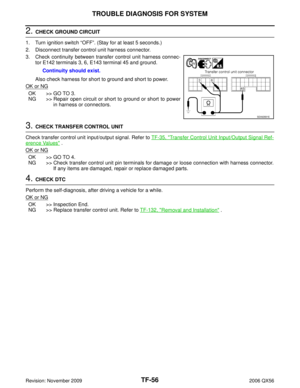

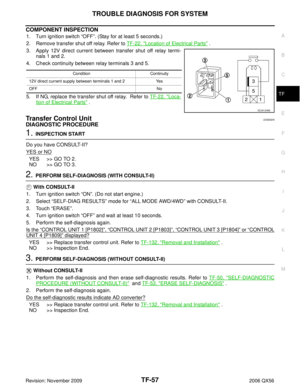

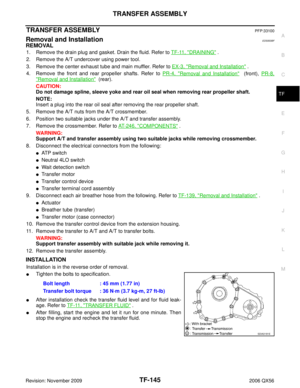

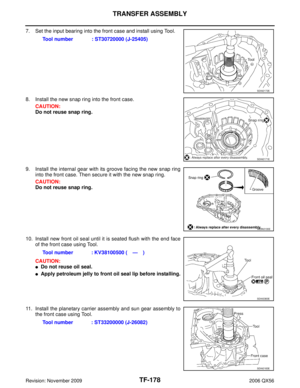

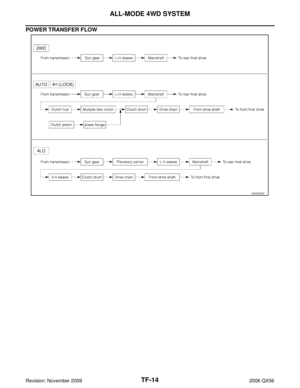

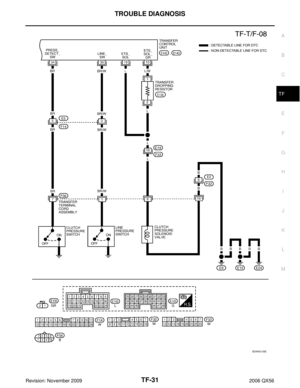

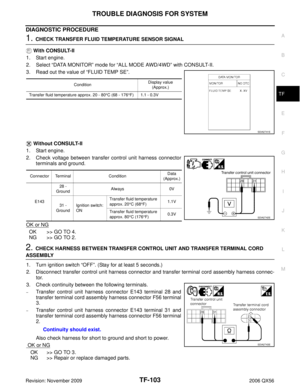

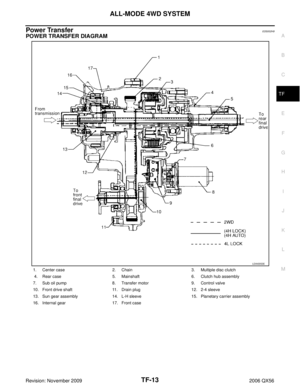

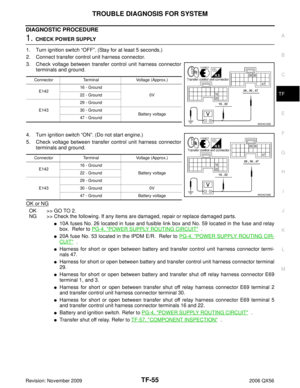

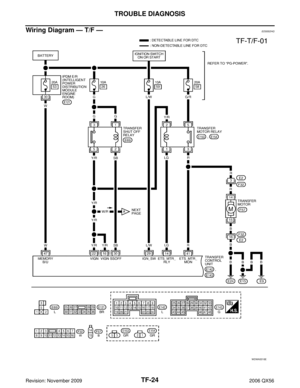

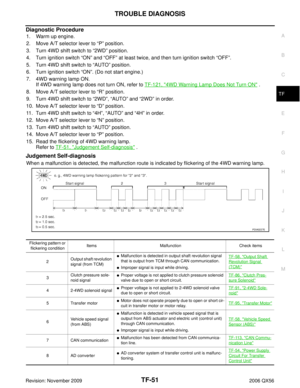

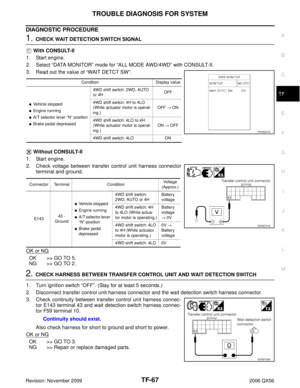

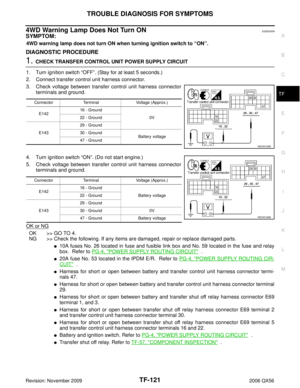

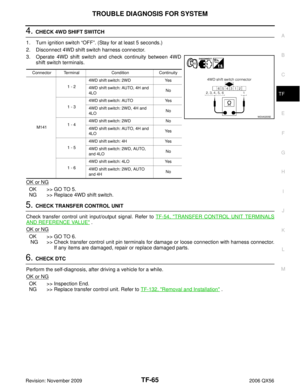

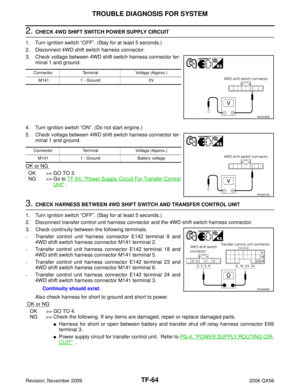

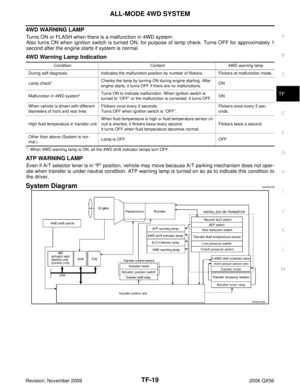

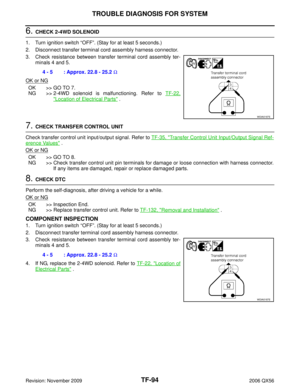

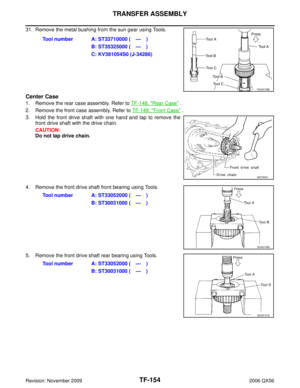

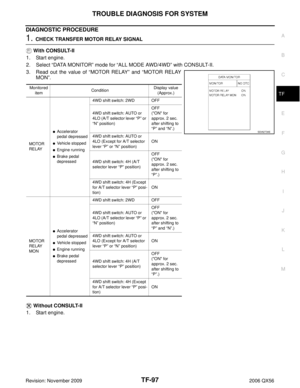

DDRIVELINE/AXLETFTransfer

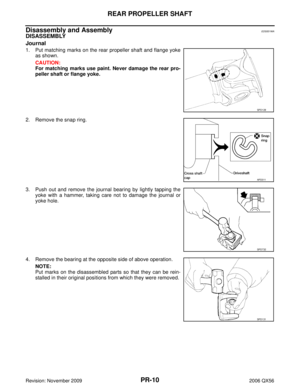

PRPropeller Shaft

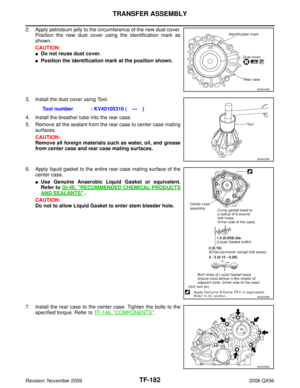

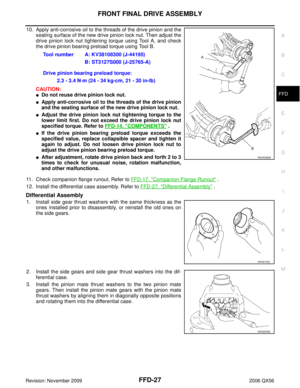

FFDFront Final Drive

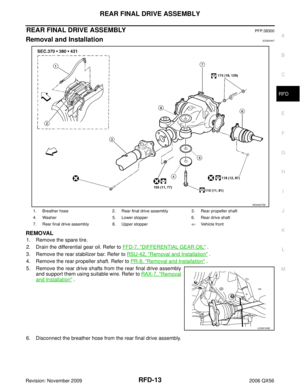

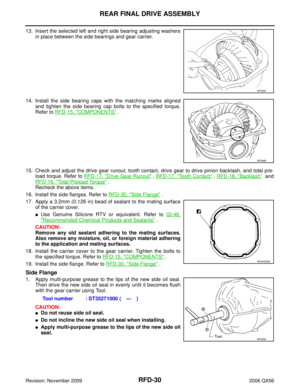

RFDRear Final Drive
FAXFront Axle

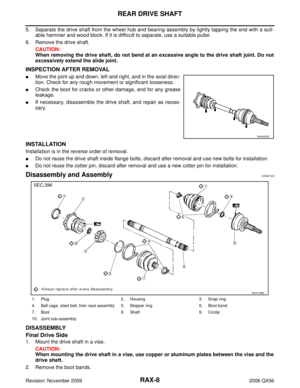

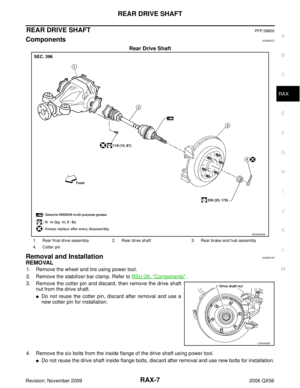

RAXRear Axle
ESUSPENSIONFSUFront Suspension

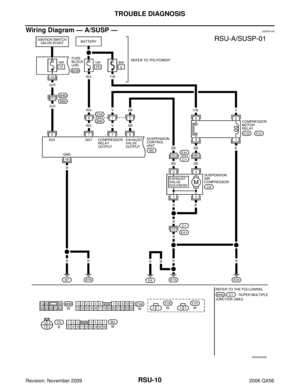

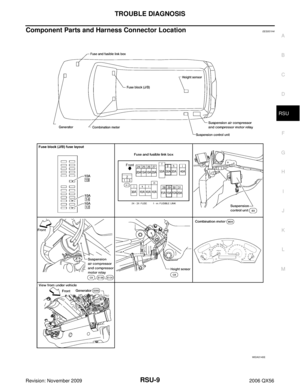

RSURear Suspension

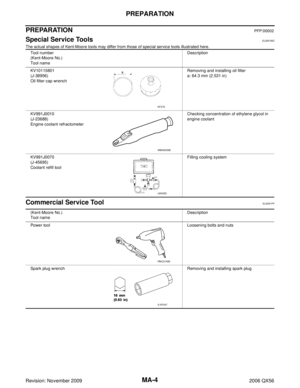

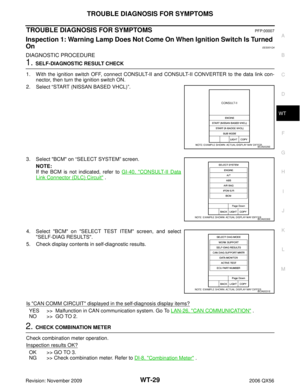

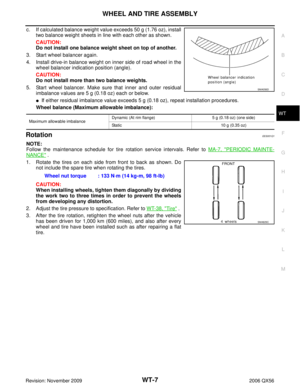

WTRoad Wheels & Tires

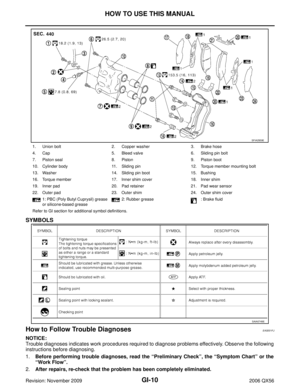

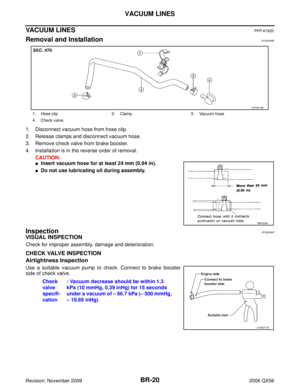

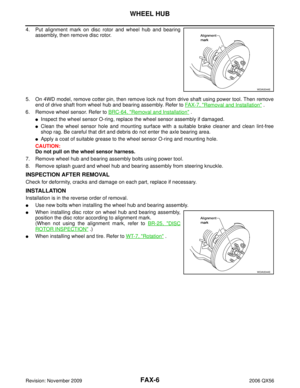

FBRAKESBRBrake System
PBParking Brake System

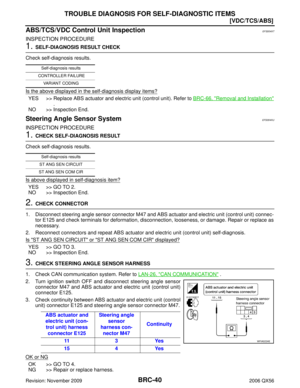

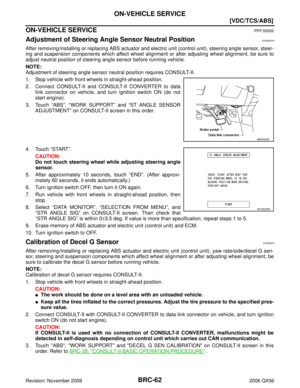

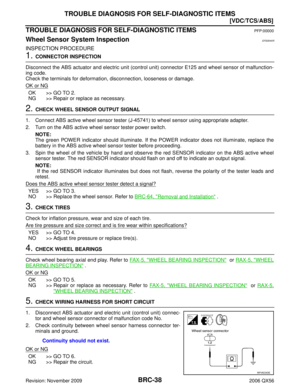

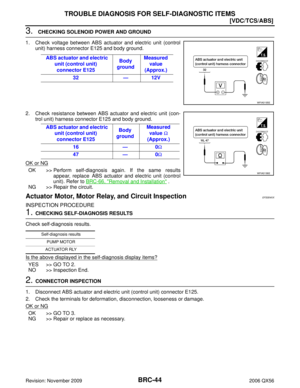

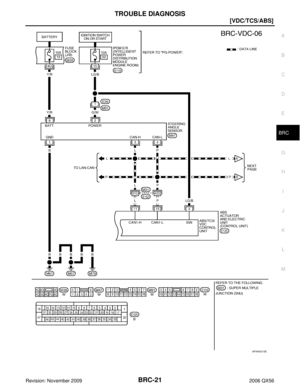

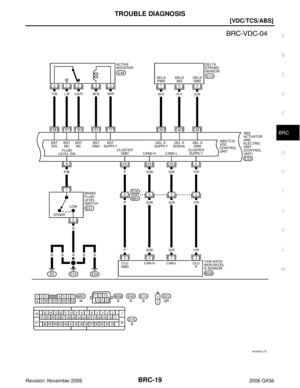

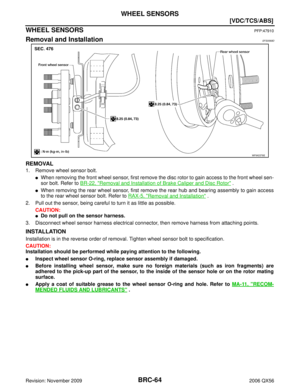

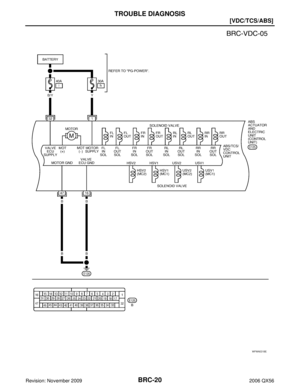

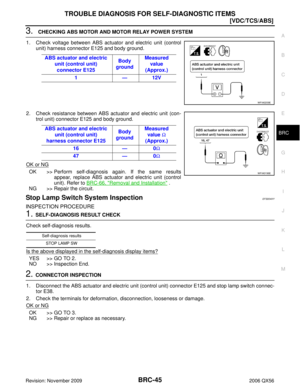

BRCBrake Control System

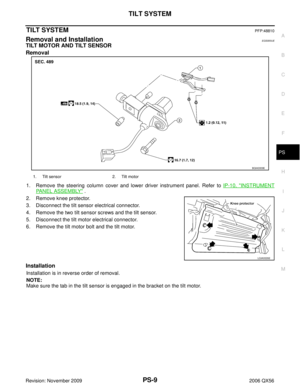

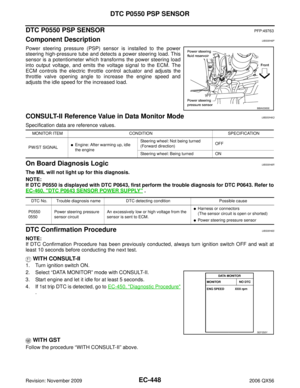

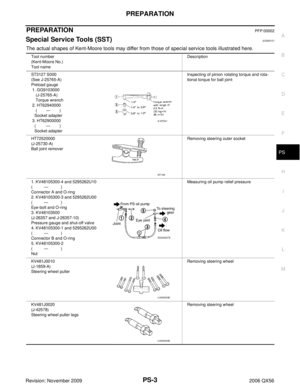

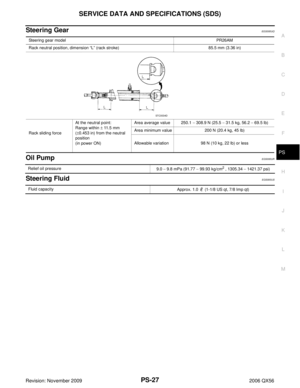

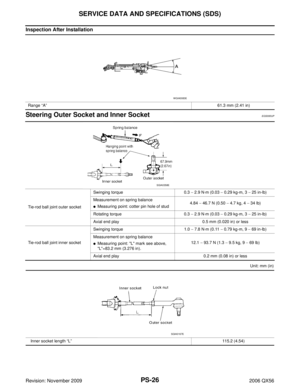

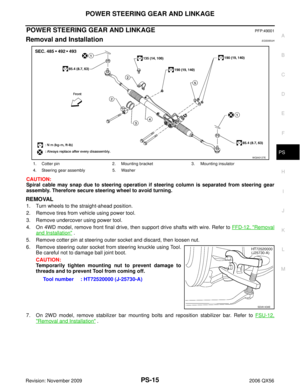

GSTEERINGPSPower Steering System

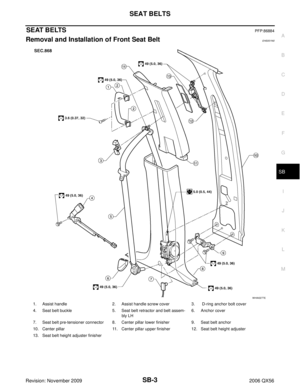

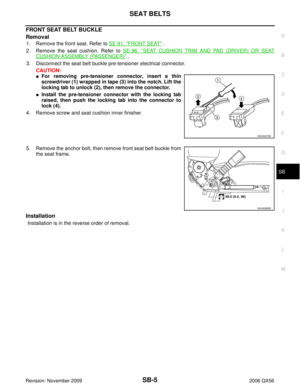

HRESTRAINTSSBSeat Belts

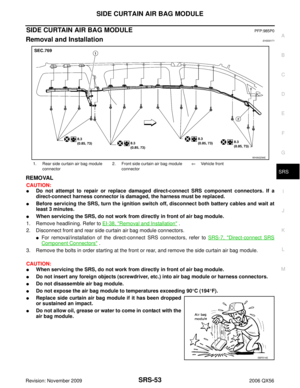

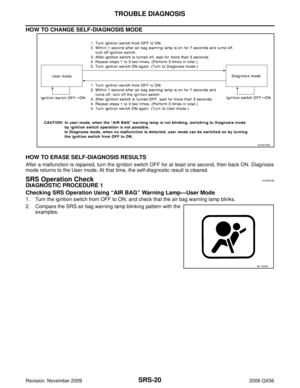

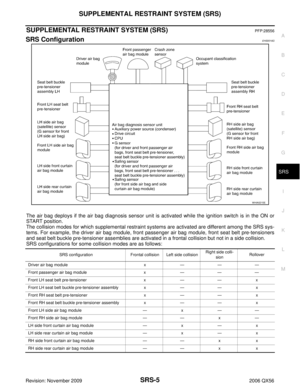

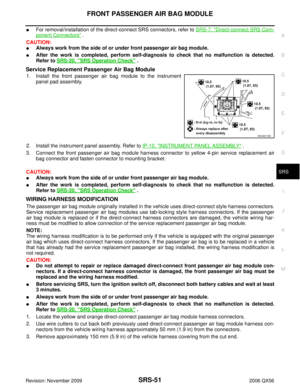

SRSSupplemental Restraint System (SRS)

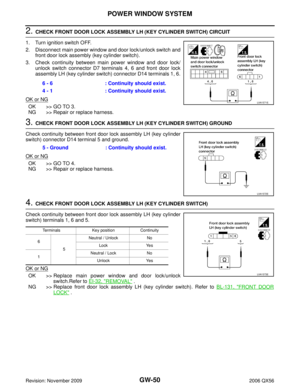

IBODYBLBody, Lock & Security System

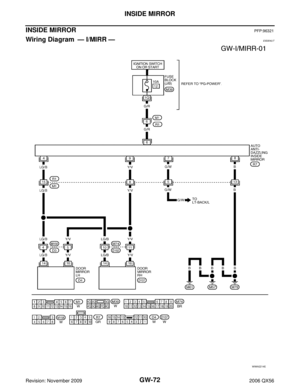

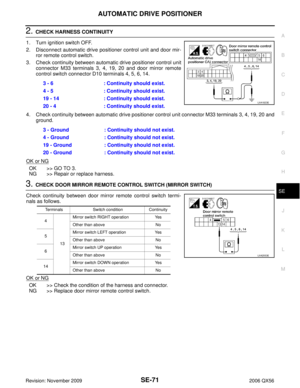

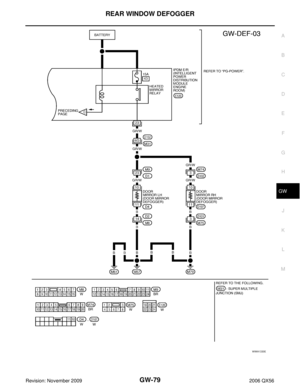

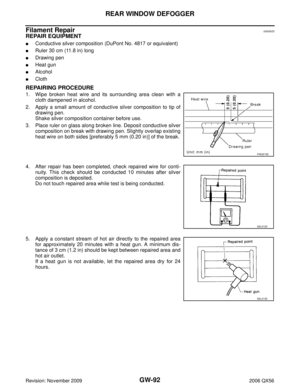

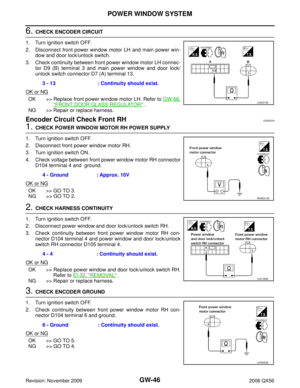

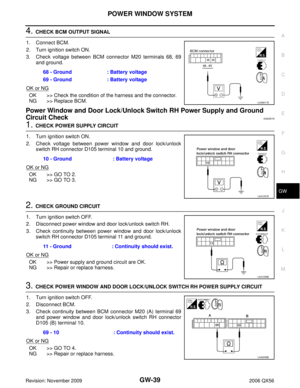

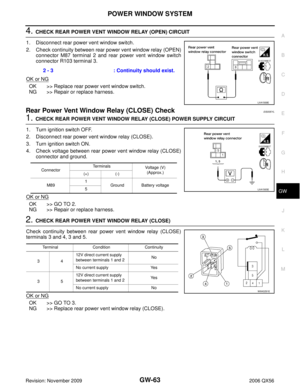

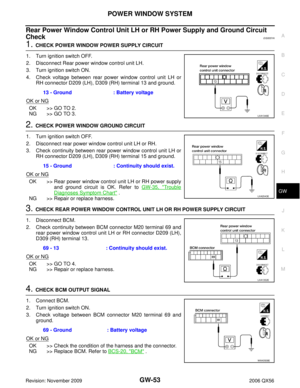

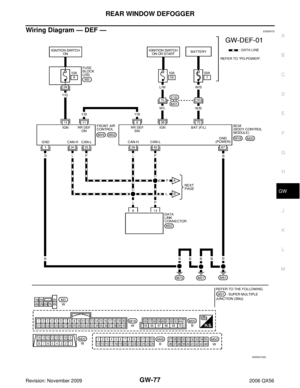

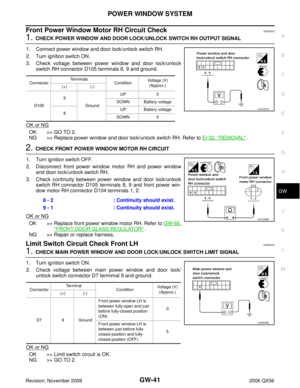

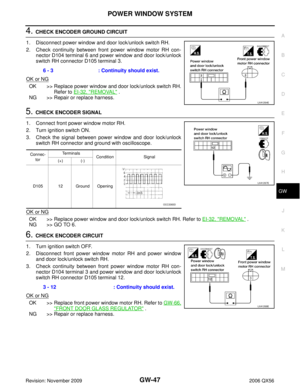

GWGlasses, Window System & Mirrors

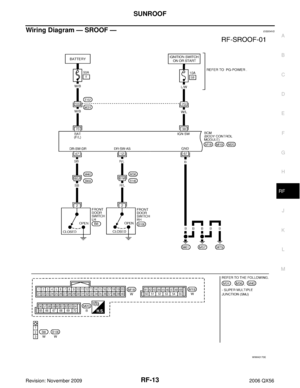

RFRoof

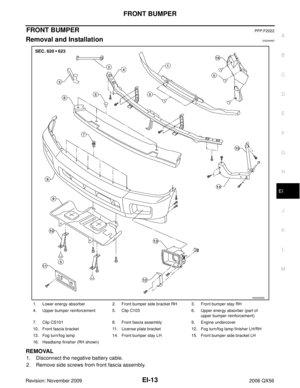

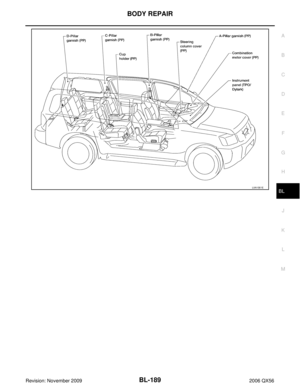

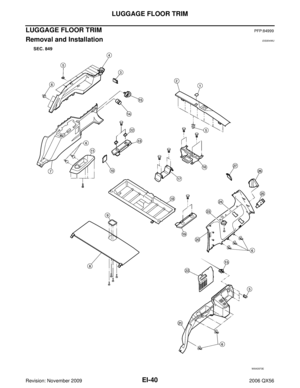

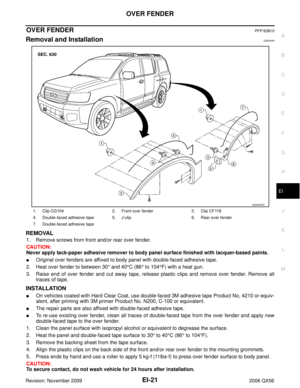

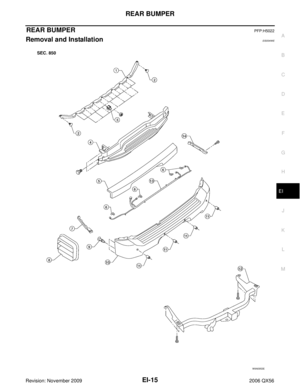

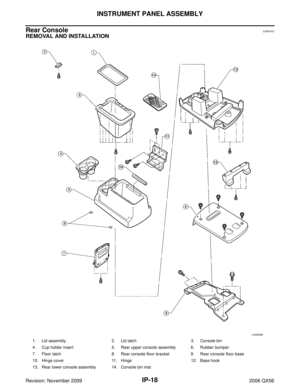

EIExterior & Interior
IPInstrument Panel

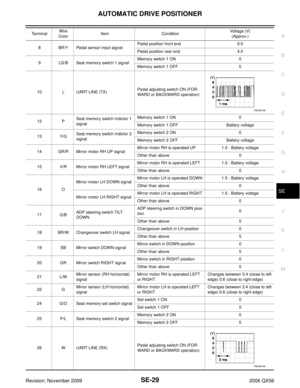

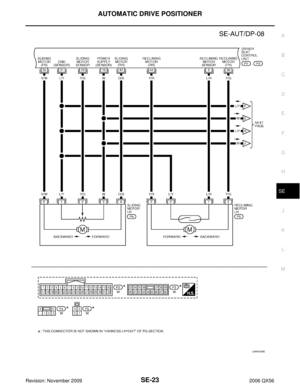

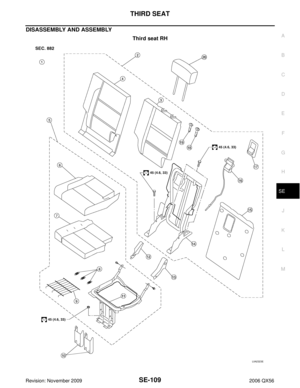

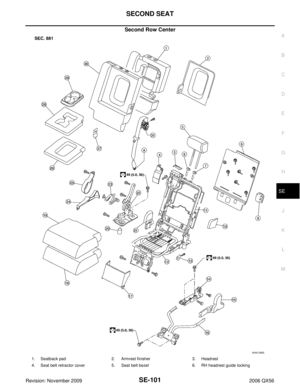

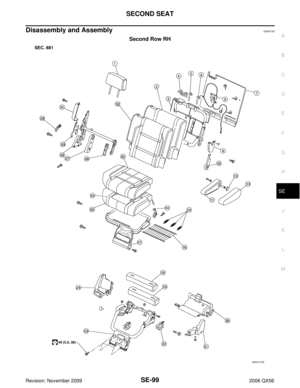

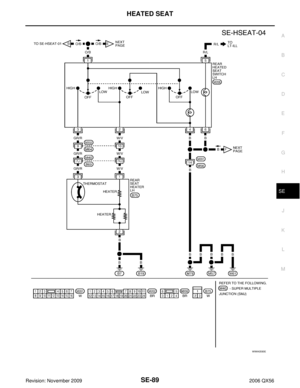

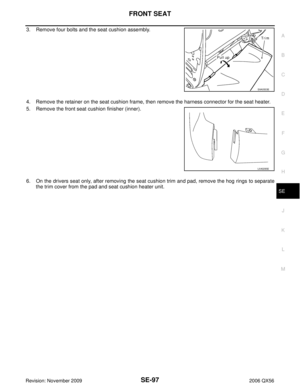

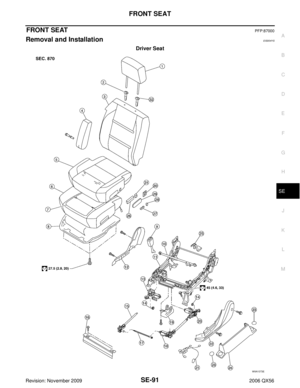

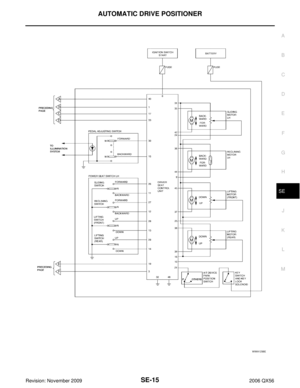

SESeat

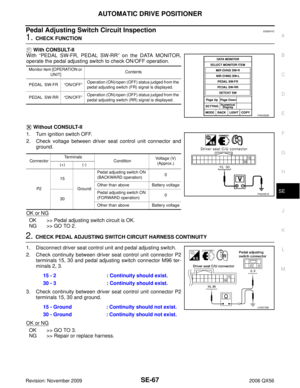

APAdjustable Pedal

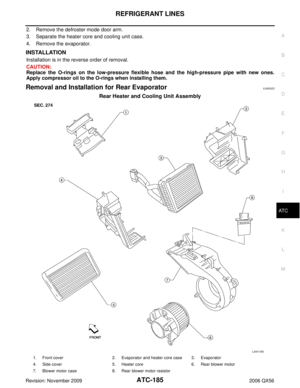

JAIR CONDITIONERATCAutomatic Air Conditioner

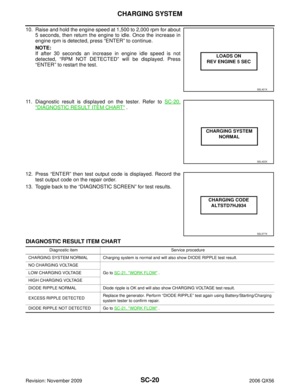

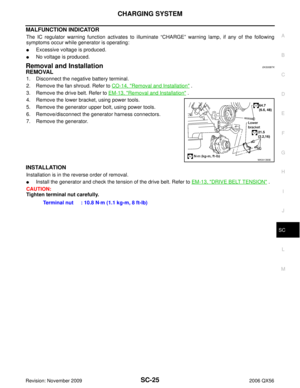

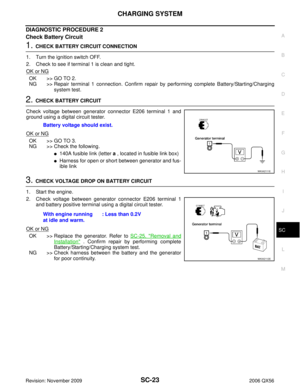

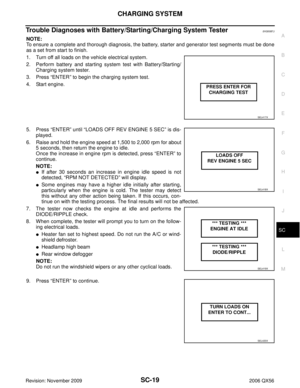

KELECTRICALSCStarting & Charging System

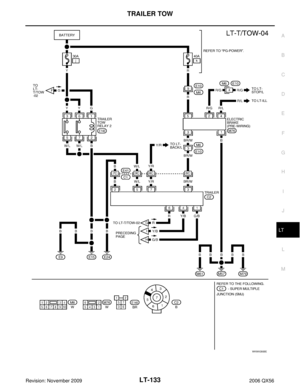

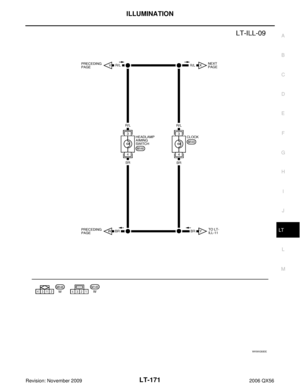

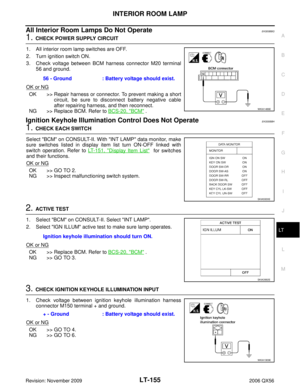

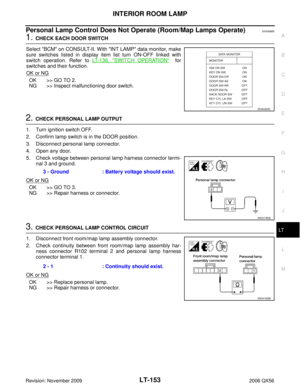

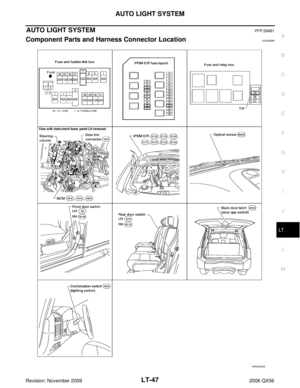

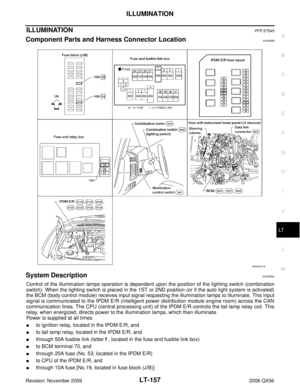

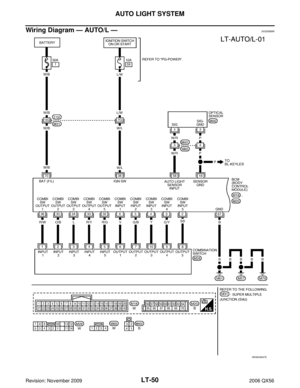

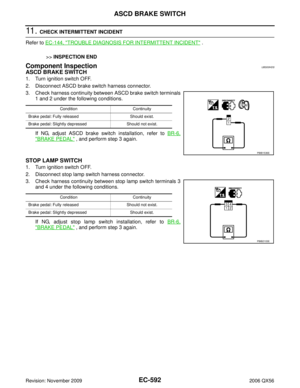

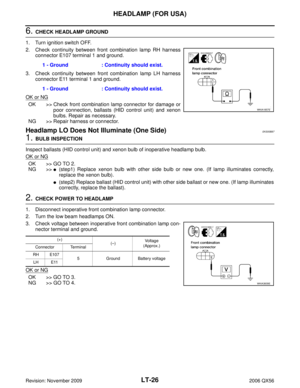

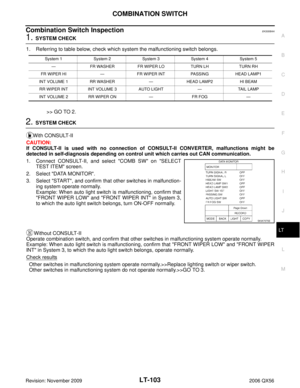

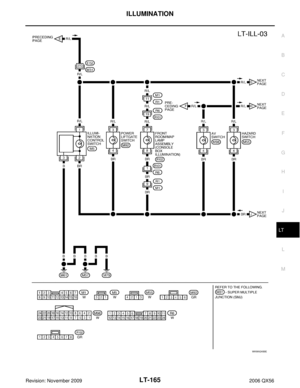

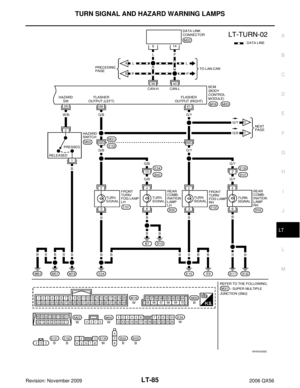

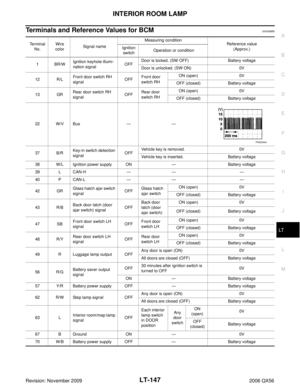

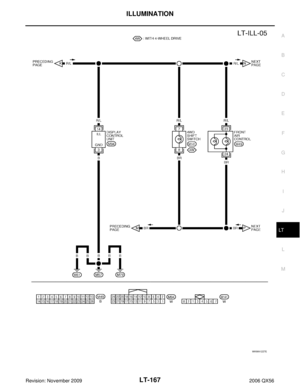

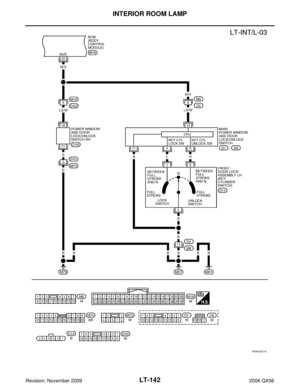

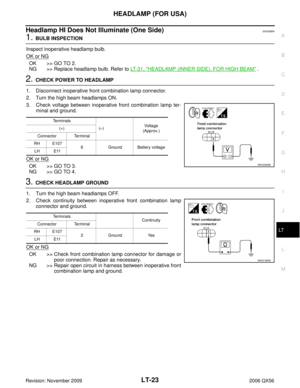

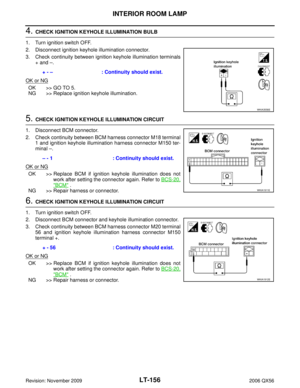

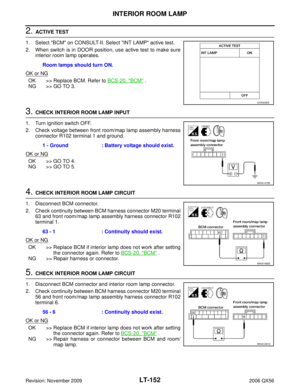

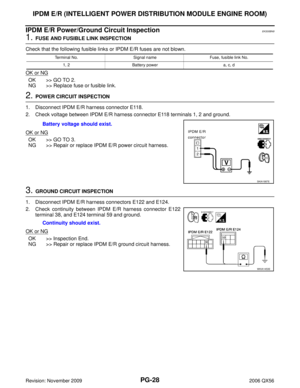

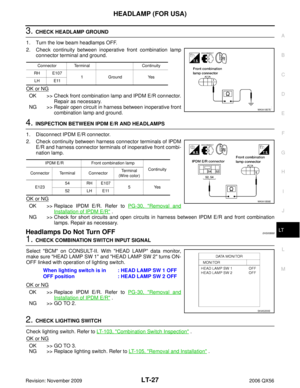

LTLighting System

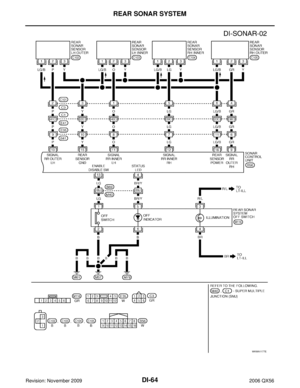

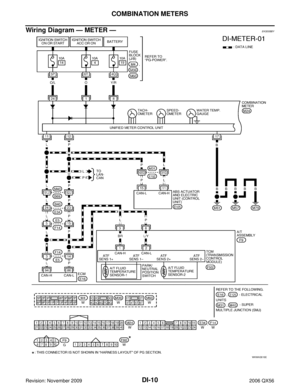

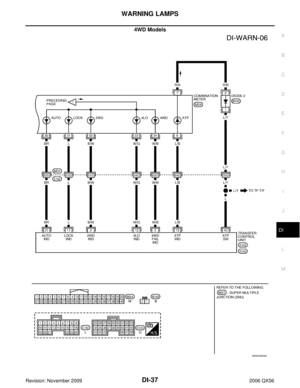

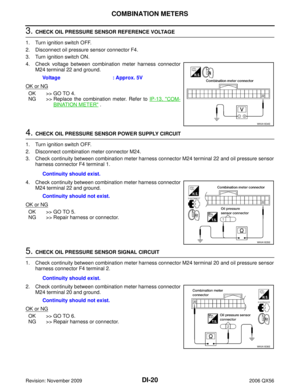

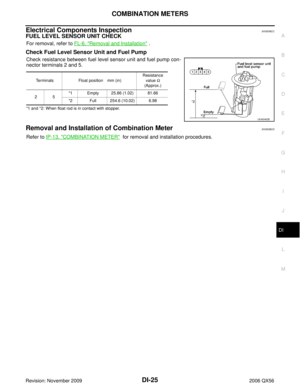

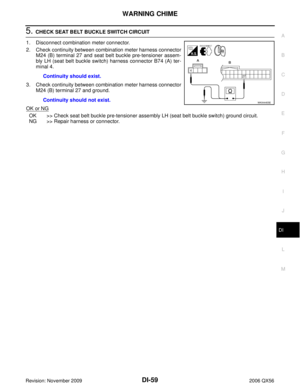

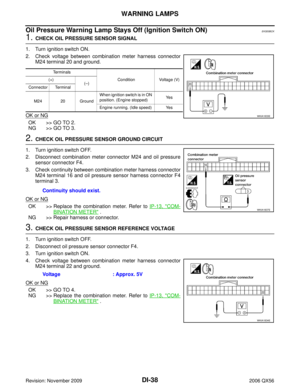

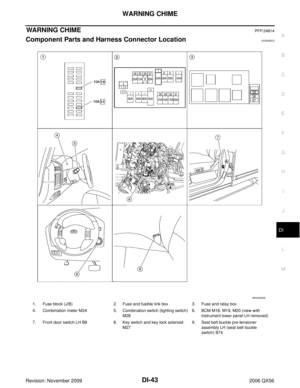

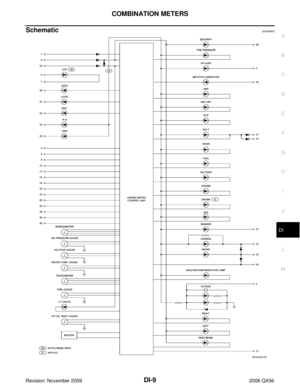

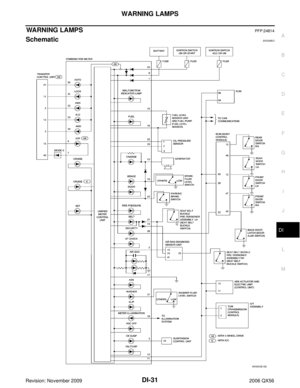

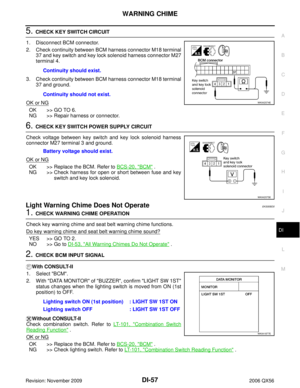

DIDriver Information System

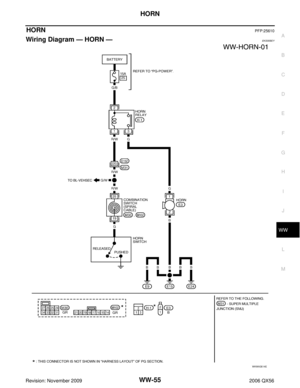

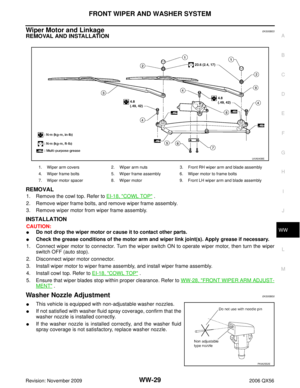

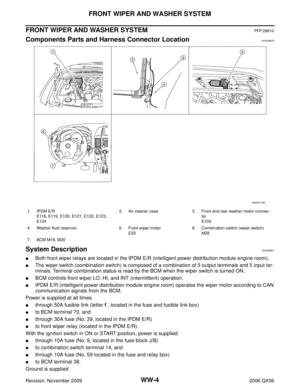

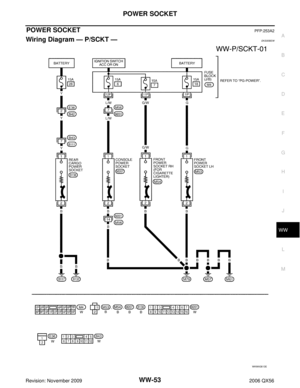

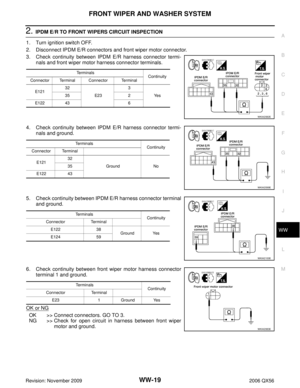

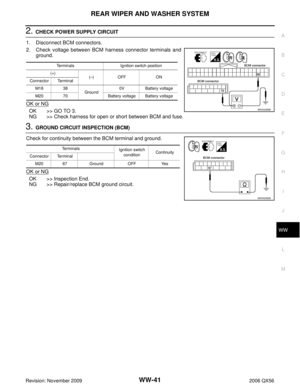

WWWiper, Washer & Horn

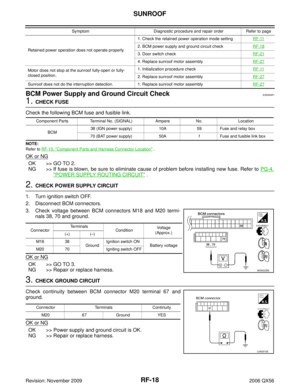

BCSBody Control System

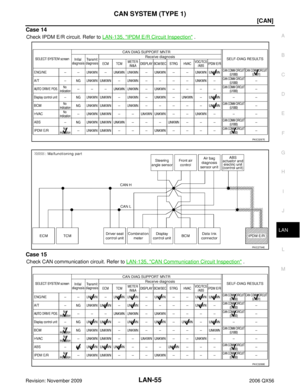

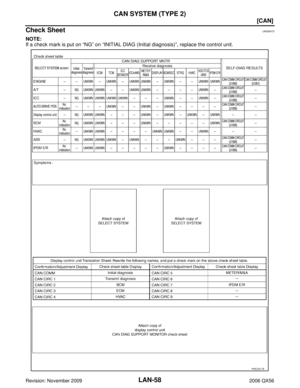

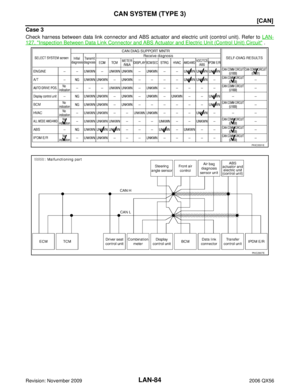

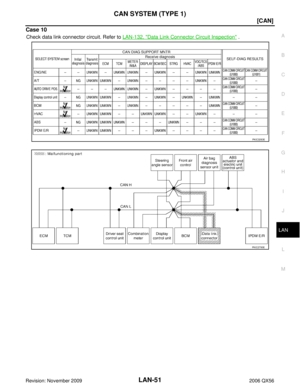

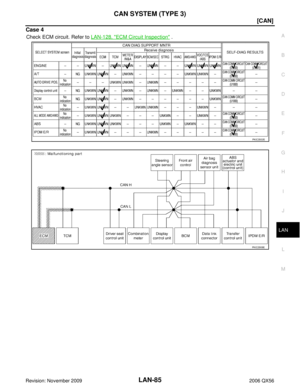

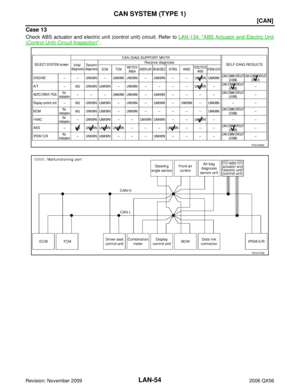

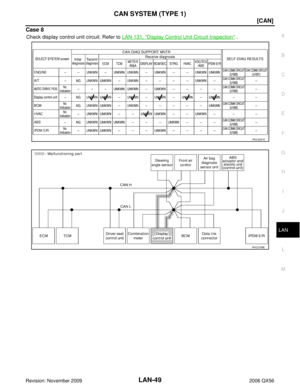

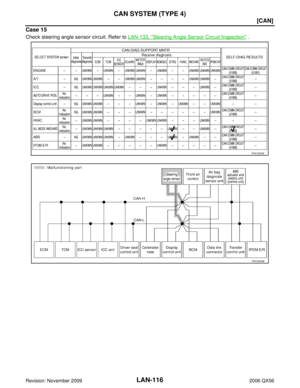

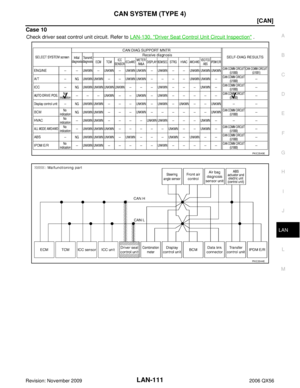

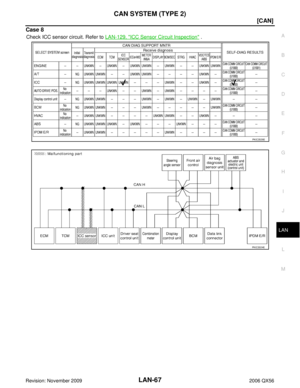

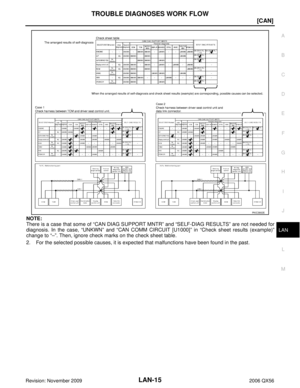

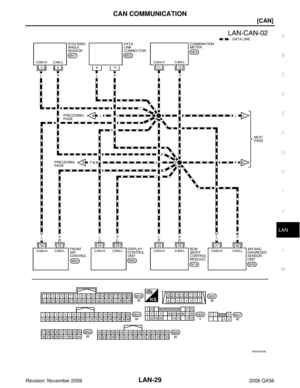

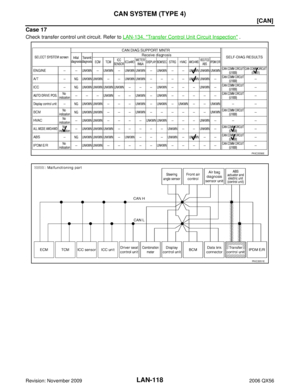

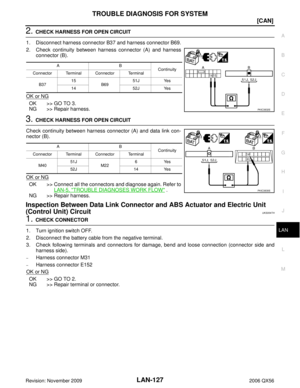

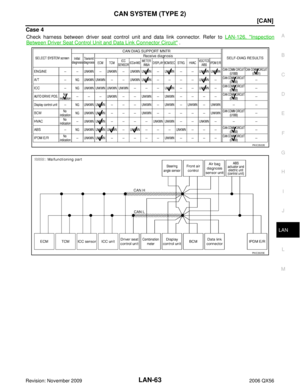

LANLAN System
AVAudio Visual, Navigation & Telephone System
ACSAuto Cruise Control System

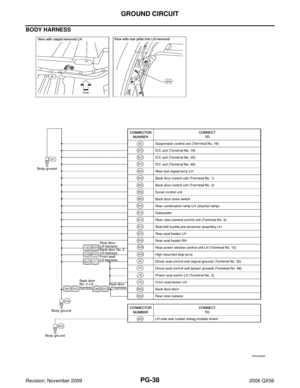

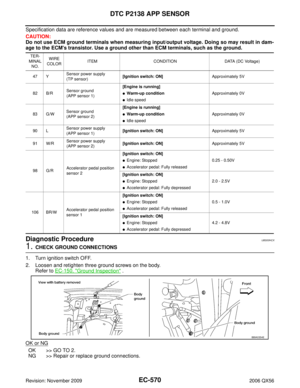

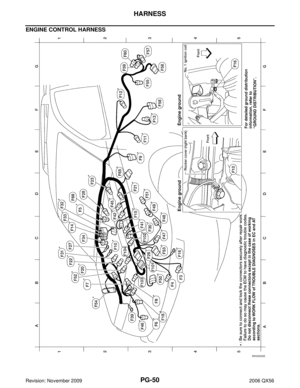

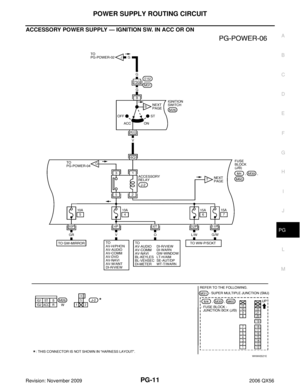

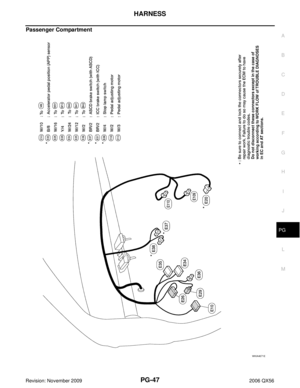

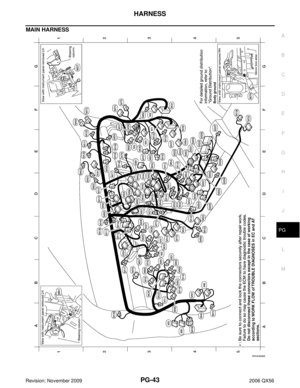

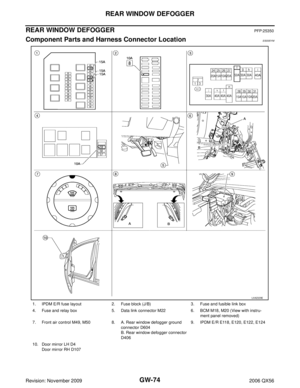

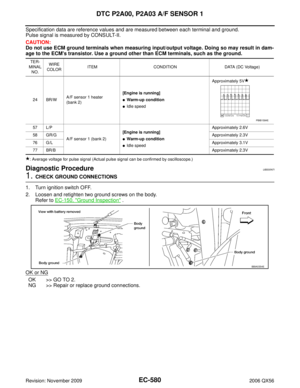

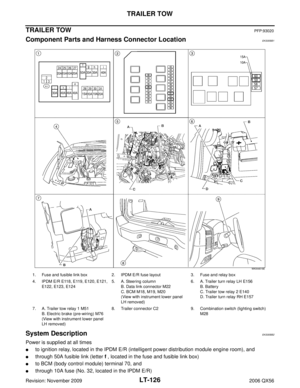

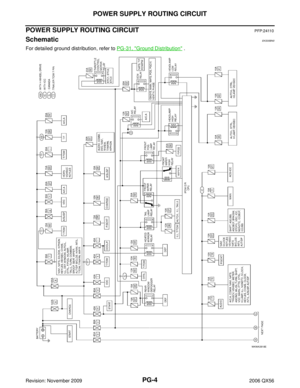

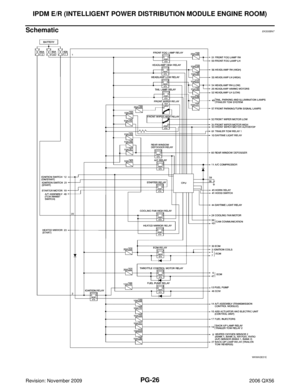

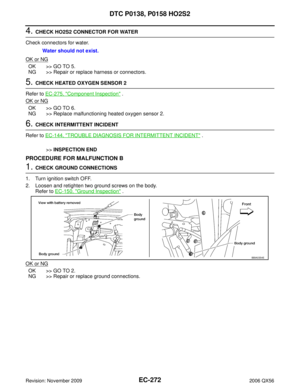

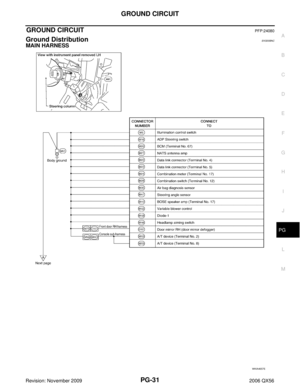

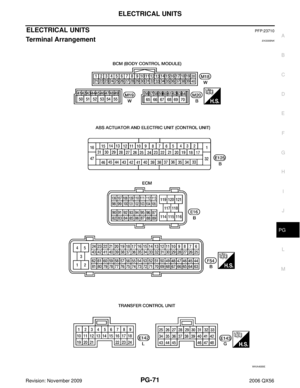

PGPower Supply, Ground & Circuit Elements

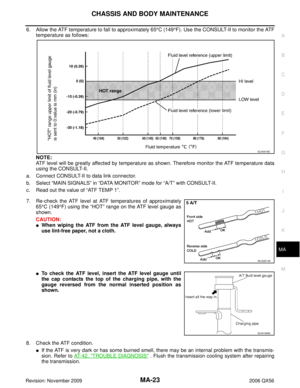

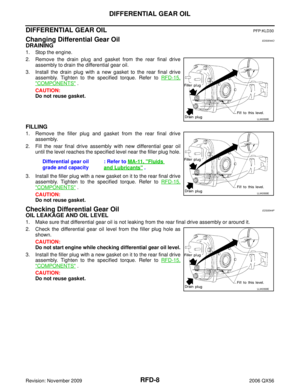

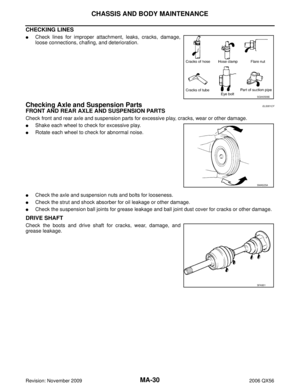

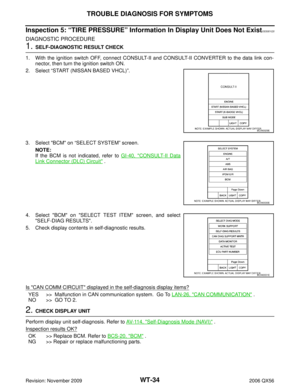

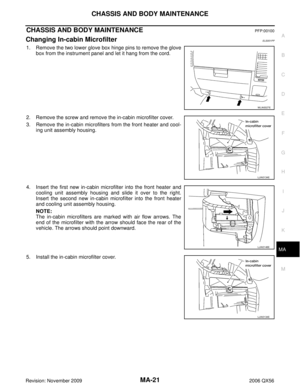

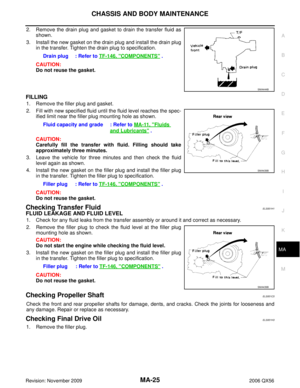

LMAINTENANCEMAMaintenance
MINDEXIDXAlphabetical Index
Edition: July 2005
Revision: November 2009
Publication No. SM6E-1J60U2
B
D
© 2009 NISSAN NORTH AMERICA, INC.
All rights reserved. No part of this Service Manual may be reproduced or stored in a retrieval system, or transmitted in any
form, or by any means, electronic, mechanical, photo-copying, recording or otherwise, without the prior written permission
of Nissan North America, Inc.
A
C
E
F
G
H
I
J
K
L
M
Page 2 of 3383

-2
FOREWORD
This manual contains maintenance and repair procedures for the
2006 INFINITI QX56.
In order to assure your safety and the efficient functioning of the vehicle,
this manual should be read thoroughly. It is especially important that the
PRECAUTIONS in the GI section be completely understood before starting
any repair task.
All information in this manual is based on the latest product information
at the time of publication. The right is reserved to make changes in specifi-
cations and methods at any time without notice.
IMPORTANT SAFETY NOTICE
The proper performance of service is essential for both the safety of
the technician and the efficient functioning of the vehicle.
The service methods in this Service Manual are described in such a
manner that the service may be performed safely and accurately.
Service varies with the procedures used, the skills of the technician
and the tools and parts available. Accordingly, anyone using service
procedures, tools or parts which are not specifically recommended
by NISSAN must first be completely satisfied that neither personal
safety nor the vehicle’s safety will be jeopardized by the service
method selected.
Page 3 of 3383

PLEASEHELPMAKETHISSERVICEMANUALBETTER!
YourcommentsareimportanttoINFINITIandwillhelpustoimproveourServiceManuals.
UsethisformtoreportanyissuesorcommentsyoumayhaveregardingourServiceManuals.
Pleaseprintthisformandtypeorwriteyourcommentsbelow.Mailorfaxto:
NissanNorthAmerica,Inc.
TechnicalServiceInformation
39001SunriseDrive,P.O.Box9200
FarmingtonHills,MIUSA48331
FAX:(248)488-3910
SERVICEMANUAL:Model:Year:
PUBLICATIONNO.(Refer to Quick Reference Index ):
Pleasedescribeany Service Manualissuesorproblemsindetail:
Pagenumber(s)Note:Pleaseincludeacopyofeachpage,markedwithyourcomments.
Arethetroublediagnosisprocedureslogicalandeasytouse?(circleyouranswer)YESNO
Ifno,whatpagenumber(s)?Note:Pleaseincludeacopyofeachpage,markedwithyourcomments.
Pleasedescribetheissueorproblemindetail:
Istheorganizationofthemanualclearandeasytofollow?(circleyouranswer)YESNO
Pleasecomment:
WhatinformationshouldbeincludedinINFINITIServiceManualstobettersupportyouinservicingor
repairingcustomervehicles?
DATE:YOURNAME:POSITION:
DEALER:DEALERNO.:ADDRESS:
CITY:STATE/PROV./COUNTRY:ZIP/POSTALCODE:
RINFINITI
Page 4 of 3383
QUICK REFERENCE CHART: QX562006
QUICK REFERENCE CHART: QX56PFP:00000
Engine Tune-Up DataELS001QQ
Cylinder arrangementV- 8
Displacement 5,552 cm
3 (338.80 in3 )
Bore and stroke 98 x 92 mm (3.86 x 3.62 in)
Valve arrangement DOHC
Firing order 1-8-7-3-6-5-4-2
Number of piston rings Compression
2
Oil 1
Number of main bearings 5
Compression ratio 9.8:1
Compression pressure Standard
1,520 kPa (15.5 kg/cm
2 , 220 psi) / 200 rpm
Minimum 1,324 kPa (13.5 kg/cm
2 , 192 psi) / 200 rpm
Differential limit between cylinders 98 kPa (1.0 kg/cm
2 , 14 psi) / 200 rpm
Cylinder number
Valve timing Unit: degree
abcde f
232° 230° 2° 48° 3° 49°
SEM957C
PBIC0187E
Page 5 of 3383

2006
QUICK REFERENCE CHART: QX56
Drive Belt Deflection and Tension
Spark Plugs (Double Platinum Tipped)

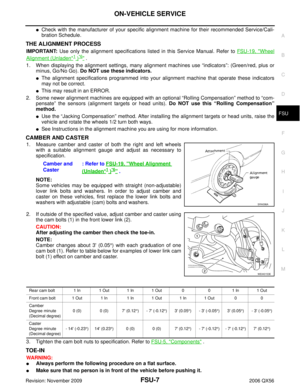

Front Wheel Alignment (Unladen*1 )ELS001QR
*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
*2: Target value 37° 31′ (37.52° )
*3: Target value 33 ° 59′ (33.98° )
*4: Target value 37 ° 44′ (37.73° )
*5: Target value 33 ° 29′ (33.48° )
Tension of drive belts Auto adjustment by auto tensioner
Make NGK
Standard type PLFR5A-11
Hot type PLFR4A-11
Cold type PLFR6A-11
Gap (nominal) 1.1 mm (0.043 in)
Drive type2WD 4WD
Camber
Degree minute (decimal degree) Minimum -0
° 51′ (-0.85 °)- 0° 33 ′ (-0.55 °)
Nominal -0° 6 ′ (-0.10 °)0 ° 12′ (0.20 °)
Maximum 0° 39′ (0.65 °)0 ° 57′ (0.95 °)
Cross camber 0° 45 ′ (0.75 °) or less 0 ° 45′ (0.75 °) or less
Caster
Degree minute (decimal degree) Minimum
3° 15′ (3.25 °)2 °45′ (2.75 °)
Nominal 4° 0 ′ (4.00 °)3 ° 30′ (3.50 °)
Maximum 4° 45′ (4.75 °)4 ° 15′ (4.25 °)
Cross caster 0° 45′ (0.75 °) or less 0 ° 45′ (0.75 °) or less
Kingpin inclination
Degree minute (decimal degree) 13
° 32′ (13.53° )1 3°13 ′ (13.22 °)
Total toe-in Distance (A
− B) Minimum
1.8 mm (0.07 in) 1.8 mm (0.07 in)
Nominal 2.8 mm (0.11 in) 2.8 mm (0.11 in)
Maximum 3.8 mm (0.15 in) 3.8 mm (0.15 in)
Angle (left side and right side)
Degree minute (decimal degree) Minimum
0° 3 ′ (0.05 °)0 ° 3′ (0.05 °)
Nominal 0° 5 ′ (0.08 °)0 ° 5′ (0.08 °)
Maximum 0° 7 ′ (0.12 °)0 ° 7′ (0.12 °)
Wheel turning angle
(full turn) Inside
Degree minute (decimal degree)
34° 31′
– 38° 31′ *2
(34.52 ° – 38.52 °) 34°
44′ – 38° 44 ′ *4
(34.73° – 38.73° )
Outside
Degree minute (decimal degree) 30° 59′
– 34° 59′ *3
(30.98 ° – 34.98 °) 30°
29′ – 34° 29 ′ *5
(30.48° – 34.48° )
SFA234AC
Page 6 of 3383

QUICK REFERENCE CHART: QX56
2006

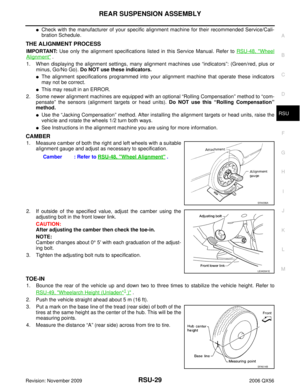

Rear Wheel AlignmentELS001QS
BrakeELS001QT
Unit: mm (in)
Camber
Degree minute (decimal degree)
Minimum
0° 0 ′ (0 °)
Nominal - 0° 30′ (-0.5 °)
Maximum - 1° 0 ′ (-1.0 °)
Cross camber 0° 45 ′ (0.75 °)
To e - i n Distance (A - B)
Minimum
0 mm (0 in)
Nominal 3.3 mm (0.130 in)
Maximum 6.6 mm (0.260 in)
Cross toe 2 mm (0.079 in)
Angle (left, right)
Degree minute (decimal degree) Minimum
0° 0 ′ (0 °)
Nominal 0° 7 ′ (0.11 °)
Maximum 0° 14 ′ (0.22 °)
Cross toe 0° 8 ′ (0.14 °)
SFA234AC
Front brake Brake model CLZ31VCAD41VA
Rotor outer diameter × thickness 320 × 26 (12.60 × 1.02) 350 x 30 (13.78 x 1.181)
Pad Length × width × thickness 111 . 0
× 73.5 × 11.88 (4.73 ×
2.894 × 0.468) 151.6 x 56.5 x 12 (5.968 x
2.224 x 0.47)
Cylinder bore diameter 51 (2.01)51 (2.01)
Rear brake Brake model AD14VE
Rotor outer diameter × thickness 320 × 14 (12.60 × 0.55)
Pad Length × width × thickness 83.0 × 33.0 × 8.5 (3.268 × 1.299 × 0.335)
Cylinder bore diameter 48 (1.89)
Control valve Valve model Electric brake force distribution

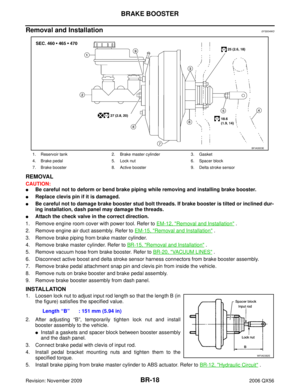

Brake booster Booster model
C215T
Diaphragm diameter 215 (8.46)
Recommended brake fluid Genuine NISSAN Super Heavy Duty Brake Fluid or equivalent
Page 7 of 3383

2006
QUICK REFERENCE CHART: QX56

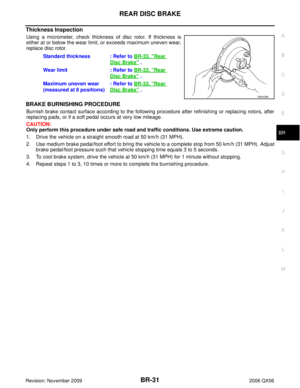

Front Disc Brake - Repair LimitsELS001QU
Rear Disc Brake - Repair LimitsELS001QU

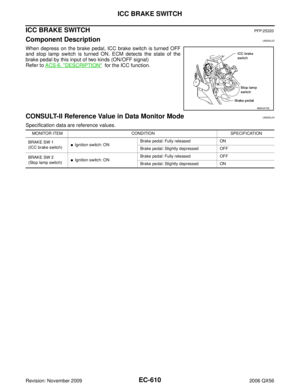

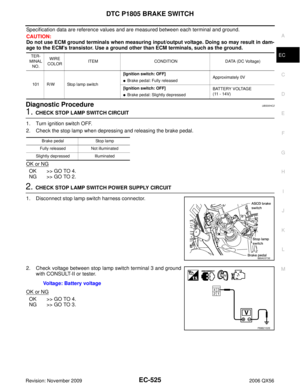

Brake PedalELS001QV
Unit: mm (in)
Refill CapacitiesELS001QW
Brake modelCLZ31VCAD41VA
Brake pad Standard thickness (new)
11.88 mm (0.468 in)12 mm (0.47 in)
Repair limit thickness 1.0 mm (0.039 in)1.0 mm (0.039 in)
Disc rotor Standard thickness (new)
26.0 mm (1.024 in) 30.0 mm (1.181 in)
Repair limit thickness 24.5 mm (0.965 in) 28.5 mm (1.122 in)
Maximum uneven wear (measured at 8 positions) 0.015 mm (0.0006 in)
Runout limit (with it attached to the vehicle) 0.03 mm (0.001 in)
Brake model AD14VE
Brake pad Standard thickness (new)
12.13 mm (0.478 in)
Repair limit thickness 1.0 mm (0.039 in)
Disc rotor Standard thickness (new)
14.0 mm (0.551 in)
Repair limit thickness 12.0 mm (0.472 in)
Maximum uneven wear (measured at 8 positions) 0.015 mm (0.0006 in)
Runout limit (with it attached to the vehicle) 0.05 mm (0.002 in)
Brake pedal height (from dash panel top surface) 182.3 − 192.3 (7.18 − 7.57)
Depressed pedal height [under a force of 490 N (50 kg, 110 lb) with engine running] More than 90.3 (3.55)
Clearance between stopper rubber and the threaded end of stop lamp switch 0.74 − 1.96 (0.029 − 0.077)
Pedal play 3 − 11 (0.12 − 0.43)
Description Capacity (Approximate)
Metric US measure Imp measure
Fuel 105.8 28 gal 23 1/4 gal
Engine oil
(drain and refill) With oil filter change
6.2 6 1/2 qt 5 1/2 qt
Without oil filter change 5.9 6 1/4 qt 5 1/4 qt
Dry engine (engine overhaul) 7.6 8 qt
6 3/4 qt
Cooling system With reservoir at MAX level
14.4 3 3/4 gal 3 1/8 gal
Automatic transmission fluid (ATF) 10.6 11 1/4 qt 9 3/8 qt
Rear final drive oil 1.75 3 3/4 pt 3 1/8 pt
Transfer fluid 3.0 3 1/8 qt 2 5/8 qt
Front final drive oil 1.6 3 3/8 pt 2 7/8 pt
Power steering fluid (PSF) 1.0 2 1/8 pt 1 3/4 pt
Windshield washer fluid 4.5 1 1/4 gal 1 gal
Air conditioning system refrigerant 1.08 ± 0.05 kg 2.38 ± 0.11 lb 2.38 ± 0.11 lb
Air conditioning system lubricants 290 m9.8 fl oz 10.2 fl oz
Page 8 of 3383
ACC-1

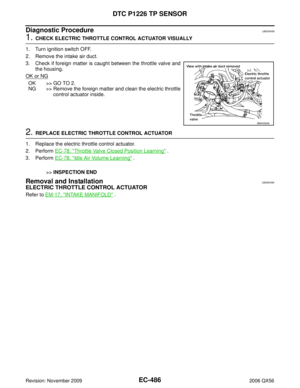

ACCELERATOR CONTROL SYSTEM
B ENGINE
CONTENTS
C
DE
F
G H
I
J
K L
M
SECTION
A
ACC
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 2ACCELERATOR CONTROL SYSTEM ..................
..... 3
Removal and Installation ..................................... ..... 3
REMOVAL ........................................................ ..... 3
INSTALLATION ................................................ ..... 4
INSPECTION AFTER INSTALLATION ............. ..... 4
SERVICE DATA AND SPECIFICATIONS (SDS) ... ..... 5
Accelerator Control ................................................... 5 ADJUSTABLE ACCELERATOR PEDAL .......... ..... 5
