2006 INFINITI QX56 Factory Service Manual

steering wheel wipers adding oil wiper fluid remove seats battery replacement

Page 2889 of 3383

INFINITI QX56 2006 Factory Service Manual RSU-50
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: November 20092006 QX56

Page 2890 of 3383

INFINITI QX56 2006 Factory Service Manual SB-1
SEAT BELTS
H RESTRAINTS
CONTENTS
C
DE
F
G
I
J
K L
M
SECTION
A
B
SB
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 2
Precautions for Su

SB-1
SEAT BELTS
H RESTRAINTS
CONTENTS
C
DE
F
G
I
J
K L
M
SECTION
A
B
SB
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 2
Precautions for Seat Belt Service ....................... ..... 2
AFTER A COLLISION ...................................... ..... 2
SEAT BELTS ......................................................... ..... 3
Removal and Installation of Front Seat Belt ........ ..... 3
FRONT SEAT BELT RETRACTOR .................. ..... 4
FRONT SEAT BELT BUCKLE .......................... ..... 5
Removal and Installation of Second Row Seat Belt ..... 6
REMOVAL ........................................................ ..... 7
INSTALLATION ................................................ ..... 7
SECOND ROW SEAT BELT BUCKLE ............. ..... 7
SECOND ROW SEAT BELT RETRACTOR -
BENCH SEAT .................................................. ..... 7
Removal and Installation of Third Row Seat Belt ..... 8 REMOVAL ........................................................
..... 8
INSTALLATION ................................................ ..... 9
REMOVAL ........................................................ ..... 9
INSTALLATION ................................................ ..... 9
THIRD ROW SEAT BELT BUCKLE ................. ..... 9
Seat Belt Inspection ............................................. ... 11
AFTER A COLLISION ...................................... ... 11
PRELIMINARY CHECKS ................................. ... 11
SEAT BELT RETRACTOR ON-VEHICLE
CHECK ............................................................. ... 12
SEAT BELT RETRACTOR OFF-VEHICLE
CHECK ............................................................. ... 12
LATCH (LOWER ANCHORS AND TETHER FOR
CHILDREN) SYSTEM ............................................ ... 14
Removal and Installation ..................................... ... 14
TOP TETHER STRAP CHILD RESTRAINT .......... ... 15
Removal and Installation ..................................... ... 15

Page 2891 of 3383

INFINITI QX56 2006 Factory Service Manual SB-2
PRECAUTIONS
Revision: November 20092006 QX56
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EHS00161
The Supplemental Re

SB-2
PRECAUTIONS
Revision: November 20092006 QX56
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EHS00161
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER ”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Seat Belt ServiceEHS00162
CAUTION:
Before removing the seat belt pre-tensioner assembly, turn the ignition switch OFF, disconnect
both battery cables and wait at least 3 minutes.
After replacing or reinstalling seat belt pre-tensioner assembly, or reconnecting seat belt pre-ten-
sioner assembly connector, make sure entire SRS operates properly. Refer to SRS-20, "
SRS Oper-
ation Check" .
Do not disassemble buckle or seat belt assembly.
Do not reuse seat belt anchor bolts after removal. Replace with new ones.
Replace anchor bolts if they are deformed or worn out.
Never oil tongue and buckle.
If any component of seat belt assembly is questionable, do not repair. Replace the whole seat belt
assembly.
If webbing is cut, frayed, or damaged, replace seat belt assembly.
When replacing seat belt assembly, use a genuine NISSAN seat belt assembly.
AFTER A COLLISION
WARNING:
Inspect all seat belt assemblies including retractors and attaching hardware after any collision.
NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the
collision was minor and the belts show no damage and continue to operate properly. Failure to do
so could result in serious personal injury in an accident. Seat belt assemblies not in use during a
collision should also be replaced if either damage or improper operation is noted. Seat belt pre-
tensioner should be replaced even if the seat belts are not in use during a frontal collision in which
the air bags are deployed.
Replace any seat belt assembly (including anchor bolts) if:
The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and
buckles show no damage and continue to operate properly).
The seat belt was damaged in an accident. (i.e., torn webbing, bent retractor or guide, etc.)
The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage
or distortion and repair as necessary before installing a new seat belt assembly.
Anchor bolts are deformed or worn out.
The seat belt pre-tensioner should be replaced even if the seat belts are not in use during the collision in
which the air bags are deployed.

Page 2892 of 3383

INFINITI QX56 2006 Factory Service Manual SEAT BELTSSB-3
C
DE
F
G
I
J
K L
M A
B
SB
Revision: November 2009 2006 QX56
SEAT BELTSPFP:86884

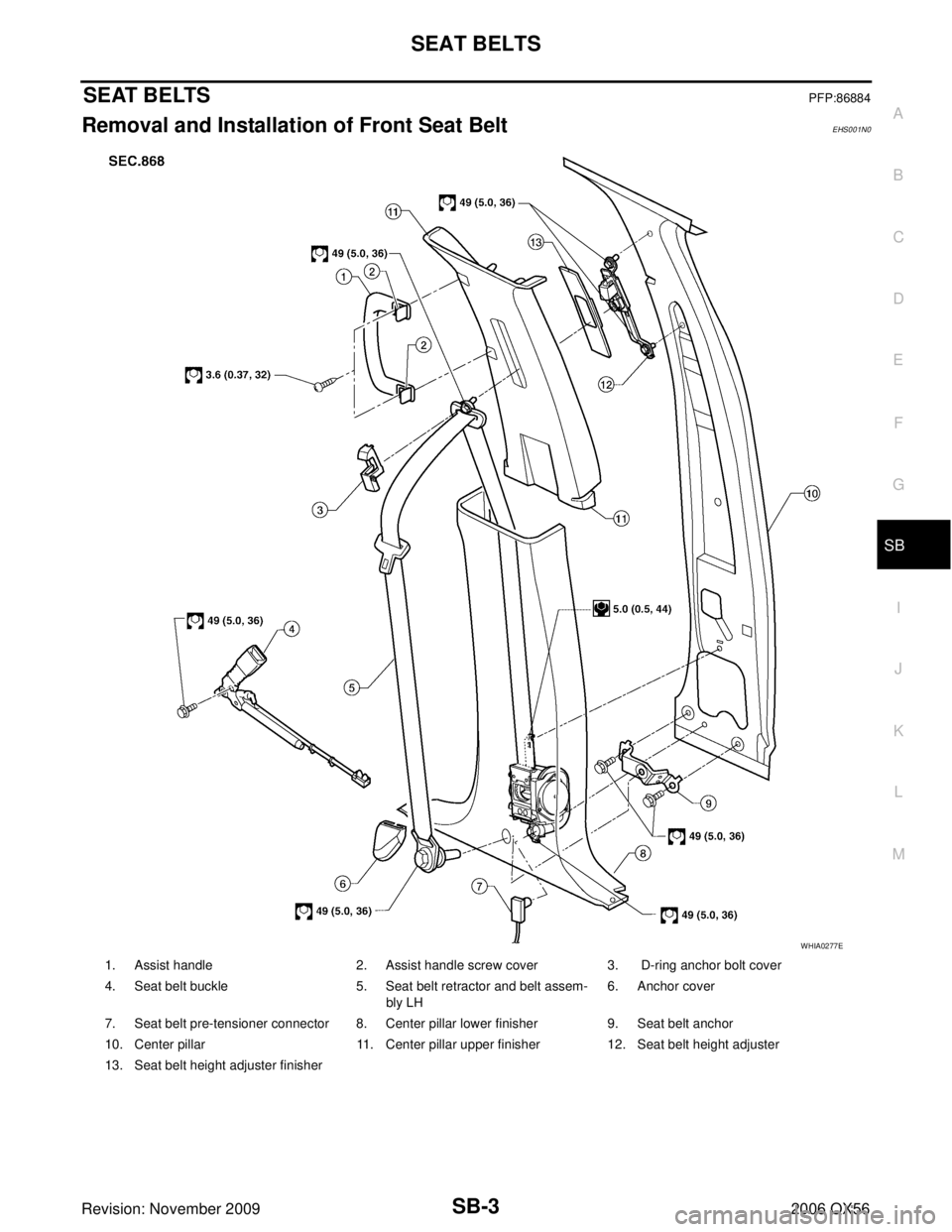

Removal and Installation of Front Seat Belt EHS001N0
1. Assist handle2. Assist handle screw cover3. D-ri

Page 2893 of 3383

INFINITI QX56 2006 Factory Service Manual SB-4
SEAT BELTS
Revision: November 20092006 QX56

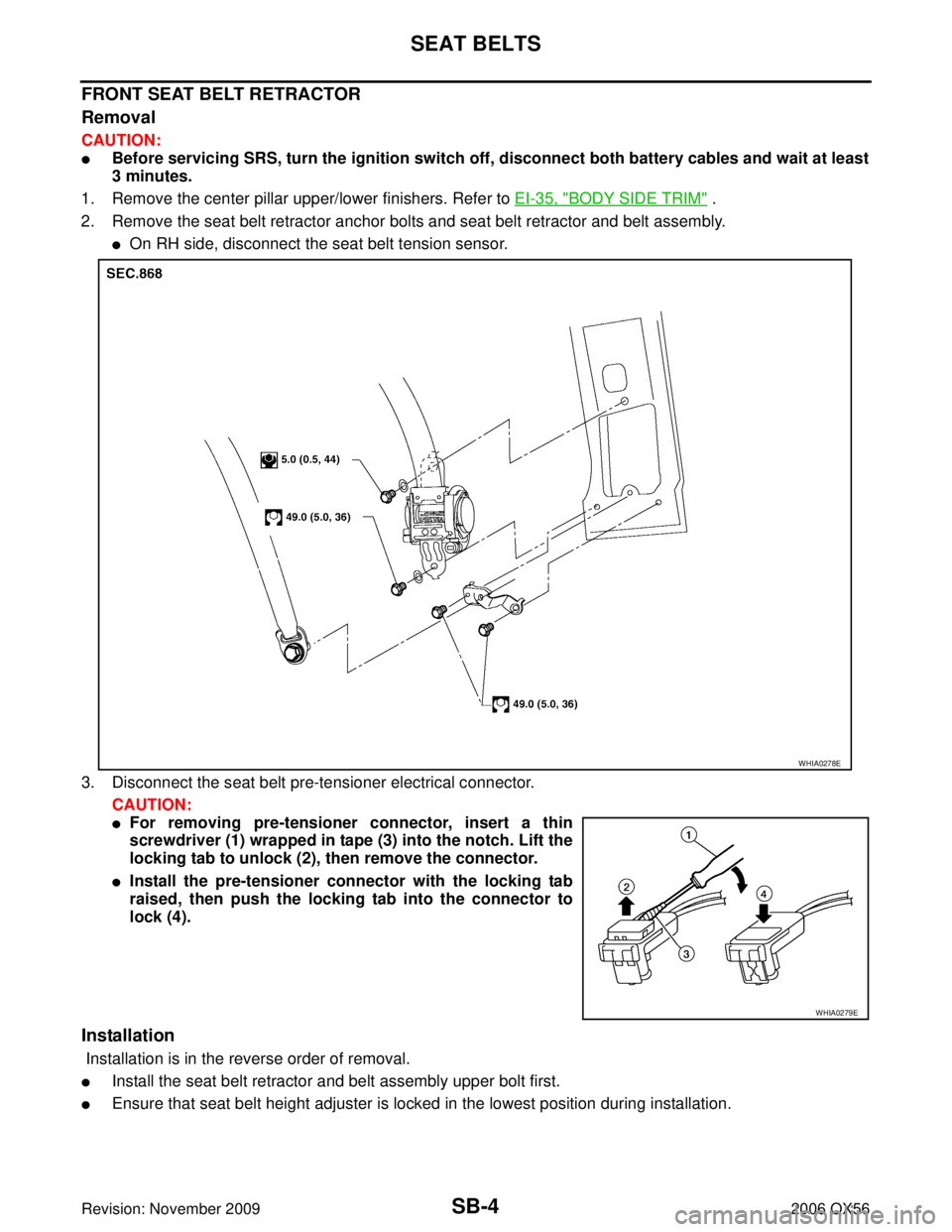

FRONT SEAT BELT RETRACTOR
Removal
CAUTION:
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 min

Page 2894 of 3383

INFINITI QX56 2006 Factory Service Manual SEAT BELTSSB-5
C
DE
F
G
I
J
K L
M A
B
SB
Revision: November 2009 2006 QX56

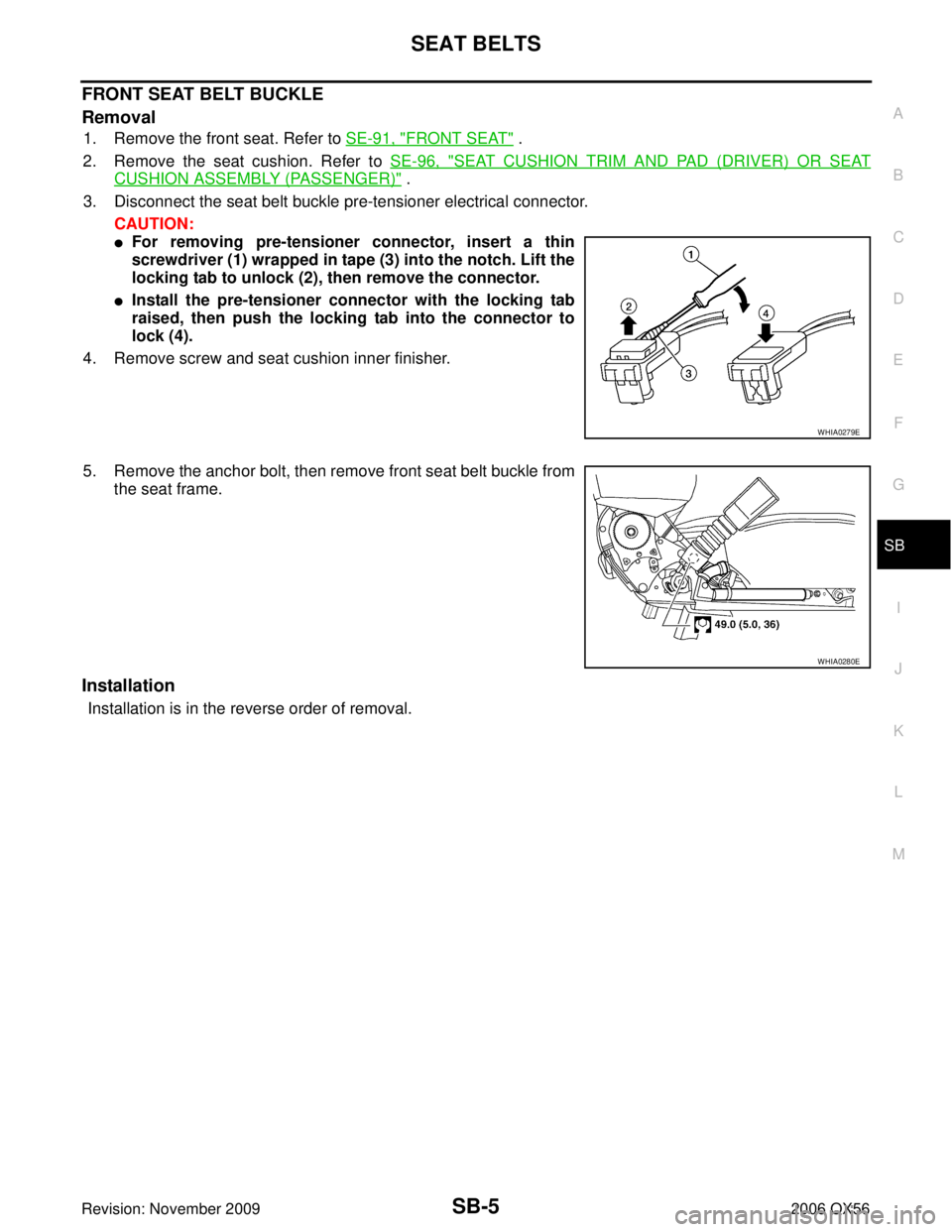

FRONT SEAT BELT BUCKLE
Removal
1. Remove the front seat. Refer to SE-91, "FRONT SEAT" .
2. Remove the seat cushion. Refer to

Page 2895 of 3383

INFINITI QX56 2006 Factory Service Manual SB-6
SEAT BELTS
Revision: November 20092006 QX56

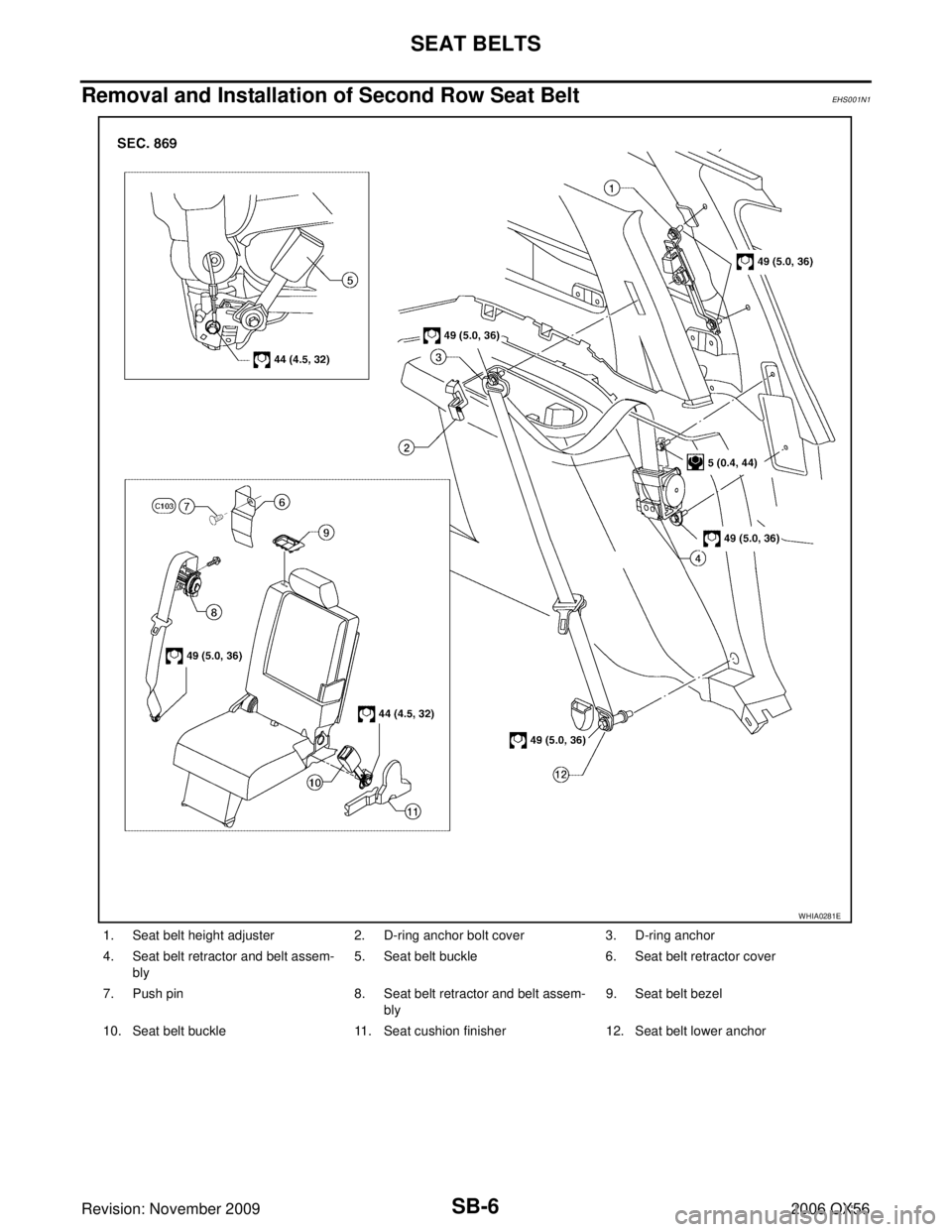

Removal and Installation of Second Row Seat Belt EHS001N1
1. Seat belt height adjuster2. D-ring anchor bolt cover 3. D-ring anchor
4. Seat belt retract

Page 2896 of 3383

INFINITI QX56 2006 Factory Service Manual SEAT BELTSSB-7
C
DE
F
G
I
J
K L
M A
B
SB
Revision: November 2009 2006 QX56
REMOVAL
1. Remove seat belt lower anchor cover and bolt.
2. Remove the D-ring anchor bolt cover and D-ring anchor bolt.
3. Re
