Page 3033 of 3383

INFINITI QX56 2006 Factory Service Manual SE-102 SECOND SEAT Revision: November 20092006 QX56 7. LH headrest guide free8. Seatback board 9. Seat bracket cover 10. Armrest pivot bracket cover 11. Seatback frame 12. Seat cushion frame 13. Latch

Page 3034 of 3383

INFINITI QX56 2006 Factory Service Manual SECOND SEATSE-103 C DE F G H J K L M A B SE Revision: November 2009 2006 QX56 Second row LH WIIA1015E 1. Seat back panel2. RH headrest guide 3. LH headrest guide 4. Rear seat bezel 5. Seatback pad 6.

Page 3035 of 3383

INFINITI QX56 2006 Factory Service Manual SE-104 SECOND SEAT Revision: November 20092006 QX56 7. Headrest8. Seat latch and recliner release 9. Reclining device outer cover 10. Reclining device lever 11. Reclining device outer mid cover 12. Ou

Page 3036 of 3383

INFINITI QX56 2006 Factory Service Manual THIRD SEATSE-105 C DE F G H J K L M A B SE Revision: November 2009 2006 QX56 THIRD SEATPFP:88000 LH Side SeatEIS007WZ REMOVAL 1. Remove the storage bin. Refer to EI-40, "LUGGAGE FLOOR TRIM" . 2. Remo

Page 3037 of 3383

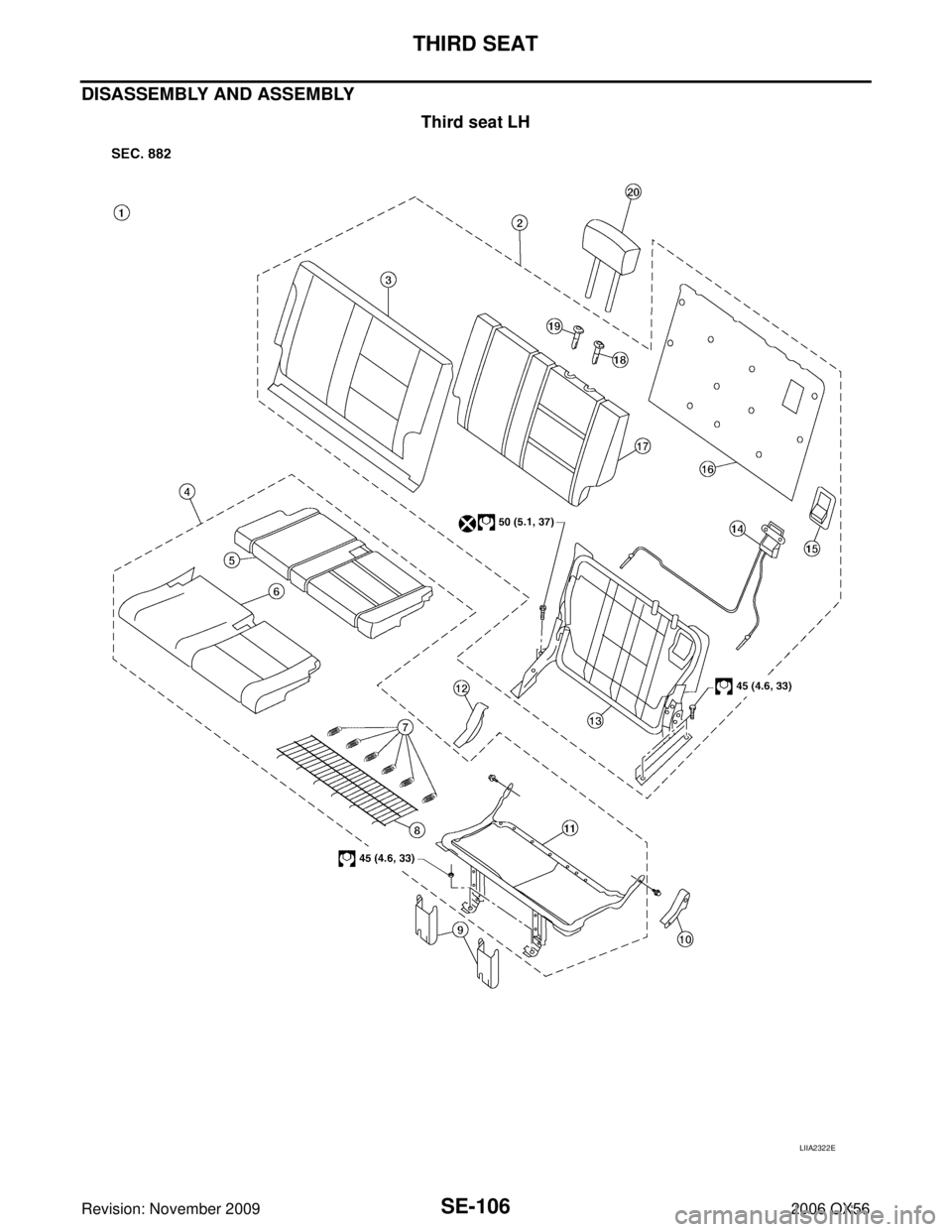

INFINITI QX56 2006 Factory Service Manual SE-106 THIRD SEAT Revision: November 20092006 QX56 DISASSEMBLY AND ASSEMBLY Third seat LH LIIA2322E

Page 3038 of 3383

INFINITI QX56 2006 Factory Service Manual THIRD SEATSE-107 C DE F G H J K L M A B SE Revision: November 2009 2006 QX56 RH Side SeatEIS007X0 REMOVAL 1. Remove the storage bin. Refer to EI-40, "LUGGAGE FLOOR TRIM" . 2. Remove the lower base tr

Page 3039 of 3383

INFINITI QX56 2006 Factory Service Manual SE-108 THIRD SEAT Revision: November 20092006 QX56 INSTALLATION Installation is in the reverse order of removal.

Page 3040 of 3383

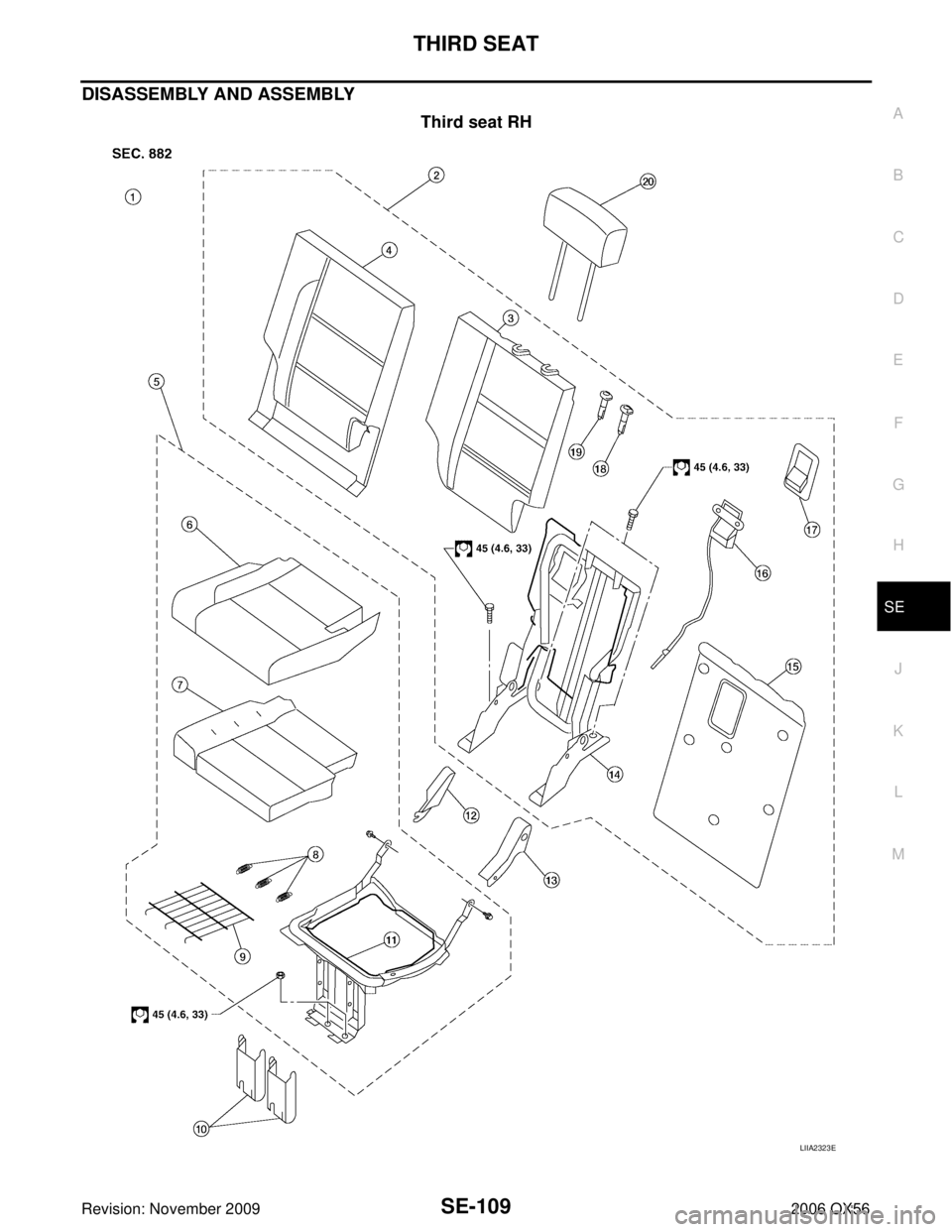

INFINITI QX56 2006 Factory Service Manual THIRD SEATSE-109 C DE F G H J K L M A B SE Revision: November 2009 2006 QX56 DISASSEMBLY AND ASSEMBLY Third seat RH LIIA2323E
