Page 2521 of 3383

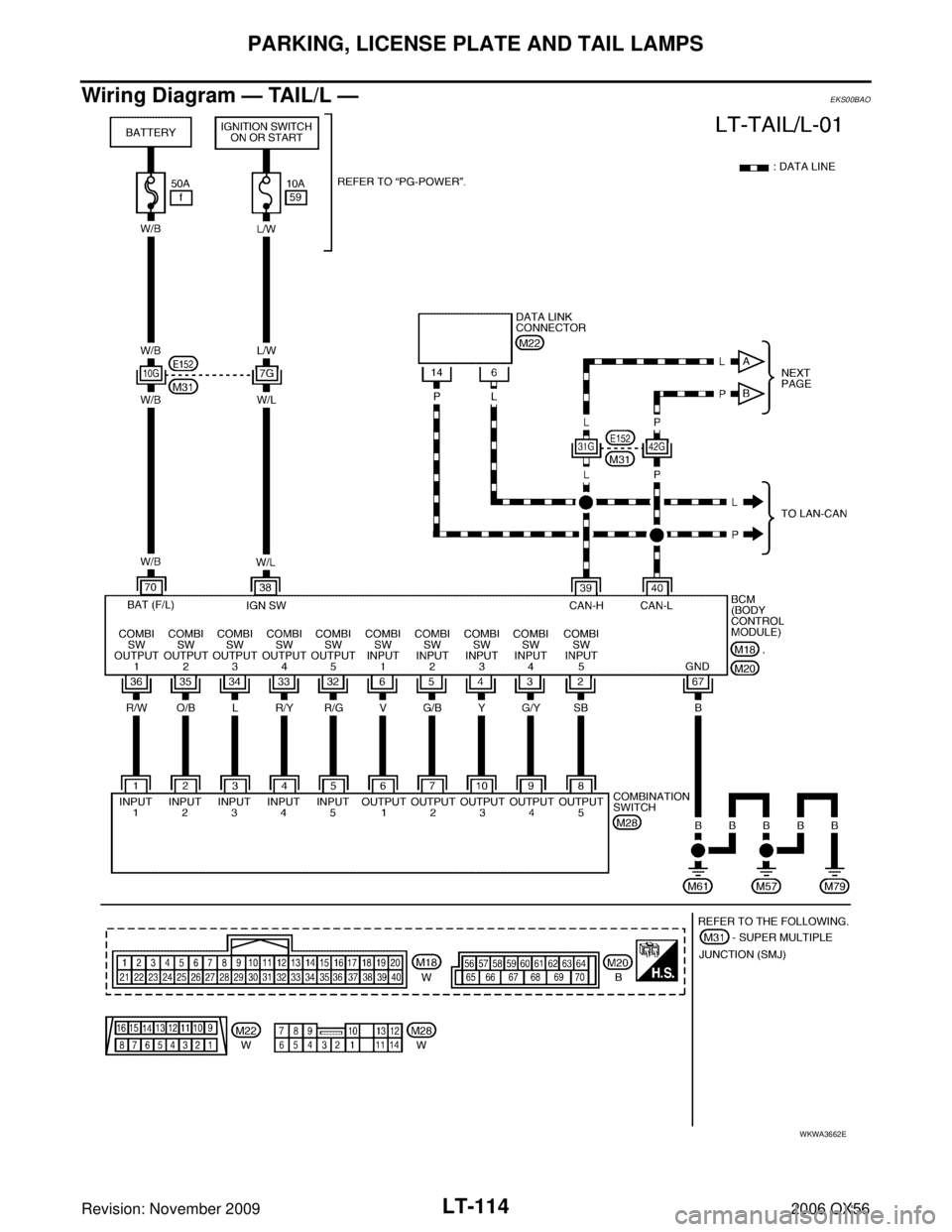

INFINITI QX56 2006 Factory Service Manual LT-114 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: November 20092006 QX56 Wiring Diagram — TAIL/L —EKS00BAO WKWA3662E

Page 2522 of 3383

INFINITI QX56 2006 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPSLT-115 C DE F G H I J L M A B LT Revision: November 2009 2006 QX56 WKWA2494E

Page 2523 of 3383

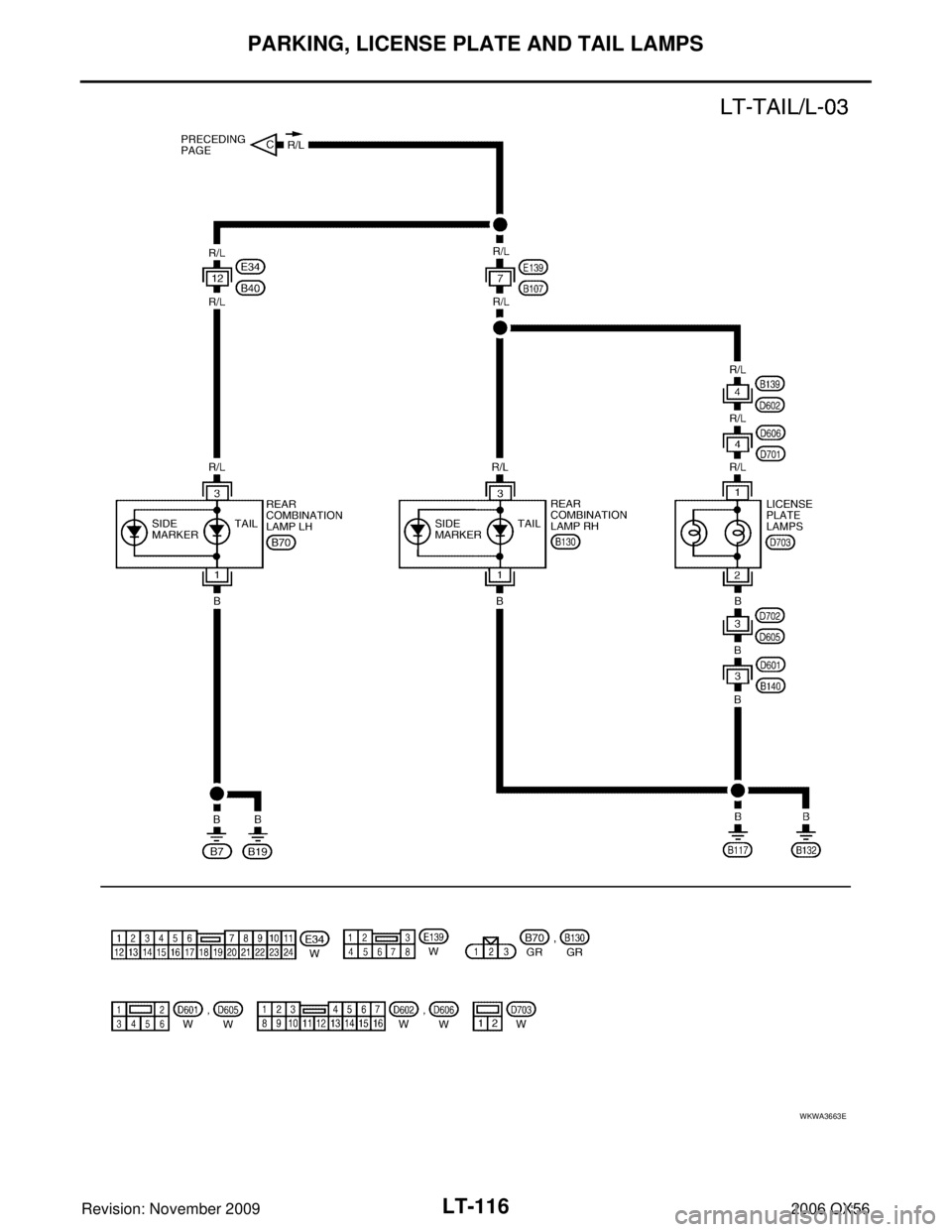

INFINITI QX56 2006 Factory Service Manual LT-116 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: November 20092006 QX56 WKWA3663E

Page 2524 of 3383

INFINITI QX56 2006 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPSLT-117 C DE F G H I J L M A B LT Revision: November 2009 2006 QX56 Terminals and Reference Values for BCMEKS00BAP Te r m i n a l No. Wire color Signal name Meas

Page 2525 of 3383

INFINITI QX56 2006 Factory Service Manual LT-118 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: November 20092006 QX56 Terminals and Reference Values for IPDM E/REKS00BAQ How to Proceed With Trouble DiagnosisEKS00BAR 1. Confirm the symptom o

Page 2526 of 3383

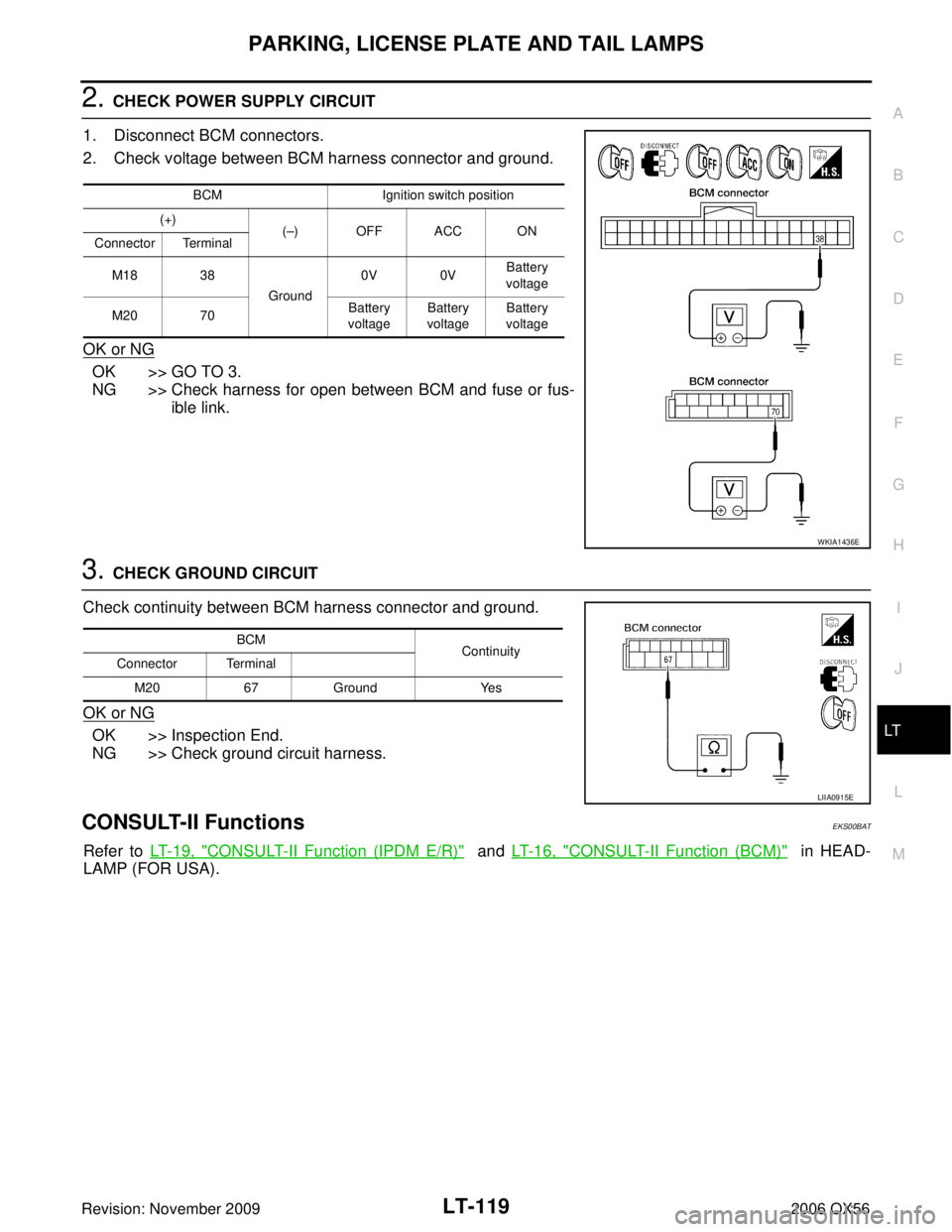

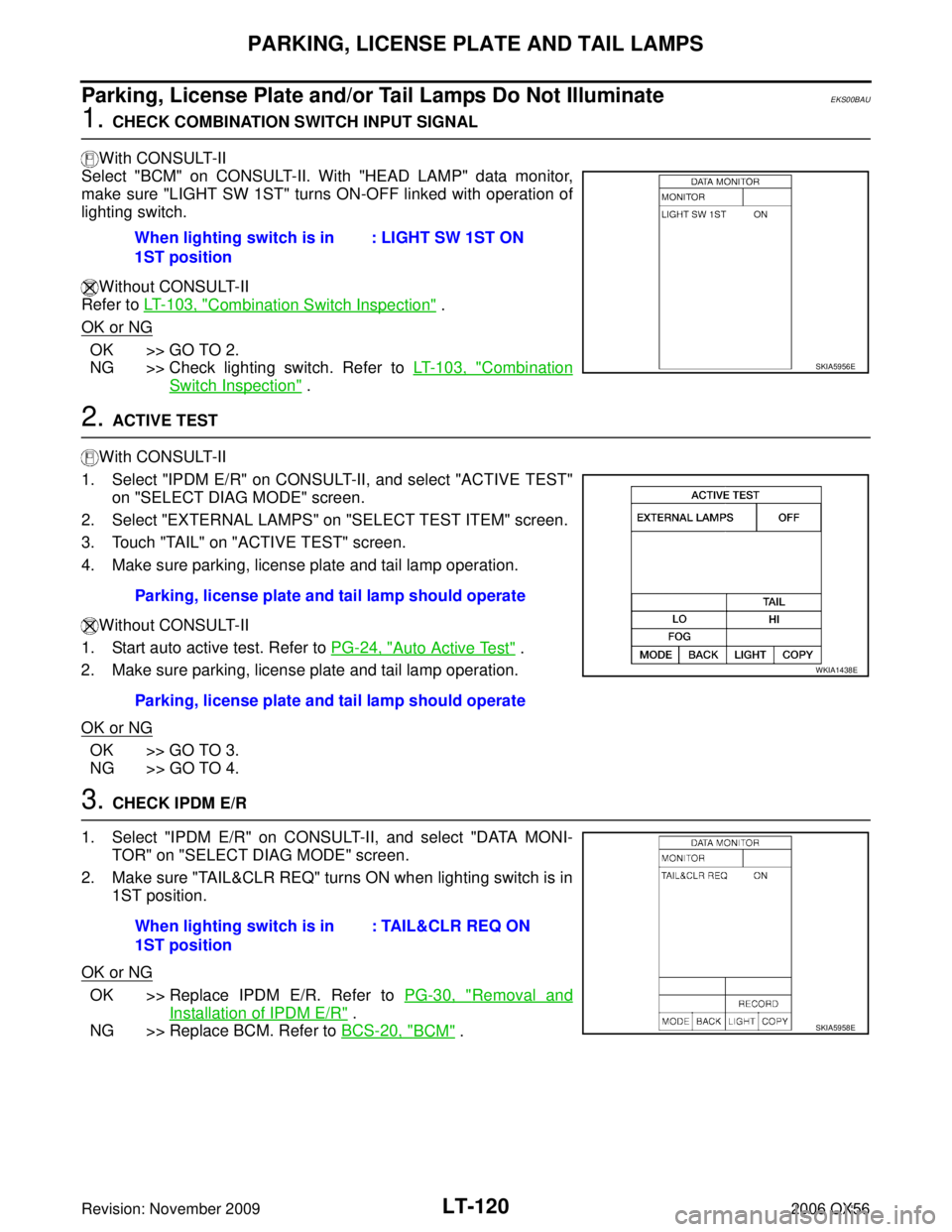

INFINITI QX56 2006 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPSLT-119 C DE F G H I J L M A B LT Revision: November 2009 2006 QX56 2. CHECK POWER SUPPLY CIRCUIT 1. Disconnect BCM connectors. 2. Check voltage between BCM harnes

Page 2527 of 3383

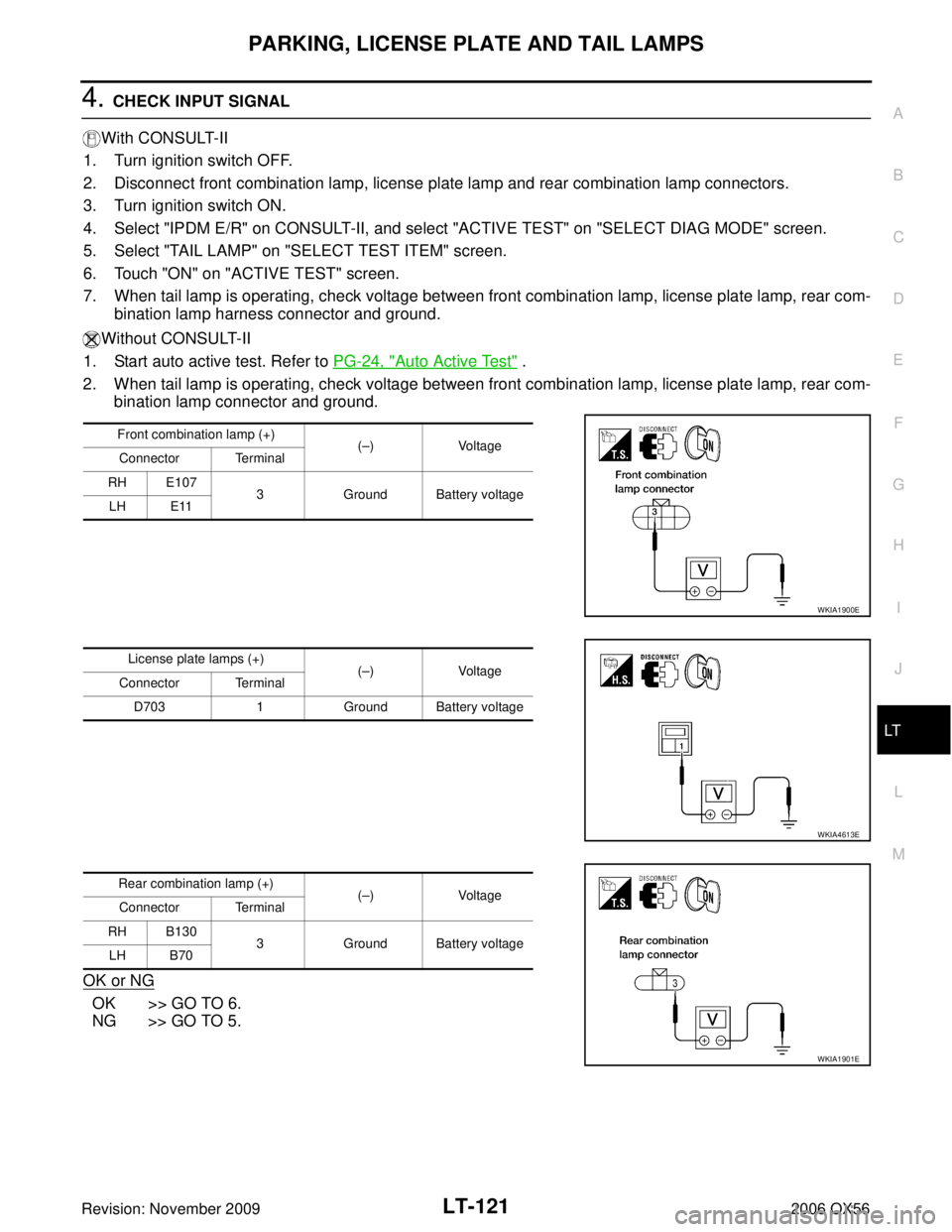

INFINITI QX56 2006 Factory Service Manual LT-120 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: November 20092006 QX56 Parking, License Plate and/or Tail Lamps Do Not IlluminateEKS00BAU 1. CHECK COMBINATION SWITCH INPUT SIGNAL With CONSULT-

Page 2528 of 3383

INFINITI QX56 2006 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPSLT-121 C DE F G H I J L M A B LT Revision: November 2009 2006 QX56 4. CHECK INPUT SIGNAL With CONSULT-II 1. Turn ignition switch OFF. 2. Disconnect front combinat
