INFINITI QX56 2006 Factory Service Manual PG-64 HARNESS Revision: November 20092006 QX56 VEHSECBL Vehicle security (theft warning) system VENT/V EC EVAP Canister Vent Control Valve W/ANT AV Audio Antenna WARN DI Warning Lamps WINDOW GW P

Page 2706 of 3383

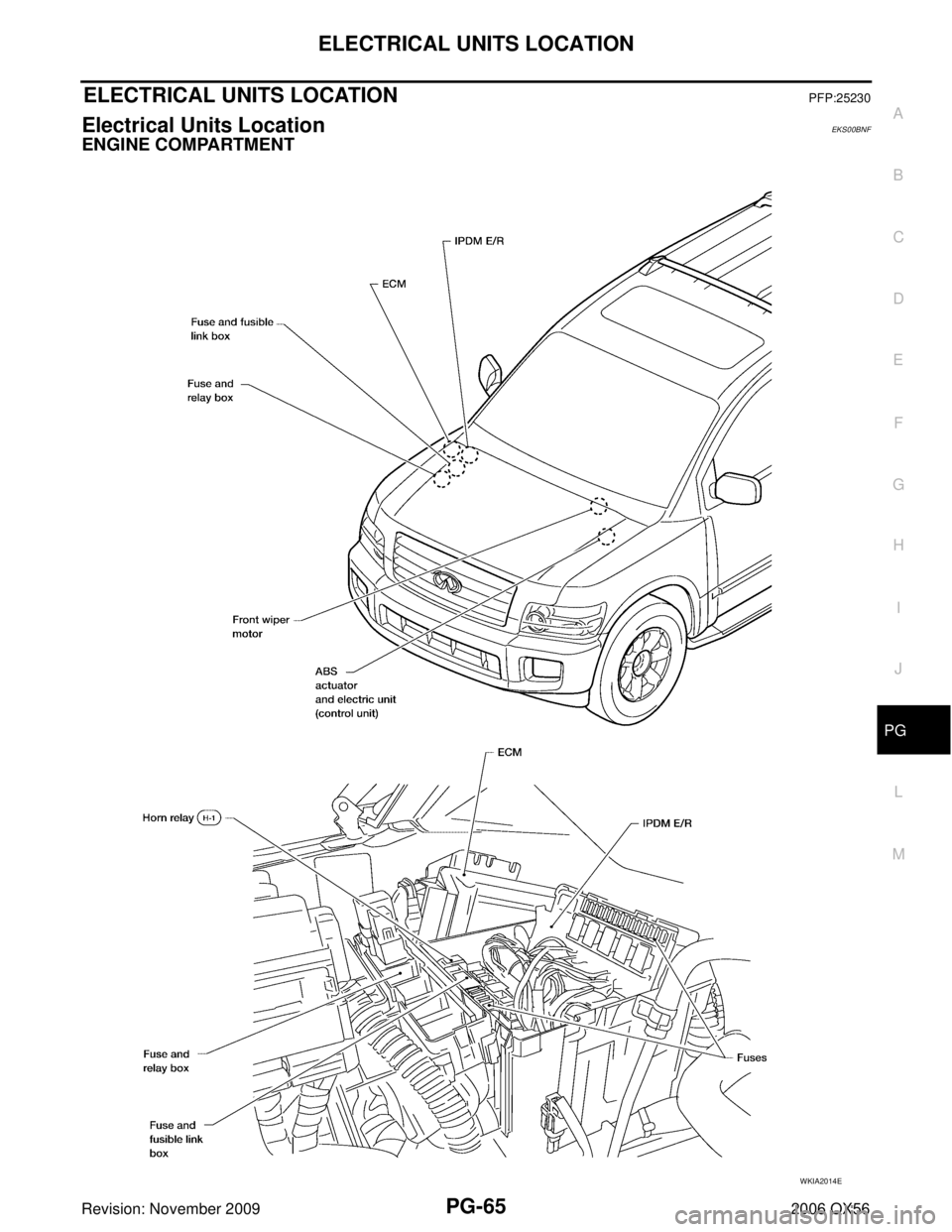

INFINITI QX56 2006 Factory Service Manual ELECTRICAL UNITS LOCATIONPG-65 C DE F G H I J L M A B PG Revision: November 2009 2006 QX56 ELECTRICAL UNITS LOCATIONPFP:25230 Electrical Units LocationEKS00BNF ENGINE COMPARTMENT WKIA2014E

Page 2707 of 3383

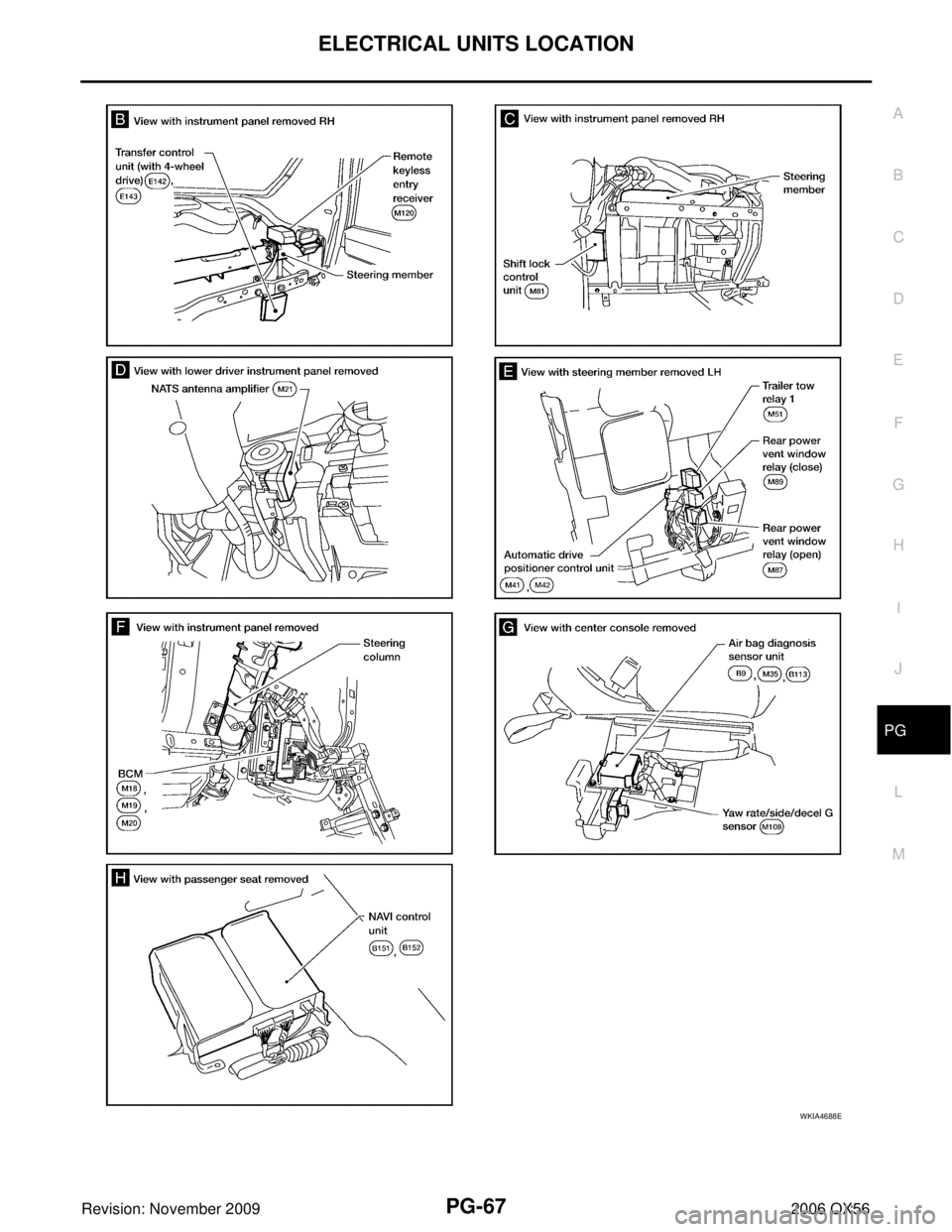

INFINITI QX56 2006 Factory Service Manual PG-66 ELECTRICAL UNITS LOCATION Revision: November 20092006 QX56 PASSENGER COMPARTMENT WKIA4687E

Page 2708 of 3383

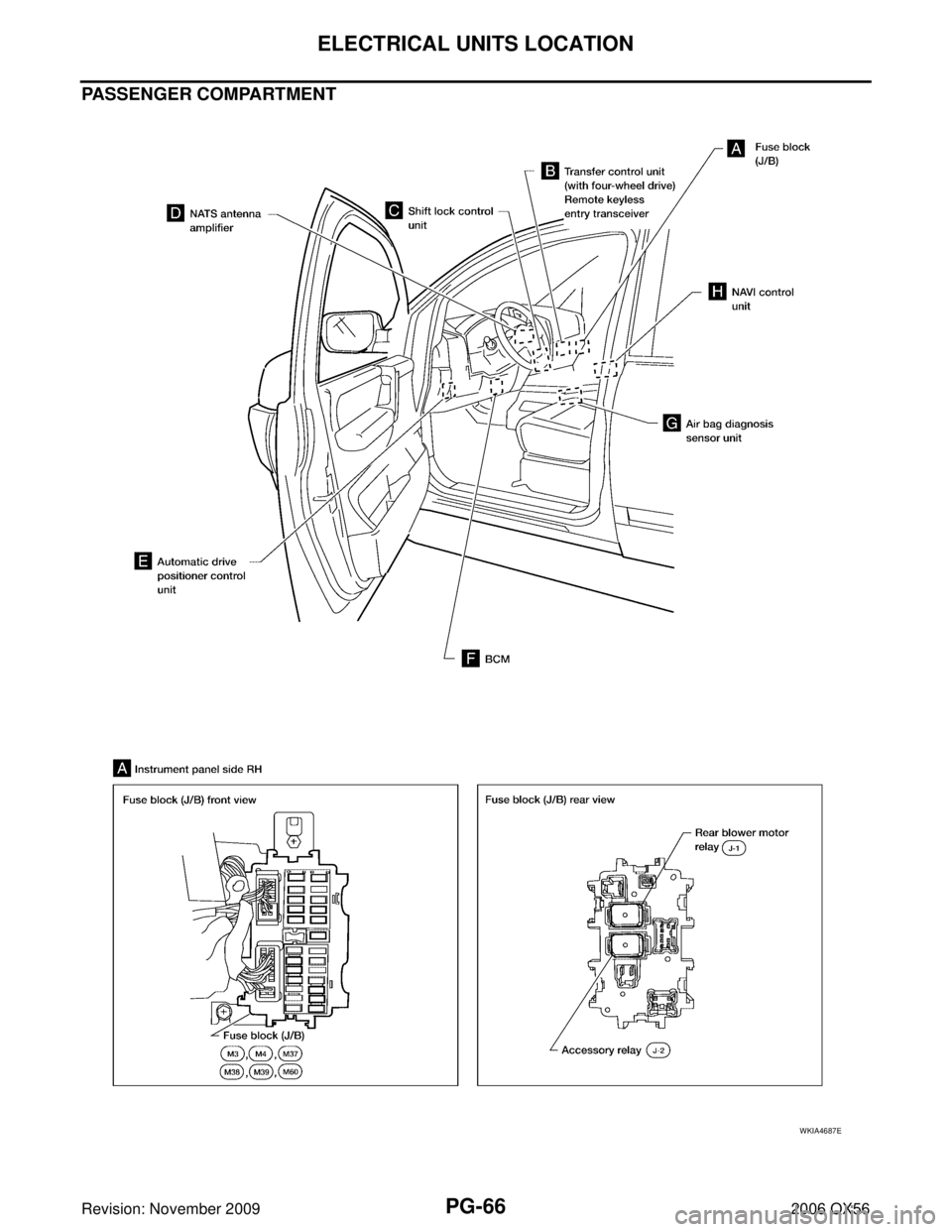

INFINITI QX56 2006 Factory Service Manual ELECTRICAL UNITS LOCATIONPG-67 C DE F G H I J L M A B PG Revision: November 2009 2006 QX56 WKIA4688E

Page 2709 of 3383

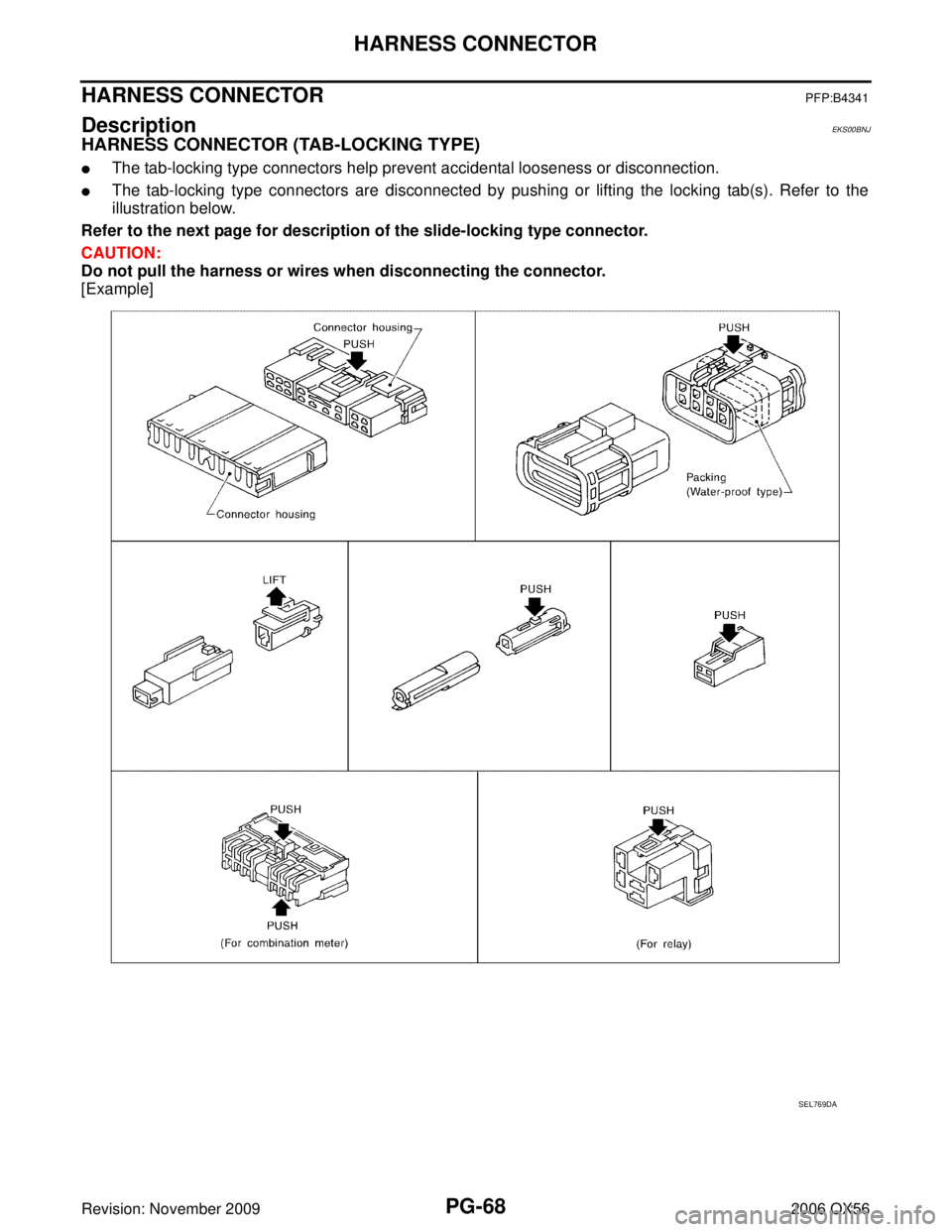

INFINITI QX56 2006 Factory Service Manual PG-68 HARNESS CONNECTOR Revision: November 20092006 QX56 HARNESS CONNECTORPFP:B4341 DescriptionEKS00BNJ HARNESS CONNECTOR (TAB-LOCKING TYPE) The tab-locking type connectors help prevent accidental lo

Page 2710 of 3383

INFINITI QX56 2006 Factory Service Manual HARNESS CONNECTORPG-69 C DE F G H I J L M A B PG Revision: November 2009 2006 QX56 HARNESS CONNECTOR (SLIDE-LOCKING TYPE) A new style slide-locking type connector is used on certain systems and compo

Page 2711 of 3383

INFINITI QX56 2006 Factory Service Manual PG-70 HARNESS CONNECTOR Revision: November 20092006 QX56 HARNESS CONNECTOR (DIRECT-CONNECT SRS COMPONENT TYPE) SRS direct-connect type harness connectors are used on certain SRS components such as ai

Page 2712 of 3383

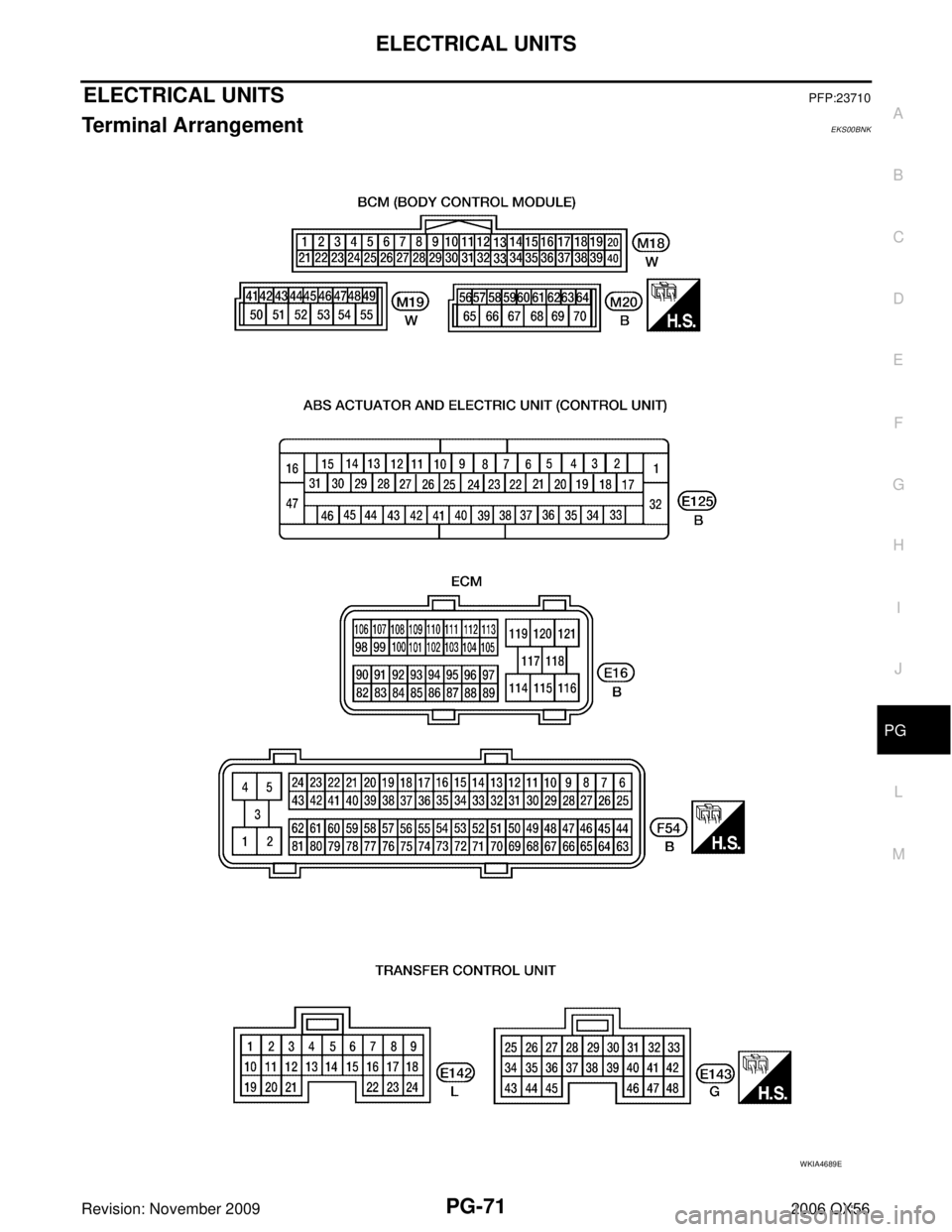

INFINITI QX56 2006 Factory Service Manual ELECTRICAL UNITSPG-71 C DE F G H I J L M A B PG Revision: November 2009 2006 QX56 ELECTRICAL UNITSPFP:23710 Terminal ArrangementEKS00BNK WKIA4689E
