Page 2281 of 3383

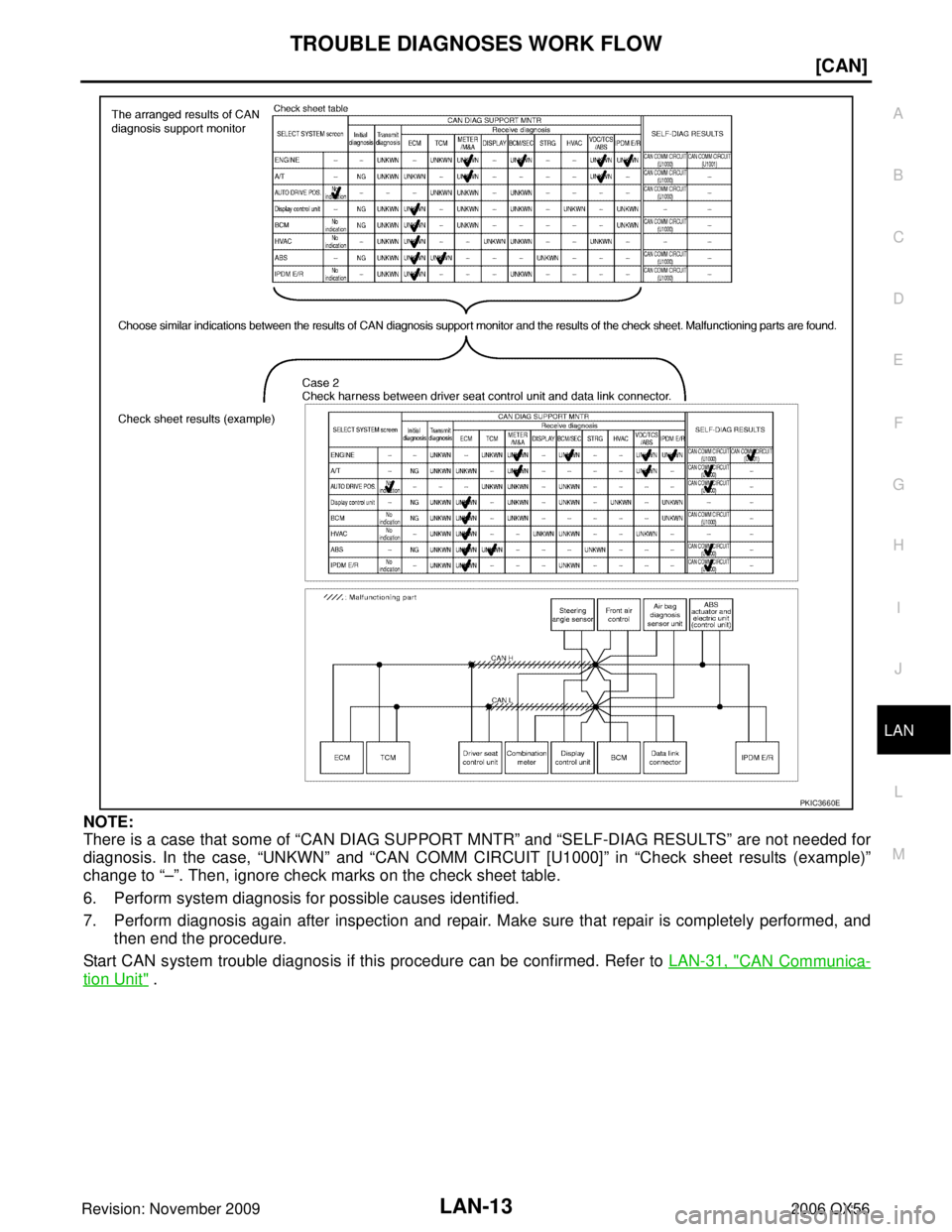

INFINITI QX56 2006 Factory Service Manual LAN-12 [CAN] TROUBLE DIAGNOSES WORK FLOW Revision: November 20092006 QX56 5. Confirm the unit name that “UNKWN” is displayed on the copy of “CAN DIAG SUPPORT MNTR ” screen of “BCM ”, “H

Page 2282 of 3383

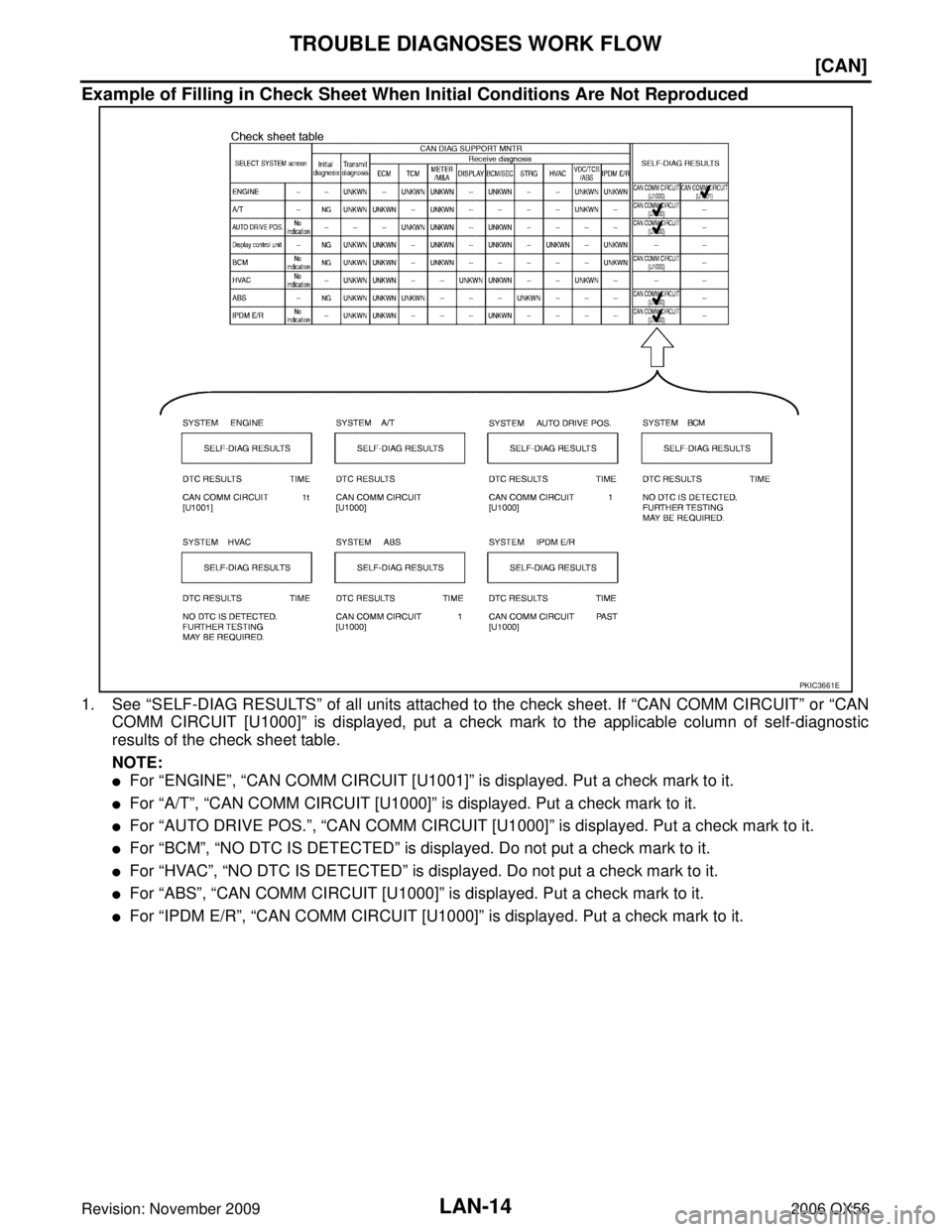

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSES WORK FLOWLAN-13 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 NOTE: There is a case that some of “CAN DIAG SUPPORT MNTR ” and “SELF-DIAG RESULTS” are not

Page 2283 of 3383

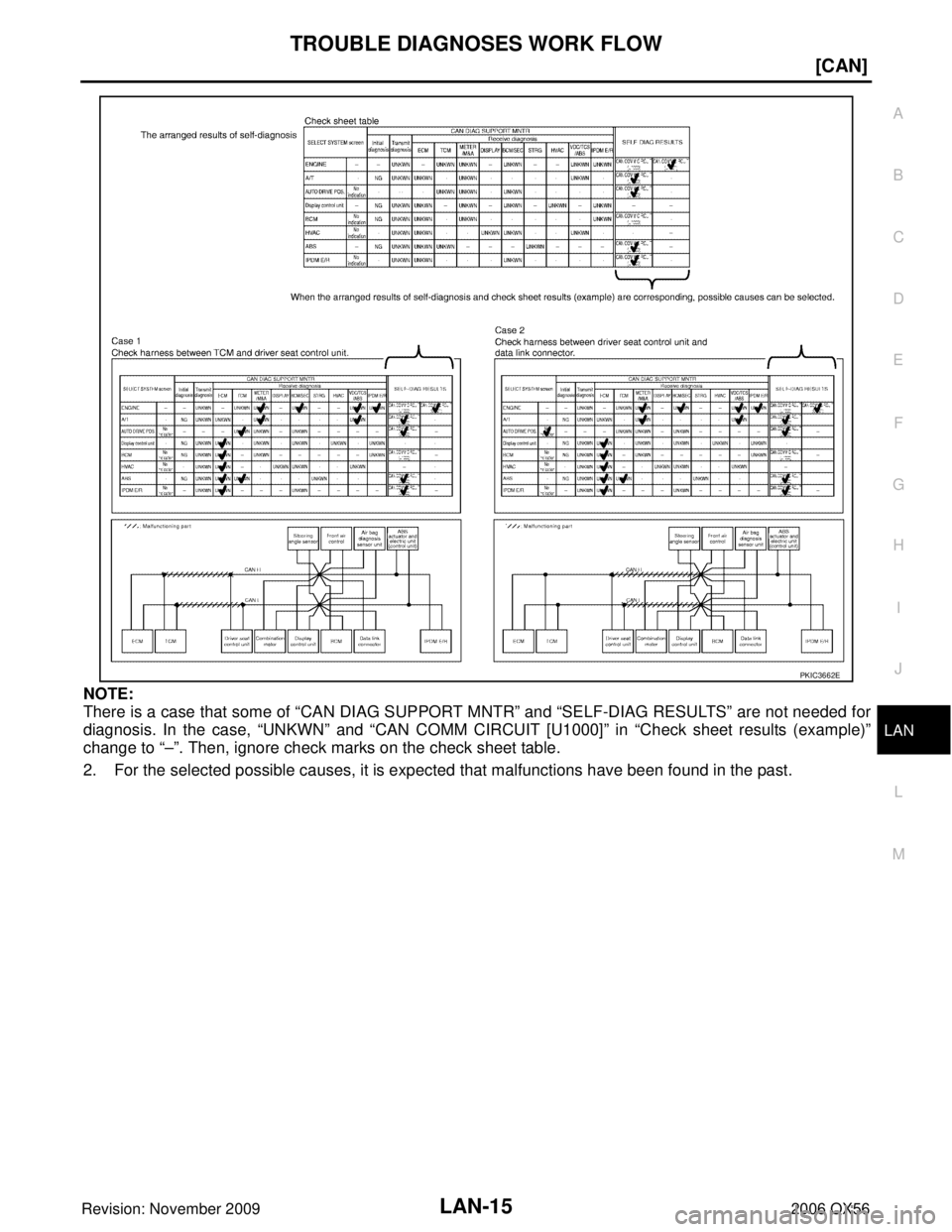

INFINITI QX56 2006 Factory Service Manual LAN-14 [CAN] TROUBLE DIAGNOSES WORK FLOW Revision: November 20092006 QX56 Example of Filling in Check Sheet When Initial Conditions Are Not Reproduced 1. See “SELF-DIAG RESULTS ” of all units atta

Page 2284 of 3383

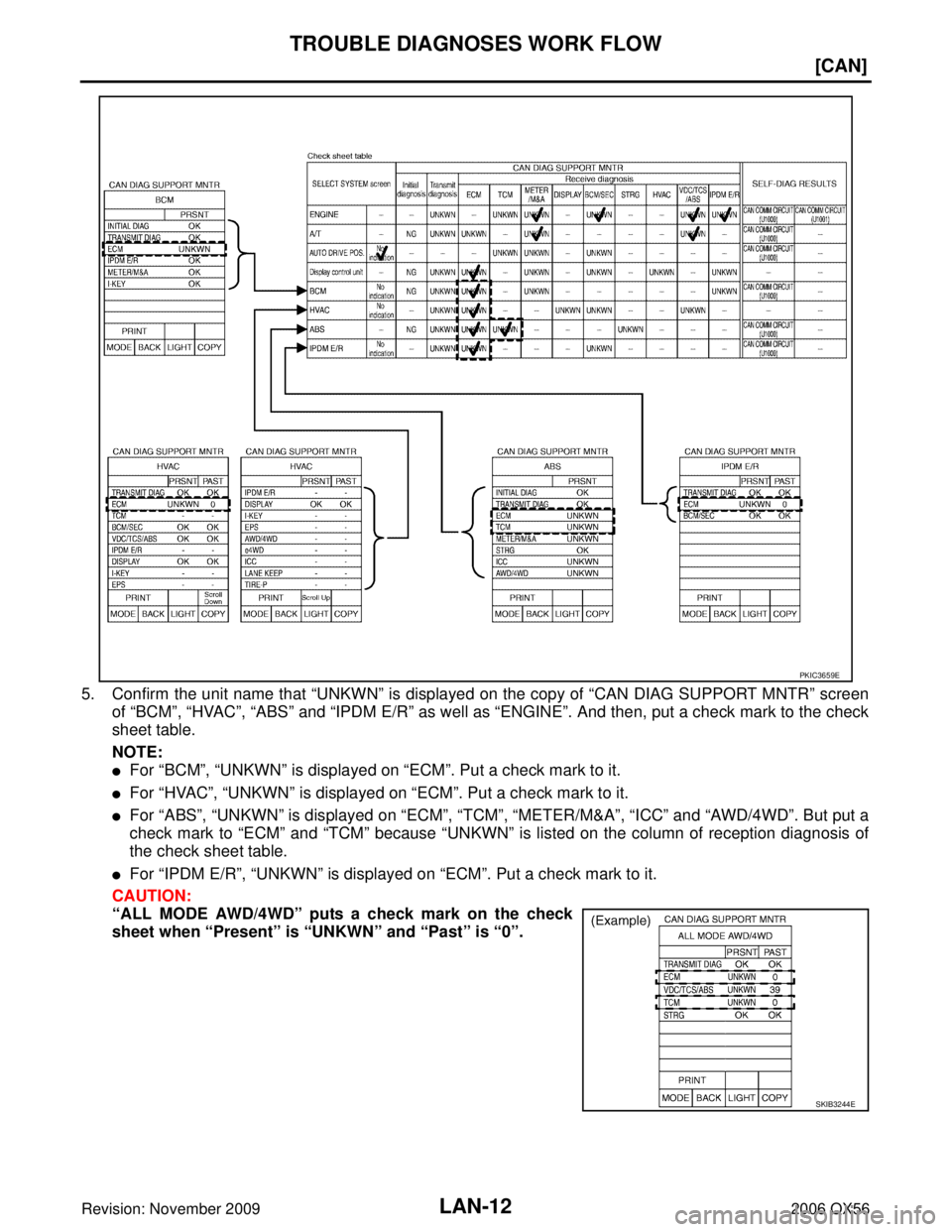

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSES WORK FLOWLAN-15 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 NOTE: There is a case that some of “CAN DIAG SUPPORT MNTR ” and “SELF-DIAG RESULTS” are not

Page 2285 of 3383

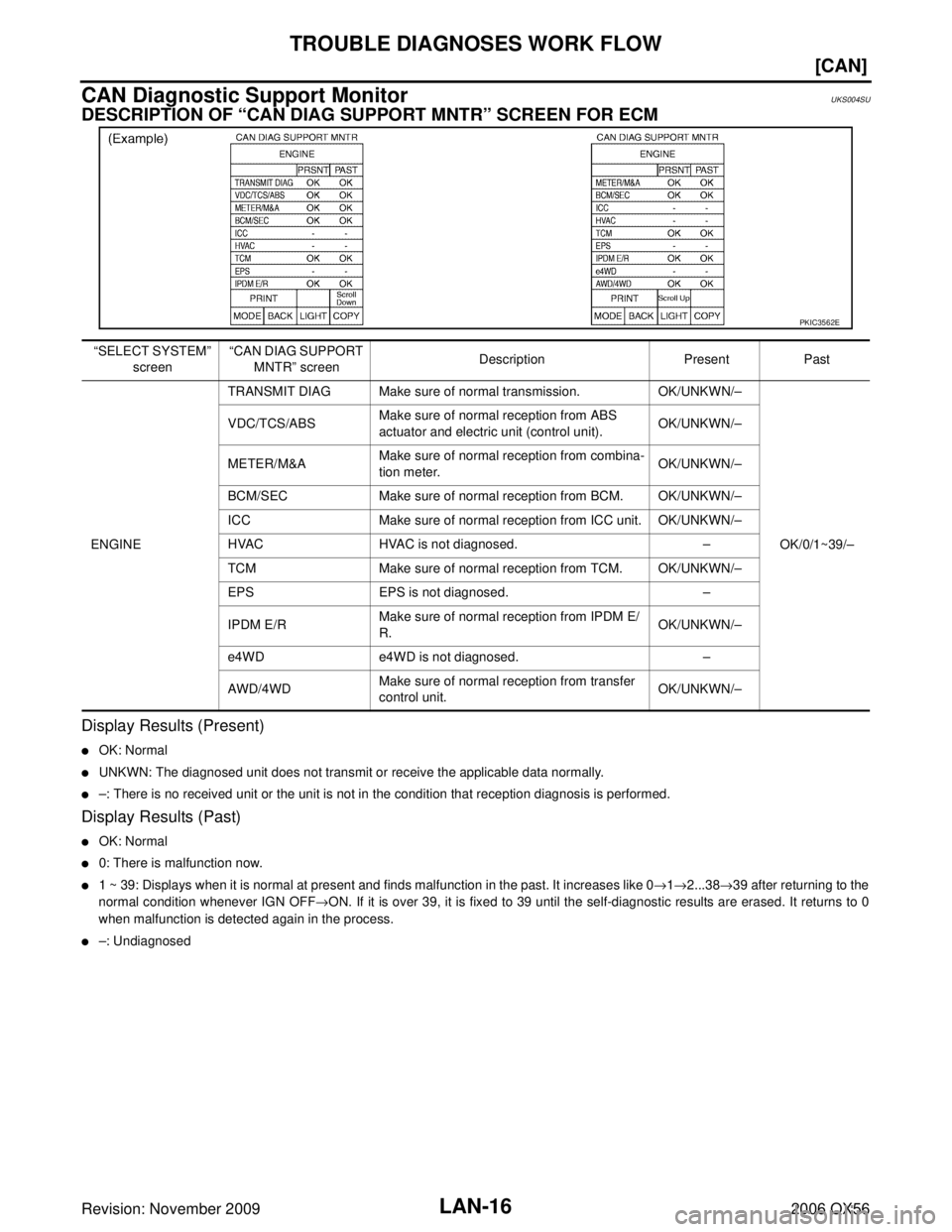

INFINITI QX56 2006 Factory Service Manual LAN-16 [CAN] TROUBLE DIAGNOSES WORK FLOW Revision: November 20092006 QX56 CAN Diagnostic Support MonitorUKS004SU DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN FOR ECM Display Results (Present) OK

Page 2286 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSES WORK FLOWLAN-17 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN FOR TCM Display Results (Present) OK: Normal N

Page 2287 of 3383

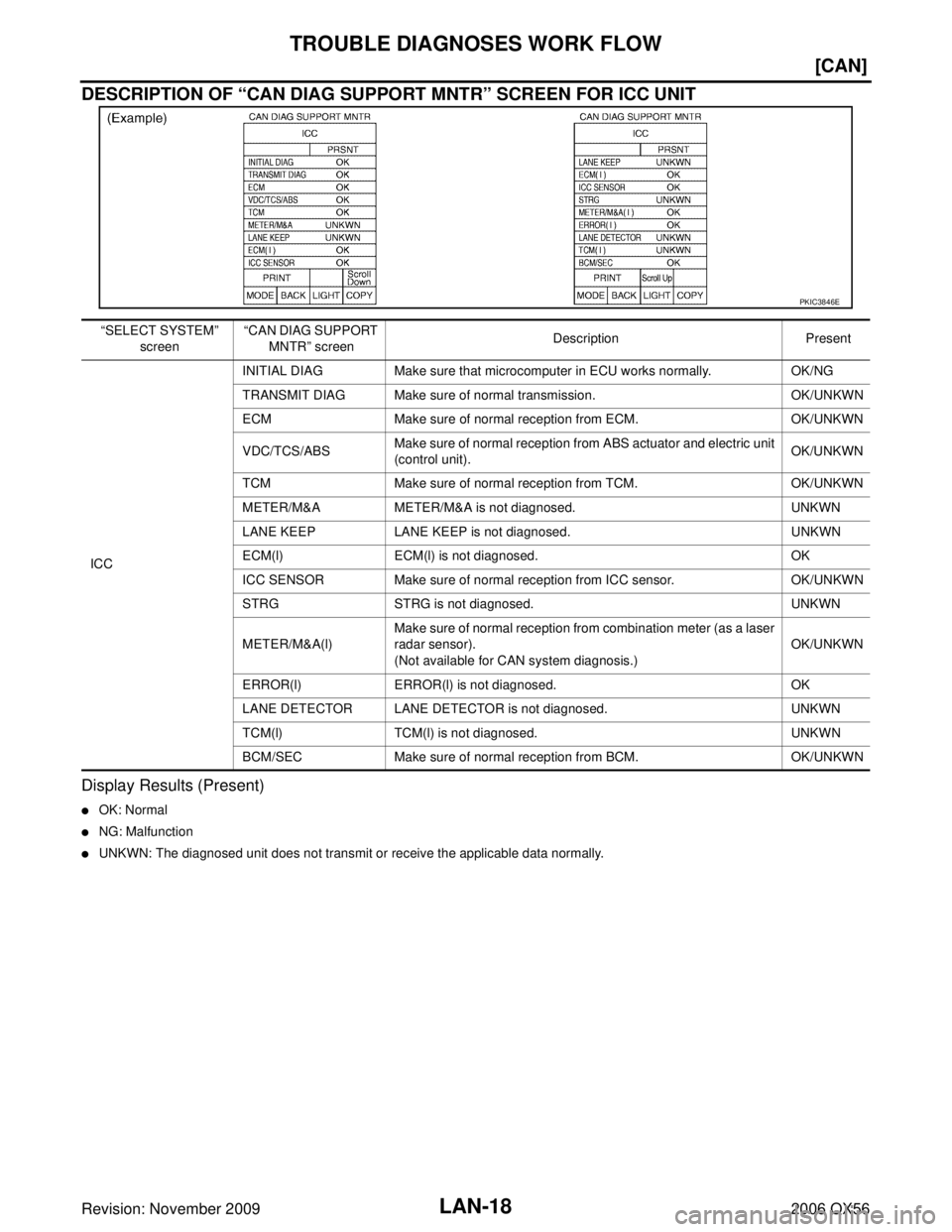

INFINITI QX56 2006 Factory Service Manual LAN-18 [CAN] TROUBLE DIAGNOSES WORK FLOW Revision: November 20092006 QX56 DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN FOR ICC UNIT Display Results (Present) OK: Normal NG: Malfunction UNKWN:

Page 2288 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSES WORK FLOWLAN-19 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN FOR DRIVER SEAT CONTROL UNIT Display Results (Pr
