Page 3281 of 3383

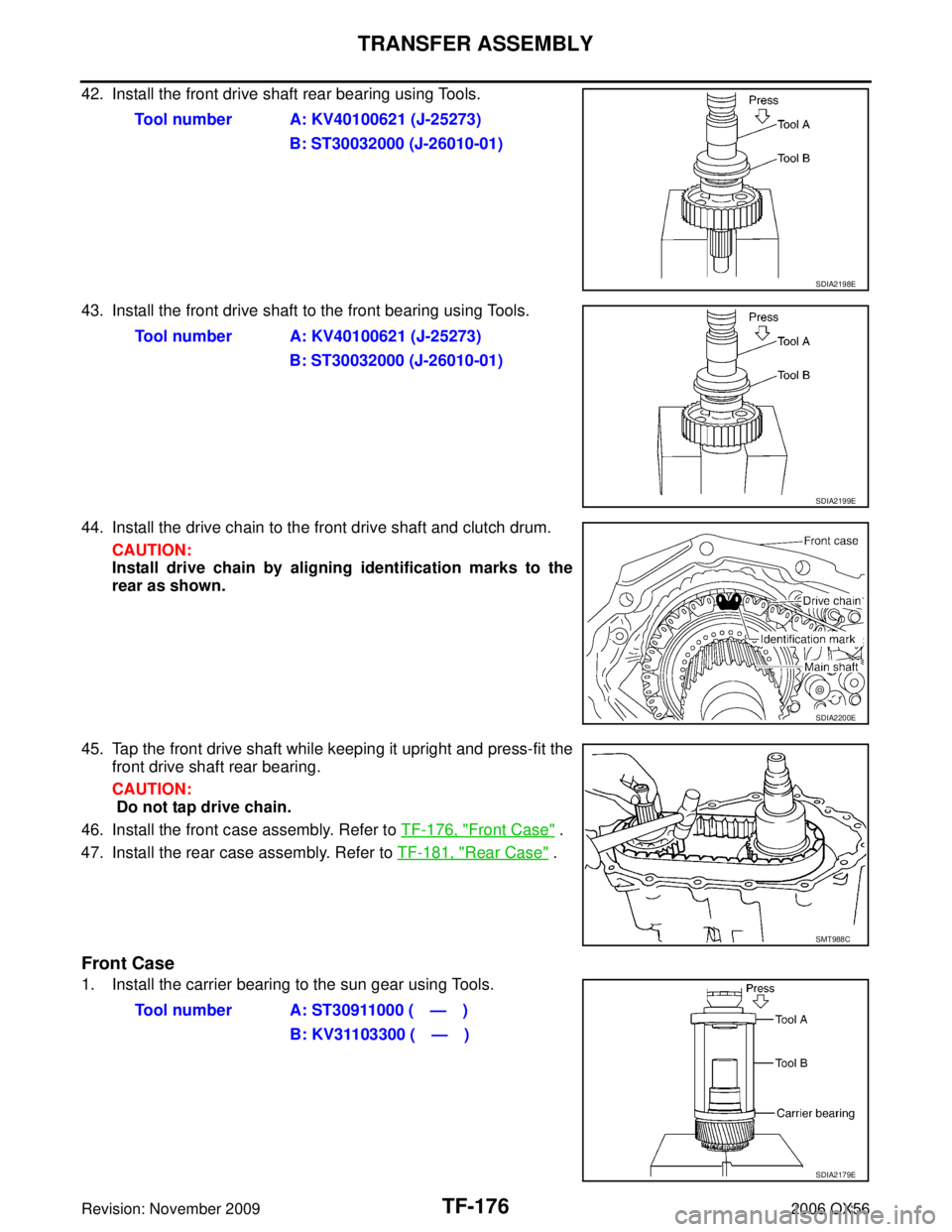

INFINITI QX56 2006 Factory Service Manual TF-176 TRANSFER ASSEMBLY Revision: November 20092006 QX56 42. Install the front drive shaft rear bearing using Tools. 43. Install the front drive shaft to the front bearing using Tools. 44. Install th

Page 3282 of 3383

INFINITI QX56 2006 Factory Service Manual TRANSFER ASSEMBLYTF-177 CE F G H I J K L M A B TF Revision: November 2009 2006 QX56 2. Install the new snap ring to the sun gear assembly using suitable tool. CAUTION: Do not reuse snap ring. 3. Apply

Page 3283 of 3383

INFINITI QX56 2006 Factory Service Manual TF-178 TRANSFER ASSEMBLY Revision: November 20092006 QX56 7. Set the input bearing into the front case and install using Tool. 8. Install the new snap ring into the front case. CAUTION: Do not reuse s

Page 3284 of 3383

INFINITI QX56 2006 Factory Service Manual TRANSFER ASSEMBLYTF-179 CE F G H I J K L M A B TF Revision: November 2009 2006 QX56 12. Install the new snap ring to the sun gear assembly. CAUTION: Do not reuse snap ring. 13. Apply petroleum jelly t

Page 3285 of 3383

INFINITI QX56 2006 Factory Service Manual TF-180 TRANSFER ASSEMBLY Revision: November 20092006 QX56 18. Apply liquid gasket to the entire center case mating surface of the front case assembly as shown. Use Genuine Anaerobic Liquid Gasket or

Page 3286 of 3383

INFINITI QX56 2006 Factory Service Manual TRANSFER ASSEMBLYTF-181 CE F G H I J K L M A B TF Revision: November 2009 2006 QX56 24. Install the new companion flange self-lock nut. Tighten to the specified torque using Tool. Refer to TF-146, "

Page 3287 of 3383

INFINITI QX56 2006 Factory Service Manual TF-182 TRANSFER ASSEMBLY Revision: November 20092006 QX56 2. Apply petroleum jelly to the circumference of the new dust cover. Position the new dust cover using the identification mark as shown. CAUTI

Page 3288 of 3383

INFINITI QX56 2006 Factory Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)TF-183 CE F G H I J K L M A B TF Revision: November 2009 2006 QX56 SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030 General SpecificationsEDS003BH Inspection and Adj
