INFINITI QX56 2006 Factory Service Manual SE-94
FRONT SEAT
Revision: November 20092006 QX56
REMOVAL
CAUTION:
When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.
Before removing the front seat, t

SE-94
FRONT SEAT
Revision: November 20092006 QX56
REMOVAL
CAUTION:
When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.
Before removing the front seat, turn the ignition switch off, disconnect both battery cables and
wait at least 3 minutes.
When checking the power seat circuit for continuity using a circuit tester, do not confuse its con-
nector with the side air bag module connector. Such an error may cause the air bag to deploy.
Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with
care.
After front side air bag module inflates, front seatback assembly must be replaced.
Front passenger seat is equipped with an Occupant Classification System sensor and control
module. Do not disassemble front passenger seat cushion assembly or remove the trim as this
will affect the Occupant Classification System calibration.
Always replace passenger seat cushion as an assembly.
1. Slide the seat until the four body mounting bolts are visible and a tool can be inserted. NOTE:
If disassembling the seat after removal, set the front/rear cushion lifters to the top position.
2. Disconnect both battery cables and wait at least 3 minutes.
3. Disconnect the side air bag module harness connector.
4. Remove the four body mounting bolts.
5. Disconnect the power seat harness connectors and remove the seat from the vehicle. NOTE:
When removing and installing the seat, use shop cloths to protect the vehicle from damage.
INSTALLATION
Installation is in the reverse order of removal.
Disassembly and AssemblyEIS004YT
SEATBACK TRIM AND PAD
WARNING:
Removal of front side air bag module should only be done to allow deployment of front side air bag
module prior to disposal of seatback assembly.
NOTE:
Only complete seatback assemblies can be replaced on vehicles equipped with side air bags.
Be sure to set the front/rear cushion lifter to the top position.
Driver Seat
1. Remove the headrest.
7. Outboard reclining arm outer cover 8. Outboard reclining arm inner cover 9. Inboard reclining arm inner cove
10. Latch cover 11. LH outer leg cover 12. Outboard reclining arm inner cover
13. Seat cushion inner cover 14. Passenger seat wiring harness 15. Inner front leg cover
16. Power seat frame assembly 17. NVH assembly 18. Seat cushion front finisher
19. Outer pedestal finisher 20. Seat cushion outer finisher 21. Seat cushion assembly
22. Power seat switch escutcheon 23. Slide switch knob 24. Recliner switch knob
25. Seatback assembly 26. Headrest holder 27. Seat slide/ recline switch
28. Power lumbar switch

Page 3026 of 3383

INFINITI QX56 2006 Factory Service Manual FRONT SEATSE-95
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
2. Unhook the j-channel.
3. From inside of the seatback, squeeze the headrest holder tabs
at the base of the stay pipe and p

Page 3027 of 3383

INFINITI QX56 2006 Factory Service Manual SE-96
FRONT SEAT
Revision: November 20092006 QX56
4. From inside of the seatback, squeeze the headrest holder tabs
at the base of the stay pipe and pull up to remove.
NOTE:
Before installing the headr

Page 3028 of 3383

INFINITI QX56 2006 Factory Service Manual FRONT SEATSE-97
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
3. Remove four bolts and the seat cushion assembly.
4. Remove the retainer on the seat cushion frame, then remove the harnes

Page 3029 of 3383

INFINITI QX56 2006 Factory Service Manual SE-98
SECOND SEAT
Revision: November 20092006 QX56
SECOND SEATPFP:88000
Removal and InstallationEIS007X1
SECOND ROW OUTBOARD
Removal
1. Remove seat base trim cover.
2. Lift handle and tilt seat forwar

Page 3030 of 3383

INFINITI QX56 2006 Factory Service Manual SECOND SEATSE-99
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56

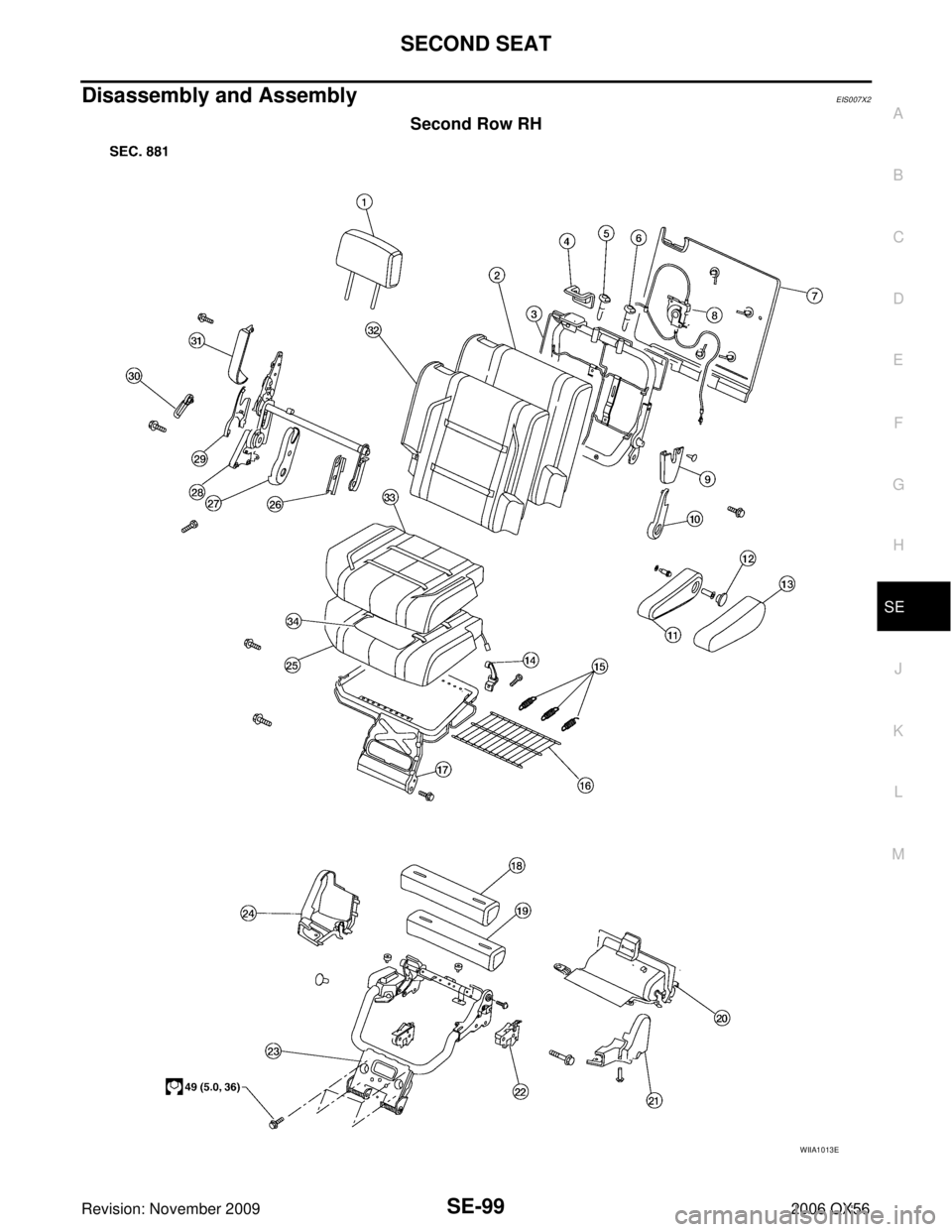

Disassembly and AssemblyEIS007X2
Second Row RH
WIIA1013E

Page 3031 of 3383

INFINITI QX56 2006 Factory Service Manual SE-100
SECOND SEAT
Revision: November 20092006 QX56
1. Headrest 2. Seatback pad 3. Seatback frame
4. Rear seat bezel 5. RH Headrest guide 6. LH Headrest guide
7. Seat back panel 8. Seat actuator asse

Page 3032 of 3383

INFINITI QX56 2006 Factory Service Manual SECOND SEATSE-101
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
Second Row Center
WIIA1366E
1. Seatback pad2. Armrest finisher 3. Headrest
4. Seat belt retractor cover 5. Seat belt bezel
