Page 3377 of 3383

INFINITI QX56 2006 Factory Service Manual WW-50 REAR WIPER AND WASHER SYSTEM Revision: November 20092006 QX56 Rear Wiper Motor EKS00BEO REMOVAL AND INSTALLATION REMOVAL 1. Remove wiper arm. Refer to WW-49, "Rear Wiper Arm" . 2. Remove pivot c

Page 3378 of 3383

INFINITI QX56 2006 Factory Service Manual REAR WIPER AND WASHER SYSTEMWW-51 C DE F G H I J L M A B WW Revision: November 2009 2006 QX56 Rear Washer Tube LayoutEKS00BEQ NOTE: Connect the check valve (2) to the washer fluid reservoir tube (1) s

Page 3379 of 3383

INFINITI QX56 2006 Factory Service Manual WW-52 REAR WIPER AND WASHER SYSTEM Revision: November 20092006 QX56 WASHER FLUID RESERVOIR Refer to WW-30, "REMOVAL AND INSTALLATION" . WASHER MOTOR Refer to WW-31, "Washer Motor" .

Page 3380 of 3383

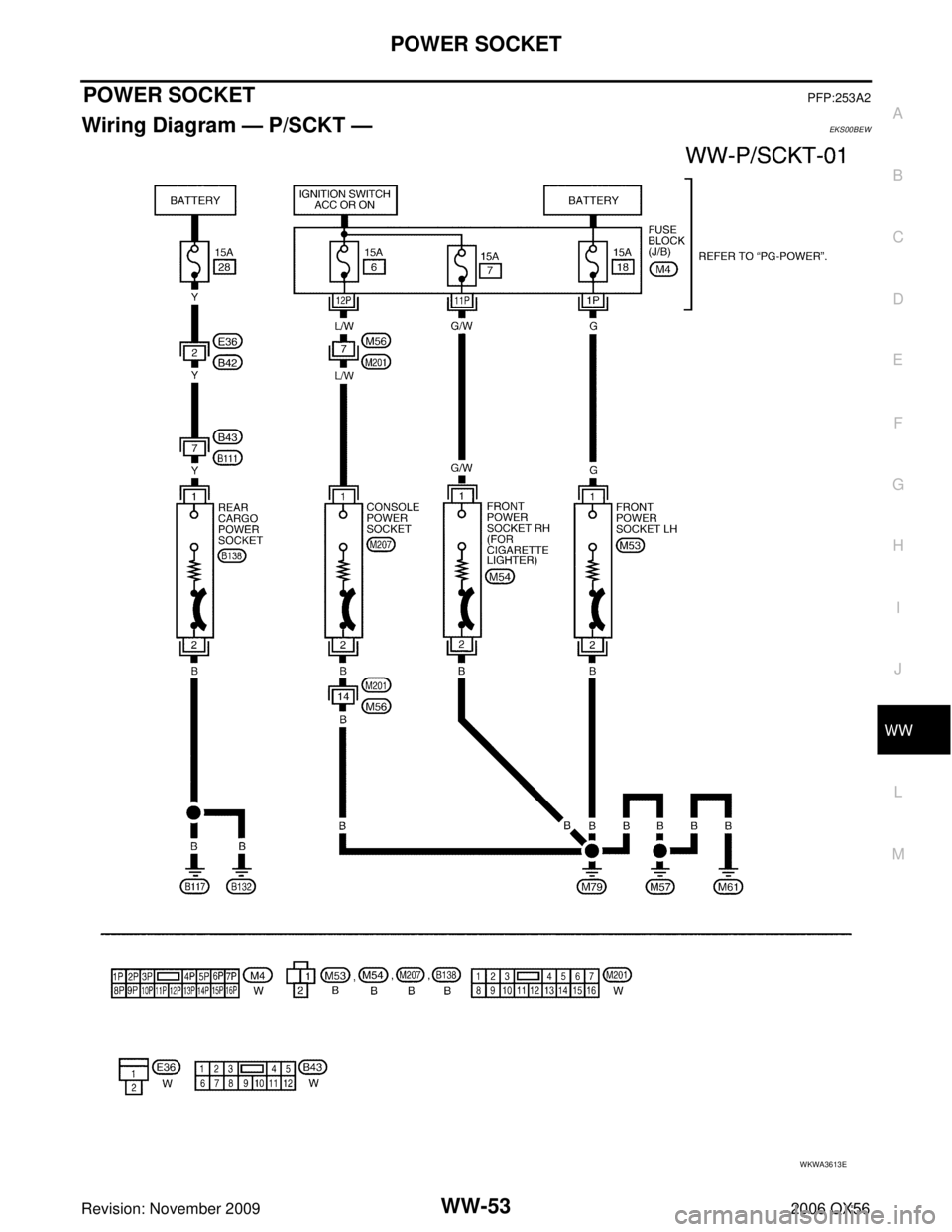

INFINITI QX56 2006 Factory Service Manual POWER SOCKETWW-53 C DE F G H I J L M A B WW Revision: November 2009 2006 QX56 POWER SOCKETPFP:253A2 Wiring Diagram — P/SCKT — EKS00BEW WKWA3613E

Page 3381 of 3383

INFINITI QX56 2006 Factory Service Manual WW-54 POWER SOCKET Revision: November 20092006 QX56 Front Power Socket LH, Rear Cargo Power SocketEKS00BEX REMOVAL AND INSTALLATION Removal 1. Disconnect battery negative terminal. 2. Remove inner soc

Page 3382 of 3383

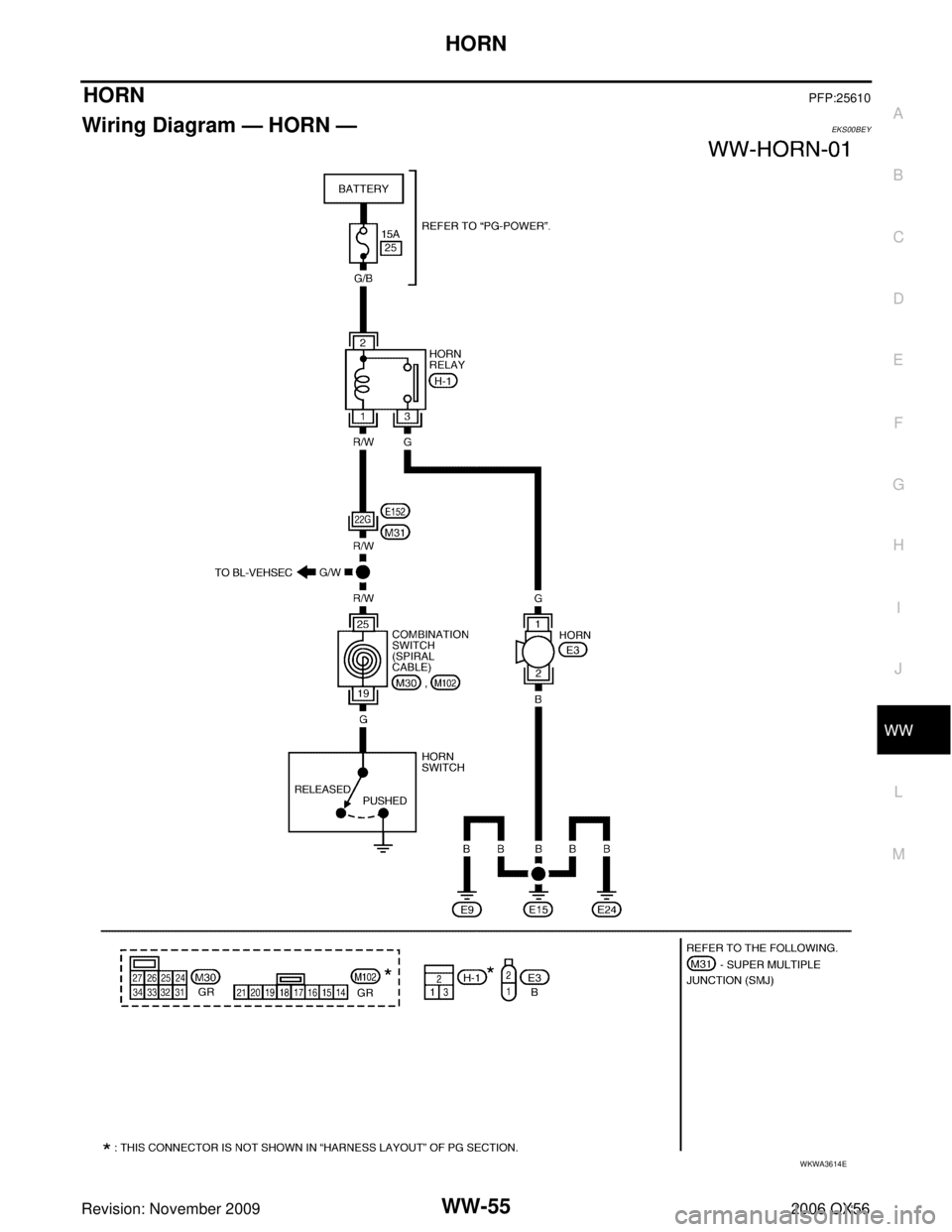

INFINITI QX56 2006 Factory Service Manual HORN WW-55 C D E F G H I J L M A B WW Revision: November 2009 2006 QX56 HORNPFP:25610 Wiring Diagram — HORN — EKS00BEY WKWA3614E

Page 3383 of 3383

INFINITI QX56 2006 Factory Service Manual WW-56 HORN Revision: November 20092006 QX56 Removal and InstallationEKS00BEZ REMOVAL 1. Disconnect horn connector. 2. Remove horn bolt and remove horn from vehicle. INSTALLATION Installation is in the
