Page 3049 of 3383

INFINITI QX56 2006 Factory Service Manual SRS-8 TROUBLE DIAGNOSIS Revision: November 20092006 QX56 TROUBLE DIAGNOSISPFP:00004 Trouble Diagnosis IntroductionEHS0016M CAUTION: Do not use electrical test equipment on any circuit related to the

Page 3050 of 3383

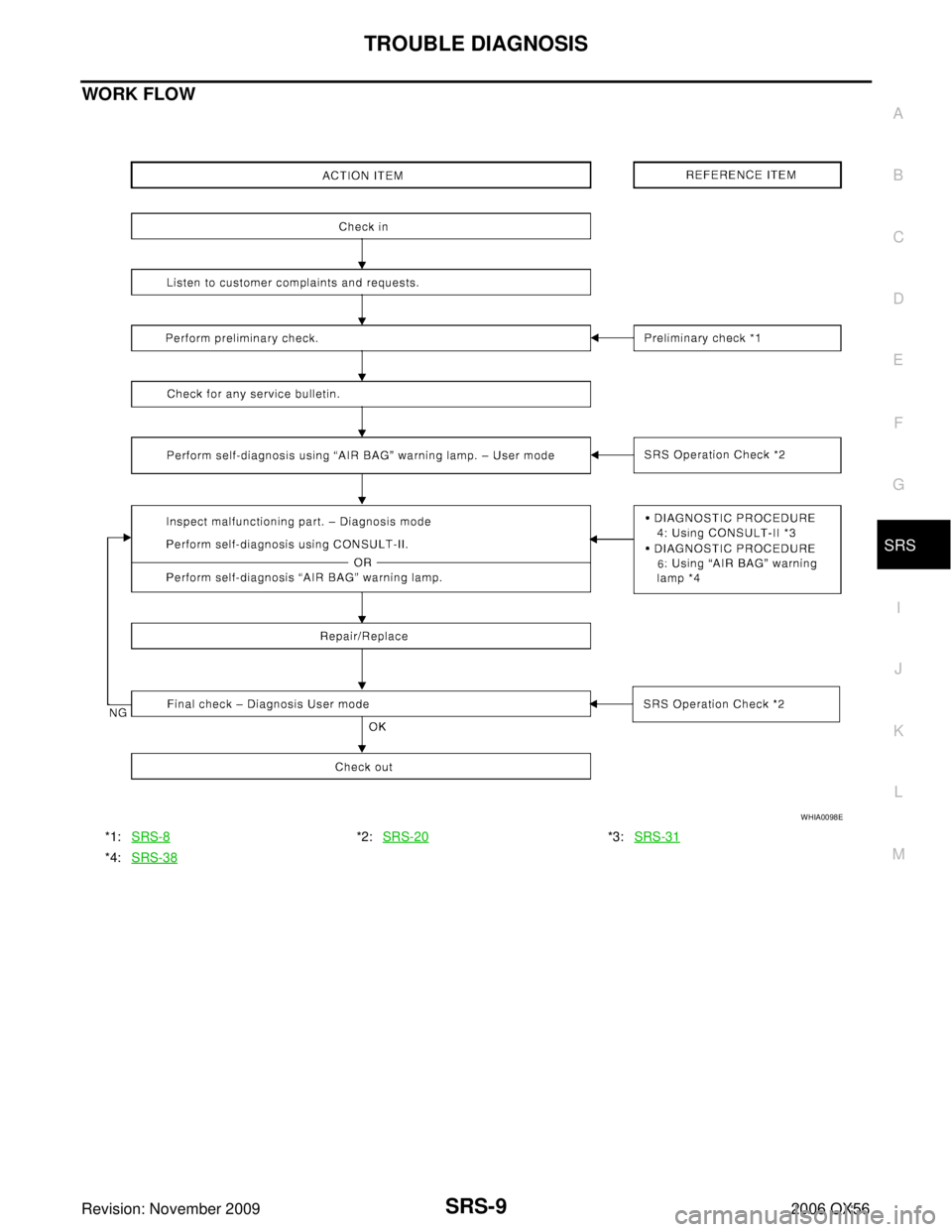

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISSRS-9 C DE F G I J K L M A B SRS Revision: November 2009 2006 QX56 WORK FLOW *1:SRS-8*2:SRS-20*3: SRS-31 *4:SRS-38 WHIA0098E

Page 3051 of 3383

INFINITI QX56 2006 Factory Service Manual SRS-10 TROUBLE DIAGNOSIS Revision: November 20092006 QX56 SRS Components Parts LocationEHS0016N 1. Side curtain air bag modules 2. Front RH side air bag module 3. Belt tension sensor 4. RH side air ba

Page 3052 of 3383

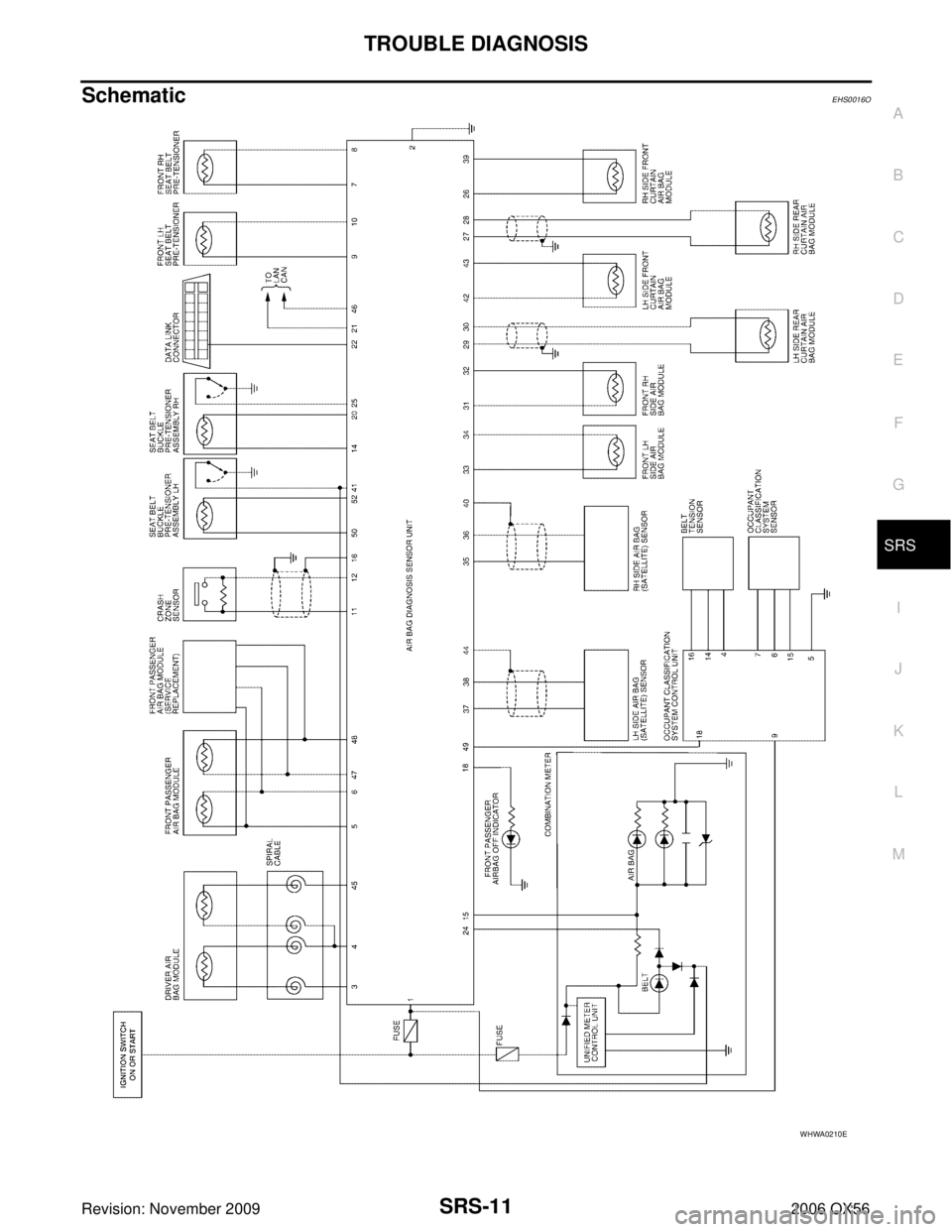

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISSRS-11 C DE F G I J K L M A B SRS Revision: November 2009 2006 QX56 SchematicEHS0016O WHWA0210E

Page 3053 of 3383

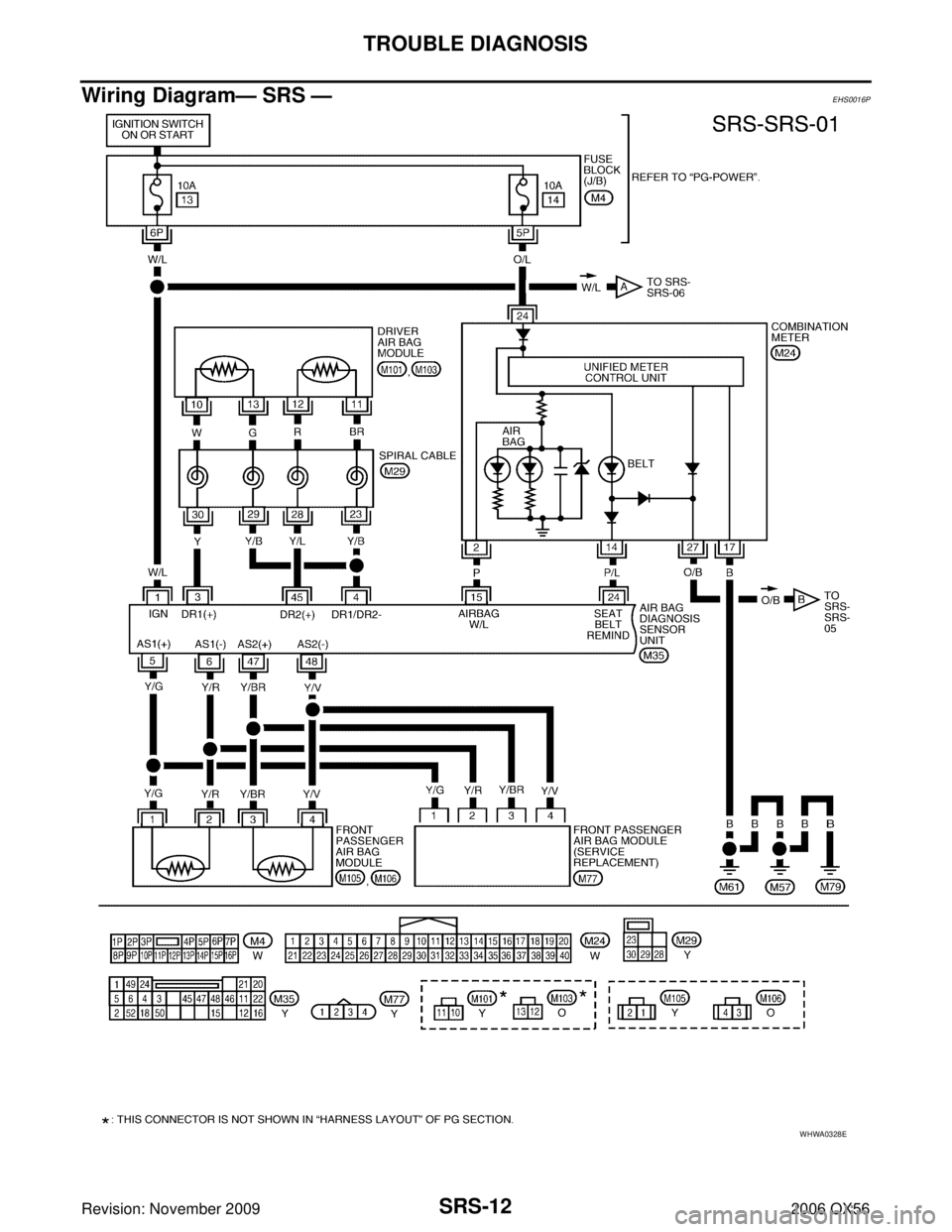

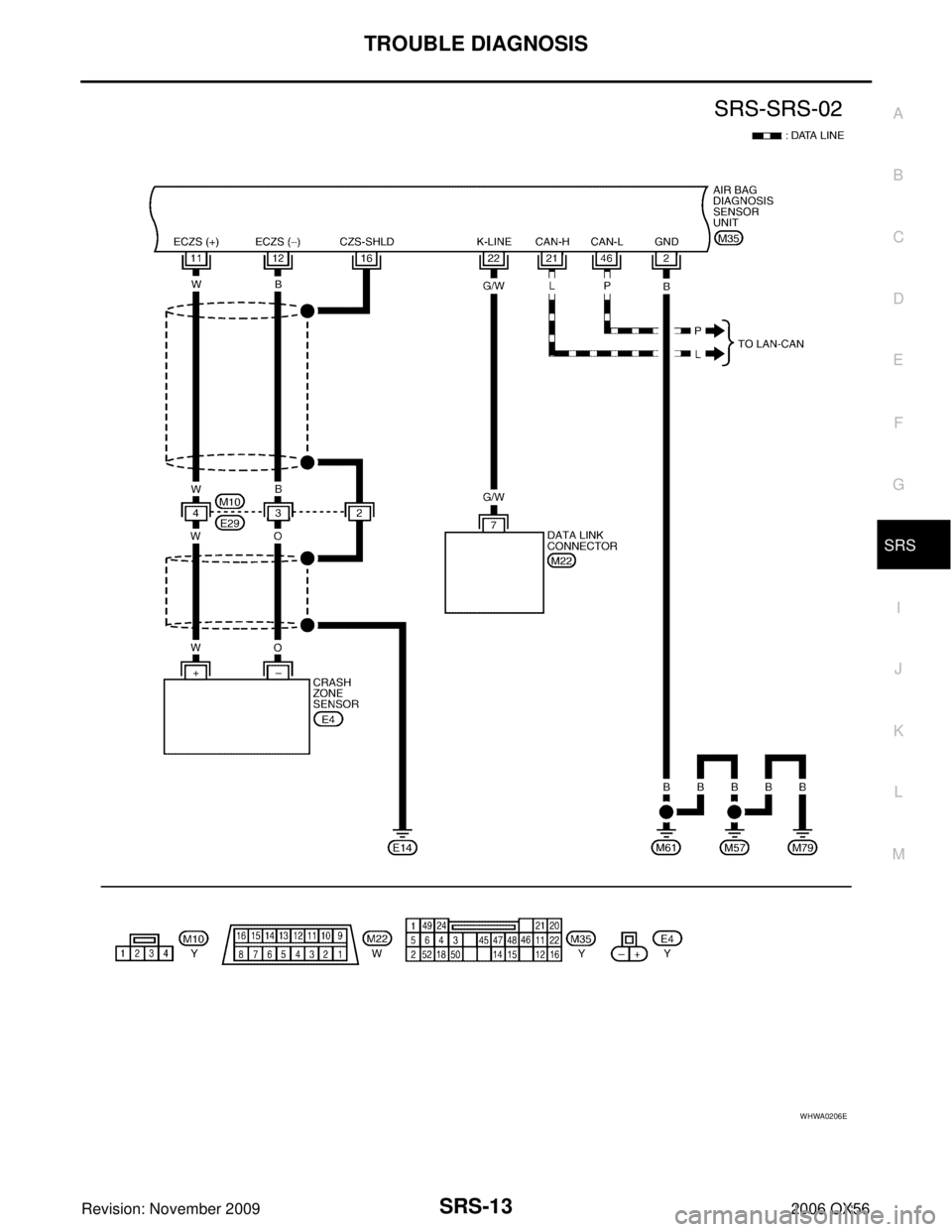

INFINITI QX56 2006 Factory Service Manual SRS-12 TROUBLE DIAGNOSIS Revision: November 20092006 QX56 Wiring Diagram— SRS —EHS0016P WHWA0328E

Page 3054 of 3383

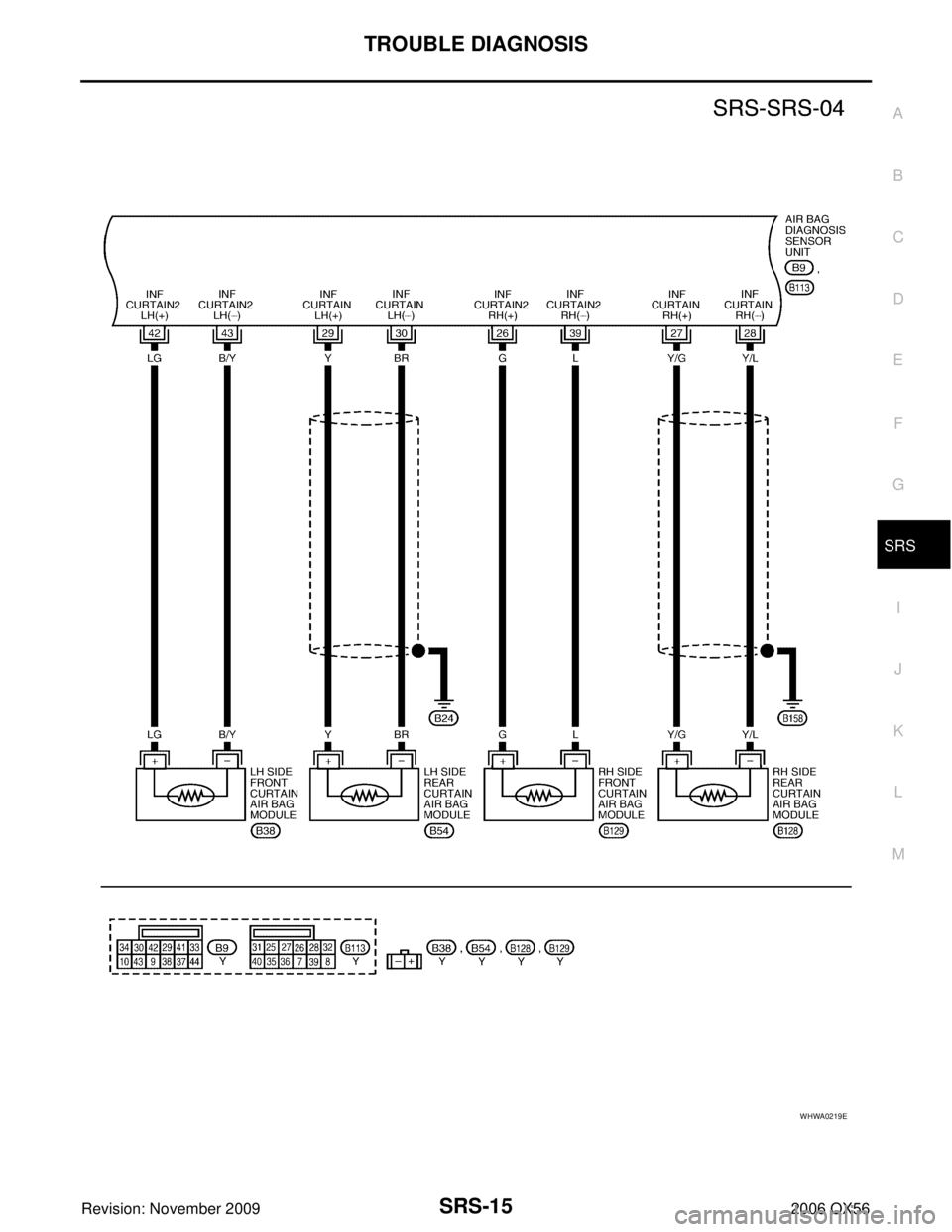

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISSRS-13 C DE F G I J K L M A B SRS Revision: November 2009 2006 QX56 WHWA0206E

Page 3055 of 3383

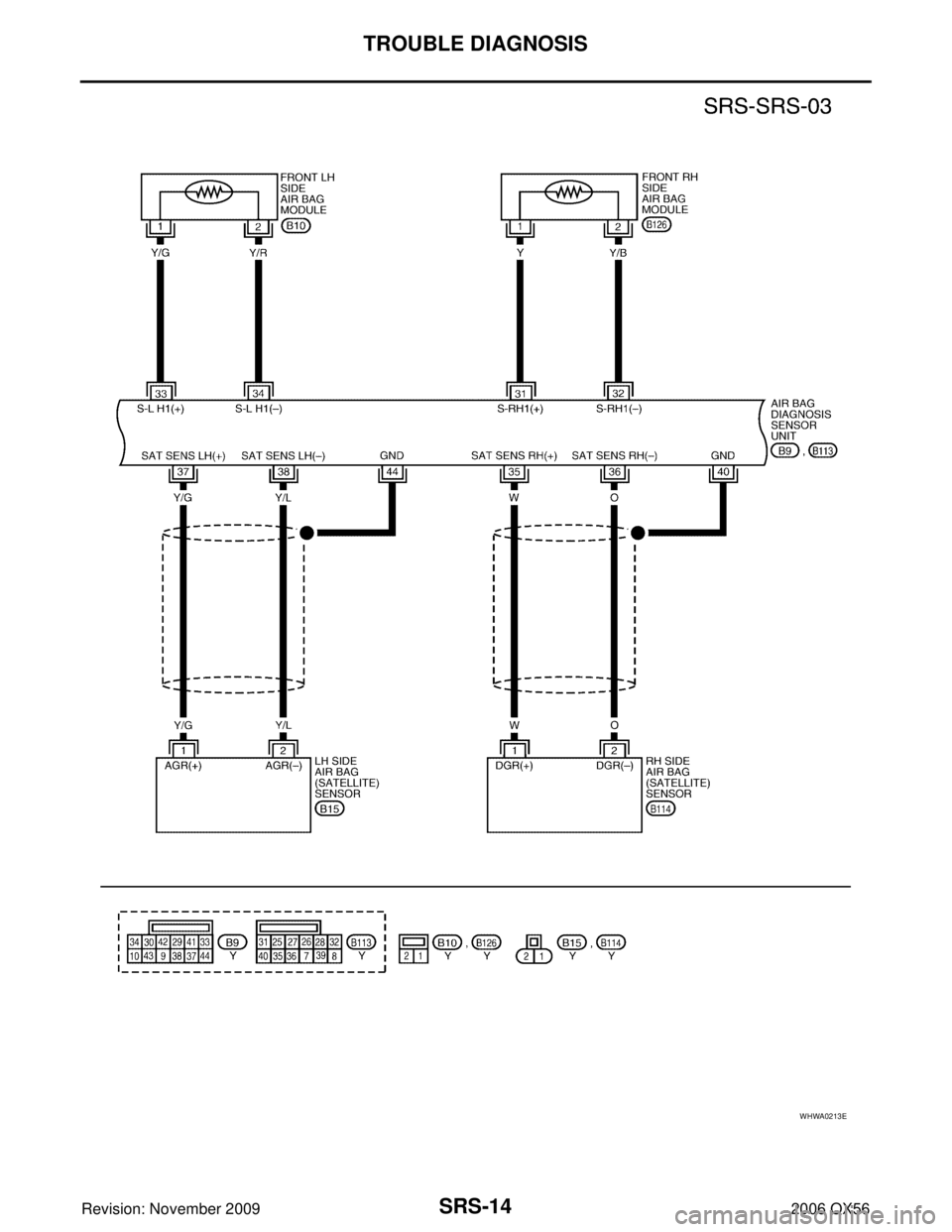

INFINITI QX56 2006 Factory Service Manual SRS-14 TROUBLE DIAGNOSIS Revision: November 20092006 QX56 WHWA0213E

Page 3056 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISSRS-15 C DE F G I J K L M A B SRS Revision: November 2009 2006 QX56 WHWA0219E
