Page 1257 of 3383

INFINITI QX56 2006 Factory Service Manual EC-46Revision: November 2009
POSITIVE CRANKCASE VENTILATION
2006 QX56
PCV VALVE VENTILATION HOSE
1. Check hoses and hose connections for leaks.
2. Disconnect all hoses and clean with compressed air. I

Page 1258 of 3383

INFINITI QX56 2006 Factory Service Manual IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)EC-47
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)PFP:28591
DescriptionUBS00L1L
If the se

Page 1259 of 3383

INFINITI QX56 2006 Factory Service Manual EC-48Revision: November 2009
ON BOARD DIAGNOSTIC (OBD) SYSTEM
2006 QX56
ON BOARD DIAGNOSTIC (OBD) SYSTEMPFP:00028
IntroductionUBS00KZP
The ECM has an on board diagnostic system, which detects malfunct

EC-48Revision: November 2009
ON BOARD DIAGNOSTIC (OBD) SYSTEM
2006 QX56
ON BOARD DIAGNOSTIC (OBD) SYSTEMPFP:00028
IntroductionUBS00KZP
The ECM has an on board diagnostic system, which detects malfunctions related to engine sensors or actua-
tors. The ECM also records various emission-related diagnostic information including:
The above information can be checked using procedures listed in the table below.
×: Applicable —: Not applicable
*: When DTC and 1st trip DTC simultaneously appear on the display, they cannot be clearly distinguished from each other.
The malfunction indicator lamp (MIL) on the instrument panel lights up when the same malfunction is detected
in two consecutive trips (Two trip detection logic), or when the ECM enters fail-safe mode. (Refer to EC-91,
"Fail-safe Chart" .)
Two Trip Detection LogicUBS00KZQ
When a malfunction is detected for the first time, 1st trip DTC and 1st trip Freeze Frame data are stored in the
ECM memory. The MIL will not light up at this stage. <1st trip>
If the same malfunction is detected again during the next drive, the DTC and Freeze Frame data are stored in
the ECM memory, and the MIL lights up. The MIL lights up at the same time when the DTC is stored. <2nd
trip> The “trip” in the “Two Trip Detection Logic ” means a driving mode in which self-diagnosis is performed
during vehicle operation. Specific on board diagnostic items will cause the ECM to light up or blink the MIL,
and store DTC and Freeze Frame data, even in the 1st trip, as shown below.
× : Applicable —: Not applicable
When there is an open circuit on MIL circuit, the ECM cannot warn the driver by lighting up MIL when there is
malfunction on engine control system.
Emission-related diagnostic information Diagnostic service
Diagnostic Trouble Code (DTC) Service $03 of SAE J1979
Freeze Frame data Service $02 of SAE J1979
System Readiness Test (SRT) code Service $01 of SAE J1979
1st Trip Diagnostic Trouble Code (1st Trip DTC) Service $07 of SAE J1979
1st Trip Freeze Frame data
Test values and Test limits Service $06 of SAE J1979
Calibration ID Service $09 of SAE J1979
DTC 1st trip DTCFreeze
Frame data 1st trip Freeze
Frame data SRT code SRT status Test value
CONSULT-II ×× × × × × —
GST ×× × —×××
ECM ××*——— ×—
Items MIL
DTC1st trip DTC
1st trip 2nd trip
1st trip
displaying 2nd trip
displaying 1st trip
displaying 2nd trip
display-
ing
Blinking Lighting
up Blinking Lighting
up
Misfire (Possible three way cata-
lyst damage) — DTC: P0300 -
P0308 is being detected ×
———— — ×—
Misfire (Possible three way cata-
lyst damage) — DTC: P0300 -
P0308 is being detected ——
×—— ×——
One trip detection diagnoses
(Refer to EC-49, "
EMISSION-
RELATED DIAGNOSTIC INFOR-
MATION ITEMS" .) —
×—— ×———
Except above ———×— ×× —

Page 1260 of 3383

INFINITI QX56 2006 Factory Service Manual ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-49
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously dete

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-49
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected as
NG for 5 trips, ECM warns the driver that engine control system malfunctions and MIL circuit is open by means
of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MIL circuit are detected and demands the
driver to repair the malfunction.
Emission-related Diagnostic InformationUBS00KZR
EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS
×:Applicable —: Not applicable
Engine operating condition in fail-safe mode
Engine speed will not rise more than 2,500 rpm due to the fuel cut
Items
(CONSULT-II screen terms) DTC*
1
SRT code
Test value/
Te s t l i m i t
(GST only) Trip MIL
Refer-
ence page
CONSULT-II
GST*
2ECM*3
CAN COMM CIRCUIT U1000
1000*5—— 1×EC-151
CAN COMM CIRCUIT U1001
1001*5—— 2—EC-151
CONTROL UNIT(CAN) U1010 1010——1×EC-154
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED. P0000 0000
———
Flashing*7EC-64
A/F SEN1 HTR (B1) P0031 0031—×2×EC-156
A/F SEN1 HTR (B1) P0032 0032—×2×EC-156
HO2S2 HTR (B1) P0037 0037—×2×EC-163
HO2S2 HTR (B1) P0038 0038—×2×EC-163
A/F SEN1 HTR (B2) P0051 0051—×2×EC-156
A/F SEN1 HTR (B2) P0052 0052—×2×EC-156
HO2S2 HTR (B2) P0057 0057—×2×EC-163
HO2S2 HTR (B2) P0058 0058—×2×EC-163
MAF SEN/CIRCUIT P0101 0101——2×EC-171
MAF SEN/CIRCUIT P0102 0102——1×EC-180
MAF SEN/CIRCUIT P0103 0103——1×EC-180
IAT SEN/CIRCUIT P0112 0112——2×EC-188
IAT SEN/CIRCUIT P0113 0113——2×EC-188
ECT SEN/CIRC P0117 0117——1×EC-192
ECT SEN/CIRC P0118 0118——1×EC-192
TP SEN 2/CIRC P0122 0122——1×EC-198
TP SEN 2/CIRC P0123 0123——1×EC-198
ECT SENSOR P0125 0125——2×EC-205
IAT SENSOR P0127 0127——2×EC-208
THERMSTAT FNCTN P0128 0128——2×EC-211
A/F SENSOR1 (B1) P0130 0130—×2×EC-213
A/F SENSOR1 (B1) P0131 0131—×2×EC-223
A/F SENSOR1 (B1) P0132 0132—×2×EC-232
A/F SENSOR1 (B1) P0133 0133××2 ×EC-241
HO2S2 (B1) P0137 0137××2 ×EC-253
HO2S2 (B1) P0138 0138××2 ×EC-264
HO2S2 (B1) P0139 0139××2 ×EC-277
A/F SENSOR1 (B2) P0150 0150—×2×EC-213
A/F SENSOR1 (B2) P0151 0151—×2×EC-223

Page 1261 of 3383

INFINITI QX56 2006 Factory Service Manual EC-50Revision: November 2009
ON BOARD DIAGNOSTIC (OBD) SYSTEM
2006 QX56
A/F SENSOR1 (B2)P0152 0152—×2 ×EC-232
A/F SENSOR1 (B2) P0153 0153××2×EC-241
HO2S2 (B2) P0157 0157××2×EC-253
HO2S2 (B2)

Page 1262 of 3383

INFINITI QX56 2006 Factory Service Manual ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-51
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56EVAP VERY SML LEAKP0456 0456
×*4× 2×EC-427
FUEL LEV SEN SLOSH P0460 0460——2×EC-436
FUEL LEVEL S

Page 1263 of 3383

INFINITI QX56 2006 Factory Service Manual EC-52Revision: November 2009
ON BOARD DIAGNOSTIC (OBD) SYSTEM
2006 QX56
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by SAE J2012.
*3: In Diagnostic Test Mode II (Self-dia

EC-52Revision: November 2009
ON BOARD DIAGNOSTIC (OBD) SYSTEM
2006 QX56
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by SAE J2012.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
*4: SRT code will not be set if the self-diagnostic result is NG.
*5: The troubleshooting for this DTC needs CONSULT-II.
*6: When the fail-safe operations for both self-diagnoses occur at the same time, the MIL illuminates.
*7: When the ECM is in the mode of displaying SRT status, MIL may flash. For the details, refer to EC-57, "
How to Display SRT Status" .
*8: 2WD models
*9: Models with ICC
DTC AND 1ST TRIP DTC
The 1st trip DTC (whose number is the same as the DTC number) is displayed for the latest self-diagnostic
result obtained. If the ECM memory was cleared previously, and the 1st trip DTC did not reoccur, the 1st trip
DTC will not be displayed.
ASCD VHL SPD SEN*8P1574 1574 ——1—EC-519

(Models
with ICC)
EC-521

(Models with
ASCD)
NATS MALFUNCTION P1610 -
P1615 1610 - 1615
—— 2—BL-137
A/T INTERLOCK P1730 1730——1×AT-134
I/C SOLENOID/CIRC P1752 1752——1×AT-139
I/C SOLENOID FNCTN P1754 1754——1×AT-141
FR/B SOLENOID/CIRC P1757 1757——1×AT-143
FR/B SOLENOID FNCT P1759 1759——1×AT-145
D/C SOLENOID/CIRC P1762 1762——1×AT-147
D/C SOLENOID FNCTN P1764 1764——1×AT-149
HLR/C SOL/CIRC P1767 1767——1×AT-151
HLR/C SOL FNCTN P1769 1769——1×AT-153
LC/B SOLENOID/CIRC P1772 1772——1×AT-155
LC/B SOLENOID FNCT P1774 1774——1×AT-157
BRAKE SW/CIRCUIT P1805 1805——2—EC-523
ETC MOT PWR P2100 2100——1×EC-528
ETC FUNCTION/CIRC P2101 2101——1×EC-534
ETC MOT PWR P2103 2103——1×EC-528
ETC MOT P2118 2118——1×EC-540
ETC ACTR P2119 2119——1×EC-545
APP SEN 1/CIRC P2122 2122——1×EC-547
APP SEN 1/CIRC P2123 2123——1×EC-547
APP SEN 2/CIRC P2127 2127——1×EC-553
APP SEN 2/CIRC P2128 2128——1×EC-553
TP SENSOR P2135 2135——1×EC-560
APP SENSOR P2138 2138——1×EC-567
A/F SENSOR1 (B1) P2A00 2A00—×2 ×EC-575
A/F SENSOR1 (B2) P2A03 2A03—×2 ×EC-575
Items
(CONSULT-II screen terms) DTC*
1
SRT code
Test value/
Te s t l i m i t
(GST only) Trip MIL
Refer-
ence page
CONSULT-II
GST*
2ECM*3

Page 1264 of 3383

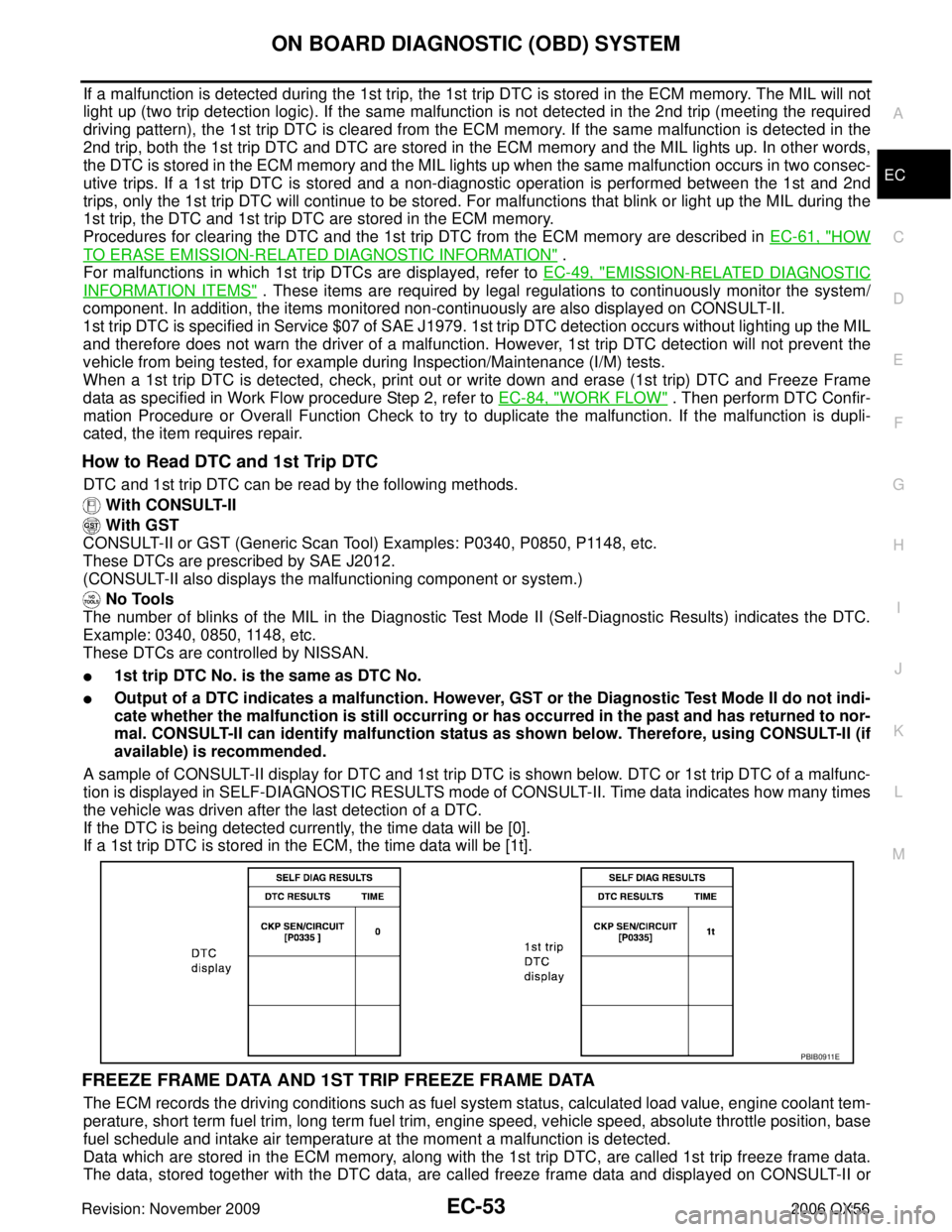

INFINITI QX56 2006 Factory Service Manual ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-53
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
If a malfunction is detected during the 1st trip, the 1st trip DTC is stored in the ECM memory. The MI

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-53
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
If a malfunction is detected during the 1st trip, the 1st trip DTC is stored in the ECM memory. The MIL will not
light up (two trip detection logic). If the same malfunction is not detected in the 2nd trip (meeting the required
driving pattern), the 1st trip DTC is cleared from the ECM memory. If the same malfunction is detected in the
2nd trip, both the 1st trip DTC and DTC are stored in the ECM memory and the MIL lights up. In other words,
the DTC is stored in the ECM memory and the MIL lights up when the same malfunction occurs in two consec-
utive trips. If a 1st trip DTC is stored and a non-diagnostic operation is performed between the 1st and 2nd
trips, only the 1st trip DTC will continue to be stored. For malfunctions that blink or light up the MIL during the
1st trip, the DTC and 1st trip DTC are stored in the ECM memory.
Procedures for clearing the DTC and the 1st trip DTC from the ECM memory are described in EC-61, "
HOW
TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION" .
For malfunctions in which 1st trip DTCs are displayed, refer to EC-49, "
EMISSION-RELATED DIAGNOSTIC
INFORMATION ITEMS" . These items are required by legal regulations to continuously monitor the system/
component. In addition, the items monitored non-continuously are also displayed on CONSULT-II.
1st trip DTC is specified in Service $07 of SAE J1979. 1st trip DTC detection occurs without lighting up the MIL
and therefore does not warn the driver of a malfunction. However, 1st trip DTC detection will not prevent the
vehicle from being tested, for example during Inspection/Maintenance (I/M) tests.
When a 1st trip DTC is detected, check, print out or write down and erase (1st trip) DTC and Freeze Frame
data as specified in Work Flow procedure Step 2, refer to EC-84, "
WORK FLOW" . Then perform DTC Confir-
mation Procedure or Overall Function Check to try to duplicate the malfunction. If the malfunction is dupli-
cated, the item requires repair.
How to Read DTC and 1st Trip DTC
DTC and 1st trip DTC can be read by the following methods.
With CONSULT-II
With GST
CONSULT-II or GST (Generic Scan Tool) Examples: P0340, P0850, P1148, etc.
These DTCs are prescribed by SAE J2012.
(CONSULT-II also displays the malfunctioning component or system.)
No Tools
The number of blinks of the MIL in the Diagnostic Test Mode II (Self-Diagnostic Results) indicates the DTC.
Example: 0340, 0850, 1148, etc.
These DTCs are controlled by NISSAN.
1st trip DTC No. is the same as DTC No.
Output of a DTC indicates a malfunction. However, GST or the Diagnostic Test Mode II do not indi-
cate whether the malfunction is still occurring or has occurred in the past and has returned to nor-
mal. CONSULT-II can identify malfunction status as shown below. Therefore, using CONSULT-II (if
available) is recommended.
A sample of CONSULT-II display for DTC and 1st trip DTC is shown below. DTC or 1st trip DTC of a malfunc-
tion is displayed in SELF-DIAGNOSTIC RESULTS mode of CONSULT-II. Time data indicates how many times
the vehicle was driven after the last detection of a DTC.
If the DTC is being detected currently, the time data will be [0].
If a 1st trip DTC is stored in the ECM, the time data will be [1t].
FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA
The ECM records the driving conditions such as fuel system status, calculated load value, engine coolant tem-
perature, short term fuel trim, long term fuel trim, engine speed, vehicle speed, absolute throttle position, base
fuel schedule and intake air temperature at the moment a malfunction is detected.
Data which are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data.
The data, stored together with the DTC data, are called freeze frame data and displayed on CONSULT-II or
PBIB0911E

Load next 8 pages

Page: < prev 1-10 ... 1225-1232 1233-1240 1241-1248 1249-1256 1257-1264 1265-1272 1273-1280 1281-1288 1289-1296 ... 3384 next >

homelink pairing phone clock key wheel alignment oil temperature
