Page 2577 of 3383

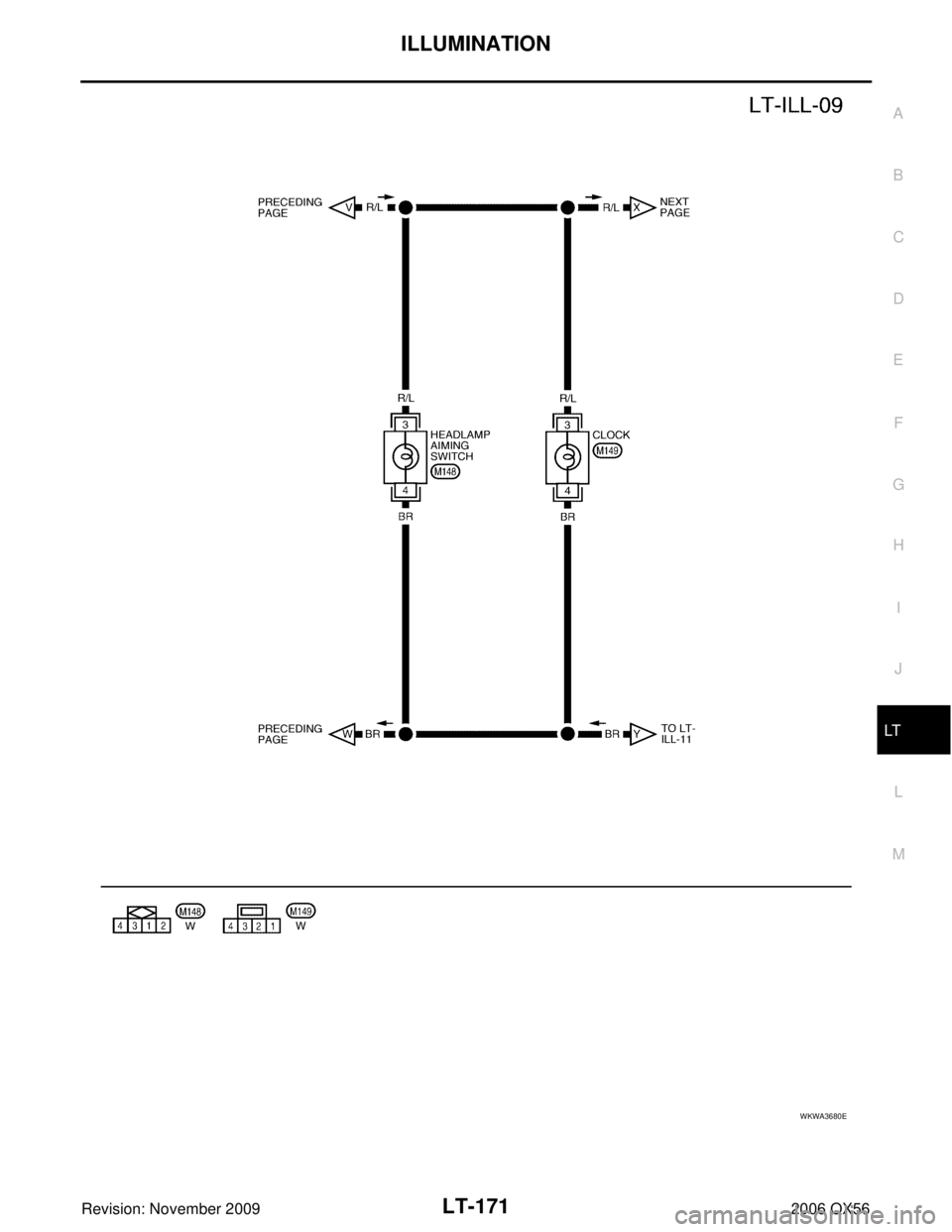

INFINITI QX56 2006 Factory Service Manual LT-170
ILLUMINATION
Revision: November 20092006 QX56

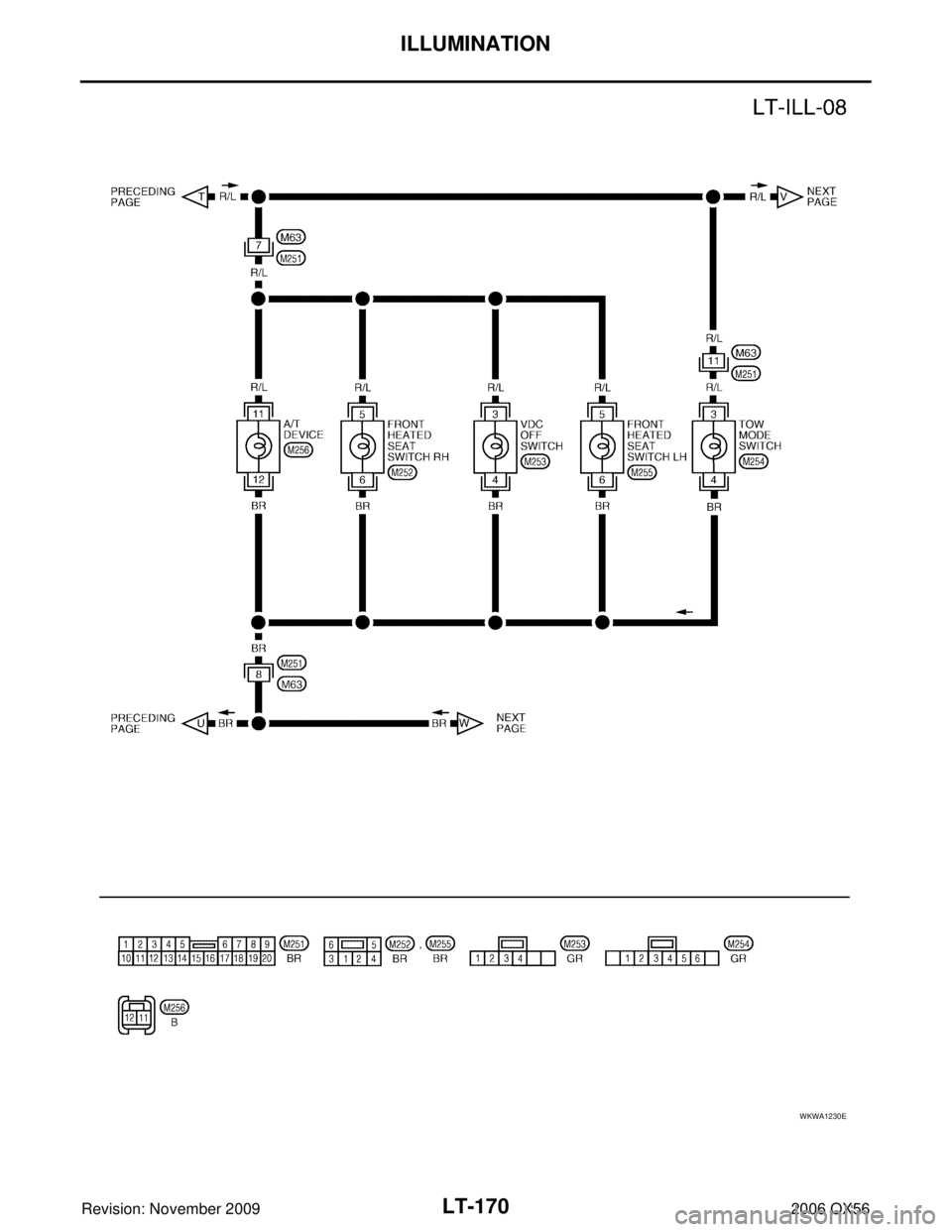

WKWA1230E

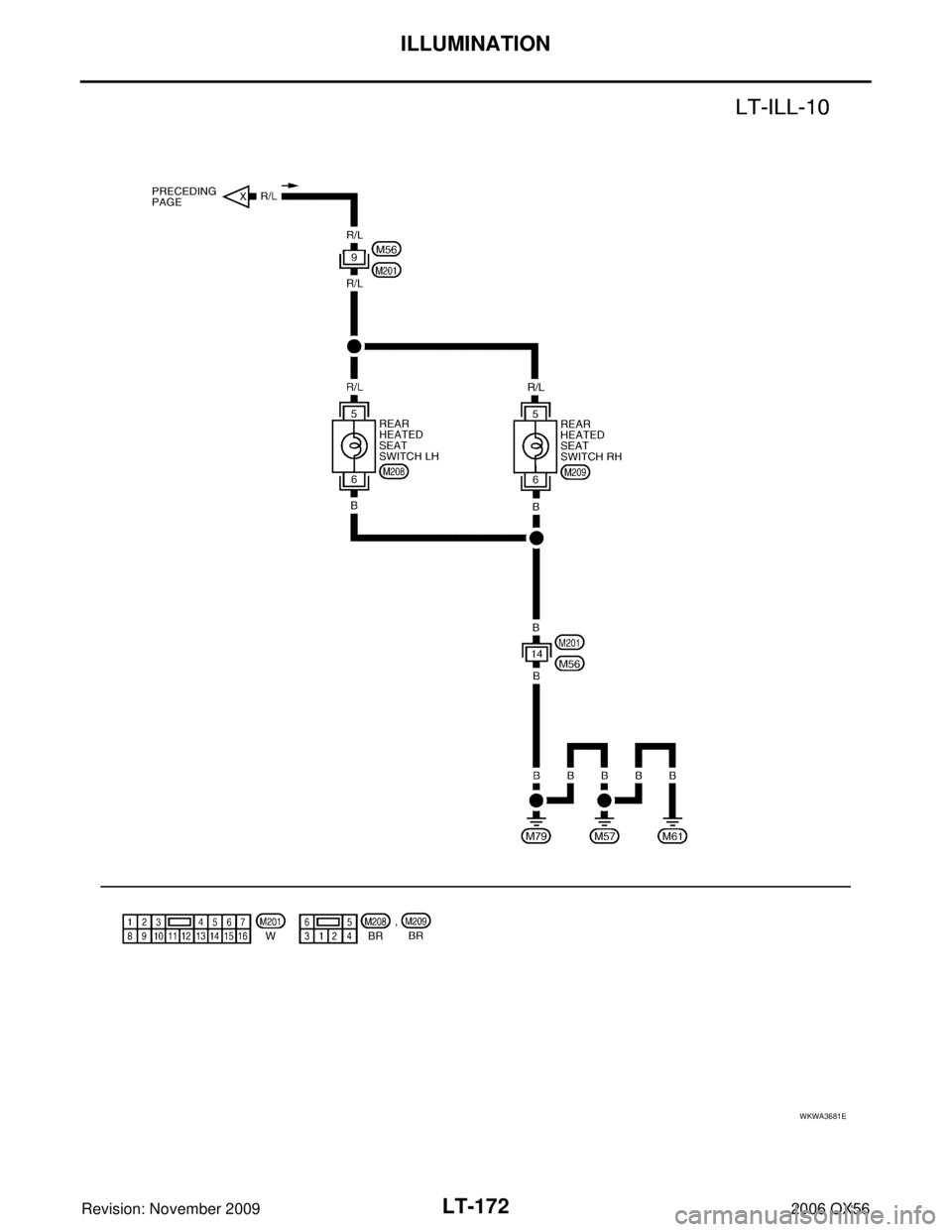

Page 2578 of 3383

INFINITI QX56 2006 Factory Service Manual ILLUMINATIONLT-171
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
WKWA3680E

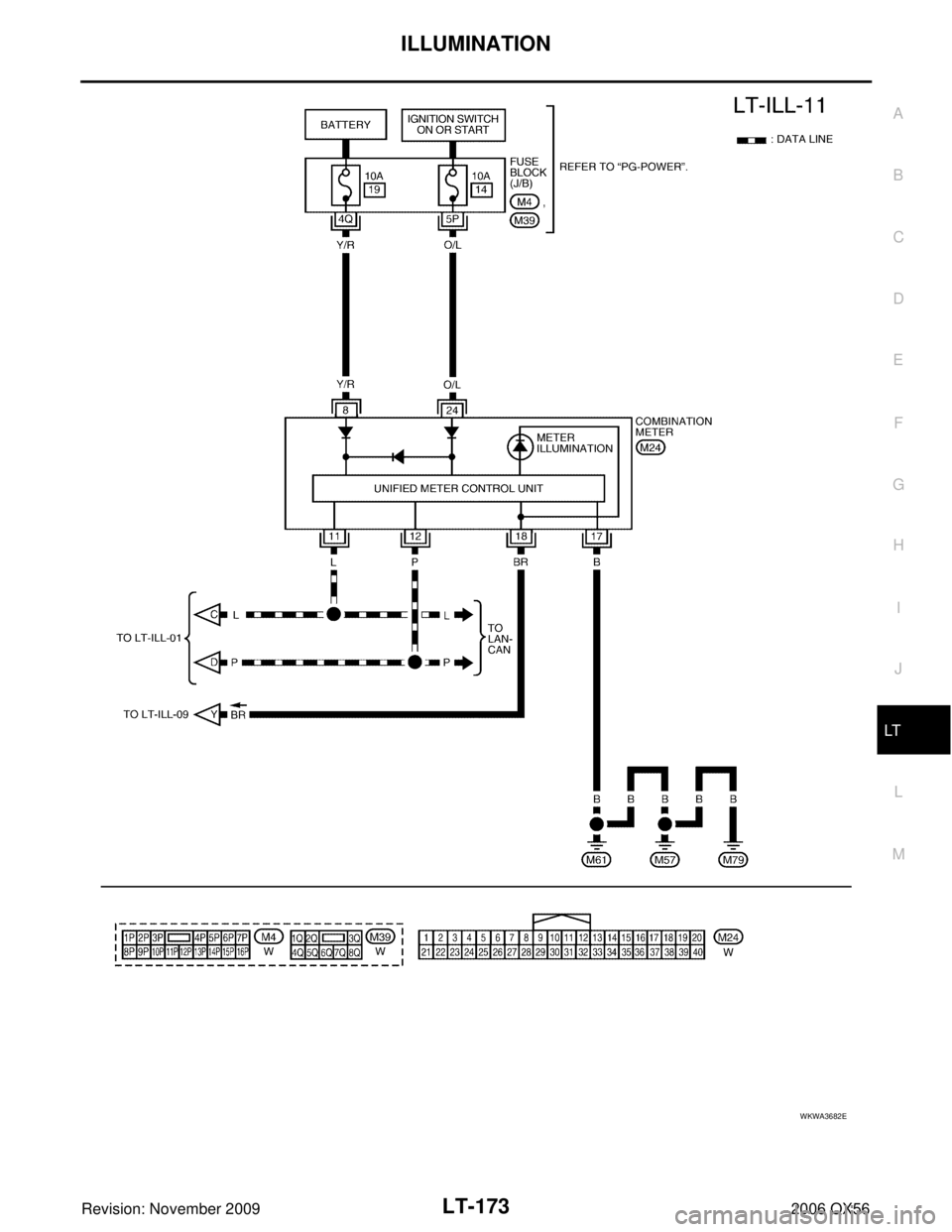

Page 2579 of 3383

INFINITI QX56 2006 Factory Service Manual LT-172
ILLUMINATION
Revision: November 20092006 QX56
WKWA3681E

Page 2580 of 3383

INFINITI QX56 2006 Factory Service Manual ILLUMINATIONLT-173
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
WKWA3682E

Page 2581 of 3383

INFINITI QX56 2006 Factory Service Manual LT-174
ILLUMINATION
Revision: November 20092006 QX56
Removal and Installation of Illumination Control SwitchEKS00BBN
REMOVAL
1. Remove cluster lid A. Refer to IP-13, "COMBINATION METER" .
2. Carefully

Page 2582 of 3383

INFINITI QX56 2006 Factory Service Manual BULB SPECIFICATIONSLT-175
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
BULB SPECIFICATIONSPFP:26297
HeadlampEKS00D83
*: Always check with the Parts Department for the latest parts infor

Page 2583 of 3383

INFINITI QX56 2006 Factory Service Manual LT-176
BULB SPECIFICATIONS
Revision: November 20092006 QX56

Page 2584 of 3383

INFINITI QX56 2006 Factory Service Manual LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
DE
F
G H
I
J
K L
M
SECTION
A
LU
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 2
Precaut

LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
DE
F
G H
I
J
K L
M
SECTION
A
LU
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 2
Precautions for Liquid Gasket ............................. ..... 2
REMOVAL OF LIQUID GASKET SEALING ..... ..... 2
LIQUID GASKET APPLICATION PROCEDURE ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tool .................................... ..... 4
LUBRICATION SYSTEM ....................................... ..... 5
Lubrication Circuit ............................................... ..... 5
System Drawing ....................................................... 6
ENGINE OIL .......................................................... ..... 7
Inspection ............................................................ ..... 7
OIL LEVEL ............................................................ 7
OIL APPEARANCE .......................................... ..... 7
OIL LEAKAGE .................................................. ..... 7
OIL PRESSURE CHECK ...................................... 7
Changing Engine Oil ........................................... ..... 8
OIL FILTER ............................................................ ... 10
Removal and Installation ..................................... ... 10
REMOVAL ........................................................ ... 10
INSTALLATION ................................................ ... 10
INSPECTION AFTER INSTALLATION ............ ... 10OIL COOLER .........................................................
... 11
Removal and Installation ..................................... ... 11
REMOVAL ........................................................ ... 11
INSPECTION AFTER REMOVAL .................... ... 11
INSTALLATION ................................................ ... 12
INSPECTION AFTER INSTALLATION ............. ... 12
OIL PUMP .............................................................. ... 13
Removal and Installation ..................................... ... 13
REMOVAL ........................................................ ... 13
INSTALLATION ................................................ ... 13
INSPECTION AFTER INSTALLATION ............. ... 14
Disassembly and Assembly ................................. ... 14
DISASSEMBLY ................................................ ... 14
INSPECTION AFTER DISASSEMBLY ............. ... 14
ASSEMBLY ...................................................... ... 15
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 16
Standard and Limit ............................................... ... 16
OIL PRESSURE ............................................... ... 16
OIL PUMP ........................................................ ... 16
REGULATOR VALVE ....................................... ... 16
ENGINE OIL CAPACITY (APPROXIMATE) ..... ... 16
