Page 1897 of 3383
EM-6Revision: November 2009
PREPARATION
2006 QX56
PREPARATIONPFP:00002
Special Service ToolsEBS00REQ
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.Tool number
(Kent-Moore No.)
Tool name Description
KV10111100
(J-37228)
Seal cutter Removing steel oil pan and rear timing chain
case
—
(J-44626)
Air fuel sensor Socket Loosening or tightening air fuel ratio A/F sen-
sor
a: 22 mm (0.87 in)
EG15050500
(J-45402)
Compression gauge adapter Inspecting compression pressure
KV10116200
(J-26336-A)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2. KV10109220
( — )
Adapter Disassembling valve mechanism
Part (1) is a component of KV10116200 (J-
26336-A), but part (2) is not.
KV10112100
(BT-8653-A)
Angle wrench Tightening bolts for cylinder head, main bear-
ing cap and connecting rod cap
KV10107902
(J-38959)
Valve oil seal puller Removing valve oil seal
S-NT046
LBIA0444E
ZZA1225D
PBIC1650E
S-NT014
S-NT011
Page 1898 of 3383
PREPARATIONEM-7
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56
KV10115600
(J-38958)
Valve oil seal driftInstalling valve oil seal
Use side A.
a: 20 (0.79) dia. d: 8 (0.31) dia.
b: 13 (0.51) dia. e: 10.7 (0.421) dia.
c: 10.3 (0.406) dia. f: 5 (0.20) dia.
Unit: mm (in)
EM03470000
(J-8037)
Piston ring compressor Installing piston assembly into cylinder bore
ST16610001
(J-23907)
Pilot bushing puller Removing crankshaft pilot bushing
WS39930000
( — )
Tube presser Pressing the tube of liquid gasket
—
(J-45476)
Ring gear stopper Removing and installing crankshaft pulley
16441 6N210
(J-45488)
Quick connector release Removing fuel tube quick connectors in en-
gine room
(Available in SEC. 164 of PARTS CATALOG:
Part No. 16441 6N210)
—
(J-46535)
Drive belt tension releaser Releasing drive belt tension
Tool number
(Kent-Moore No.)
Tool name
Description
S-NT603
S-NT044
S-NT045
S-NT052
PBIC1655E
PBIC0198E
WBIA0536E
Page 1899 of 3383
EM-8Revision: November 2009
PREPARATION
2006 QX56
Commercial Service ToolsEBS00RER
(Kent-Moore No.)
Tool nameDescription
Power tool Loosening bolts and nuts
Spark plug wrench Removing and installing spark plug
(J-24239-01)
Cylinder head bolt wrench Loosening and tightening cylinder head bolt,
and use with angle wrench [SST:
KV10112100 (BT-8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)
Valve seat cutter set Finishing valve seat dimensions
Pulley puller Removing crankshaft pulley
Piston ring expander Removing and installing piston ring
Valve guide drift Removing and installing valve guide
Intake & Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
PBIC0190E
S-NT047
NT583
S-NT048
ZZA0010D
S-NT030
S-NT015
Page 1900 of 3383
PREPARATIONEM-9
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56
Valve guide reamer1: Reaming valve guide hole
2: Reaming hole for oversize valve guide
Intake & Exhaust:
d
1 : 6.0 mm (0.236 in) dia.
d
2 : 10.175 - 10.196 mm (0.4006 - 0.4014 in)
dia.
Front oil seal drift Installing front oil seal
Rear oil seal drift Installing rear oil seal
(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner Reconditioning the exhaust system threads
before installing a new A/F sensor and heated
oxygen sensor (Use with anti-seize lubricant
shown below.)
a: J-43897-18 (18 mm dia.) (0.71 in) for zir-
conia heated oxygen sensor
b: J-43897-12 (12 mm dia.) (0.55 in) for tita-
nia heated oxygen sensor
Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907) Lubricating A/F sensors and heated oxygen
sensor thread cleaning tool when recondition-
ing exhaust system threads
(Kent-Moore No.)
Tool name
Description
S-NT016
ZZA0012D
ZZA0025D
AEM488
AEM489
Page 1901 of 3383
EM-10Revision: November 2009
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
2006 QX56
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting —Engine NoiseEBS00RES
KBIA2503E
Page 1902 of 3383

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTINGEM-11
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56
Use the Chart Below to Help You Find the Cause of the Symptom.EBS00RET
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related—: Not related
Location of
noise Type of
noise Operating condition of engine
Source of noise Check item Refer-
ence page
Before
warm- up After
warm- up When
start- ing When
idling When
racing While
driv- ing
Top of
engine
Rocker
cover
Cylinder
head Ticking or
clicking
CA
—AB —Tappet noise Valve clearance EM-69
Rattle C A—ABC Camshaft
bearing noiseCamshaft journal clear-
ance
Camshaft runout EM-50EM-50
Crankshaft
pulley
Cylinder
block (Side
of engine)
Oil panSlap or
knock
—
A— BB —Piston pin
noise Piston and piston pin
clearance
Connecting rod bush-
ing clearance EM-95
EM-97
Slap or
rap
A
—— BBA Piston slap
noisePiston-to-bore clear-
ance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsion EM-99EM-95
EM-95
EM-96
Knock A B C B B B
Connecting
rod bearing
noiseConnecting rod bush-
ing oil clearance (Small
end)
Connecting rod bear-
ing clearance (Big end)
EM-97EM-96
Knock A B
—ABC Main bearing
noiseMain bearing oil clear-
ance
Crankshaft runout EM-101EM-100
Front of
engine
Chain case
cover
Front coverTapping
or ticking
AA
—BBB Timing chain
and chain
tensioner
noiseTiming chain cracks
and wear
Timing chain tensioner
operation
EM-40
EM-37
Front of
engineSqueak-
ing or
fizzing
AB
—B— CDrive belts
(Sticking or
slipping) Drive belts deflection
EM-13
Creaking A B A B A B Drive belts
(Slipping)Idler pulley bearing
operation
Squall
Creaking AB
—BAB Water pump
noiseWater pump operation CO-19,
"INSPEC-
TION
AFTER
REMOVA
L"
Page 1903 of 3383
EM-12Revision: November 2009
ENGINE ROOM COVER
2006 QX56
ENGINE ROOM COVERPFP:14049
Removal and InstallationEBS00REU
REMOVAL
Remove the engine cover bolts and cover.
CAUTION:
Do not damage or scratch cover when installing or remov-
ing.
INSTALLATION
Installation is in the reverse order of removal.
WBIA0464E
Page 1904 of 3383

DRIVE BELTSEM-13
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56

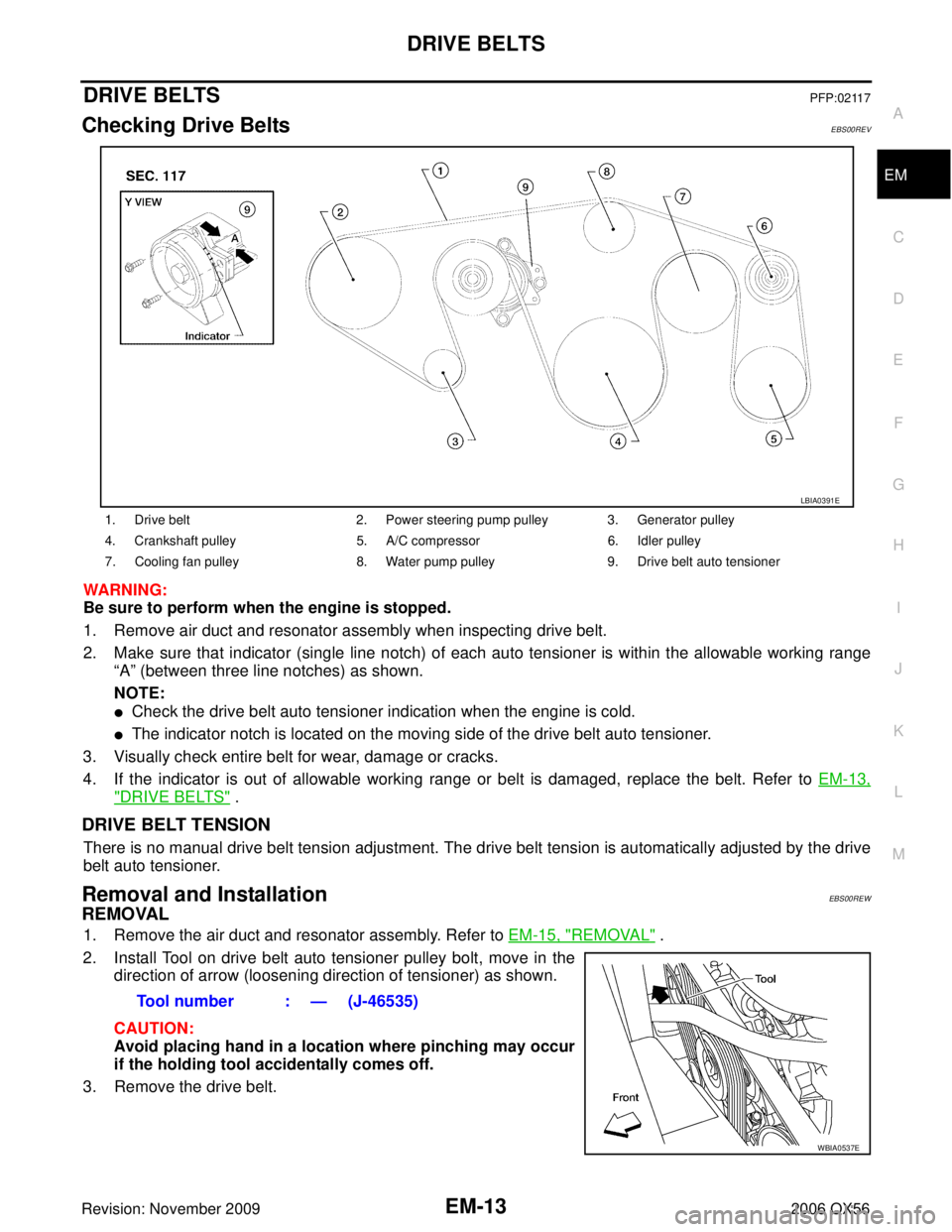

DRIVE BELTSPFP:02117
Checking Drive BeltsEBS00REV
WARNING:
Be sure to perform when the engine is stopped.
1. Remove air duct and resonator assembly when inspecting drive belt.
2. Make sure that indicator (single line notch) of each auto tensioner is within the allowable working range
“A” (between three line notches) as shown.
NOTE:
Check the drive belt auto tensioner indication when the engine is cold.
The indicator notch is located on the moving side of the drive belt auto tensioner.
3. Visually check entire belt for wear, damage or cracks.
4. If the indicator is out of allowable working range or belt is damaged, replace the belt. Refer to EM-13,
"DRIVE BELTS" .
DRIVE BELT TENSION
There is no manual drive belt tension adjustment. The drive belt tension is automatically adjusted by the drive
belt auto tensioner.
Removal and InstallationEBS00REW
REMOVAL
1. Remove the air duct and resonator assembly. Refer to EM-15, "REMOVAL" .
2. Install Tool on drive belt auto tensioner pulley bolt, move in the direction of arrow (loosening direction of tensioner) as shown.
CAUTION:
Avoid placing hand in a location where pinching may occur
if the holding tool accidentally comes off.
3. Remove the drive belt.
1. Drive belt 2. Power steering pump pulley 3. Generator pulley
4. Crankshaft pulley 5. A/C compressor6. Idler pulley
7. Cooling fan pulley 8. Water pump pulley9. Drive belt auto tensioner
LBIA0391E
Tool number : — (J-46535)
WBIA0537E
