4. Install the selected drive pinion height adjusting washer to the
drive pinion. Press the drive pinion rear bearing inner race to it
using Tool.
CAUTION:
Do not reuse drive pinion rear bearing inner race.
5. Install the collapsible spacer to the drive pinion. CAUTION:
Do not reuse collapsible spacer.
6. Apply differential gear oil to the drive pinion rear bearing, and install the drive pinion assembly to the gear carrier.
7. Apply differential gear oil to the drive pinion front bearing, and install the drive pinion front bearing inner race to the drive pinion
assembly.
CAUTION:
Do not reuse drive pinion front bearing inner race.
8. Apply multi-purpose grease to the lips of the new front oil seal. Then drive the new front oil seal in evenly using Tools.
CAUTION:
Do not reuse front oil seal.
Do not incline the new front oil seal when installing.
Apply multi-purpose grease to the lips of the new front oil
seal.
9. Install the companion flange to the drive pinion while aligning the matching marks. Tap the companion flange until fully seated
using suitable tool.Tool number : C-4040
SDIA2253E
PDIA0708E
Tool number A: KV38100500 (J-25273)
B: KV38102200 ( — )
PDIA0717E
SDIA2266E
Page 2050 of 3383

FRONT FINAL DRIVE ASSEMBLYFFD-27
CE F
G H
I
J
K L
M A
B
FFD
Revision: November 2009 2006 QX56
10. Apply anti-corrosive oil to the threads of the drive pinion and the
seating surface of the new drive pinion lock nut. Then adjust the
drive pinion lock nut tightening torque using Tool A, and check
the drive pinion bearing preload torque using Tool B.
CAUTION:
Do not reuse drive pinion lock nut.
Apply anti-corrosive oil to the threads of the drive pinion
and the seating surface of the new drive pinion lock nut.
Adjust the drive pinion lock nut tightening torque to the
lower limit first. Do not exceed the drive pinion lock nut
specified torque. Refer to FFD-14, "
COMPONENTS" .
If the drive pinion bearing preload torque exceeds the
specified value, replace collapsible spacer and tighten it
again to adjust. Do not loosen drive pinion lock nut to
adjust the drive pinion bearing preload torque.
After adjustment, rotate drive pinion back and forth 2 to 3
times to check for unusual noise, rotation malfunction,
and other malfunctions.
11. Check companion flange runout. Refer to FFD-17, "
Companion Flange Runout" .
12. Install the differential case assembly. Refer to FFD-27, "
Differential Assembly" .
Differential Assembly
1. Install side gear thrust washers with the same thickness as the
ones installed prior to disassembly, or reinstall the old ones on
the side gears.
2. Install the side gears and side gear thrust washers into the dif- ferential case.
3. Install the pinion mate thrust washers to the two pinion mate gears. Then install the pinion mate gears with the pinion mate
thrust washers by aligning them in diagonally opposite positions
and rotating them into the differential case.Tool number A: KV38108300 (J-44195)
B: ST3127S000 (J-25765-A)
Drive pinion bearing preload torque: 2.3 - 3.4 N·m (24 - 34 kg-cm, 21 - 30 in-lb)
WDIA0382E
SDIA0193J
SDIA2025E
Page 2051 of 3383

FFD-28
FRONT FINAL DRIVE ASSEMBLY
Revision: November 20092006 QX56

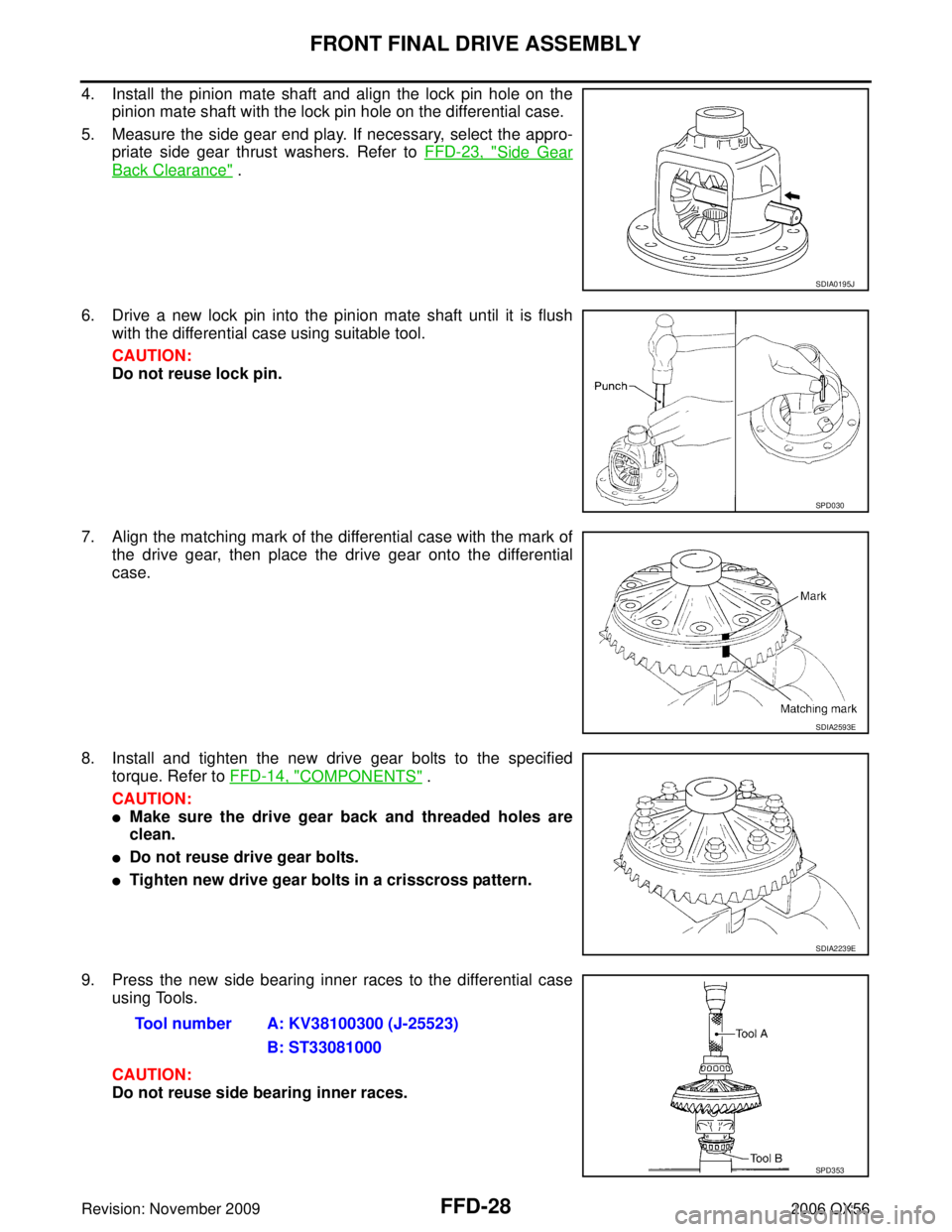

4. Install the pinion mate shaft and align the lock pin hole on the
pinion mate shaft with the lock pin hole on the differential case.
5. Measure the side gear end play. If necessary, select the appro- priate side gear thrust washers. Refer to FFD-23, "
Side Gear
Back Clearance" .
6. Drive a new lock pin into the pinion mate shaft until it is flush with the differential case using suitable tool.
CAUTION:
Do not reuse lock pin.
7. Align the matching mark of the differential case with the mark of the drive gear, then place the drive gear onto the differential
case.
8. Install and tighten the new drive gear bolts to the specified torque. Refer to FFD-14, "
COMPONENTS" .
CAUTION:
Make sure the drive gear back and threaded holes are
clean.
Do not reuse drive gear bolts.
Tighten new drive gear bolts in a crisscross pattern.
9. Press the new side bearing inner races to the differential case using Tools.
CAUTION:
Do not reuse side bearing inner races.
SDIA0195J
SPD030
SDIA2593E
SDIA2239E
Tool number A: KV38100300 (J-25523)
B: ST33081000
SPD353
Page 2052 of 3383

FRONT FINAL DRIVE ASSEMBLYFFD-29
CE F
G H
I
J
K L
M A
B
FFD
Revision: November 2009 2006 QX56

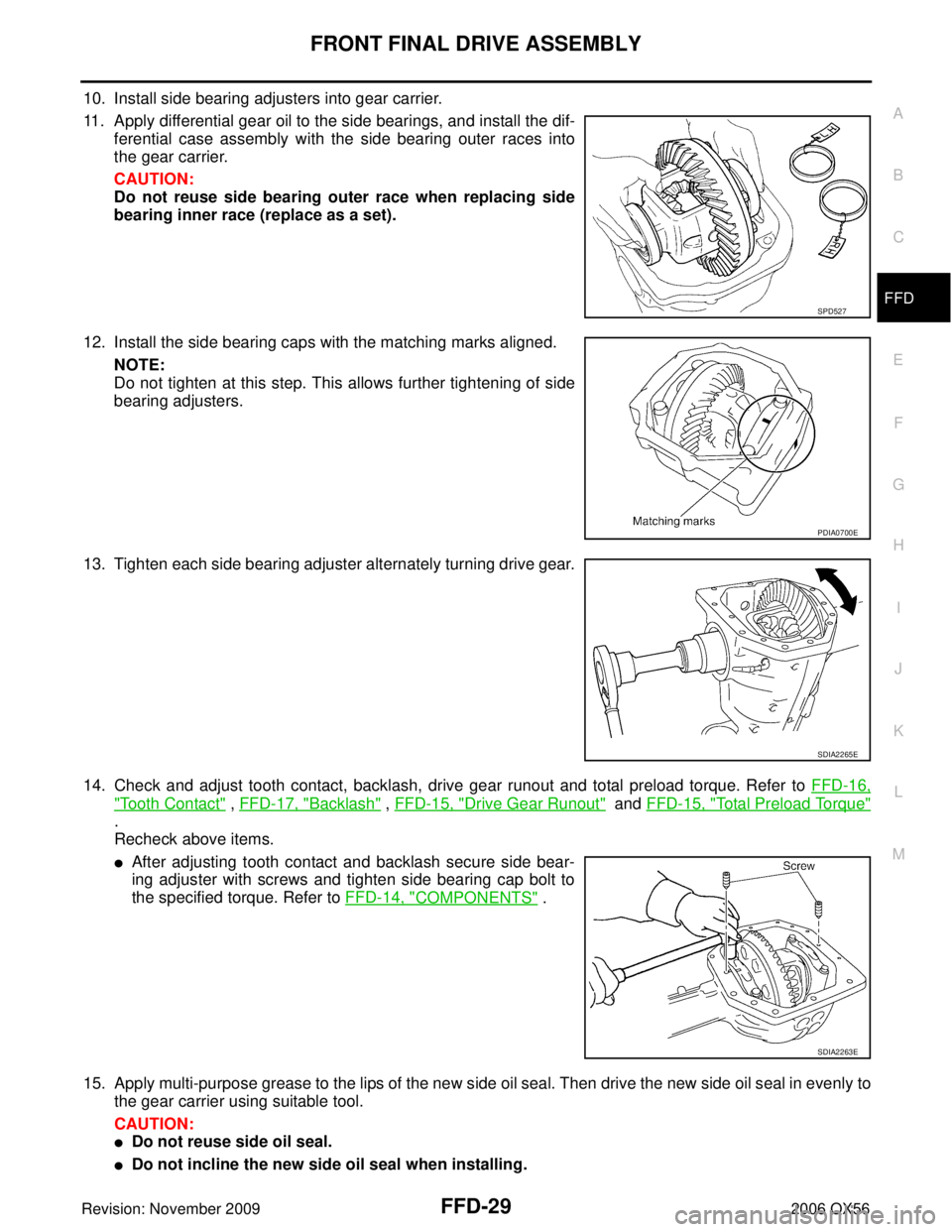

10. Install side bearing adjusters into gear carrier.
11. Apply differential gear oil to the side bearings, and install the dif-
ferential case assembly with the side bearing outer races into
the gear carrier.
CAUTION:
Do not reuse side bearing outer race when replacing side
bearing inner race (replace as a set).
12. Install the side bearing caps with the matching marks aligned. NOTE:
Do not tighten at this step. This allows further tightening of side
bearing adjusters.
13. Tighten each side bearing adjuster alternately turning drive gear.
14. Check and adjust tooth contact, backlash, drive gear runout and total preload torque. Refer to FFD-16,
"Tooth Contact" , FFD-17, "Backlash" , FFD-15, "Drive Gear Runout" and FFD-15, "Total Preload Torque"
.
Recheck above items.
After adjusting tooth contact and backlash secure side bear-
ing adjuster with screws and tighten side bearing cap bolt to
the specified torque. Refer to FFD-14, "
COMPONENTS" .
15. Apply multi-purpose grease to the lips of the new side oil seal. Then drive the new side oil seal in evenly to the gear carrier using suitable tool.
CAUTION:
Do not reuse side oil seal.
Do not incline the new side oil seal when installing.
SPD527
PDIA0700E
SDIA2265E
SDIA2263E
Page 2053 of 3383
FFD-30
FRONT FINAL DRIVE ASSEMBLY
Revision: November 20092006 QX56
Apply multi-purpose grease to the lips of the new side oil seal.
16. Install the extension tube with a new O-ring.
CAUTION:
Do not reuse O-ring.
If the extension tube is being replaced, install a new axle
shaft bearing.

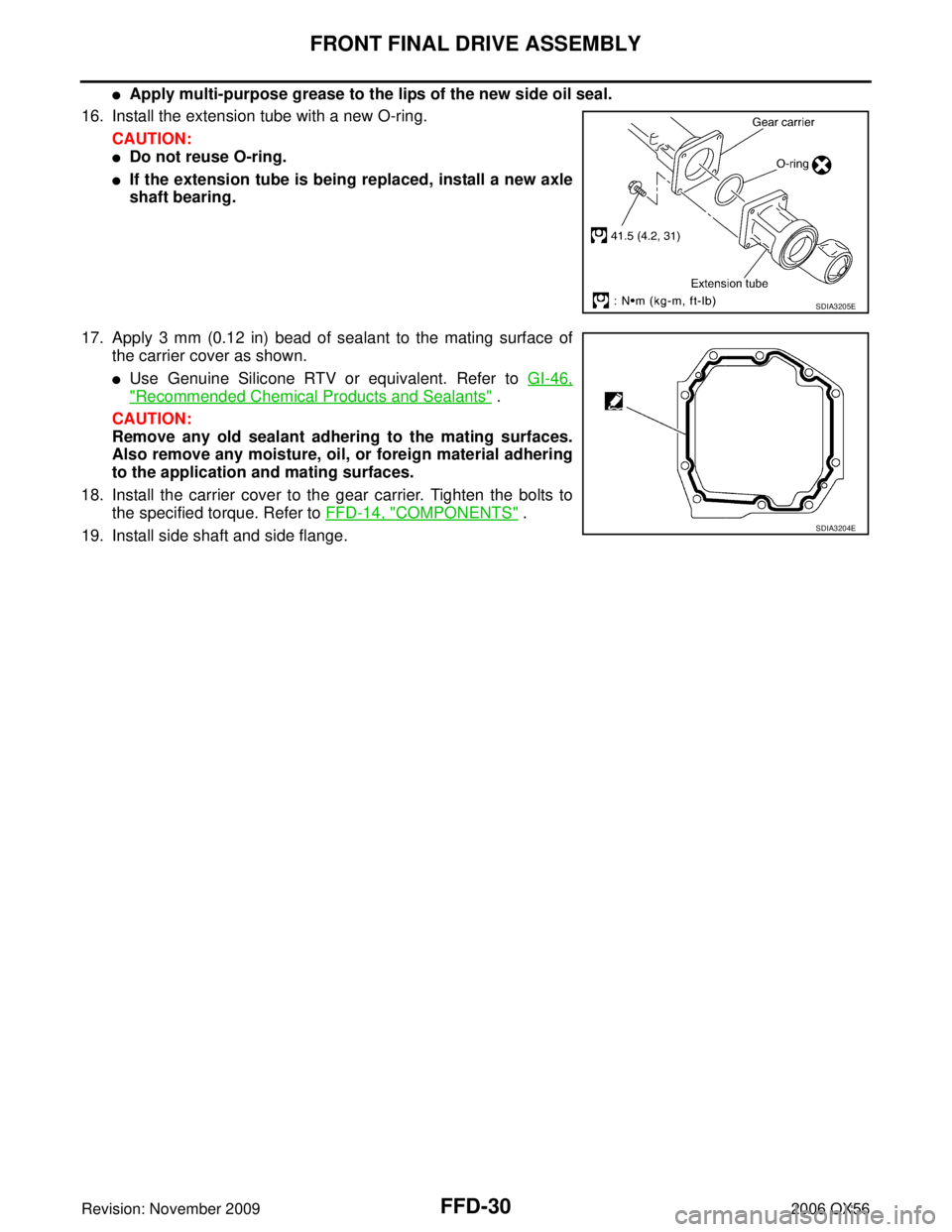

17. Apply 3 mm (0.12 in) bead of sealant to the mating surface of the carrier cover as shown.
Use Genuine Silicone RTV or equivalent. Refer to GI-46,
"Recommended Chemical Products and Sealants" .
CAUTION:
Remove any old sealant adhering to the mating surfaces.
Also remove any moisture, oil, or foreign material adhering
to the application and mating surfaces.
18. Install the carrier cover to the gear carrier. Tighten the bolts to the specified torque. Refer to FFD-14, "
COMPONENTS" .
19. Install side shaft and side flange.
SDIA3205E
SDIA3204E
Page 2054 of 3383

SERVICE DATA AND SPECIFICATIONS (SDS)FFD-31
CE F
G H
I
J
K L
M A
B
FFD
Revision: November 2009 2006 QX56
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsEDS00458
Inspection and AdjustmentEDS00459
DRIVE GEAR RUNOUT
Unit: mm (in)
SIDE GEAR CLEARANCE
Unit: mm (in)
PRELOAD TORQUE
Unit: N·m (kg-m, in-lb)
BACKLASH
Unit: mm (in)
COMPANION FLANGE RUNOUT
Unit: mm (in)
Applied model
VK56E
Final drive model M205
Gear ratio 3.357
Number of teeth (Drive gear/Drive pinion) 47/14
Differential gear oil capacity (Approx.) 1.6 (3 3/8 US pt, 2 7/8 Imp pt)
Number of pinion gears 2
Drive pinion adjustment spacer type Collapsible
ItemRunout limit
Drive gear back face 0.08 (0.0031) or less
ItemSpecification
Side gear back clearance (Clearance between side gear and dif-
ferential case for adjusting side gear backlash) 0.20 (0.0079) or less
(Each gear should rotate smoothly without excessive resistance during differential motion.)
Item Specification
Drive pinion bearing preload torque 2.3 - 3.4 (0.23 - 0.35, 21 - 31)
Total preload torque
(Total preload torque = drive pinion bearing preload torque + side
bearing preload torque). 2.98 - 4.76 (0.31 - 0.48, 27 - 42)
Item
Specification
Drive gear to drive pinion backlash 0.12 - 0.20 (0.0050 - 0.0079)
ItemRunout limit
Companion flange face 0.10 (0.0039) or less
Companion flange inner side 0.13 (0.0051) or less
Page 2055 of 3383
FFD-32
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: November 20092006 QX56
SELECTIVE PARTS
Drive Pinion Height Adjusting Washer
Unit: mm (in)
*Always check with the Parts Department for the latest parts information.
Side Gear Thrust Washer
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information. Thickness Package part number*
1.22 (0.048)
1.24 (0.049)
1.27 (0.050)
1.30 (0.051)
1.32 (0.052) 38154 8S111
1.35 (0.053)
1.37 (0.054)
1.40 (0.055)
1.42 (0.056)
1.45 (0.057) 38154 8S112
1.47 (0.058)
1.50 (0.059)
1.52 (0.060)
1.55 (0.061)
1.57 (0.062) 38154 8S113
1.60 (0.063)
1.63 (0.064)
1.65 (0.065)
1.68 (0.066)
1.70 (0.067) 38154 8S114
1.73 (0.068)
1.75 (0.069)
1.78 (0.070)
1.80 (0.071)
1.83 (0.072) 38154 8S115
Thickness
Package part number*
0.76 (0.030)
0.79 (0.031)
0.81 (0.032)
0.84 (0.033)
0.87 (0.034) 38424 8S111
0.89 (0.035)
0.91 (0.036)
0.94 (0.037)
0.97 (0.038)
0.99 (0.039) 38424 8S112
