Page 2457 of 3383
LT-50
AUTO LIGHT SYSTEM
Revision: November 20092006 QX56

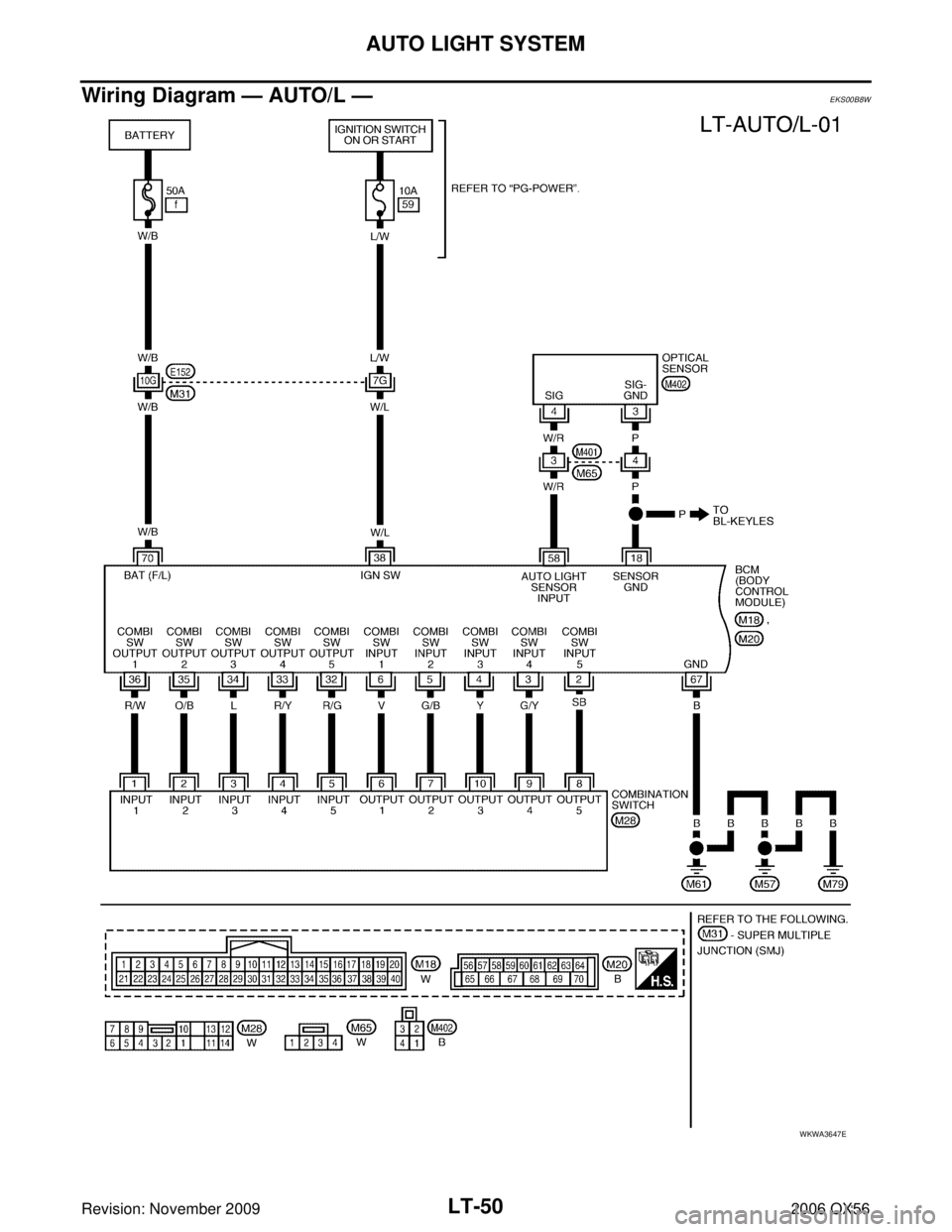

Wiring Diagram — AUTO/L —EKS00B8W
WKWA3647E
Page 2458 of 3383
AUTO LIGHT SYSTEMLT-51
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56

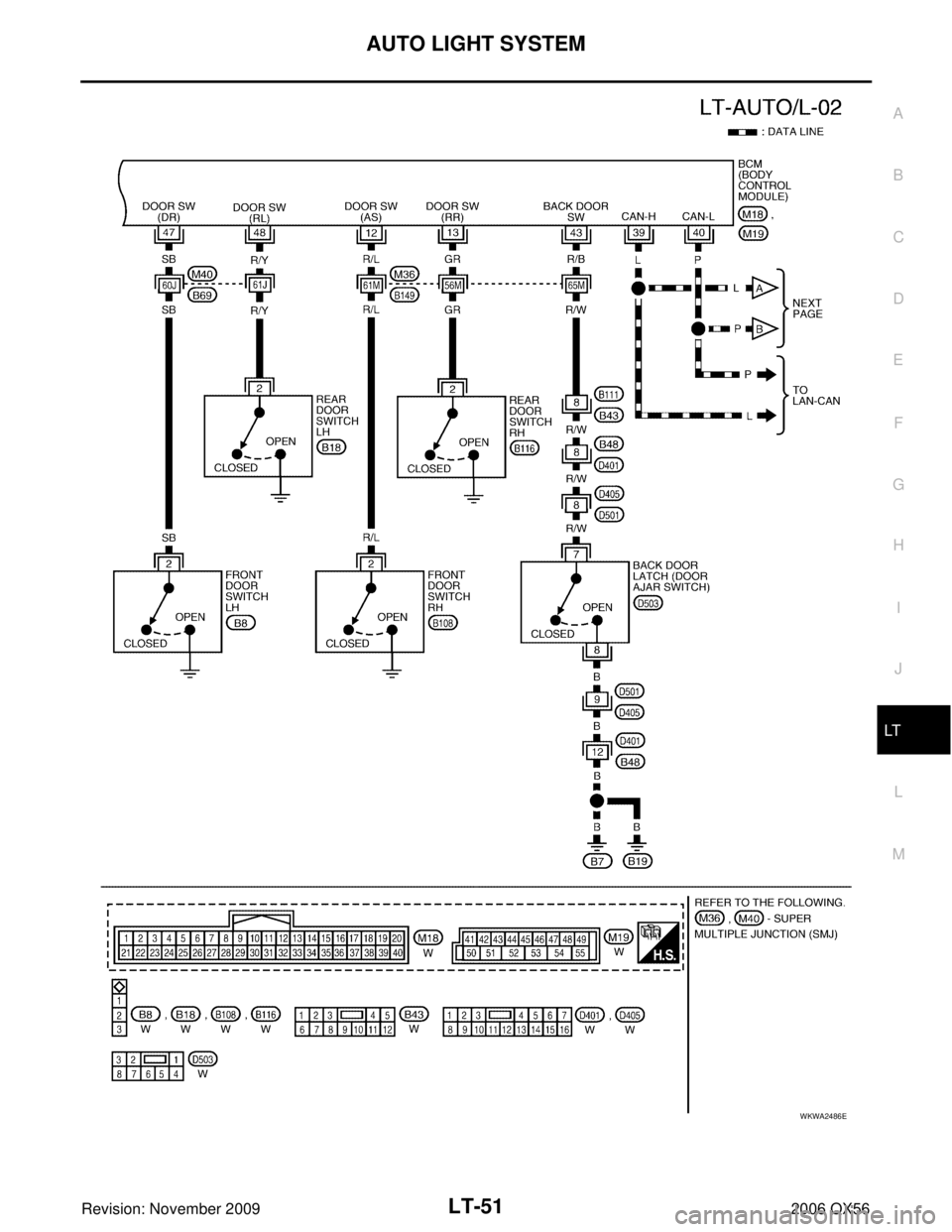

WKWA2486E
Page 2459 of 3383
LT-52
AUTO LIGHT SYSTEM
Revision: November 20092006 QX56
WKWA3649E
Page 2460 of 3383

AUTO LIGHT SYSTEMLT-53
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Terminals and Reference Values for BCMEKS00B8X
Te r m i n a l
No. Wire
color Signal name Measuring condition
Reference value
(Approx.)
Ignition
switch Operation or condition
2 SB Combination switch input 5 ON Lighting, turn, wiper OFF
Wiper dial position 4
3 G/Y Combination switch input 4 ON Lighting, turn, wiper OFF
Wiper dial position 4
4 Y Combination switch input 3 ON Lighting, turn, wiper OFF
Wiper dial position 4
5 G/B Combination switch input 2 ONLighting, turn, wiper OFF
Wiper dial position 4
6 V Combination switch input 1
12 R/L Front door switch RH signal OFF Front door
switch RH ON (open)
0V
OFF (closed) Battery voltage
13 GR Rear door switch RH OFFRear door
switch RH ON (open)
0V
OFF (closed) Battery voltage
18 P Sensor ground ON— 0V
32 R/G Combination switch output 5 ON Lighting, turn, wiper OFF
Wiper dial position 4
33 R/Y Combination switch output 4 ON Lighting, turn, wiper OFF
Wiper dial position 4
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
Page 2461 of 3383

LT-54
AUTO LIGHT SYSTEM
Revision: November 20092006 QX56
NOTE:
Optical sensor must be completely subjected to work lamp light. If the optical sensor is insufficiently illumi-
nated, the measured value may not satisfy standard.
Terminals and Reference Values for IPDM E/REKS00B8Y
34 L Combination switch output 3 ONLighting, turn, wiper OFF
Wiper dial position 4
35 O/B Combination switch output 2 ONLighting, turn, wiper OFF
Wiper dial position 4
36 R/W Combination switch output 1
38 W/L Ignition switch (ON) ON —Battery voltage
39 L CAN-H —— —
40 P CAN-L —— —
43 R/B Back door latch (door ajar
switch) signal OFFBack door
latch (door
ajar switch) ON (open)
0V
OFF (closed) Battery voltage
47 SB Front door switch LH signal OFF Front door
switch LH ON (open)
0V
OFF (closed) Battery voltage
48 R/Y Rear door switch LH signal OFF Rear door
switch LH ON (open)
0V
OFF (closed) Battery voltage
58 W/R Optical sensor signal ONWhen optical sensor is illumi-
nated
3.1V or more
Note
When optical sensor is not illumi-
nated 0.6V or less
67 B Ground ON— 0V
70 W/B Battery power supply OFF— Battery voltage
Terminal
No. Wire
color Signal name Measuring condition
Reference value
(Approx.)
Ignition
switch Operation or condition
SKIA5291E
SKIA5292E
Terminal
No. Wire
color Signal name Measuring condition
Reference value
(Approx.)
Ignition
switch Operation or condition
38 B Ground ON— 0V
39 L CAN-H —— —
40 P CAN-L —— —
52 L Headlamp low (LH) ON Lighting switch
2ND positionOFF
0V
ON Battery voltage
54 R/Y Headlamp low (RH) ON Lighting switch
2ND positionOFF
0V
ON Battery voltage
55 G Headlamp high (LH) ON Lighting switch
HIGH or PASS
positionOFF
0V
ON Battery voltage
Page 2462 of 3383

AUTO LIGHT SYSTEMLT-55
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
1 USA
2 Canada
How to Proceed With Trouble DiagnosisEKS00B8Z
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 4 8 , "
System Description" .
3. Carry out the Preliminary Check. Refer to LT- 5 5 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction. Refer to LT- 6 2 , "
Trouble Diagnosis Chart
by Symptom" .
5. Does the auto light system operate normally? If YES: GO TO 6. If NO: GO TO 4.
6. Inspection End.
Preliminary CheckEKS00B90
SETTING CHANGE FUNCTIONS
Sensitivity of auto light system can be adjusted using CONSULT-II. Refer to LT- 5 8 , "WORK SUPPORT" .
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES OR FUSIBLE LINK
Check for blown fuses or fusible link.
Refer to LT- 5 0 , "
Wiring Diagram — AUTO/L —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse or fusible link. Refer to PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
56L/W1
Y2Headlamp high (RH) ON Lighting switch
HIGH or PASS
positionOFF
0V
ON Battery voltage
57 R/L Parking, license, and tail
lamp ON
Lighting switch
1ST position OFF
0V
ON Battery voltage
59 B Ground ON— 0V
Te r m i n a l
No. Wire
color Signal name Measuring condition
Reference value
(Approx.)
Ignition
switch Operation or condition
Unit
Power sourceFuse and fusible link No.
BCM Battery
f
Ignition switch ON or START position 59
IPDM E/R Battery 34
35
37
40
41
53
Page 2463 of 3383
LT-56
AUTO LIGHT SYSTEM
Revision: November 20092006 QX56
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connectors.
2. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open between BCM and fuse or fus- ible link.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> Inspection End.
NG >> Check ground circuit harness.
BCM Ignition switch position
(+) (– )OFFACCON
Connector Terminal
M18 38 Ground0V 0V
Battery
voltage
M20 70 Battery
voltage Battery
voltage Battery
voltage
WKIA1436E
BCM Continuity
Connector Terminal
M20 67Ground Yes
LIIA0915E
Page 2464 of 3383

AUTO LIGHT SYSTEMLT-57
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
CONSULT-II Function (BCM)EKS00B91
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.
2. Touch "START (NISSAN BASED VHCL)".
3. Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
BCM diagnostic
test item Diagnostic mode
Description
Inspection by part WORK SUPPORT
Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time. ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read. ECU PART NUMBER BCM part number can be read.CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
BCIA0030E
