Page 249 of 3383
AT-174
TOW MODE SWITCH
Revision: November 20092006 QX56
Wiring Diagram — AT — TMSWECS00CK0
BCWA0498E
Page 250 of 3383

TOW MODE SWITCHAT-175
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
Diagnostic ProcedureECS00CK1
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 9 6 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK POWER SOURCE
1. Turn ignition switch “ON”. (Do not start engine.)
2. Check the voltage between tow mode switch connector M67 ter- minal 1 and ground.
OK or NG
OK >> INSPECTION END
NG >> GO TO 3.
3. CHECK TOW MODE SWITCH
1. Turn ignition switch “OFF”.
2. Disconnect tow mode switch connector.
3. Check continuity between tow mode switch terminals 1 and 2.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace tow mode switch.
4. DETECT MALFUNCTIONING ITEM
Check the following items. If any items are damaged, repair or replace damaged parts.
Harness for short or open between combination meter connector terminal 35 and tow mode switch con-
nector terminal 1.
Harness for short or open between tow mode switch connector terminal 2 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK COMBINATION METER
Check the combination meter. Refer to DI-17, "
How to Proceed With Trouble Diagnosis" .
OK or NG
OK >> INSPECTION END
NO >> Repair or replace damaged parts.
Condition To w m o d e
switch Data (Approx.)
When ignition switch is turned to “ON ” ON
0V
OFF Battery voltage
SCIA5156E
Condition Continuity
Tow mode switch “ON ” Ye s
Tow mode switch “OFF ” No
SCIA5584E
Page 251 of 3383
AT-176
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: November 20092006 QX56
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Wiring Diagram — AT — NONDTCECS00CK2
BCWA0499E
Page 252 of 3383
TROUBLE DIAGNOSIS FOR SYMPTOMSAT-177
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56

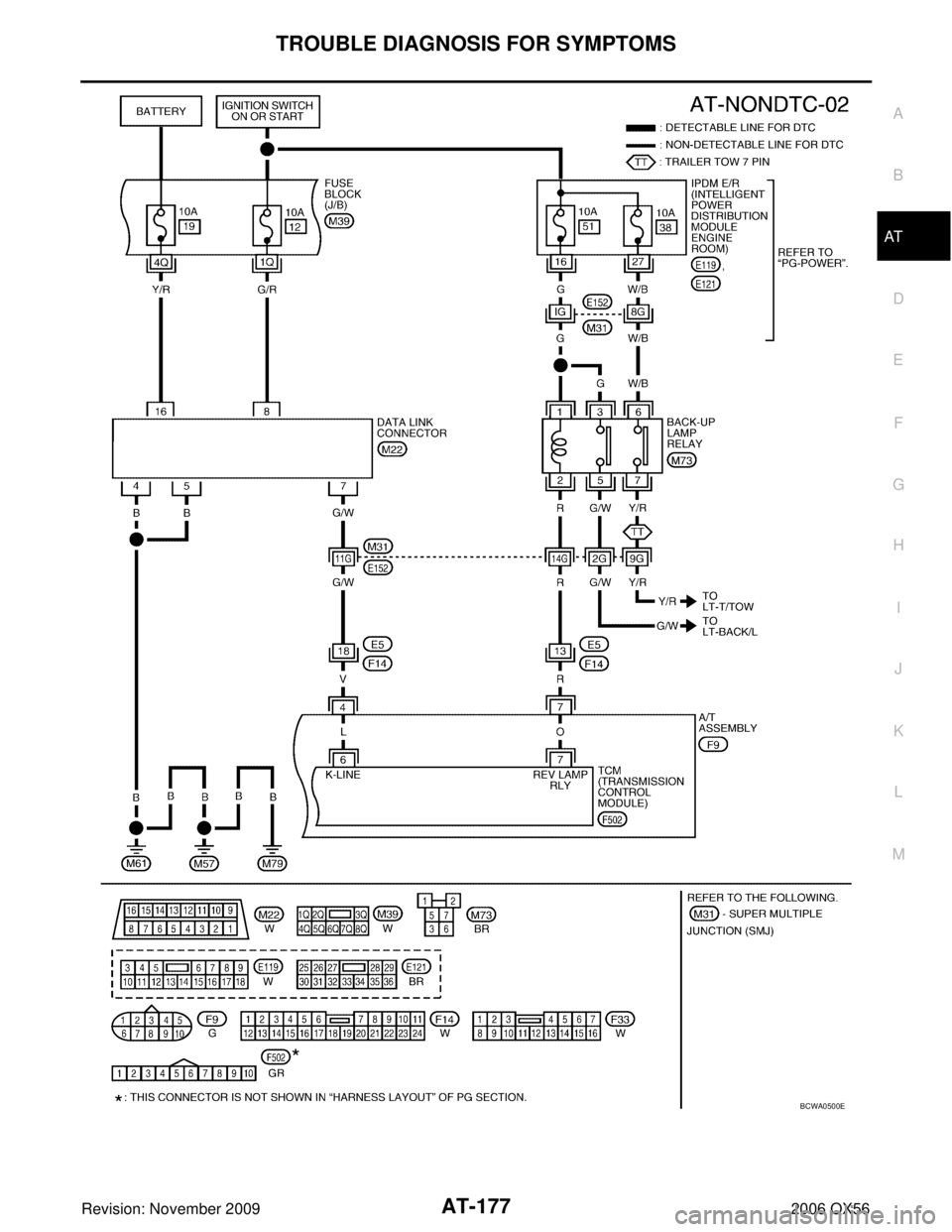

BCWA0500E
Page 253 of 3383
AT-178
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: November 20092006 QX56
BCWA0501E
Page 254 of 3383

TROUBLE DIAGNOSIS FOR SYMPTOMSAT-179
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
TCM terminals and data are reference value. Measured between each terminal and ground.
A/T CHECK Indicator Lamp Does Not Come OnECS00CK3
SYMPTOM:
AT CHECK indicator lamp does not come on for about 2 seconds when turning ignition switch to
“ON”.
DIAGNOSTIC PROCEDURE
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 9 6 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK A/T CHECK INDICATOR LAMP CIRCUIT
Check the combination meter. Refer to DI-5, "
COMBINATION METERS" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 6 7 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Engine Cannot Be Started In “P” or “N” PositionECS00CK4
SYMPTOM:
Engine cannot be started with selector lever in “P” or “N” position.
Engine can be started with selector lever in “D”or “R” position.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Perform self-diagnosis. Refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnosis results indicate PNP switch?
YES >> Check the malfunctioning system. Refer to AT- 1 0 5 , "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" .
NO >> GO TO 2.
Terminal Wire
color Item
ConditionData (Approx.)
3 L CAN-H ––
4V K-line (CONSULT-
II signal) The terminal is connected to the data link connector for CONSULT-II
–
7 R Back-up lamp relay Selector lever in "R" position.
0V
Selector lever in other positions. Battery voltage
8 P CAN-L ––
Page 255 of 3383

AT-180
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: November 20092006 QX56
2. CHECK CONTROL CABLE
Check the control cable.
Refer to AT- 2 2 7 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 2 2 7 , "
Adjustment of A/
T Position" .
3. CHECK STARTING SYSTEM
Check the starting system. Refer to SC-10, "
STARTING SYSTEM" .
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
In “P” Position, Vehicle Moves When PushedECS00CK5
SYMPTOM:
Even though the selector lever is set in the “P” position, the parking mechanism is not actuated,
allowing the vehicle to be moved when it is pushed.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT
Perform self-diagnosis. Refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnosis results indicate PNP switch?
YES >> Check the malfunctioning system. Refer to AT- 1 0 5 , "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" .
NO >> GO TO 2.
2. CHECK CONTROL CABLE
Check the control cable.
Refer to AT- 2 2 7 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 2 2 7 , "
Adjustment of A/
T Position" .
LCIA0345E
LCIA0345E
Page 256 of 3383

TROUBLE DIAGNOSIS FOR SYMPTOMSAT-181
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
3. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 0 , "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 1 2 , "
Checking Automatic
Transmission Fluid (ATF)" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 4.
4. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 1 ,
"Symptom Chart" (Symptom No.58).
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
In “N” Position, Vehicle MovesECS00CK6
SYMPTOM:
Vehicle moves forward or backward when selecting “N” position.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT
Perform self-diagnosis. Refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnostic results indicate PNP switch?
YES >> Check the malfunctioning system. Refer to AT- 1 0 5 , "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" .
NO >> GO TO 2.
2. CHECK CONTROL CABLE
Check the control cable.
Refer to AT- 2 2 7 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 2 2 7 , "
Adjustment of A/
T Position" .
SCIA5199E
LCIA0345E
