Page 2489 of 3383

LT-82
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: November 20092006 QX56
through door mirror LH and RH terminal 11
to grounds M57, M61 and M79 and
to rear turn signal lamp LH terminal 1
through rear turn signal lamp LH terminal 3
to grounds B7 and B19, and
to rear turn signal lamp RH terminal 4
through rear turn signal lamp RH terminal 6
to grounds B117 and B132.
BCM sends signal to combination meter through CAN communication lines, and turns on turn signal indicator
lamps within combination meter.
REMOTE KEYLESS ENTRY SYSTEM OPERATION
Power is supplied at all times
through 50A fusible link (letter f , located in the fuse and fusible link box)
to BCM terminal 70, and
through 10A fuse [No. 19, located in the fuse block (J/B)]
to combination meter terminal 8.
Ground is supplied
to BCM terminal 67 and
to combination meter terminal 17
through grounds M57, M61 and M79.
When the remote keyless entry system is triggered by input from the keyfob, the BCM, interpreting it as turn
signal is ON, outputs turn signal from BCM terminals 60 and 61.
The BCM supplies power
through BCM terminals 60 and 61
to front turn/fog lamp LH and RH terminal 2
through front turn/fog lamp LH and RH terminal 3
to grounds E9, E15 and E24, and
to door mirror LH and RH terminal 15
through door mirror LH and RH terminal 11
to grounds M57, M61 and M79 and
to rear turn signal lamp LH terminal 1
through rear turn signal lamp LH terminal 3
to grounds B7 and B19, and
to rear turn signal lamp RH terminal 4
through rear turn signal lamp RH terminal 6
to grounds B117 and B132.
BCM sends signal to combination meter through CAN communication lines, and turns on turn signal indicator
lamps within combination meter.
With power and input supplied, the BCM controls the flashing of the hazard warning lamps when keyfob is
used to activate the remote keyless entry system.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
CAN Communication System DescriptionEKS00B9R
Refer to LAN-26, "CAN COMMUNICATION" .
Page 2490 of 3383
TURN SIGNAL AND HAZARD WARNING LAMPSLT-83
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56

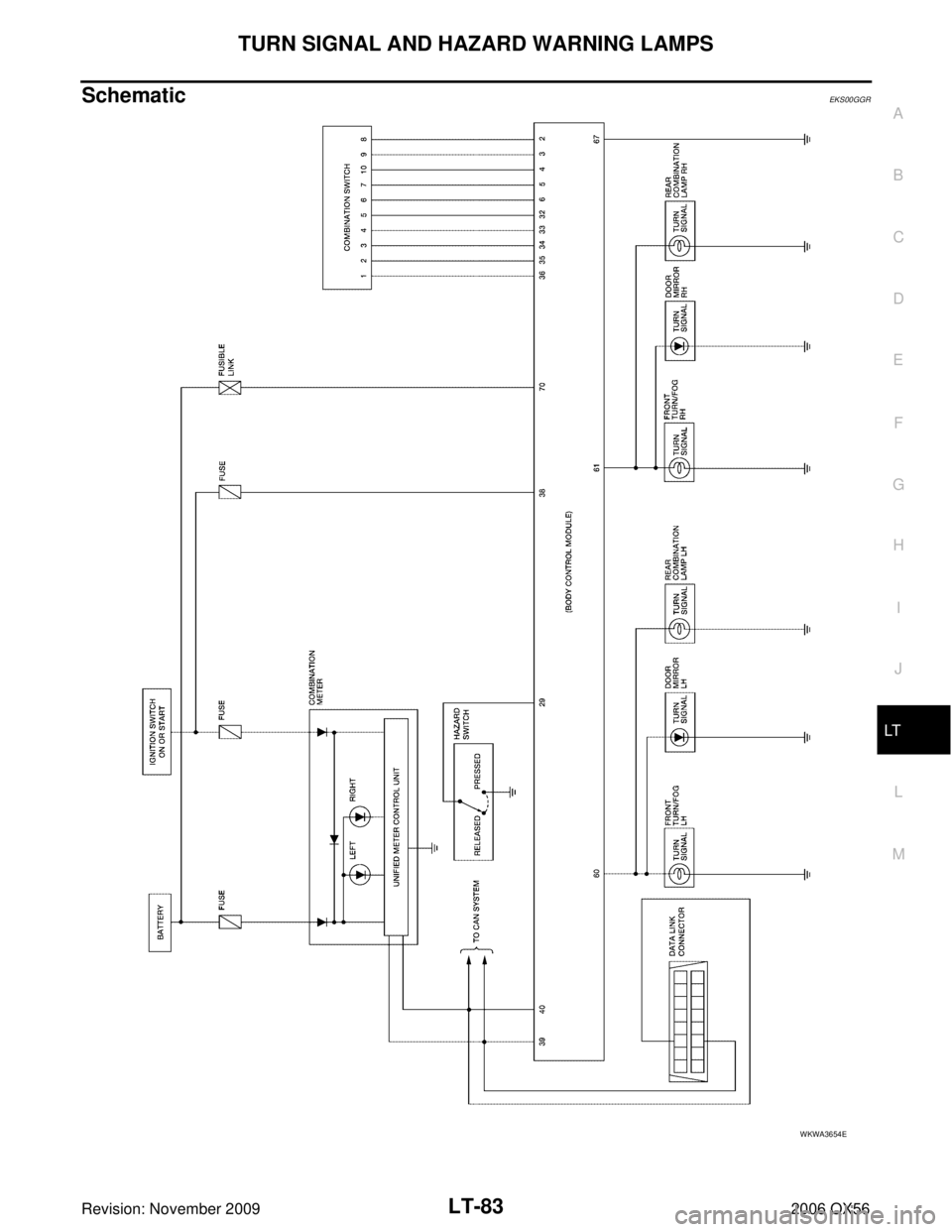

SchematicEKS00GGR
WKWA3654E
Page 2491 of 3383
LT-84
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: November 20092006 QX56

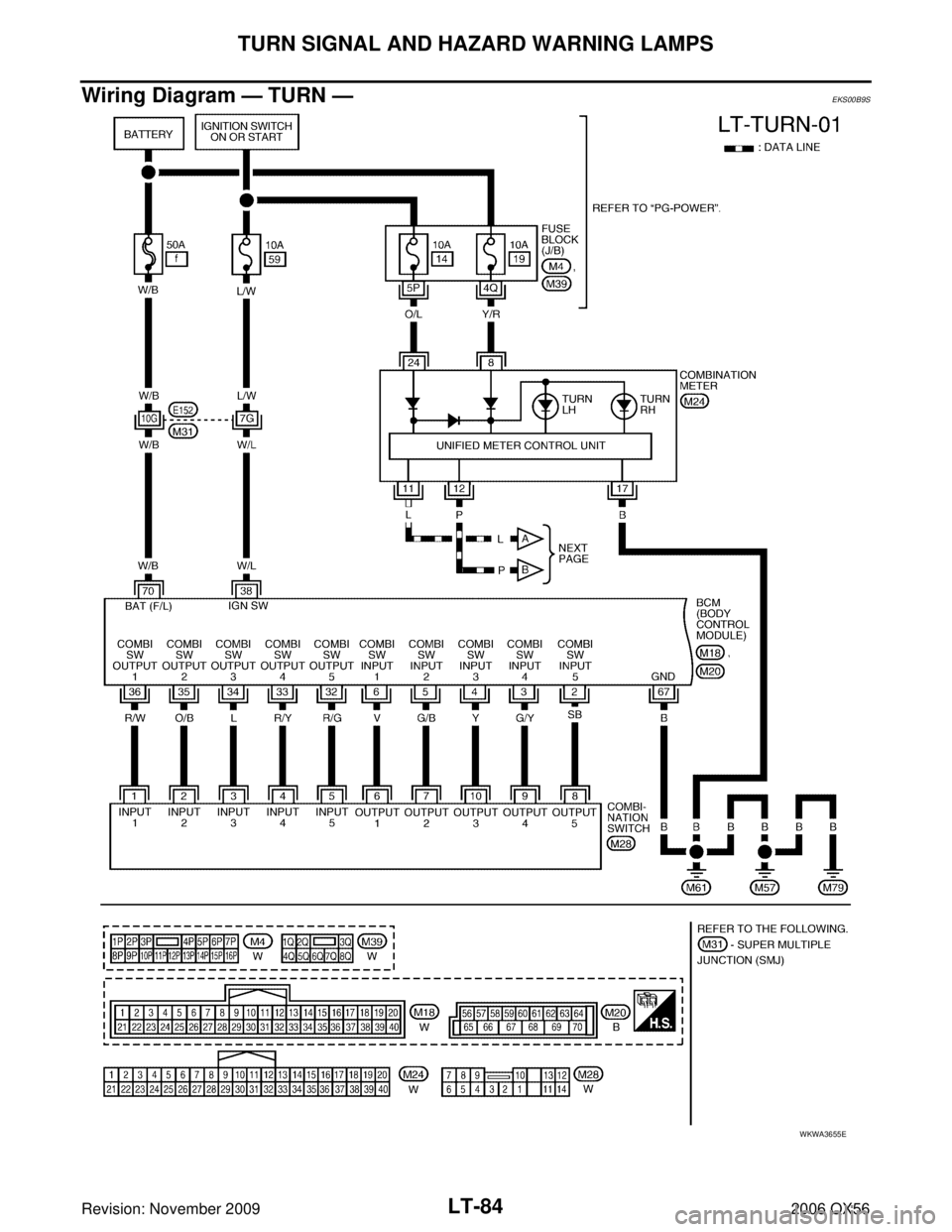

Wiring Diagram — TURN —EKS00B9S
WKWA3655E
Page 2492 of 3383
TURN SIGNAL AND HAZARD WARNING LAMPSLT-85
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
WKWA3656E

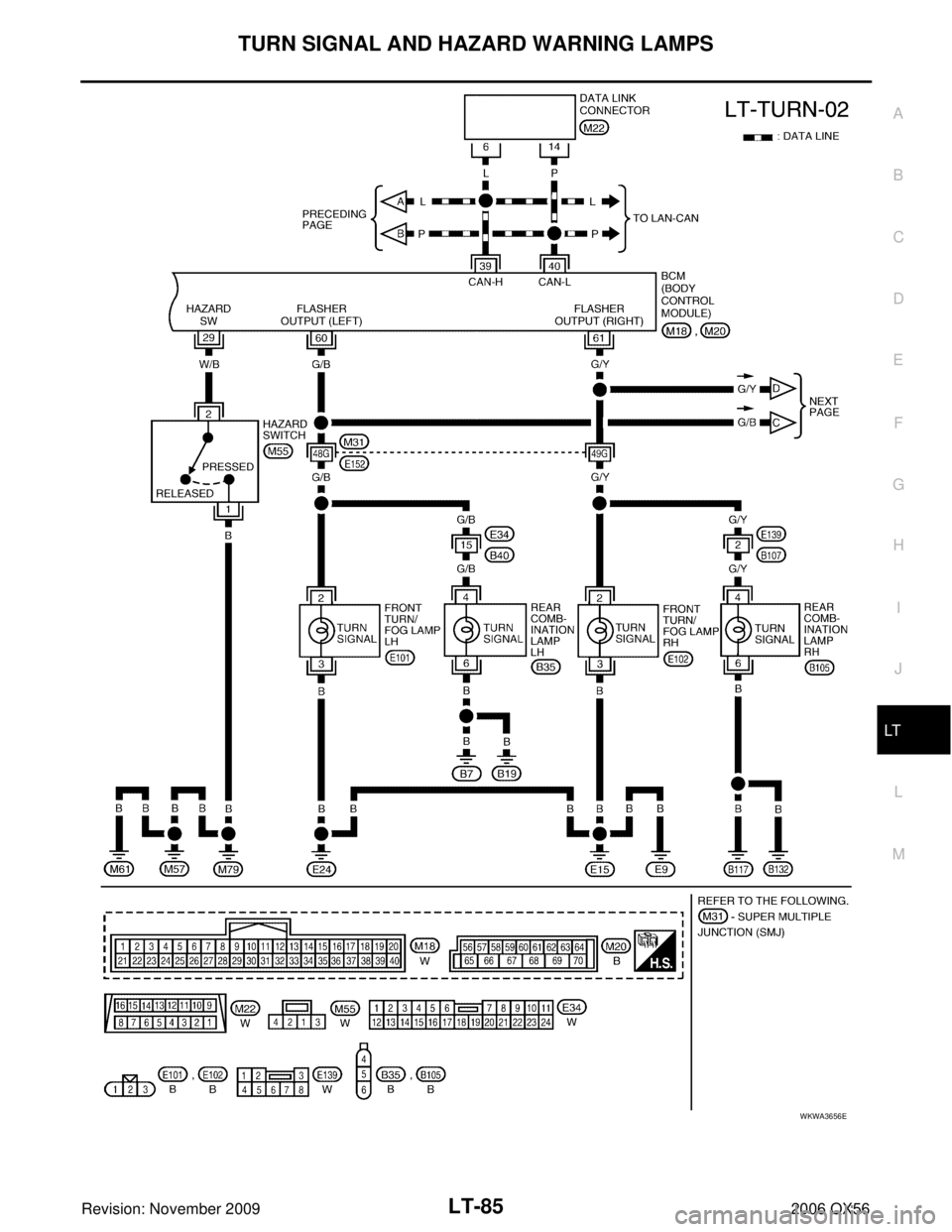

Page 2493 of 3383
LT-86
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: November 20092006 QX56

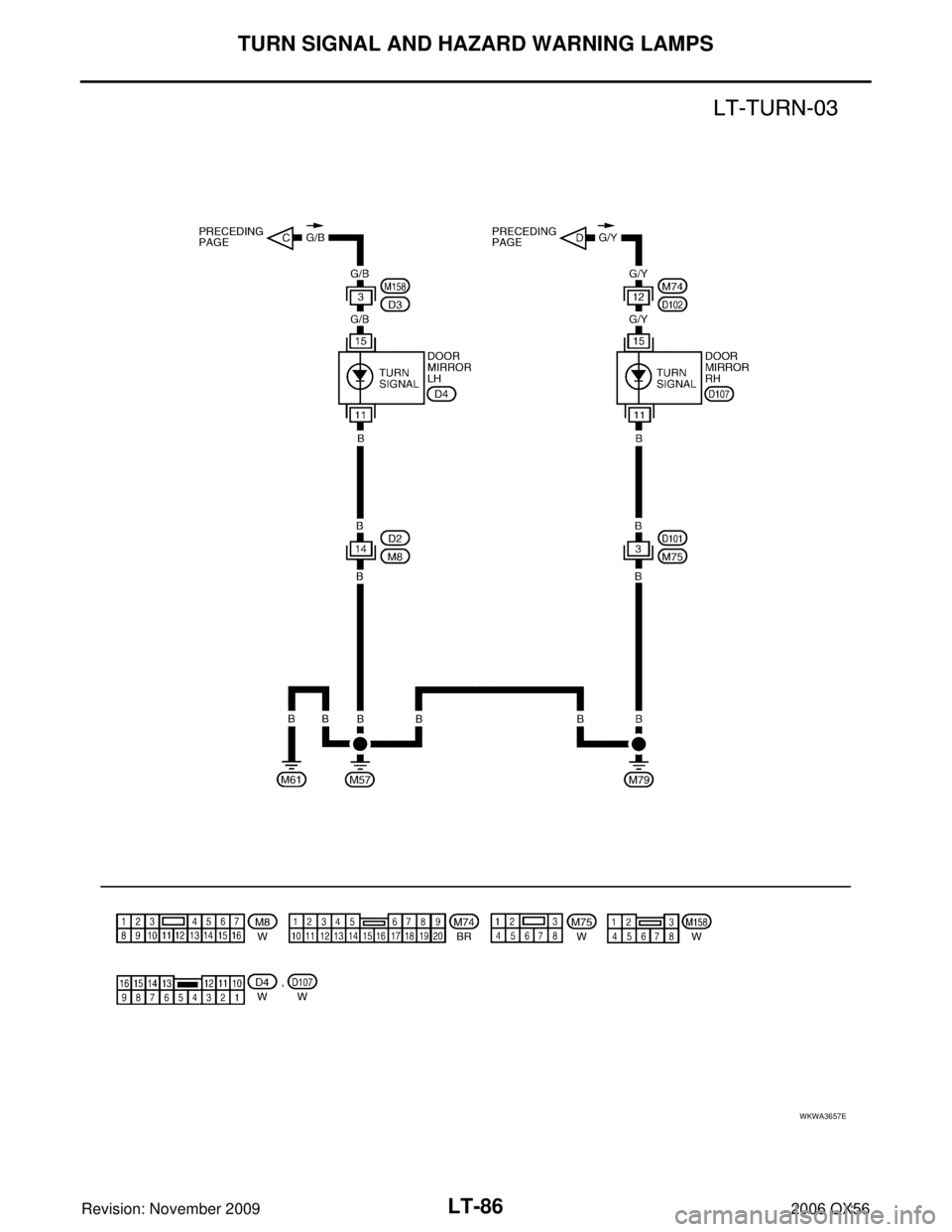

WKWA3657E
Page 2494 of 3383
TURN SIGNAL AND HAZARD WARNING LAMPSLT-87
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Terminals and Reference Values for BCMEKS00B9T
Te r m i n a l
No. Wire
color Signal name Measuring condition
Reference value
(Approx.)
Ignition
switch Operation or condition
2 SB Combination switch input 5 ON Lighting, turn, wiper OFF
Wiper dial position 4
3 G/Y Combination switch input 4 ON Lighting, turn, wiper OFF
Wiper dial position 4
4 Y Combination switch input 3 ON Lighting, turn, wiper OFF
Wiper dial position 4
5 G/B Combination switch input 2 ONLighting, turn, wiper OFF
Wiper dial position 4
6 V Combination switch input 1
29 W/B Hazard switch signal OFFHazard
switch ON
0V
OFF 5V
32 R/G Combination switch output 5 ON Lighting, turn, wiper OFF
Wiper dial position 4
33 R/Y Combination switch output 4 ON Lighting, turn, wiper OFF
Wiper dial position 4
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
Page 2495 of 3383

LT-88
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: November 20092006 QX56
How to Proceed With Trouble DiagnosisEKS00B9U
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 8 0 , "
System Description" .
3. Perform preliminary check. Refer to LT- 8 9 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Do turn signal and hazard warning lamps operate normally? If YES: GO TO 6. If NO: GO TO 4.
6. Inspection End.
34 L Combination switch output 3 ON Lighting, turn, wiper OFF
Wiper dial position 4
35 O/B Combination switch output 2 ONLighting, turn, wiper OFF
Wiper dial position 4
36 R/W Combination switch output 1
38 W/L Ignition switch (ON) ON— Battery voltage
39 L CAN-H —— —
40 P CAN-L —— —
60 G/B Turn signal (left) ONCombination
switch Turn left ON
61 G/Y Turn signal (right) ONCombination
switch Turn right ON
67 B Ground ON— 0V
70 W/B Battery power supply OFF— Battery voltage
Terminal
No. Wire
color Signal name Measuring condition
Reference value
(Approx.)
Ignition
switch Operation or condition
SKIA5291E
SKIA5292E
SKIA3009J
SKIA3009J
Page 2496 of 3383

TURN SIGNAL AND HAZARD WARNING LAMPSLT-89
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Preliminary CheckEKS00B9V
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES OR FUSIBLE LINK
Check for blown fuses or fusible link.
Refer to LT- 8 4 , "
Wiring Diagram — TURN —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse or fusible link. Refer to PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connectors.
2. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open between BCM and fuse or fus- ible link.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> Inspection End.
NG >> Check ground circuit harness.
Unit Power sourceFuse and fusible link No.
BCM Battery
f
Ignition switch ON or START position 59
BCMIgnition switch position
(+) (– )OFFACCON
Connector Terminal
M18 38 Ground0V 0V
Battery
voltage
M20 70 Battery
voltage Battery
voltage Battery
voltage
WKIA1436E
BCM Continuity
Connector Terminal
M20 67Ground Yes
LIIA0915E
