5. CHECK PARKING, LICENSE PLATE AND TAIL LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.

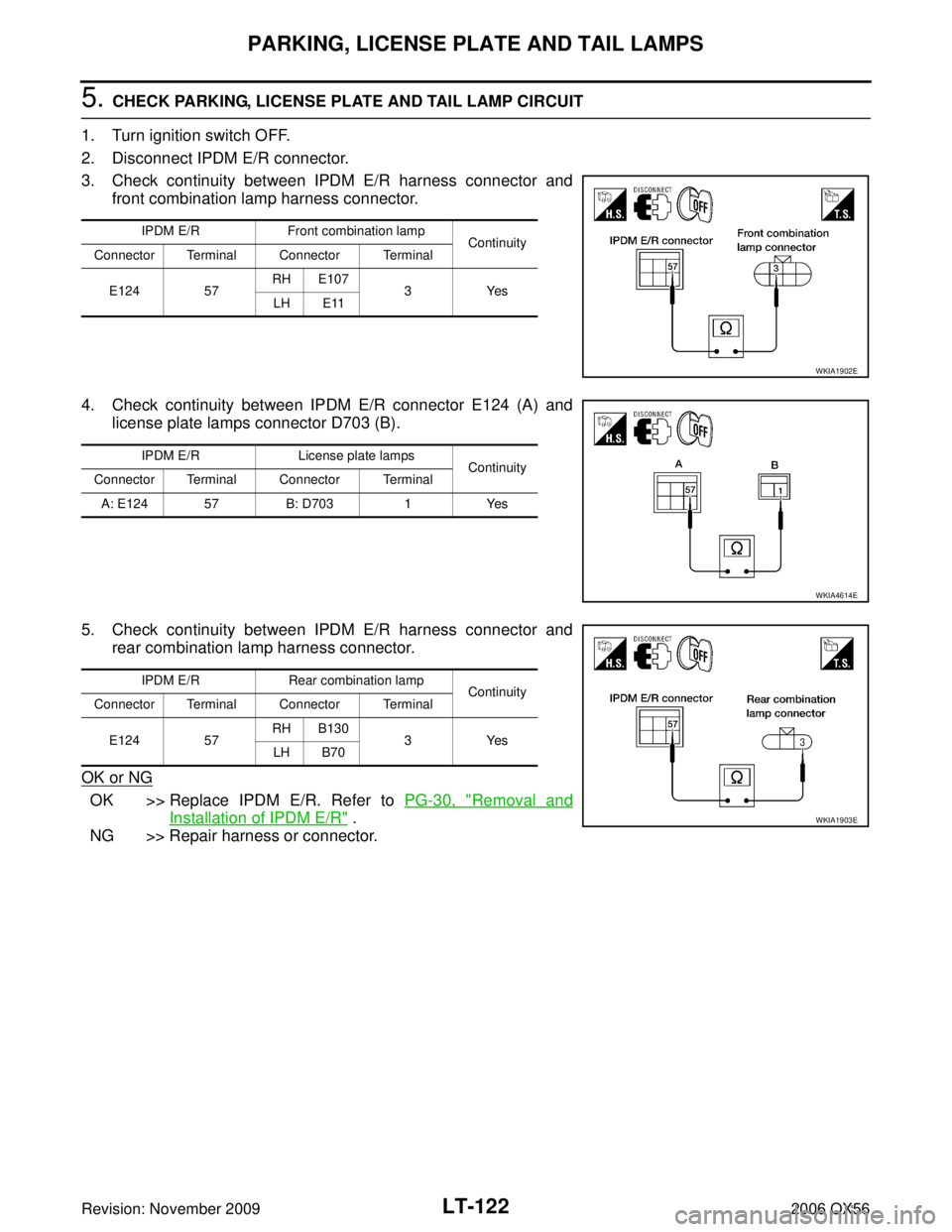

3. Check continuity between IPDM E/R harness connector and front combination lamp harness connector.
4. Check continuity between IPDM E/R connector E124 (A) and license plate lamps connector D703 (B).
5. Check continuity between IPDM E/R harness connector and rear combination lamp harness connector.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and
Installation of IPDM E/R" .
NG >> Repair harness or connector.
IPDM E/R Front combination lamp
Continuity
Connector Terminal Connector Terminal
E124 57 RH E107
3Yes
LH E11
WKIA1902E
IPDM E/R License plate lamps
Continuity
Connector Terminal Connector Terminal
A: E124 57 B: D7031Yes
WKIA4614E
IPDM E/R Rear combination lamp
Continuity
Connector Terminal Connector Terminal
E124 57 RH B130
3 Yes
LH B70
WKIA1903E
Page 2530 of 3383

PARKING, LICENSE PLATE AND TAIL LAMPSLT-123
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
6. CHECK GROUND

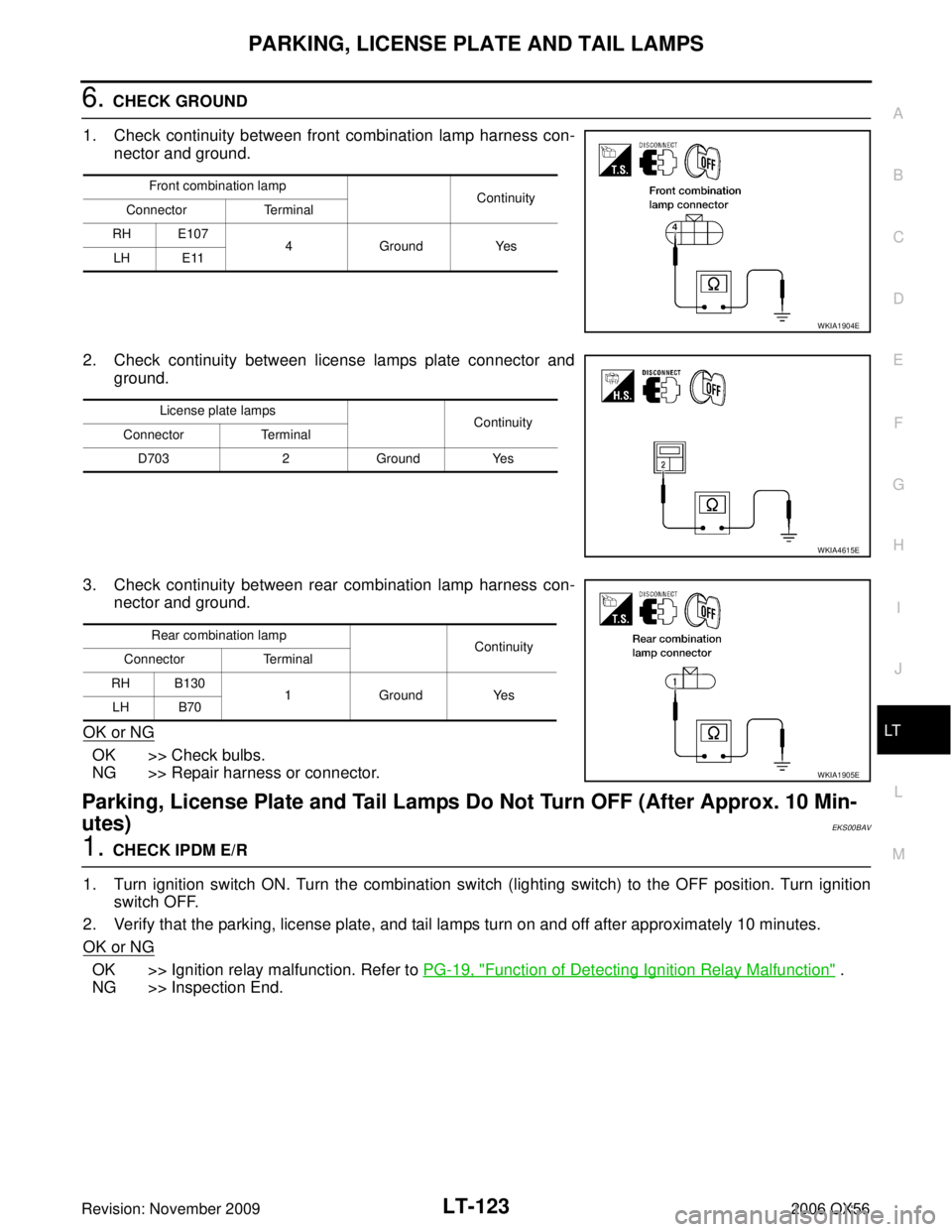

1. Check continuity between front combination lamp harness con- nector and ground.
2. Check continuity between license lamps plate connector and ground.
3. Check continuity between rear combination lamp harness con- nector and ground.
OK or NG
OK >> Check bulbs.
NG >> Repair harness or connector.
Parking, License Plate and Tail Lamps Do Not Turn OFF (After Approx. 10 Min-
utes)
EKS00BAV
1. CHECK IPDM E/R
1. Turn ignition switch ON. Turn the combination switch (lighting switch) to the OFF position. Turn ignition switch OFF.
2. Verify that the parking, license plate, and tail lamps turn on and off after approximately 10 minutes.
OK or NG
OK >> Ignition relay malfunction. Refer to PG-19, "Function of Detecting Ignition Relay Malfunction" .
NG >> Inspection End.
Front combination lamp Continuity
Connector Terminal
RH E107 4Ground Yes
LH E11
WKIA1904E
License plate lamps Continuity
Connector Terminal
D703 2Ground Yes
WKIA4615E
Rear combination lamp
Continuity
Connector Terminal
RH B130 1Ground Yes
LH B70
WKIA1905E
Page 2531 of 3383

LT-124
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: November 20092006 QX56
Bulb ReplacementEKS00BAW
FRONT PARKING LAMP
Refer to LT- 3 1 , "FRONT PARKING LAMP (INNER OR OUTER)" .
LICENSE PLATE LAMP
Removal
1. Remove back door lower finisher. Refer to LT- 1 2 4 , "LICENSE PLATE LAMP" .
2. Turn bulb socket counterclockwise to remove it.
3. Pull bulb from socket.
Installation
Installation is in the reverse order of removal.
SIDE MARKER LAMP (FRONT)
Refer to LT- 3 1 , "SIDE MARKER LAMP (FRONT)" .
TAIL LAMP
The tail lamp bulbs are not serviceable separately. Replace rear combination lamp. Refer to LT- 1 2 5 , "Removal
and Installation" .
Removal and InstallationEKS00GDQ
FRONT PARKING LAMP
Refer to LT- 3 1 , "Removal and Installation" .
LICENSE PLATE LAMP
Removal
1. Remove back door lower finisher. Refer to EI-42, "Removal and Installation" .
2. Remove license plate lamp screws.
3. Remove license plate lamp.
INSTALLATION
Installation is in the reverse order of removal.
SIDE MARKER LAMP (REAR)
Refer to LT- 1 2 5 , "Removal and Installation" .
TAIL LAMP
Refer to LT- 1 2 5 , "Removal and Installation" .
Page 2532 of 3383

REAR COMBINATION LAMPLT-125
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
REAR COMBINATION LAMPPFP:26554
Bulb ReplacementEKS00BAZ
SIDE MARKER LAMP (REAR)
Side marker lamps (rear) are LED's and are not serviceable separately. Replace rear combination lamp. Refer
to LT- 1 2 5 , "
REAR COMBINATION LAMP" .
TAIL LAMP
Tail lamps are LED's and are not serviceable separately. Replace rear combination lamp. Refer to LT- 1 2 5 ,
"Removal and Installation" .
TURN SIGNAL
Removal

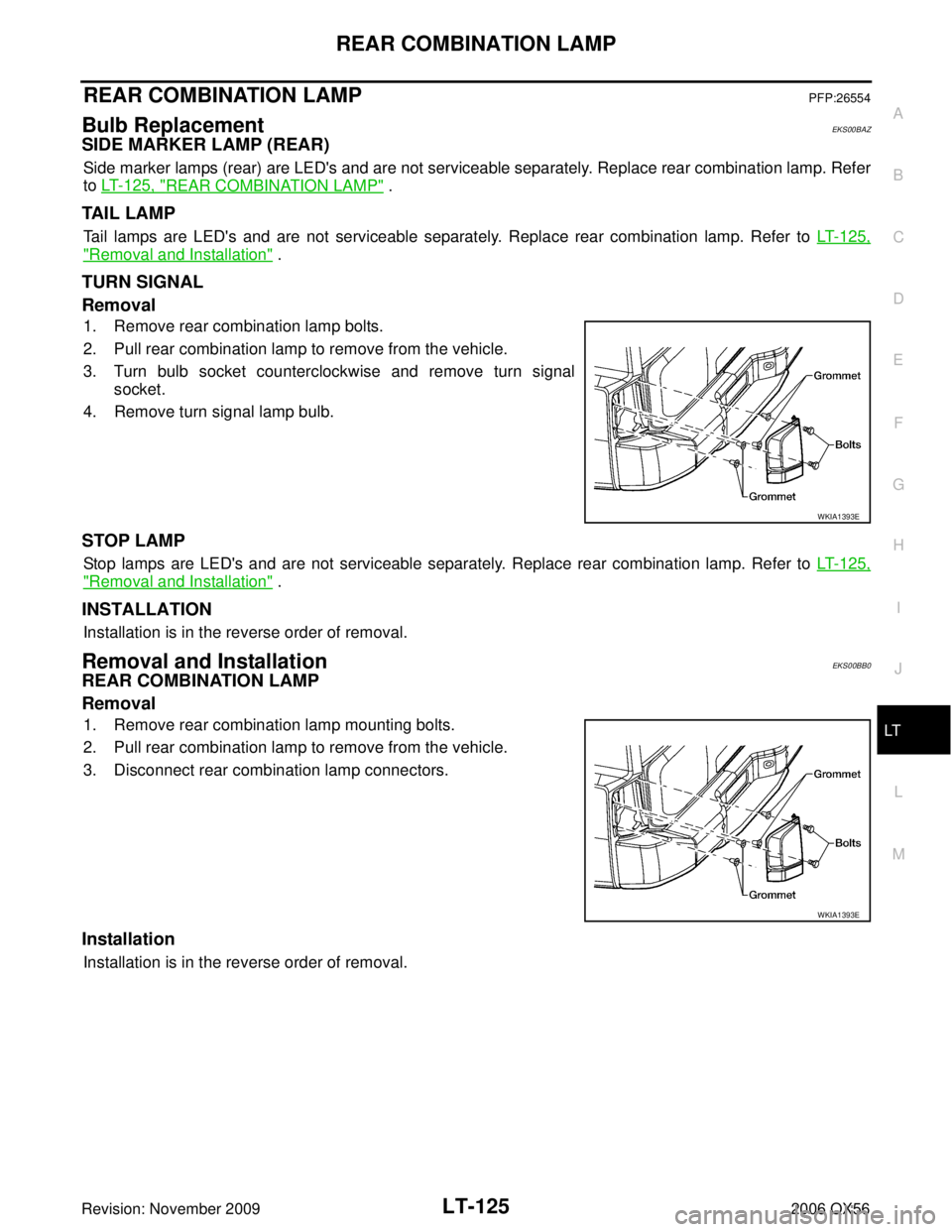

1. Remove rear combination lamp bolts.
2. Pull rear combination lamp to remove from the vehicle.
3. Turn bulb socket counterclockwise and remove turn signal
socket.
4. Remove turn signal lamp bulb.
STOP LAMP
Stop lamps are LED's and are not serviceable separately. Replace rear combination lamp. Refer to LT- 1 2 5 ,
"Removal and Installation" .
INSTALLATION
Installation is in the reverse order of removal.
Removal and InstallationEKS00BB0
REAR COMBINATION LAMP
Removal
1. Remove rear combination lamp mounting bolts.
2. Pull rear combination lamp to remove from the vehicle.
3. Disconnect rear combination lamp connectors.
Installation
Installation is in the reverse order of removal.
WKIA1393E
WKIA1393E
Page 2533 of 3383

LT-126
TRAILER TOW
Revision: November 20092006 QX56
TRAILER TOWPFP:93020
Component Parts and Harness Connector LocationEKS00BB1
System DescriptionEKS00BB2
Power is supplied at all times
to ignition relay, located in the IPDM E/R (intelligent power distribution module engine room), and
through 50A fusible link (letter f , located in the fuse and fusible link box)
to BCM (body control module) terminal 70, and
through 10A fuse (No. 32, located in the IPDM E/R)

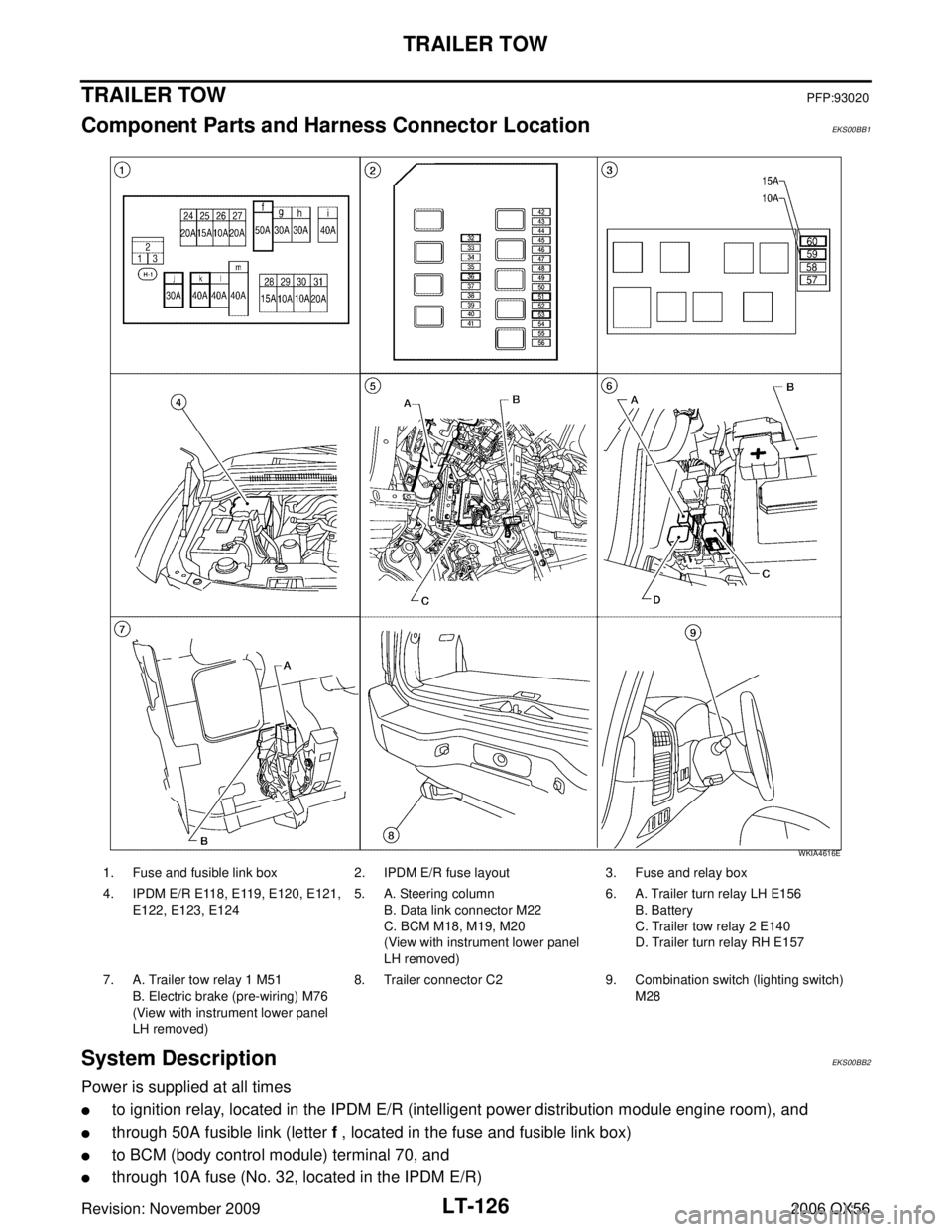

1. Fuse and fusible link box2. IPDM E/R fuse layout 3. Fuse and relay box
4. IPDM E/R E118, E119, E120, E121, E122, E123, E124 5. A. Steering column
B. Data link connector M22
C. BCM M18, M19, M20
(View with instrument lower panel
LH removed) 6. A. Trailer turn relay LH E156
B. Battery
C. Trailer tow relay 2 E140
D. Trailer turn relay RH E157
7. A. Trailer tow relay 1 M51 B. Electric brake (pre-wiring) M76
(View with instrument lower panel
LH removed) 8. Trailer connector C2
9. Combination switch (lighting switch)
M28
WKIA4616E
Page 2534 of 3383

TRAILER TOWLT-127
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
through IPDM E/R terminal 61
to trailer tow relay 1 terminal 3, and
through 20A fuse (No. 53, located in the IPDM E/R)
to CPU (central processing unit) of the IPDM E/R, and
through 30A fusible link (letter j , located in the fuse and fusible link box)
to trailer tow relay 2 terminals 3 and 6, and
through 40A fusible link (letter k , located in the fuse and fusible link box)
to electric brake (pre-wiring) terminal 5.
With the ignition switch in the ON or START position, power is supplied
to ignition relay, located in the IPDM E/R, and
through 10A fuse (No. 59, located in the fuse and relay box)
to BCM terminal 38, and
through 10A fuse (No. 51, located in the IPDM E/R)
to trailer tow relay 2 terminal 1.
Ground is supplied
to BCM terminal 67
to electric brake (pre-wiring) terminal 1, and
through grounds M57, M61 and M79, and
to IPDM E/R terminals 38 and 59
to trailer tow relay 1 terminal 2
to trailer tow relay 2 terminal 2, and
to trailer connector terminal 2
to trailer turn relay LH and RH terminal 2
through grounds E9, E15 and E24.
TRAILER TAIL LAMP OPERATION
The trailer tail lamps are controlled by the trailer tow relay 1.
With the lighting switch in the parking and tail lamp ON (1ST) position, AUTO position (and the auto light sys-
tem is activated) or headlamp ON (2ND) position, power is supplied
through the tail lamp relay, located in the IPDM E/R
through 10A fuse (No. 36, located in the IPDM E/R)
through IPDM E/R terminal 49
to trailer tow relay 1 terminal 1.
When energized, trailer tow relay 1 supplies tail lamp power to trailer connector terminal 6.
TRAILER BRAKE, TURN SIGNAL AND HAZARD LAMP OPERATION
The trailer brake, turn signal and hazard lamps are controlled by the BCM through trailer turn relays (LH and
RH). When the brake pedal is depressed, the BCM receives stop lamp switch signal through CAN communi-
cation. If the brake pedal is depressed or either turn signal or the hazard lamps are turned on, the BCM sup-
plies voltage to the trailer turn relays (LH and RH) to make them cycle on and off.
Trailer turn relay LH output is supplied
through BCM terminal 52
to trailer turn relay LH terminal 1.
Trailer turn relay RH output is supplied
through BCM terminal 51
to trailer turn relay RH terminal 1.
Left trailer brake, turn signal and hazard lamp output is supplied
through trailer turn relay LH terminal 3
to trailer connector terminal 1.
Right trailer brake, turn signal and hazard lamp output is supplied
through trailer turn relay RH terminal 3
Page 2535 of 3383
LT-128
TRAILER TOW
Revision: November 20092006 QX56
to trailer connector terminal 4.
TRAILER BRAKE OPERATION
The trailer brake is controlled by the electric brake. The electric brake receives stop lamp switch signal at elec-
tric brake (pre-wiring) terminal 2 when the brake pedal is depressed.
When the brake pedal is depressed, power is supplied by the electric brake
through electric brake (pre-wiring) terminal 3
to trailer connector terminal 3.
TRAILER POWER SUPPLY OPERATION
The trailer power supply is controlled by the trailer tow relay 2.
When the ignition switch is in the ON or START position, power is supplied
through 10A fuse (No. 51, located in the IPDM E/R)
through IPDM E/R terminal 16
to trailer tow relay 2 terminal 1.
When energized, the trailer tow relay 2 supplies power
through trailer tow relay 2 terminals 5 and 7
to trailer connector terminal 5.
Page 2536 of 3383
TRAILER TOWLT-129
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56

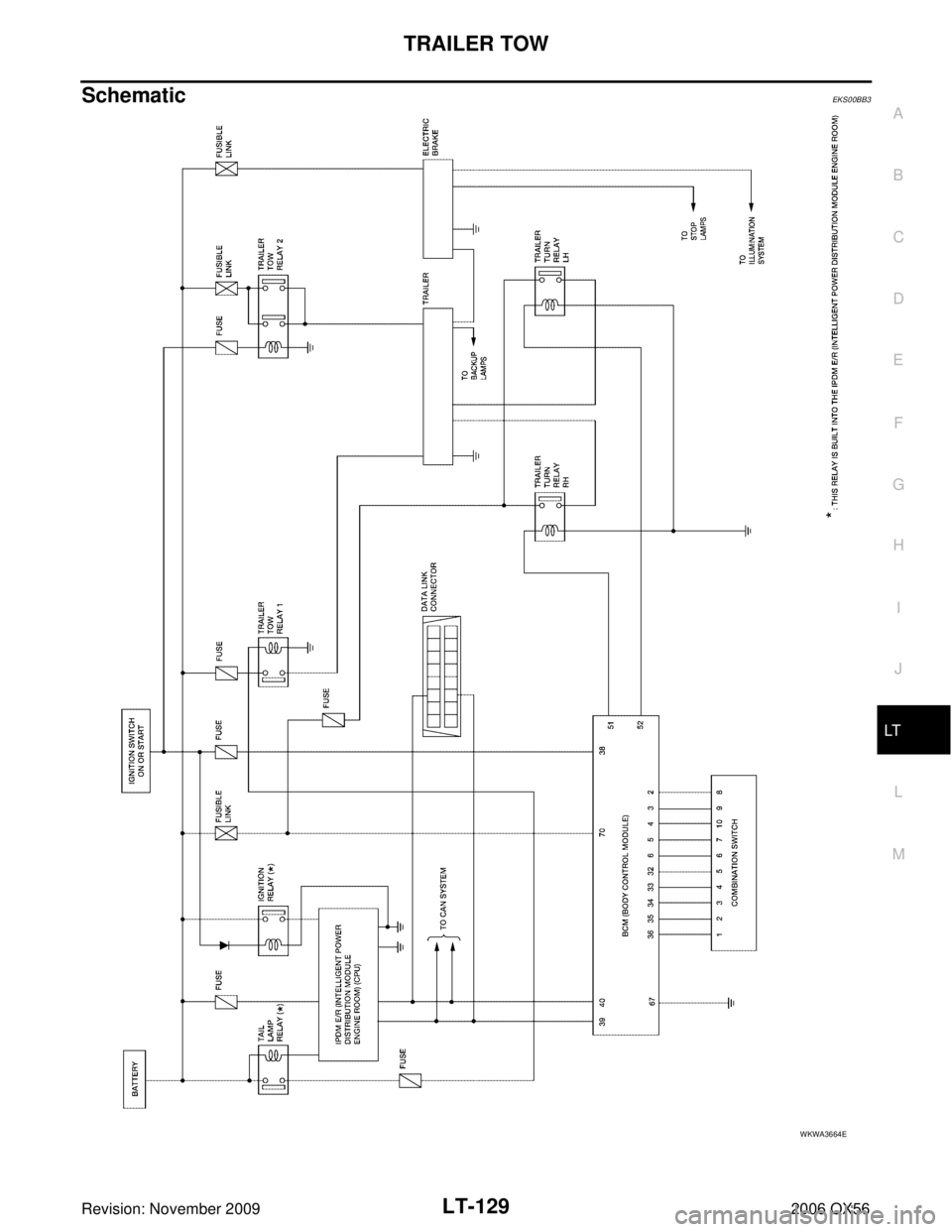

SchematicEKS00BB3
WKWA3664E
