Page 1737 of 3383

EC-526Revision: November 2009
DTC P1805 BRAKE SWITCH
2006 QX56
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M31, E152
Fuse block (J/B) connector M60
10A fuse
Harness for open and short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 4. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK STOP LAMP SWITCH
Refer to EC-527, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace stop lamp switch.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-144, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Continuity should exist.
Page 1738 of 3383
DTC P1805 BRAKE SWITCHEC-527
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Component InspectionUBS00HC3
STOP LAMP SWITCH
1. Disconnect stop lamp switch harness connector.
2. Check continuity between stop lamp switch terminals 3 and 4
under the following conditions.
3. If NG, adjust stop lamp switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 2 again.
BBIA0373E
ConditionsContinuity
Brake pedal: Fully released Should not exist.
Brake pedal: Slightly depressed Should exist.
PBIB2103E
Page 1739 of 3383

EC-528Revision: November 2009
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
2006 QX56
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAYPFP:16119
Component DescriptionUBS00N77
Power supply for the throttle control motor is provided to the ECM via throttle control motor relay. The throttle
control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends
an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition
switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not
provided to the ECM.
CONSULT-II Reference Value in Data Monitor ModeUBS00N78
Specification data are reference values.
On Board Diagnosis LogicUBS00N79
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MlL lights up.
DTC Confirmation ProcedureUBS00N7A
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR DTC P2100 With CONSULT-II
1. Turn ignition switch ON and wait at least 2 seconds.
2. Select “DATA MONITOR ””mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If DTC is detected, go to EC-531, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
MONITOR ITEM CONDITIONSPECIFICATION
THRTL RELAY
Ignition switch: ON ON
DTC No. Trouble diagnosis nameDTC detecting condition Possible cause
P2100
2100 Throttle control motor
relay circuit open ECM detects a voltage of power source for
throttle control motor is excessively low.
Harness or connectors
(Throttle control motor relay circuit is
open)
Throttle control motor relay
P2103
2103 Throttle control motor
relay circuit short ECM detect the throttle control motor relay is
stuck ON.
Harness or connectors
(Throttle control motor relay circuit is
shorted)
Throttle control motor relay
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
SEF058Y
Page 1740 of 3383
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAYEC-529
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
PROCEDURE FOR DTC P2103
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V.
With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR ” mode with CONSULT-II.
3. If DTC is detected, go to EC-531, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
SEF058Y
Page 1741 of 3383
EC-530Revision: November 2009
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
2006 QX56

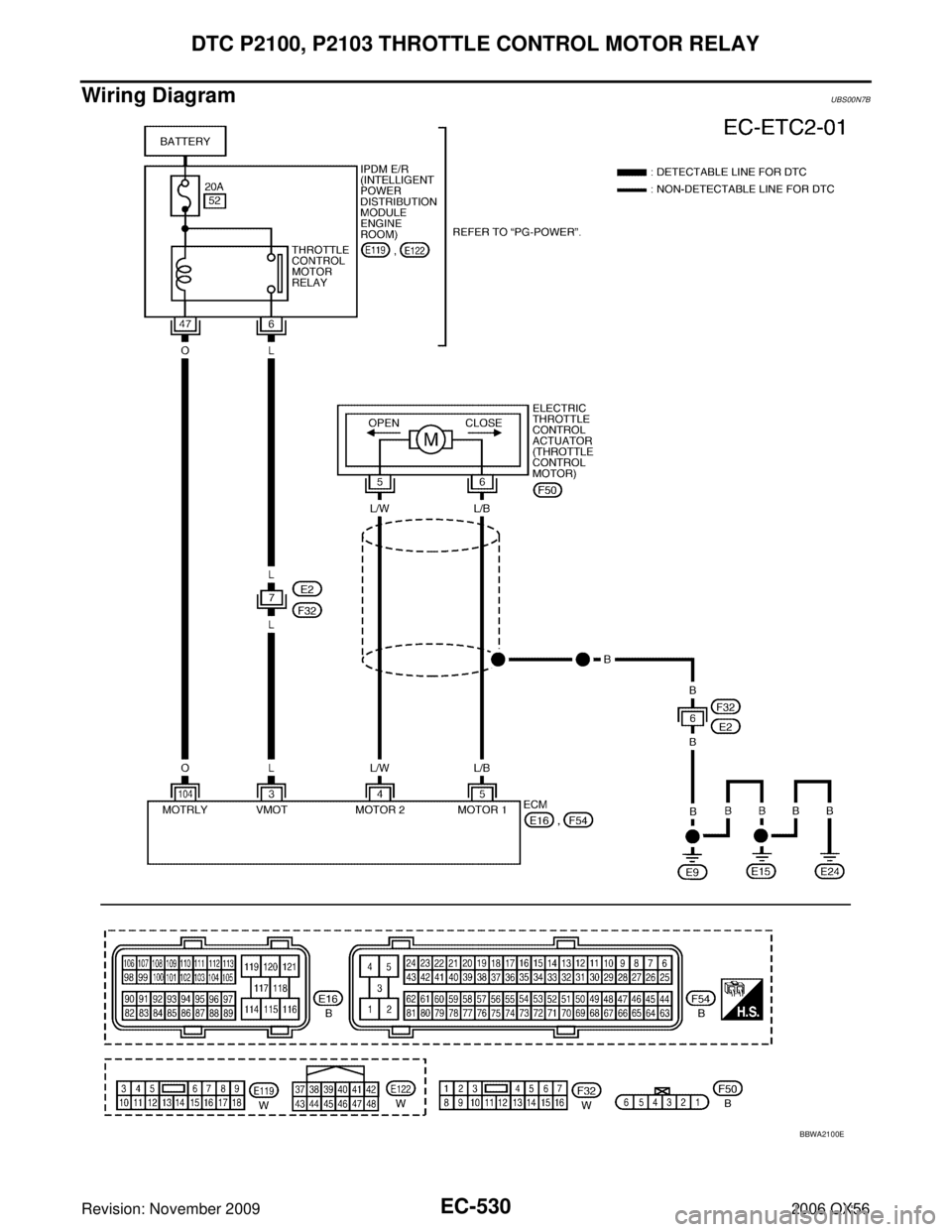

Wiring DiagramUBS00N7B
BBWA2100E
Page 1742 of 3383

DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAYEC-531
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureUBS00N7C
1. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Check voltage between ECM terminal 104 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
3L Throttle control motor relay
power supply [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
4L/W Throttle control motor
(Close) [Ignition switch: ON]
Engine: Stopped
Selector lever: D
Accelerator pedal: Released 0 - 14V
5L/B Throttle control motor
(Open) [Ignition switch: ON]
Engine: Stopped
Selector lever: D
Accelerator pedal: Fully depressed 0 - 14V
104 O Throttle control motor relay [Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON] 0 - 1.0V
PBIB1104E
PBIB1105E
Voltage: Battery voltage
PBIB1171E
Page 1743 of 3383

EC-532Revision: November 2009
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
2006 QX56
2. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E122.
3. Check continuity between ECM terminal 104 and IPDM E/R terminal 47. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK FUSE
1. Disconnect 20A fuse.
2. Check 20A fuse for blown.
OK or NG
OK >> GO TO 7.
NG >> Replace 20A fuse.
4. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
Check voltage between ECM terminal 3 and ground under the fol-
lowing conditions with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 5.
5. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect IPDM E/R harness connector E119.
4. Check continuity between ECM terminal 3 and IPDM E/R terminal 6. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E2, F32
Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
Continuity should exist.
Ignition switch
Voltage
OFF Approximately 0V
ON Battery voltage
(11 - 14V)
MBIB0028E
Continuity should exist.
Page 1744 of 3383
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAYEC-533
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
7. CHECK INTERMITTENT INCIDENT
Refer to EC-144, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-18, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness or connectors.
