COMBINATION METERSDI-5
C
DE
F
G H
I
J
L
M A
B
DI
Revision: November 2009 2006 QX56
COMBINATION METERSPFP:24814
System DescriptionEKS00BBU
UNIFIED METER CONTROL UNIT

Speedometer, odometer, tachometer, fuel gauge, oil pressure gauge, voltage gauge, A/T oil temperature
gauge, and water temperature gauge are controlled by the unified meter control unit, which is built into the
combination meter.

Warning indicators are controlled by signals drawn from the CAN communication system, BCM (body con-
trol module), and components connected directly to the combination meter.

Digital meter is adopted for odometer/trip meters*, as well as the A/T position indicator display.
*The record of the odometer is kept even if the battery cable is disconnected.

Odometer/trip meters and A/T indicator segments can be checked in diagnosis mode.

Meters/gauges can be checked in diagnosis mode.
Illumination control
The unified meter control unit outputs the speedometer, odometer/trip meters, tachometer, oil pressure gauge,
voltage meter, A/T indicator, A/T temperature gauge, fuel and temperature gauge lighting when the ignition
switch is turned on. When the lighting switch is turned on, the illumination control switch can be used to adjust
the brightness of the combination meter illumination and the odometer/trip meters and meter illumination.
When the ignition switch is turned from the OFF to the ON position, the combination meter dial lighting will
remain off for 0.7 seconds. For additional combination meter illumination control information, refer to LT- 1 5 7 ,
"System Description" .

COMBINATION METERSDI-13
C
DE
F
G H
I
J
L
M A
B
DI
Revision: November 2009 2006 QX56
Meter/Gauge Operation and Odo/Trip MeterEKS00BC0
SELF-DIAGNOSIS FUNCTION
The following items can be checked during Combination Meter Self-Diagnosis Mode.

Gauge sweep and present gauge values.

Illuminates all odometer, fuel, and engine temperature segments.

Illuminates all micro controlled lamps/LED's regardless of switch configuration.

Displays estimated present battery voltage.

Displays seat belt buckle switch LH status.
HOW TO INITIATE COMBINATION METER SELF- DIAGNOSIS MODE
NOTE:
Once entered, Combination Meter Self-Diagnosis Mode will function with the ignition switch in ON or START.
Combination Meter Self-Diagnosis Mode will exit upon turning the ignition switch to OFF or ACC.
To initiate Combination Meter Self-Diagnosis Mode, refer to the following procedure.
1. Turn the ignition switch ON, while holding the odometer/trip meter switch for 5 - 8 seconds.
NOTE:
If the diagnosis function is activated the odometer/trip meter will display tESt.
COMBINATION METER SELF-DIAGNOSIS MODE FUNCTIONS
To interpret Combination Meter Self-Diagnosis Mode functions, refer to the following table.
Event Odometer Display Description of Test/Data Notes:
Odometer/trip meter A/B
switch held from 5 to 8
seconds (or until
released) tESt
Initiating self-diagnosis mode
Odometer/trip meter A/B
switch engaged and
released = next test
requested rXXXX, FAILReturn to normal opera-
tion of all lamps/LEDs and
displays hex ROM rev. If
a ROM checksum fault
exists, display alternates
between "r XXXX" and
"FAIL".
Next test requested nrXXXX Displays hex ROM rev as
stored in NVM.
Next test requested Sc1XX Displays 8-bit software
configuration value in Hex
format.Bit Coding
7-3 = reserved for future use
2 = TCS/VDC 0 = not present
1 = present
1 = Shift type 0 = Column shift
1 = Floor shift
0 = ICC 0 = not present
1 = present
Next test requested Sc2XX Displays 8-bit software
configuration value in Hex
format.Bit coding
7-0 = Reserved for future use
Next test requested EprXX Displays 8-bit software
configuration value in Hex
format.Bit Coding
7-2 = reserved for future use
1 = A/T Oil Temp (gauge)
0 = not present
1 = present
1 = Odo Units 0 = kilometers
1 = miles
Next test requested 1nFXX Displays 8-bit market info
value in Hex format.$31 = USA
$2A = Canada
Next test requested cYLXX Displays 8-bit engine con-
figuration value in Hex
format.$08 = 8 cylinder
$06 = 6 cylinder

DI-14
COMBINATION METERS
Revision: November 20092006 QX56
Next test requested bulbIlluminates all micro-con-
trolled lamps/LEDs
regardless of SW configu-
ration.
Next test requested D-HI Meter/LCD Illumination.
Next test requested (All segments illuminated) Lights all odometer/trip
meter, fuel, and engine
temperature display seg-
ments.Full daytime brightness all
LCD segments active
Next test requested N-HI Meter/LCD Illumination.
Next test requested (All segments illuminated) Lights all odometer/trip
meter, fuel, and engine
temperature display seg-
ments.Full nighttime brightness all
LCD segments active
Next test requested N-LO Meter/LCD Illumination.
Next test requested (All segments illuminated) Lights all odometer/trip
meter, fuel, and engine
temperature display seg-
ments.Min. nighttime brightness all
LCD segments active
Next test requested dS XX Current dimming step. 1-21
Next test requested EE XX, FAIL Hex EE level. If EE
checksum fault exists,
display alternates
between "EE XX" and
"FAIL".
Next test requested dtXXXX Hex coding of final manu-
facturing test date.
Next test requested GAGE Performs sweep of all
gauges, then displays
present gauge values.
Performs checksum tests
on ROM and EE.Gauges sweep within 10 sec-
onds
Next test requested FFXXXX Displays 16-bit fuel flow
constant "Q" in tenths of
cc/min in Hex format.$0000 - $FFFF
Next test requested tF Displays 16-bit tire factor
"A" in hundredths in Hex
format.$0000 - $FFFF
Next test requested oP Current oil pressure value
in A/D counts in hex for-
mat.
$00 - $FF
Next test requested ot1XX Displays oil pressure tell-
tale "on" threshold in A/D
counts in Hex format.$00 - $FF
Next test requested ot0XX Displays oil pressure tell-
tale "off" threshold in A/D
counts in Hex format.$00 - $FF
Next test requested XXXXX Raw uncompensated
english speed value in
hundredths of MPH.
Speedometer indicates
present speed.Will display "-----" if message is
not received. Will display
"99999" if data received is
invalid
Next test requested XXXXX Raw uncompensated
metric speed value in
hundredths of KPH.
Speedometer indicates
present speed.Will display "-----" if message is
not received. Will display
"99999" if data received is
invalid
Event Odometer Display Description of Test/Data Notes:

COMBINATION METERSDI-15
C
DE
F
G H
I
J
L
M A
B
DI
Revision: November 2009 2006 QX56
Next test requested tXXXXTachometer value in
RPM. Tachometer indi-
cates present RPM.Will display "-----" if message is
not received.
Next test requested F1 XXXX Present ratioed fuel level
A/D input 1 in decimal for-
mat. Fuel gauge indicates
present filtered level.000-009 = Short circuit
010-254 = Normal range
255 = Open circuit
--- = Missing 5 seconds
Next test requested F2 XXX Present FLPS. 010-254 normal range
Next test requested FS X Fuel filter rate 0 = Normal
1 = Fast
Next test requested XXXC Last temperature gauge
input value in degrees C.
Temperature gauge indi-
cates present filtered tem-
perature.Will display "---"C if message is
not received.
Will display "999" if data
received is invalid.
Next test requested BAtXX.X Estimated present bat-
tery voltage.
Next test requested rES -X Seat belt buckle switch
LH status.0 = Unbuckled
1 = Buckled
Next test requested PA -XX Hex value port A.
Next test requested Pb -XX Hex value port B.
Next test requested PE -XX Hex value port E.
Next test requested PL -XX Hex value port L.
Next test requested P6 -XX Hex value port K.
Next test requested Pn -XX Hex value port M.
Next test requested PP -XX Hex value port P.
Next test requested PS -XX Hex value port S.
Next test requested Pt -XX Hex value port T.
Next test requested Pu -XX Hex value port U.
Next test requested P4 -XX Hex value port V.
Next test requested Puu -XX Hex value port W.
Next test requested A00XXX A/D port A/D value (non-
ratioed).
0-255
Next test requested A01XXX A/D port A/D value (non-
ratioed).0-255
Next test requested A02XXX A/D port A/D value (non-
ratioed).0-255
Next test requested A03XXX A/D port A/D value (non-
ratioed).
0-255
Next test requested A04XXX A/D port A/D value (non-
ratioed).0-255
Next test requested A05XXX A/D port A/D value (non-
ratioed).0-255
Next test requested A06XXX A/D port A/D value (non-
ratioed).
0-255
Next test requested A07XXX A/D port A/D value (non-
ratioed).0-255
Next test requested A08XXX A/D port A/D value (non-
ratioed).0-255
Next test requested A09XXX A/D port A/D value (non-
ratioed).
0-255
Event Odometer Display Description of Test/Data Notes:

DI-16
COMBINATION METERS
Revision: November 20092006 QX56
Next test requested A10XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A11XXX A/D port A/D value (non-
ratioed).
0-255
Next test requested A12XXX A/D port A/D value (non-
ratioed).0-255
Next test requested A13XXX A/D port A/D value (non-
ratioed).0-255
Next test requested A14XXX A/D port A/D value (non-
ratioed).
0-255
Next test requested A15XXX A/D port A/D value (non-
ratioed).0-255
Next test requested PA0-XX Hex value representing
state of A/D ports 0-7.
Next test requested PA1-XX Hex value representing
state of A/D ports 0-7.
Next test requested Thr-XXX Decimal value of ther-
mistor A/D reading.0-255
Next test requested rXXXX, FAIL Return to beginning of self-
diagnosis.
Event Odometer Display Description of Test/Data Notes:

COMBINATION METERSDI-17
C
DE
F
G H
I
J
L
M A
B
DI
Revision: November 2009 2006 QX56
How to Proceed With Trouble DiagnosisEKS00BC1
1. Confirm the symptom or customer complaint.
2. Perform diagnosis according to diagnosis flow. Refer to DI-17, "
Diagnosis Flow" .
3. According to the symptom chart, repair or replace the cause of the symptom.
4. Does the meter operate normally? If so, go to 5. If not, go to 2.
5. Inspection End.

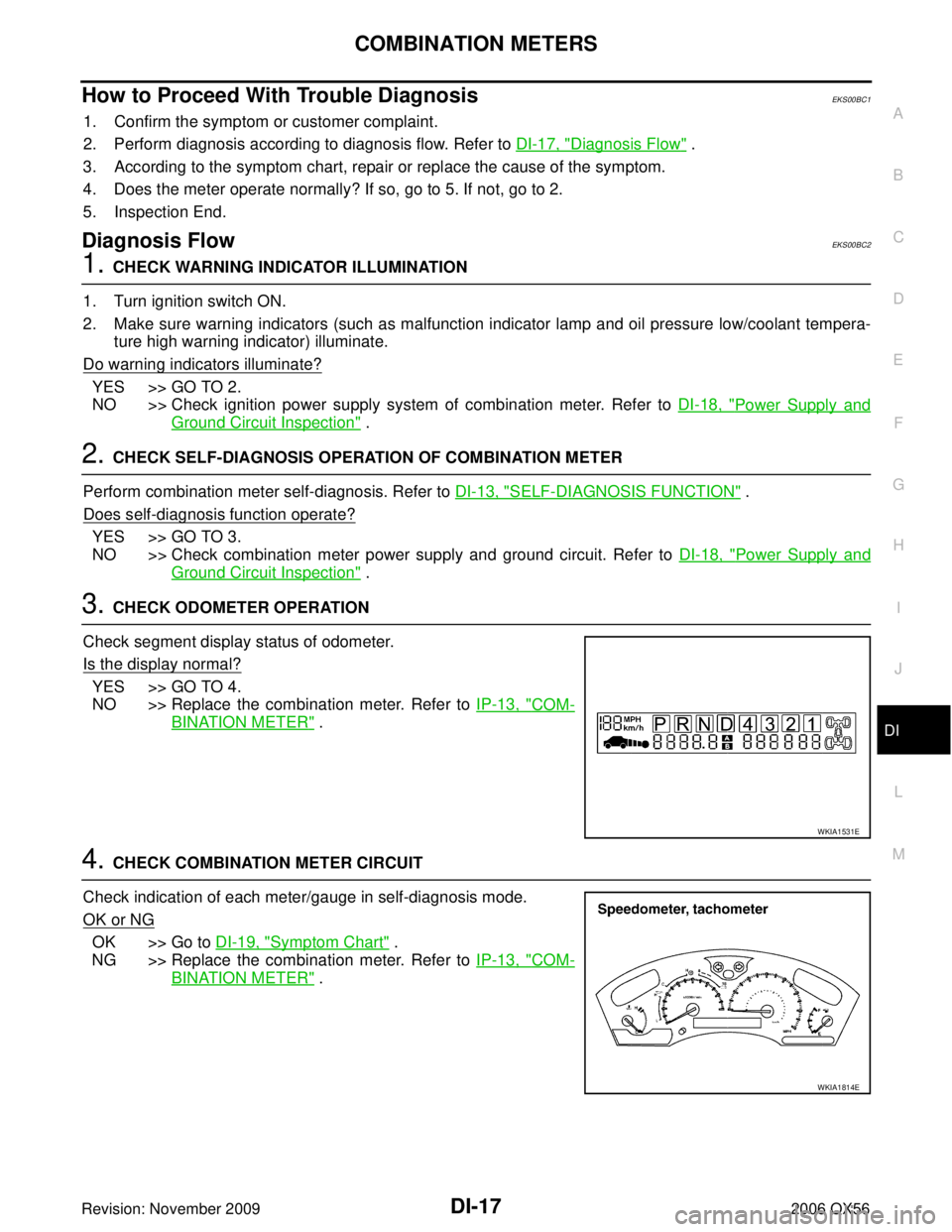

Diagnosis FlowEKS00BC2
1. CHECK WARNING INDICATOR ILLUMINATION
1. Turn ignition switch ON.
2. Make sure warning indicators (such as malfunction indicator lamp and oil pressure low/coolant tempera- ture high warning indicator) illuminate.
Do warning indicators illuminate?
YES >> GO TO 2.
NO >> Check ignition power supply system of combination meter. Refer to DI-18, "
Power Supply and
Ground Circuit Inspection" .
2. CHECK SELF-DIAGNOSIS OPERATION OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to DI-13, "
SELF-DIAGNOSIS FUNCTION" .
Does self-diagnosis function operate?
YES >> GO TO 3.
NO >> Check combination meter power supply and ground circuit. Refer to DI-18, "
Power Supply and
Ground Circuit Inspection" .
3. CHECK ODOMETER OPERATION
Check segment display status of odometer.
Is the display normal?
YES >> GO TO 4.
NO >> Replace the combination meter. Refer to IP-13, "
COM-
BINATION METER" .
4. CHECK COMBINATION METER CIRCUIT
Check indication of each meter/gauge in self-diagnosis mode.
OK or NG
OK >> Go to DI-19, "Symptom Chart" .
NG >> Replace the combination meter. Refer to IP-13, "
COM-
BINATION METER" .
WKIA1531E
WKIA1814E

COMBINATION METERSDI-19
C
DE
F
G H
I
J
L
M A
B
DI
Revision: November 2009 2006 QX56
Symptom ChartEKS00BC4

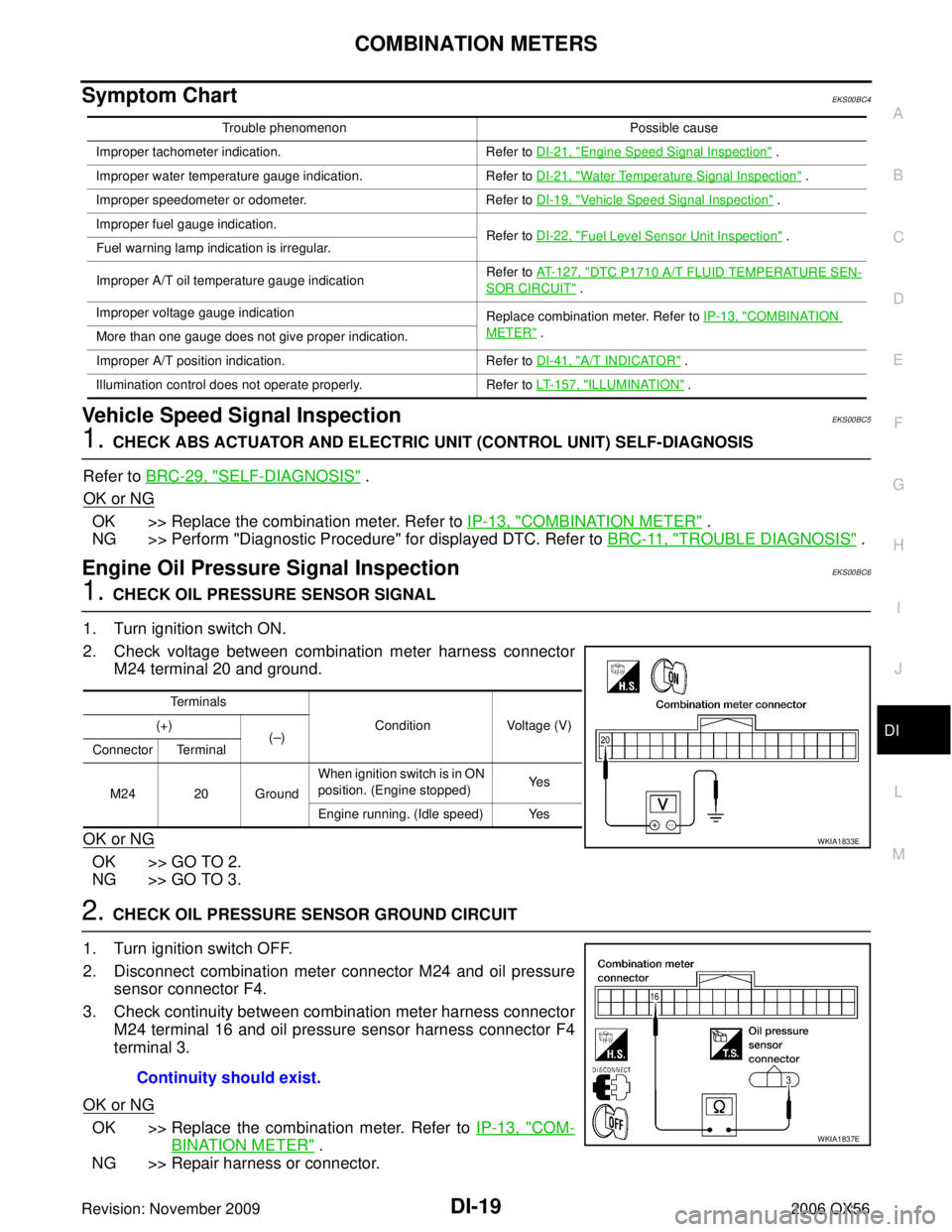

Vehicle Speed Signal InspectionEKS00BC5
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS
Refer to BRC-29, "
SELF-DIAGNOSIS" .
OK or NG
OK >> Replace the combination meter. Refer to IP-13, "COMBINATION METER" .
NG >> Perform "Diagnostic Procedure" for displayed DTC. Refer to BRC-11, "
TROUBLE DIAGNOSIS" .
Engine Oil Pressure Signal Inspection EKS00BC6
1. CHECK OIL PRESSURE SENSOR SIGNAL
1. Turn ignition switch ON.
2. Check voltage between combination meter harness connector M24 terminal 20 and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK OIL PRESSURE SENSOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector M24 and oil pressure sensor connector F4.
3. Check continuity between combination meter harness connector M24 terminal 16 and oil pressure sensor harness connector F4
terminal 3.
OK or NG
OK >> Replace the combination meter. Refer to IP-13, "COM-
BINATION METER" .
NG >> Repair harness or connector.
Trouble phenomenon Possible cause
Improper tachometer indication. Refer to DI-21, "
Engine Speed Signal Inspection" .
Improper water temperature gauge indication. Refer to DI-21, "
Water Temperature Signal Inspection" .
Improper speedometer or odometer. Refer to DI-19, "
Vehicle Speed Signal Inspection" .
Improper fuel gauge indication. Refer to DI-22, "
Fuel Level Sensor Unit Inspection" .
Fuel warning lamp indication is irregular.
Improper A/T oil temperature gauge indication Refer to
AT-127, "
DTC P1710 A/T FLUID TEMPERATURE SEN-
SOR CIRCUIT" .
Improper voltage gauge indication Replace combination meter. Refer to IP-13, "
COMBINATION
METER" .
More than one gauge does not give proper indication.
Improper A/T position indication. Refer to DI-41, "
A/T INDICATOR" .
Illumination control does not operate properly. Refer to LT-157, "
ILLUMINATION" .
Terminals
Condition Voltage (V)
(+)
(– )
Connector Terminal
M24 20 Ground When ignition switch is in ON
position. (Engine stopped)
Ye s
Engine running. (Idle speed) Yes
WKIA1833E
Continuity should exist.
WKIA1837E
