Page 2369 of 3383

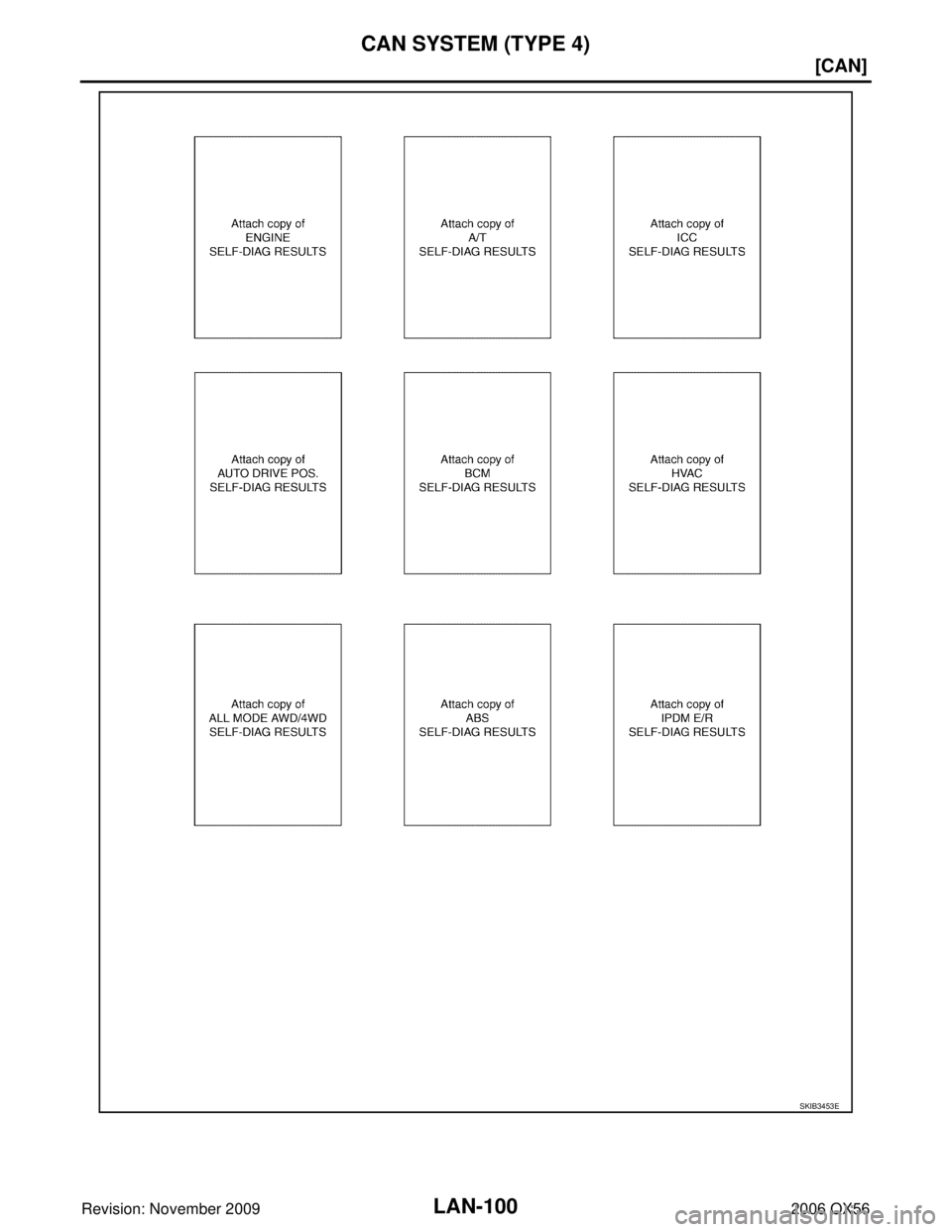

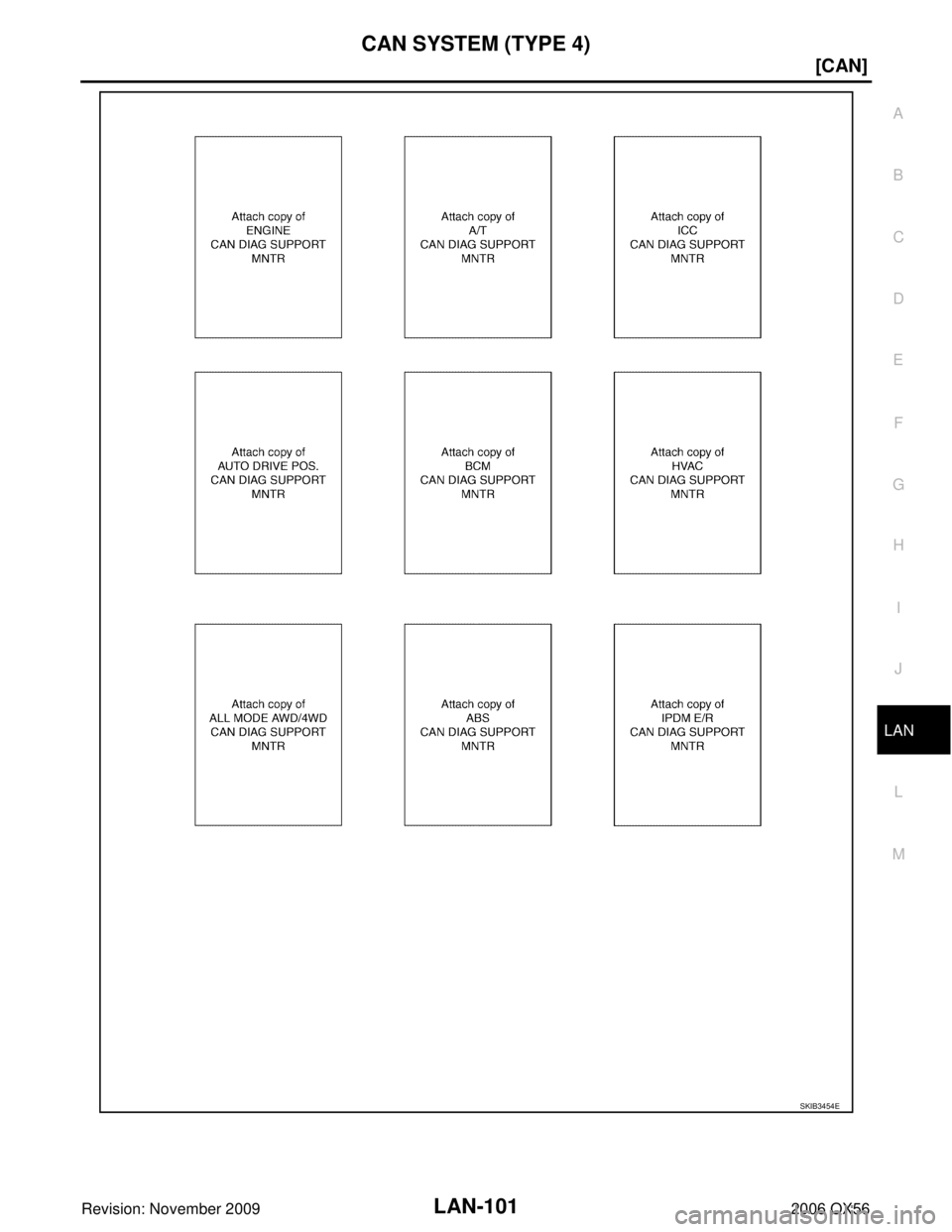

INFINITI QX56 2006 Factory Service Manual LAN-100 [CAN] CAN SYSTEM (TYPE 4) Revision: November 20092006 QX56 SKIB3453E

Page 2370 of 3383

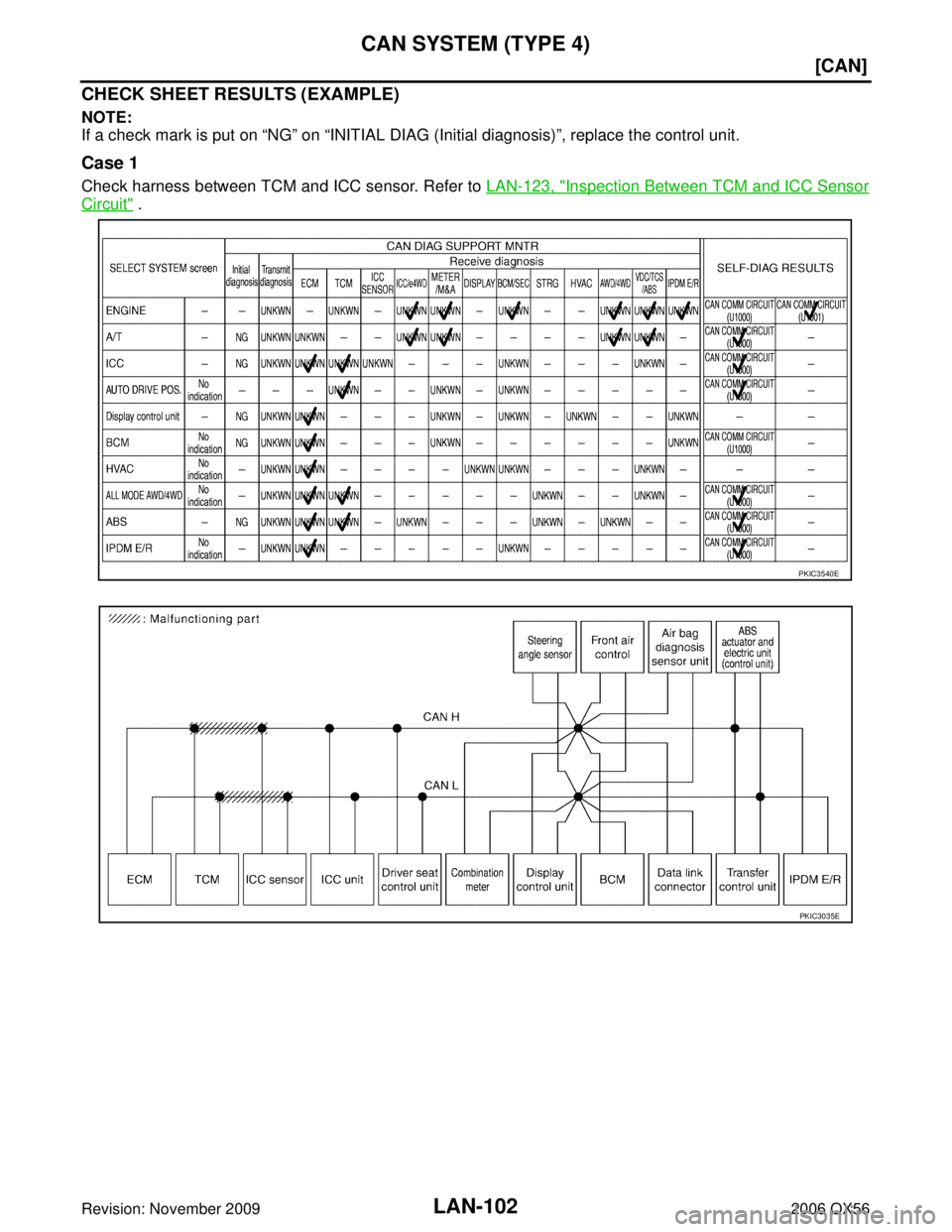

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 4)LAN-101 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 SKIB3454E

Page 2371 of 3383

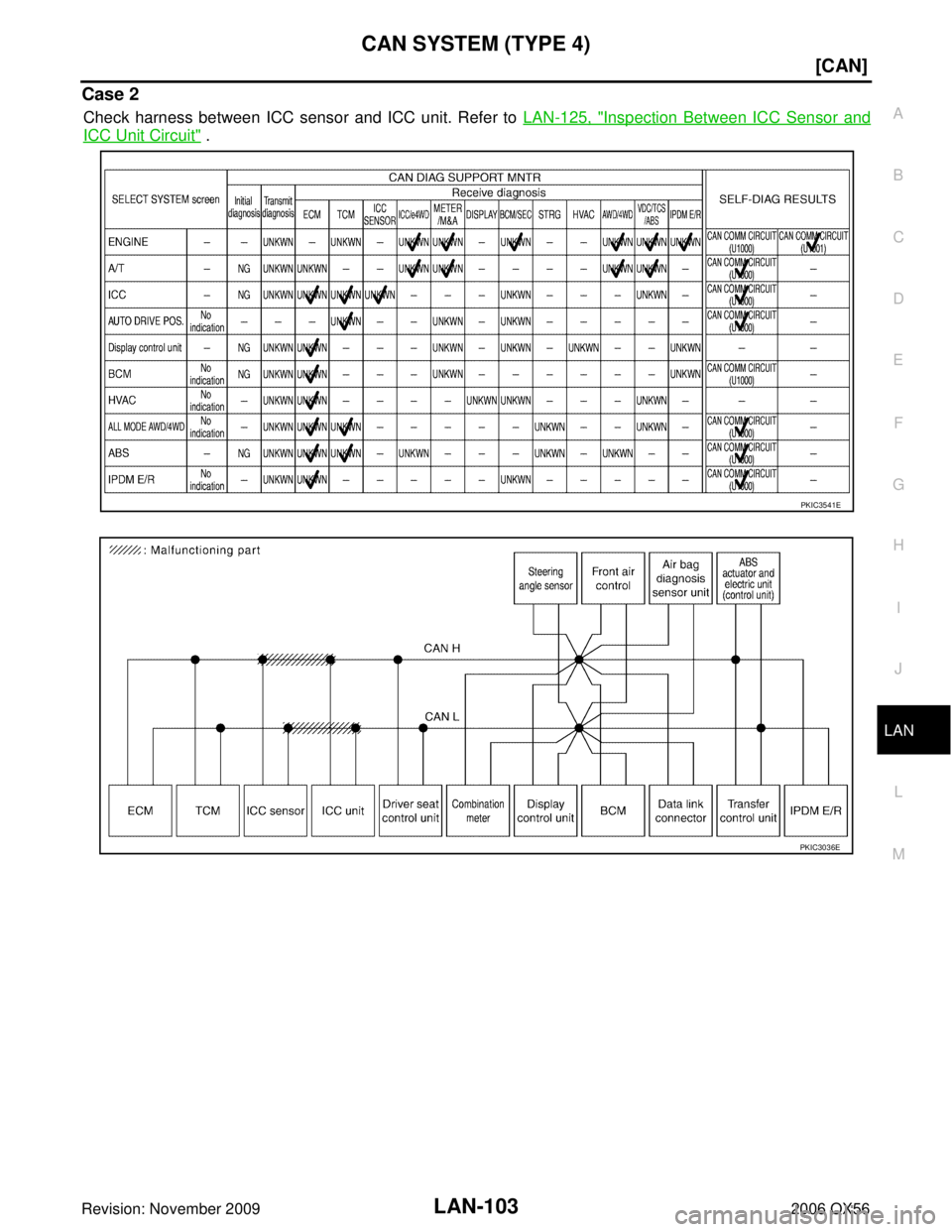

INFINITI QX56 2006 Factory Service Manual LAN-102 [CAN] CAN SYSTEM (TYPE 4) Revision: November 20092006 QX56 CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis) ”, replace the contr

Page 2372 of 3383

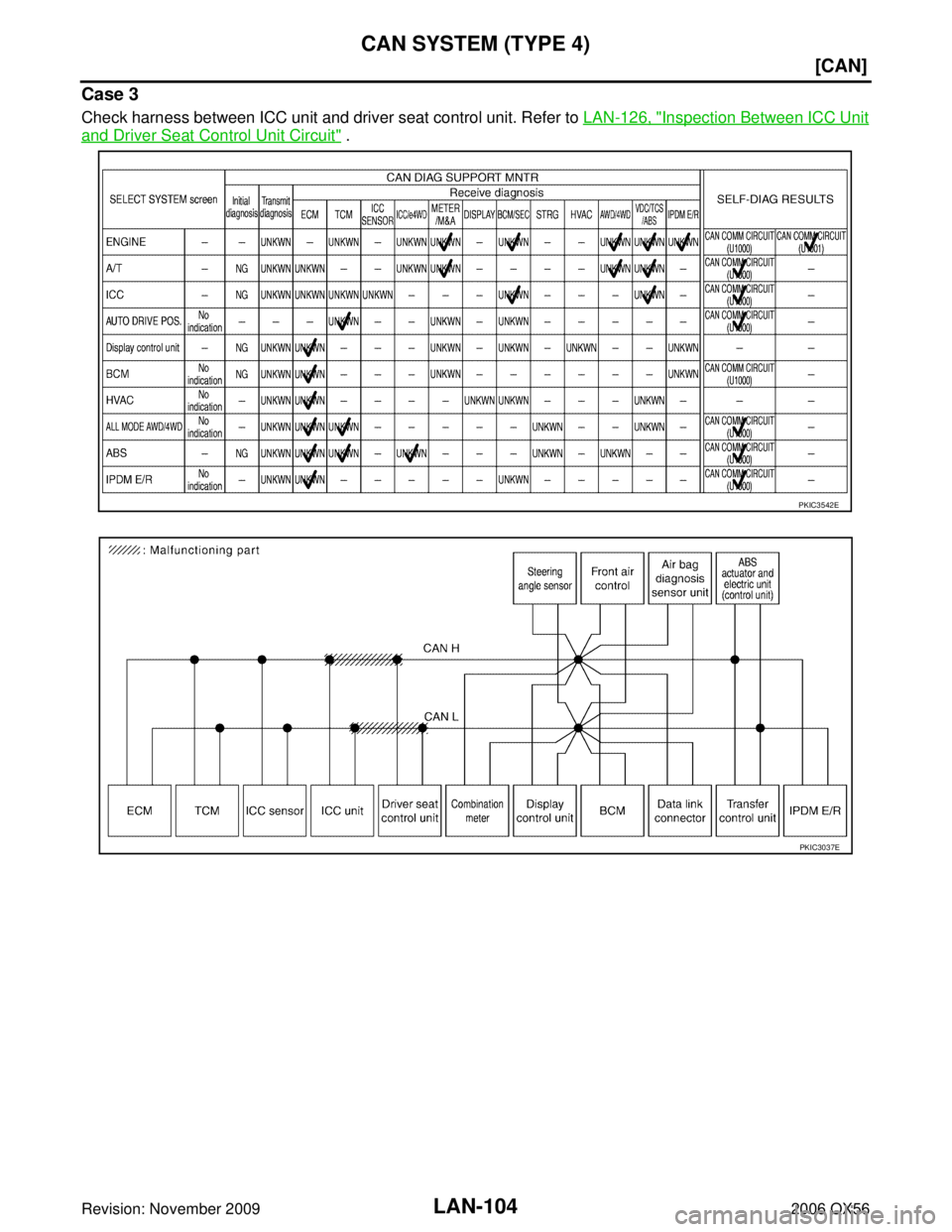

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 4)LAN-103 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 2 Check harness between ICC sensor and ICC unit. Refer to LAN-125, "Inspection Between ICC Sensor and

Page 2373 of 3383

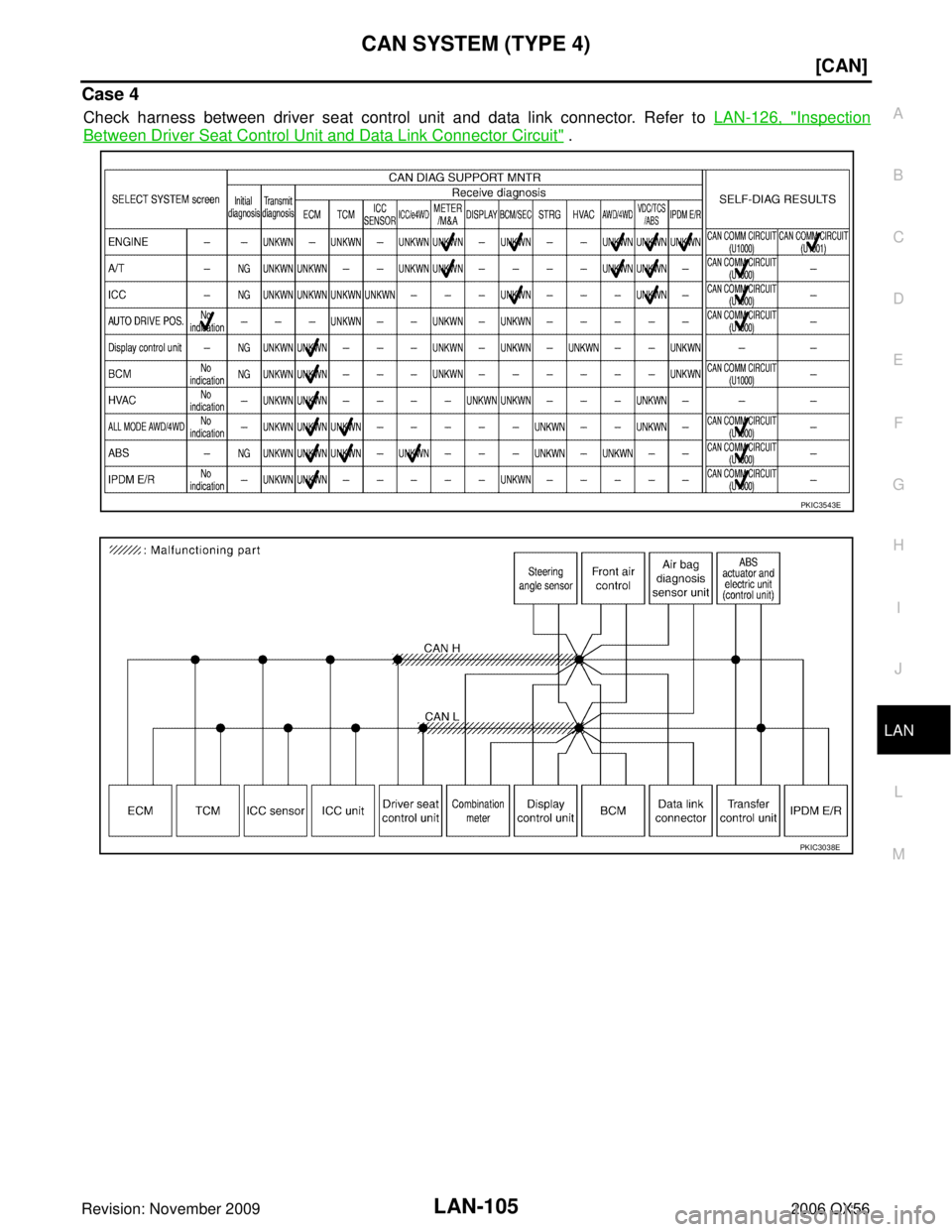

INFINITI QX56 2006 Factory Service Manual LAN-104 [CAN] CAN SYSTEM (TYPE 4) Revision: November 20092006 QX56 Case 3 Check harness between ICC unit and driver seat control unit. Refer to LAN-126, "Inspection Between ICC Unit and Driver Seat Co

Page 2374 of 3383

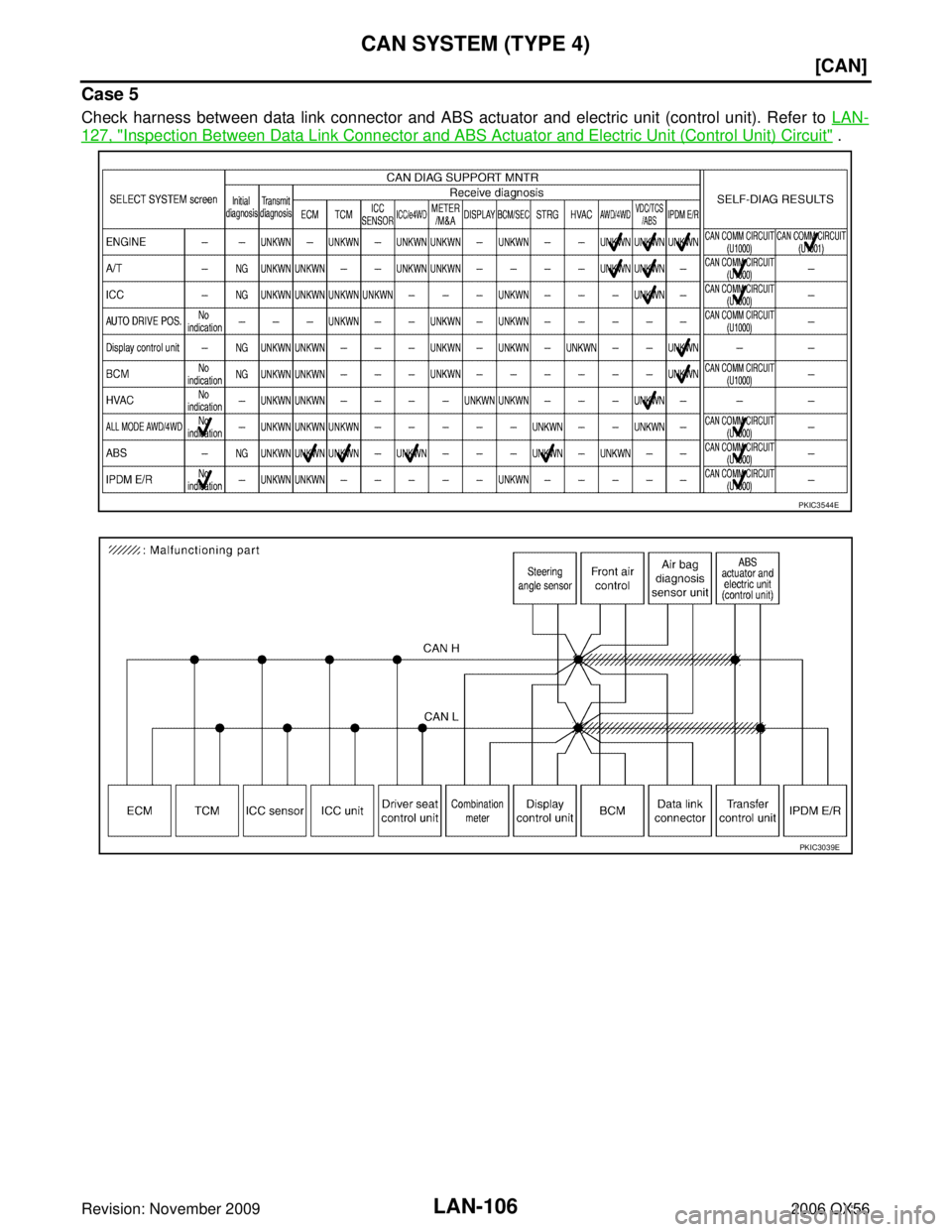

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 4)LAN-105 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 4 Check harness between driver seat control unit and data link connector. Refer to LAN-126, "Inspecti

Page 2375 of 3383

INFINITI QX56 2006 Factory Service Manual LAN-106 [CAN] CAN SYSTEM (TYPE 4) Revision: November 20092006 QX56 Case 5 Check harness between data link connector and ABS actuator and electric unit (control unit). Refer to LAN- 127, "Inspection B

Page 2376 of 3383

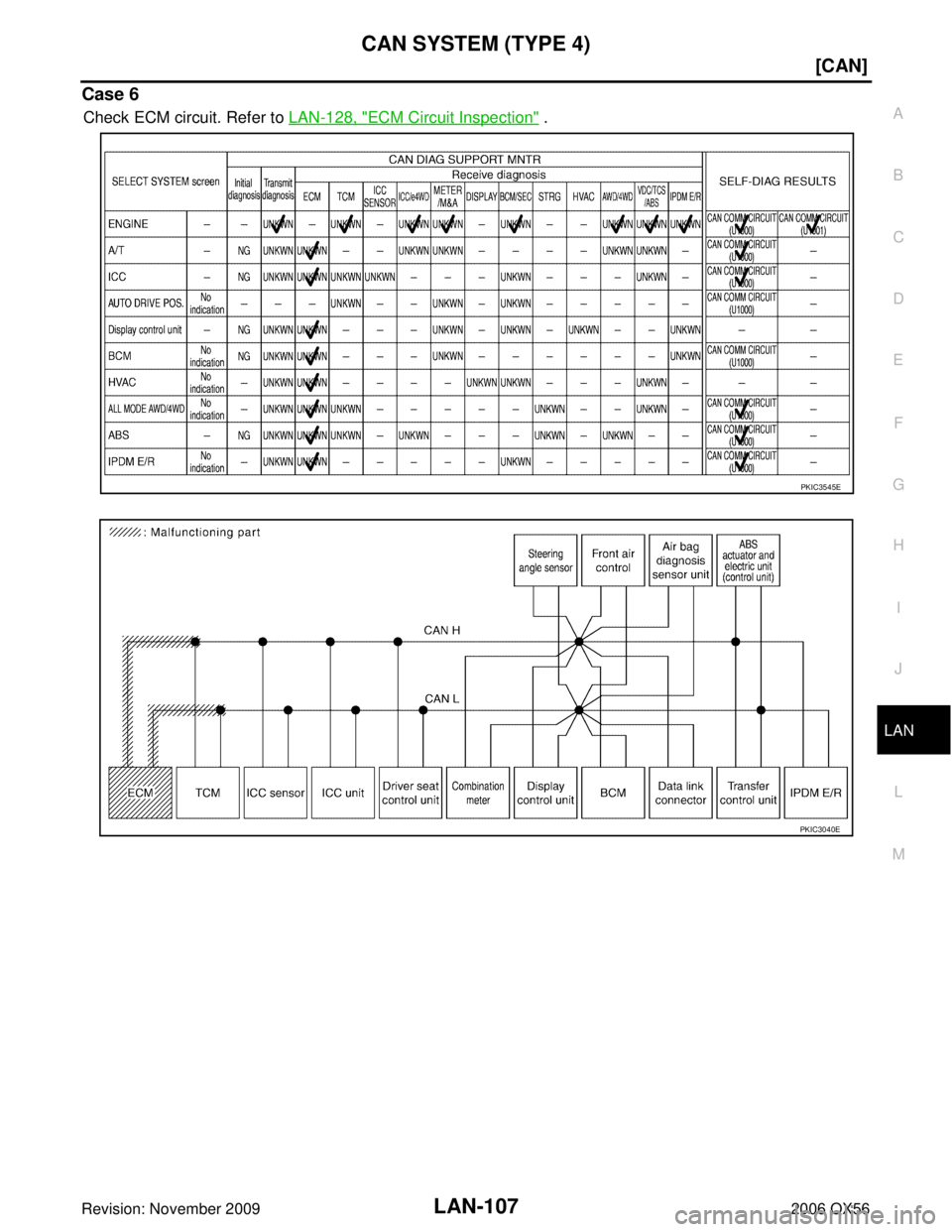

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 4)LAN-107 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 6 Check ECM circuit. Refer to LAN-128, "ECM Circuit Inspection" . PKIC3545E PKIC3040E
