Page 2185 of 3383

INFINITI QX56 2006 Factory Service Manual GW-40 POWER WINDOW SYSTEM Revision: November 20092006 QX56 4. CHECK BCM OUTPUT SIGNAL 1. Connect BCM. 2. Turn ignition switch ON. 3. Check voltage between BCM connector M20 terminal 69 and ground. OK

Page 2186 of 3383

INFINITI QX56 2006 Factory Service Manual POWER WINDOW SYSTEMGW-41 C DE F G H J K L M A B GW Revision: November 2009 2006 QX56 Front Power Window Motor RH Circuit CheckEIS005Y2 1. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNA

Page 2187 of 3383

INFINITI QX56 2006 Factory Service Manual GW-42 POWER WINDOW SYSTEM Revision: November 20092006 QX56 2. CHECK FRONT POWER WINDOW MOTOR LH LIMIT SIGNAL 1. Turn ignition switch OFF. 2. Disconnect front power window motor LH. 3. Turn ignition sw

Page 2188 of 3383

INFINITI QX56 2006 Factory Service Manual POWER WINDOW SYSTEMGW-43 C DE F G H J K L M A B GW Revision: November 2009 2006 QX56 Limit Switch Circuit Check Front RHEIS005Y4 1. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH LIMIT SIGNAL 1. Tu

Page 2189 of 3383

INFINITI QX56 2006 Factory Service Manual GW-44 POWER WINDOW SYSTEM Revision: November 20092006 QX56 4. CHECK HARNESS CONTINUITY 1. Disconnect power window and door lock/unlock switch RH. 2. Check continuity between front power window motor R

Page 2190 of 3383

INFINITI QX56 2006 Factory Service Manual POWER WINDOW SYSTEMGW-45 C DE F G H J K L M A B GW Revision: November 2009 2006 QX56 3. CHECK ENCODER GROUND 1. Turn ignition switch OFF. 2. Check continuity between front power window motor LH connec

Page 2191 of 3383

INFINITI QX56 2006 Factory Service Manual GW-46 POWER WINDOW SYSTEM Revision: November 20092006 QX56 6. CHECK ENCODER CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect front power window motor LH and main power win- dow and door lock/unlock

Page 2192 of 3383

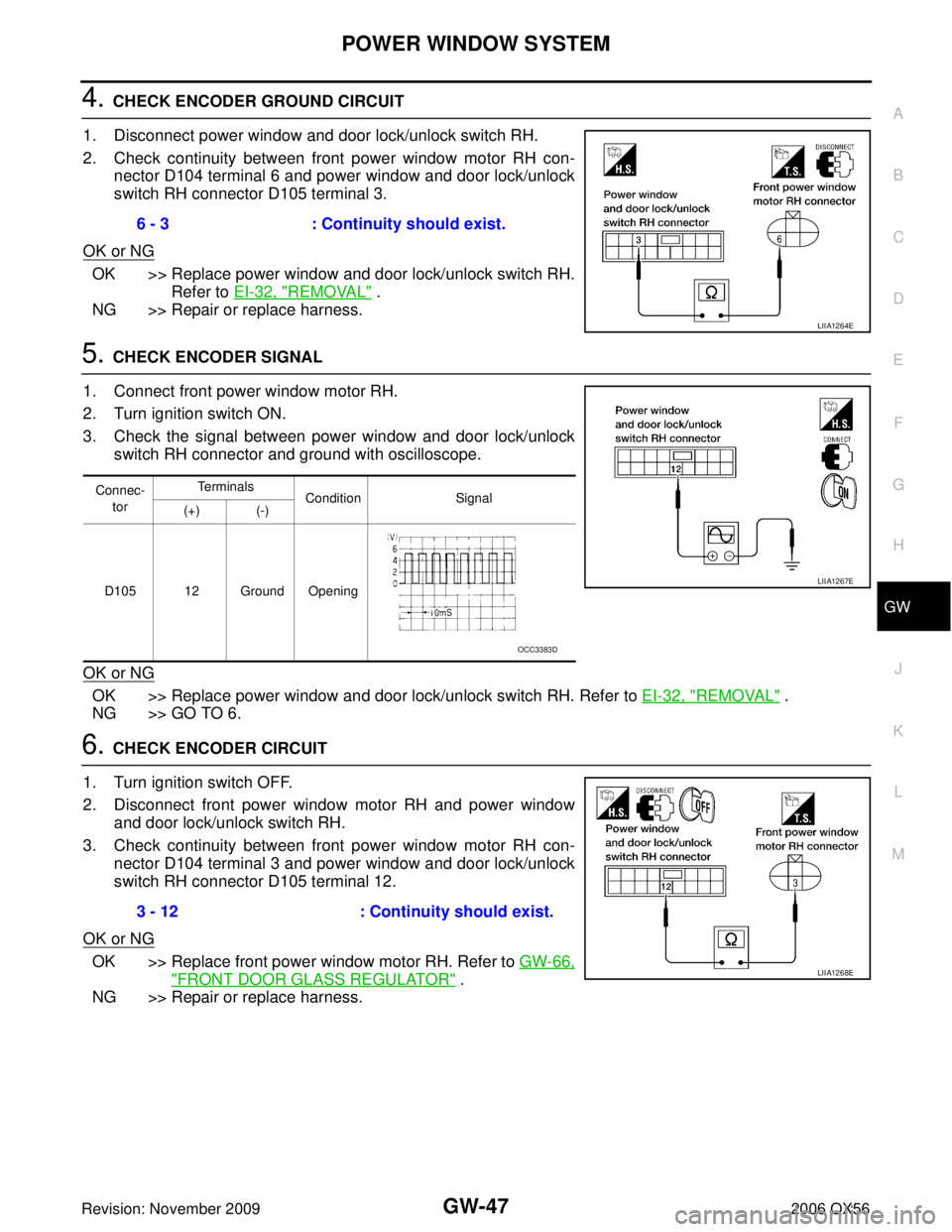

INFINITI QX56 2006 Factory Service Manual POWER WINDOW SYSTEMGW-47 C DE F G H J K L M A B GW Revision: November 2009 2006 QX56 4. CHECK ENCODER GROUND CIRCUIT 1. Disconnect power window and door lock/unlock switch RH. 2. Check continuity betw
