INFINITI QX56 2006 Factory Service Manual EC-126Revision: November 2009
TROUBLE DIAGNOSIS
2006 QX56
Operation
1.“AUTO TRIG ”
While trying to detect the DTC/1st trip DTC by performing the DTC Confirmation Procedure, be sure to
select to �

Page 1338 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISEC-127
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Generic Scan Tool (GST) FunctionUBS00L0C
DESCRIPTION
Generic Scan Tool (OBDII scan tool) complying with SAE J1978 ha

TROUBLE DIAGNOSISEC-127
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Generic Scan Tool (GST) FunctionUBS00L0C
DESCRIPTION
Generic Scan Tool (OBDII scan tool) complying with SAE J1978 has
8 different functions explained below.
ISO9141 is used as the protocol.
The name GST or Generic Scan Tool is used in this service manual.
FUNCTION
SEF139P
Diagnostic test modeFunction
Service $01 READINESS TESTS This diagnostic service gains access to current emission-related data values, including
analog inputs and outputs, digital inputs and outputs, and system status information.
Service $02 (FREEZE DATA) This diagnostic service gains access to emission-related data value which were stored by
ECM during the freeze frame. For details, refer to
EC-53, "
FREEZE FRAME DATA AND
1ST TRIP FREEZE FRAME DATA" .
Service $03 DTCs This diagnostic service gains access to emission-related power train trouble codes which
were stored by ECM.
Service $04 CLEAR DIAG INFO This diagnostic service can clear all emission-related diagnostic information. This
includes:
Clear number of diagnostic trouble codes (Service $01)
Clear diagnostic trouble codes (Service $03)
Clear trouble code for freeze frame data (Service $01)
Clear freeze frame data (Service $02)
Reset status of system monitoring test (Service $01)
Clear on board monitoring test results (Service $06 and $07)
Service $06 (ON BOARD TESTS) This diagnostic service accesses the results of on board diagnostic monitoring tests of
specific components/systems that are not continuously monitored.
Service $07 (ON BOARD TESTS) This diagnostic service enables the off board test drive to obtain test results for emission-
related powertrain components/systems that are continuously monitored during normal
driving conditions.
Service $08 —This diagnostic service can close EVAP system in ignition switch ON position (Engine
stopped). When this diagnostic service is performed, the EVAP canister vent control
valve can be closed.
In the following conditions, this diagnostic service cannot function.
Low ambient temperature
Low battery voltage
Engine running
Ignition switch OFF
Low fuel temperature
Too much pressure is applied to EVAP system
Service $09 (CALIBRATION ID) This diagnostic service enables the off-board test device to request specific vehicle infor-
mation such as Vehicle Identification Number (VIN) and Calibration IDs.

Page 1339 of 3383

INFINITI QX56 2006 Factory Service Manual EC-128Revision: November 2009
TROUBLE DIAGNOSIS
2006 QX56
INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect GST to data link connector, which is located under LHdash panel near the hood ope

Page 1340 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISEC-129
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
CONSULT-II Reference Value in Data MonitorUBS00L0D
Remarks:
Specification data are reference values.
Specificat

TROUBLE DIAGNOSISEC-129
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
CONSULT-II Reference Value in Data MonitorUBS00L0D
Remarks:
Specification data are reference values.
Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification da ta in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare CONSULT-II value with the tachometer indica-
tion. Almost the same speed as the
tachometer indication.
MAS A/F SE-B1 See EC-134, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-134, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1
A/F ALPHA-B2 See
EC-134, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S
Engine: After warming up More than 70°C (158 °F)
A/F SEN1 (B1)
A/F SEN1 (B2)
Engine: After warming up Maintaining engine speed at 2,000
rpm Fluctuates around 1.5 V
HO2S2 (B1)
HO2S2 (B2)
Revving engine from idle to 3,000 rpm quickly after the following condi-
tions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load 0 - 0.3V
←→ Approx. 0.6 -
1.0V
HO2S2 MNTR (B1)
HO2S2 MNTR (B2)
Revving engine from idle to 3,000 rpm quickly after the following condi-
tions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load LEAN
←→ RICH
VHCL SPEED SE
Turn drive wheels and compare CONSULT-II value with the speedometer
indication. Almost the same speed as the
speedometer indication
BATTERY VOLT
Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN 1
Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.2 - 4.8V
ACCEL SEN 2*
Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.2 - 4.8V
THRTL SEN 1
THRTL SEN 2*
Ignition switch: ON
(Engine stopped)
Selector lever: D Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
EVAP SYS PRES
Ignition switch: ON Approx. 1.8 - 4.8V
START SIGNAL
Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS
Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG
Engine: After warming up, idle
the engine Air conditioner switch: OFF
OFF
Air conditioner switch: ON
(Compressor operates.) ON
P/N POSI SW
Ignition switch: ON Selector lever: P or N
ON
Selector lever: Except above OFF
PW/ST SIGNAL
Engine: After warming up, idle
the engine Steering wheel: Not being turned
(Forward direction)
OFF
Steering wheel: Being turned ON

Page 1341 of 3383

INFINITI QX56 2006 Factory Service Manual EC-130Revision: November 2009
TROUBLE DIAGNOSIS
2006 QX56
LOAD SIGNALIgnition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2nd.
ON
Rear window defogger switch is OFF
and

EC-130Revision: November 2009
TROUBLE DIAGNOSIS
2006 QX56
LOAD SIGNALIgnition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2nd.
ON
Rear window defogger switch is OFF
and lighting switch is OFF. OFF
IGNITION SW
Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW
Engine: After warming up, idle
the engine Heater fan control switch: ON
ON
Heater fan control switch: OFF OFF
BRAKE SW
Ignition switch: ON Brake pedal: Fully released
OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
INJ PULSE-B2
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle
2.0 - 2.8 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle
10° - 20 ° BTDC
2,000 rpm 25° - 45 ° BTDC
CAL/LD VALUE
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle
14% - 33%
2,500 rpm 12% - 25%
MASS AIRFLOW
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle
3.0 - 9.0 g·m/s
2,500 rpm 9.0 - 28.0 g·m/s
PURG VOL C/V
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle
(Accelerator pedal: Not depressed
even slightly, after engine starting.)
0%
2,000 rpm —
AIR COND RLY
Engine: After warming up, idle
the engine Air conditioner switch: OFF
OFF
Air conditioner switch: ON
(Compressor: Operates) ON
FUEL PUMP RLY
For 1 second after turning ignition switch ON
Engine running or cranking ON
Except above conditions
OFF
VENT CONT/V
Ignition switch: ON OFF
THRTL RELAY
Ignition switch: ON ON
COOLING FAN
Engine: After warming up, idle
the engine
Air conditioner switch: OFF Engine coolant temperature: 99
°C
(210 °F) or less OFF
Engine coolant temperature: 100 °C
(212 °F) or more HI
HO2S2 HTR (B1)
HO2S2 HTR (B2)
Engine speed: Below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load ON
Engine speed: Above 3,600 rpm
OFF
I/P PULLY SPD
Vehicle speed: More than 20 km/h (12 MPH) Almost the same speed as the
tachometer indication
MONITOR ITEM CONDITION SPECIFICATION

Page 1342 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISEC-131
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally.

Page 1343 of 3383

INFINITI QX56 2006 Factory Service Manual EC-132Revision: November 2009
TROUBLE DIAGNOSIS
2006 QX56
Major Sensor Reference Graph in Data Monitor ModeUBS00L0E

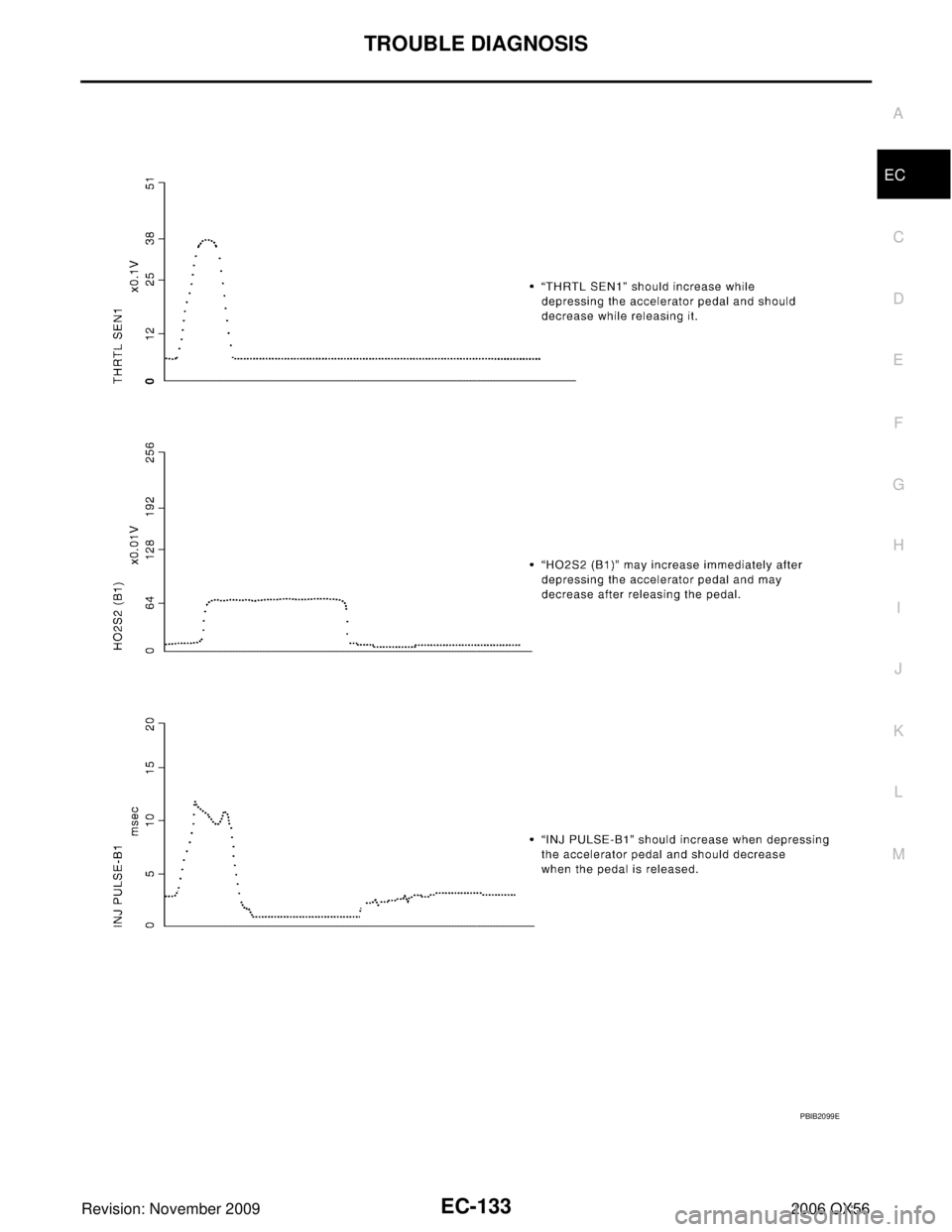

The following are the major sensor reference graphs in “DATA MONITOR” mode.
CLSD

Page 1344 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISEC-133
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
PBIB2099E
