TROUBLE DIAGNOSIS
2006 QX56

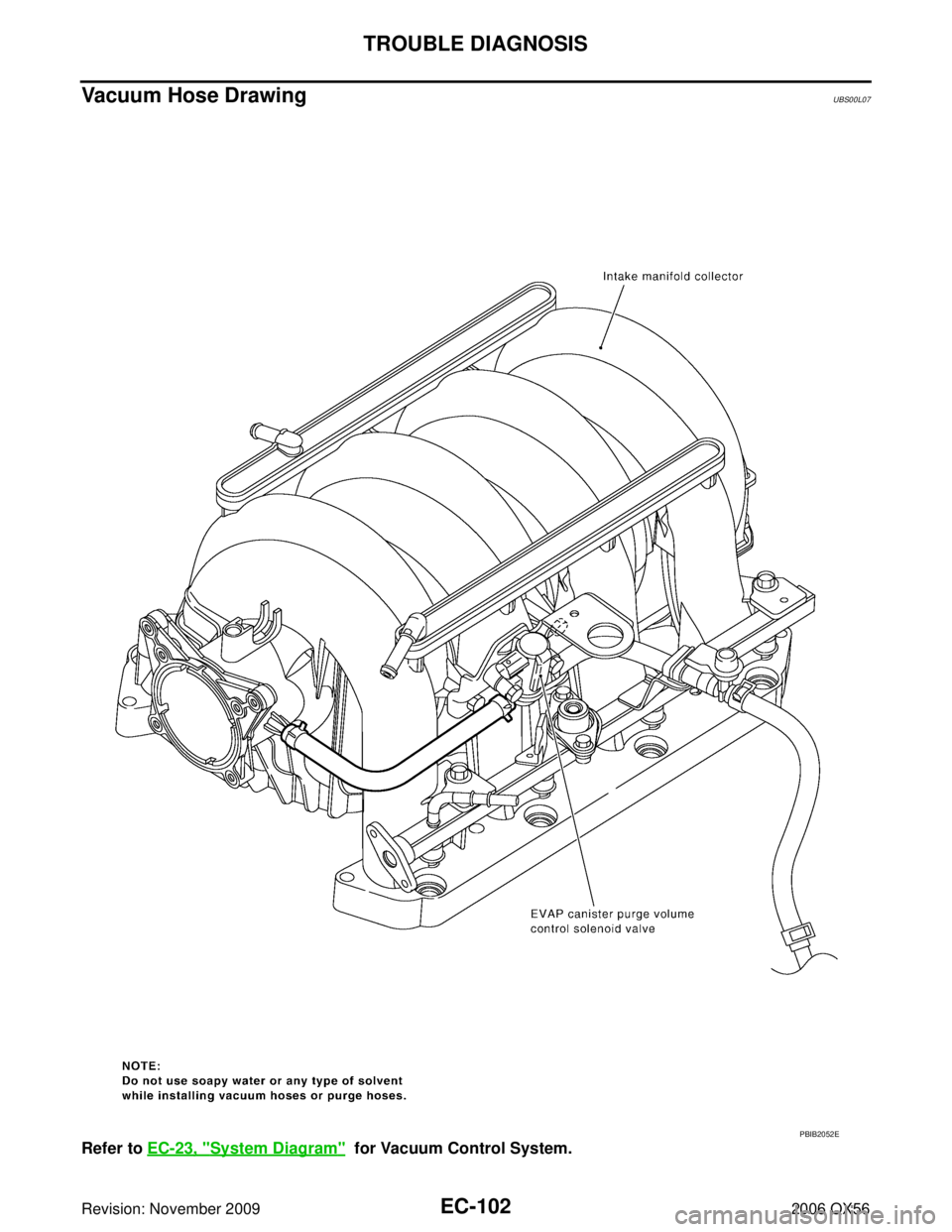

Vacuum Hose DrawingUBS00L07
Refer to EC-23, "System Diagram" for Vacuum Control System.
PBIB2052E
Page 1314 of 3383
TROUBLE DIAGNOSISEC-103
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56

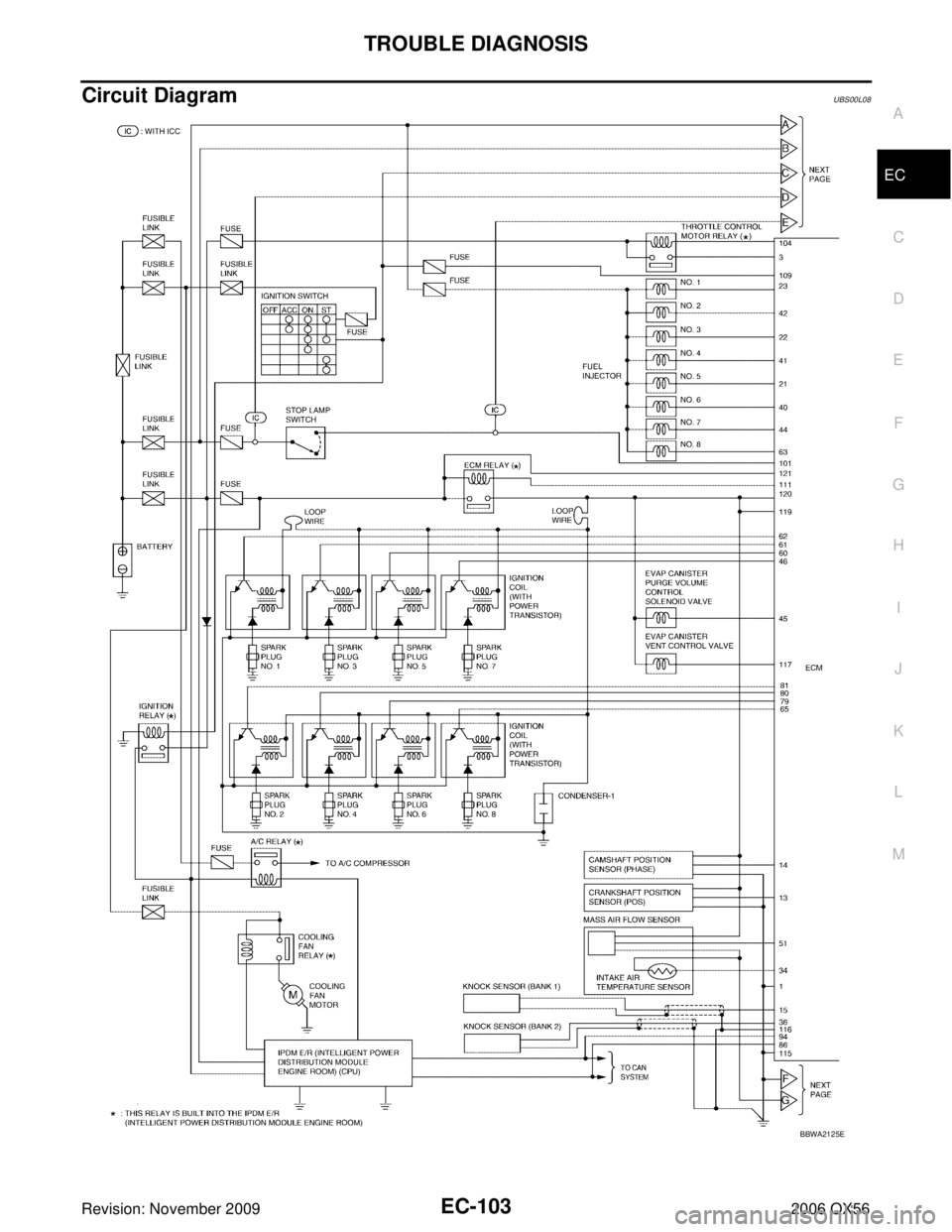

Circuit DiagramUBS00L08
BBWA2125E
Page 1315 of 3383
EC-104Revision: November 2009
TROUBLE DIAGNOSIS
2006 QX56

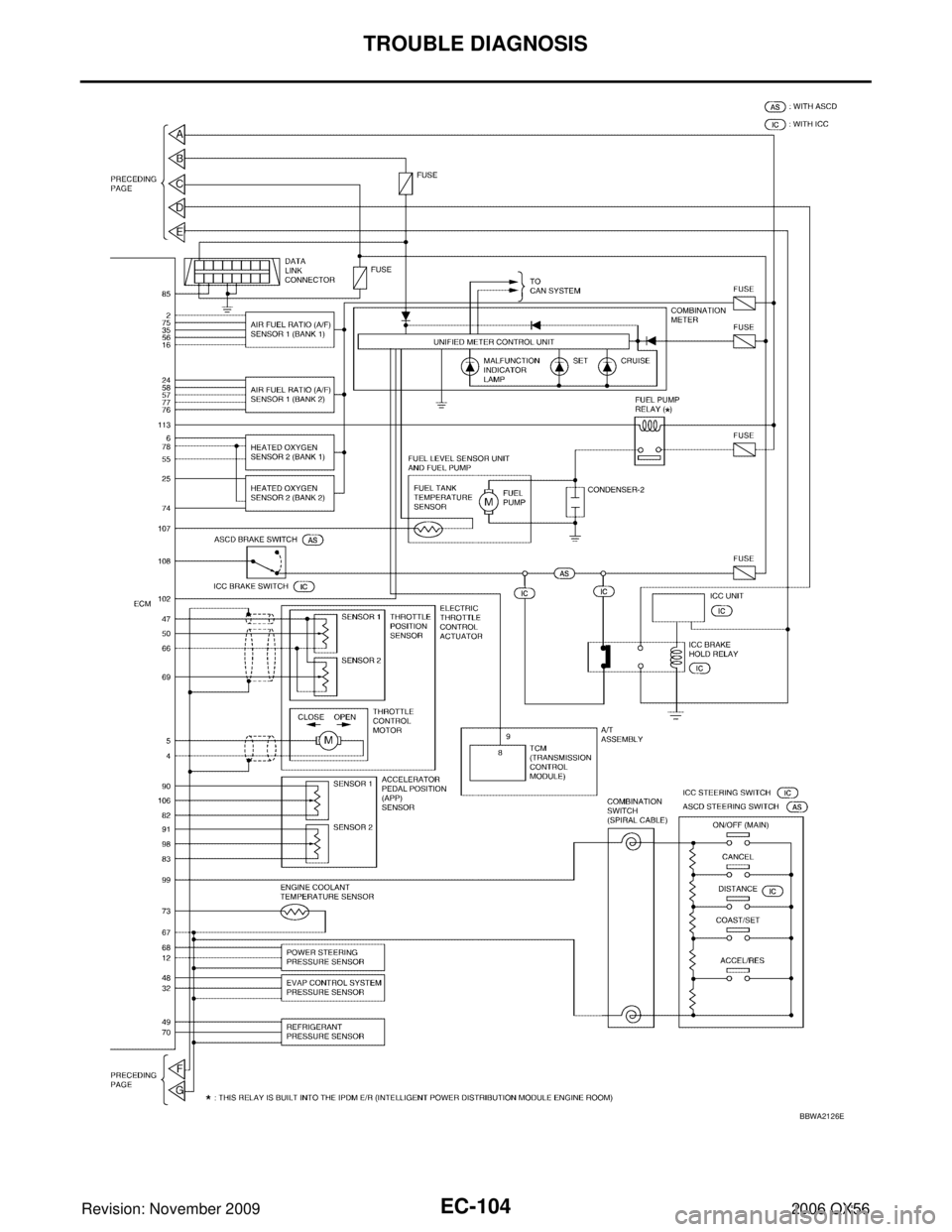

BBWA2126E
Page 1316 of 3383

TROUBLE DIAGNOSISEC-105
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
ECM Harness Connector Terminal LayoutUBS00L09
ECM Terminals and Reference ValueUBS00L0A
PREPARATION
1. ECM is located in the engine room passenger side behind bat-
tery.
2. Remove ECM harness connector.
3. When disconnecting ECM harness connector, loosen it with levers as far as they will go as shown in the figure.
4. Connect a break-out box (SST) and Y-cable adapter (SST) between the ECM and ECM harness connector.
Use extreme care not to touch 2 pins at one time.
Data is for comparison and may not be exact.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
MBIB0045E
BBIA0386E
BBIA0387E
TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
1 B ECM ground [Engine is running]
Idle speedBody ground
2 O/B A/F sensor 1 heater
(bank 1) [Engine is running]
Warm-up condition
Idle speed Approximately 5V
PBIB1584E
Page 1317 of 3383
![INFINITI QX56 2006 Factory Service Manual EC-106Revision: November 2009
TROUBLE DIAGNOSIS
2006 QX56
3LThrottle control motor relay
power supply [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
4 L/W Throttle control motor (Close) [Ignition s INFINITI QX56 2006 Factory Service Manual EC-106Revision: November 2009
TROUBLE DIAGNOSIS
2006 QX56
3LThrottle control motor relay
power supply [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
4 L/W Throttle control motor (Close) [Ignition s](/manual-img/42/57028/w960_57028-1316.png)
EC-106Revision: November 2009
TROUBLE DIAGNOSIS
2006 QX56
3LThrottle control motor relay
power supply [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
4 L/W Throttle control motor (Close) [Ignition switch: ON]
Engine: Stopped
Selector lever: D
Accelerator pedal: Fully released0 - 14V
5 L/B Throttle control motor (Open) [Ignition switch: ON]
Engine: Stopped
Selector lever: D
Accelerator pedal: Fully depressed0 - 14V
6GR Heated oxygen sensor 2
heater (bank 1) [Engine is running]
Engine speed: Below 3,600 rpm after the
following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load
0 - 1.0V
[Ignition switch: ON]
Engine: Stopped
[Engine is running]
Engine speed: Above 3,600 rpm BATTERY VOLTAGE
(11 - 14V)
12 R Power steering pressure sen-
sor [Engine is running]
Steering wheel: Being turned
0.5 - 4.5V
[Engine is running]
Steering wheel: Not being turned 0.4 - 0.8V
13 O Crankshaft position sensor
(POS) [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle Approximately 10V
[Engine is running]
Engine speed: 2,000 rpm Approximately 10V
TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
PBIB1104E
PBIB1105E
PBIB1041E
PBIB1042E
Page 1318 of 3383
![INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISEC-107
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
14 YCamshaft position sensor
(PHASE) [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle chang INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISEC-107
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
14 YCamshaft position sensor
(PHASE) [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle chang](/manual-img/42/57028/w960_57028-1317.png)
TROUBLE DIAGNOSISEC-107
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
14 YCamshaft position sensor
(PHASE) [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle 1.0 - 4.0V
[Engine is running]
Engine speed: 2,000 rpm 1.0 - 4.0V
15 W Knock sensor (bank 1) [Engine is running]
Idle speedApproximately 2.5V
16 BR/R
A/F sensor 1 (bank 1) [Engine is running]
Warm-up condition
Idle speed Approximately 3.1V
35 BR/G Approximately 2.6V
56 LG/B Approximately 2.3V
75 P/B Approximately 2.3V
21
22
23
44 O/L
BR
GR/W
O Fuel injector No. 5
Fuel injector No. 3
Fuel injector No. 1
Fuel injector No. 7 [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed: 2,000 rpm BATTERY VOLTAGE
(11 - 14V)
24 BR/W A/F sensor 1 heater
(bank 2) [Engine is running]
Warm-up condition
Idle speed Approximately 5V
TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
PBIB1039E
PBIB1040E
SEC984C
SEC985C
PBIB1584E
Page 1319 of 3383
![INFINITI QX56 2006 Factory Service Manual EC-108Revision: November 2009
TROUBLE DIAGNOSIS
2006 QX56
25 O/GHeated oxygen sensor 2
heater (bank 2) [Engine is running]
Engine speed: Below 3,600 rpm after the
following conditions are met.
–E INFINITI QX56 2006 Factory Service Manual EC-108Revision: November 2009
TROUBLE DIAGNOSIS
2006 QX56
25 O/GHeated oxygen sensor 2
heater (bank 2) [Engine is running]
Engine speed: Below 3,600 rpm after the
following conditions are met.
–E](/manual-img/42/57028/w960_57028-1318.png)
EC-108Revision: November 2009
TROUBLE DIAGNOSIS
2006 QX56
25 O/GHeated oxygen sensor 2
heater (bank 2) [Engine is running]
Engine speed: Below 3,600 rpm after the
following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load
0 - 1.0V
[Ignition switch: ON]
Engine: Stopped
[Engine is running]
Engine speed: Above 3,600 rpm BATTERY VOLTAGE
(11 - 14V)
32 L EVAP control system pres-
sure sensor [Ignition switch: ON]
Approximately 1.8 - 4.8V
34 R/B Intake air temperature sensor [Engine is running]Approximately 0 - 4.8V
Output voltage varies with intake
air temperature.
36 W Knock sensor (bank 2) [Engine is running]
Idle speedApproximately 2.5V
40
41
42
63 Y/G
P
L
G Fuel injector No. 6
Fuel injector No. 4
Fuel injector No. 2
Fuel injector No. 8 [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed: 2,000 rpm BATTERY VOLTAGE
(11 - 14V)
45 L/Y EVAP canister purge volume
control solenoid valve [Engine is running]
Idle speed
Accelerator pedal: Not depressed even
slightly, after engine starting
BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Engine speed: About 2,000 rpm (More than
100 seconds after starting engine) BATTERY VOLTAGE
(11 - 14V)
TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
SEC984C
SEC985C
SEC990C
SEC991C
Page 1320 of 3383
![INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISEC-109
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX5647 YSensor power supply
(Throttle position sensor) [Ignition switch: ON]
Approximately 5V
48 SB Sensor power supply
( INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISEC-109
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX5647 YSensor power supply
(Throttle position sensor) [Ignition switch: ON]
Approximately 5V
48 SB Sensor power supply
(](/manual-img/42/57028/w960_57028-1319.png)
TROUBLE DIAGNOSISEC-109
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX5647 YSensor power supply
(Throttle position sensor) [Ignition switch: ON]
Approximately 5V
48 SB Sensor power supply
(EVAP control system pres-
sure sensor) [Ignition switch: ON]
Approximately 5V
49 R/Y Sensor power supply
(Refrigerant pressure sensor) [Ignition switch: ON]
Approximately 5V
50 B Throttle position sensor 1 [Ignition switch: ON]
Engine: Stopped
Selector lever: D
Accelerator pedal: Fully released
More than 0.36V
[Ignition switch: ON]
Engine: Stopped
Selector lever: D
Accelerator pedal: Fully depressed Less than 4.75V
51 W Mass air flow sensor [Engine is running]
Warm-up condition
Idle speed
1.0 - 1.3V
[Engine is running]
Warm-up condition
Engine speed: 2,500 rpm 1.7 - 2.1V
55 R Heated oxygen sensor 2
(bank 1) [Engine is running]
Revving engine from idle to 3,000 rpm
quickly after the following conditions are
met.
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load
0 - Approximately 1.0V
57 L/P A/F sensor 1 (bank 2) [Engine is running]
Warm-up condition
Idle speed Approximately 2.6V
58 GR/G Approximately 2.3V
76 G/L Approximately 3.1V
77 BR/B Approximately 2.3V
46
60
61
62 L/R
GR/R
O/W
Y/R Ignition signal No. 7
Ignition signal No. 5
Ignition signal No. 3
Ignition signal No. 1 [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle 0 - 0.3V
[Engine is running]
Warm-up condition
Engine speed: 2,500 rpm 0.1 - 0.6V
TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
SEC986C
SEC987C
