INFINITI QX56 2006 Factory Service Manual SRS-32
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
6. Touch “SELF-DIAG [PAST] ”.
7. If diagnostic codes are displayed on “SELF-DIAG [PAST]”, go to
step 10.
If no malfunction is detecte

Page 3074 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISSRS-33
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56
14. Repair the system as outlined by the “Repair order” in “Intermittent Malfunction Diagnostic Code Chart �

TROUBLE DIAGNOSISSRS-33
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56
14. Repair the system as outlined by the “Repair order” in “Intermittent Malfunction Diagnostic Code Chart ”,
that corresponds to the self-diagnostic result. For replacement procedure of component parts, refer to the
Removal and Installation procedure for the appropriate component.
15. Go to SRS-28, "
DIAGNOSTIC PROCEDURE 3" , for final checking.
CONSULT-II Diagnostic Code Chart ("SELF-DIAG [PAST]" or "TROUBLE DIAG RECORD")
Diagnostic item Explanation Repair order
Recheck SRS at each replacement
NO DTC IS DETECTED When malfunction is
indicated by the “
AIR
BAG ” warning lamp in
User mode.
Low battery voltage (Less than
9V)Go to SRS-28, "DIAGNOSTIC PRO-
CEDURE 3" .
Self-diagnostic result “SELF-DIAG
[PAST] ” (previously stored in the
memory) might not be erased
after repair.
Intermittent malfunction has been
detected in the past.
Go to SRS-31, "DIAGNOSTIC PRO-
CEDURE 4 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 2)" .
Go to SRS-31, "DIAGNOSTIC PRO-
CEDURE 5" .
No malfunction is detected. —
DRIVER AIRBAG MODULE [OPEN]
[B1049] or [B1054]
Driver air bag module circuit is open (including the spiral
cable). 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace driver air bag module.
4. Replace the spiral cable.
5. Replace the air bag diagnosis sen- sor unit.
6. Replace the related harness.
DRIVER AIRBAG MODULE
[VB-SHORT]
[B1050] or [B1055]
Driver air bag module circuit is shorted to some power sup-
ply circuit (including the spiral cable).
DRIVER AIRBAG MODULE [GND-SHORT]
[B1051] or [B1056]
Driver air bag module circuit is shorted to ground (including
the spiral cable).
DRIVER AIRBAG MODULE [SHORT]
[B1052] or [B1057]
Driver air bag module circuits are shorted to each other.
ASSIST A/B MODULE [OPEN]
[B1065] or [B1070]
Front passenger air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace front passenger air bag module.
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.
ASSIST A/B MODULE
[VB-SHORT]
[B1066] or [B1071]
Front passenger air bag module circuit is shorted to some
power supply circuit.
ASSIST A/B MODULE [GND-SHORT]
[B1067] or [B1072]
Front passenger air bag module circuit is shorted to
ground.
ASSIST A/B MODULE [SHORT]
[B1068] or [B1073]
Front passenger air bag module circuits are shorted to
each other.
CRASH ZONE SEN [UNIT FAIL]
[B1033] or [B1034]
CRASH ZONE SEN [COMM FAIL]
[B1035]
Crash zone sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace the crash zone sensor.
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.

Page 3075 of 3383

INFINITI QX56 2006 Factory Service Manual SRS-34
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
SIDE MODULE LH
[OPEN]
[B1134]Front LH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the h

SRS-34
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
SIDE MODULE LH
[OPEN]
[B1134]Front LH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace front LH seat back assem- bly (front LH side air bag module).
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.
SIDE MODULE LH
[VB-SHORT][B1135]
Front LH side air bag module circuit is shorted to some
power supply circuit.
SIDE MODULE LH [GND-SHORT] [B1136]
Front LH side air bag module circuit is shorted to ground.
SIDE MODULE LH [SHORT]
[B1137]
Front LH side air bag module circuits are shorted to each
other.
SIDE MODULE RH [OPEN]
[B1129]
Front RH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace front RH seat back assem- bly (front RH side air bag module).
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.
SIDE MODULE RH
[VB-SHORT][B1130]
Front RH side air bag module circuit is shorted to some
power supply circuit.
SIDE MODULE RH [GND-SHORT] [B1131]
Front RH side air bag module circuit is shorted to ground.
SIDE MODULE RH [SHORT]
[B1132]
Front RH side air bag module circuits are shorted to each
other.
SATELLITE SENS LH [UNIT FAIL]
[B1118] or [B1119]
SATELLITE SENS LH [COMM FAIL][B1120]
LH side air bag (satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace the LH side air bag (satel- lite) sensor.
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.
SATELLITE SENS RH [UNIT FAIL]
[B1113] or [B1114]
SATELLITE SENS RH
[COMM FAIL][B1115]
RH side air bag (satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace the RH side air bag (satel- lite) sensor.
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.
PRE-TEN FRONT LH [OPEN]
[B1086]
The circuit for front LH seat belt pre-tensioner is open. 1. Visually check the wiring harness connections.
2. Replace the harness if it has visible damage.
3. Replace front LH seat belt pre-ten- sioner.
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.
PRE-TEN FRONT LH
[VB-SHORT][B1087]
The circuit for front LH seat belt pre-tensioner is shorted to
some power supply circuit.
PRE-TEN FRONT LH [GND-SHORT] [B1088]
The circuit for front LH seat belt pre-tensioner is shorted to
ground.
PRE-TEN FRONT LH [SHORT]
[B1089]
The circuits for the front LH seat belt pre-tensioner are
shorted to each other.
Diagnostic item
Explanation Repair order
Recheck SRS at each replacement

Page 3076 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISSRS-35
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56
PRE-TEN FRONT RH
[OPEN]
[B1081]The circuit for front RH seat belt pre-tensioner is open. 1. Visually check the wir

TROUBLE DIAGNOSISSRS-35
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56
PRE-TEN FRONT RH
[OPEN]
[B1081]The circuit for front RH seat belt pre-tensioner is open. 1. Visually check the wiring harness connections.
2. Replace the harness if it has visible damage.
3. Replace front RH seat belt pre-ten- sioner.
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.
PRE-TEN FRONT RH
[VB-SHORT][B1082]
The circuit for front RH seat belt pre-tensioner is shorted to
some power supply circuit.
PRE-TEN FRONT RH [GND-SHORT][B1083]
The circuit for front RH seat belt pre-tensioner is shorted to
ground.
PRE-TEN FRONT RH [SHORT]
[B1084]
The circuits for the front RH seat belt pre-tensioner are
shorted to each other.
PRE-TEN2 FRONT LH [OPEN][B1182]
The circuit for front LH seat belt buckle pre-tensioner is
open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible damage.
3. Replace front LH seat belt buckle pre-tensioner.
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.
PRE-TEN2 FRONT LH
[VB-SHORT][B1183]
The circuit for front LH seat belt buckle pre-tensioner is
shorted to some power supply circuit.
PRE-TEN2 FRONT LH [GND-SHORT][B1184]
The circuit for front LH seat belt buckle pre-tensioner is
shorted to ground.
PRE-TEN2 FRONT LH [SHORT]
[B1185]
The circuits for the front LH seat belt buckle pre-tensioner
are shorted to each other.
PRE-TEN2 FRONT RH [OPEN][B1177]
The circuit for front RH seat belt buckle pre-tensioner is
open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible damage.
3. Replace front RH seat belt buckle pre-tensioner.
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.
PRE-TEN2 FRONT RH
[VB-SHORT][B1178]
The circuit for front RH seat belt buckle pre-tensioner is
shorted to some power supply circuit.
PRE-TEN2 FRONT RH [GND-SHORT]
[B1179]
The circuit for front RH seat belt buckle pre-tensioner is
shorted to ground.
PRE-TEN2 FRONT RH [SHORT][B1180]
The circuits for the front RH seat belt buckle pre-tensioner
are shorted to each other.
FR CURTN MODULE LH [OPEN][B1198]
The LH side front curtain air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace LH side curtain air bag module.
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.
FR CURTN MODULE LH
[VB-SHORT]
[B1199]
The LH side front curtain air bag module circuit is shorted
to some power supply circuits.
FR CURTN MODULE LH [GND-SHORT][B1200]
The LH side front curtain air bag module circuit is shorted
to ground.
FR CURTN MODULE LH [SHORT][B1201]
The circuits for the LH side front curtain air bag module are
shorted to each other.
Diagnostic item
Explanation Repair order
Recheck SRS at each replacement

Page 3077 of 3383

INFINITI QX56 2006 Factory Service Manual SRS-36
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
FR CURTN MODULE RH
[OPEN]
[B1193]The RH side front curtain air bag module circuit is open. 1. Visually check the wiring harness connection.

SRS-36
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
FR CURTN MODULE RH
[OPEN]
[B1193]The RH side front curtain air bag module circuit is open. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace RH side curtain air bag module.
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.
FR CURTN MODULE RH
[VB-SHORT][B1194]
The RH side front curtain air bag module circuit is shorted
to some power supply circuits.
FR CURTN MODULE RH [GND-SHORT][B1195]
The RH side front curtain air bag module circuit is shorted
to ground.
FR CURTN MODULE RH [SHORT]
[B1196]
The circuits for the RH side front curtain air bag module are
shorted to each other.
CURTAIN MODULE LH [OPEN]
[B1150]
The LH side rear curtain air bag module circuit is open. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace LH side curtain air bag module.
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.
CURTAIN MODULE LH
[VB-SHORT][B1151]
The LH side rear curtain air bag module circuit is shorted to
some power supply circuits.
CURTAIN MODULE LH [GND-SHORT][B1152]
The LH side rear curtain air bag module circuit is shorted to
ground.
CURTAIN MODULE LH [SHORT]
[B1153]
The circuits for the LH side rear curtain air bag module are
shorted to each other.
CURTAIN MODULE RH [OPEN]
[B1145]
The RH side rear curtain air bag module circuit is open. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace RH side curtain air bag module.
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.
CURTAIN MODULE RH
[VB-SHORT][B1146]
The RH side rear curtain air bag module circuit is shorted
to some power supply circuits.
CURTAIN MODULE RH [GND-SHORT]
[B1147]
The RH side rear curtain air bag module circuit is shorted
to ground.
CURTAIN MODULE RH [SHORT][B1148]
The circuits for the RH side rear curtain air bag module are
shorted to each other.
CONTROL UNIT [B1XXX]
Air bag diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness
connection.
2. Replace the air bag diagnosis sen- sor unit.
OCCUPANT SENS C/U [UNIT FAIL]
[B1017] or [B1021]
The OCS control unit is malfunctioning. 1. Replace RH front seat cushion/
occupant classification system con-
trol unit assembly.
OCCUPANT SENS C/U [UNIT FAIL] [B1020]
The OCS control unit is malfunctioning. 1. Replace the harness if it has visible
damage.
2. Replace the RH front seat cushion assembly. Do not disassemble the
seat cushion assembly.
3. Replace the RH front seat belt assembly.
Diagnostic item
Explanation Repair order
Recheck SRS at each replacement

Page 3078 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISSRS-37
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56
OCCUPANT SENS C/U
[COMM FAIL][B1022]
Communication between the OCS control unit and air bag
diagnosis sensor unit

Page 3079 of 3383

INFINITI QX56 2006 Factory Service Manual SRS-38
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
Trouble Diagnosis Without CONSULT-IIEHS001MZ
DIAGNOSTIC PROCEDURE 6
Inspect SRS Malfunction Using "AIR BAG" Warning Lamp—Diagnosis Mode
NOTE

Page 3080 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISSRS-39
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56

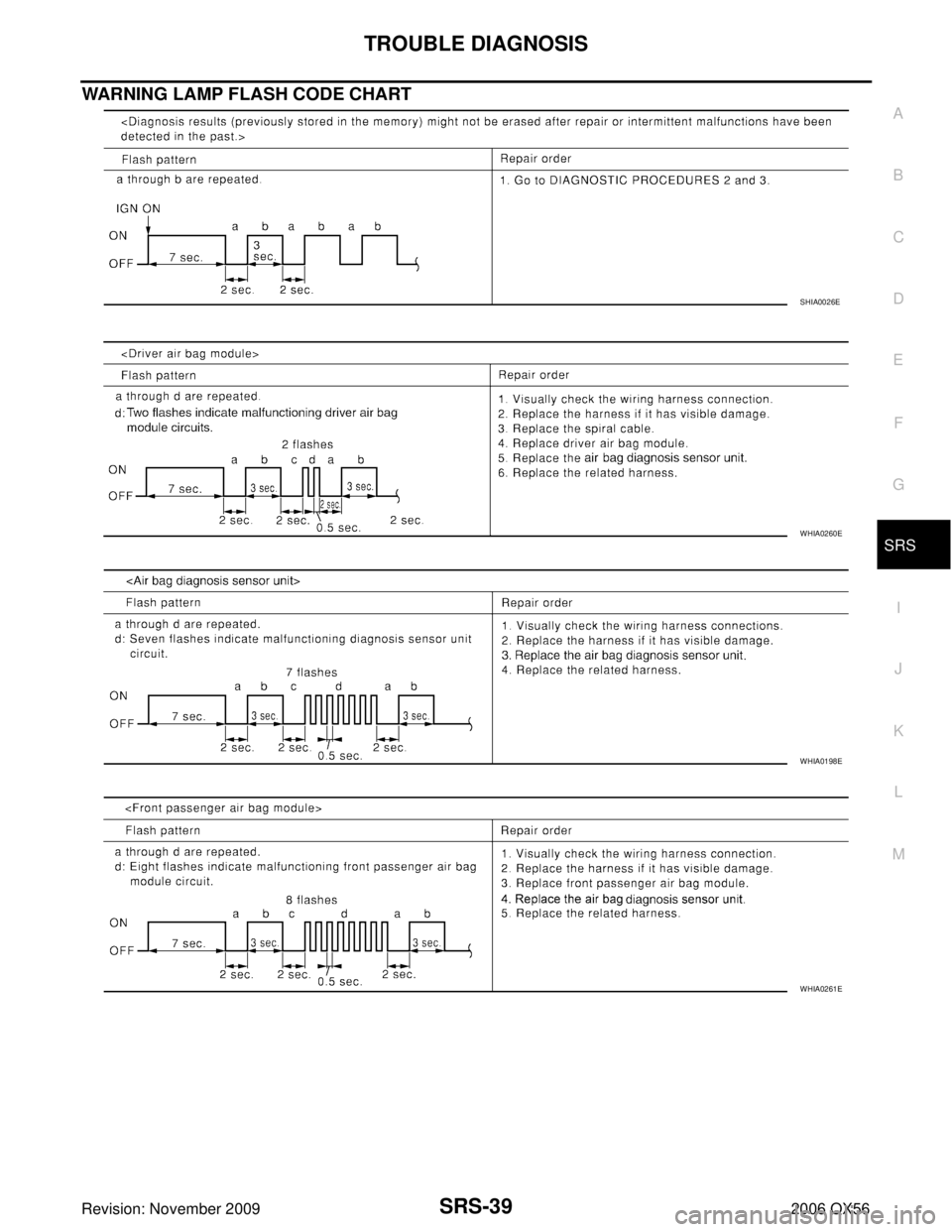

WARNING LAMP FLASH CODE CHART
SHIA0026E
WHIA0260E
WHIA0198E
WHIA0261E

Load next 8 pages

Page: < prev 1-10 ... 3041-3048 3049-3056 3057-3064 3065-3072 3073-3080 3081-3088 3089-3096 3097-3104 3105-3112 ... 3384 next >

fuel filter air conditioning fuse diagram catalytic converter recommended oil USB port
