SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Revision: November 20092006 QX56

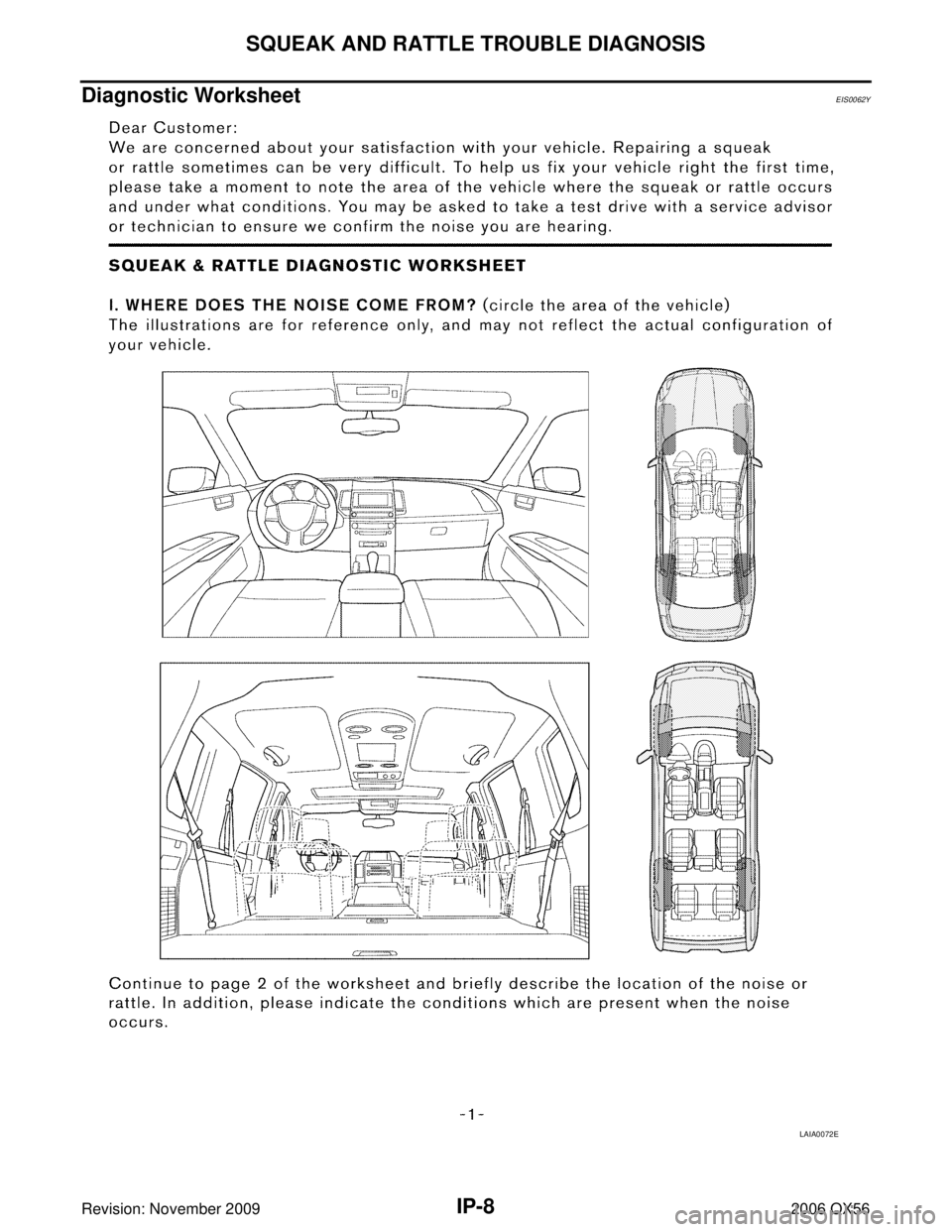

Diagnostic WorksheetEIS0062Y
LAIA0072E
Page 2258 of 3383
SQUEAK AND RATTLE TROUBLE DIAGNOSISIP-9
C
DE
F
G H
J
K L
M A
B
IP
Revision: November 2009 2006 QX56

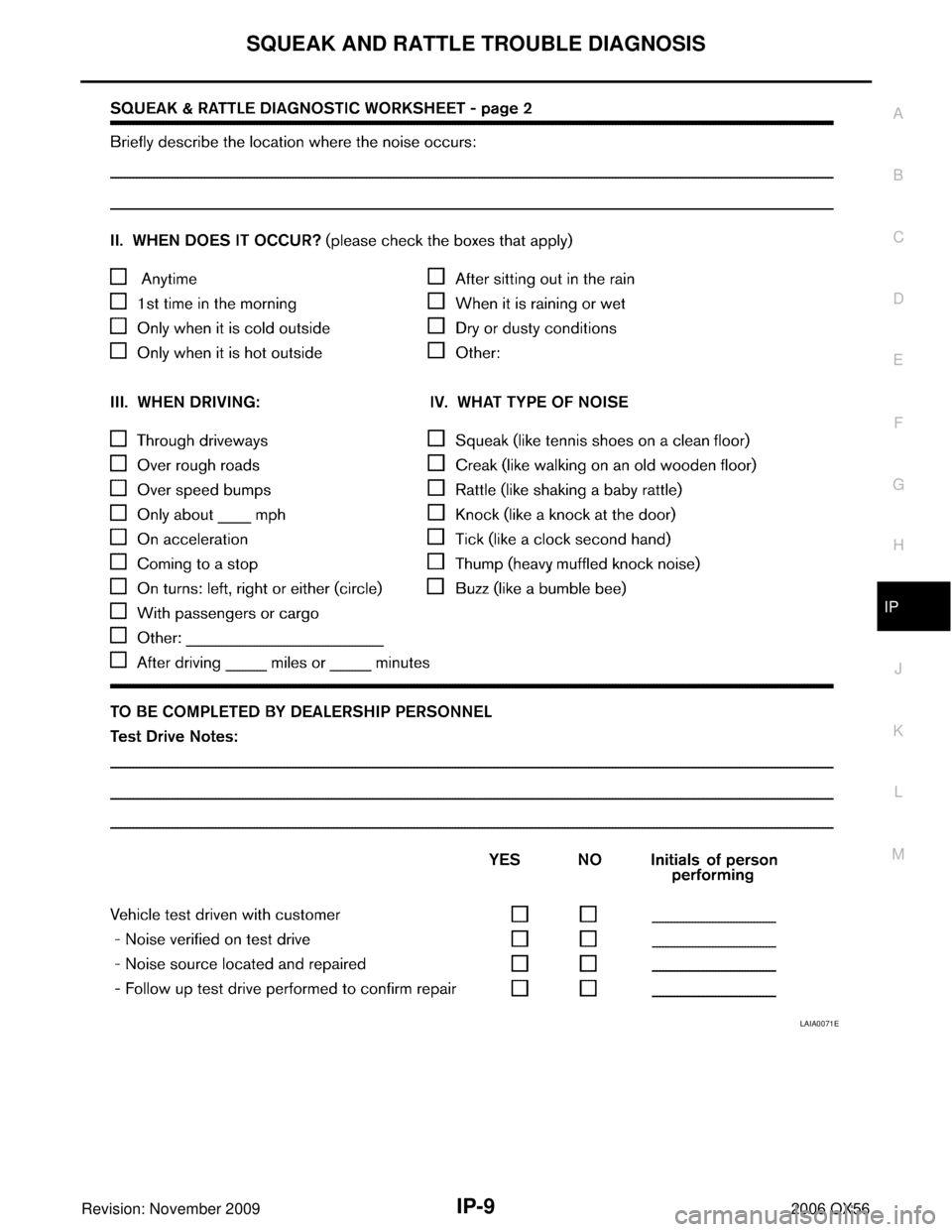

LAIA0071E
Page 2259 of 3383
IP-10
INSTRUMENT PANEL ASSEMBLY
Revision: November 20092006 QX56
INSTRUMENT PANEL ASSEMBLYPFP:68200
Removal and InstallationEIS004X2
WIIA1012E
Page 2260 of 3383

INSTRUMENT PANEL ASSEMBLYIP-11
C
DE
F
G H
J
K L
M A
B
IP
Revision: November 2009 2006 QX56
REMOVAL
1. Remove center console. Refer to IP-17, "DISASSEMBLY AND ASSEMBLY" .
2. Remove instrument lower cover LH. Refer to IP-13, "
INSTRUMENT LOWER COVER LH" .
3. Remove steering column. Refer to PS-10, "
STEERING COLUMN" .
4. Remove glove box assembly. Refer to IP-14, "
Lower Instrument Panel RH and Glove Box" .
5. Remove front power socket LH. Refer to WW-54, "
Front Power Socket LH, Rear Cargo Power Socket" .
6. Remove front power socket RH. Refer to WW-54, "
Front Power Socket RH (For Cigarette Lighter), Con-
sole Power Socket" .
7. Remove combination meter. Refer to IP-14, "
Lower Instrument Panel RH and Glove Box" .
8. Remove audio unit. Refer to AV- 5 5 , "
AUDIO UNIT" .
9. Remove display unit. Refer to AV- 1 6 7 , "
DISPLAY CONTROL UNIT" .
10. Remove lower knee protector LH.
11. Remove GPS antenna. Refer to AV- 1 6 7 , "
Removal and Installation" .
12. Remove optical sensor. Refer to LT- 6 4 , "
Optical Sensor" .
13. Remove side ventilator assembly LH.
14. Remove side ventilator assembly RH.
15. Remove front pillar finisher. Refer to EI-36, "
FRONT PILLAR FINISHER" .
16. Remove passenger air bag module. Refer to SRS-50, "
FRONT PASSENGER AIR BAG MODULE"
17. Remove instrument panel.
18. Disconnect remaining instrument panel assembly electrical connectors.
INSTALLATION
Installation is in the reverse order of removal.

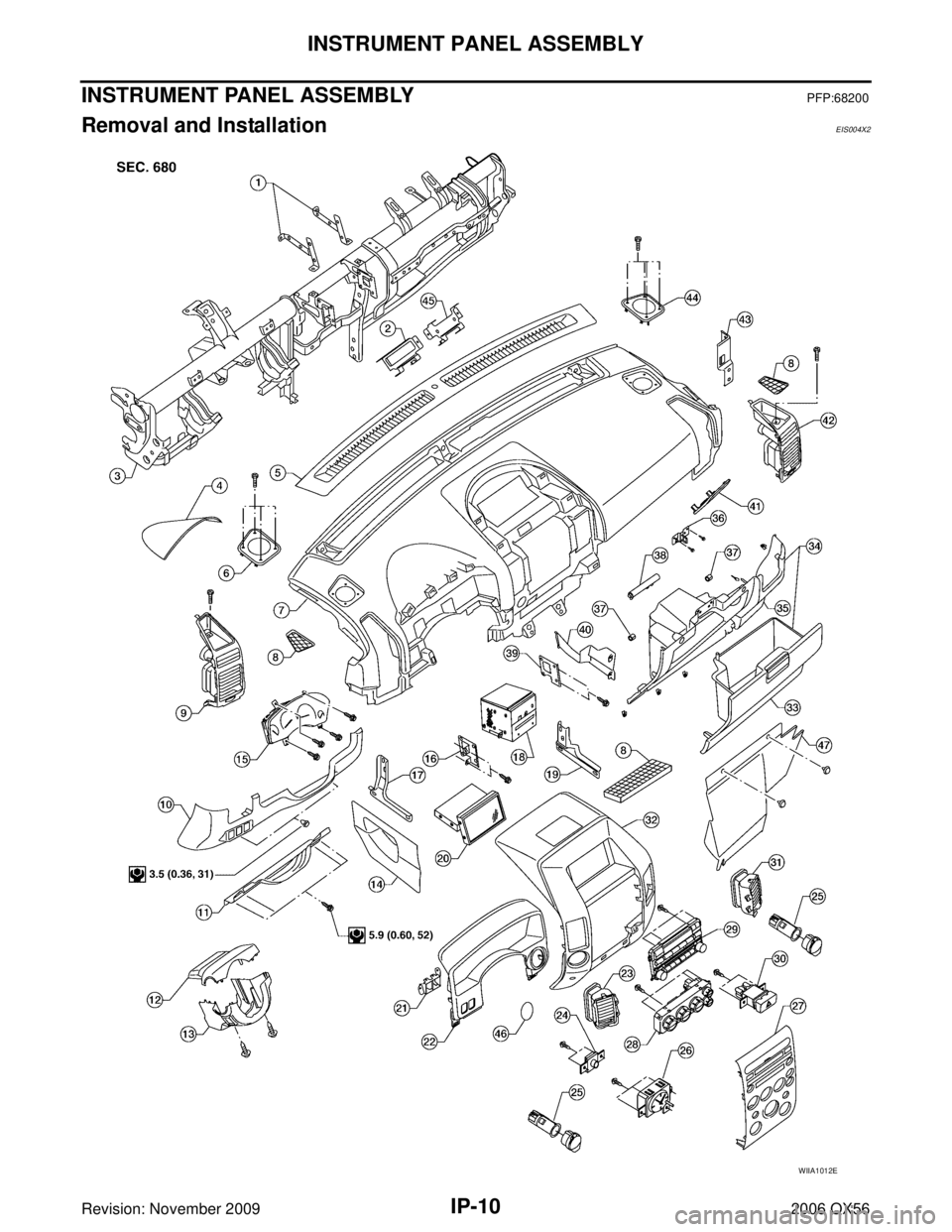

1. Steering member brackets2. Bracket assembly LH3. Steering member assembly
4. Combination meter cover 5. Defrost grille6. Instrument panel speaker LH
7. Instrument panel 8. Bin mat9. Side ventilator assembly LH
10. Instrument lower cover LH 11. Lower knee protector LH12. Steering column cover upper
13. Steering column cover lower 14. Center console lower cover LH 15. Combination meter
16. Audio unit bracket LH 17. Driver instrument stay18. Audio unit
19. Passenger instrument stay 20. Display assembly21. Switch assembly
22. Cluster lid A 23. Cluster lid D ventilator LH24. Front passenger air bag status light
25. Power socket LH and power socket RH 26. Clock 27. Cluster lid C
28. Front air control 29. Audio control30. Hazard switch
31. Cluster lid D ventilator RH 32. Cluster lid D33. Glove box door
34. Glove box assembly 35. Lower instrument panel RH 36. Glove box striker
37. Rubber bumpers 38. Glove box damper39. Audio unit bracket RH
40. Center console lower cover RH 41. Fuse block cover 42. Side ventilator assembly RH
43. Instrument panel bracket 44. Instrument panel speaker RH 45. Bracket assembly RH
46. Key cylinder escutcheon 47. Instrument lower cover RH
