Page 2361 of 3383

INFINITI QX56 2006 Factory Service Manual LAN-92 [CAN] CAN SYSTEM (TYPE 3) Revision: November 20092006 QX56 Case 11 Check steering angle sensor circuit. Refer to LAN-133, "Steering Angle Sensor Circuit Inspection" . PKIC3509E PKIC2915E

Page 2362 of 3383

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 3)LAN-93 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 12 Check front air control circuit. Refer to LAN-133, "Front Air Control Circuit Inspection" . PKIC351

Page 2363 of 3383

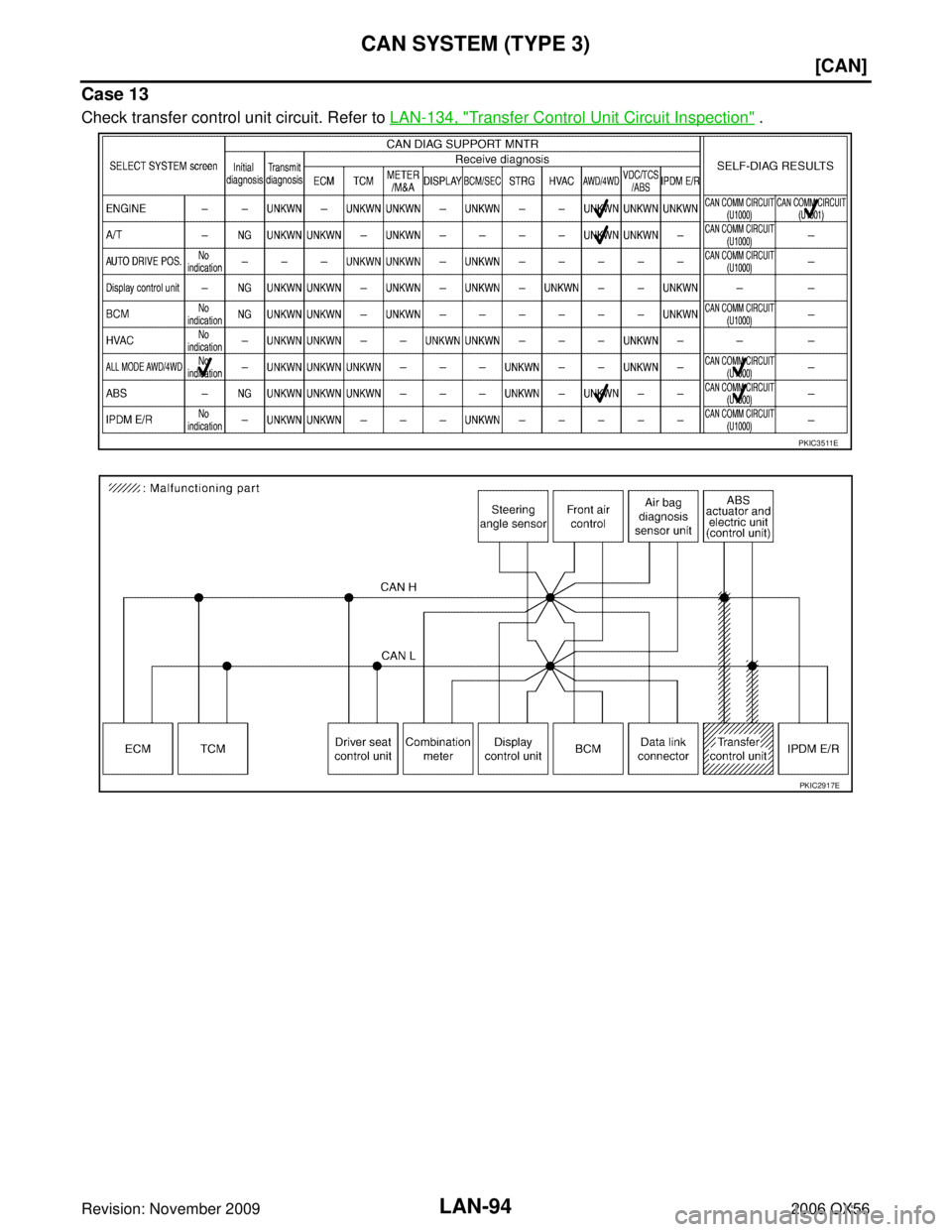

INFINITI QX56 2006 Factory Service Manual LAN-94 [CAN] CAN SYSTEM (TYPE 3) Revision: November 20092006 QX56 Case 13 Check transfer control unit circuit. Refer to LAN-134, "Transfer Control Unit Circuit Inspection" . PKIC3511E PKIC2917E

Page 2364 of 3383

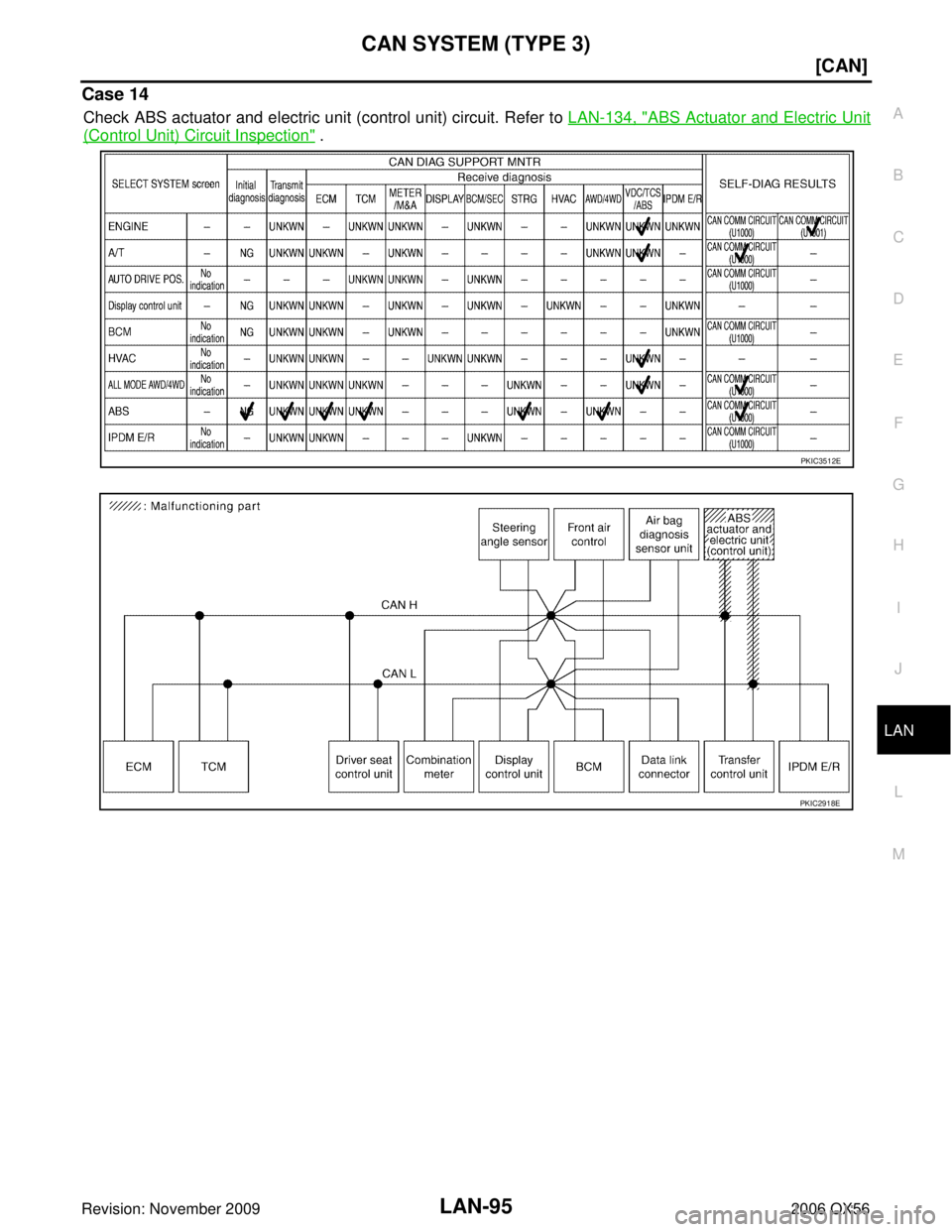

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 3)LAN-95 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 14 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-134, "ABS Actuator and El

Page 2365 of 3383

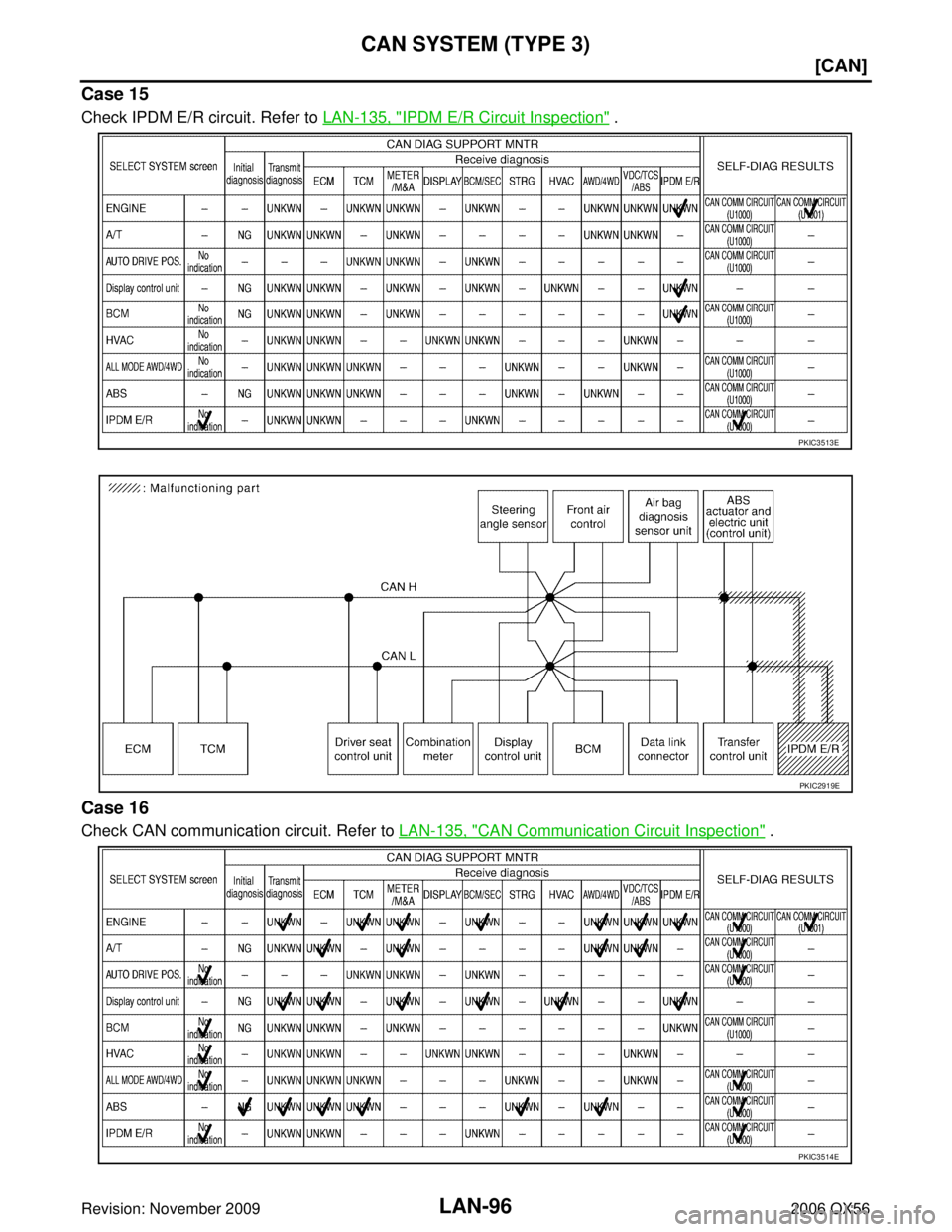

INFINITI QX56 2006 Factory Service Manual LAN-96 [CAN] CAN SYSTEM (TYPE 3) Revision: November 20092006 QX56 Case 15 Check IPDM E/R circuit. Refer to LAN-135, "IPDM E/R Circuit Inspection" . Case 16 Check CAN communication circuit. Refer to L

Page 2366 of 3383

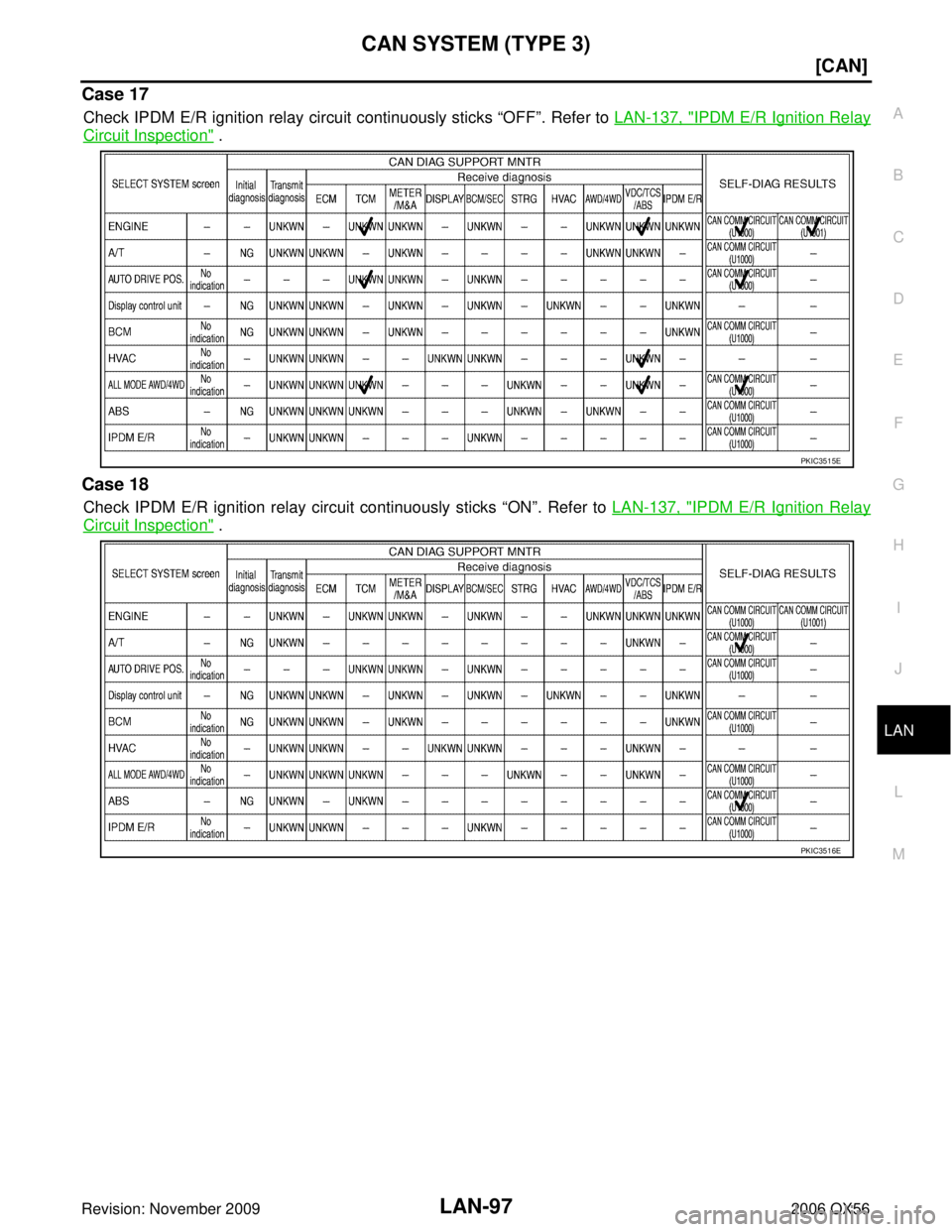

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 3)LAN-97 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 17 Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-137, "IPDM E/R Ig

Page 2367 of 3383

INFINITI QX56 2006 Factory Service Manual LAN-98 [CAN] CAN SYSTEM (TYPE 4) Revision: November 20092006 QX56 CAN SYSTEM (TYPE 4)PFP:23710 Component Parts and Harness Connector LocationUKS004T7 Refer to LAN-26, "Component Parts and Harness Conn

Page 2368 of 3383

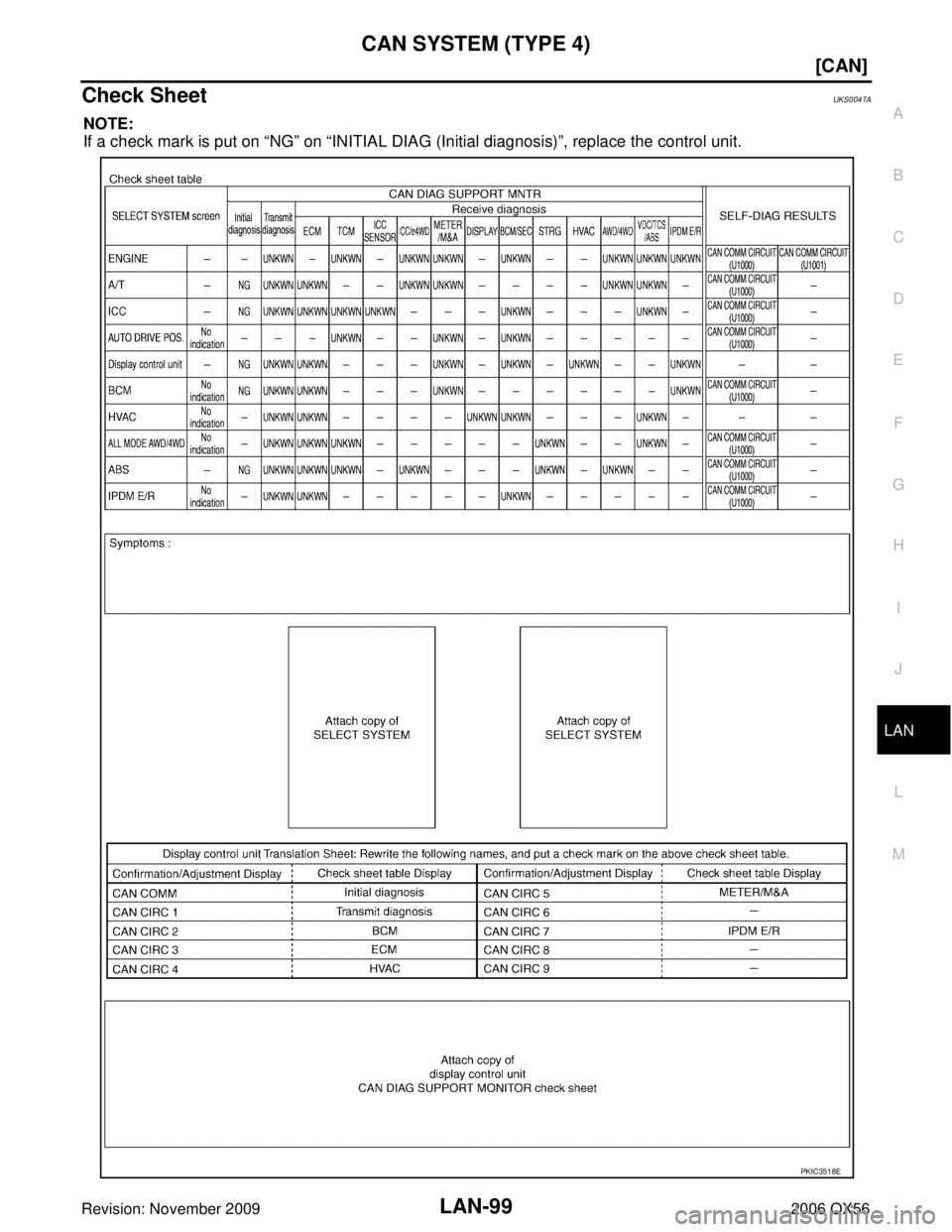

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 4)LAN-99 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Check SheetUKS004TA NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis) ”, r
