AUTOMATIC BACK DOOR SYSTEM
Revision: November 20092006 QX56
2. OPEN SWITCH CIRCUIT INSPECTION
1. Disconnect back door latch and back door control unit connector.
2. Check continuity between back door latch (open switch) connec- tor D503 terminal 4 and back door control unit connector B55
terminal 15.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. OPEN SWITCH GROUND INSPECTION
Check continuity between back door latch (open switch) connector
D503 terminal 8 and ground.
OK or NG
OK >> Replace the back door latch.
NG >> Repair or replace harness.
Close Switch System InspectionEIS0061D
1. CLOSE SWITCH SIGNAL INSPECTION
1. Turn ignition switch OFF.
2. While fully opening and closing the back door, check voltage between back door control unit connector B55 terminal 14 and-
ground.
OK or NG
OK >> Close switch is OK.
NG >> GO TO 2. 4 - 15
: Continuity should exist.
LIIA0830E
8 - Ground: Continuity should exist.
LIIA0828E
14 - Ground
LIIA0831EWIIA1047E
Page 906 of 3383

AUTOMATIC BACK DOOR SYSTEMBL-125
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
2. CLOSE SWITCH CIRCUIT INSPECTION
1. Disconnect back door latch and back door control unit.
2. Check continuity between back door latch (close switch) con- nector D503 terminal 5 and back door control unit connector
B55 terminal 14.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CLOSE SWITCH GROUND INSPECTION
Check continuity between back door latch (close switch) connector
D503 terminal 8 and ground.
OK or NG
OK >> Replace the back door latch.
NG >> Repair or replace harness.
Back Door Handle Switch System InspectionEIS0061E
1. BACK DOOR HANDLE SWITCH SIGNAL INSPECTION
1. Turn ignition switch OFF.
2. While operating the back door handle switch, check voltage between back door control unit connector B55 terminal 26 and
ground.
OK or NG
OK >> Back door handle switch is OK.
NG >> GO TO 2. 5 - 14
: Continuity should exist.
LIIA0832E
8 - Ground: Continuity should exist.
LIIA0828E
Te r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
26 Ground Back door handle switch (ON)
0
Other (OFF) Battery voltage
LIIA0833E
Page 907 of 3383

BL-126
AUTOMATIC BACK DOOR SYSTEM
Revision: November 20092006 QX56
2. BACK DOOR HANDLE SWITCH CIRCUIT INSPECTION
1. Disconnect back door handle switch and back door control unit.
2. Check continuity between back door handle switch connector D706 terminal 3 and back door control unit connector B55 termi-
nal 26.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
3. BACK DOOR HANDLE SWITCH GROUND INSPECTION
Check continuity between back door handle switch connector D706
terminal 4 and ground.
OK or NG
OK >> Replace the back door handle switch.
NG >> Repair or replace harness.
Cinch Latch Motor System InspectionEIS0061F
1. CINCH LATCH MOTOR SIGNAL INSPECTION
1. Turn ignition switch OFF.
2. While fully opening and closing the back door, check voltage between back door control unit connector B55 terminals 11, 12
and ground.
OK or NG
OK >> GO TO 2.
NG >> Replace the back door control unit.
2. CINCH LATCH MOTOR CIRCUIT INSPECTION
1. Disconnect back door latch and back door control unit.
2. Check continuity between back door latch (cinch latch motor) connector D503 terminals 1, 2 and back door control unit con-
nector B55 terminals 11, 12.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness. 3 - 26
: Continuity should exist.
WIIA0604E
4 - Ground: Continuity should exist.
WIIA0605E
11 - Ground: Battery voltage
12 - Ground : Battery voltage
LIIA2397E
1 - 12 : Continuity should exist.
2 - 11 : Continuity should exist.
LIIA0837E
Page 908 of 3383
AUTOMATIC BACK DOOR SYSTEMBL-127
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
3. CINCH LATCH MOTOR OPERATION INSPECTION
Connect battery power to terminals 1 and 2 on the back door latch
and check motor operation.
OK or NG
OK >> Cinch latch motor is OK.
NG >> Replace the back door latch. 1 (+) - 2 (-) : It operates.
1 (-) - 2 (+) : It operates. (Reverse rotation)
LIIA1937E
Page 909 of 3383
BL-128
DOOR
Revision: November 20092006 QX56
DOORPFP:80100
Fitting AdjustmentEIS004SH
FRONT DOOR
Longitudinal clearance and surface height adjustment at front end
1. Remove the fender. Refer to EI-20, "FRONT FENDER" .
2. Loosen the hinge bolts. Raise the front door at rear end to adjust.
3. Install the fender. Refer to EI-20, "
FRONT FENDER" .
REAR DOOR
Longitudinal clearance and surface height adjustment at front end
1. Loosen the bolts. Open the rear door, and raise the rear door at rear end to adjust.
STRIKER ADJUSTMENT
1. Adjust the striker so that it becomes parallel with the lock inser-
tion direction.
A. 4.5 ± 1.0 mm (0.177 ± 0.039 in)
WIIA0901E
LIIA1502E
Page 910 of 3383

DOOR
BL-129
C
D E
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
Removal and InstallationEIS004SI
FRONT DOOR
CAUTION:
When removing and installing the door assembly, support the door with a jack and shop cloth to
protect the door and body.
When removing and installing door assembly, be sure to carry out the fitting adjustment.
Check the hinge rotating part for poor lubrication. If necessary, apply "body grease".
1. Remove the door window and module assembly. Refer to GW-65, "
FRONT DOOR GLASS AND REGU-
LATOR" .
2. Remove the door harness.
3. Remove the check link cover.
4. Remove the check link bolt from the hinge pillar.
5. Remove the door-side hinge nuts and bolts, and remove the door assembly.
Installation is in the reverse order of removal.
REAR DOOR
CAUTION:
When removing and installing the door assembly, support the door with a jack and shop cloth to
protect the door and body.
When removing and installing door assembly, be sure to carry out the fitting adjustment.
Check the hinge rotating part for poor lubrication. If necessary, apply "body grease".
1. Remove the door window and module assembly. Refer to GW-68, "
REAR DOOR GLASS AND REGULA-
TOR" .
2. Remove the door harness.
3. Remove the check link cover.
4. Remove the check link bolt from the hinge pillar.

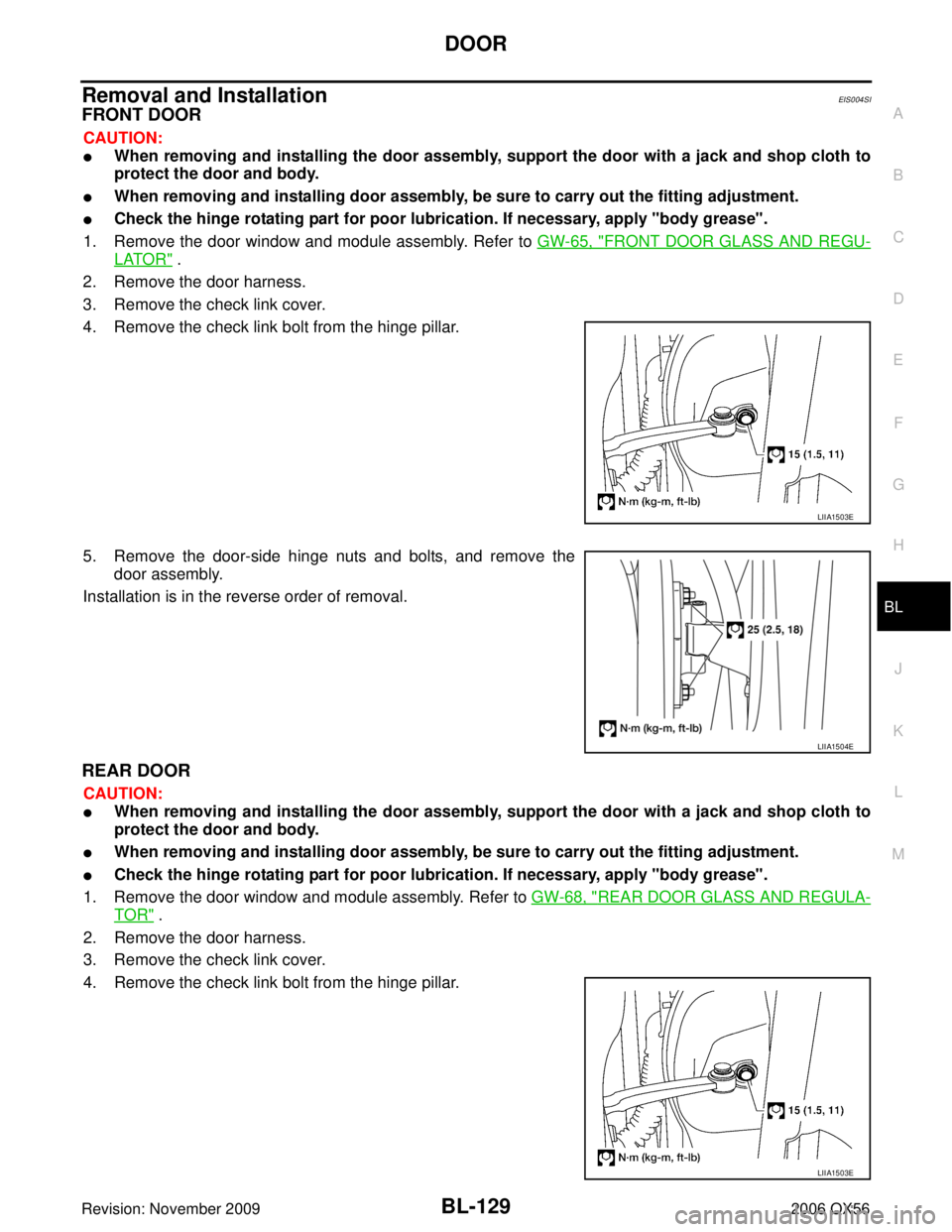

LIIA1503E
LIIA1504E
LIIA1503E
Page 911 of 3383

BL-130
DOOR
Revision: November 20092006 QX56
5. Remove the door-side hinge nuts and bolts, and remove the
door assembly.
Installation is in the reverse order of removal.
BACK DOOR
WARNING:
Always support back door when removing or replacing back door stays. Power back door opener will
not support back door with back door stays removed.
1. Remove the back door glass. Refer to GW-13, "
REAR WINDOW GLASS AND MOLDING" .
2. Remove the back door lock assembly. Refer to BL-135, "
BACK DOOR LOCK" .
3. Remove the rear wiper motor. Refer to WW-50, "
Rear Wiper Motor" .
4. Remove the back door wire harness.
5. Remove the rear washer nozzle and hose from the back door. Refer to WW-51, "
Rear Washer Nozzle" .
CAUTION:
Two technicians should be used to avoid damaging the back door during removal.
6. Support the back door.
7. Disconnect the power back door lift arm from the door.
8. Remove the back door stays.
9. Remove the door side nuts and the back door assembly.
Installation is in the reverse order of removal.
LIIA1504E
WIIA1364E
Page 912 of 3383
FRONT DOOR LOCKBL-131
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
FRONT DOOR LOCKPFP:80502
Component StructureEIS00629
Removal and InstallationEIS0062A
REMOVAL
1. Remove front door speaker. Refer to AV- 5 6 , "FRONT DOOR SPEAKER" .
2. Remove the front door speaker housing and vapor sheet.
3. Remove the door side grommet, and the bolt (TORX T30) from the grommet hole.
4. While pulling the outside handle, remove the door key cylinder assembly or escutcheon.
1. Grommet 2. Front door striker3. Door lock assembly
4. Outside handle cable 5. Inside handle assembly6. Inside handle cable
7. Door lock cable 8. Key cylinder rod (Driver side only) 9. Key cylinder
10. Outside handle bracket 11. Front gasket12. Outside handle
13. Door key cylinder assembly (Driver side) Outside handle escutcheon
(Passenger side) 14. Rear gasket
WIIA0891E
Torx bolt
5.3 N·m (0.54 kg-m, 47 in-lb)
PIIA3553E
PIIA3554E
