PRECAUTIONS
Revision: November 20092006 QX56
PRECAUTIONSPFP:00001
CautionEDS001XJ
Observe the following precautions when disassembling and servicing drive shaft.
Perform work in a location which is as dust-free as possible.
Before disassembling and servicing, clean the outside of parts.
Prevention of the entry of foreign objects must be taken into account during disassembly of the service
location.
Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a clean
cover must be placed over parts.
Paper shop cloths must be used. Fabric shop cloths must not be used because of the danger of lint adher-
ing to parts.
Disassembled parts (except for rubber parts) should be cleaned with kerosene which shall be removed by
blowing with air or wiping with paper shop cloths.
Page 2764 of 3383
PREPARATIONRAX-3
CE F
G H
I
J
K L
M A
B
RAX
Revision: November 2009 2006 QX56
PREPARATIONPFP:00002
Special Service Tools (SST)EDS001XK
The actual shapes of the Kent-Moore tools may differ from those of the special service tools illustrated here.
Commercial Service ToolsEDS001XL
Tool number
(Kent-Moore No.)
Tool nameDescription
KV38100500
(—)
Drift Installing drive shaft plug
a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.
KV38102200
(—)
Drift Installing drive shaft plug
a: 90 mm (3.54 in) dia.
b: 31 mm (1.22 in) dia.
ZZA0701D
ZZA0920D
Tool name
Description
Power tools Removing bolts and nuts
PBIC0190E
Page 2765 of 3383

RAX-4
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
Revision: November 20092006 QX56
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartEDS001XM
Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
×: ApplicableReference page
—
RAX-8—
RAX-5—
RFD-7, "
NVH Troubleshooting Chart
"
FAX-4, "
NVH Troubleshooting Chart
" (FAX), FSU-4, "
NVH Troubleshooting Chart
" (FSU)
RSU-5, "
NVH Troubleshooting Chart
"
WT-4, "
NVH Troubleshooting Chart
"
WT-4, "
NVH Troubleshooting Chart
"
PR-3, "
NVH Troubleshooting Chart
"
BR-5, "
NVH Troubleshooting Chart
"
PS-5, "
NVH Troubleshooting Chart
"
Possible cause and SUSPECTED PARTS
Excessive joint angle
Joint sliding resistance
Imbalance
Improper installation, looseness
Parts interference
DIFFERENTIAL
FRONT AXLE AND FRONT SUSPENSION
REAR SUSPENSION
TIRES
ROAD WHEEL
PROPELLER SHAFT
BRAKES
STEERING
Symptom Noise
×× ×× ×× ×××××
Shake × × ×× × ×××××
Vibration ×× ×× × × × ×
Shimmy ×× ×××××
Shudder × × ×× ××
Poor quality ride or handling ×× ×× ×× ×
Page 2766 of 3383

WHEEL HUBRAX-5
CE F
G H
I
J
K L
M A
B
RAX
Revision: November 2009 2006 QX56
WHEEL HUBPFP:43202
On-Vehicle Inspection and ServiceEDS001XN
Inspect the components for any looseness or back lash. Inspect each component for any excessive wear or
damage. Replace any components as necessary.
WHEEL BEARING INSPECTION
Move the wheel hub and bearing assembly in the axial direction by hand to check the axial end play.
Check that the axial end play is with specification. Replace the wheel hub and bearing assembly as nec-
essary.
Rotate the wheel hub and bearing assembly to check that there are no unusual noises or other abnormal
conditions. Replace the wheel hub and bearing assembly as necessary.
Removal and InstallationEDS001XO
Rear Wheel Hub and Bearing Assembly
NOTE:
The rear ABS sensor is routed through the back of the rear backing plate and into the side of the wheel hub
and bearing assembly. It is necessary to remove the wheel hub and bearing assembly to remove the rear ABS
sensor.
REMOVAL
1. Remove the wheel and tire using power tool.
2. Remove the rear brake caliper, without disconnecting the hydraulic hose, using power tool. Reposition the
rear brake caliper aside using suitable wire. Refer to BR-28, "
Removal and Installation of Brake Caliper
and Disc Rotor" .
NOTE:
Do not depress the brake pedal while the brake caliper is removed.
3. Remove the rear disc rotor. Axial end play : 0 mm (0 in)
WDIA0189E

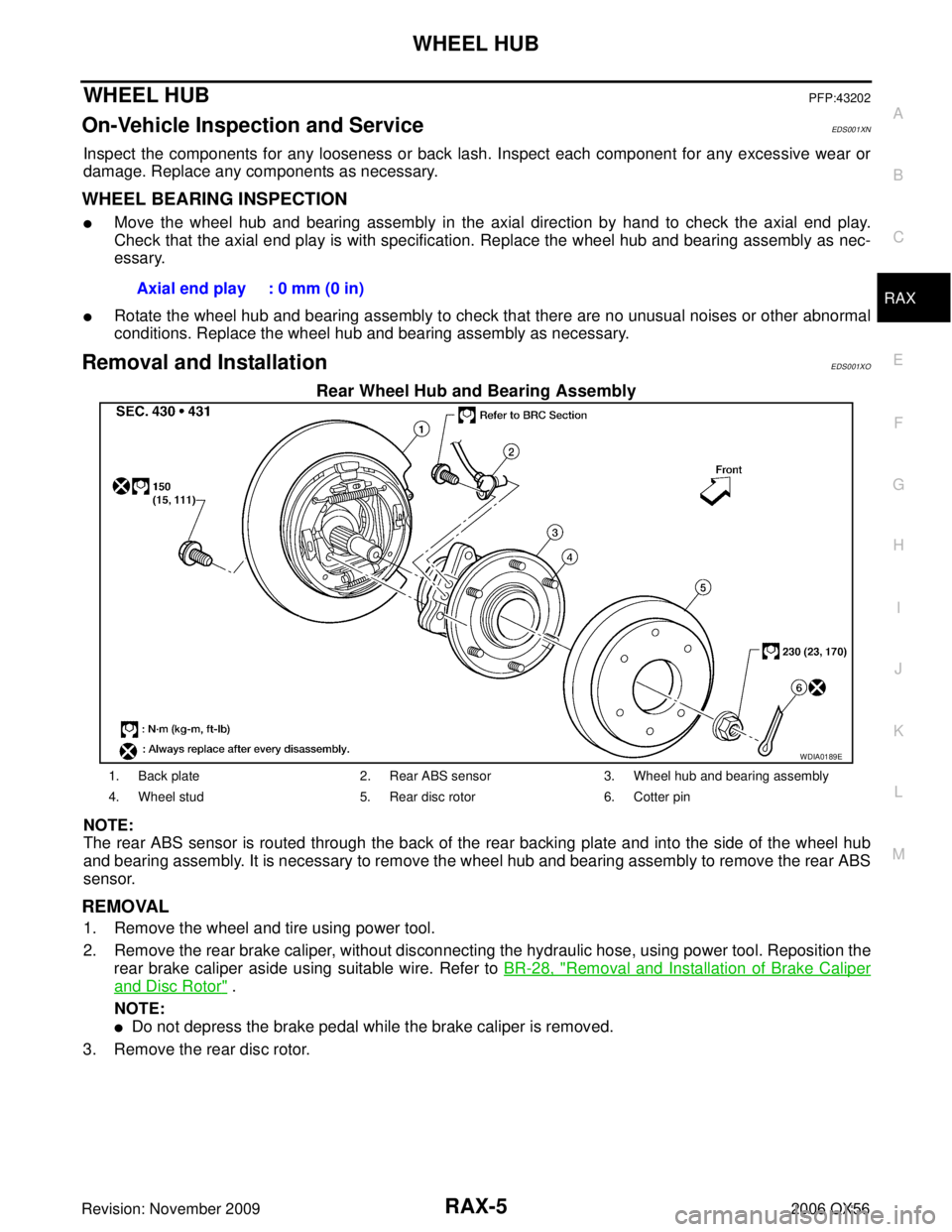

1. Back plate
2. Rear ABS sensor3. Wheel hub and bearing assembly
4. Wheel stud 5. Rear disc rotor6. Cotter pin
Page 2767 of 3383

RAX-6
WHEEL HUB
Revision: November 20092006 QX56
4. Remove the cotter pin, then remove the nut from the drive shaft
using power tool.
Discard the cotter pin, use a new one for installation.
5. Remove the drive shaft. Refer to RAX-7, "
Removal and Installa-
tion" .
6. Remove the four wheel hub and bearing assembly bolts using power tool.
Discard the four wheel hub and bearing assembly bolts, use new ones for installation.

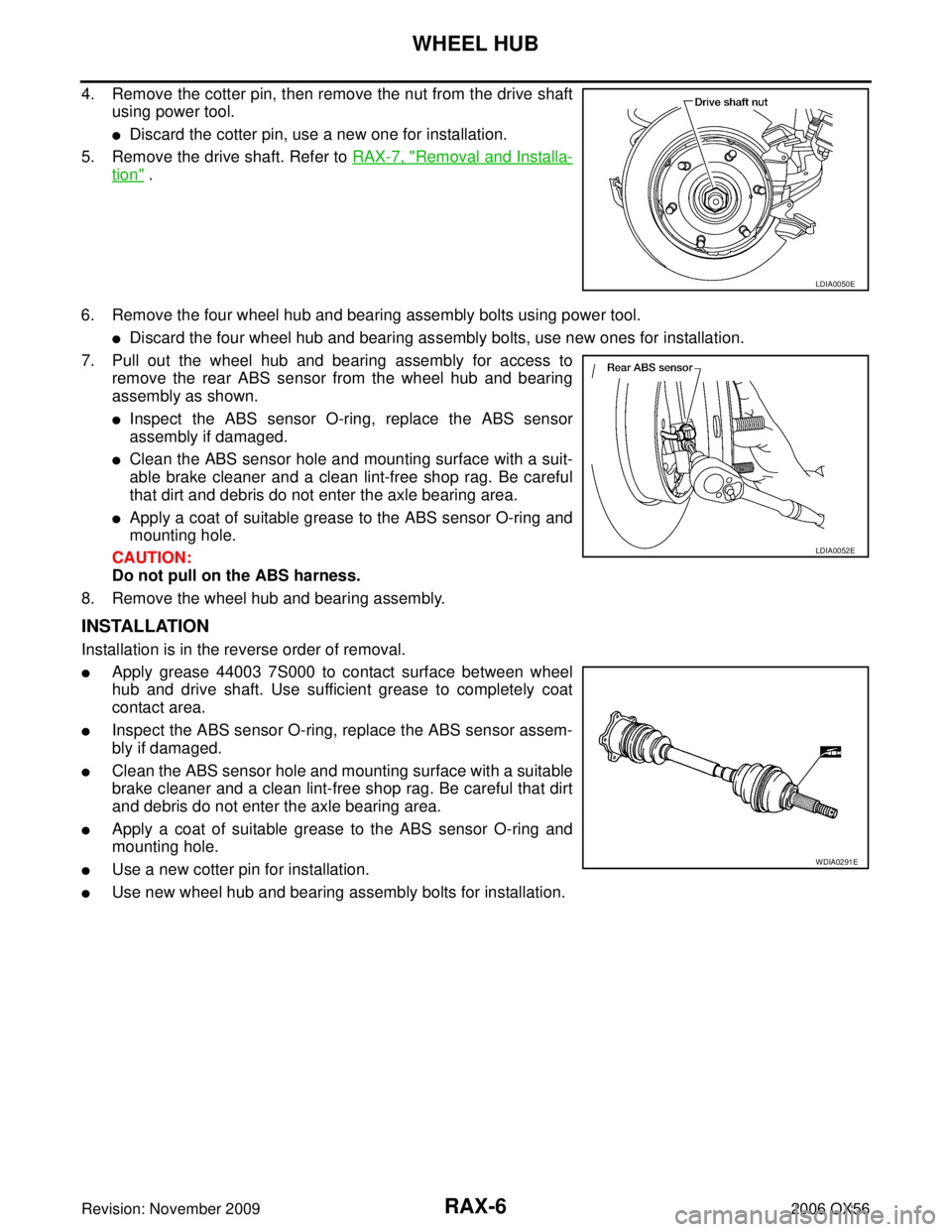

7. Pull out the wheel hub and bearing assembly for access to remove the rear ABS sensor from the wheel hub and bearing
assembly as shown.
Inspect the ABS sensor O-ring, replace the ABS sensor
assembly if damaged.
Clean the ABS sensor hole and mounting surface with a suit-
able brake cleaner and a clean lint-free shop rag. Be careful
that dirt and debris do not enter the axle bearing area.
Apply a coat of suitable grease to the ABS sensor O-ring and
mounting hole.
CAUTION:
Do not pull on the ABS harness.
8. Remove the wheel hub and bearing assembly.
INSTALLATION
Installation is in the reverse order of removal.
Apply grease 44003 7S000 to contact surface between wheel
hub and drive shaft. Use sufficient grease to completely coat
contact area.
Inspect the ABS sensor O-ring, replace the ABS sensor assem-
bly if damaged.
Clean the ABS sensor hole and mounting surface with a suitable
brake cleaner and a clean lint-free shop rag. Be careful that dirt
and debris do not enter the axle bearing area.
Apply a coat of suitable grease to the ABS sensor O-ring and
mounting hole.
Use a new cotter pin for installation.
Use new wheel hub and bearing assembly bolts for installation.
LDIA0050E
LDIA0052E
WDIA0291E
Page 2768 of 3383
REAR DRIVE SHAFTRAX-7
CE F
G H
I
J
K L
M A
B
RAX
Revision: November 2009 2006 QX56
REAR DRIVE SHAFTPFP:39600
ComponentsEDS002Z7
Rear Drive Shaft
Removal and InstallationEDS001XP
REMOVAL
1. Remove the wheel and tire using power tool.
2. Remove the stabilizer bar clamp. Refer to RSU-26, "
Components" .
3. Remove the cotter pin and discard, then remove the drive shaft nut from the drive shaft.
Do not reuse the cotter pin, discard after removal and use a
new cotter pin for installation.
4. Remove the six bolts from the inside flange of the drive shaft using power tool.
Do not reuse the drive shaft inside flange bolts, discard after removal and use new bolts for installation.
WDIA0263E

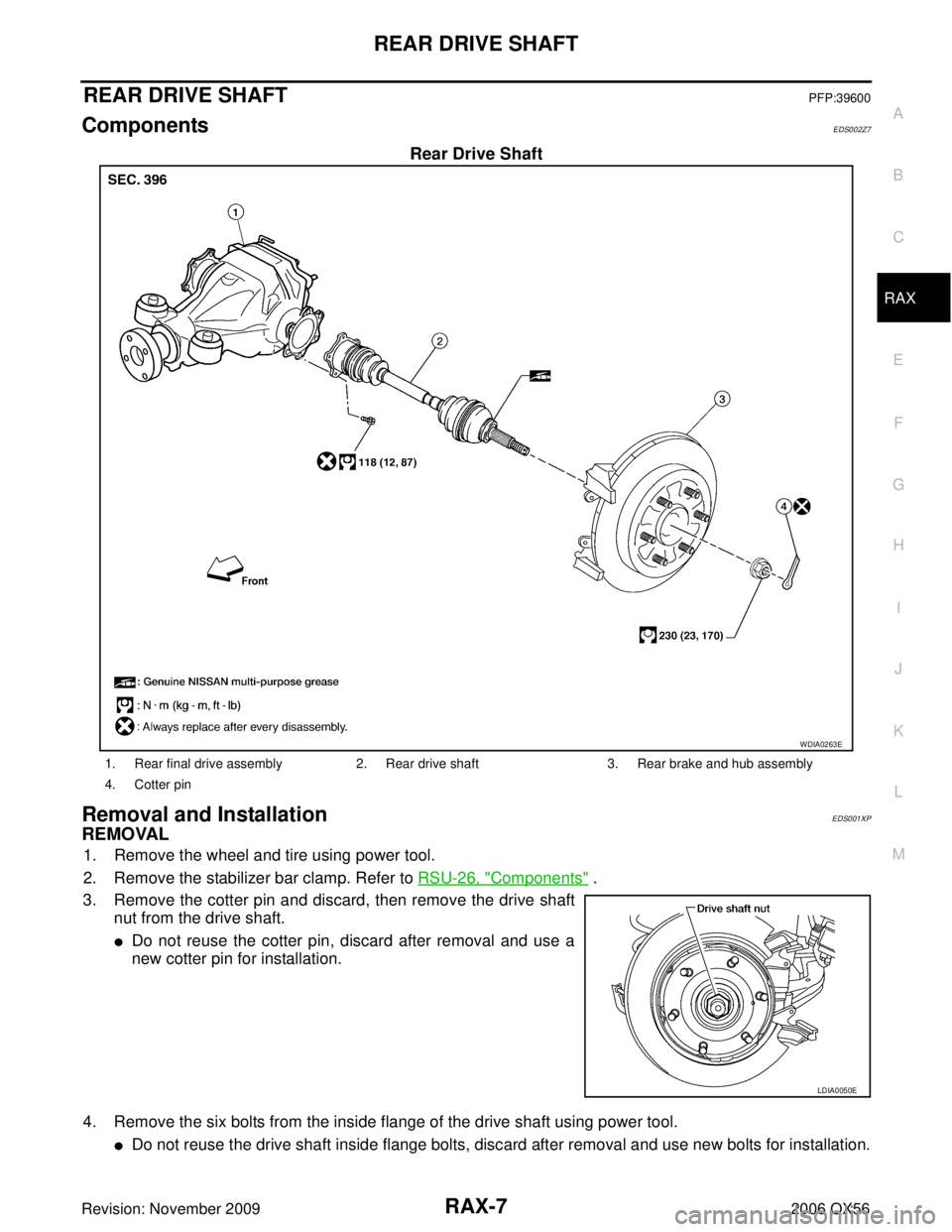

1. Rear final drive assembly 2. Rear drive shaft3. Rear brake and hub assembly
4. Cotter pin
LDIA0050E
