INFINITI QX56 2006 Factory Service Manual FL-10Revision: November 2009
FUEL TANK
2006 QX56
FUEL TANKPFP:17202
Removal and InstallationEBS00M3T

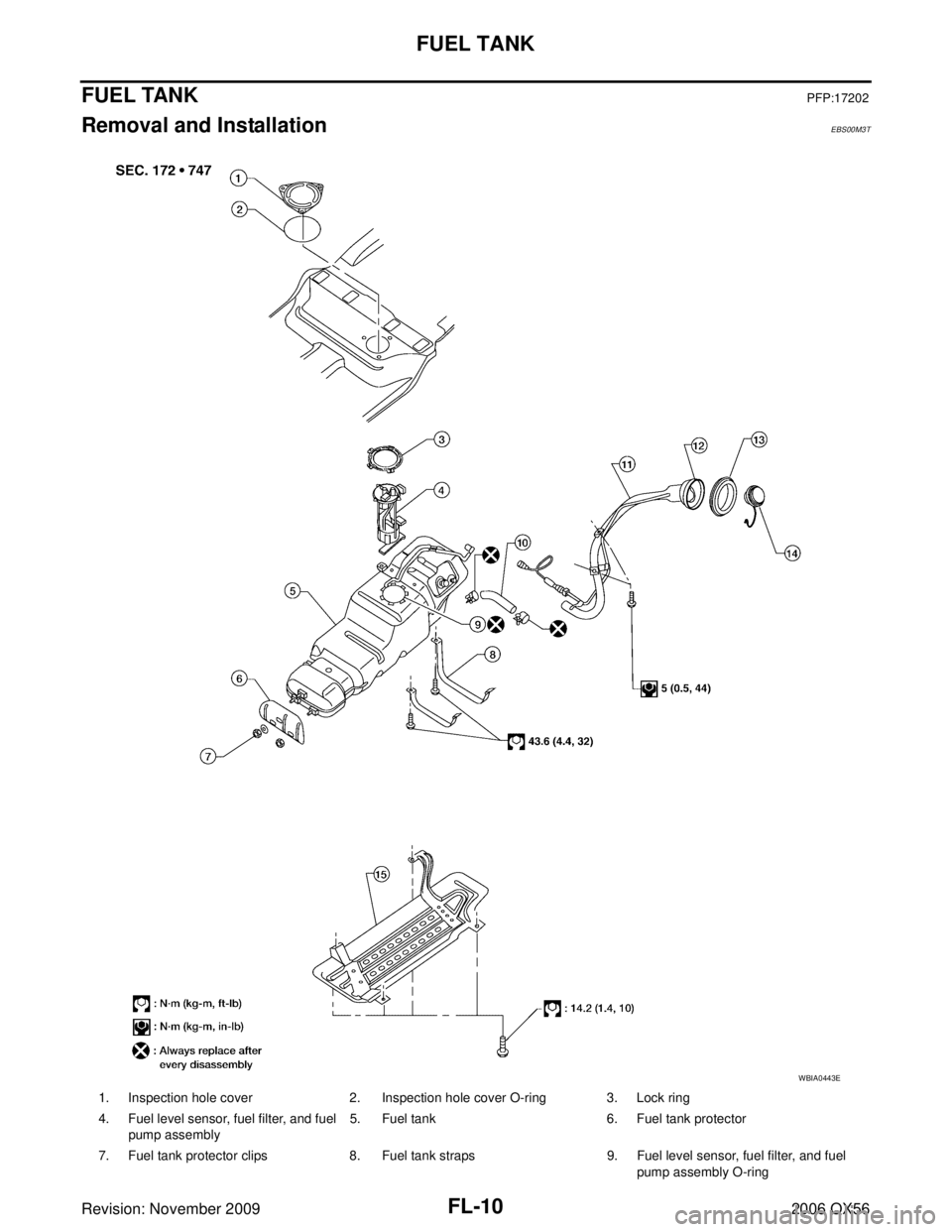

1. Inspection hole cover2. Inspection hole cover O-ring 3. Lock ring
4. Fuel level sensor, fuel fil

Page 2066 of 3383

INFINITI QX56 2006 Factory Service Manual FUEL TANKFL-11
C
DE
F
G H
I
J
K L
M A
FL
Revision: November 2009 2006 QX56
REMOVAL
WARNING:
Follow the “General Precautions” before working on the fuel system. Refer to FL-4, "
General Precau-
tio

FUEL TANKFL-11
C
DE
F
G H
I
J
K L
M A
FL
Revision: November 2009 2006 QX56
REMOVAL
WARNING:
Follow the “General Precautions” before working on the fuel system. Refer to FL-4, "
General Precau-
tions" .
1. Drain the fuel from the fuel tank, if necessary.
Position the vehicle so it is level.
2. Remove the fuel filler cap to release the pressure from inside the fuel tank.
3. Check the fuel level on level gauge. If the fuel gauge indicates more than the level as shown (full or almost full), drain the fuel
from the fuel tank until the fuel gauge indicates the level as
shown, or less.
If the fuel pump does not operate, use the following procedure
to drain the fuel to the specified level after disconnecting the
fuel filler hose from the fuel filler pipe.
a. Insert a suitable hose of less than 15 mm (0.59 in) diameter into the fuel filler pipe through the fuel filler opening to drain the fuel
from fuel filler pipe.
b. Insert a suitable hose into the fuel tank through the fuel filler hose to drain the fuel from the fuel tank.
As a guide, the fuel level reaches the fuel gauge position as shown, or less, when approximately 14
liters (3 3/4 US gal, 3 1/8 Imp gal) of fuel are drained from the fuel tank.
4. Remove the LH rear wheel and tire. Refer to WT-7, "
Rotation" .
5. Remove the four clips and remove the rear fender protector, front.
6. Disconnect the fuel filler hose from the fuel filler pipe and dis- connect the vent hose quick connector.
7. Release the fuel pressure from the fuel lines. Refer to EC-80, "
FUEL PRESSURE RELEASE" .
8. Disconnect the battery negative terminal.
9. Remove the second row LH seat and the third row LH seat. Refer to SE-98, "
Second Row Outboard"
(second row), SE-105, "LH Side Seat" (third row).
10. Remove the second and third row rear seat belt buckles mounted on the floor. Refer to SB-3, "
SEAT
BELTS" .
11. Remove the LH center pillar trim, the LH rear trim panel, and the LH rear side door kick plate and weather stripping. Refer to EI-35, "
BODY SIDE TRIM" .
12. Remove the second row rear center console and base. Refer to EI-37, "
FLOOR TRIM" .
13. Reposition the floor carpet out of the way to access the inspection hole cover, located under the center LH rear seat.
10. Fuel filler hose 11. Fuel filler pipe 12. Fuel filler cup
13. Fuel filler hose grommet 14. Fuel filler cap 15. Fuel tank shield
WBIA0390E
LBIA0386E

Page 2067 of 3383

INFINITI QX56 2006 Factory Service Manual FL-12Revision: November 2009
FUEL TANK
2006 QX56
14. Remove the inspection hole cover by turning the retainers 90°
degrees clockwise.
Remove the O-ring.
15. Disconnect the fuel level sensor, fuel fi

Page 2068 of 3383

INFINITI QX56 2006 Factory Service Manual FUEL TANKFL-13
C
DE
F
G H
I
J
K L
M A
FL
Revision: November 2009 2006 QX56
CAUTION:
The quick connector can be disconnected when the tabs
are completely depressed. Do not twist the quick connec-
tor

Page 2069 of 3383

INFINITI QX56 2006 Factory Service Manual FL-14Revision: November 2009
FUEL TANK
2006 QX56
22. If necessary, remove the lock ring using Tool.
23. If necessary, remove the fuel level sensor, fuel filter, and fuelpump assembly. Discard the fuel

Page 2070 of 3383

INFINITI QX56 2006 Factory Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)FL-15
C
DE
F
G H
I
J
K L
M A
FL
Revision: November 2009 2006 QX56
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00M3U
Fuel tank capacity
105.

Page 2071 of 3383

INFINITI QX56 2006 Factory Service Manual FL-16Revision: November 2009
SERVICE DATA AND SPECIFICATIONS (SDS)
2006 QX56

Page 2072 of 3383

INFINITI QX56 2006 Factory Service Manual FSU-1
FRONT SUSPENSION
E SUSPENSION
CONTENTS
C
DF
G H
I
J
K L
M
SECTION
A
B
FSU
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 2
Precaution

FSU-1
FRONT SUSPENSION
E SUSPENSION
CONTENTS
C
DF
G H
I
J
K L
M
SECTION
A
B
FSU
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 2
Precautions ......................................................... ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tools ................................... ..... 3
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 4
NVH Troubleshooting Chart ................................ ..... 4
FRONT SUSPENSION ASSEMBLY ...................... ..... 5
Components ........................................................ ..... 5
ON-VEHICLE SERVICE ........................................ ..... 6
Front Suspension Parts ....................................... ..... 6
Front Wheel Alignment ........................................ ..... 6
PRELIMINARY INSPECTION .......................... ..... 6
GENERAL INFORMATION AND RECOMMEN-
DATIONS ......................................................... ..... 6
THE ALIGNMENT PROCESS ......................... ..... 7
CAMBER AND CASTER .................................. ..... 7
TOE-IN ............................................................. ..... 7
FRONT WHEEL TURNING ANGLE ................ ..... 8
COIL SPRING AND SHOCK ABSORBER ............ ... 10
Removal and Installation ..................................... ... 10
REMOVAL ........................................................ ... 10
INSTALLATION ................................................ ... 10
Disassembly and Assembly ................................ ... 10
DISASSEMBLY ................................................ ... 10
INSPECTION AFTER DISASSEMBLY ............ .... 11
ASSEMBLY ...................................................... .... 11
STABILIZER BAR .................................................. ... 12
Removal and Installation ..................................... ... 12
REMOVAL ........................................................ ... 12
INSPECTION AFTER REMOVAL .................... ... 12
INSTALLATION ................................................ ... 12UPPER LINK ..........................................................
... 13
Removal and Installation ..................................... ... 13
REMOVAL ........................................................ ... 13
INSPECTION AFTER REMOVAL .................... ... 13
INSTALLATION ................................................ ... 13
LOWER LINK ......................................................... ... 14
Removal and Installation ..................................... ... 14
REMOVAL ........................................................ ... 14
INSPECTION AFTER REMOVAL .................... ... 14
INSTALLATION ................................................ ... 14
UPPER BALL JOINT AND LOWER BALL JOINT ... 15 Removal and Installation ..................................... ... 15
Inspection ............................................................ ... 15
SWINGING FORCE ......................................... ... 15
TURNING FORCE ............................................ ... 15
VERTICAL END PLAY ..................................... ... 16
KNUCKLE .............................................................. ... 17
On-Vehicle Inspection and Service ...................... ... 17
Removal and Installation ..................................... ... 17
REMOVAL ........................................................ ... 17
INSPECTION AFTER REMOVAL .................... ... 18
INSTALLATION ................................................ ... 18
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 19
General Specifications ......................................... ... 19
Spring Free Height .............................................. ... 19
Wheel Alignment (Unladen*
1 )*6 .......................... ... 19
Ball Joint .............................................................. ... 20
Wheelarch Height (Unladen*
1 ) .............................. 20
