Page 353 of 3383

INFINITI QX56 2006 Factory Service Manual AT-278 DISASSEMBLY Revision: November 20092006 QX56 58. Knock out retaining pin using suitable tool. 59. Remove manual shaft retaining pin using suitable tool. 60. Remove manual plate (with parking ro

Page 354 of 3383

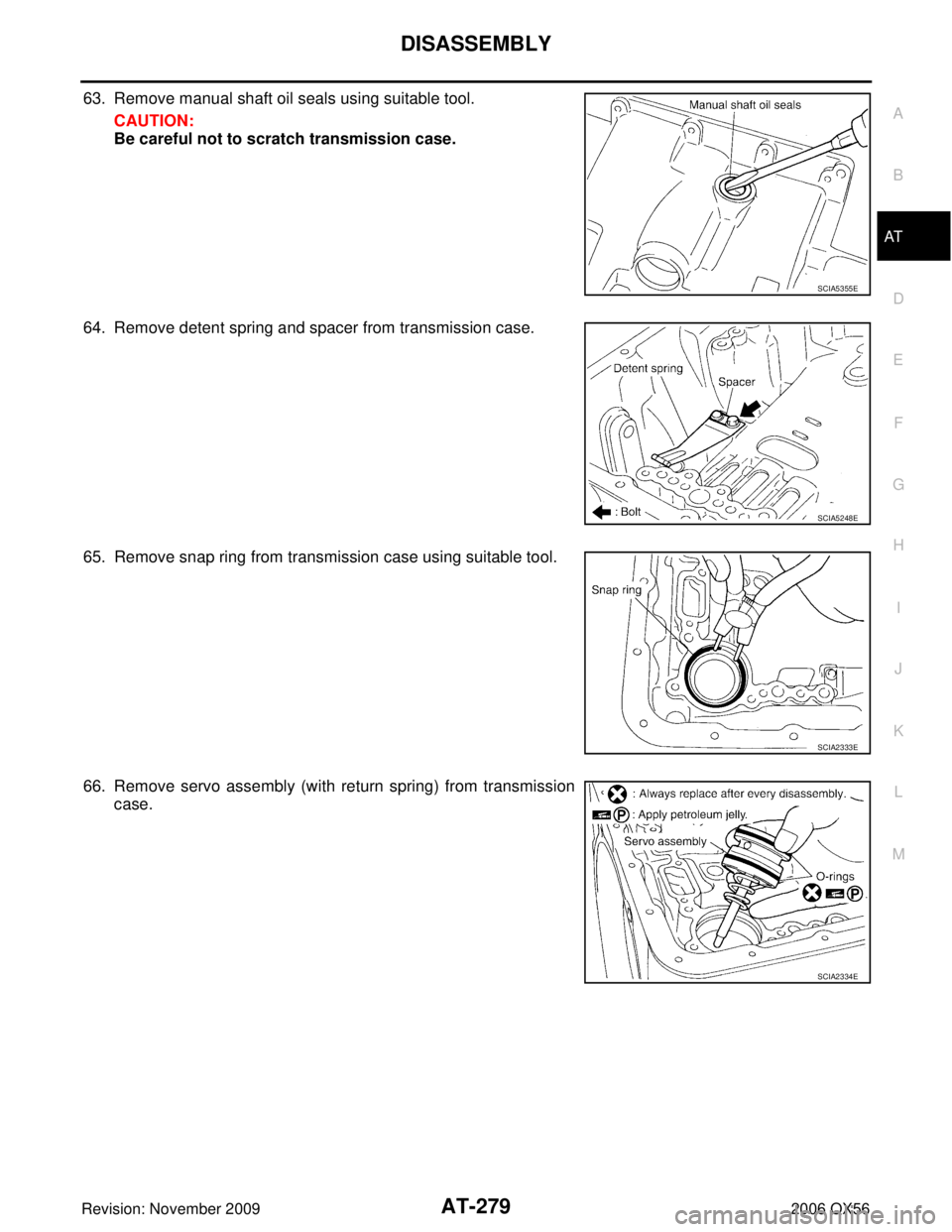

INFINITI QX56 2006 Factory Service Manual DISASSEMBLYAT-279 DE F G H I J K L M A B AT Revision: November 2009 2006 QX56 63. Remove manual shaft oil seals using suitable tool. CAUTION: Be careful not to scratch transmission case. 64. Remove de

Page 355 of 3383

INFINITI QX56 2006 Factory Service Manual AT-280 DISASSEMBLY Revision: November 20092006 QX56 67. Remove return spring from servo assembly. 68. Remove O-rings from servo assembly. 69. Remove parking actuator support from rear extension (2WD m

Page 356 of 3383

INFINITI QX56 2006 Factory Service Manual DISASSEMBLYAT-281 DE F G H I J K L M A B AT Revision: November 2009 2006 QX56 72. Remove needle bearing from rear extension (2WD models) or adapter case (4WD models). 73. Remove rear oil seal from rea

Page 357 of 3383

INFINITI QX56 2006 Factory Service Manual AT-282 REPAIR FOR COMPONENT PARTS Revision: November 20092006 QX56 REPAIR FOR COMPONENT PARTSPFP:00000 Oil PumpECS00EOC COMPONENTS DISASSEMBLY 1. Remove oil pump housing from oil pump cover. 2. Remove

Page 358 of 3383

INFINITI QX56 2006 Factory Service Manual REPAIR FOR COMPONENT PARTSAT-283 DE F G H I J K L M A B AT Revision: November 2009 2006 QX56 3. Remove O-ring from oil pump housing. 4. Remove O-ring from oil pump cover. ASSEMBLY 1. Install new O-rin

Page 359 of 3383

INFINITI QX56 2006 Factory Service Manual AT-284 REPAIR FOR COMPONENT PARTS Revision: November 20092006 QX56 3. Install new oil pump housing oil seal to the oil pump housing until it is flush with the face of oil pump housing using Tool. CAUT

Page 360 of 3383

INFINITI QX56 2006 Factory Service Manual REPAIR FOR COMPONENT PARTSAT-285 DE F G H I J K L M A B AT Revision: November 2009 2006 QX56 2. Remove 3rd one-way clutch from front sun gear. INSPECTION 3rd One-way Clutch Check frictional surface f
