Page 2817 of 3383

RFD-12
CARRIER COVER
Revision: November 20092006 QX56
CARRIER COVERPFP:38351
Removal and InstallationEDS0044S
REMOVAL
1. Remove the rear final drive assembly. Refer to RFD-13, "Removal and Installation" .
2. Remove the carrier cover bolts and separate the carrier cover from the gear carrier using Tool.
CAUTION:
Do not damage the mating surface.
Do not insert flat-bladed screwdriver, this will damage the
mating surface.
INSTALLATION
1. Apply a 3 mm (0.12 in) bead of sealant to the mating surface ofthe carrier cover as shown.
Use Genuine Silicone RTV or equivalent. Refer to GI-46,
"Recommended Chemical Products and Sealants" .
CAUTION:
Remove any old sealant adhering to the mating surfaces.
Also remove any moisture, oil, or foreign material adhering
to the application and mating surfaces.
2. Install the carrier cover to the gear carrier. Tighten the bolts to the specified torque. Refer to RFD-15, "
COMPONENTS" .
3. Install the rear final drive assembly. Refer to RFD-13, "
Removal
and Installation" .
CAUTION:
Fill the rear final drive assembly with recommended differential gear oil. Refer to RFD-8, "
DIFFER-
ENTIAL GEAR OIL" .
Tool number : KV10111100 (J-37228)
WDIA0123E
WDIA0282E
Page 2818 of 3383
REAR FINAL DRIVE ASSEMBLYRFD-13
CE F
G H
I
J
K L
M A
B
RFD
Revision: November 2009 2006 QX56

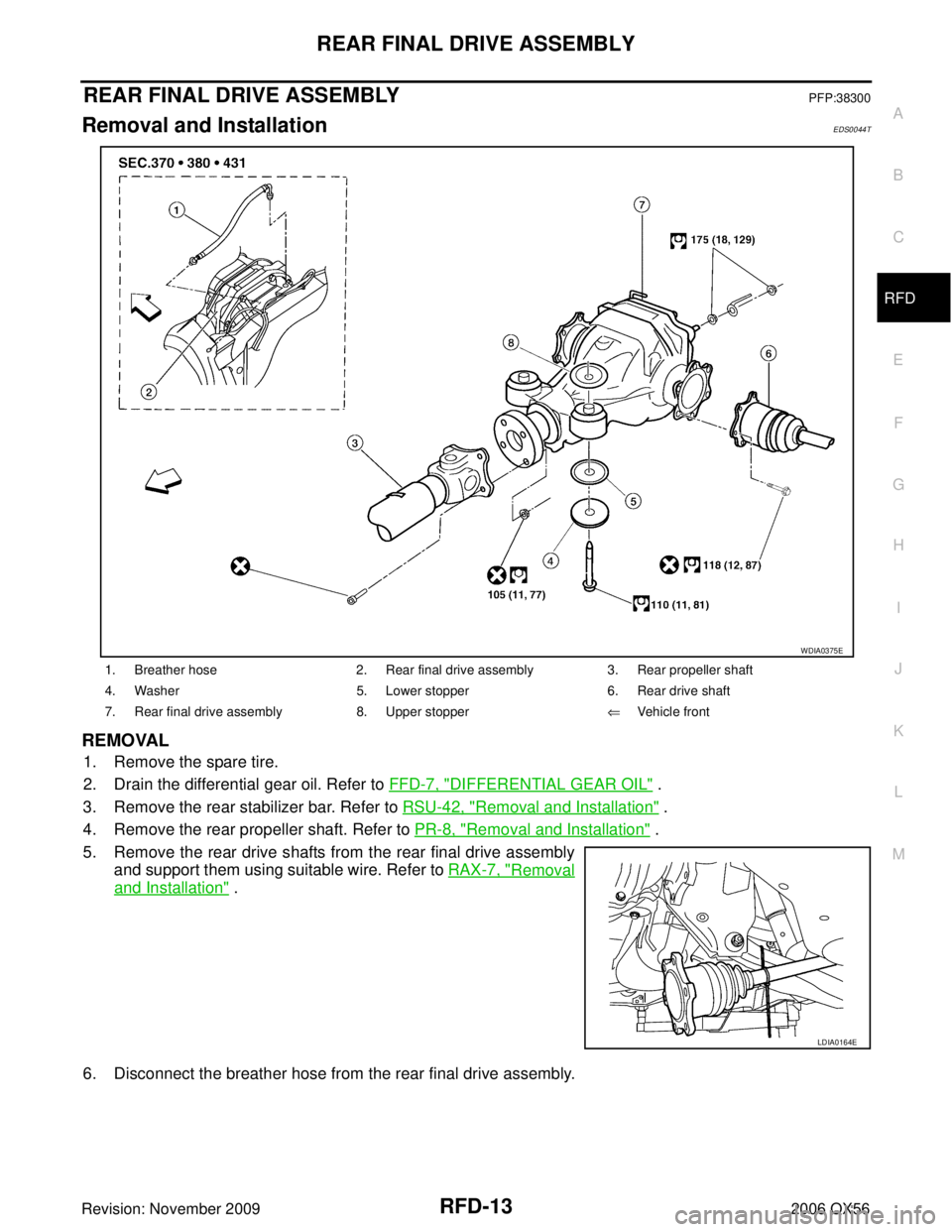

REAR FINAL DRIVE ASSEMBLYPFP:38300
Removal and InstallationEDS0044T
REMOVAL
1. Remove the spare tire.
2. Drain the differential gear oil. Refer to FFD-7, "
DIFFERENTIAL GEAR OIL" .
3. Remove the rear stabilizer bar. Refer to RSU-42, "
Removal and Installation" .
4. Remove the rear propeller shaft. Refer to PR-8, "
Removal and Installation" .
5. Remove the rear drive shafts from the rear final drive assembly and support them using suitable wire. Refer to RAX-7, "
Removal
and Installation" .
6. Disconnect the breather hose from the rear final drive assembly.
1. Breather hose 2. Rear final drive assembly3. Rear propeller shaft
4. Washer 5. Lower stopper6. Rear drive shaft
7. Rear final drive assembly 8. Upper stopper⇐Vehicle front
WDIA0375E
LDIA0164E
Page 2819 of 3383
RFD-14
REAR FINAL DRIVE ASSEMBLY
Revision: November 20092006 QX56
7. Place a suitable jack under the rear final drive assembly.
CAUTION:
Do not place the jack on the carrier cover.
8. Remove the nuts and bolts and remove the rear final drive assembly.
CAUTION:
Secure rear final drive assembly to the jack while removing
it.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
When installing the breather hose make sure the painted marking on the metal end of breather
hose is to the front of the vehicle and there are no pinched or restricted areas on the breather
hose caused by folding or bending when installing it.
When installing the breather hose insert the plastic end of the breather hose into the hole in the
suspension member.
Fill the rear final drive assembly with differential gear oil after installation. Refer to RFD-8, "DIF-
FERENTIAL GEAR OIL" .
WDIA0117E
Page 2820 of 3383
REAR FINAL DRIVE ASSEMBLYRFD-15
CE F
G H
I
J
K L
M A
B
RFD
Revision: November 2009 2006 QX56
Disassembly and AssemblyEDS0044U

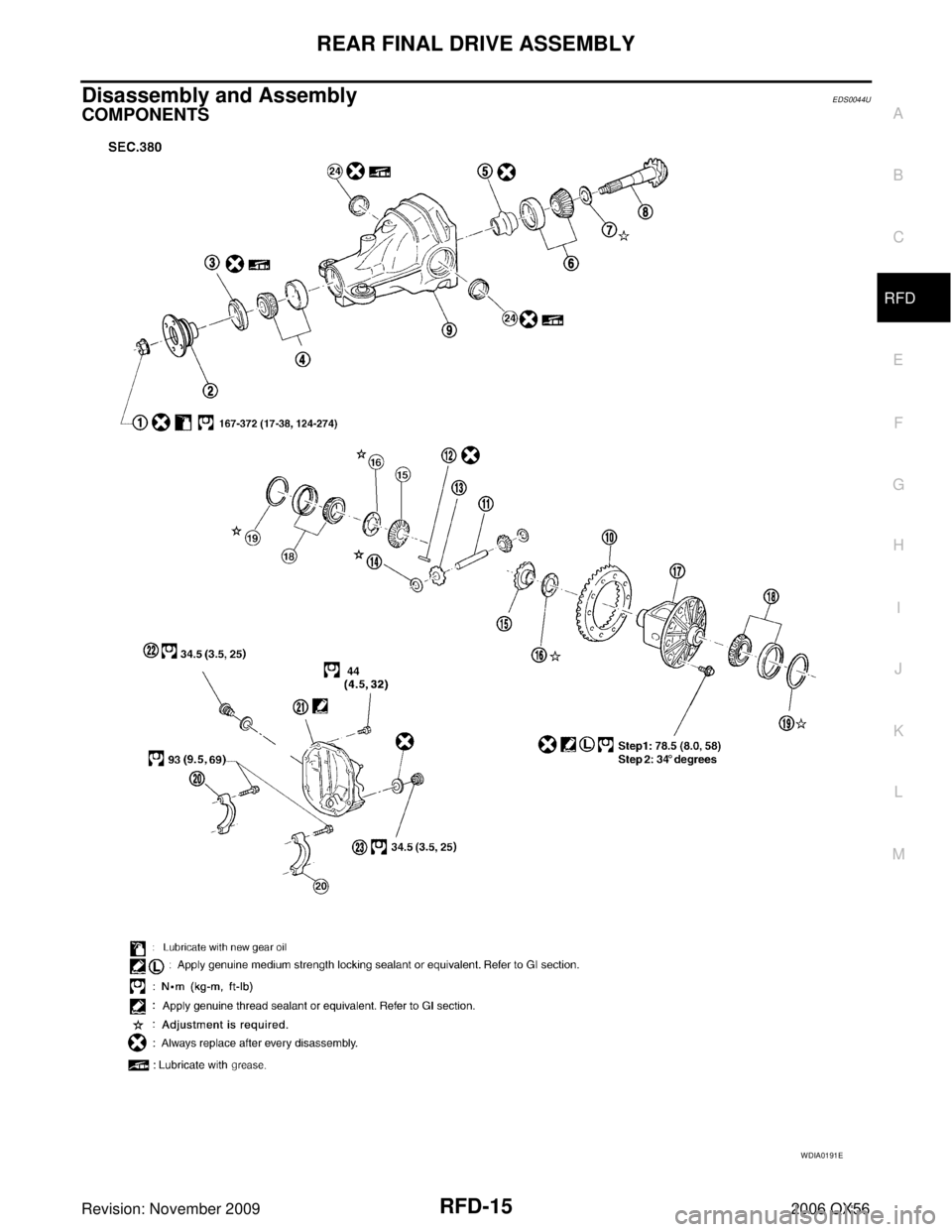

COMPONENTS
WDIA0191E
Page 2821 of 3383

RFD-16
REAR FINAL DRIVE ASSEMBLY
Revision: November 20092006 QX56

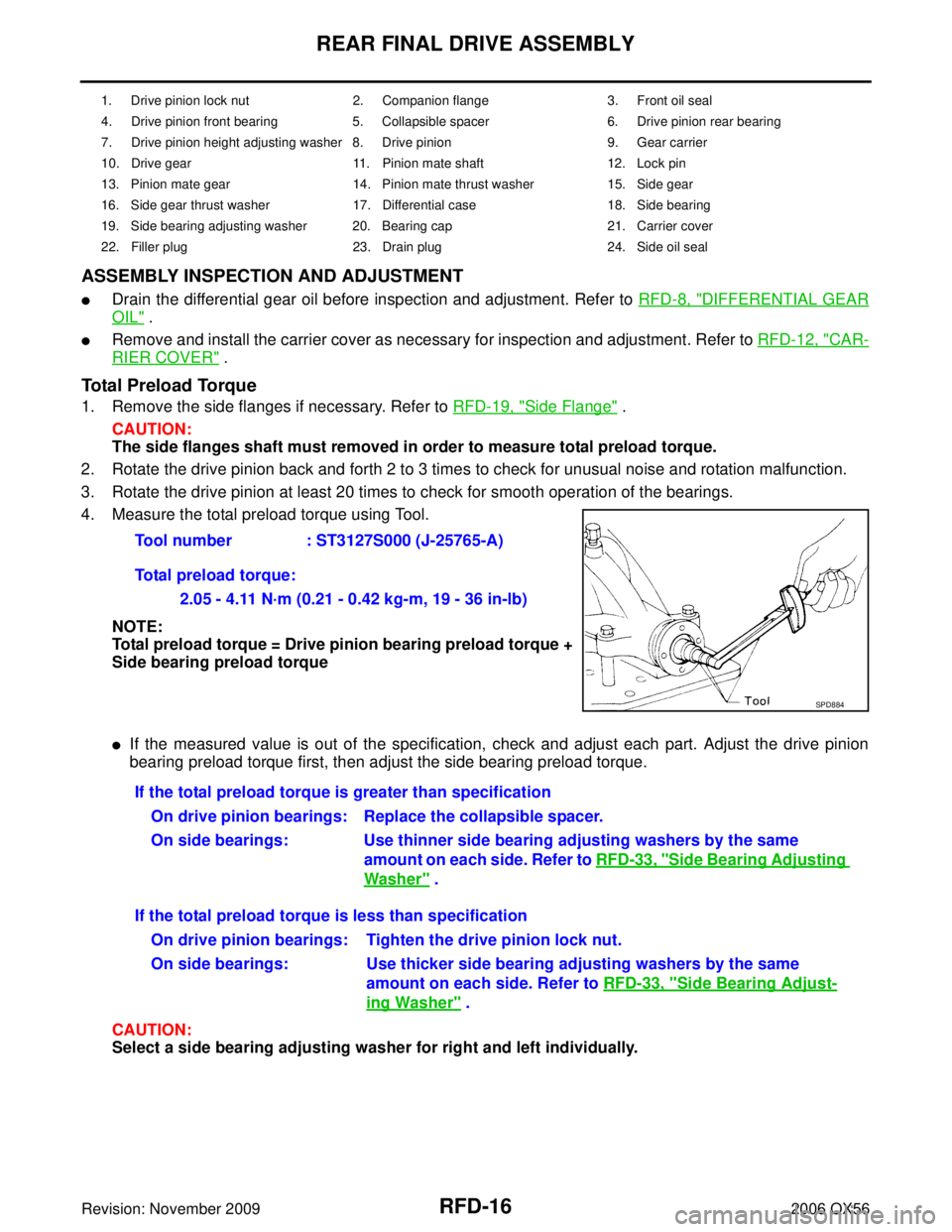

ASSEMBLY INSPECTION AND ADJUSTMENT
Drain the differential gear oil before inspection and adjustment. Refer to RFD-8, "DIFFERENTIAL GEAR
OIL" .
Remove and install the carrier cover as necessary for inspection and adjustment. Refer to RFD-12, "CAR-
RIER COVER" .
Total Preload Torque
1. Remove the side flanges if necessary. Refer to RFD-19, "Side Flange" .
CAUTION:
The side flanges shaft must removed in order to measure total preload torque.
2. Rotate the drive pinion back and forth 2 to 3 times to check for unusual noise and rotation malfunction.
3. Rotate the drive pinion at least 20 times to check for smooth operation of the bearings.
4. Measure the total preload torque using Tool.
NOTE:
Total preload torque = Drive pinion bearing preload torque +
Side bearing preload torque
If the measured value is out of the specification, check and adjust each part. Adjust the drive pinion
bearing preload torque first, then adjust the side bearing preload torque.
CAUTION:
Select a side bearing adjusting washer for right and left individually.
1. Drive pinion lock nut 2. Companion flange 3. Front oil seal
4. Drive pinion front bearing 5. Collapsible spacer 6. Drive pinion rear bearing
7. Drive pinion height adjusting washer 8. Drive pinion 9. Gear carrier
10. Drive gear 11. Pinion mate shaft 12. Lock pin
13. Pinion mate gear 14. Pinion mate thrust washer 15. Side gear
16. Side gear thrust washer 17. Differential case 18. Side bearing
19. Side bearing adjusting washer 20. Bearing cap 21. Carrier cover
22. Filler plug 23. Drain plug 24. Side oil seal
Tool number : ST3127S000 (J-25765-A)
Total preload torque:
2.05 - 4.11 N·m (0.21 - 0.42 kg-m, 19 - 36 in-lb)
SPD884
If the total preload torque is greater than specificationOn drive pinion bearings: Replace the collapsible spacer.
On side bearings: Use thinner side bearing adjusting washers by the same amount on each side. Refer to RFD-33, "
Side Bearing Adjusting
Washer" .
If the total preload torque is less than specification On drive pinion bearings: Tighten the drive pinion lock nut.
On side bearings: Use thicker side bearing adjusting washers by the same amount on each side. Refer to RFD-33, "
Side Bearing Adjust-
ing Washer" .
Page 2822 of 3383

REAR FINAL DRIVE ASSEMBLYRFD-17
CE F
G H
I
J
K L
M A
B
RFD
Revision: November 2009 2006 QX56
Drive Gear Runout
1. Fit a dial indicator to the drive gear back face.
2. Rotate the drive gear to measure runout.
If the runout is outside of the limit, check the condition of the
drive gear assembly. Foreign material may be caught between
the drive gear and differential case, or the differential case or
drive gear may be deformed.
CAUTION:
Replace drive gear and drive pinion as a set.
Tooth Contact
1. Apply red lead to the drive gear.
NOTE:
Apply red lead to both faces of three to four gears, at four loca-
tions evenly spaced on the drive gear.
2. Rotate the drive gear back and forth several times. Then check for correct drive pinion to drive gear tooth contact as shown.
CAUTION:
Check tooth contact on drive side and reverse side.
3. If the tooth contact is improperly adjusted, follow the procedure below to adjust the pinion height (dimension X).Runout limit : 0.05 mm (0.0020 in) or less
SPD886
SPD357
SDIA0570E
SDIA0517E
Page 2823 of 3383

RFD-18
REAR FINAL DRIVE ASSEMBLY
Revision: November 20092006 QX56

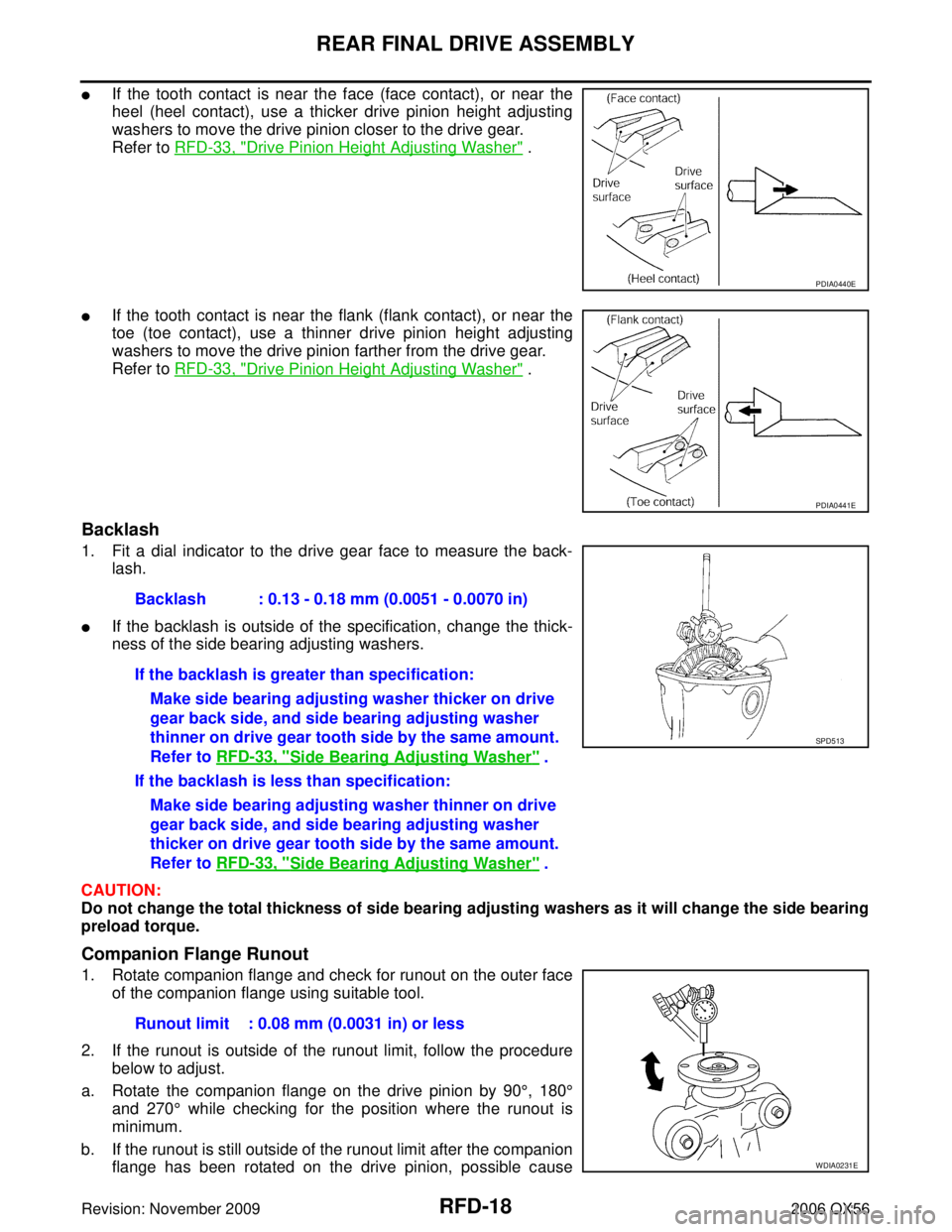

If the tooth contact is near the face (face contact), or near the
heel (heel contact), use a thicker drive pinion height adjusting
washers to move the drive pinion closer to the drive gear.
Refer to RFD-33, "
Drive Pinion Height Adjusting Washer" .
If the tooth contact is near the flank (flank contact), or near the
toe (toe contact), use a thinner drive pinion height adjusting
washers to move the drive pinion farther from the drive gear.
Refer to RFD-33, "
Drive Pinion Height Adjusting Washer" .
Backlash
1. Fit a dial indicator to the drive gear face to measure the back-
lash.
If the backlash is outside of the specification, change the thick-
ness of the side bearing adjusting washers.
CAUTION:
Do not change the total thickness of side bearing adjusting washers as it will change the side bearing
preload torque.
Companion Flange Runout
1. Rotate companion flange and check for runout on the outer face of the companion flange using suitable tool.
2. If the runout is outside of the runout limit, follow the procedure below to adjust.
a. Rotate the companion flange on the drive pinion by 90° , 180°
and 270 ° while checking for the position where the runout is
minimum.
b. If the runout is still outside of the runout limit after the companion flange has been rotated on the drive pinion, possible cause
PDIA0440E
PDIA0441E
Backlash : 0.13 - 0.18 mm (0.0051 - 0.0070 in)
If the backlash is greater than specification:
Make side bearing adjusting washer thicker on drive
gear back side, and side bearing adjusting washer
thinner on drive gear tooth side by the same amount.
Refer to RFD-33, "
Side Bearing Adjusting Washer" .
If the backlash is less than specification: Make side bearing adjusting washer thinner on drive
gear back side, and side bearing adjusting washer
thicker on drive gear tooth side by the same amount.
Refer to RFD-33, "
Side Bearing Adjusting Washer" .
SPD513
Runout limit : 0.08 mm (0.0031 in) or less
WDIA0231E
Page 2824 of 3383

REAR FINAL DRIVE ASSEMBLYRFD-19
CE F
G H
I
J
K L
M A
B
RFD
Revision: November 2009 2006 QX56
could be an assembly malfunction of drive pinion and drive pinion bearing or a malfunctioning drive pinion
bearing.
c. If the runout is still outside of the runout limit after repair of the assembly of drive pinion and drive pinion bearing or drive pinion bearing, replace the companion flange.

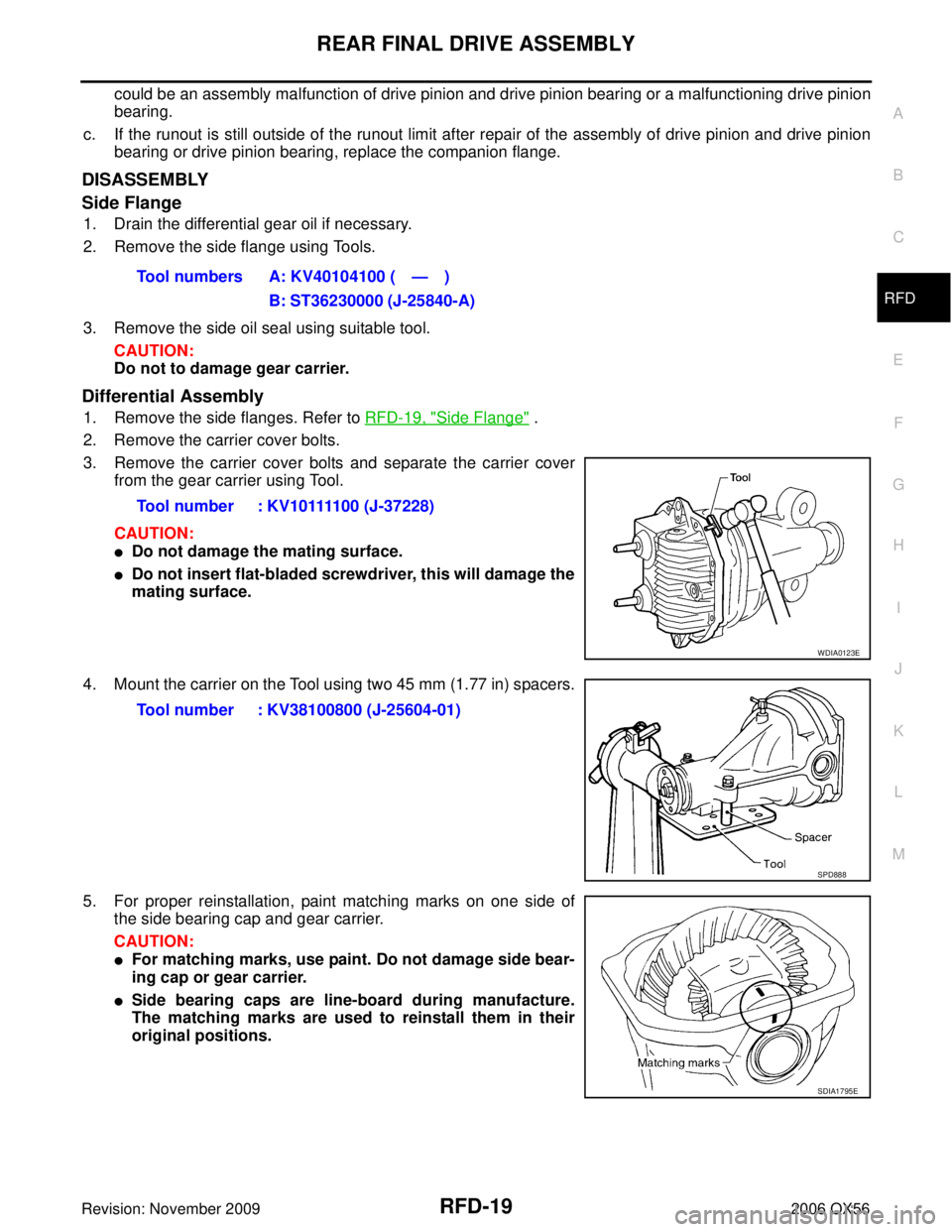

DISASSEMBLY
Side Flange
1. Drain the differential gear oil if necessary.
2. Remove the side flange using Tools.
3. Remove the side oil seal using suitable tool.
CAUTION:
Do not to damage gear carrier.
Differential Assembly
1. Remove the side flanges. Refer to RFD-19, "Side Flange" .
2. Remove the carrier cover bolts.
3. Remove the carrier cover bolts and separate the carrier cover from the gear carrier using Tool.
CAUTION:
Do not damage the mating surface.
Do not insert flat-bladed screwdriver, this will damage the
mating surface.
4. Mount the carrier on the Tool using two 45 mm (1.77 in) spacers.
5. For proper reinstallation, paint matching marks on one side of the side bearing cap and gear carrier.
CAUTION:
For matching marks, use paint. Do not damage side bear-
ing cap or gear carrier.
Side bearing caps are line-board during manufacture.
The matching marks are used to reinstall them in their
original positions.Tool numbers A: KV40104100 ( — )
B: ST36230000 (J-25840-A)
Tool number : KV10111100 (J-37228)
WDIA0123E
Tool number : KV38100800 (J-25604-01)
SPD888
SDIA1795E
