6. Align the dowel pin hole and bolt hole of the sub oil pump
assembly with the center case. Install the sub oil pump cover.
Then tighten to the specified torque. Refer to TF-146, "
COMPO-
NENTS" .
7. Apply ATF to the new O-ring and install it to the transfer motor. CAUTION:
Do not reuse O-ring.
8. Fit the double-flat end of the transfer motor shaft into the slot of the sub-oil pump assembly. Then tighten to the specified torque.
Refer to TF-146, "
COMPONENTS" .
CAUTION:
Be sure to install connector bracket.
9. Assemble the control valve assembly with the following procedure. CAUTION:
Do not reuse any part that has been dropped or damaged.
Make sure valve is assembled in the proper direction.
Do not use a magnet because residual magnetism stays during assembly.
a. Clean the upper body, control valves and springs with cleaning agent, and dry with compressed air.
b. Dip the control valves in ATF, and apply ATF to the valve-mount- ing area of the upper body.
c. Install each control valve, spring, and plug to the upper body, and install retainer plates to hold them in place.
CAUTION:
To insert control valves into upper body, place upper
body on a level surface in order to prevent flaw or dam-
age.
Make sure each control valve is smoothly inserted.
SDIA2328E
SDIA2787E
SDIA3317E
SDIA2127E
Page 3274 of 3383

TRANSFER ASSEMBLYTF-169
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
d. Install the reverse balls, relief balls and relief springs, accumula-
tor pistons and valve springs to the upper body.
e. Install the lower body and new separator plate to the upper body.
CAUTION:
Do not reuse separator plate.
f. With the lower body down, tighten the two bolts shown.
g. Apply ATF to the new O-rings, and install them to each solenoid valve, switch and terminal body.
CAUTION:
Do not reuse O-rings.
h. Install the following to the control valve assembly:
Clutch pressure solenoid valve
2-4WD shift solenoid valve
Clutch pressure switch
Line pressure switch
Transfer fluid temperature sensor
10. Apply ATF to the new lip seals, and install them to the center case.
CAUTION:
Do not reuse lip seals.
There are 2 kinds of lip seals (lip seal of large inner diam-
eter: 5 pieces, lip seal of small inner diameter: 2 pieces).
Confirm their position for installation.
SDIA2126E
WDIA0200E
WDIA0198E
SDIA2123E
Page 3275 of 3383
TF-170
TRANSFER ASSEMBLY
Revision: November 20092006 QX56
11. Install the control valve assembly to the center case, and tighten
to the specified torque. Refer to TF-146, "
COMPONENTS" .
CAUTION:
Do not reuse any part that has been dropped or damaged.
Make sure valve is assembled in the proper direction.
Do not use a magnet because residual magnetism stays
during assembly.
12. Install the connector assembly into the center case, and secure with a snap ring.
13. Apply ATF to the new O-rings, and install them on the oil strainer.
CAUTION:
Do not reuse O-rings.
14. Install the oil strainer to the control valve assembly.
15. Tighten the bolts to the specified torque. Refer to TF-146,
"COMPONENTS" .
16. Apply ATF to the new D-rings, and install them to the clutch pis- ton.
CAUTION:
Do not reuse D-rings.
SDIA2121E
SDIA2122E
SDIA2782E
SDIA2119E
SDIA2781E
Page 3276 of 3383

TRANSFER ASSEMBLYTF-171
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56

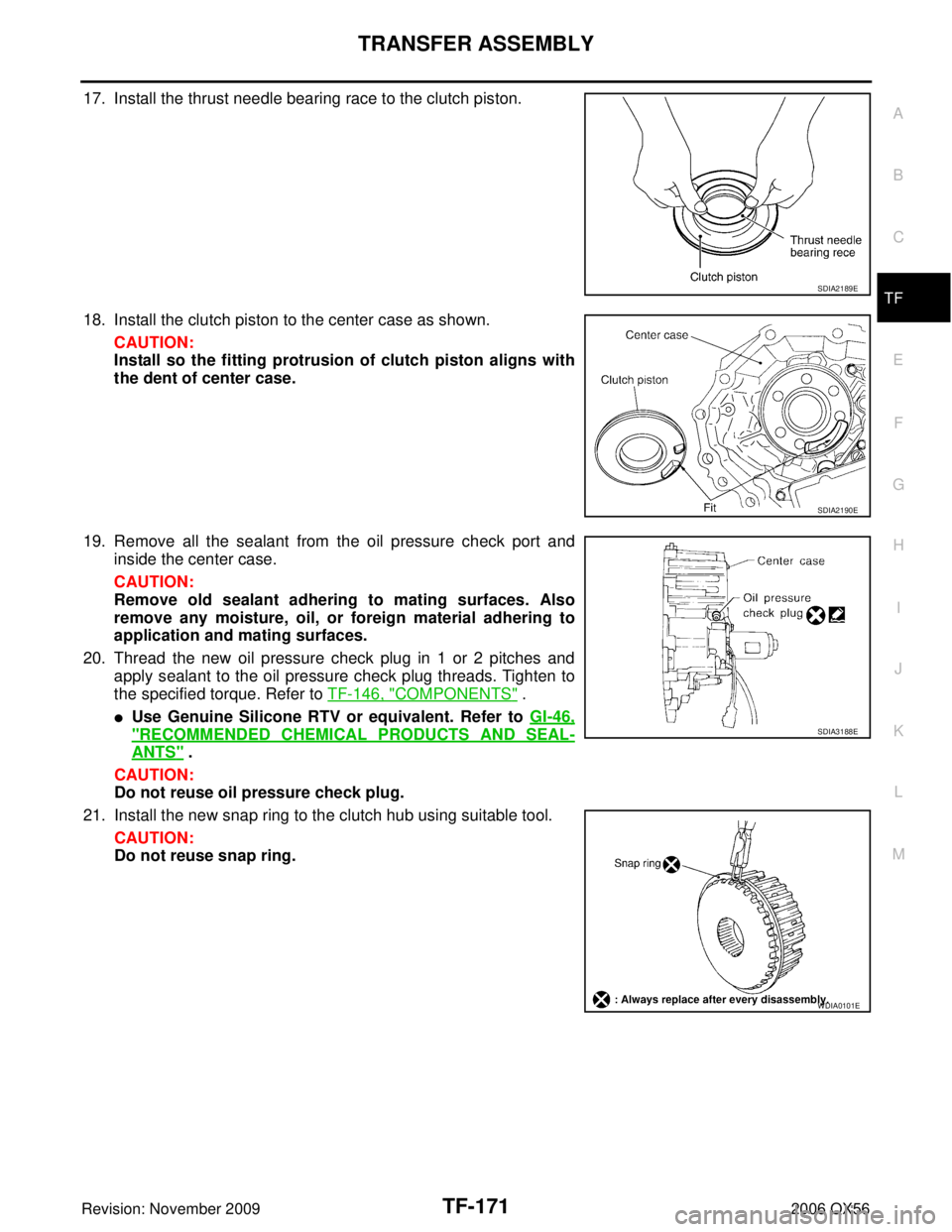

17. Install the thrust needle bearing race to the clutch piston.
18. Install the clutch piston to the center case as shown.
CAUTION:
Install so the fitting protrusion of clutch piston aligns with
the dent of center case.
19. Remove all the sealant from the oil pressure check port and inside the center case.
CAUTION:
Remove old sealant adhering to mating surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mating surfaces.
20. Thread the new oil pressure check plug in 1 or 2 pitches and apply sealant to the oil pressure check plug threads. Tighten to
the specified torque. Refer to TF-146, "
COMPONENTS" .
Use Genuine Silicone RTV or equivalent. Refer to GI-46,
"RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS" .
CAUTION:
Do not reuse oil pressure check plug.
21. Install the new snap ring to the clutch hub using suitable tool. CAUTION:
Do not reuse snap ring.
SDIA2189E
SDIA2190E
SDIA3188E
WDIA0101E
Page 3277 of 3383
TF-172
TRANSFER ASSEMBLY
Revision: November 20092006 QX56

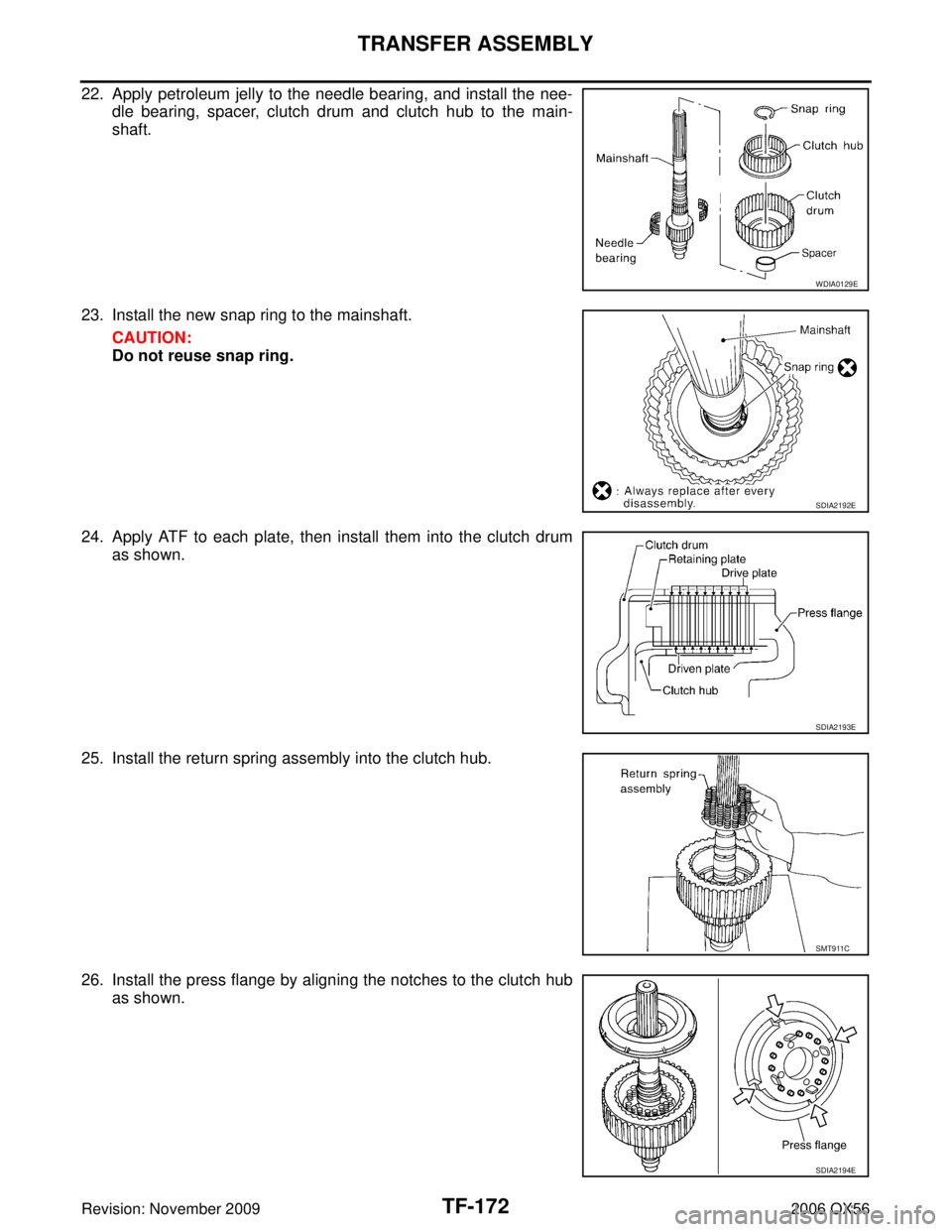

22. Apply petroleum jelly to the needle bearing, and install the nee-
dle bearing, spacer, clutch drum and clutch hub to the main-
shaft.
23. Install the new snap ring to the mainshaft. CAUTION:
Do not reuse snap ring.
24. Apply ATF to each plate, then install them into the clutch drum as shown.
25. Install the return spring assembly into the clutch hub.
26. Install the press flange by aligning the notches to the clutch hub as shown.
WDIA0129E
SDIA2192E
SDIA2193E
SMT911C
SDIA2194E
Page 3278 of 3383
TRANSFER ASSEMBLYTF-173
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
27. Press the press flange to install the new snap ring into snap ring
groove on mainshaft using Tools.
CAUTION:
Do not reuse snap ring.
28. Install the new snap ring to the mainshaft using suitable tool. CAUTION:
Do not reuse snap ring.
29. Apply ATF to the thrust needle bearing and install it on the press flange.
30. Install the new snap ring to the main shaft. CAUTION:
Do not reuse snap ring.

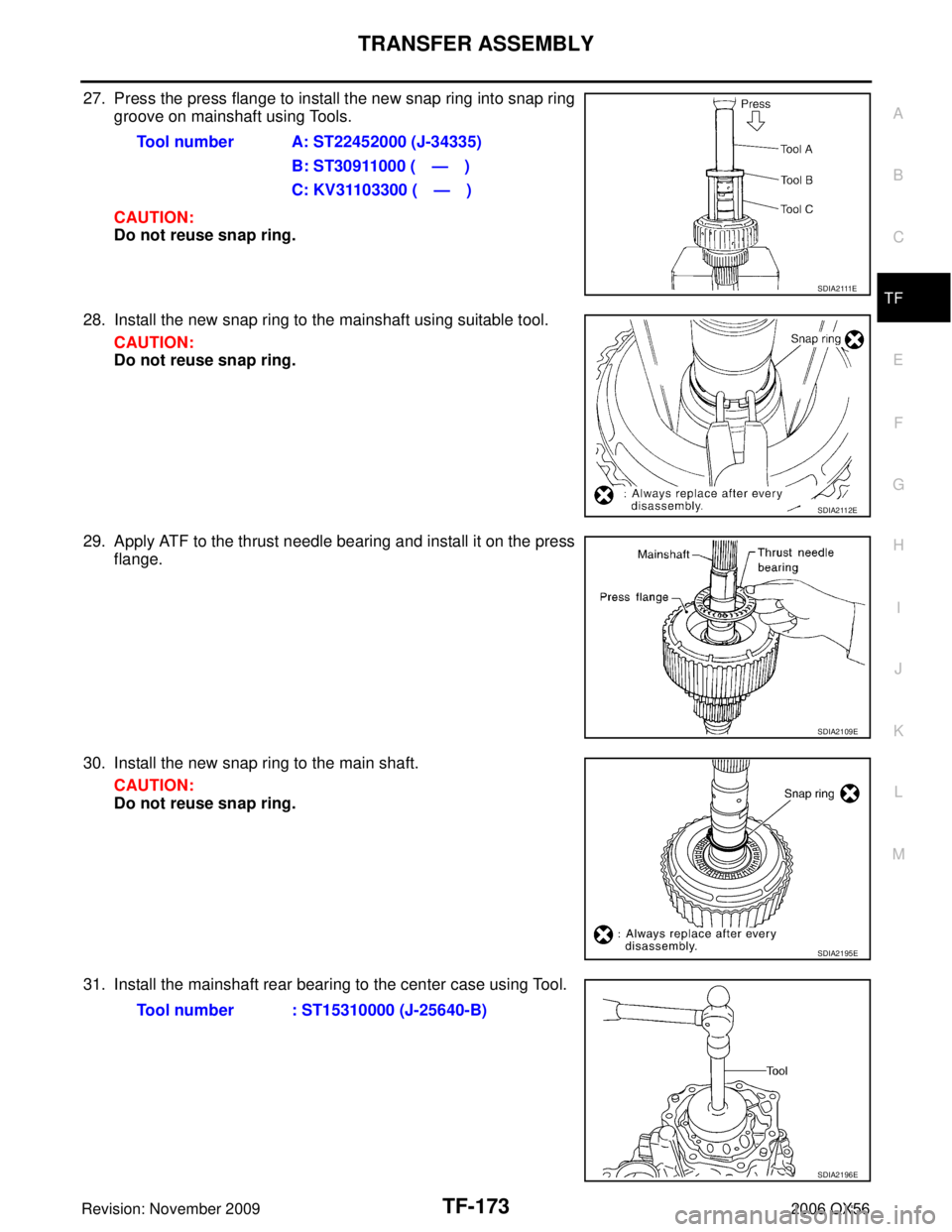

31. Install the mainshaft rear bearing to the center case using Tool. Tool number A: ST22452000 (J-34335)
B: ST30911000 ( — )
C: KV31103300 ( — )
S D I A 2 111 E
SDIA2112E
SDIA2109E
SDIA2195E
Tool number : ST15310000 (J-25640-B)
SDIA2196E
Page 3279 of 3383
TF-174
TRANSFER ASSEMBLY
Revision: November 20092006 QX56

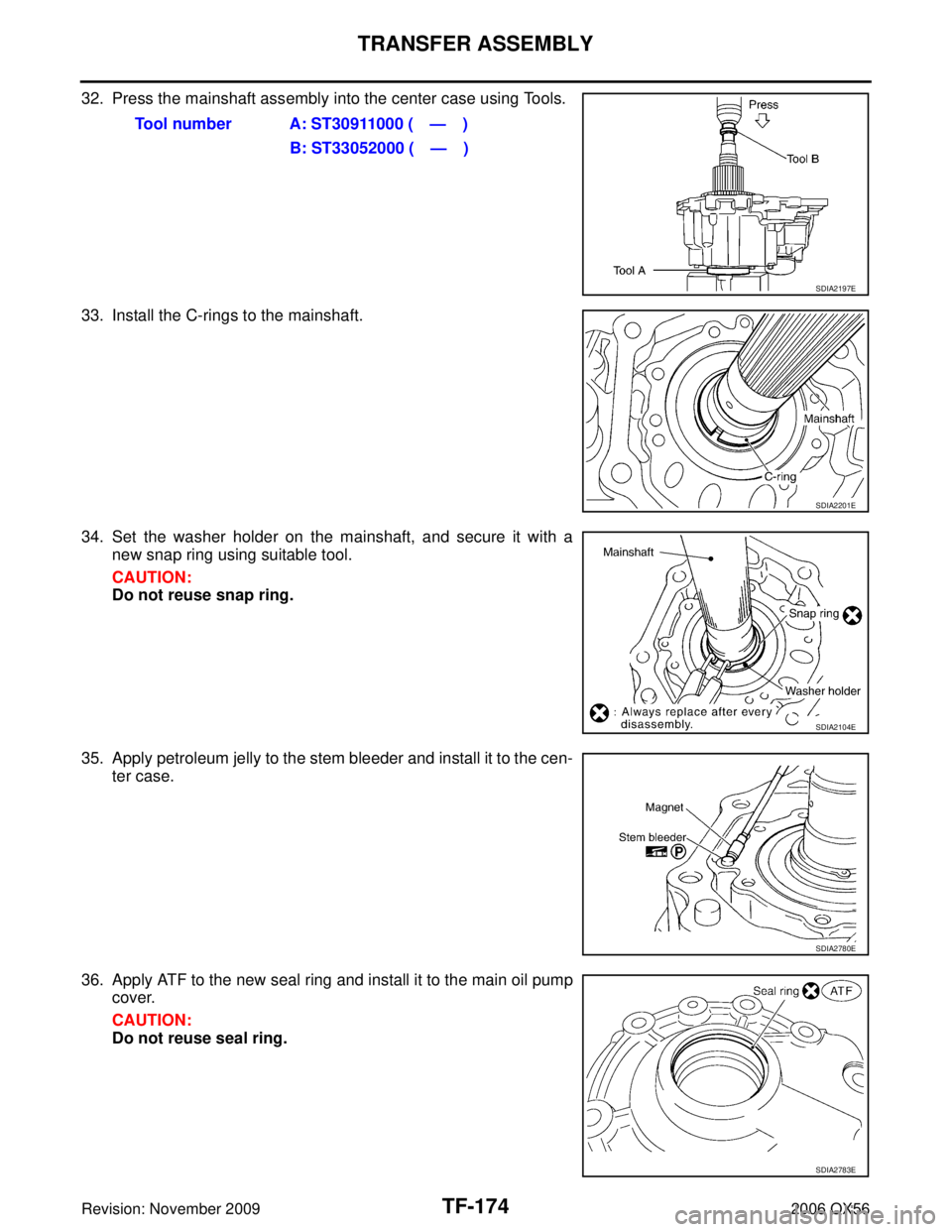

32. Press the mainshaft assembly into the center case using Tools.
33. Install the C-rings to the mainshaft.
34. Set the washer holder on the mainshaft, and secure it with a
new snap ring using suitable tool.
CAUTION:
Do not reuse snap ring.
35. Apply petroleum jelly to the stem bleeder and install it to the cen- ter case.
36. Apply ATF to the new seal ring and install it to the main oil pump cover.
CAUTION:
Do not reuse seal ring.Tool number A: ST30911000 ( — )
B: ST33052000 ( — )
SDIA2197E
SDIA2201E
SDIA2104E
SDIA2780E
SDIA2783E
Page 3280 of 3383

TRANSFER ASSEMBLYTF-175
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56

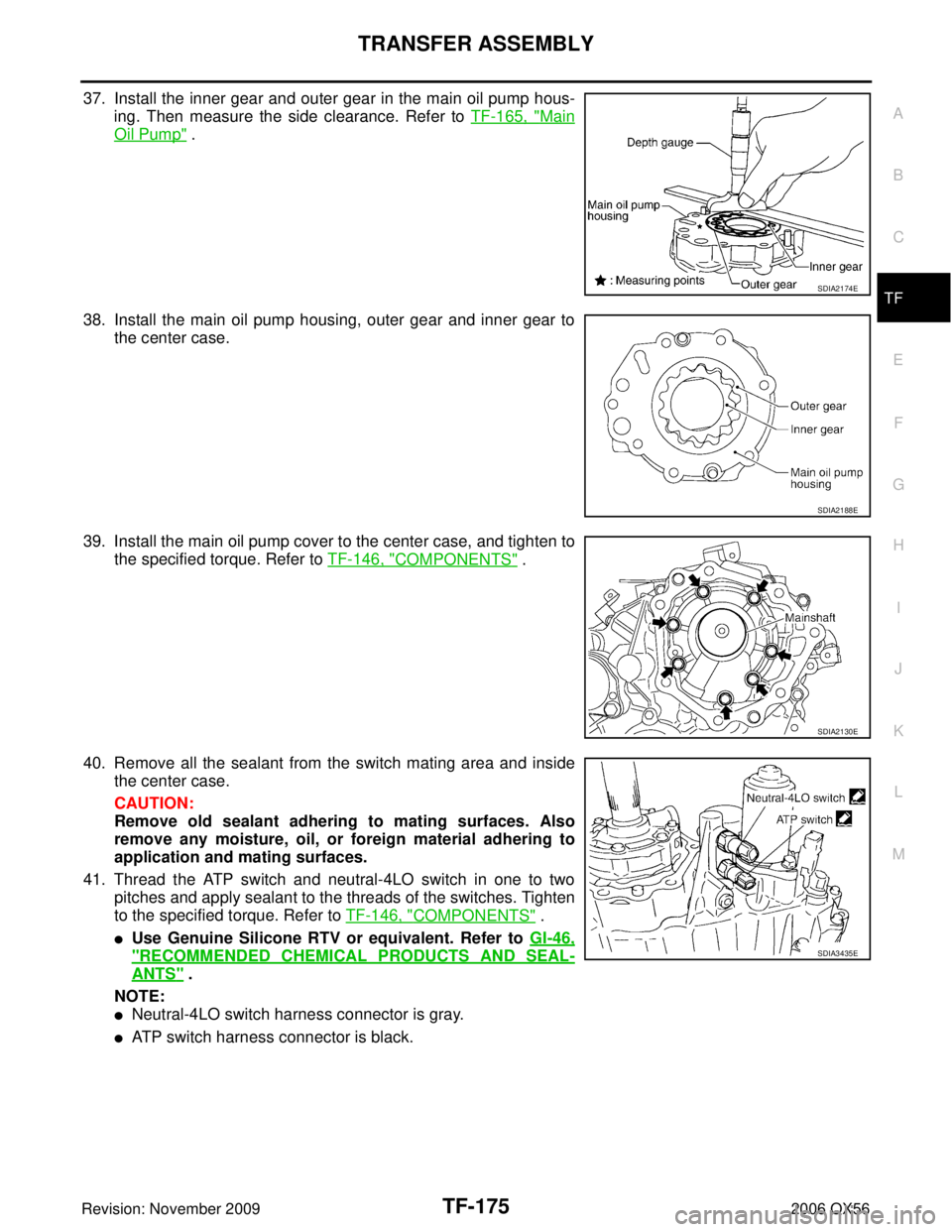

37. Install the inner gear and outer gear in the main oil pump hous-
ing. Then measure the side clearance. Refer to TF-165, "
Main
Oil Pump" .
38. Install the main oil pump housing, outer gear and inner gear to the center case.
39. Install the main oil pump cover to the center case, and tighten to the specified torque. Refer to TF-146, "
COMPONENTS" .
40. Remove all the sealant from the switch mating area and inside the center case.
CAUTION:
Remove old sealant adhering to mating surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mating surfaces.
41. Thread the ATP switch and neutral-4LO switch in one to two pitches and apply sealant to the threads of the switches. Tighten
to the specified torque. Refer to TF-146, "
COMPONENTS" .
Use Genuine Silicone RTV or equivalent. Refer to GI-46,
"RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS" .
NOTE:
Neutral-4LO switch harness connector is gray.
ATP switch harness connector is black.
SDIA2174E
SDIA2188E
SDIA2130E
