Page 2385 of 3383

INFINITI QX56 2006 Factory Service Manual LAN-116 [CAN] CAN SYSTEM (TYPE 4) Revision: November 20092006 QX56 Case 15 Check steering angle sensor circuit. Refer to LAN-133, "Steering Angle Sensor Circuit Inspection" . PKIC3554E PKIC3049E

Page 2386 of 3383

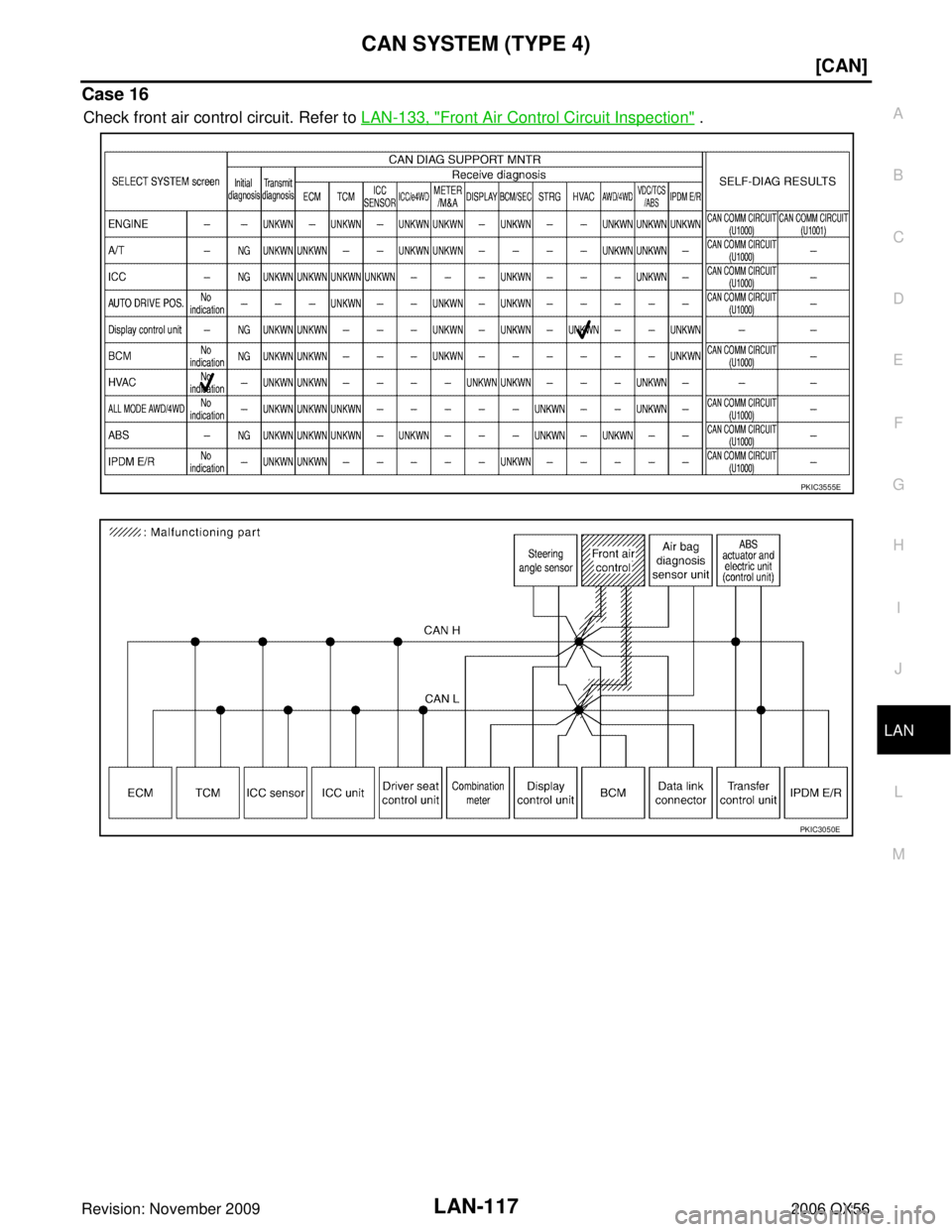

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 4)LAN-117 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 16 Check front air control circuit. Refer to LAN-133, "Front Air Control Circuit Inspection" . PKIC35

Page 2387 of 3383

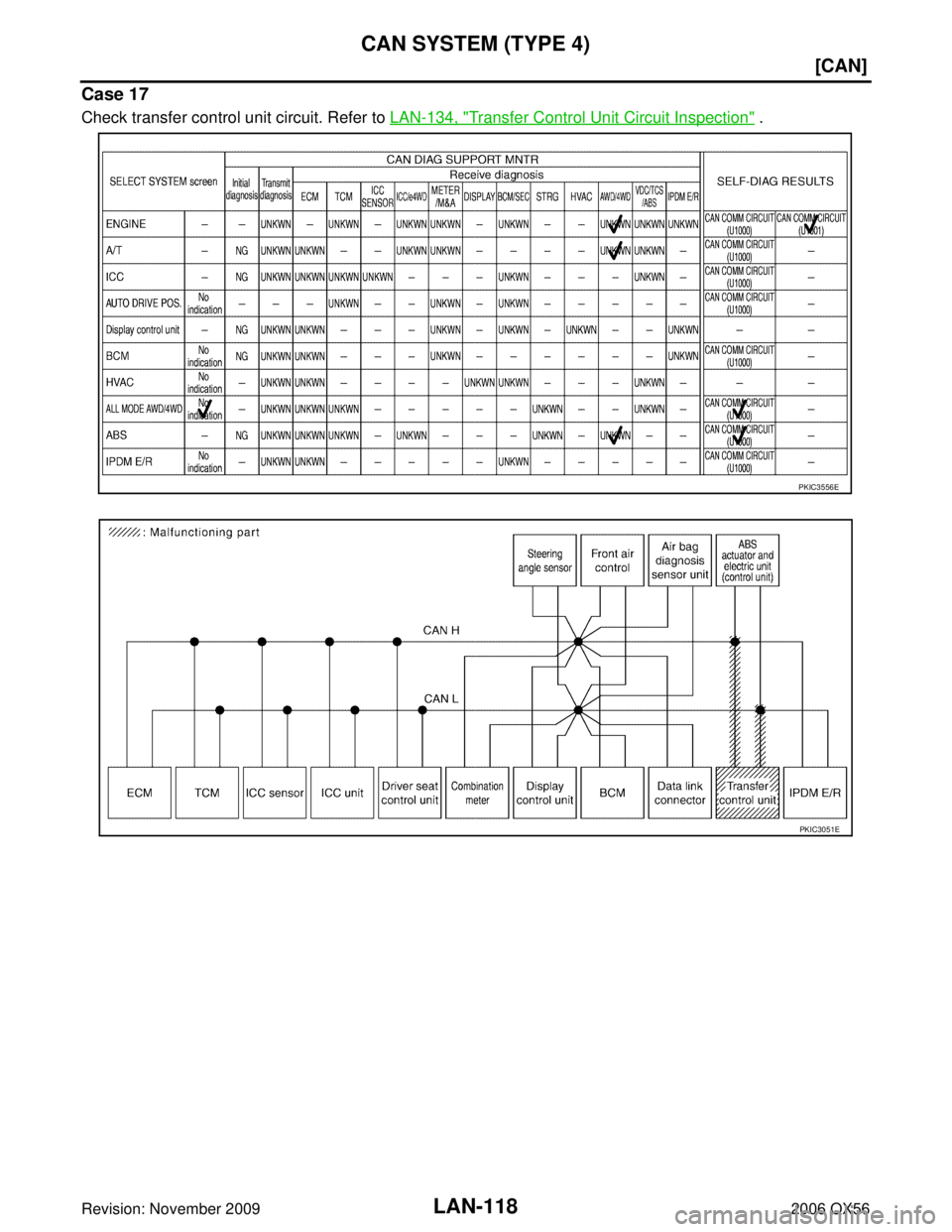

INFINITI QX56 2006 Factory Service Manual LAN-118 [CAN] CAN SYSTEM (TYPE 4) Revision: November 20092006 QX56 Case 17 Check transfer control unit circuit. Refer to LAN-134, "Transfer Control Unit Circuit Inspection" . PKIC3556E PKIC3051E

Page 2388 of 3383

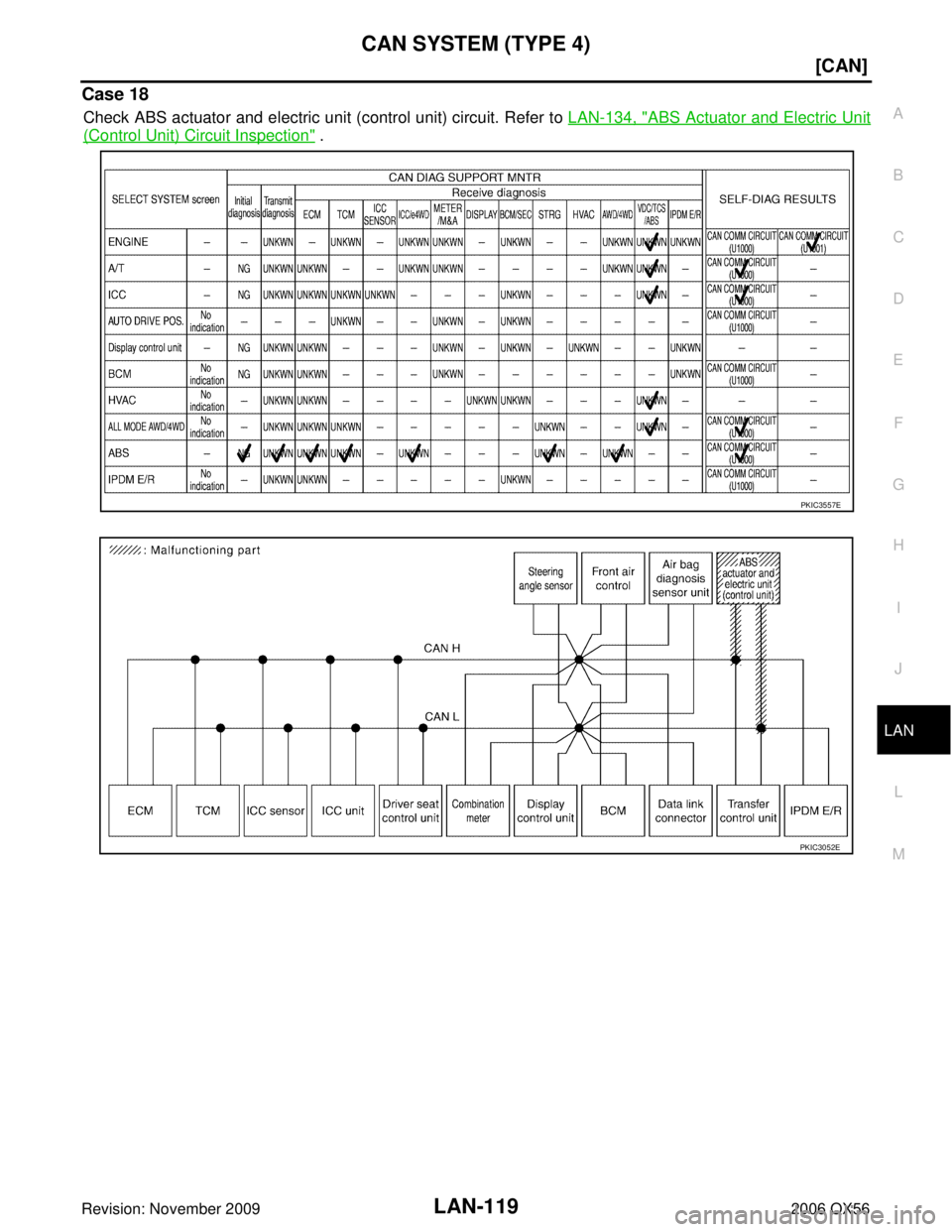

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 4)LAN-119 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 18 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-134, "ABS Actuator and E

Page 2389 of 3383

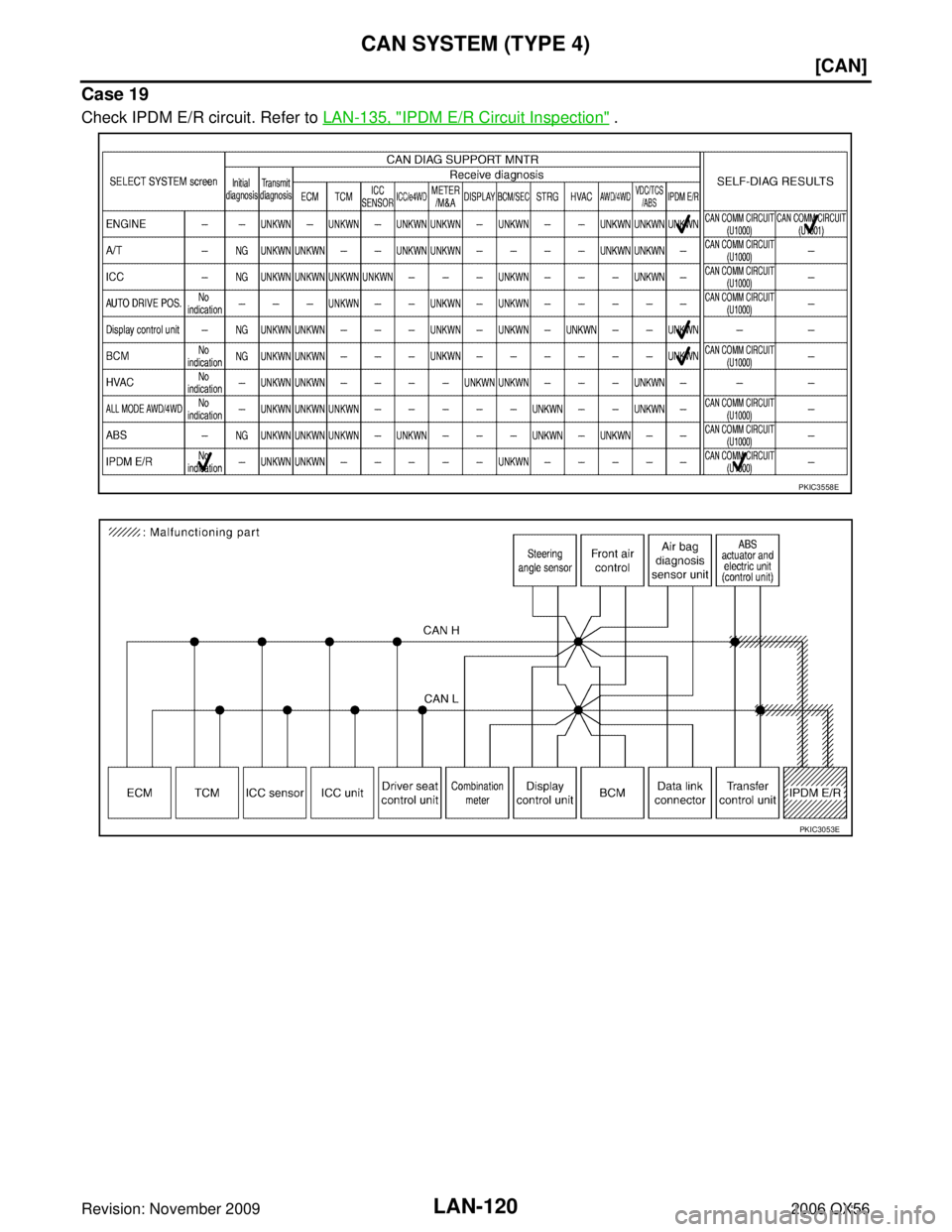

INFINITI QX56 2006 Factory Service Manual LAN-120 [CAN] CAN SYSTEM (TYPE 4) Revision: November 20092006 QX56 Case 19 Check IPDM E/R circuit. Refer to LAN-135, "IPDM E/R Circuit Inspection" . PKIC3558E PKIC3053E

Page 2390 of 3383

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 4)LAN-121 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 20 Check CAN communication circuit. Refer to LAN-135, "CAN Communication Circuit Inspection" . Case 2

Page 2391 of 3383

INFINITI QX56 2006 Factory Service Manual LAN-122 [CAN] CAN SYSTEM (TYPE 4) Revision: November 20092006 QX56 Case 22 Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-137, "IPDM E/R Ignition Relay Circuit Inspe

Page 2392 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEMLAN-123 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 TROUBLE DIAGNOSIS FOR SYSTEMPFP:00000 Inspection Between TCM and ICC Sensor CircuitUKS004TB 1. CH
