Page 1601 of 3383

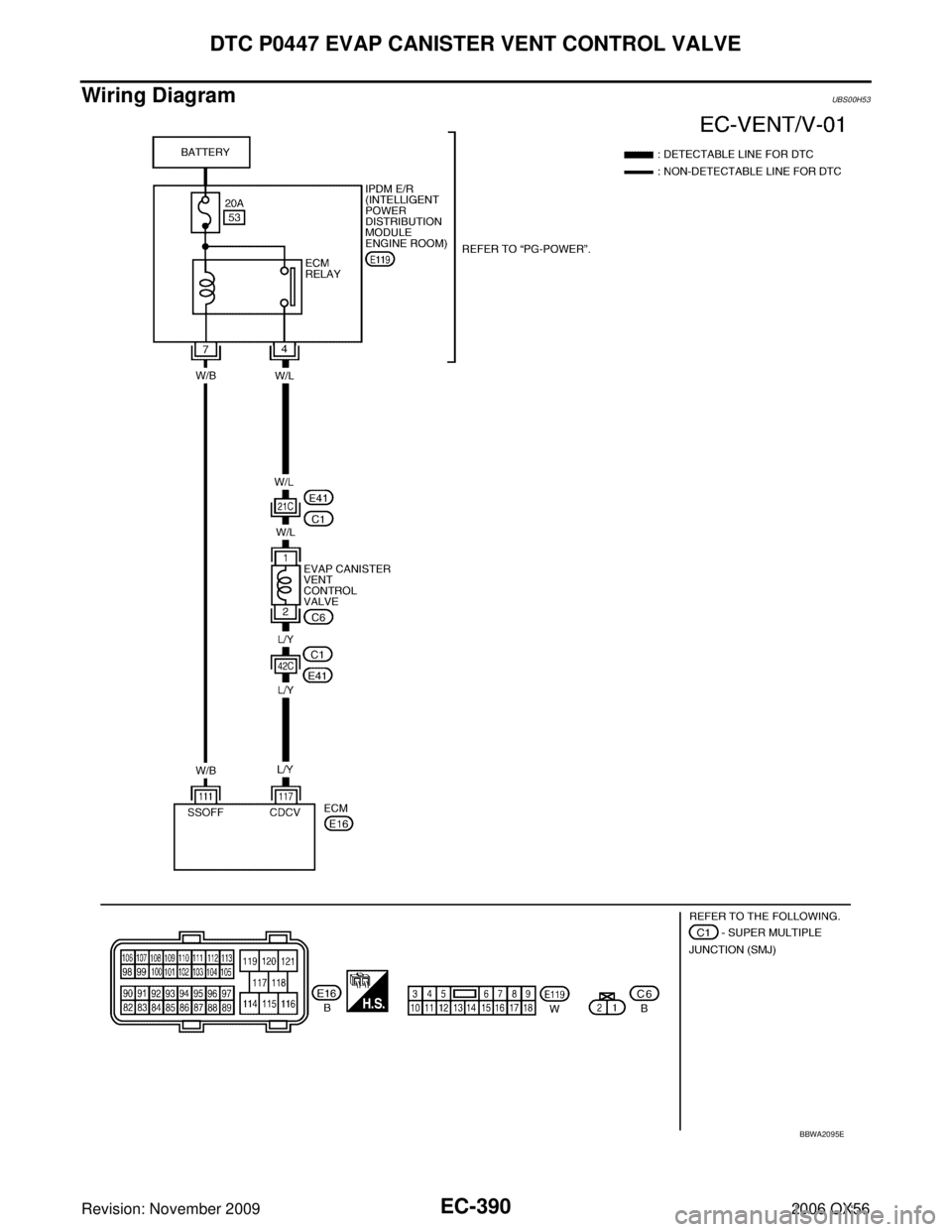

INFINITI QX56 2006 Factory Service Manual EC-390Revision: November 2009 DTC P0447 EVAP CANISTER VENT CONTROL VALVE 2006 QX56 Wiring DiagramUBS00H53 BBWA2095E

Page 1602 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0447 EVAP CANISTER VENT CONTROL VALVEEC-391 C DE F G H I J K L M A EC Revision: November 2009 2006 QX56 Specification data are reference values and are measured between each terminal and ground.

Page 1603 of 3383

INFINITI QX56 2006 Factory Service Manual EC-392Revision: November 2009 DTC P0447 EVAP CANISTER VENT CONTROL VALVE 2006 QX56 3. CHECK EVAP CANISTER VENT CONTROL VALVE POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect EVAP canist

Page 1604 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0447 EVAP CANISTER VENT CONTROL VALVEEC-393 C DE F G H I J K L M A EC Revision: November 2009 2006 QX56 6. DETECT MALFUNCTIONING PART Check the following. Harness connectors E41, C1 Harness for

Page 1605 of 3383

INFINITI QX56 2006 Factory Service Manual EC-394Revision: November 2009 DTC P0447 EVAP CANISTER VENT CONTROL VALVE 2006 QX56 7. Clean the air passage (portion A to B ) of EVAP canister vent control valve using an air blower. 8. Perform step

Page 1606 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0448 EVAP CANISTER VENT CONTROL VALVEEC-395 C DE F G H I J K L M A EC Revision: November 2009 2006 QX56 DTC P0448 EVAP CANISTER VENT CONTROL VALVEPFP:16935 Component DescriptionUBS00HB1 The EVAP

Page 1607 of 3383

INFINITI QX56 2006 Factory Service Manual EC-396Revision: November 2009 DTC P0448 EVAP CANISTER VENT CONTROL VALVE 2006 QX56 DTC Confirmation ProcedureUBS00HB4 NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ign

Page 1608 of 3383

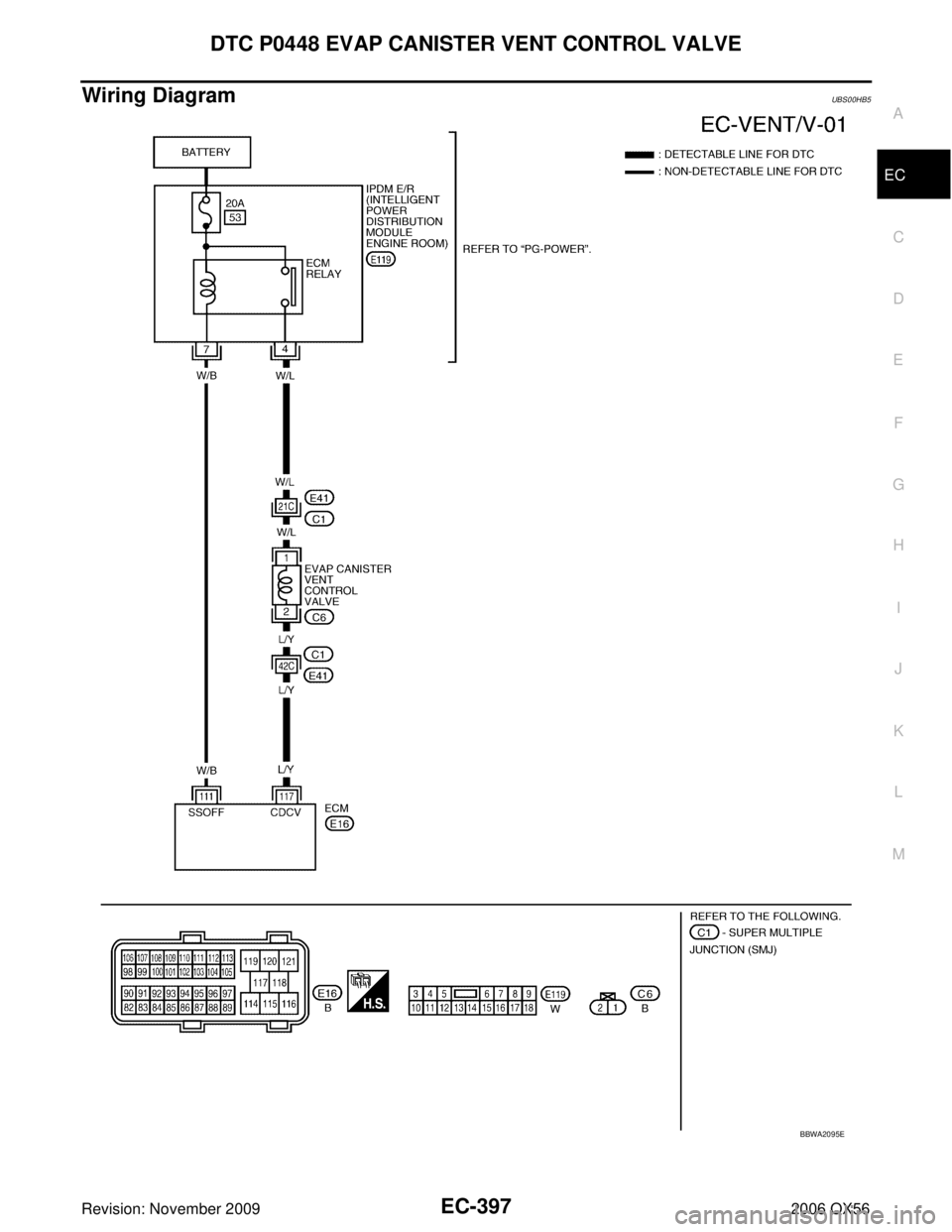

INFINITI QX56 2006 Factory Service Manual DTC P0448 EVAP CANISTER VENT CONTROL VALVEEC-397 C DE F G H I J K L M A EC Revision: November 2009 2006 QX56 Wiring DiagramUBS00HB5 BBWA2095E
