Page 2649 of 3383

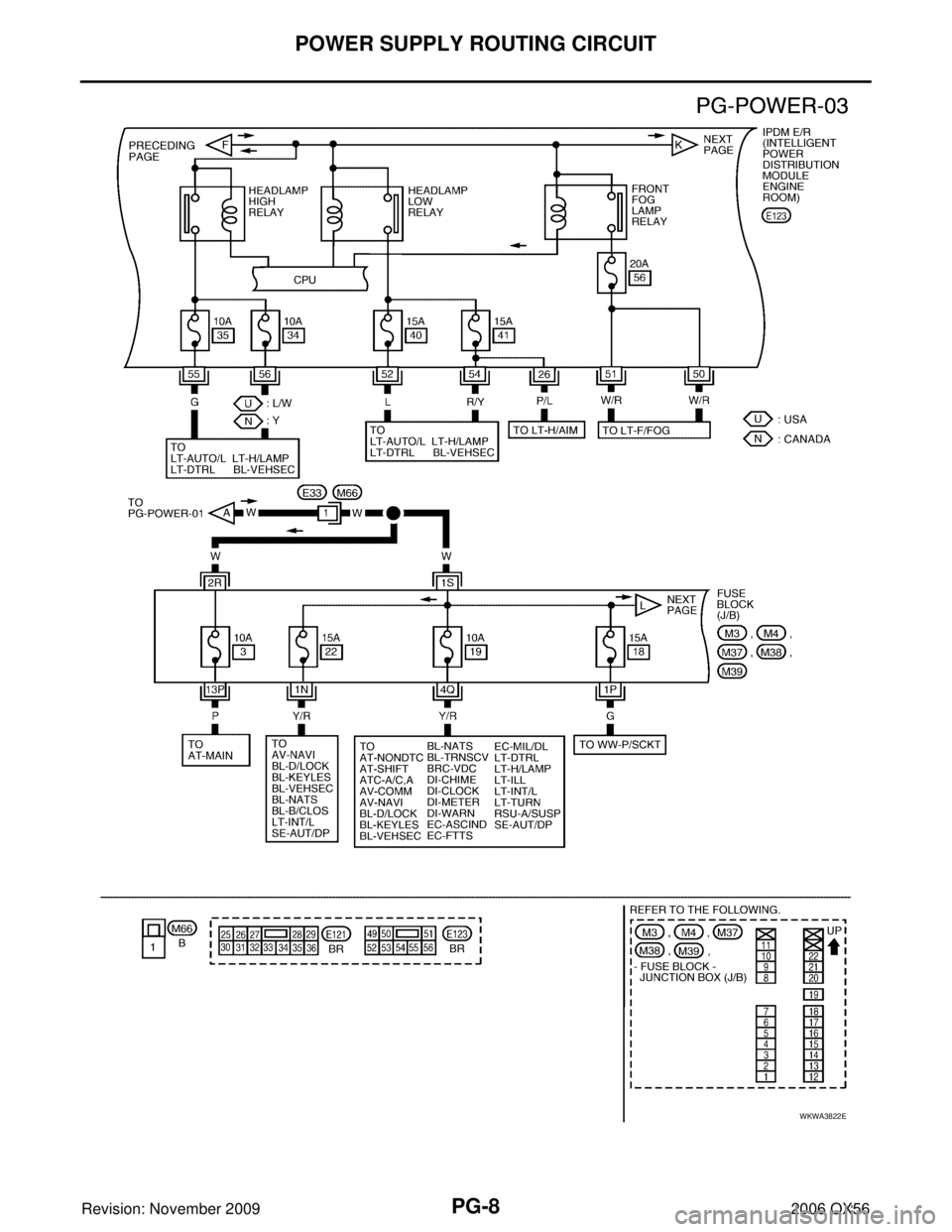

INFINITI QX56 2006 Factory Service Manual PG-8 POWER SUPPLY ROUTING CIRCUIT Revision: November 20092006 QX56 WKWA3822E

Page 2650 of 3383

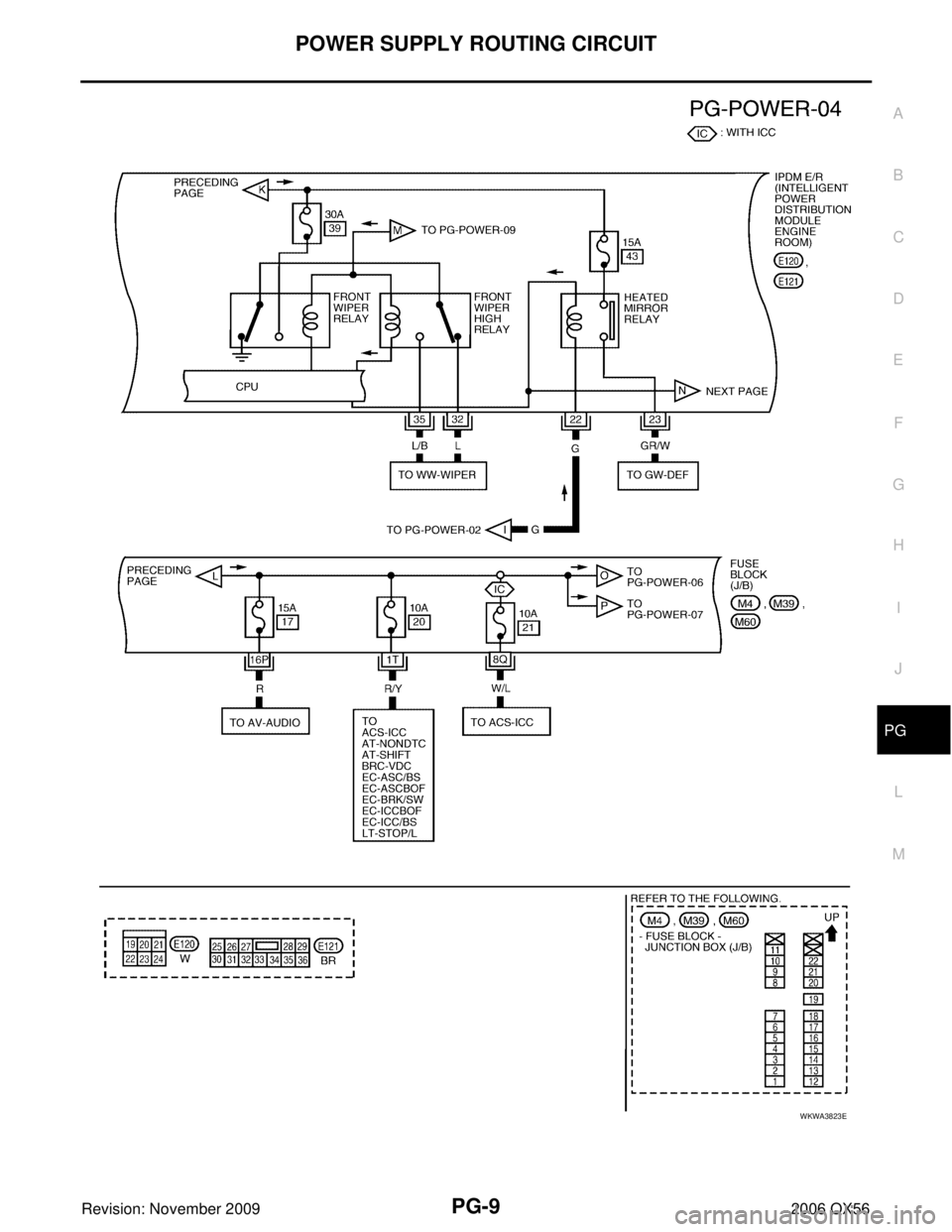

INFINITI QX56 2006 Factory Service Manual POWER SUPPLY ROUTING CIRCUITPG-9 C DE F G H I J L M A B PG Revision: November 2009 2006 QX56 WKWA3823E

Page 2651 of 3383

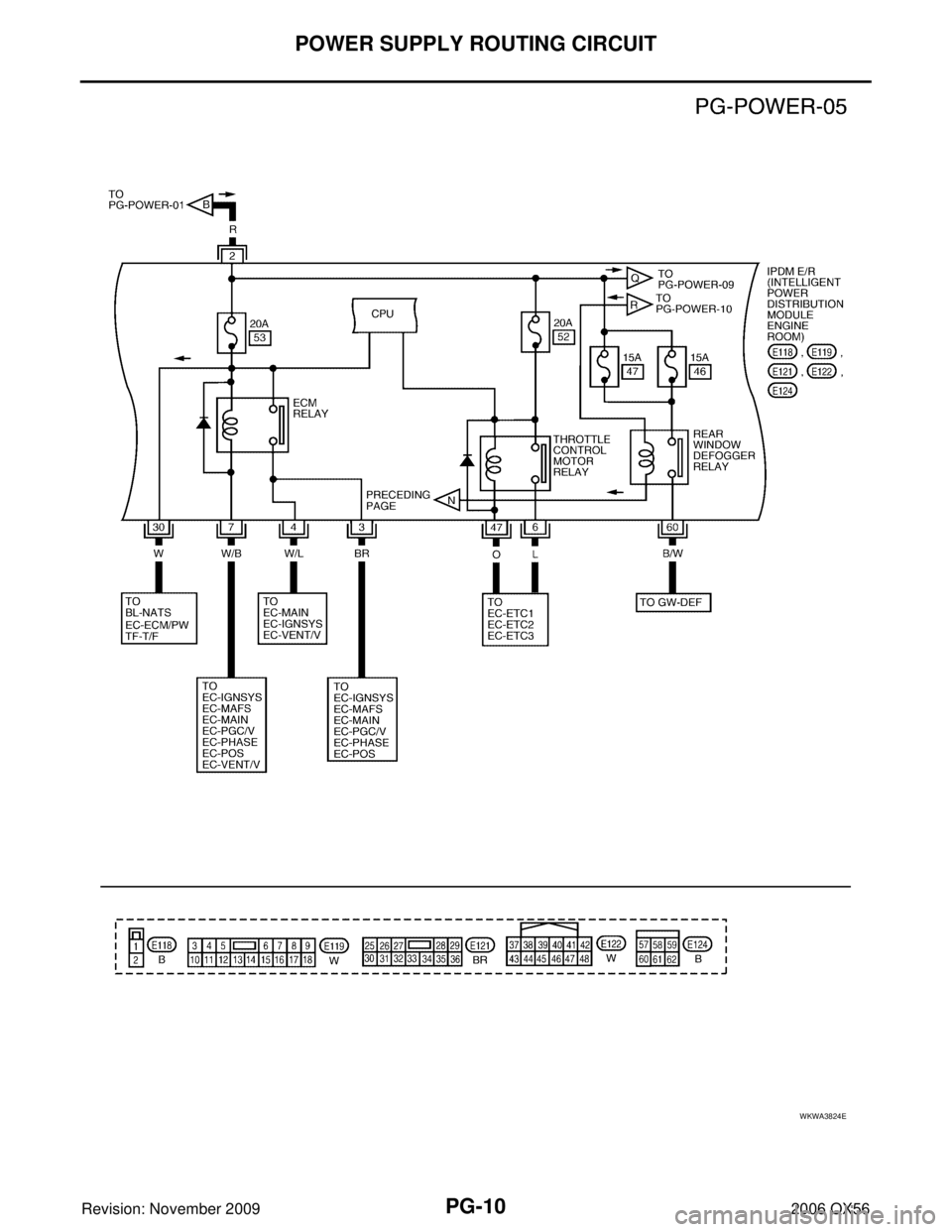

INFINITI QX56 2006 Factory Service Manual PG-10 POWER SUPPLY ROUTING CIRCUIT Revision: November 20092006 QX56 WKWA3824E

Page 2652 of 3383

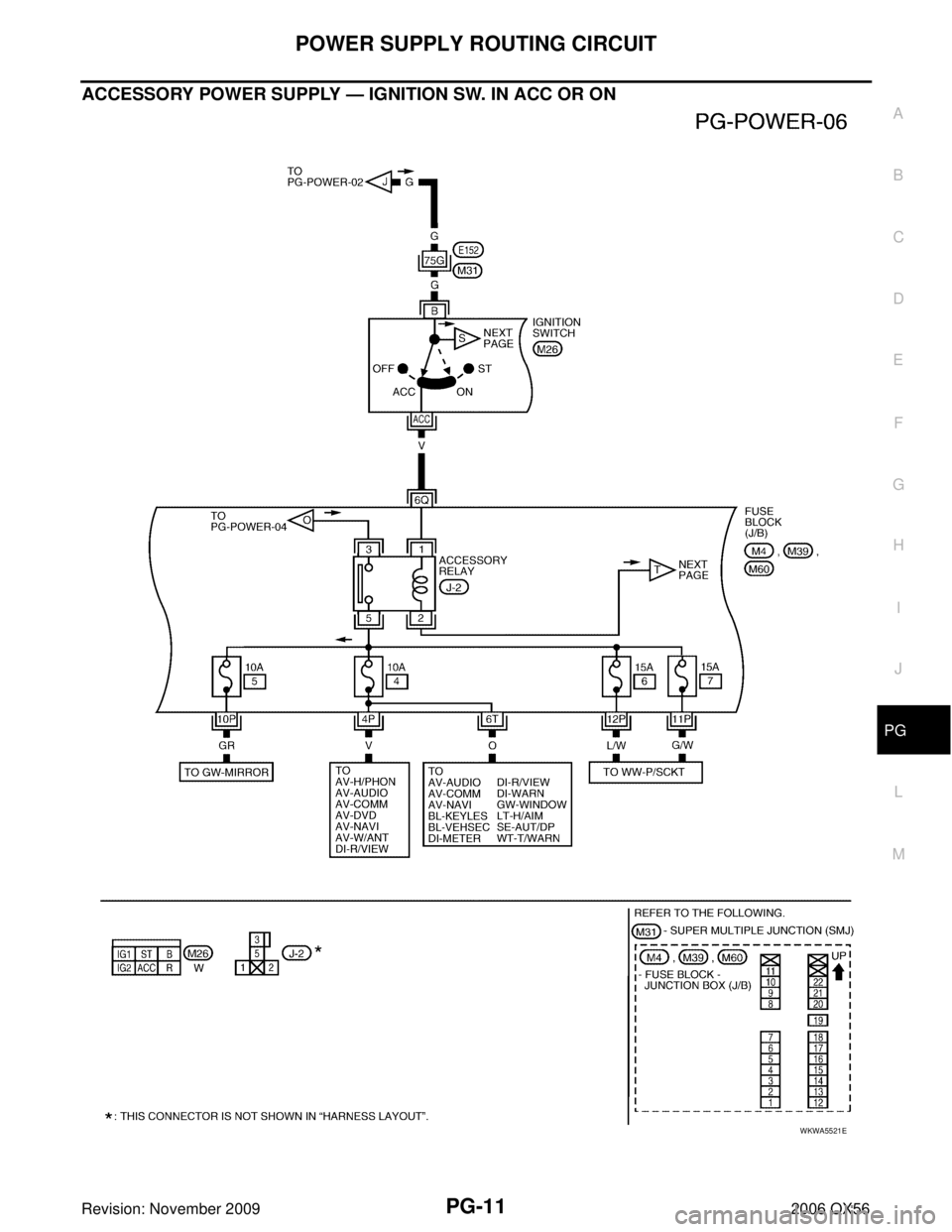

INFINITI QX56 2006 Factory Service Manual POWER SUPPLY ROUTING CIRCUITPG-11 C DE F G H I J L M A B PG Revision: November 2009 2006 QX56 ACCESSORY POWER SUPPLY — IGNITION SW. IN ACC OR ON WKWA5521E

Page 2653 of 3383

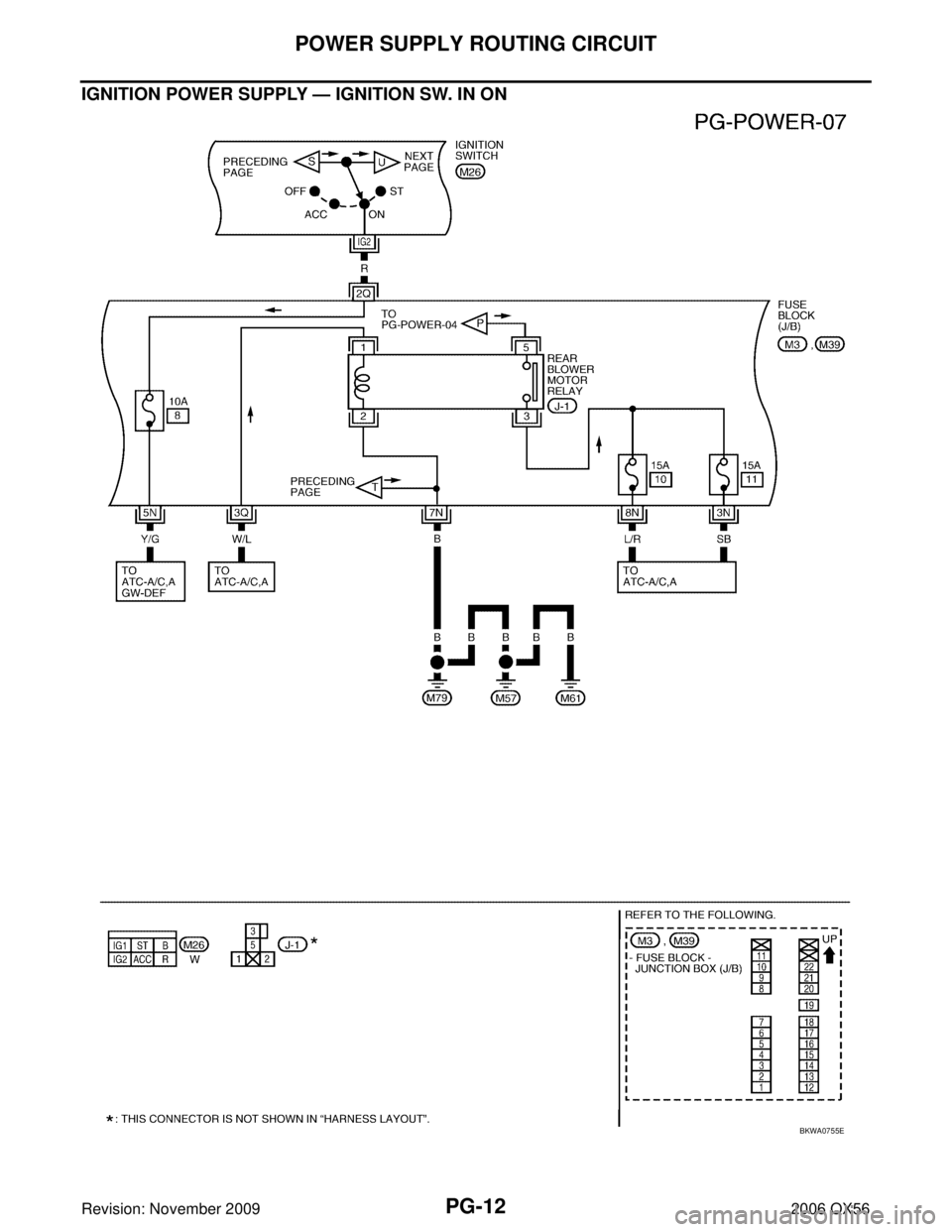

INFINITI QX56 2006 Factory Service Manual PG-12 POWER SUPPLY ROUTING CIRCUIT Revision: November 20092006 QX56 IGNITION POWER SUPPLY — IGNITION SW. IN ON BKWA0755E

Page 2654 of 3383

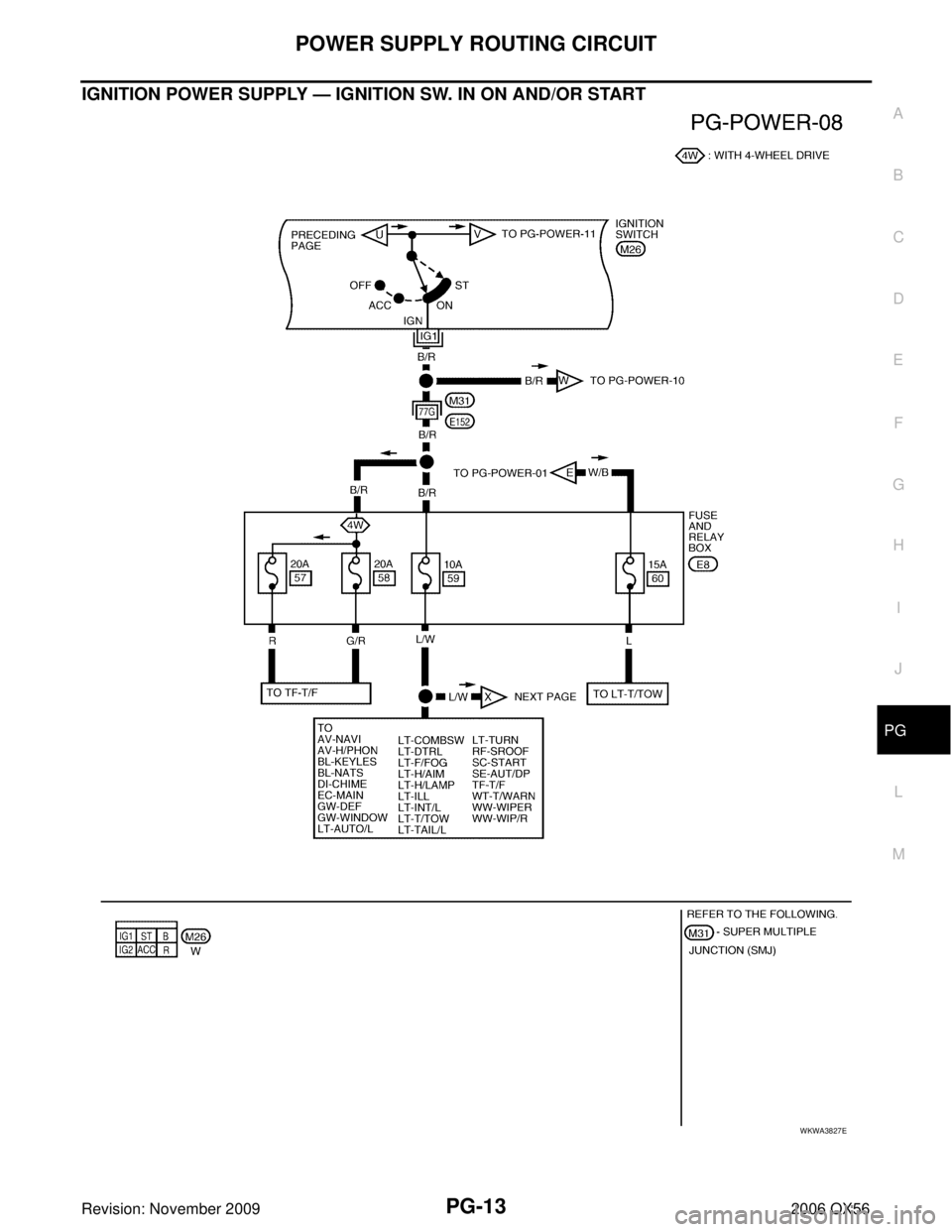

INFINITI QX56 2006 Factory Service Manual POWER SUPPLY ROUTING CIRCUITPG-13 C DE F G H I J L M A B PG Revision: November 2009 2006 QX56 IGNITION POWER SUPPLY — IGNITION SW. IN ON AND/OR START WKWA3827E

Page 2655 of 3383

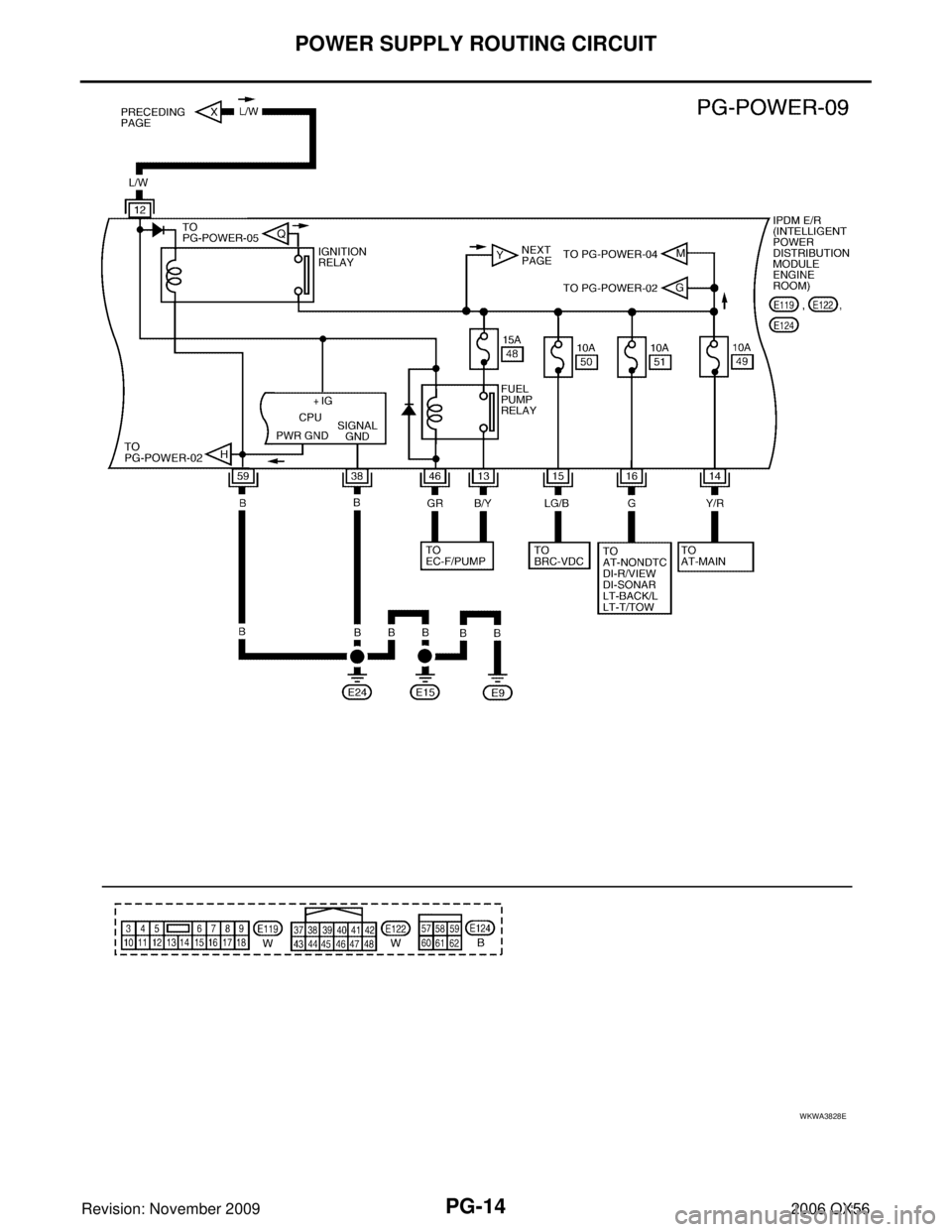

INFINITI QX56 2006 Factory Service Manual PG-14 POWER SUPPLY ROUTING CIRCUIT Revision: November 20092006 QX56 WKWA3828E

Page 2656 of 3383

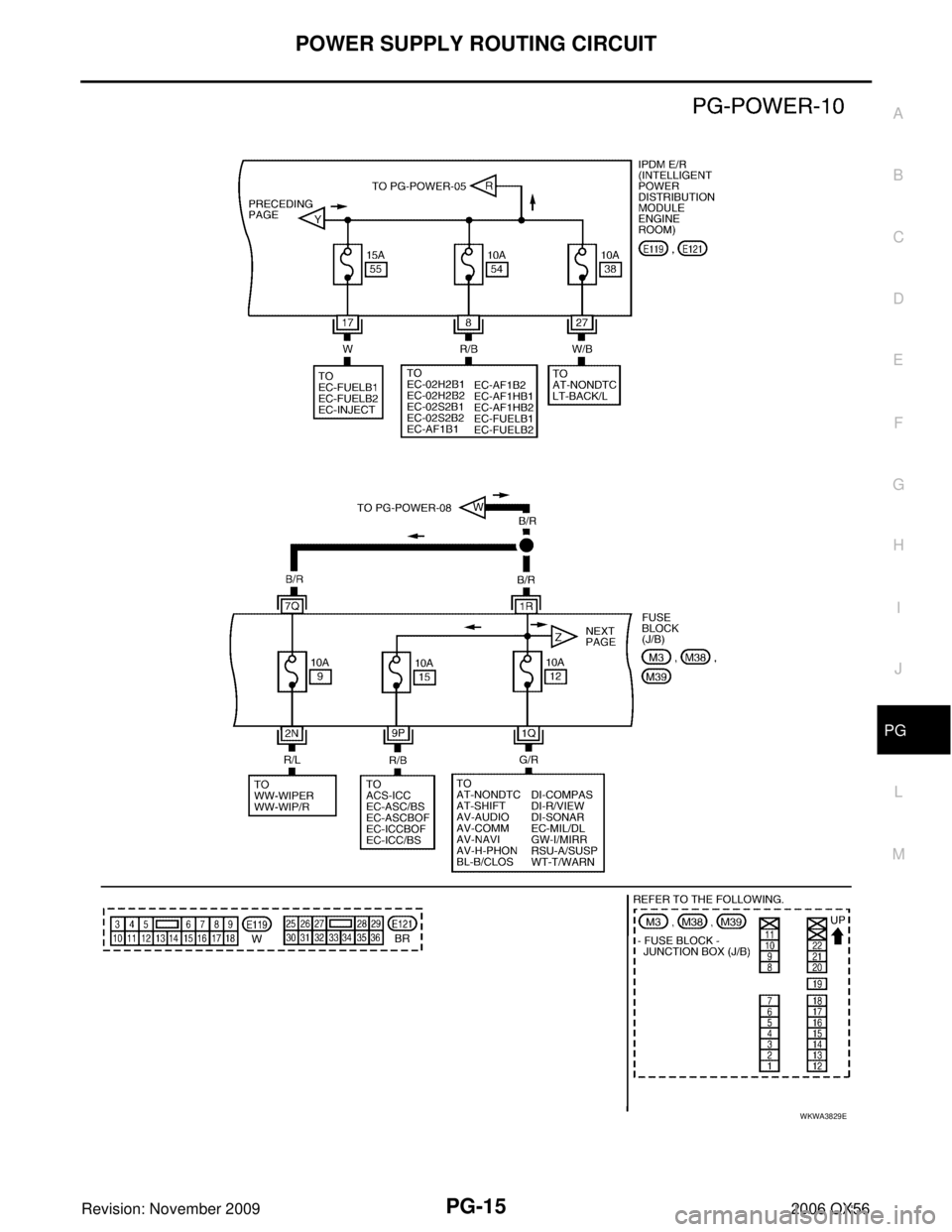

INFINITI QX56 2006 Factory Service Manual POWER SUPPLY ROUTING CIRCUITPG-15 C DE F G H I J L M A B PG Revision: November 2009 2006 QX56 WKWA3829E
