Page 1513 of 3383

INFINITI QX56 2006 Factory Service Manual EC-302Revision: November 2009
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
2006 QX56
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measu

Page 1514 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTIONEC-303
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56

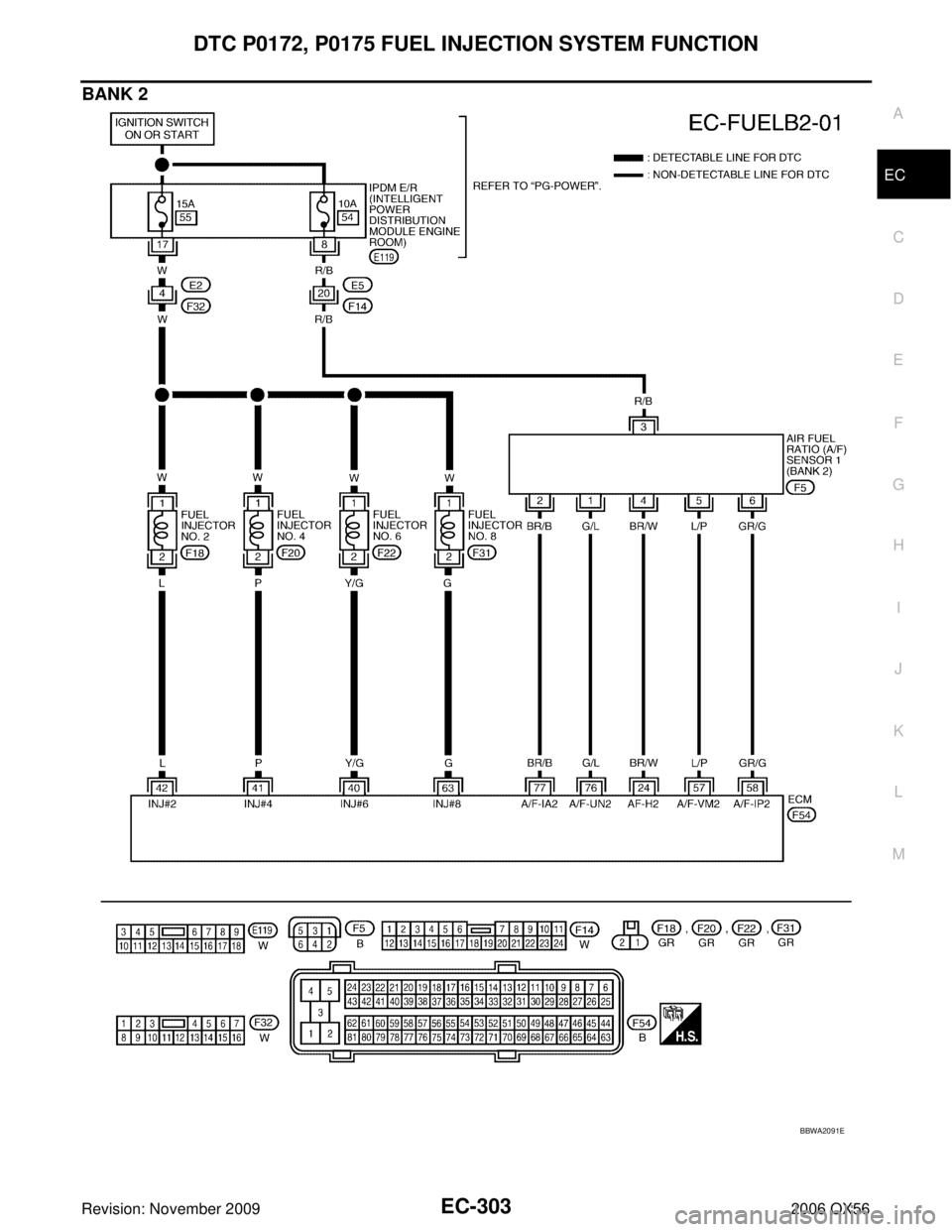

BANK 2
BBWA2091E

Page 1515 of 3383

INFINITI QX56 2006 Factory Service Manual EC-304Revision: November 2009
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
2006 QX56
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measu

Page 1516 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTIONEC-305
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Diagnostic ProcedureUBS00L0S
1. CHECK EXHAUST GAS LEAK
1. Start engine and run it at i

Page 1517 of 3383

INFINITI QX56 2006 Factory Service Manual EC-306Revision: November 2009
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
2006 QX56
3. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect corresponding A/F sensor 1

Page 1518 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTIONEC-307
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-80, "
FUEL PRESS

Page 1519 of 3383

INFINITI QX56 2006 Factory Service Manual EC-308Revision: November 2009
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
2006 QX56
7. CHECK FUNCTION OF FUEL INJECTOR
With CONSULT-II
1. Start engine.
2. Perform “POWER BALANCE ” in “ACT

Page 1520 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0181 FTT SENSOREC-309
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
DTC P0181 FTT SENSORPFP:22630
Component DescriptionUBS00H34
The fuel tank temperature sensor is used to detect th

DTC P0181 FTT SENSOREC-309
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
DTC P0181 FTT SENSORPFP:22630
Component DescriptionUBS00H34
The fuel tank temperature sensor is used to detect the fuel tempera-
ture inside the fuel tank. The sensor modifies a voltage signal from
the ECM. The modified signal returns to the ECM as the fuel temper-
ature input. The sensor uses a thermistor which is sensitive to the
change in temperature. The electrical resistance of the thermistor
decreases as temperature increases.

*: This data is reference value and is measured between ECM terminal 107 (Fuel
tank temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicUBS00H35
DTC Confirmation ProcedureUBS00H36
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR ” mode with CONSULT-II.
3. Wait at least 10 seconds. If the result is NG, go to EC-312, "
Diagnostic Procedure" .
If the result is OK, go to following step.
4. Check “COOLAN TEMP/S ” value.
If “COOLAN TEMP/S ” is less than 60°C (140 °F), the result will
be OK.
If “COOLAN TEMP/S ” is above 60°C (140°F), go to the following
step.
5. Cool engine down until “COOLAN TEMP/S” is less than 60° C
(140 °F).
6. Wait at least 10 seconds.
7. If 1st trip DTC is detected, go to EC-312, "
Diagnostic Procedure" .
BBIA0583E
Fluid temperature
°C (°F) Voltage*
V Resistance
kΩ
20 (68) 3.52.3 - 2.7
50 (122) 2.20.79 - 0.90
SEF012P
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0181
0181 Fuel tank temperature
sensor circuit range/
performance Rationally incorrect voltage from the sensor is
sent to ECM, compared with the voltage sig-
nals from engine coolant temperature sensor
and intake air temperature sensor.
Harness or connectors
(The sensor circuit is open or shorted)
Fuel tank temperature sensor
SEF174Y
