Page 489 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4A2A±22 DIFFERENTIAL (REAR 220mm) 4. Remove the cross pin, using a soft metal rod and a hammer. 425RS043 5. Remove pinion gear. 6. Remove side gear. 7. Remove thrust washer. Inspection and Repair Mak

Page 490 of 3573

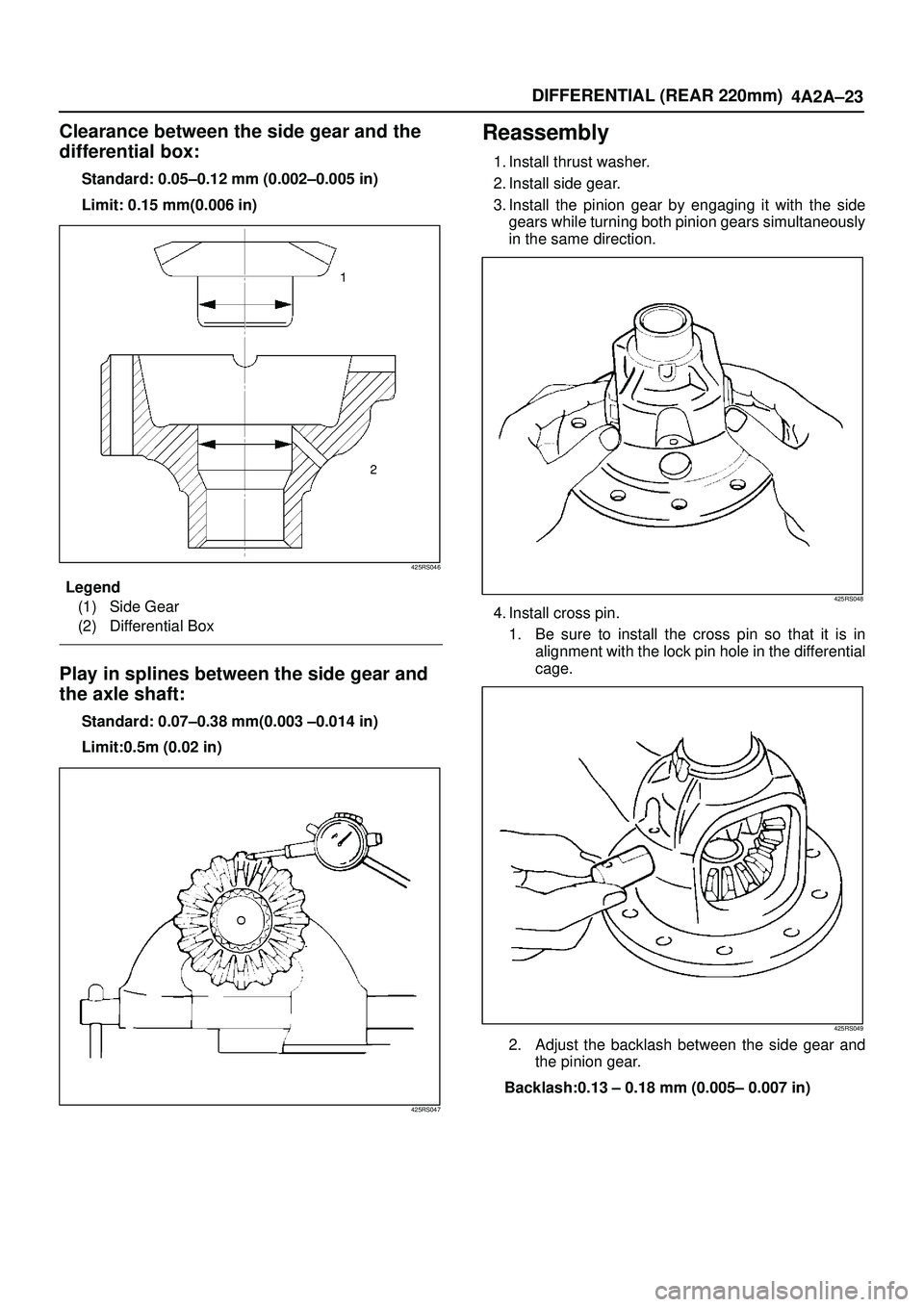

ISUZU TROOPER 1998 Service Repair Manual DIFFERENTIAL (REAR 220mm) 4A2A±23 Clearance between the side gear and the differential box: Standard: 0.05±0.12 mm (0.002±0.005 in) Limit: 0.15 mm(0.006 in) 425RS046 Legend (1) Side Gear (2) Differ

Page 491 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4A2A±24 DIFFERENTIAL (REAR 220mm) Thickness of thrust washers available: 0.80 mm, 0.90 mm, 1.00 mm 1.10 mm, 1.20 mm, 1.30 mm (0.031 in, 0.035 in, 0.039 in,0.043 in, 0.047 in, 0.051 in) 425RS050 5. In

Page 492 of 3573

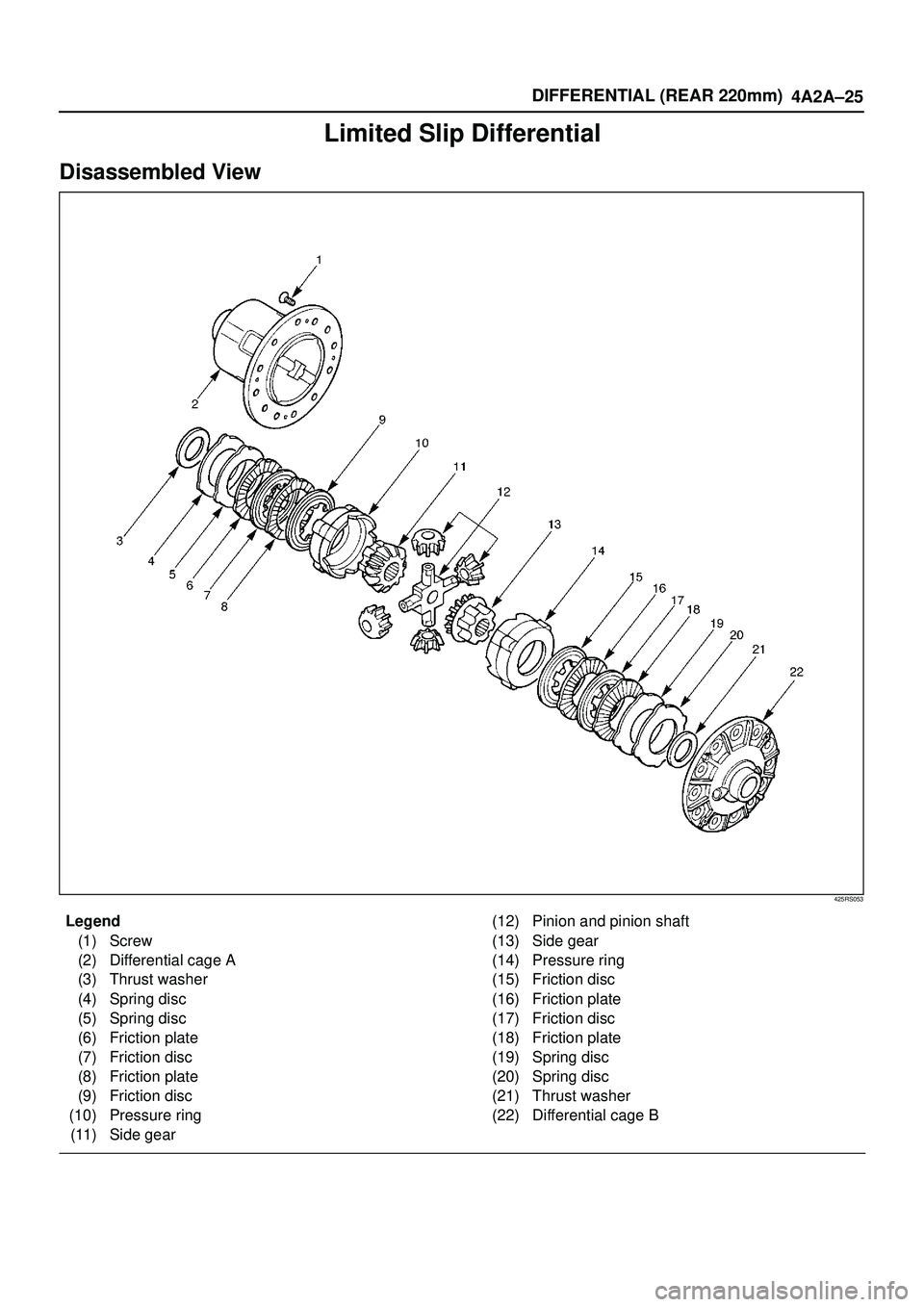

ISUZU TROOPER 1998 Service Repair Manual DIFFERENTIAL (REAR 220mm) 4A2A±25 Limited Slip Differential Disassembled View 425RS053 Legend (1) Screw (2) Differential cage A (3) Thrust washer (4) Spring disc (5) Spring disc (6) Friction plate (7

Page 493 of 3573

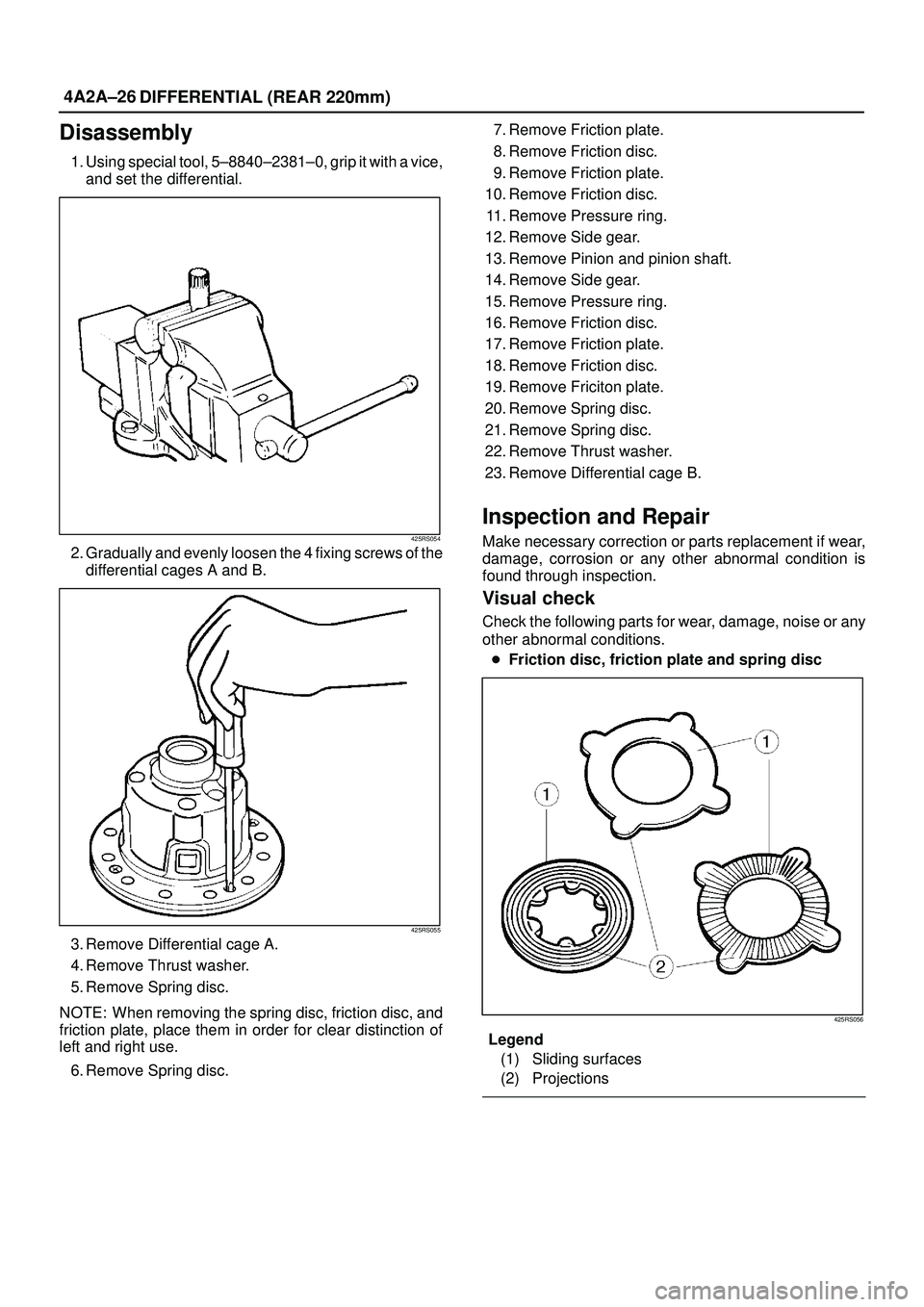

ISUZU TROOPER 1998 Service Repair Manual 4A2A±26 DIFFERENTIAL (REAR 220mm) Disassembly 1. Using special tool, 5±8840±2381±0, grip it with a vice, and set the differential. 425RS054 2. Gradually and evenly loosen the 4 fixing screws of th

Page 494 of 3573

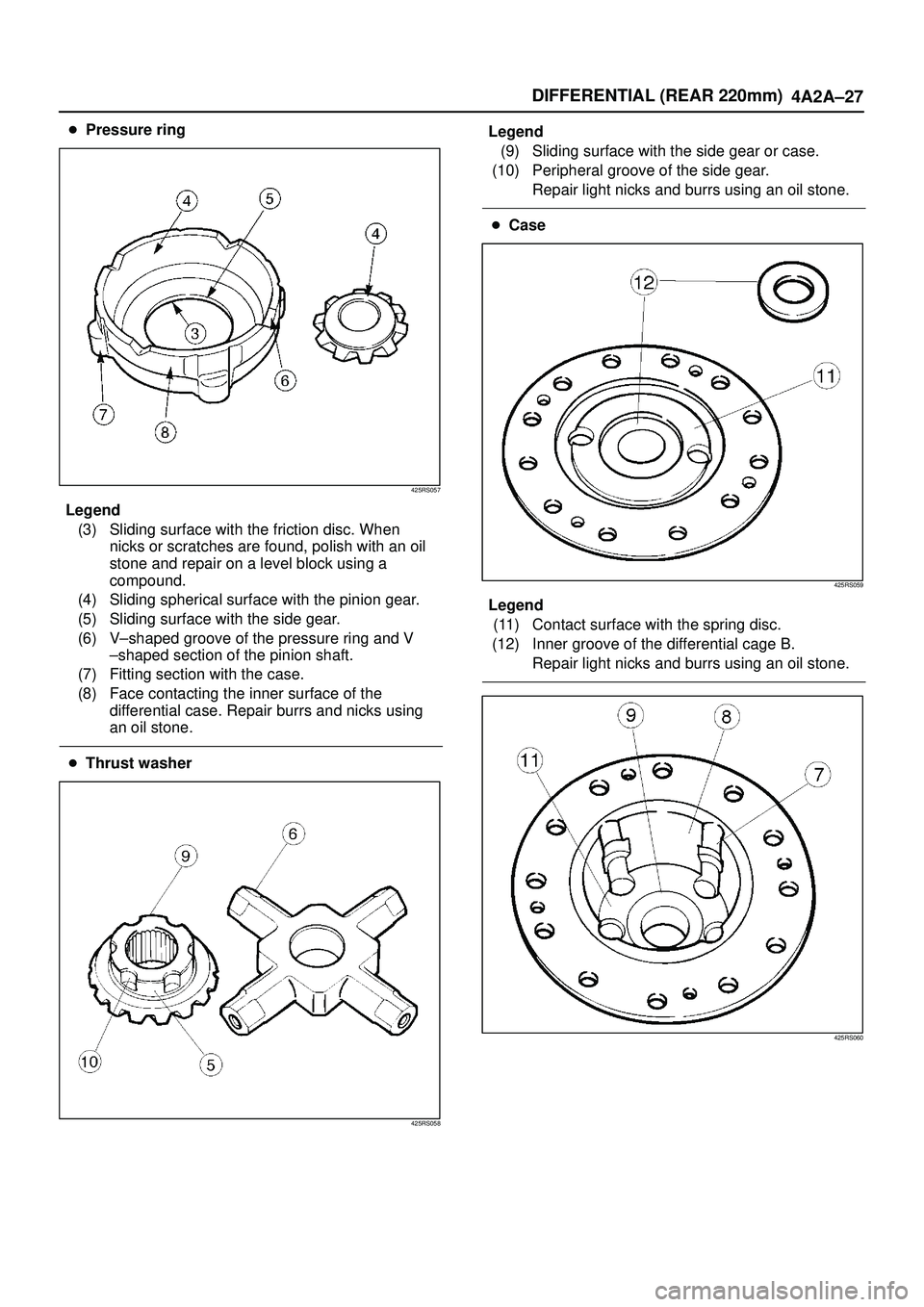

ISUZU TROOPER 1998 Service Repair Manual DIFFERENTIAL (REAR 220mm) 4A2A±27 Pressure ring 425RS057 Legend (3) Sliding surface with the friction disc. When nicks or scratches are found, polish with an oil stone and repair on a level block us

Page 495 of 3573

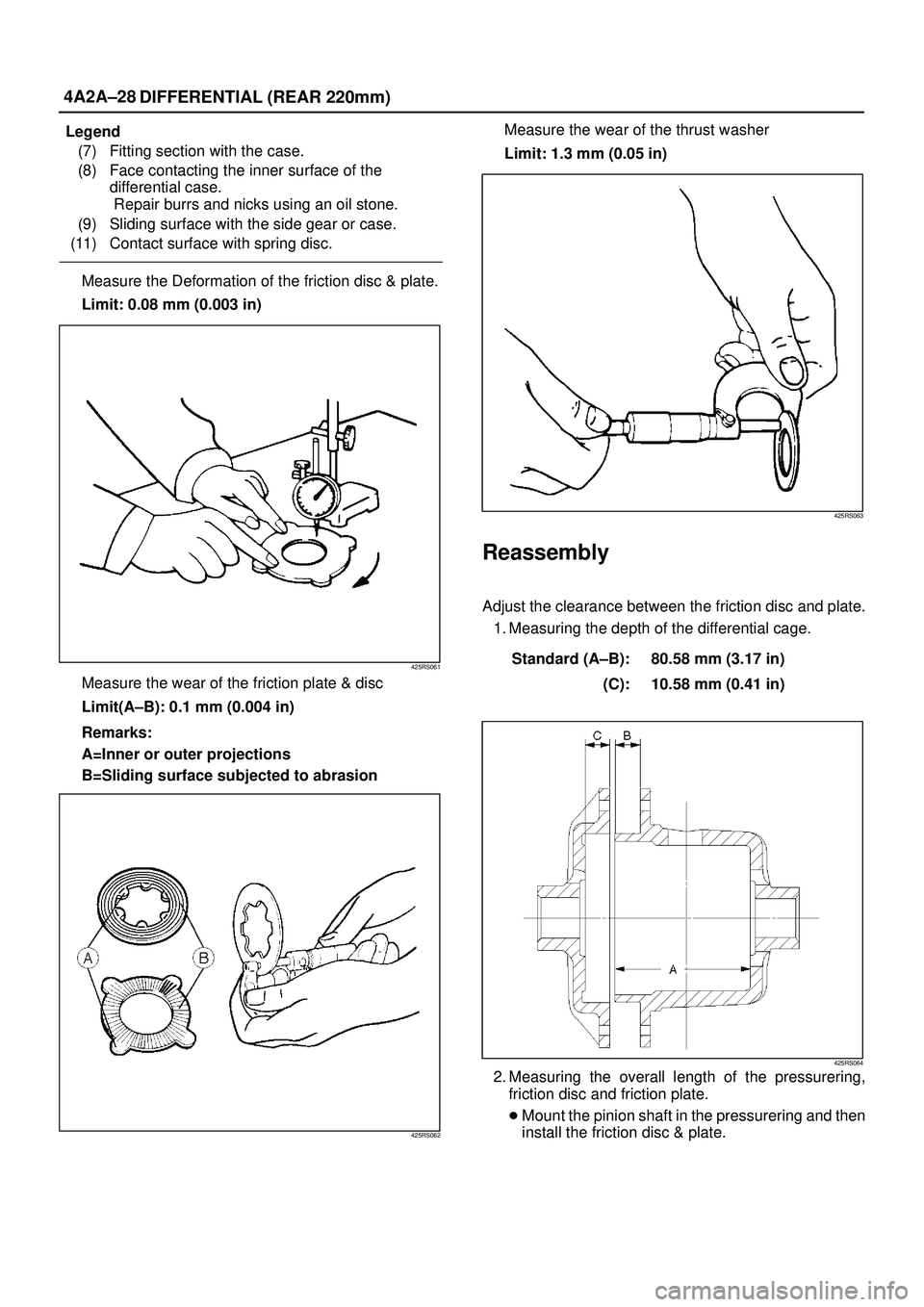

ISUZU TROOPER 1998 Service Repair Manual 4A2A±28 DIFFERENTIAL (REAR 220mm) Legend (7) Fitting section with the case. (8) Face contacting the inner surface of the differential case. Repair burrs and nicks using an oil stone. (9) Sliding surf

Page 496 of 3573

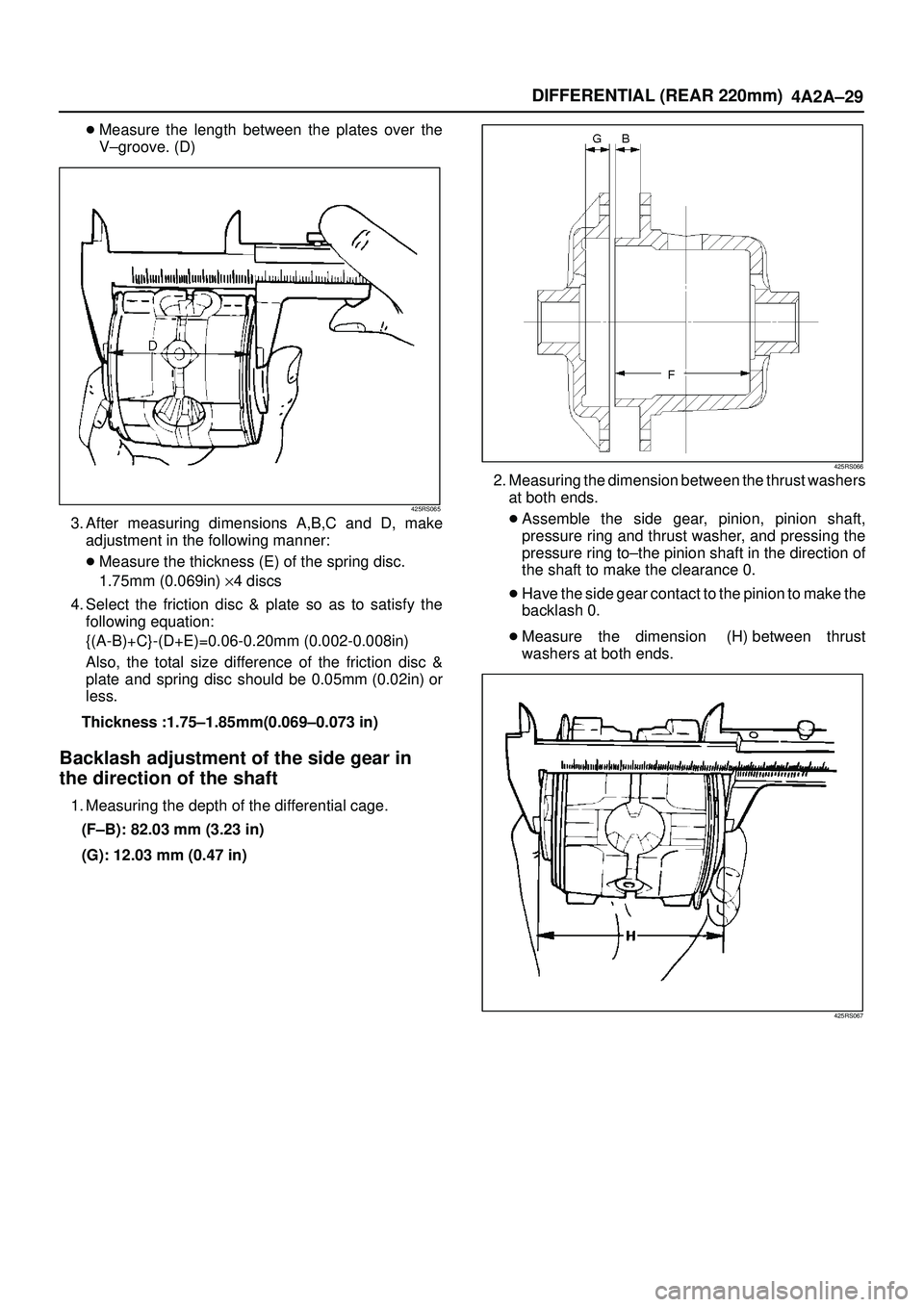

ISUZU TROOPER 1998 Service Repair Manual DIFFERENTIAL (REAR 220mm) 4A2A±29 Measure the length between the plates over the V±groove. (D) 425RS065 3. After measuring dimensions A,B,C and D, make adjustment in the following manner: Measure
