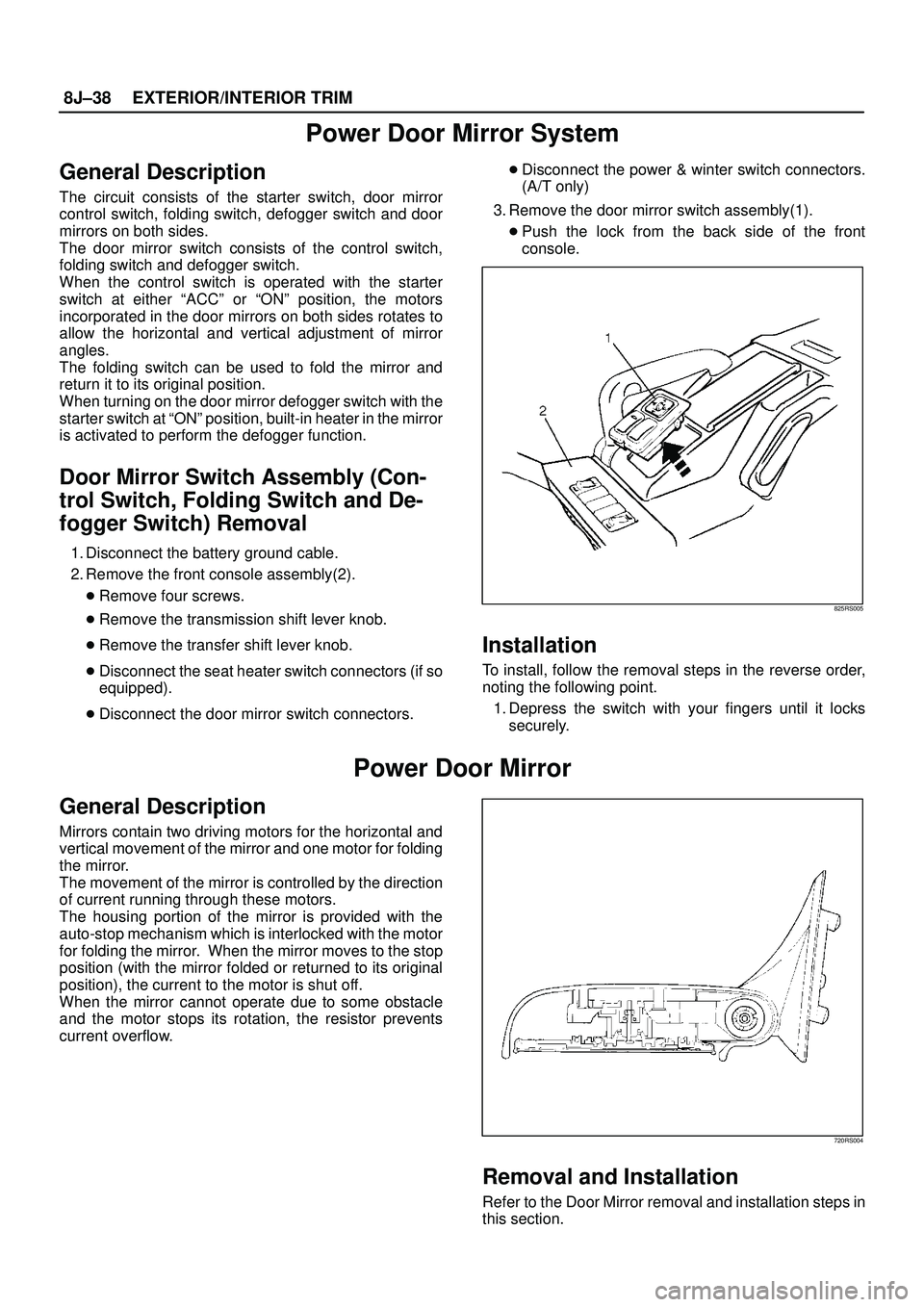

ISUZU TROOPER 1998 Service Repair Manual 8J±38EXTERIOR/INTERIOR TRIM
Power Door Mirror System
General Description
The circuit consists of the starter switch, door mirror
control switch, folding switch, defogger switch and door
mirrors on bo

8J±38EXTERIOR/INTERIOR TRIM
Power Door Mirror System
General Description
The circuit consists of the starter switch, door mirror
control switch, folding switch, defogger switch and door
mirrors on both sides.
The door mirror switch consists of the control switch,
folding switch and defogger switch.
When the control switch is operated with the starter
switch at either ªACCº or ªONº position, the motors
incorporated in the door mirrors on both sides rotates to
allow the horizontal and vertical adjustment of mirror
angles.
The folding switch can be used to fold the mirror and
return it to its original position.
When turning on the door mirror defogger switch with the
starter switch at ªONº position, built-in heater in the mirror
is activated to perform the defogger function.
Door Mirror Switch Assembly (Con-
trol Switch, Folding Switch and De-
fogger Switch) Removal
1. Disconnect the battery ground cable.
2. Remove the front console assembly(2).
Remove four screws.
Remove the transmission shift lever knob.
Remove the transfer shift lever knob.
Disconnect the seat heater switch connectors (if so
equipped).
Disconnect the door mirror switch connectors.Disconnect the power & winter switch connectors.
(A/T only)
3. Remove the door mirror switch assembly(1).
Push the lock from the back side of the front
console.
825RS005
Installation
To install, follow the removal steps in the reverse order,
noting the following point.
1. Depress the switch with your fingers until it locks
securely.
Power Door Mirror
General Description
Mirrors contain two driving motors for the horizontal and
vertical movement of the mirror and one motor for folding
the mirror.
The movement of the mirror is controlled by the direction
of current running through these motors.
The housing portion of the mirror is provided with the
auto-stop mechanism which is interlocked with the motor
for folding the mirror. When the mirror moves to the stop
position (with the mirror folded or returned to its original
position), the current to the motor is shut off.
When the mirror cannot operate due to some obstacle
and the motor stops its rotation, the resistor prevents
current overflow.
720RS004
Removal and Installation
Refer to the Door Mirror removal and installation steps in
this section.

Page 3418 of 3573

ISUZU TROOPER 1998 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±39

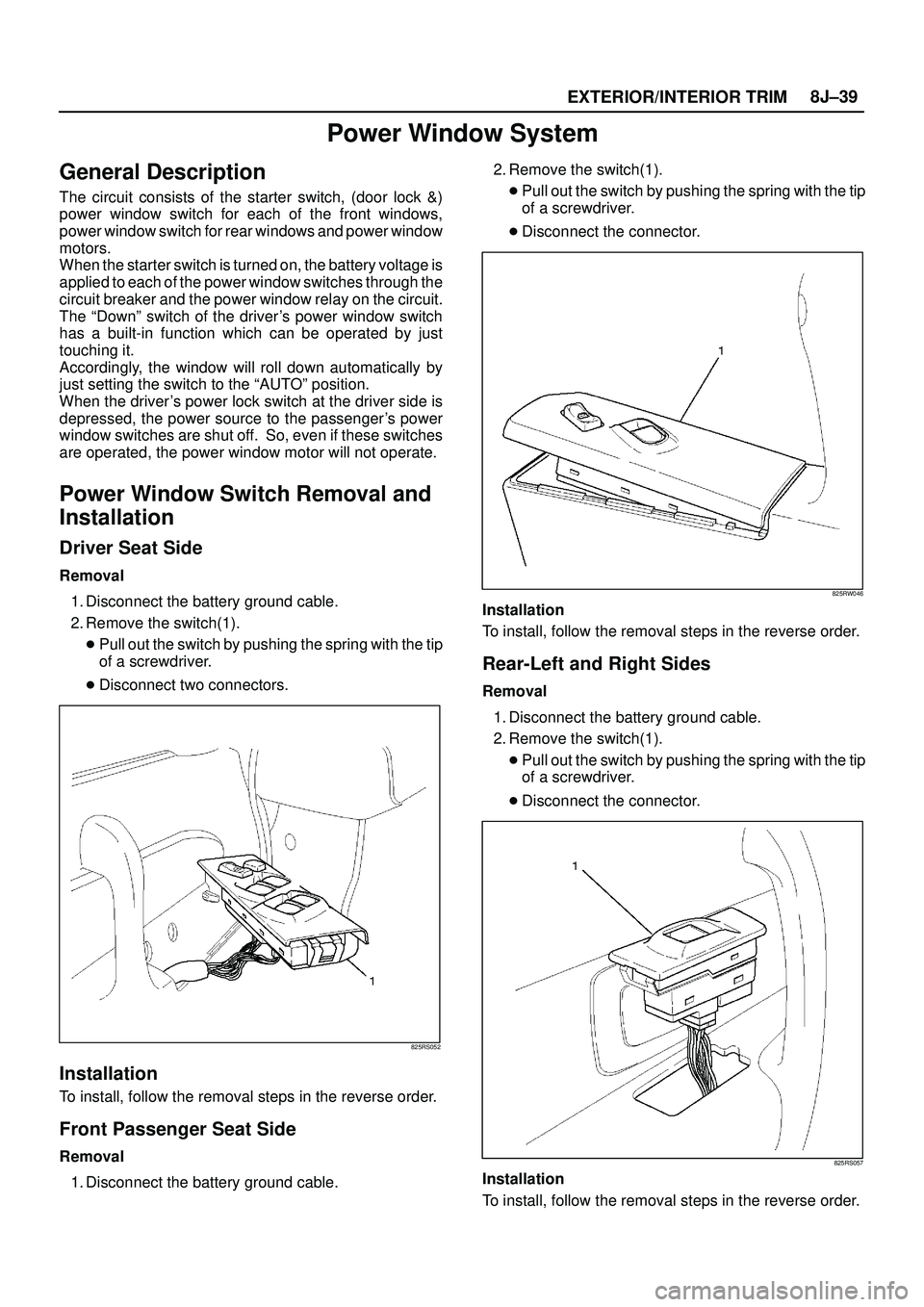

Power Window System
General Description
The circuit consists of the starter switch, (door lock &)
power window switch for each of the front windows,
power window switch fo

Page 3419 of 3573

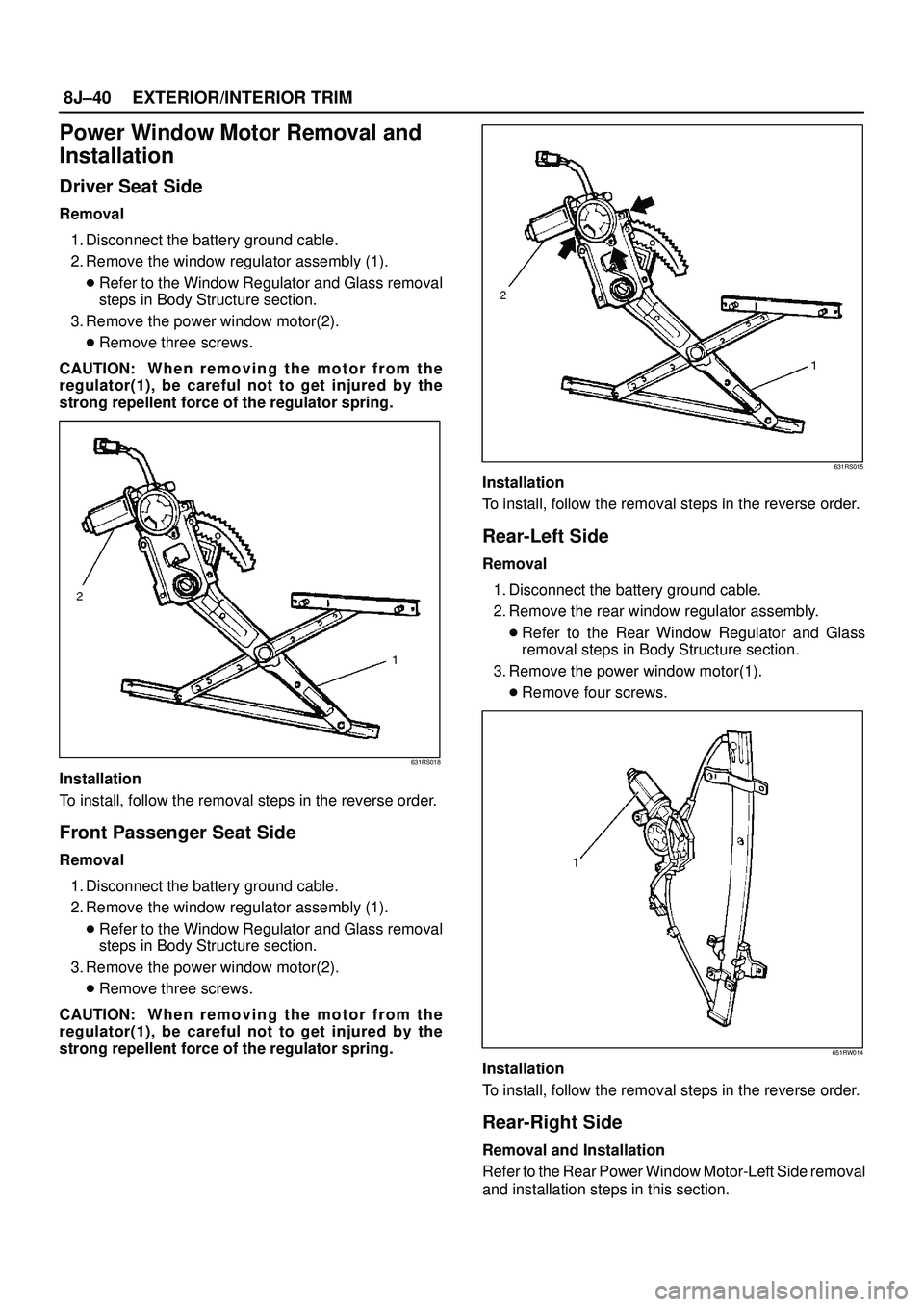

ISUZU TROOPER 1998 Service Repair Manual 8J±40EXTERIOR/INTERIOR TRIM
Power Window Motor Removal and
Installation
Driver Seat Side
Removal
1. Disconnect the battery ground cable.
2. Remove the window regulator assembly (1).
Refer to the Win

Page 3420 of 3573

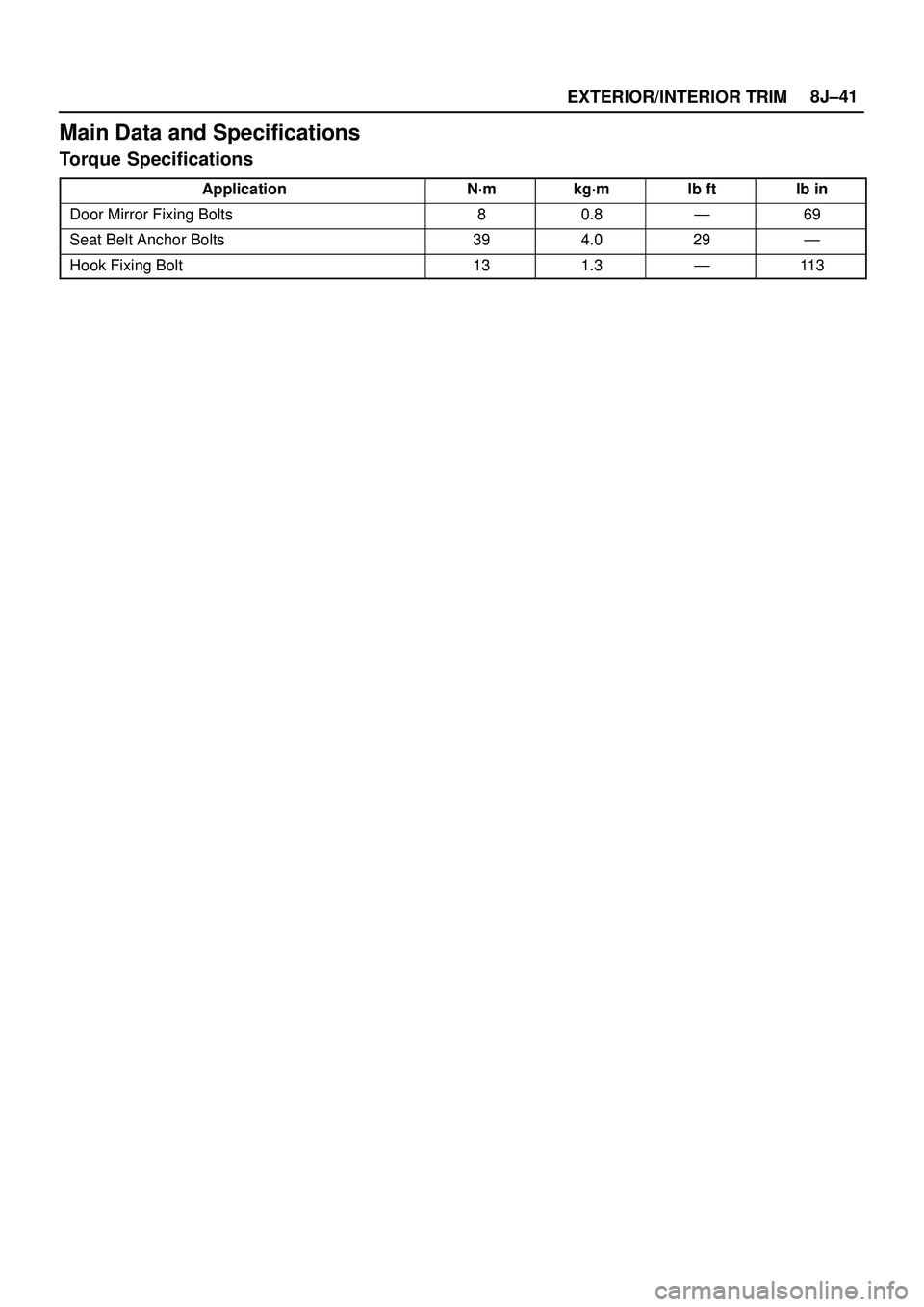

ISUZU TROOPER 1998 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±41
Main Data and Specifications
Torque Specifications
ApplicationN´mkg´mlb ftlb in
Door Mirror Fixing Bolts80.8Ð69
Seat Belt Anchor Bolts394.029Ð
Hook Fixing Bolt131.3Ð1

Page 3421 of 3573

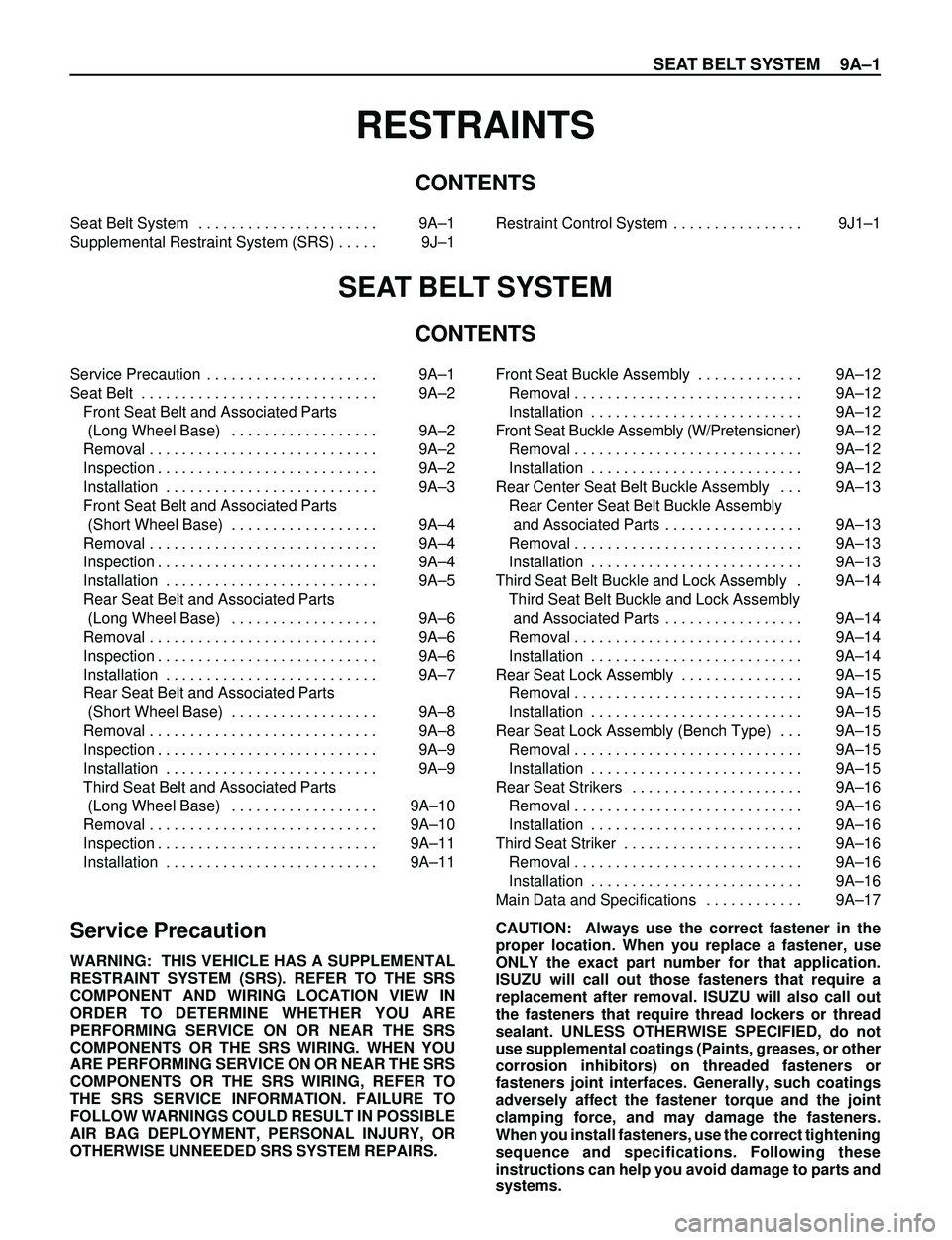

ISUZU TROOPER 1998 Service Repair Manual SEAT BELT SYSTEM 9AÐ1
RESTRAINTS
CONTENTS
SEAT BELT SYSTEM
CONTENTS
Seat Belt System . . . . . . . . . . . . . . . . . . . . . . 9AÐ1
Supplemental Restraint System (SRS) . . . . . 9JÐ1Restraint

SEAT BELT SYSTEM 9AÐ1
RESTRAINTS
CONTENTS
SEAT BELT SYSTEM
CONTENTS
Seat Belt System . . . . . . . . . . . . . . . . . . . . . . 9AÐ1
Supplemental Restraint System (SRS) . . . . . 9JÐ1Restraint Control System . . . . . . . . . . . . . . . . 9J1Ð1
Service Precaution . . . . . . . . . . . . . . . . . . . . . 9AÐ1
Seat Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ2
Front Seat Belt and Associated Parts
(Long Wheel Base) . . . . . . . . . . . . . . . . . . 9AÐ2
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ2
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ3
Front Seat Belt and Associated Parts
(Short Wheel Base) . . . . . . . . . . . . . . . . . . 9AÐ4
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ4
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ5
Rear Seat Belt and Associated Parts
(Long Wheel Base) . . . . . . . . . . . . . . . . . . 9AÐ6
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ6
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ7
Rear Seat Belt and Associated Parts
(Short Wheel Base) . . . . . . . . . . . . . . . . . . 9AÐ8
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ8
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ9
Third Seat Belt and Associated Parts
(Long Wheel Base) . . . . . . . . . . . . . . . . . . 9AÐ10
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ10
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ11
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ11Front Seat Buckle Assembly . . . . . . . . . . . . . 9AÐ12
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ12
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ12
Front Seat Buckle Assembly (W/Pretensioner)9AÐ12
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ12
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ12
Rear Center Seat Belt Buckle Assembly . . . 9AÐ13
Rear Center Seat Belt Buckle Assembly
and Associated Parts . . . . . . . . . . . . . . . . . 9AÐ13
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ13
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ13
Third Seat Belt Buckle and Lock Assembly . 9AÐ14
Third Seat Belt Buckle and Lock Assembly
and Associated Parts . . . . . . . . . . . . . . . . . 9AÐ14
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ14
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ14
Rear Seat Lock Assembly . . . . . . . . . . . . . . . 9AÐ15
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ15
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ15
Rear Seat Lock Assembly (Bench Type) . . . 9AÐ15
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ15
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ15
Rear Seat Strikers . . . . . . . . . . . . . . . . . . . . . 9AÐ16
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ16
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ16
Third Seat Striker . . . . . . . . . . . . . . . . . . . . . . 9AÐ16
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ16
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9AÐ16
Main Data and Specifications . . . . . . . . . . . . 9AÐ17
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

Page 3422 of 3573

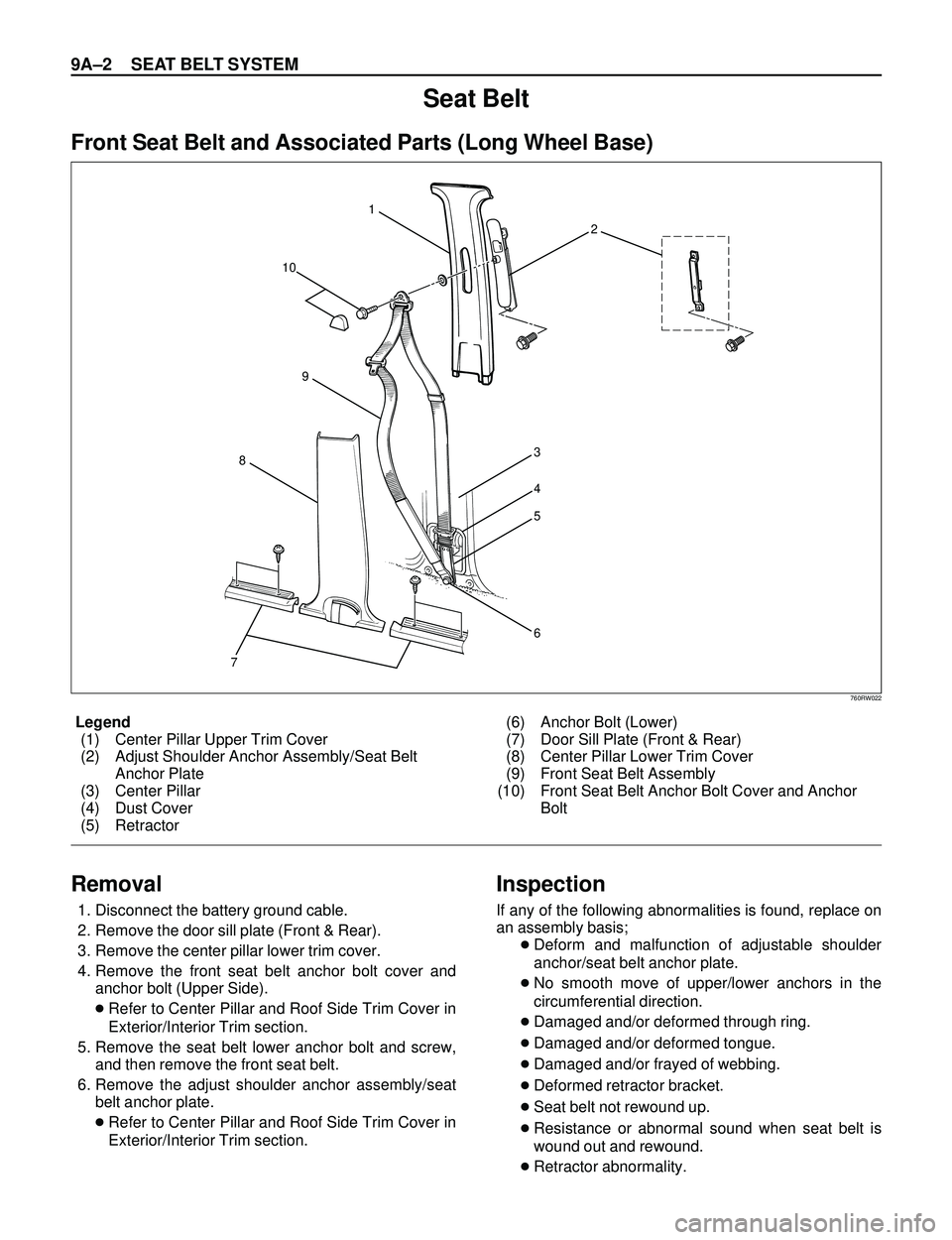

ISUZU TROOPER 1998 Service Repair Manual 9AÐ2 SEAT BELT SYSTEM
Legend
(1) Center Pillar Upper Trim Cover
(2) Adjust Shoulder Anchor Assembly/Seat Belt
Anchor Plate
(3) Center Pillar
(4) Dust Cover
(5) Retractor(6) Anchor Bolt (Lower)
(7) Do

Page 3423 of 3573

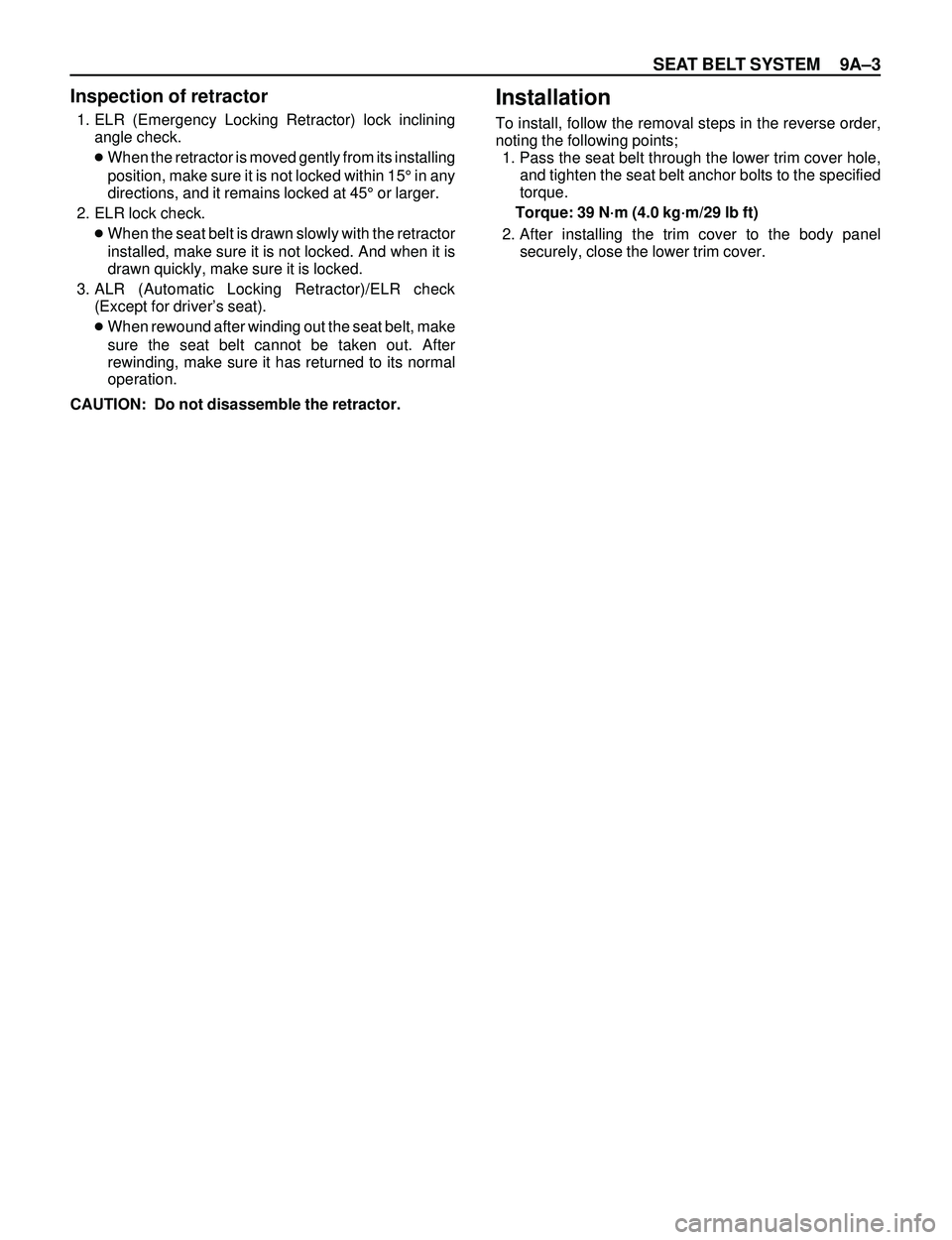

ISUZU TROOPER 1998 Service Repair Manual SEAT BELT SYSTEM 9AÐ3
Inspection of retractor
1. ELR (Emergency Locking Retractor) lock inclining
angle check.
cWhen the retractor is moved gently from its installing
position, make sure it is not lo

Page 3424 of 3573

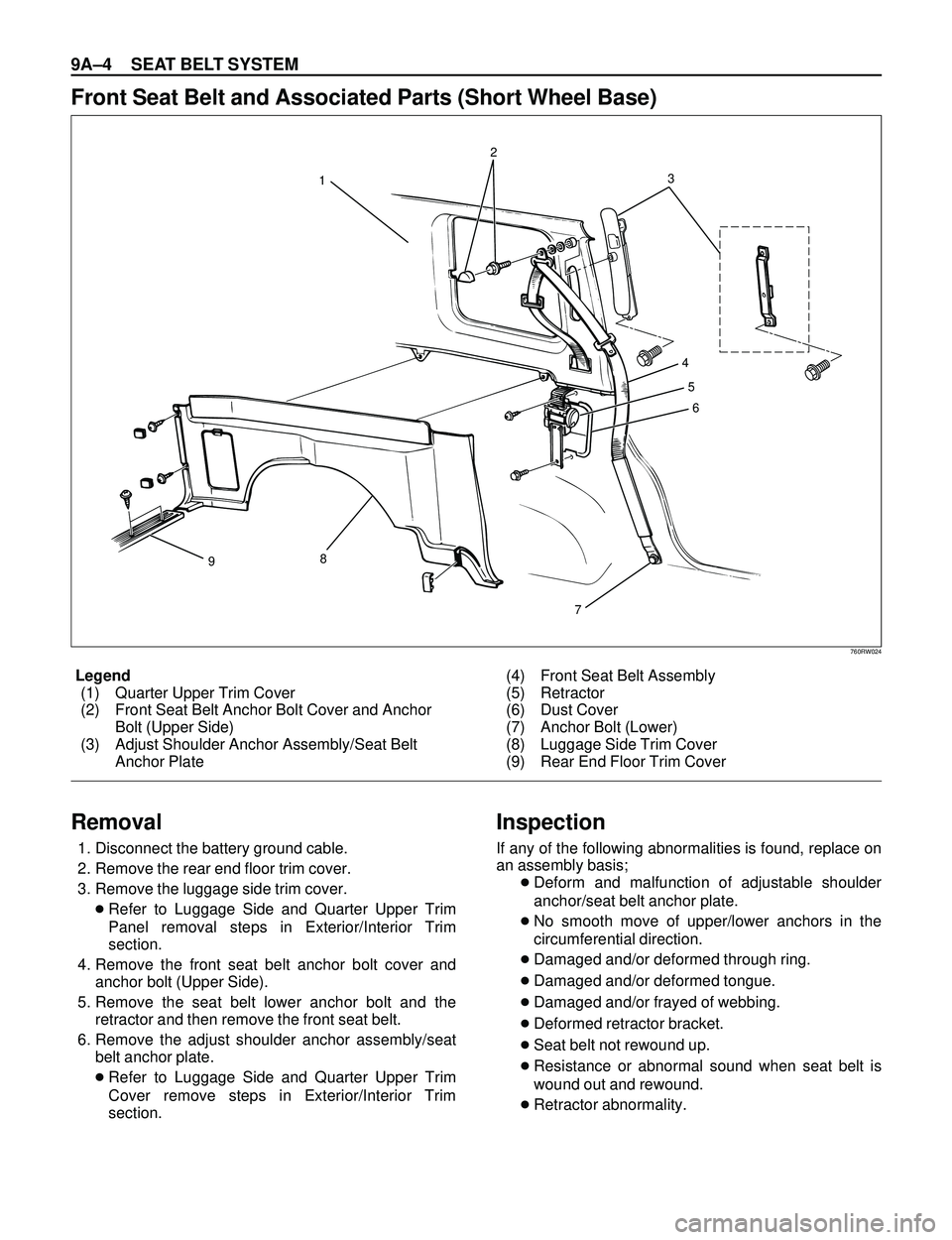

ISUZU TROOPER 1998 Service Repair Manual 9AÐ4 SEAT BELT SYSTEM
