Page 2929 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8D – 336 WIRING SYSTEM Diagnosis Quick Chart for Check Points 1. Headlight wipers and washer do not operate on either side 2. Wiper on the left (or right) side does not operate 3. Auto-stop function

Page 2930 of 3573

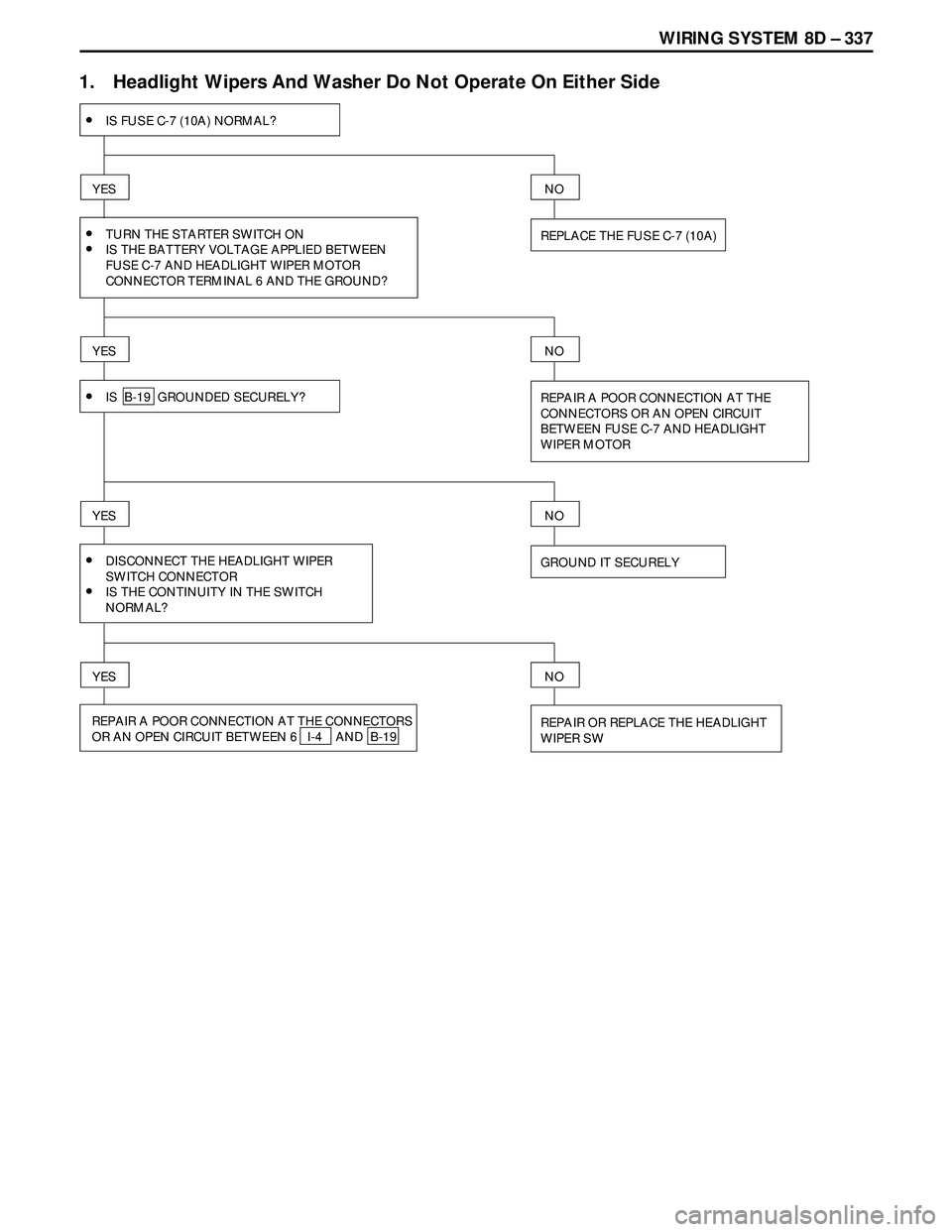

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 337 1. Headlight Wipers And Washer Do Not Operate On Either Side •IS FUSE C-7 (10A) NORMAL? YES REPLACE THE FUSE C-7 (10A) NO •TURN THE STARTER SWITCH ON •IS THE BATTERY VOL

Page 2931 of 3573

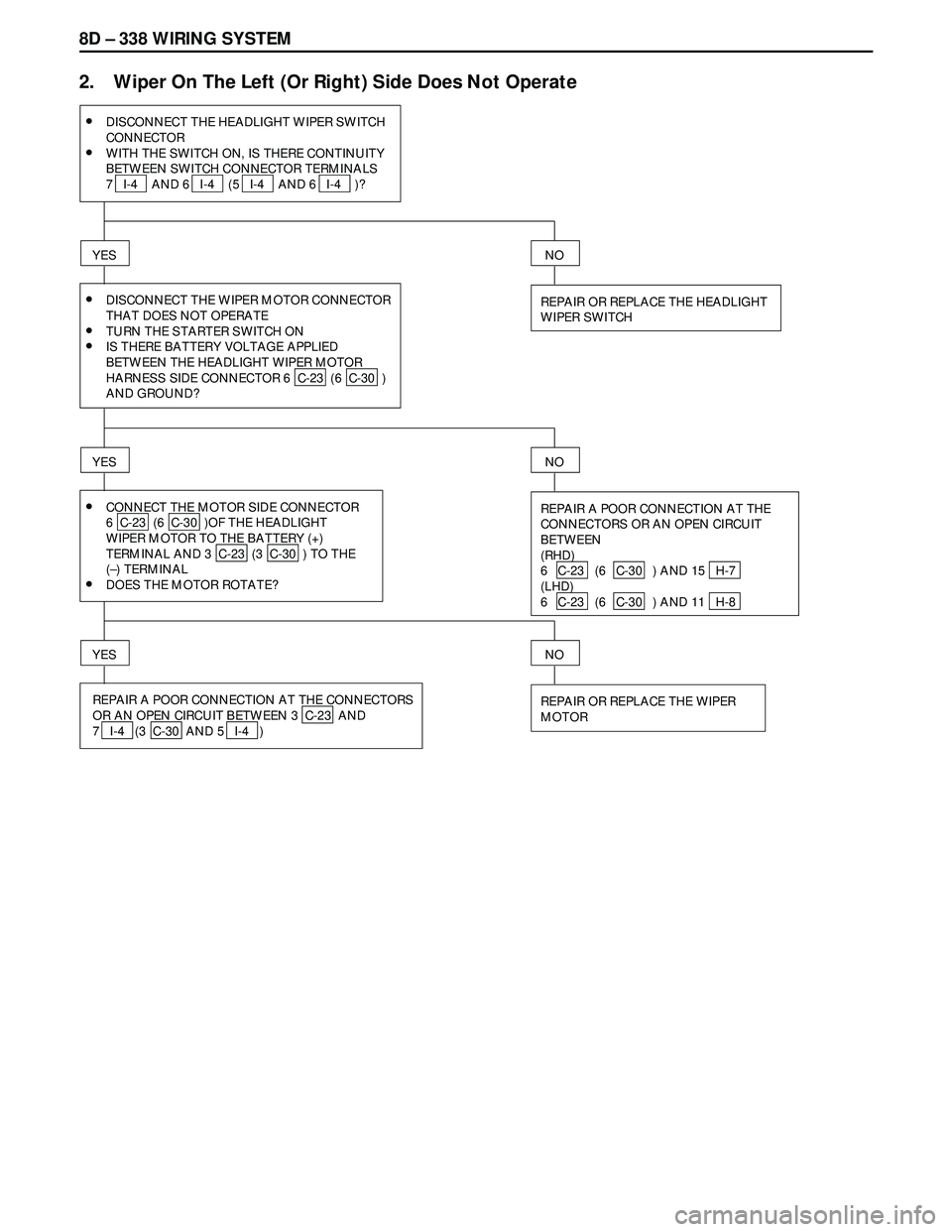

ISUZU TROOPER 1998 Service Repair Manual 8D – 338 WIRING SYSTEM 2. Wiper On The Left (Or Right) Side Does Not Operate •DISCONNECT THE HEADLIGHT WIPER SWITCH CONNECTOR YES REPAIR OR REPLACE THE HEADLIGHT WIPER SWITCH NO •DISCONNECT THE

Page 2932 of 3573

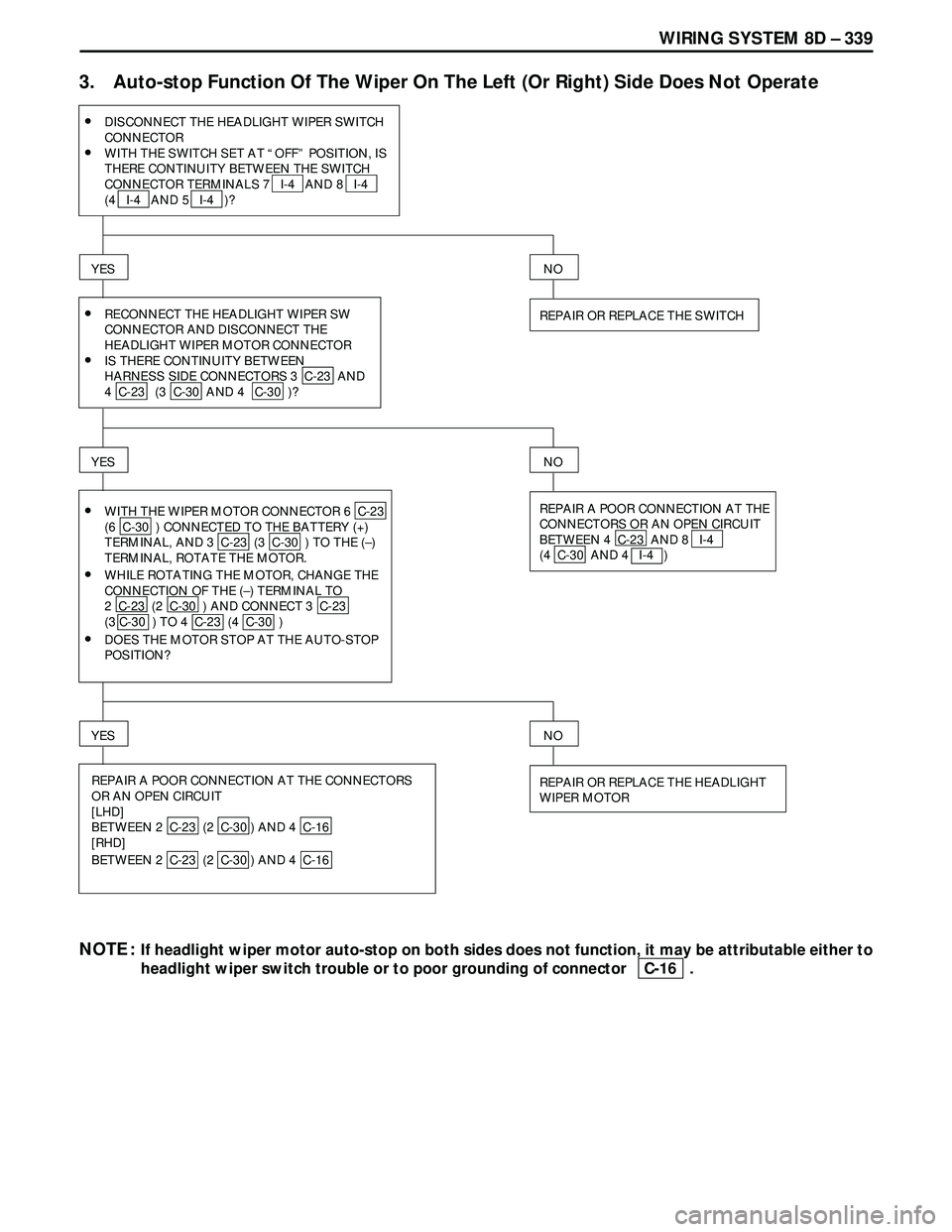

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 339 3. Auto-stop Function Of The Wiper On The Left (Or Right) Side Does Not Operate •DISCONNECT THE HEADLIGHT WIPER SWITCH CONNECTOR YES REPAIR OR REPLACE THE SWITCH NO •RECON

Page 2933 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8D – 340 WIRING SYSTEM 4. Wiper On The Left (Or Right) Side Does Not Stop •STOP THE WIPER MOTOR AT THE AUTO-STOP POSITION YES REPAIR A SHORT CIRCUIT BETWEEN 3 C-23 AND 7 I-4 (3 C-30 AND 5

Page 2934 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 341 5. Washer Motor Does Not Operate •DISCONNECT THE HEADLIGHT WASHER MOTOR CONNECTOR YES REPAIR A POOR CONNECTION AT THE CONNECTORS OR AN OPEN CIRCUIT BETWEEN 1 C-36 AND FUSE

Page 2935 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8D – 342 WIRING SYSTEM Rear Defogger General Description When rear defogger switch is turned on with starter switch on, battery voltage is applied to rear defogger through rear defogger relay to ope

Page 2936 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 343 Circuit Diagram (RHD) �%���3�8��� 5.0 W BATT.(+) C-17 25A RR DEFOG 3.0 B/Y STARTER SW (IG1) C-4 10A ELEC. IGN. 3.0 L/W 3.0 B/L 3.0 B/L 3.0 B/L 3.0 B 3.0 B2.0 B 0.85 B 2.0
