Page 2801 of 3573

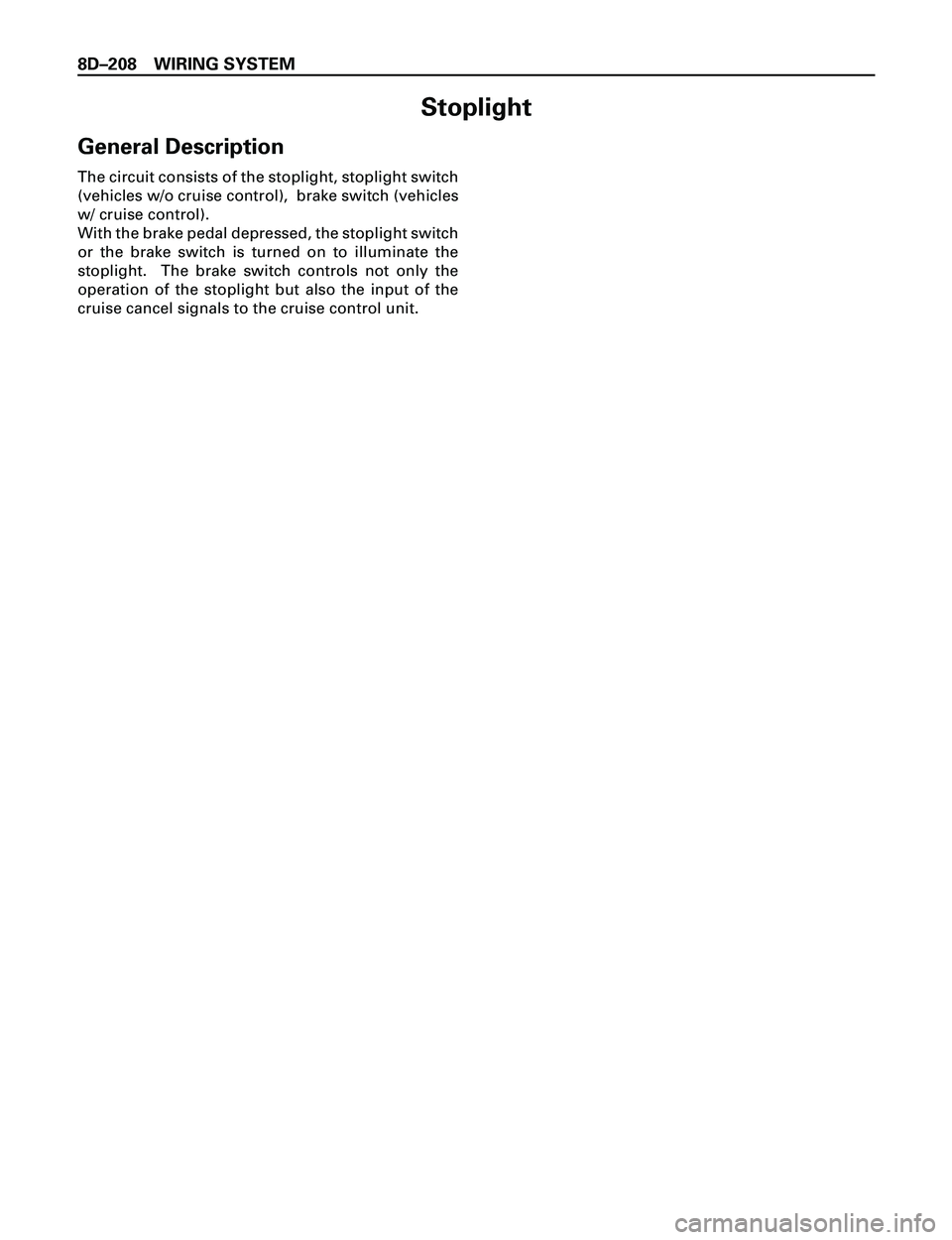

ISUZU TROOPER 1998 Service Repair Manual 8DÐ208 WIRING SYSTEM Stoplight General Description The circuit consists of the stoplight, stoplight switch (vehicles w/o cruise control), brake switch (vehicles w/ cruise control). With the brake pe

Page 2802 of 3573

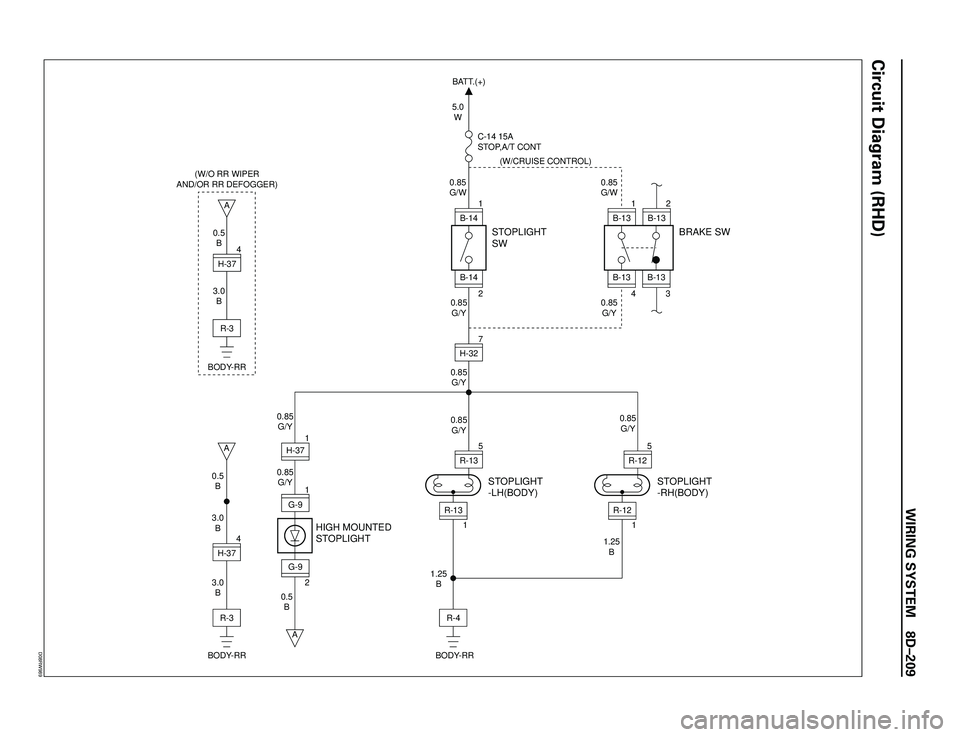

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ209 5.0 W 0.85 G/W0.85 G/W (W/CRUISE CONTROL) 0.85 G/Y 0.85 G/Y 0.85 G/Y 0.85 G/Y 0.85 G/Y 0.85 G/Y 3.0 B 0.5 B 3.0 B 0.5 B 1.25 B 1.25 BBATT.(+) STOPLIGHT SW STOPLIGHT -LH(BODY) HIG

Page 2803 of 3573

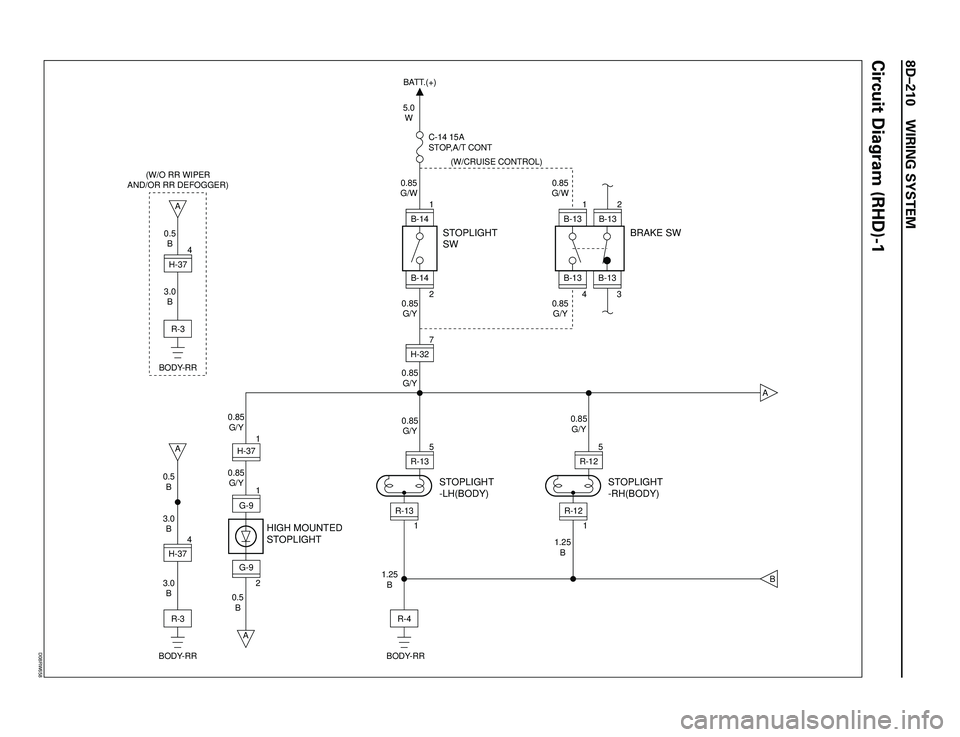

ISUZU TROOPER 1998 Service Repair Manual 8DÐ210 WIRING SYSTEM 5.0 W 0.85 G/W0.85 G/W (W/CRUISE CONTROL) 0.85 G/Y 0.85 G/Y 0.85 G/Y 0.85 G/Y 0.85 G/Y 0.85 G/Y 3.0 B 0.5 B 3.0 B 0.5 B 1.25 B 1.25 BBATT.(+) STOPLIGHT SW STOPLIGHT -LH(BODY) HIG

Page 2804 of 3573

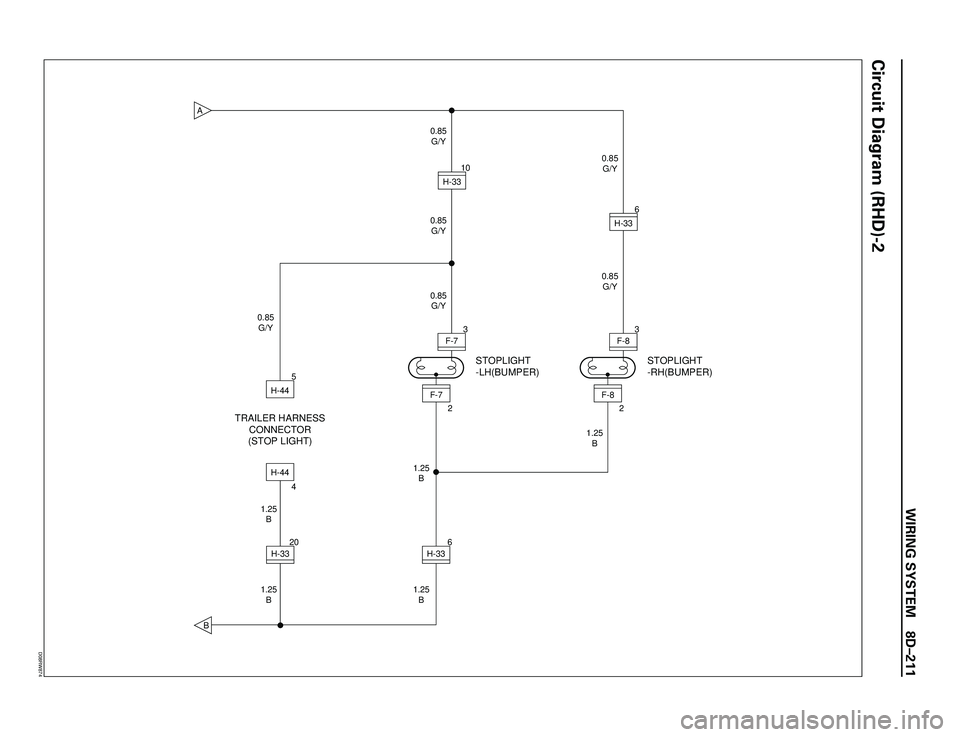

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ211 0.85 G/Y 0.85 G/Y 1.25 B 1.25 B 1.25 B 1.25 B 1.25 B 2F-83 6 F-8 H-33 0.85 G/Y 0.85 G/Y 0.85 G/Y 0.85 G/Y10 H-33 STOPLIGHT -RH(BUMPER) 2F-7 H-333F-7 STOPLIGHT -LH(BUMPER) TRAILER

Page 2805 of 3573

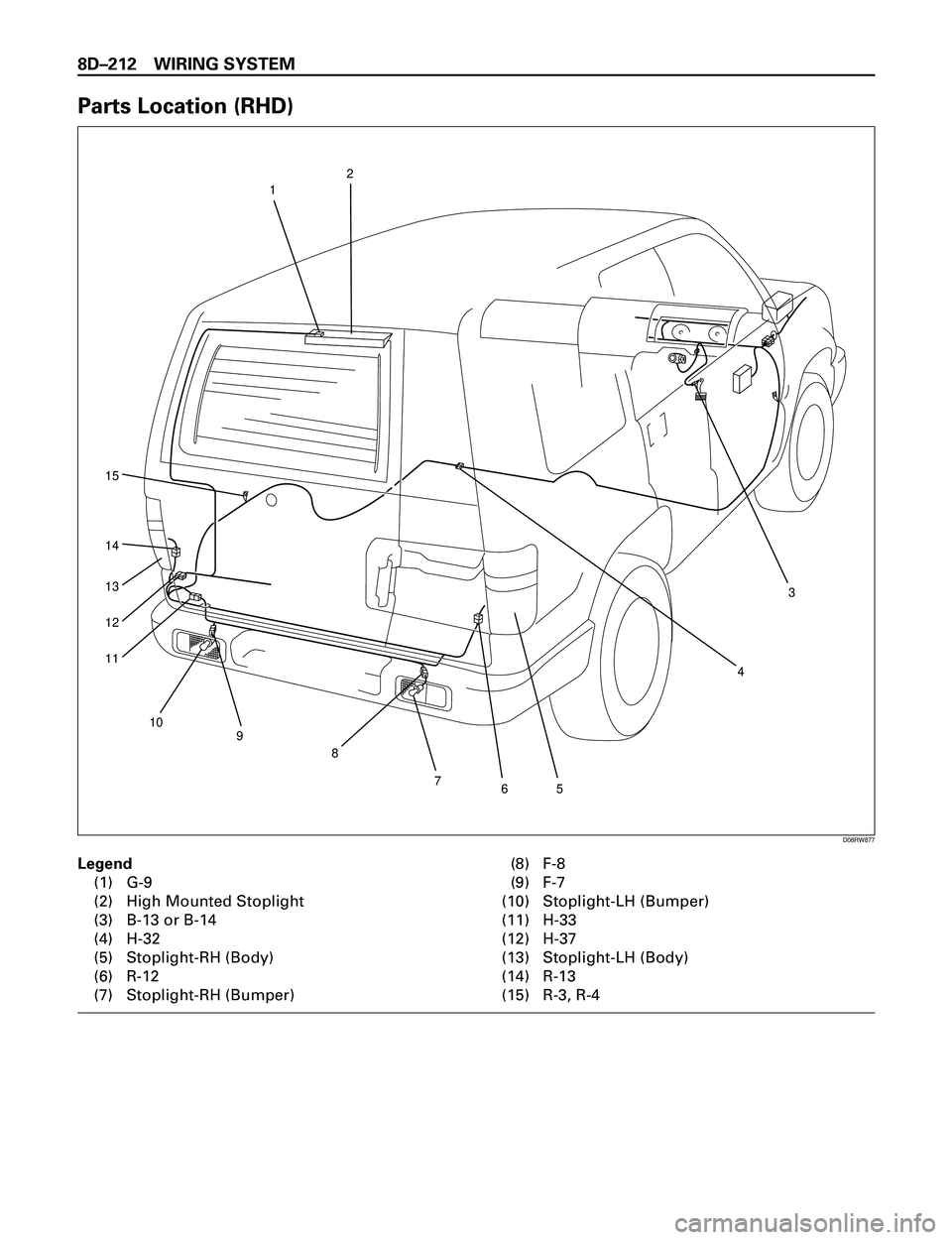

ISUZU TROOPER 1998 Service Repair Manual 8DÐ212 WIRING SYSTEM Parts Location (RHD) Legend (1) G-9 (2) High Mounted Stoplight (3) B-13 or B-14 (4) H-32 (5) Stoplight-RH (Body) (6) R-12 (7) Stoplight-RH (Bumper)(8) F-8 (9) F-7 (10) Stoplight-

Page 2806 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ213 5.0 W 0.85 G/W0.85 G/W (W/CRUISE CONTROL) 0.85 G/Y 0.85 G/Y 0.85 G/Y 0.85 G/Y 0.85 G/Y 0.85 G/Y 1.25 B 3.0 B 0.5 B 3.0 B 0.5 B 1.25 B BATT.(+) STOPLIGHT SW STOPLIGHT -LH HIGH MOU

Page 2807 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ214 WIRING SYSTEM 5.0 W 0.85 G/W0.85 G/W (W/CRUISE CONTROL) 0.85 G/Y 0.85 G/Y 0.85 G/Y 0.85 G/Y 0.85 G/Y 0.85 G/Y 0.85 G/Y 3.0 B 0.5 B 3.0 B 0.5 B 1.25 B/L 1.25 B/L 1.25 BBATT.(+) STOPLIGHT SW STO

Page 2808 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ215 Parts Location (LHD) 12 3 4 5 7 6 891011 12 13 14 1516 D08RW940 Legend (1) G-9 (2) High Mounted Stoplight (3) Stoplight-RH (Body) (4) R-12 (5) Stoplight-RH (Bumper) (6) F-8 (7) S
